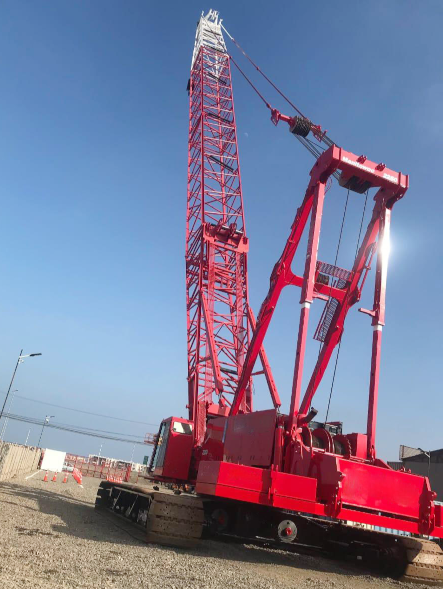

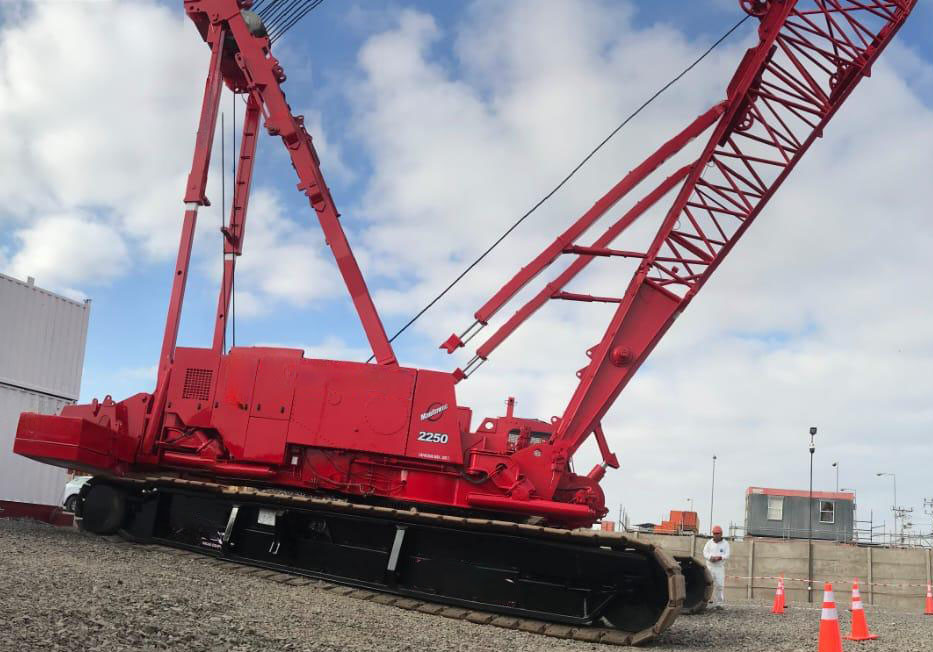

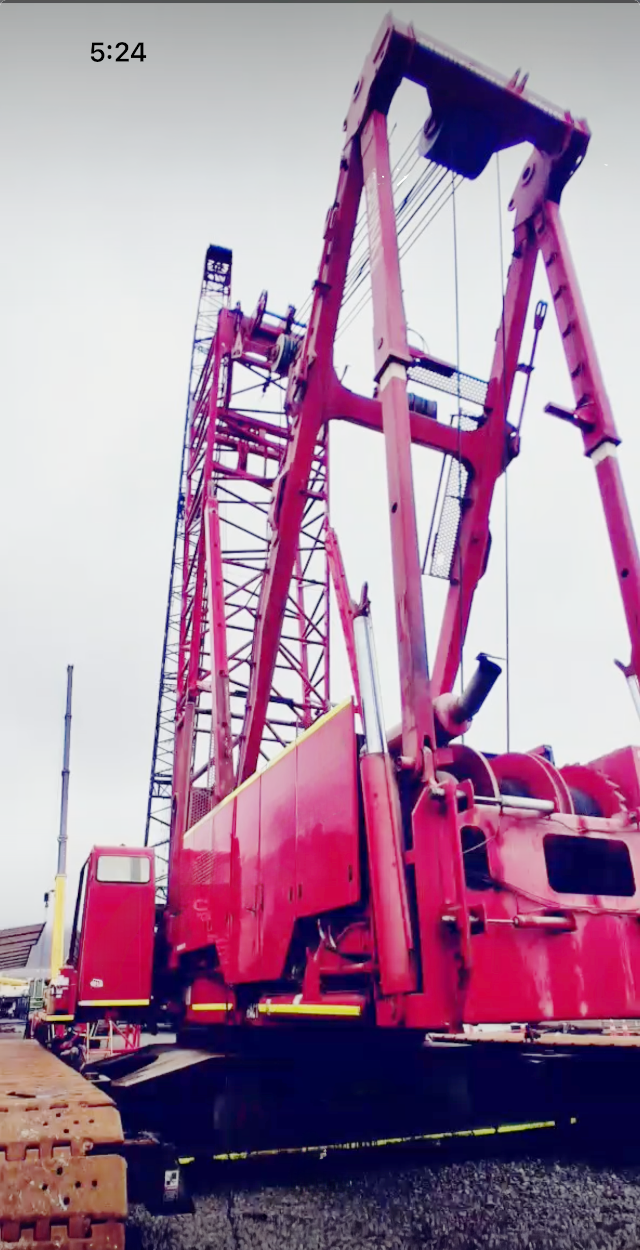

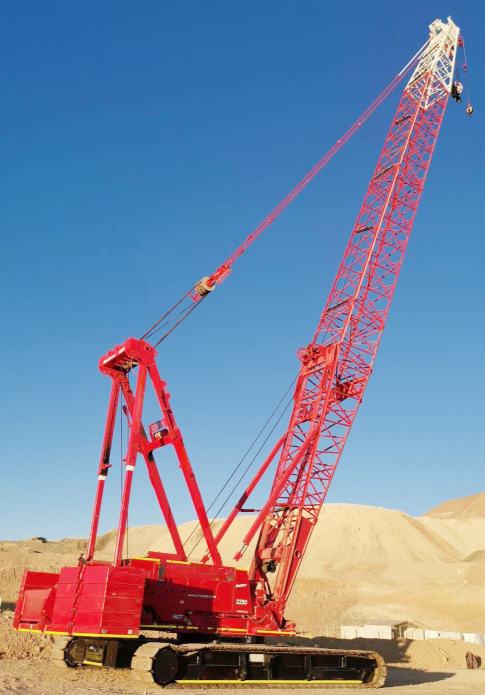

2010 Manitowoc 2250SIII, 300 Ton, Lattice Boom Crawler Crane; CranesList ID: 1089
- 67.1 m (220') #44 Main Boom with FACT Connectors
- 36 m (118') #132 Fixed Jib,
- 61 m (200') #133A Luffing Jib,
- Gantry includes hydraulic raising cylinders capable of lifting the upperworks counterweight for installation and removal. Counterweight attaches to rotating bed with power actuated pins,
- Main and Auxiliary Winches with 1 1/8" wire rope with 3rd Drum with 1" wire rope,
- EPIC: Manitowoc’s field-proven Electronically Processed Independent Controls (EPIC) system delivers high productivity and precise load control by instantly matching an operator's commands to the crane function. EPIC’s microprocessor maximizes a Manitowoc crane’s function capability and simplifies servicing by pinpointing any problem in the crane’s engine, power transmission and other operating systems. In addition, EPIC increases versatility by easily tailoring a Manitowoc crane’s operation for specialized applications, with or without attachments. EPIC is a key reason no other crane can match the performance and reliability of Manitowoc,
- Hook Ball and Hook Block,
- Operator's Cab: Fully enclosed and insulated steel module mounted at left front corner of rotating bed on a pivoting frame that permits cab to be repositioned for transportation. Module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, dome light, sun visor and shade, fire extinguisher, air circulating fan, swing and travel alarms, Air Conditioning for operator's cab and anemometer (wind indicator) are standard,
- Carbody: Connects rotating bed and crawler frames. Fabricated steel rotating bed lower module mounts to single-carbody by 2,9 m (9' 8") diameter triple-row rollerbearing turntable. Each crawler frame is mounted tothe carbody with FACT™ connection system power actuated pins. Crawler drive motors are mounted on carbody. Permits crawler removal without opening travel drive hydraulic circuit,
- Cummins Model QSX15-C500, 6 cylinder, (500 BHP) Diesel Engine,
- Crawlers: Crawler assemblies are 9,40 m (30' 9") long with1,22 m (48") wide cast steel crawler pads and sealed“low maintenance” intermediate rollers. Each crawler is powered independently by a variable displacement hydraulic motor. Carbody mounted drive motors are connected to crawler final reduction via telescoping shafts. This permits crawlers to be removed without opening their hydraulic circuits. Crawlers provide ample tractive effort for counter rotation with full rated load,
- 249,200# Counterweights - SUBJECT TO FINAL CONFIRMATION,
- Very well maintained with records available,
- Meets U.S. EPA standards,
- This price includes breakdown and delivery of the complete package to the Chilean load port. Ocean freight, insurance, and destination charges are the buyer’s responsibility. A pre-arranged ocean freight option to a major U.S. Gulf port is available at the buyer’s expense (Port of Houston) (current project-cargo rates – subject to change if not acted on quickly).
- Inspection in Chile is welcome by appointment.
LOCATED IN CHILE!
