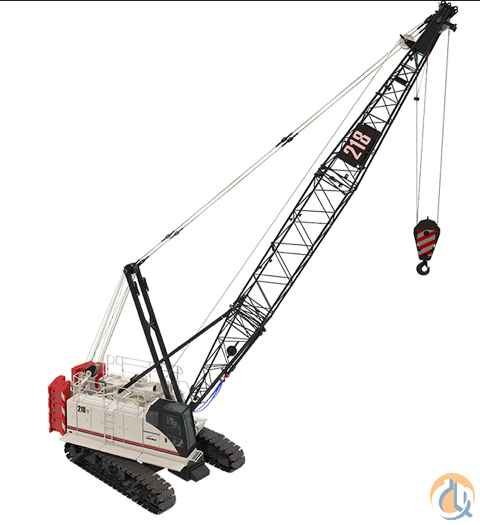

2024 Link-Belt 218-V 110 ton Lattice Boom Crawler Crane
In stock and ready for work!
Located in Ashland, VA
| Base Rating | 110 USt @ 11 ft Tube Boom |
| Boom Lengths | 40 - 230 ft (w/ 10 ft incr.) |
| Fixed Jib Lengths | 30 - 75 ft (w/ 15 ft incr.) |
| Fixed Jib Offsets | 5, 15, & 25 degrees |
| Maximum Tip Height (Fixed Jib) | Tube = 279 ft |
| Engine Make & Model | Cummins QSB 6.7 Tier V |
| Horsepower | 280 hp @ 2000 rpm |
| Maximum Hoist Pull / Speed | 44,565lbs /241 ft/min |
| Counterweight Option 5 | 67,790 lbs Upper 30,200 lbs lower |
| Working Weight | 204,470 lbs |
| Main Transport Load | 99,960 lbs |
