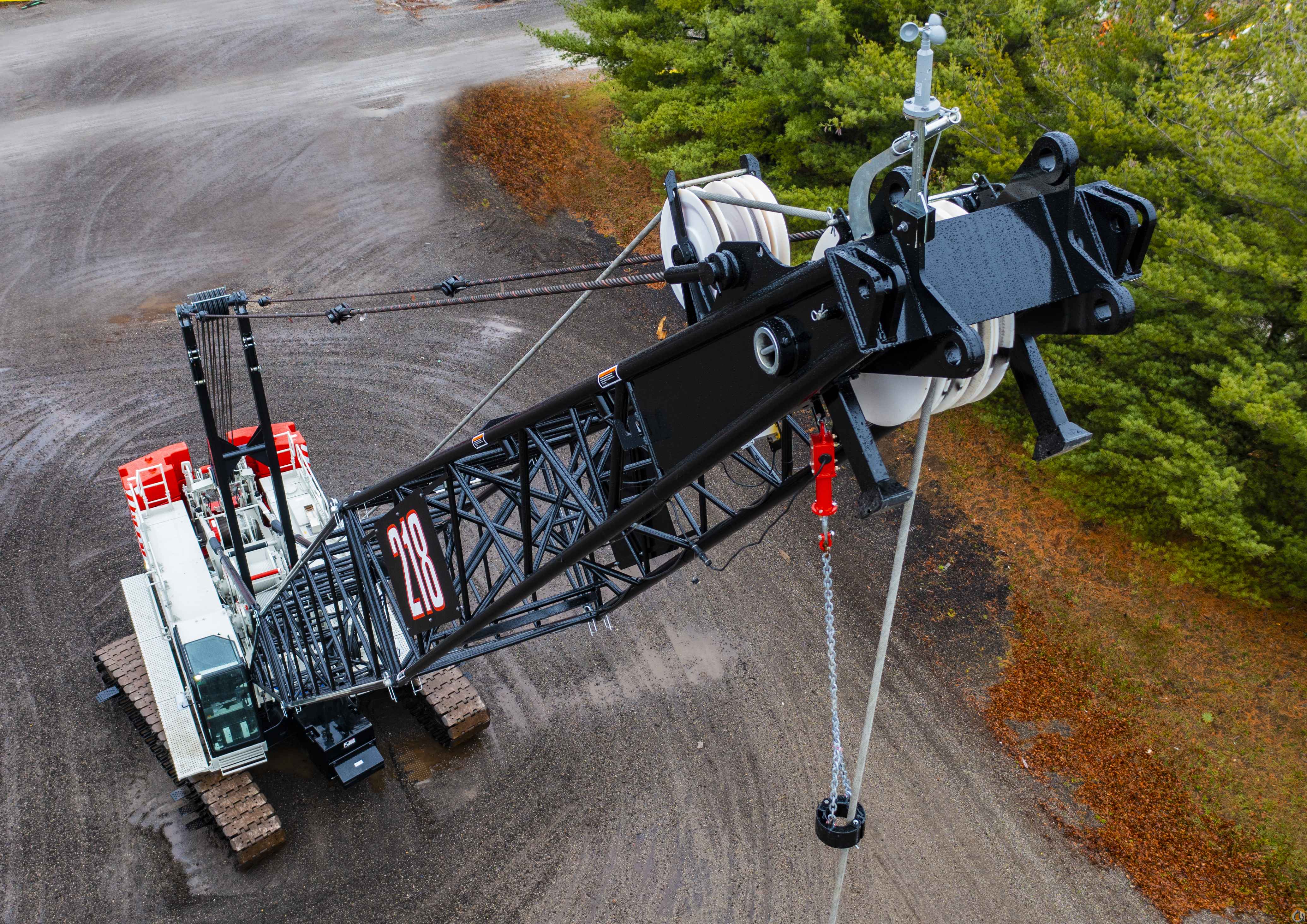

v 150 Feet of Tube Boom with Hydraulic Quick Draw for Machine Assembly / Disassembly
v 22-foot Live Mast with Rigid Sheave Guard, 12-Part Boom hoist Reeving
v Hydrostatically Driven Side Frame Assemblies Provide 14’-2” Extended Gauge
v Side Frames are Equipped with 36” Track Shoes and Mechanical Track Adjustment
v Three (3) Variable Displacement Piston Pumps Provide Control for Hoist Drums, Travel, and Swing
v Three (3) Gear Type Pumps are Used for Pilot Pressure, Cylinder Retract, and Counterweight Removal
v Matching Front and Rear Hoist Drums include Power Up/Down or Freefall
v Auxiliary 5 Foot Tip Extension Provides Clearance Between Working Lines

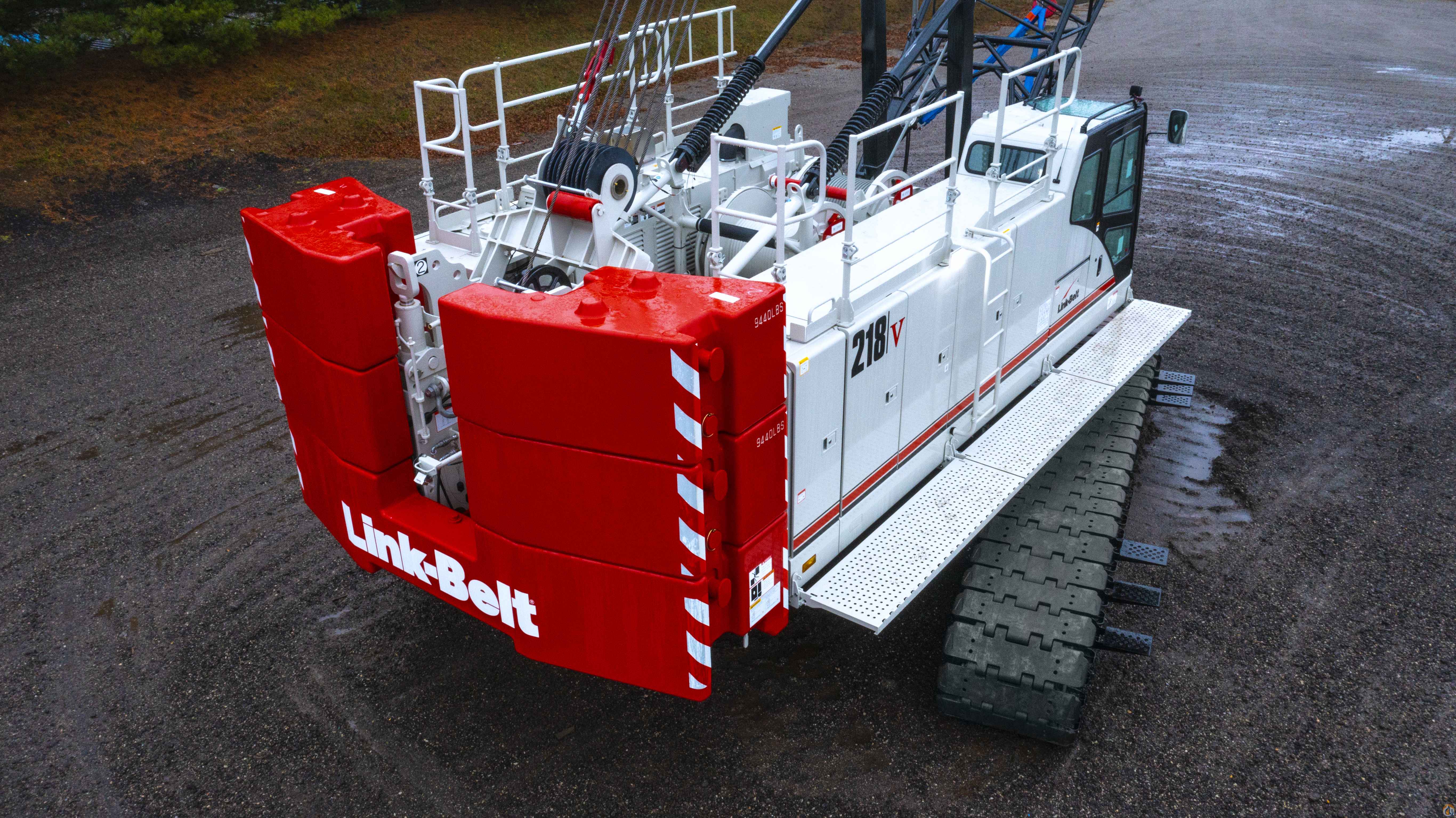

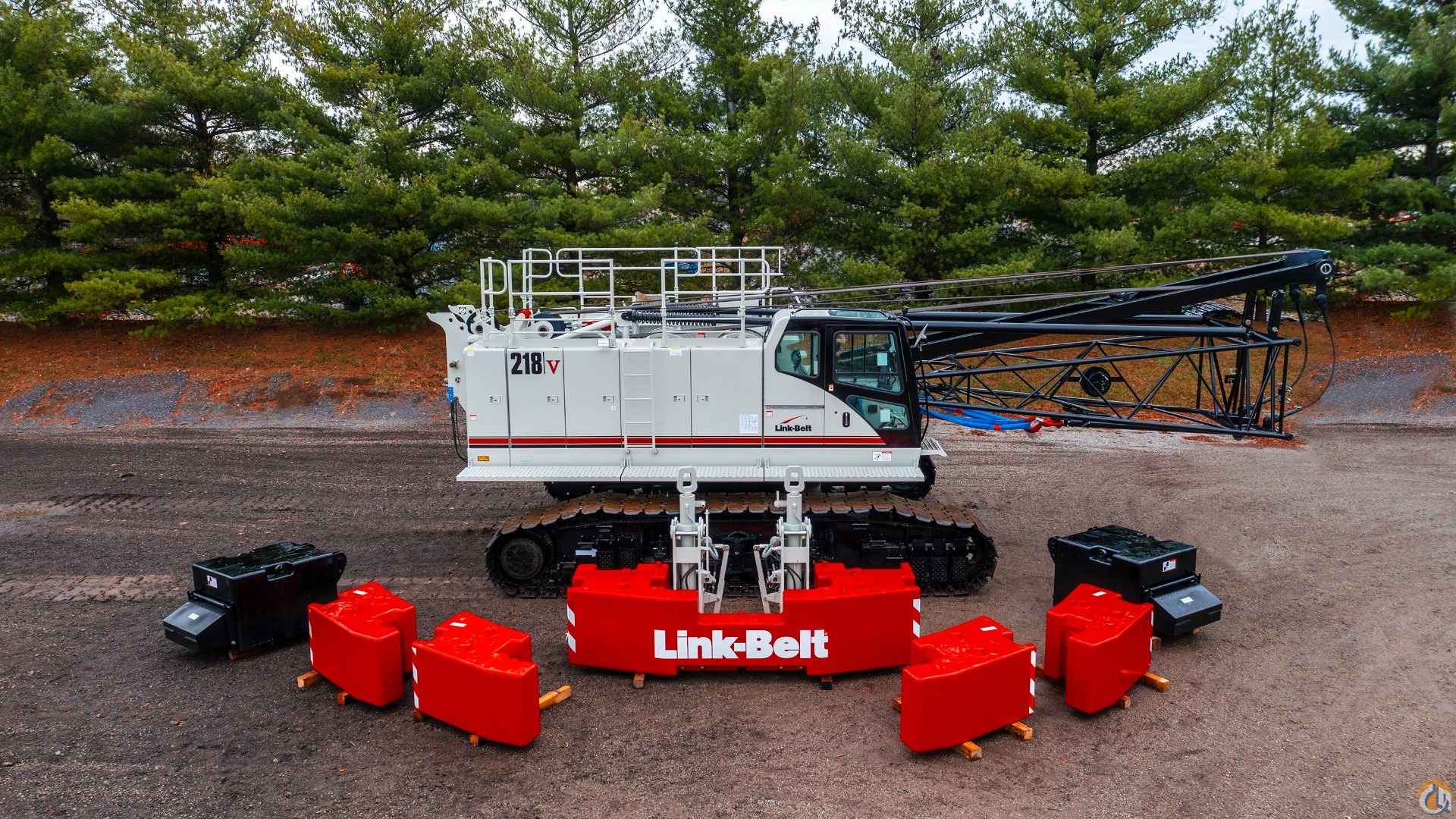

v Full Upper Counterweight Package (A+(2) B wing weights +C) with Hydraulic Removal and Install
v Two (2) Lower Carbody Counterweights
v Cummins QSB 6.7, Stage 5 Diesel engine, Providing 282 HP.
v Fully Enclosed Operator’s Cab with AM/FM Radio, Heater, and Air-Conditioning
v Next Generation Load Moment Limiter with Color Graphic Display
v Single-Axis Armchair Mounted Control Levers
v Left and Right-side Upper Handrails, and Left and Right-side Upper Catwalks
v 90 Ton Hook Block
v 15 Ton Headache Ball
