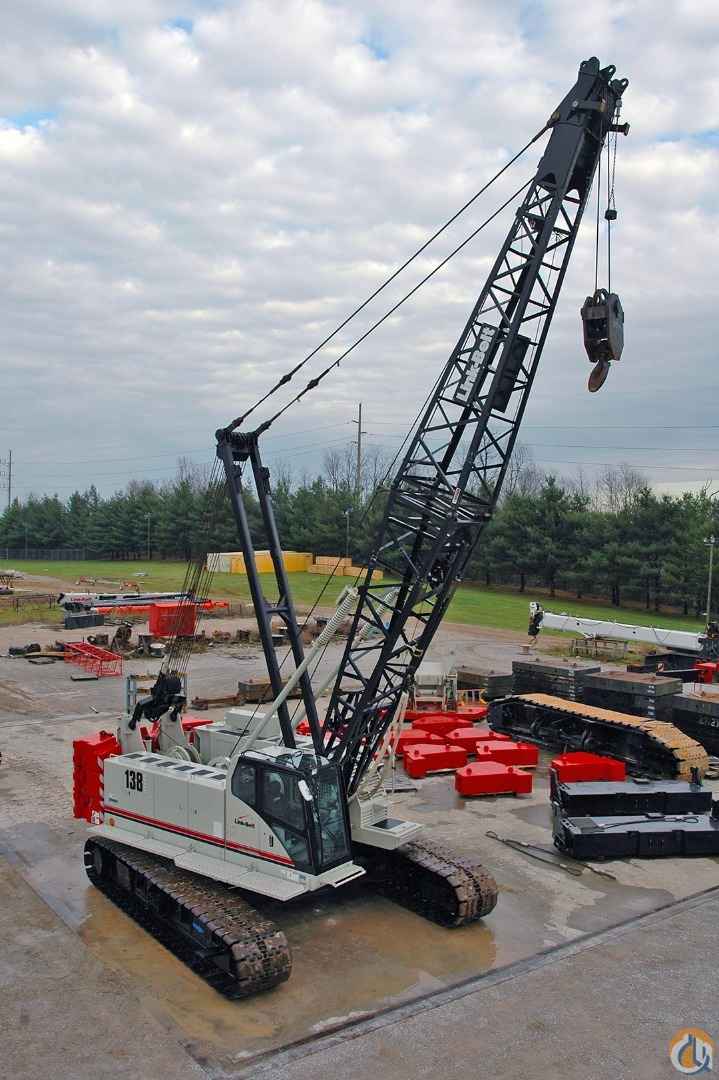

v 150 Feet of Tube Boom with Hydraulic Quick Draw for Machine Assembly / Disassembly
v 22-foot Live Mast with Bridle Assembly, 14-Part Boom hoist Reeving
v Hydrostatically Driven Side Frame Assemblies Provide 14 Ft Extended Gauge
v Side Frames are Equipped with 36” Track Shoes and Hydraulic Cylinder for Track Adjustment
v Two (2) Variable Displacement Piston Pumps Provide Control for Hoist Drums, Right and Left Travel
v Two (2) Gear Type Pumps are Used for Swing, Cylinder Retract, and Counterweight Removal

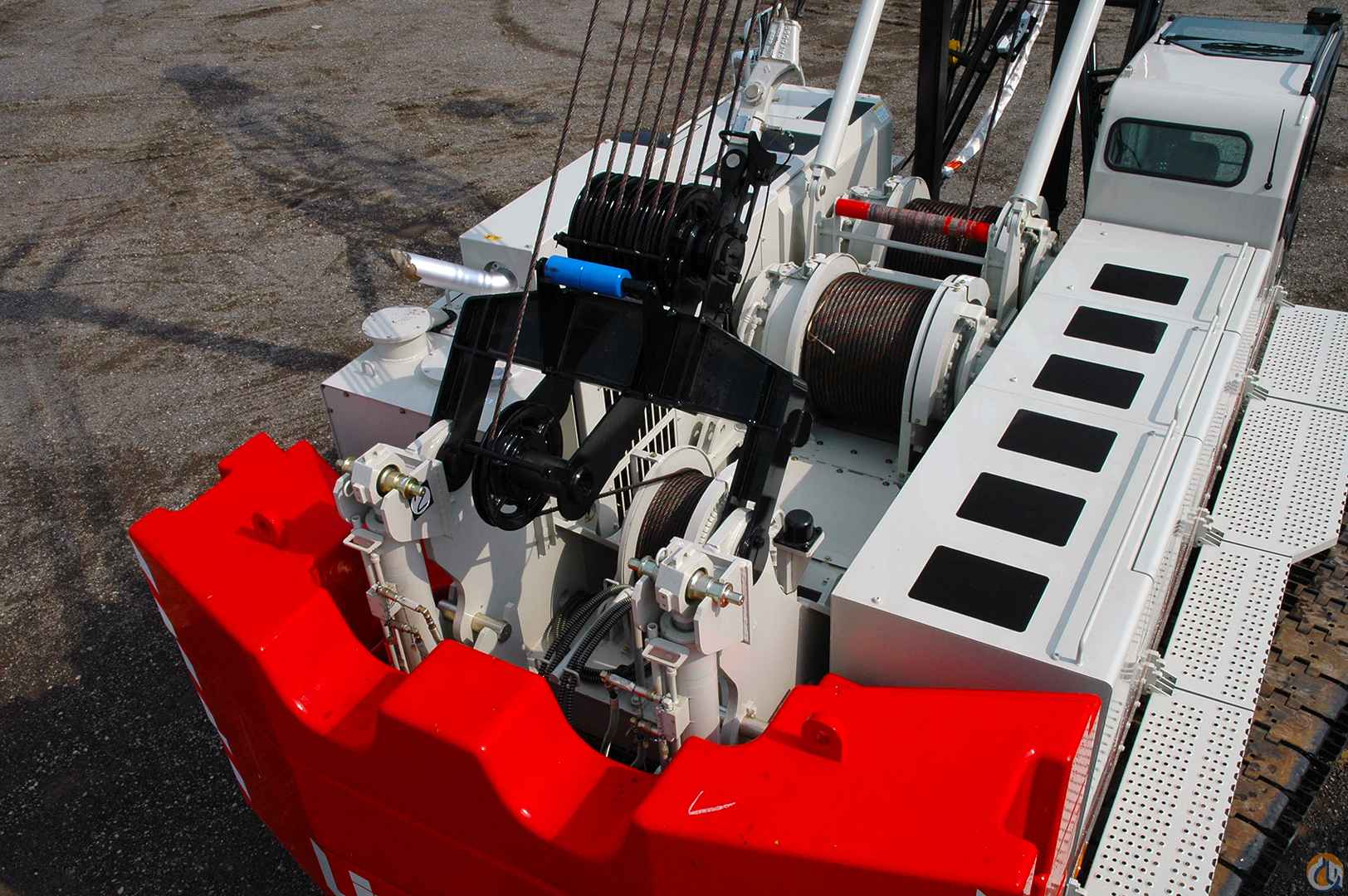

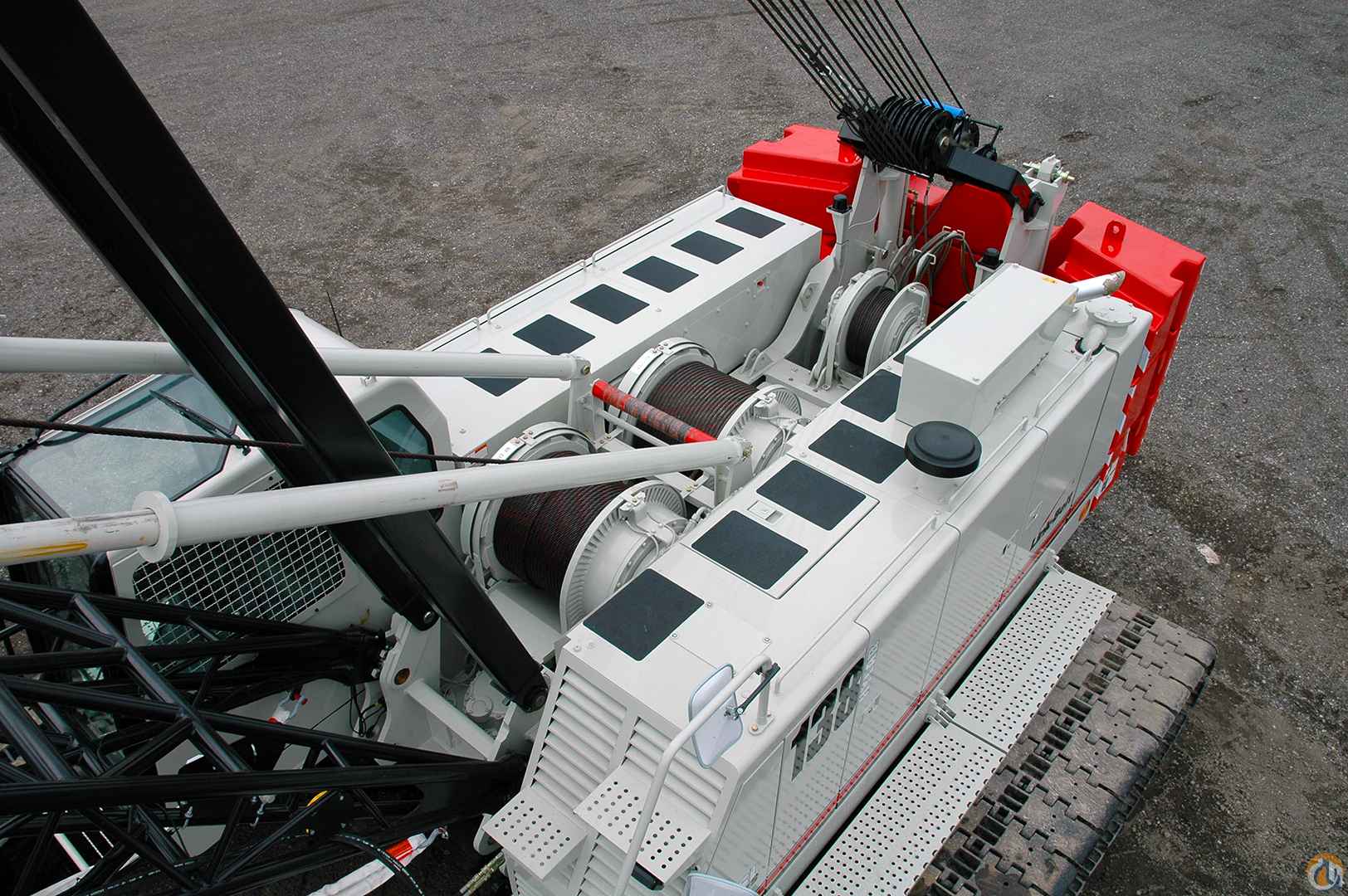

v Matching Front and Rear Hoist Drums include Power Up/Down or Freefall
v Auxiliary 5 Foot Tip Extension Provides Clearance Between Working Lines

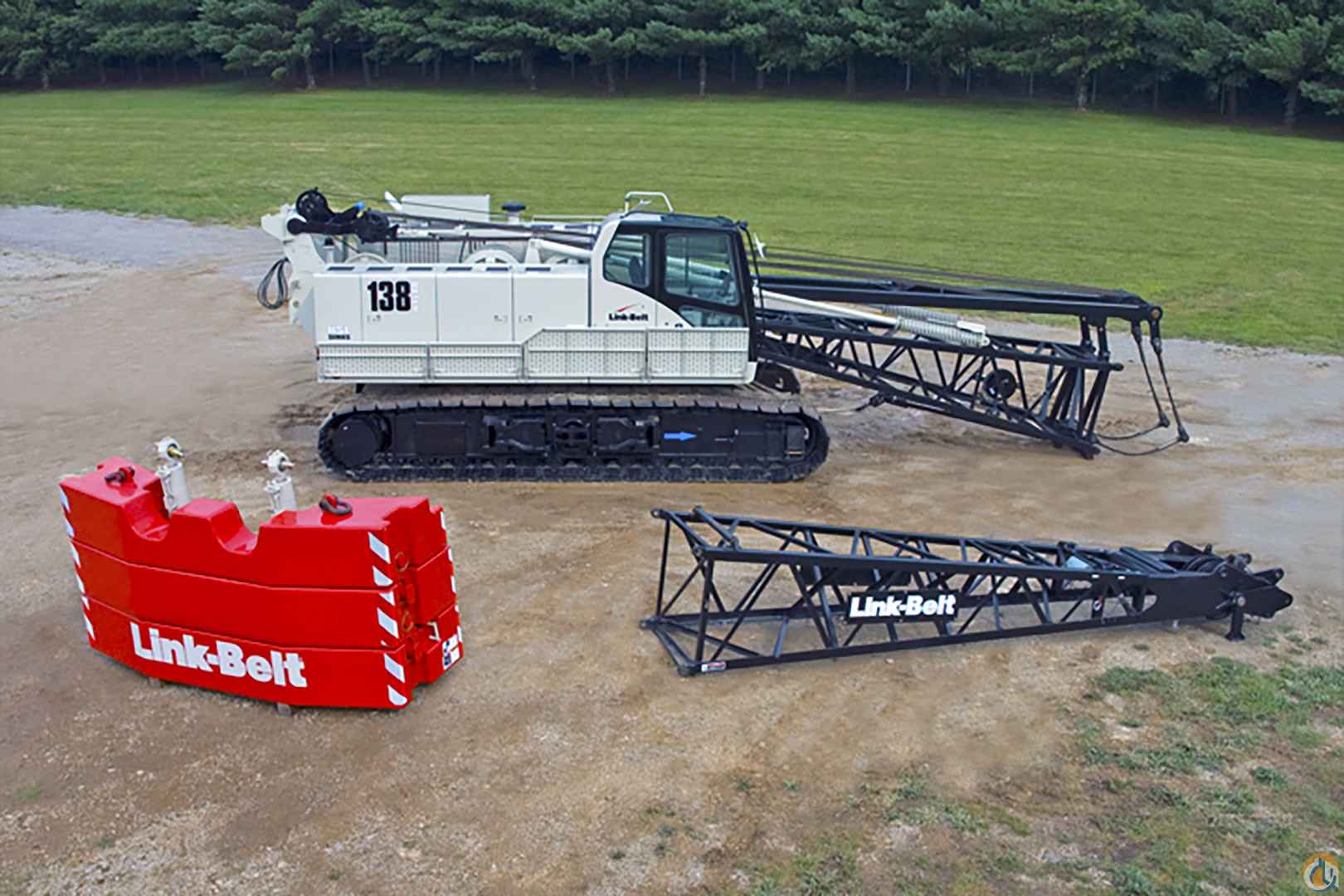

v Full Upper Counterweight Package (A+B+C) with Hydraulic Removal and Install
v Cummins QSB 6.7, Tier 4 Final Diesel engine, Providing 270 HP.

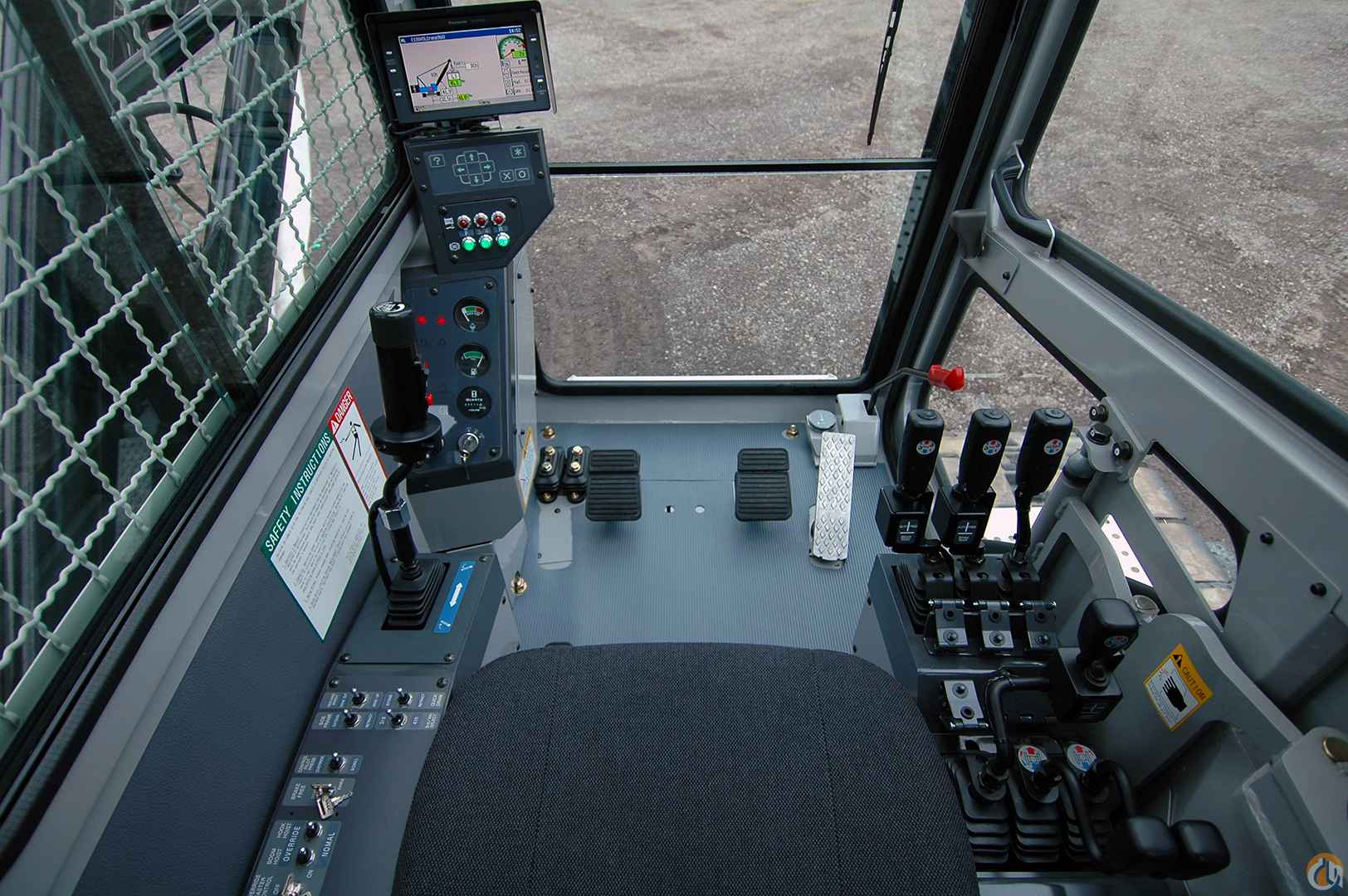

v Fully Enclosed Operator’s Cab with AM/FM Radio, Heater, and Air-Conditioning
v HSL Load Moment Limiter with Color Graphic Display
v Single-Axis Armchair Mounted Control Levers
v Left and Right-side Upper Handrails, and Left and Right-side Upper Catwalks
v 60 Ton Hook Block
v 12 Ton Headache Ball
