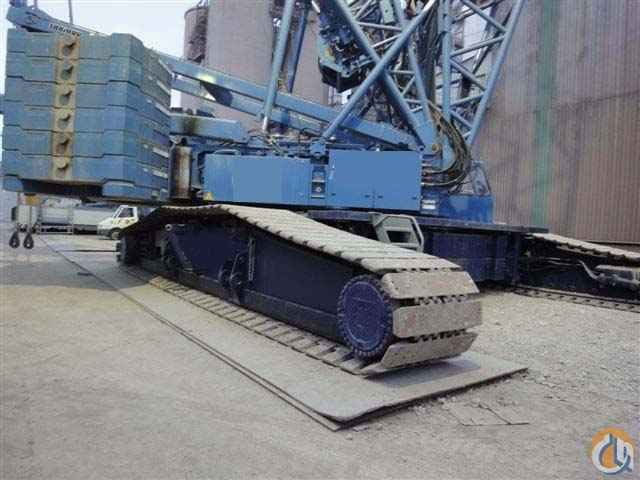

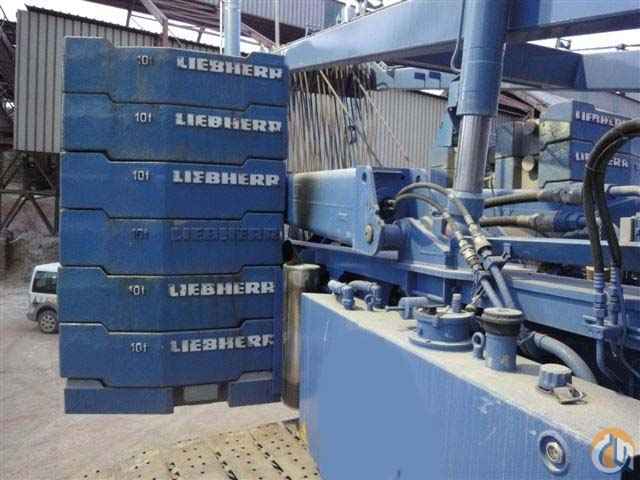

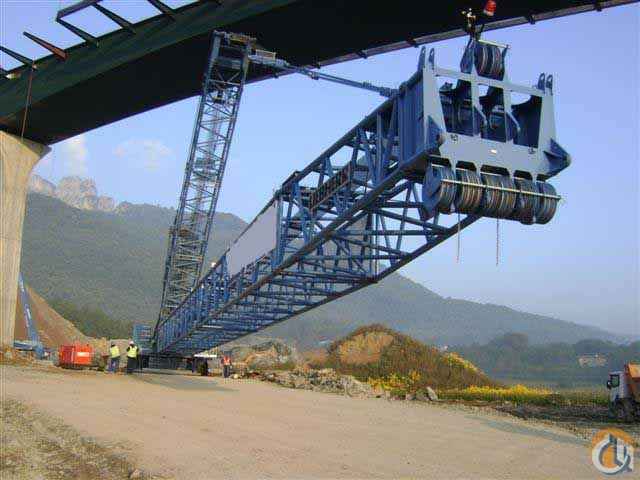

<p><span style="line-height: normal; text-decoration: underline;"><span lang="EN-US">CRANE CARRIER</span></span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Frame</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Driving Gear, double</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Crawler pads, width 1,2m</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Centralized lubrication</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Central ballast 11t</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span style="text-decoration: underline;"><span lang="EN-US">SUPERSTRUCTURE</span></span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Roller slewing ring</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Frame</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Crane engine</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Electrical installation</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Hydraulic system</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Cooling system</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Winch I – hoist gear</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Winch II – hoist gear</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Winch IV – Derricking main boom</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Winch V – Derricking luffing fly jib</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Reeving winch </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Slewing hear, double </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Gantry mast</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> Crane cabin with heating</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Crane Control</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">LICCON – system</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Safety devices</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Camera Observation</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Centralized Lubrication</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Counterweight 15t</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Standard Painting</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Crawler chassis -RAL 7012, basalt grey</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Superstructure and boom sections -RAL 1007, chrome yellow</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Working equipment -RAL 7012, basalt grey</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><em><span lang="EN-US"> </span></em></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span style="text-decoration: underline;"><span lang="EN-US">Equipped as follows:</span></span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Main Boom SL – 91m Consisting of</span></p> <p class="MsoNormal" style="margin-top: 0cm; margin-right: 0cm; margin-bottom: .0001pt; margin-left: 54.0pt; text-indent: -18.0pt; line-height: normal; text-autospace: none;"><span lang="EN-US">(1)<span style="font: 7.0pt "Times New Roman";"> </span></span><span lang="EN-US">G16 - Pivot Section – Heel section</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (2) G18 - 14 m S-intermediate sections </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (1) G17 – 7m S-intermediate section</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (1) G2 – 7m L-intermediate section</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (2) G3 – 14m L-intermediate sections </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (1) G4 – 7m L-adapter + Midpoint Suspension Cables</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US"> (1) G5 – 250t Head Piece</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span style="Cambria","serif";" lang="EN-US"> </span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Preparation derrick system D</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Preparation for counterweight trailer BW </span><span style="Cambria","serif";" lang="EN-US">(incl. two additional slewing gears)</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span style="Cambria","serif";" lang="EN-US">Hook block 80 t – 3 sheaves</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span style="Cambria","serif";" lang="EN-US">Hook block 36 t – 1 sheave</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Whip line, capacity 36 t (L, SL, S, N, W, F)</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><strong><span lang="EN-US">Additional Central Ballast Counterweight 32t for Total 43t (94800lbs total)</span></strong></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><strong><span lang="EN-US">Additional Superstructure Ballast Counterweight 140t for Total 155t (341800lbs total)</span></strong></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Mechanical outriggers for erecting of long boom combinations</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Hydraulic assembly jacks for lifting of the basic crane for assembly</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Additional driving hears 4fold drive</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Air Condition in crane cabin</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Quick connection</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Hydraulic assembly cylinder for self-assembly of crawler carriers</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Pin Pulling Device</span></p> <p class="MsoNormal" style="margin-bottom: .0001pt; line-height: normal; text-autospace: none;"><span lang="EN-US">Programmed for L, SL, S, N, W, F2, D + BW Charts</span></p>
