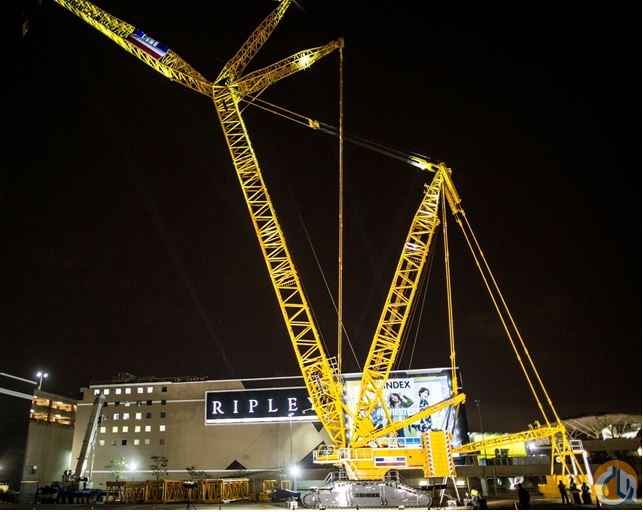

Liebherr LR 11000 Crawler Lattice Boom Crane (Sold)

ONE 2015 Pre-owned / Unused 1,000 METRIC TON CRAWLER CRANE

LIEBHERR LR 11000 Unit 8206

SCOPE OF DELIVERY

10 - Basic machine

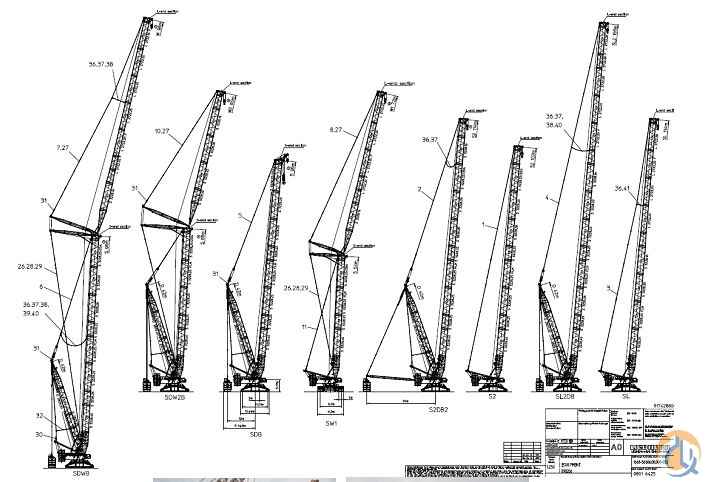

WORKING EQUIPMENT

MAIN BOOM S

System 3228

S-head section for max. capacity of 1000 t

Sheave sets for total 650 t

incl. safety ropes and catwalks

33 - Main boom S - 96 m

DERRICK SYSTEM D

System 2825

incl. hydraulic compensation cylinders, safety ropes and catwalks

(additionally winch III is required)

140 - Derrick-System D 42 m

COUNTERWEIGHT FRAME B

for max. derrick counterweight of 450 t

at max. radius of 30 m

For infinitely variable radii from 12 - 20 m

Counterweight frame, dead weight approx. 15 t

Radius displacement through derrick mast

(without counterweight plates)

145 - Counterweight frame B - 12-20 m

149 - Guiding frame B2 - 20 m, 25 m, 30 m

147 - Counterweight plates 440 t for total derrick counterweight of 450 t

LUFFING FLY JIB W

INCL . WV – SYSTEM

System 3228/2722

W-head section for max. capacity of 650 t

Sheave set from main boom S

incl. safety ropes and catwalks(additionally winch V is required)

122 - Lattice type luffing jib W - 96 m

Guy rods: WA-gantry II - S-pivot section

194 - Guy rods S 96 m

WINCHES

212 - Winch II - hoist gear

213 - Winch III - for derrick operations

215 - Winch V - adjustment of luffing jib

216 - Winch VI - auxiliary hoist gear (rope 28 mm)

HOOKBLOCKS

230 - Modular hook block, 1000 t 650 t / 550 t 325 t, 2 x 13 sheaves

231 - Extension of standard sheave sets from 650 t to 1000 t (S-head section)

234 - Hookblock 5 sheaves (250 t)

236 - Hookblock 1 sheave (80 t)

WHIPLINE

(Winch VI)

250 - Whip line, capacity 32 t*

COUNTERWEIGHT

660 - Additional central ballast 80 t for total 90 t

662 - Additional counterweight 240 t for total 250 t

ADDITIONAL EQUIPMENT

320 - Mechanical outriggers for erecting of long boom combinations

325 - Hydraulic assembly jacks for lifting of the basic machine for assembly/disassembly

640 - Hydraulic assembly cylinder for self-assembly of crawler carries

650 - Pin pulling device

765 - Emergency operation

PAINTING / LETTERING

925 - Painting Liebherr Standard

Approximate hours: 300 hours on crane from training and demonstrations

Availability: available now ex-Panama FTZ - free trade zone (subject to prior sale)

**Freight to major US Ports is included. Please inquire about ports served.
