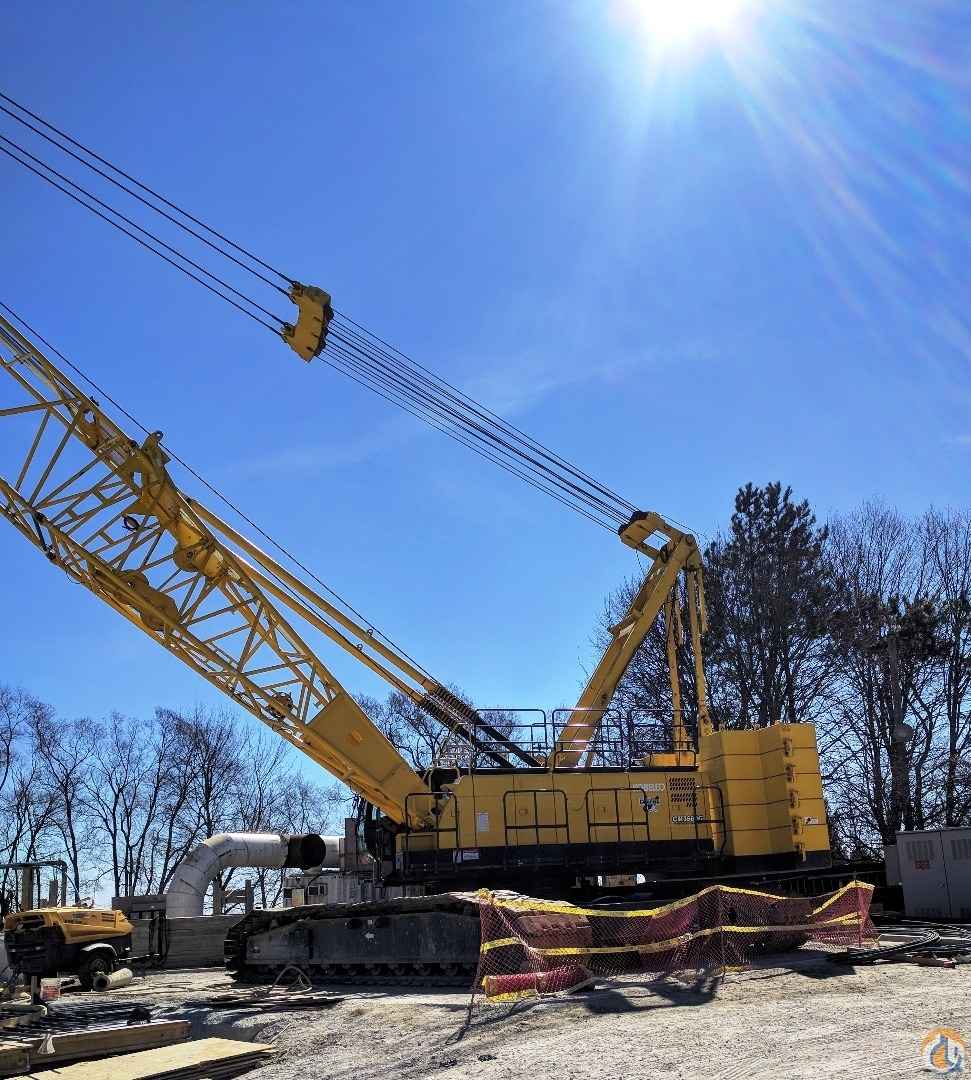

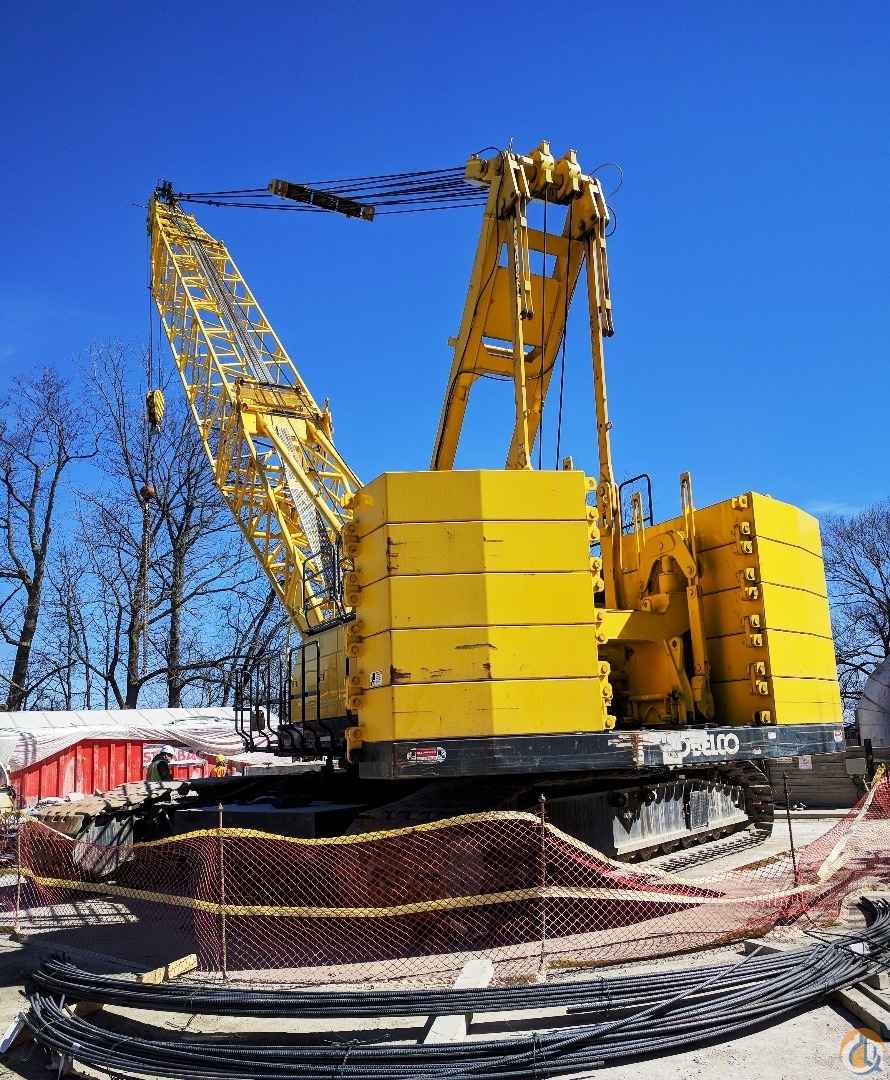

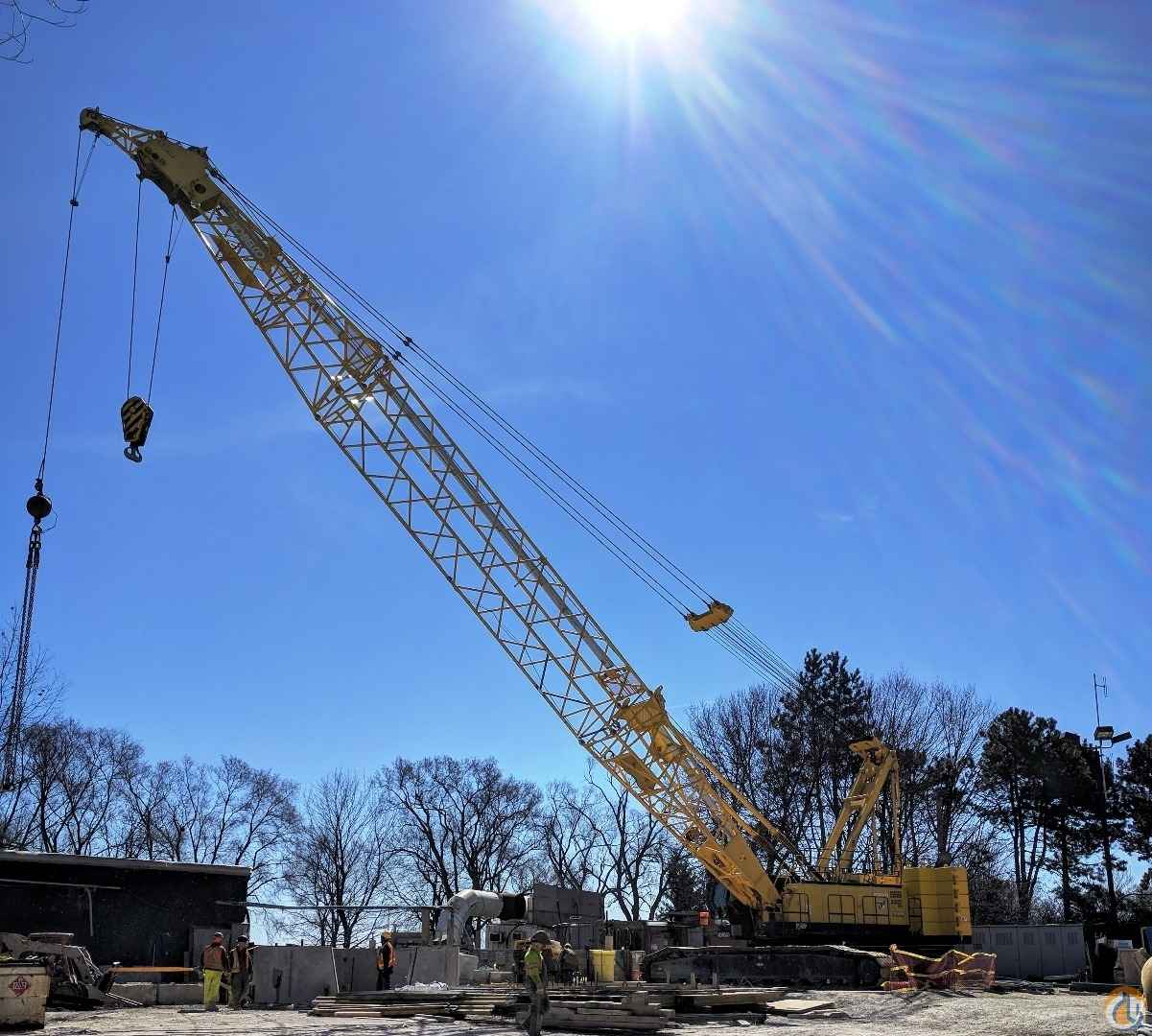

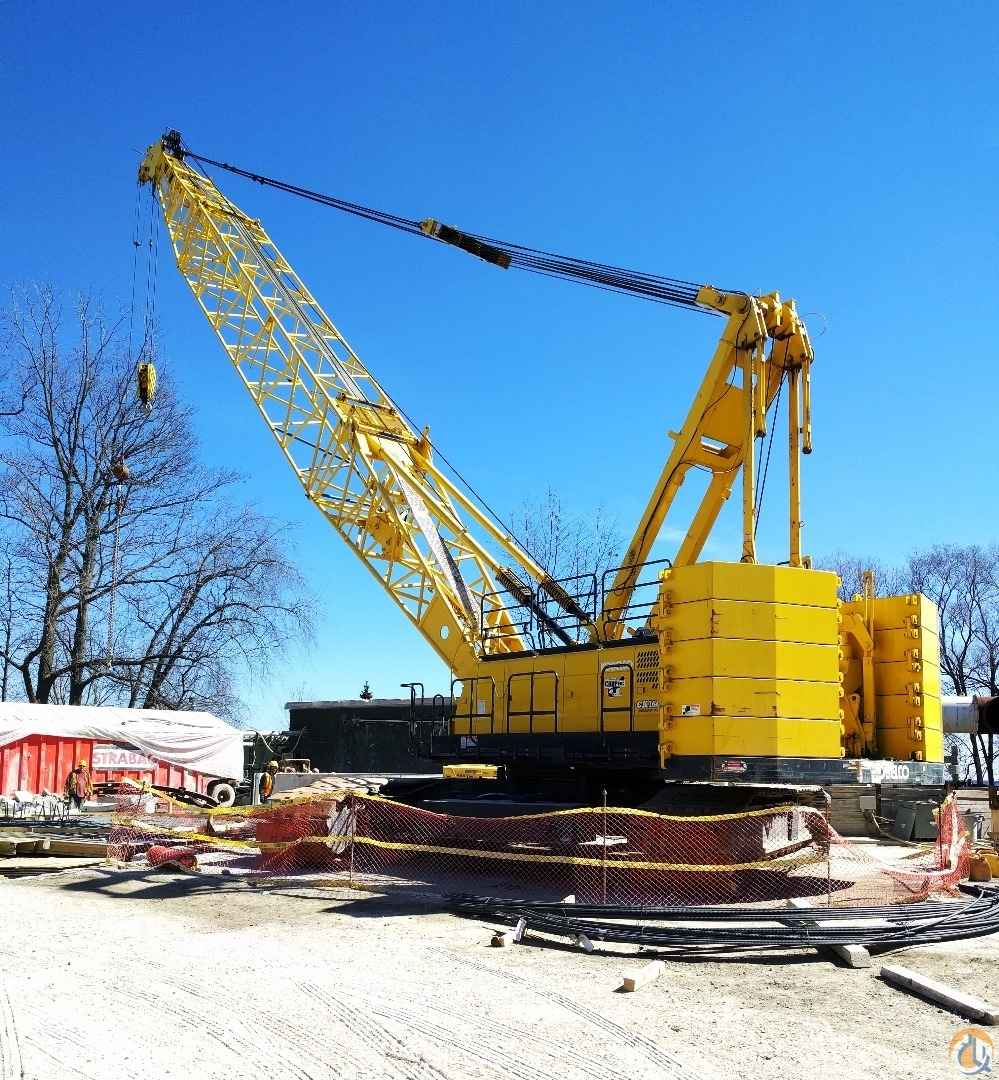

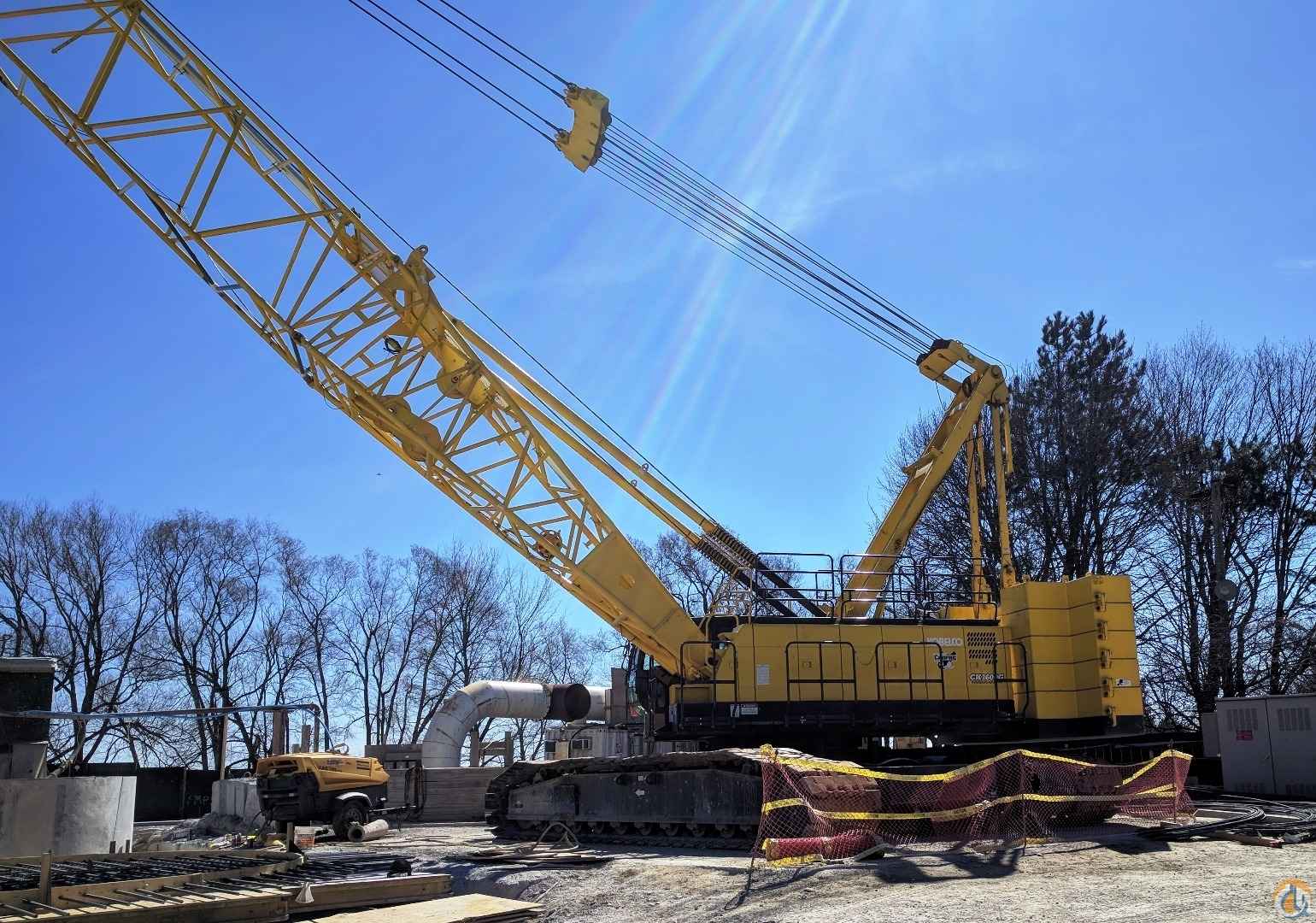

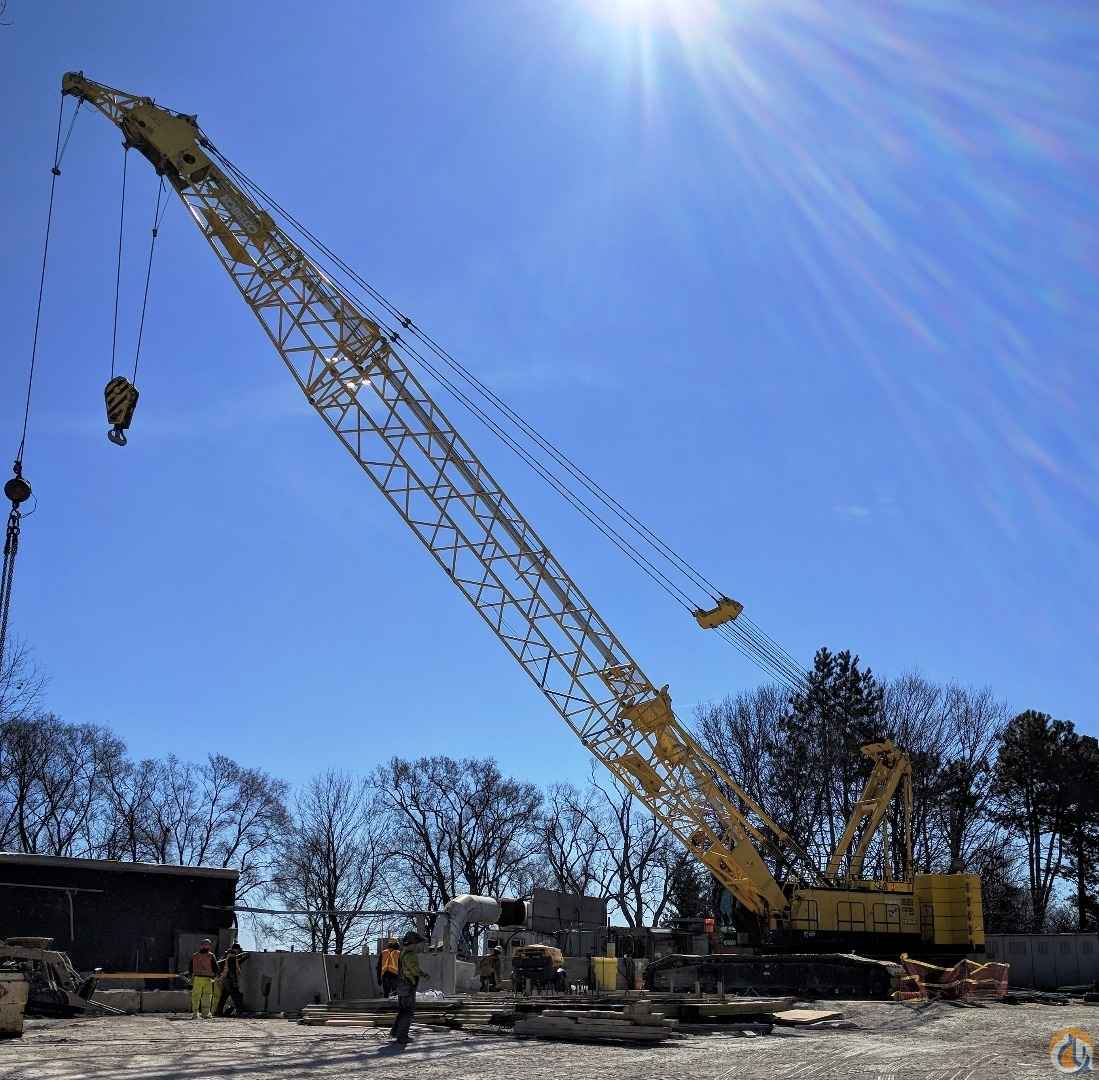

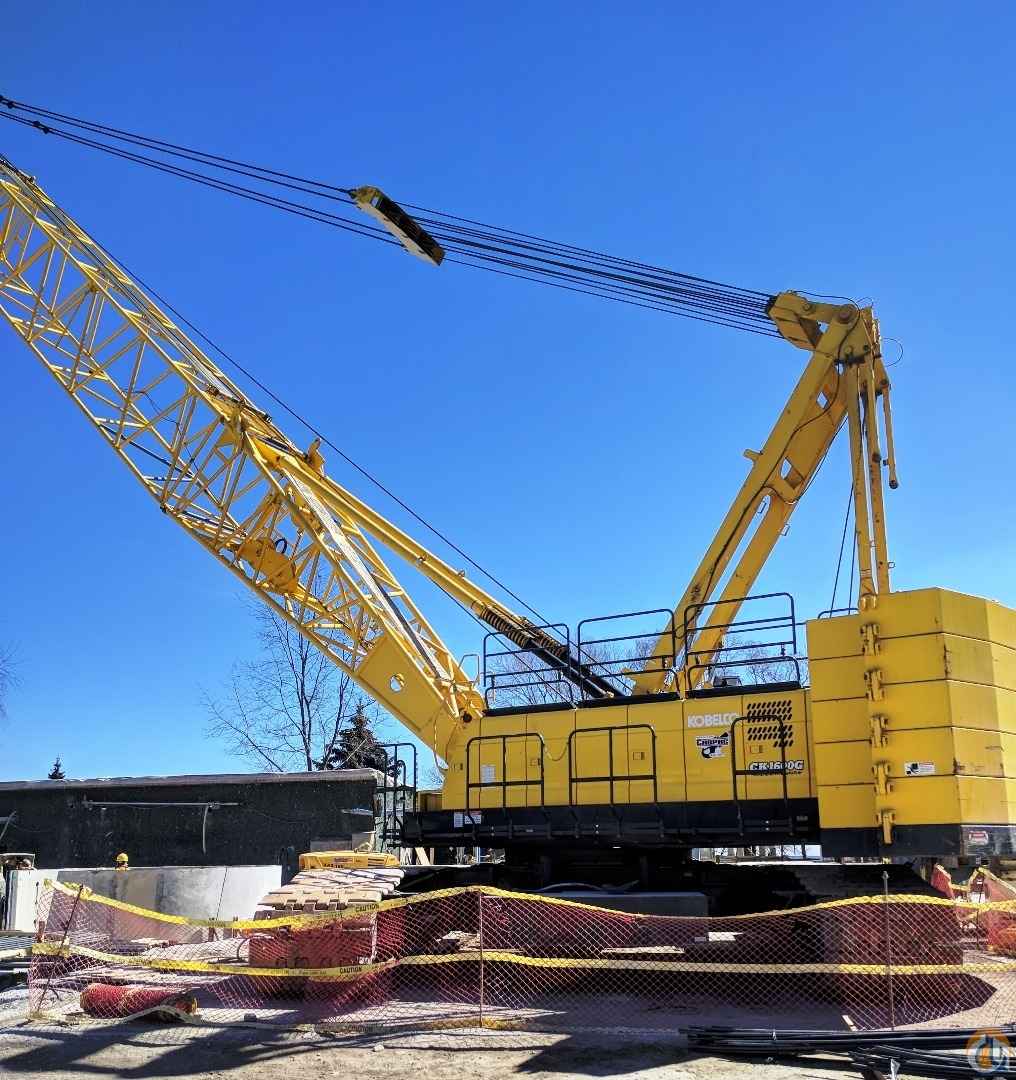

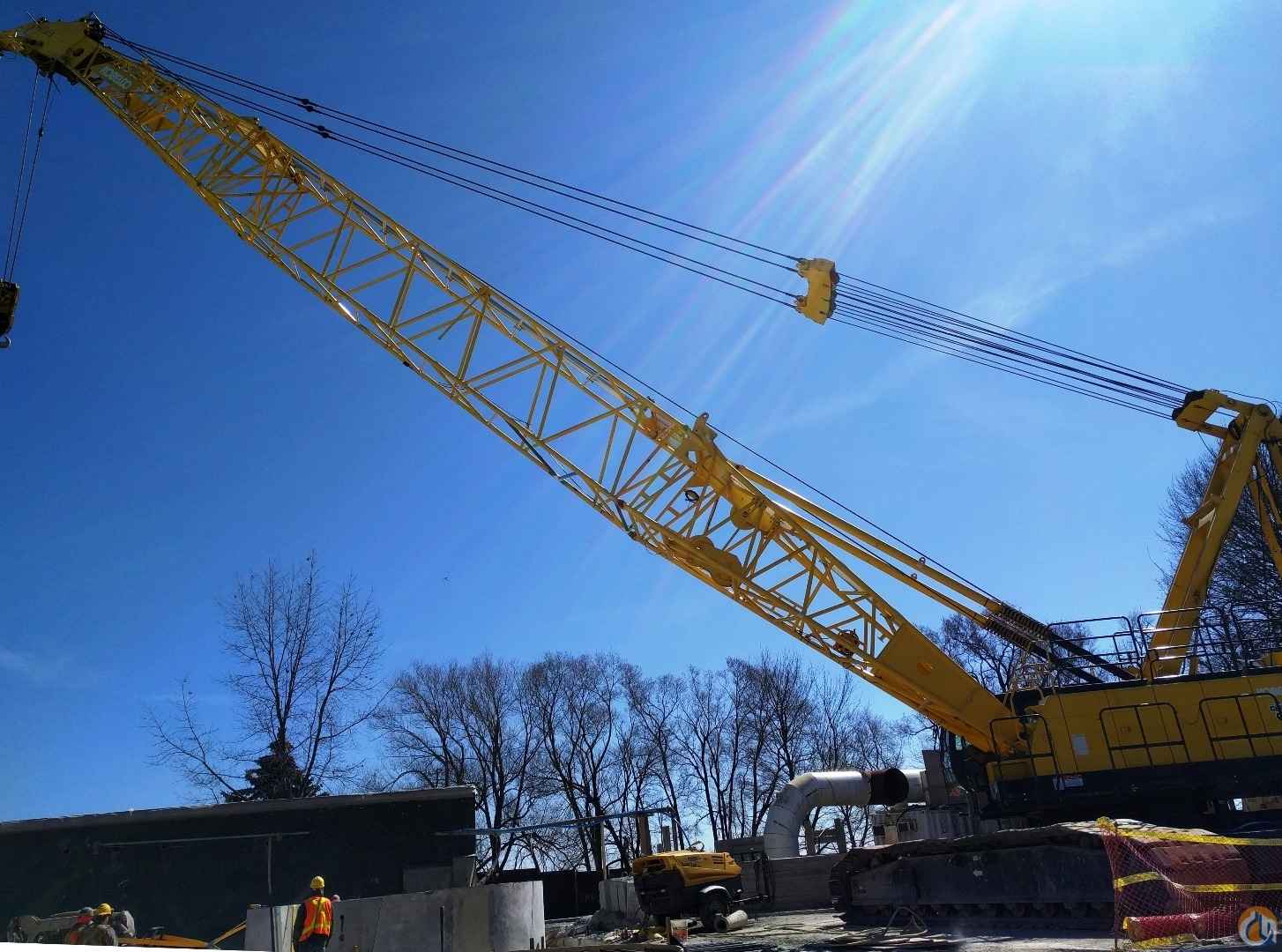

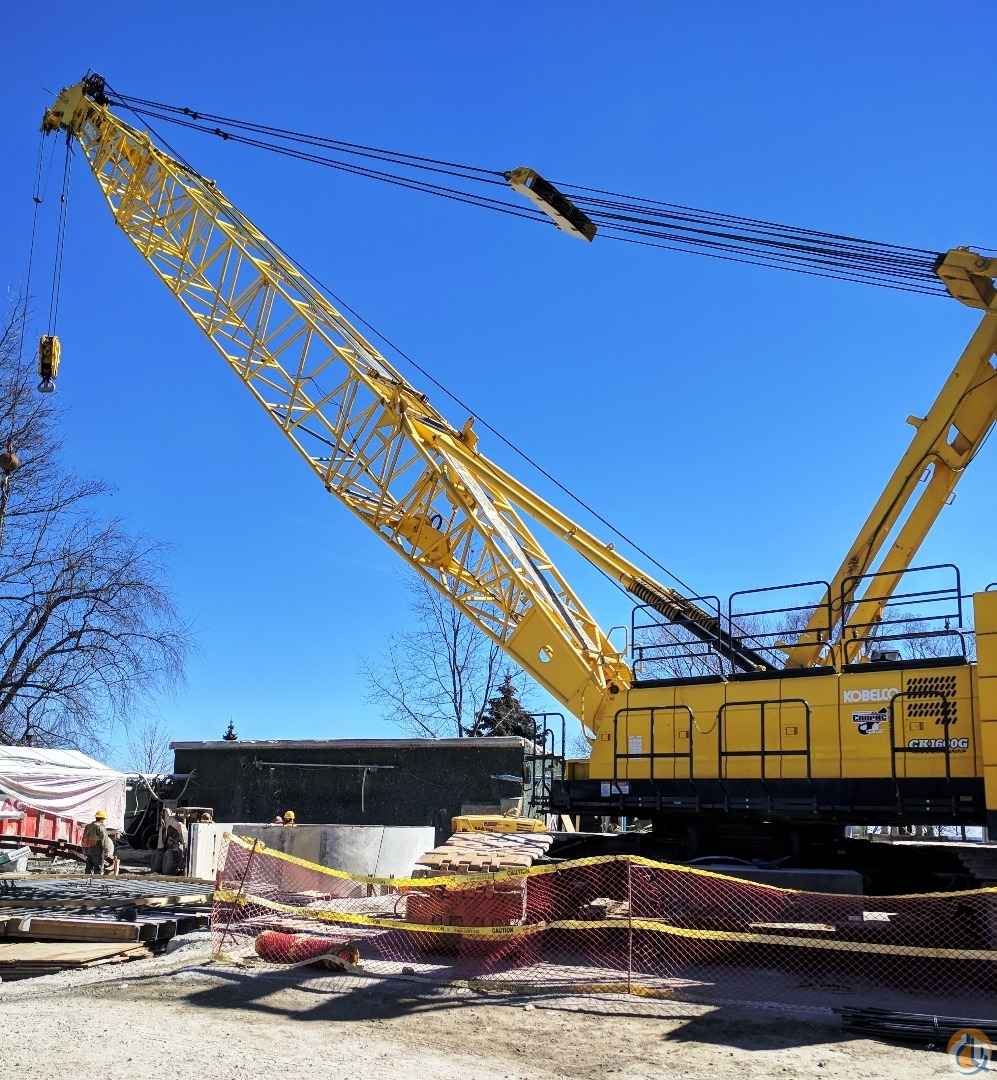

- Crane Boom Max. Lifting Capacity: 160 Ton/320,000 lbs
- Boom Length: 90’ boom (50’ basic, (1) 40’ Insert)
- Three sheave 30 ton double hook block (twin hook block)
- Headache ball 19 ton
- Power Plant:
- Model HINO P11C-VC
- Engine Output: 363 HP / 1,850 rpm
- Fuel Tank Capacity: 106 US gal. (400 liters)
- Main & Aux. Winch
- Max. Line Speed: 390 ft/min (120 m/min):1st layer
- Rated Line Pull (Single Line): 29,500 lbs (132 kN)
- Wire Rope Diameter: 1-1 / 32 in (26 mm)
- Brake Type: Spring set hydraulically released (Negative)
- Working Speed:
- Swing Speed 2.1 rpm (min-1)
- Travel Speed 0.70 / 0.56 mph
- Hydraulic System
- Main Pumps 3 variable displacement
- Max. Pressure 4,626 psi (31.9 MPa)
- Hydraulic Tank Capacity 141.3 US gal. (535 liters)
- Weight
- Operating Weight 304,200 lbs (136 t)
- Ground Pressure 11.7 psi (106 kPa)
- Counterweight 121,300 lbs
- Transport Weight 84,193 lbs
- 28,150 Hours
Tracks and under carriage in very good condition as machine has been stationary, lowering and hoisting material in a shaft
