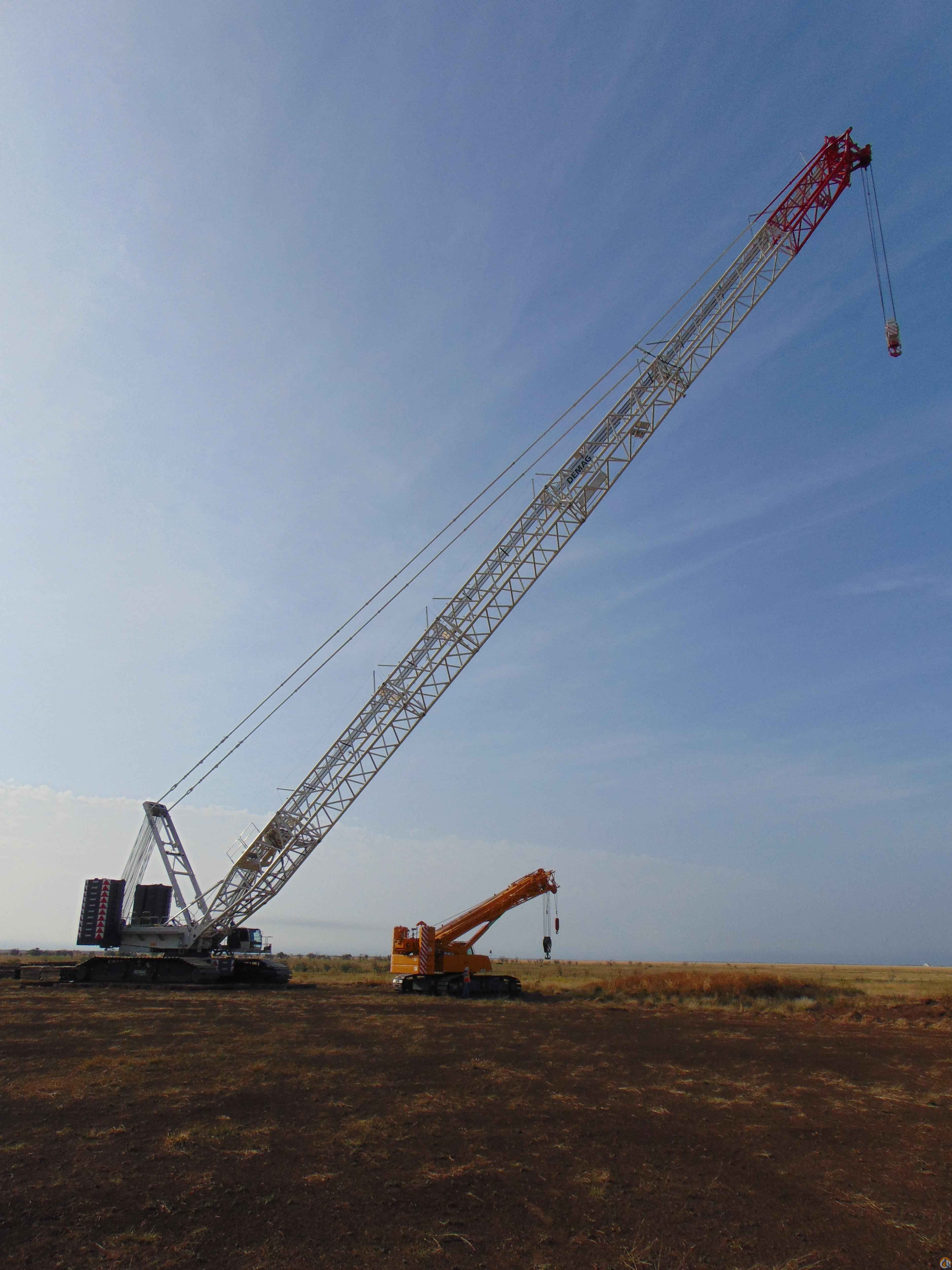

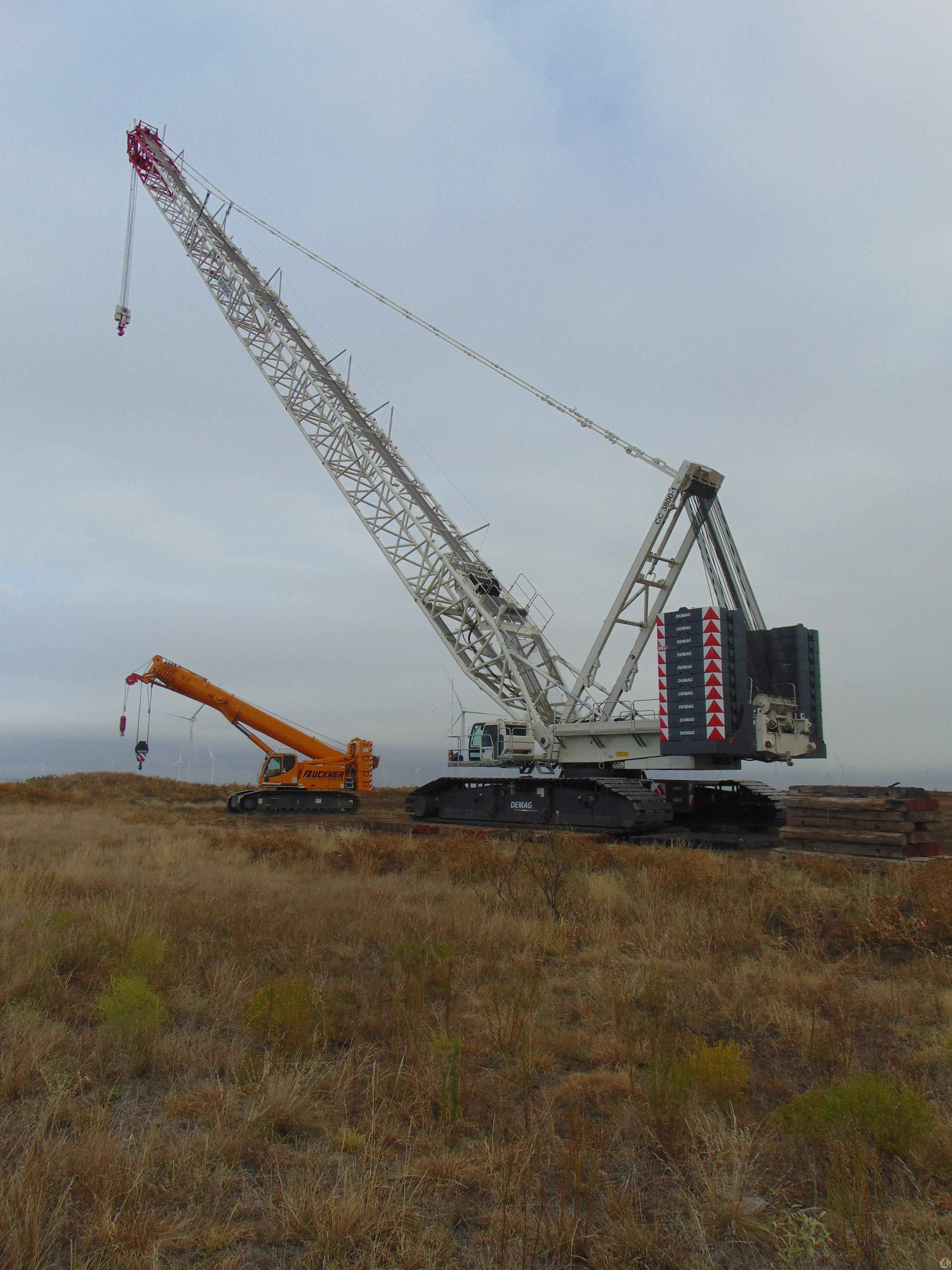

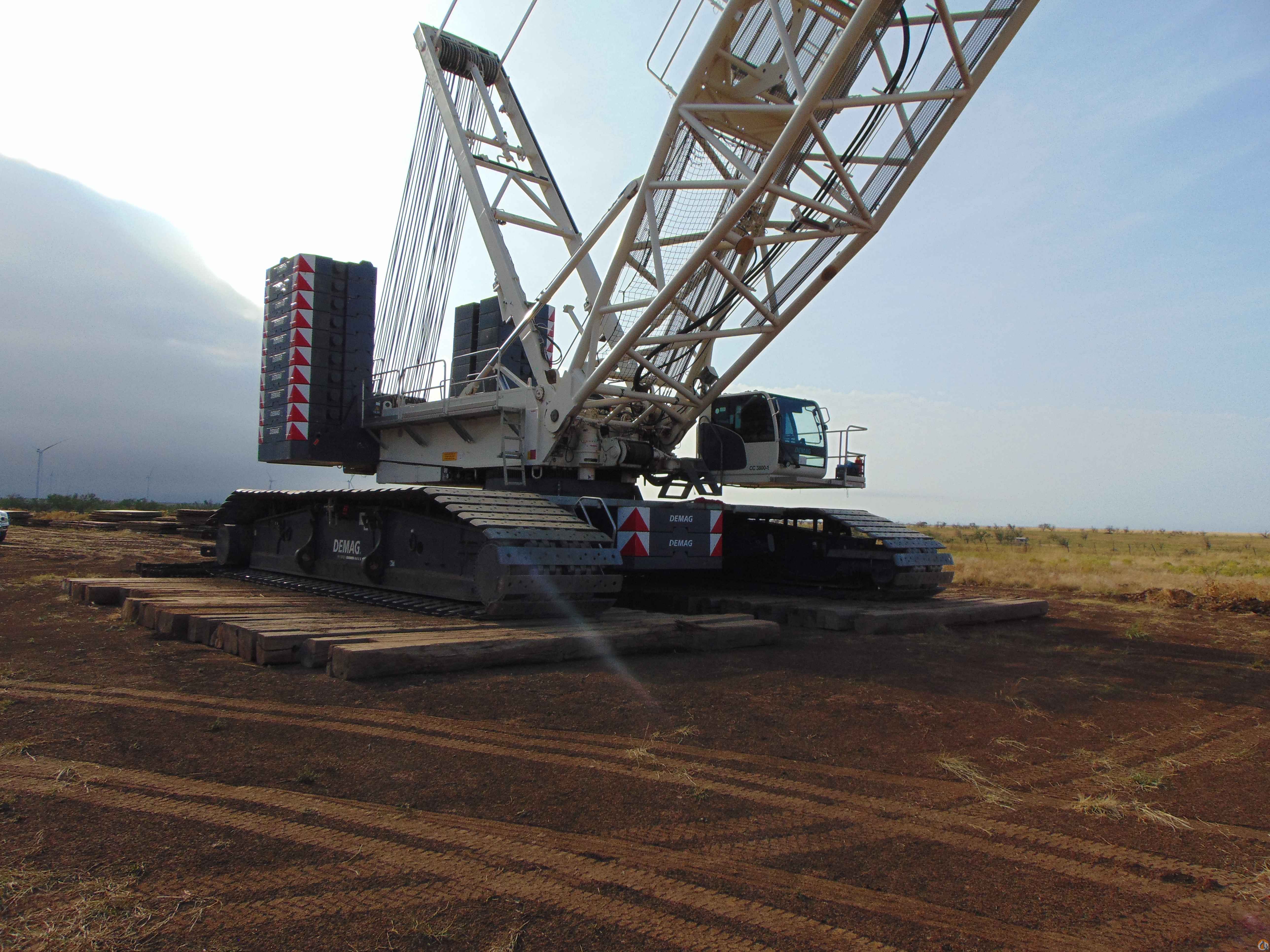

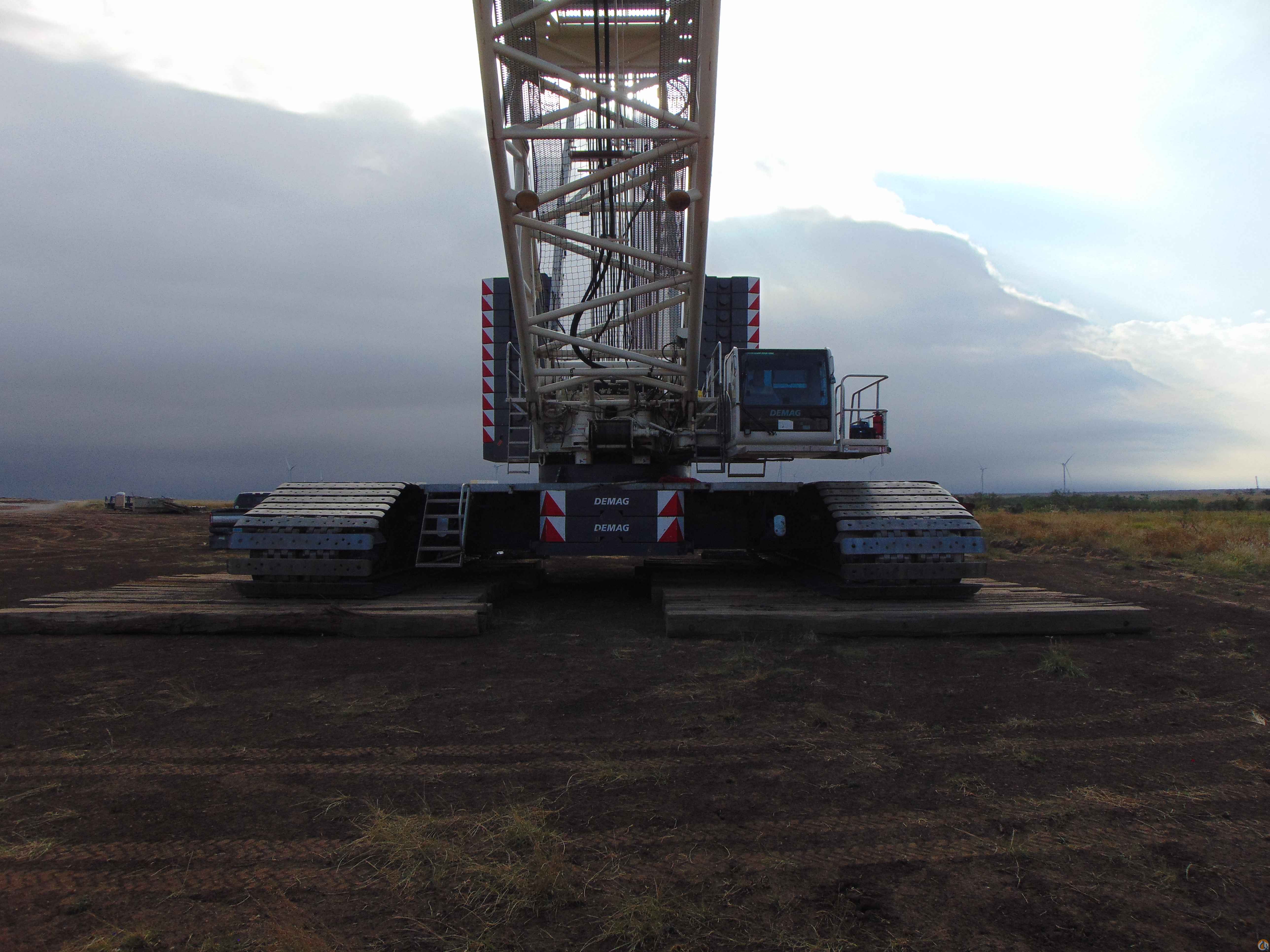

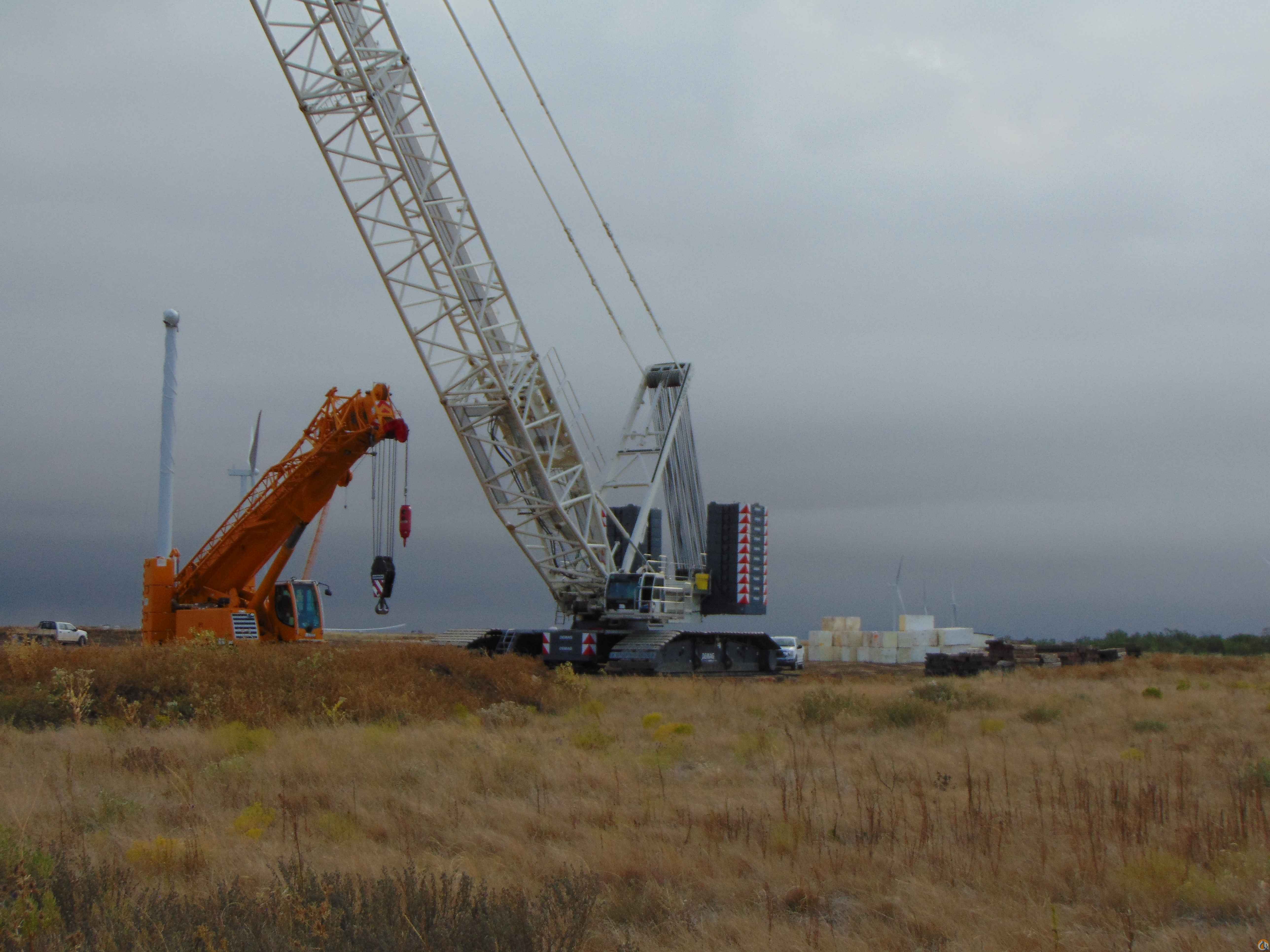

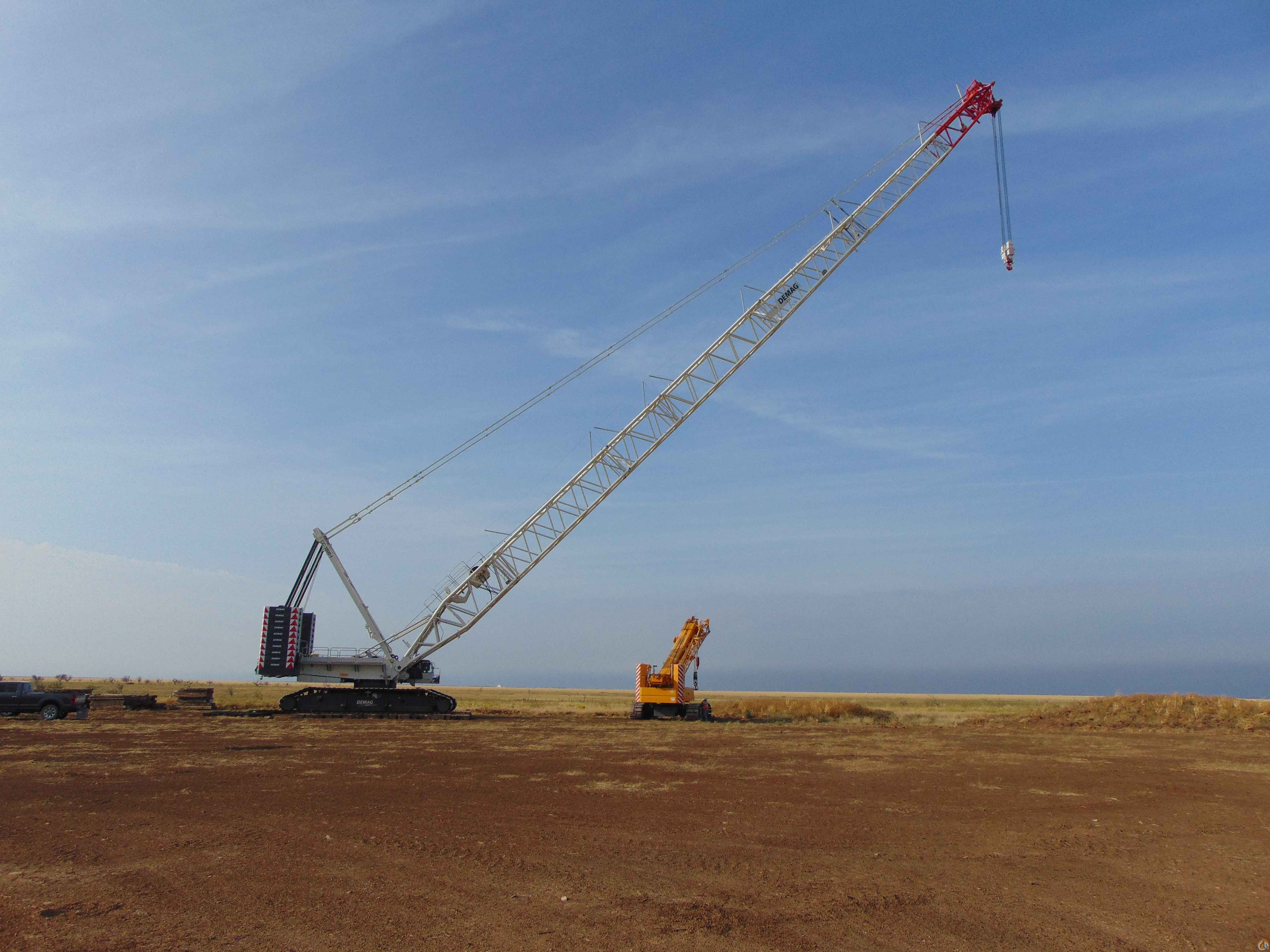

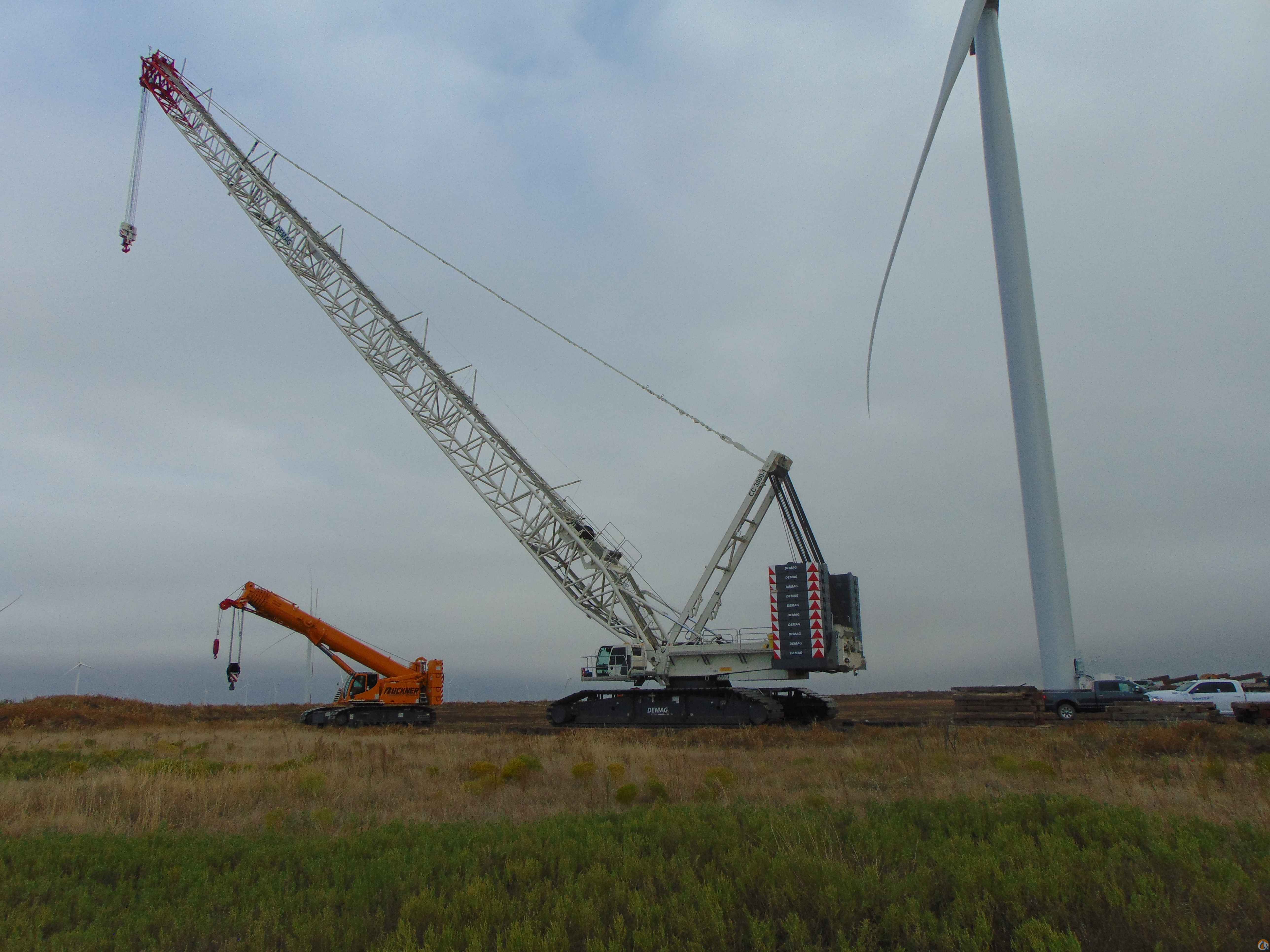

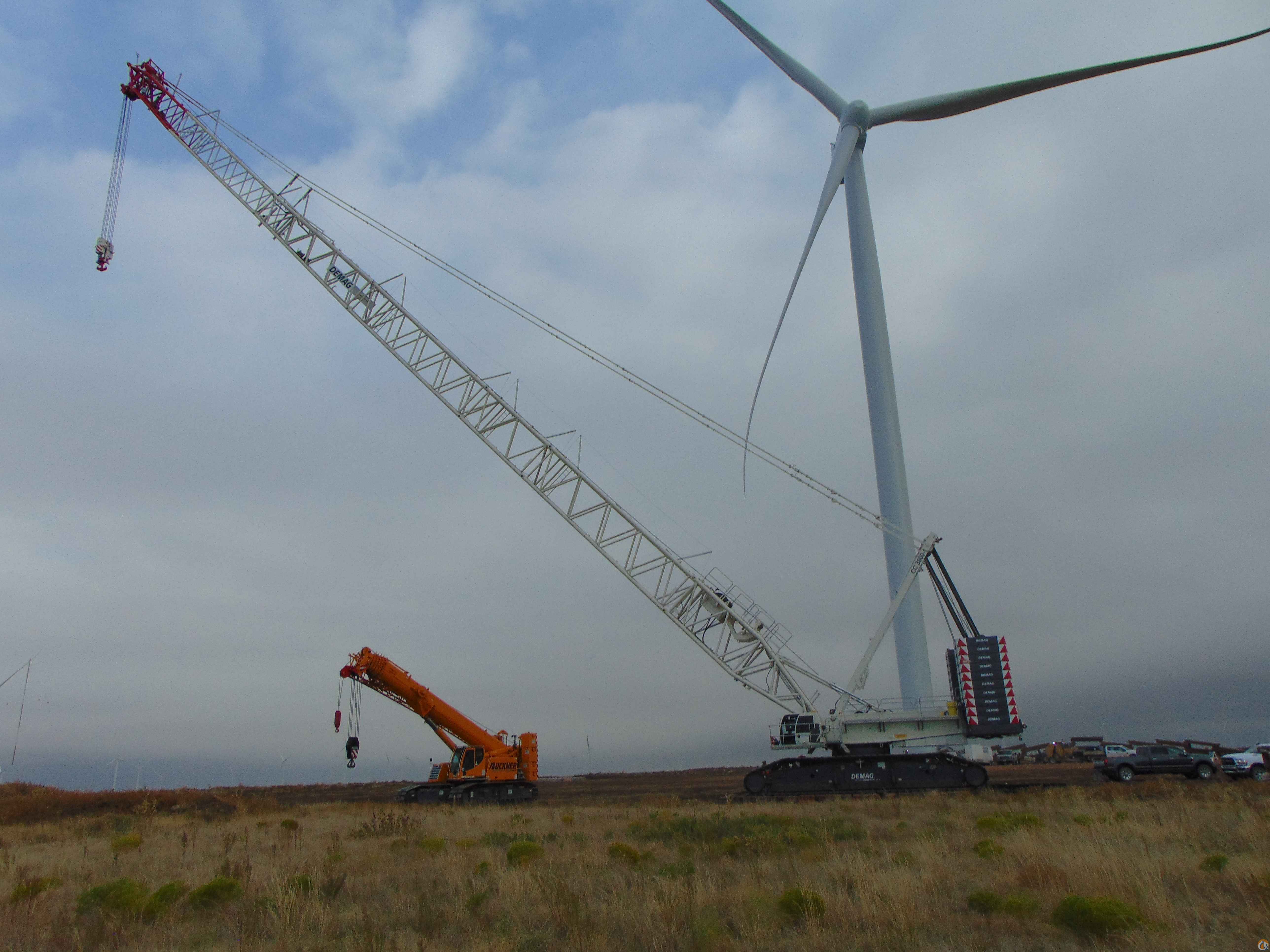

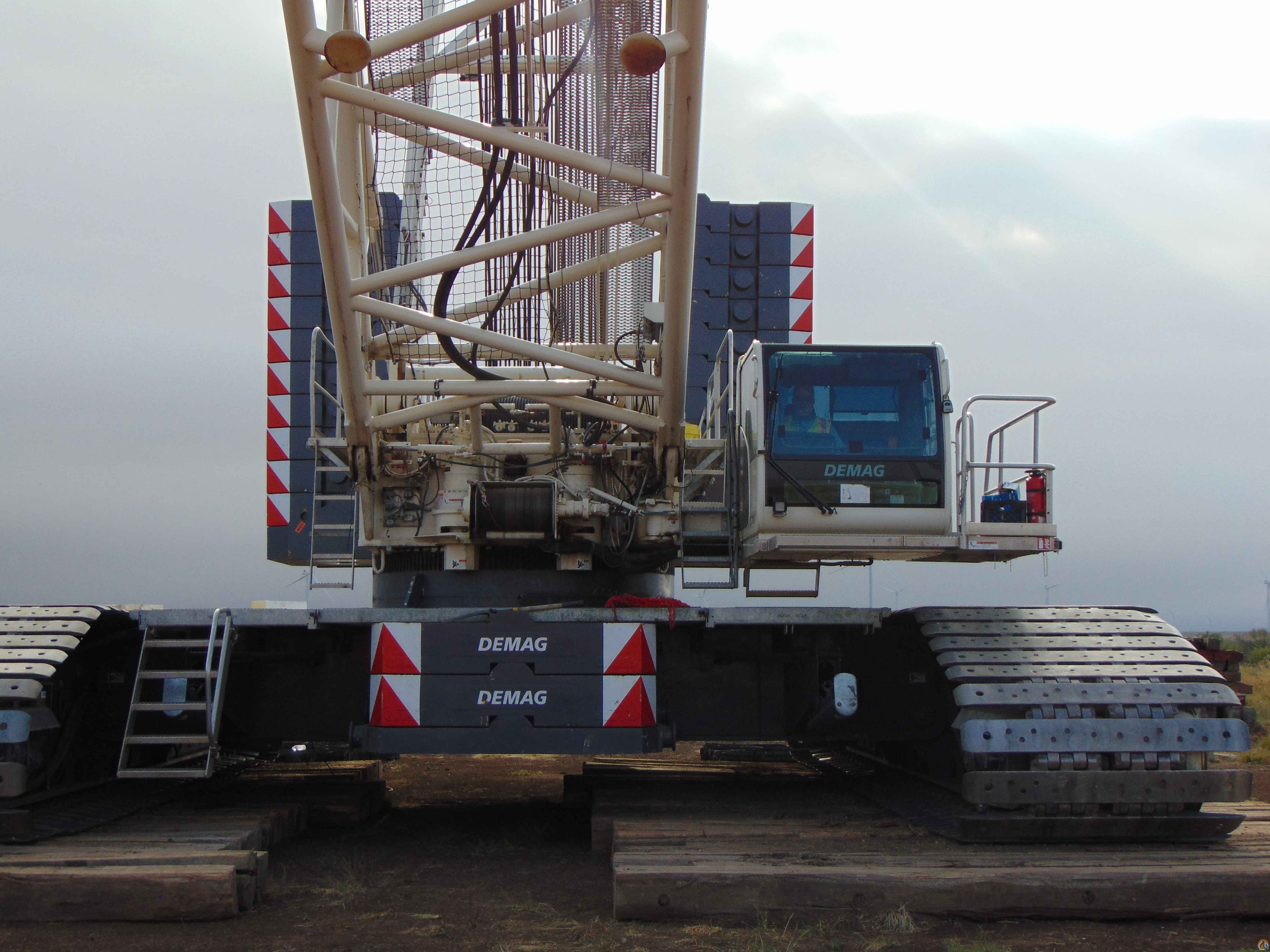

2017 Terex (Demag CC3800-1); Hours: 6069; Condition: Very Good C/W: 114m Main Boom LH1-includes 84m SH main boom, luffing jib head and additional SH head and sheave set 650t

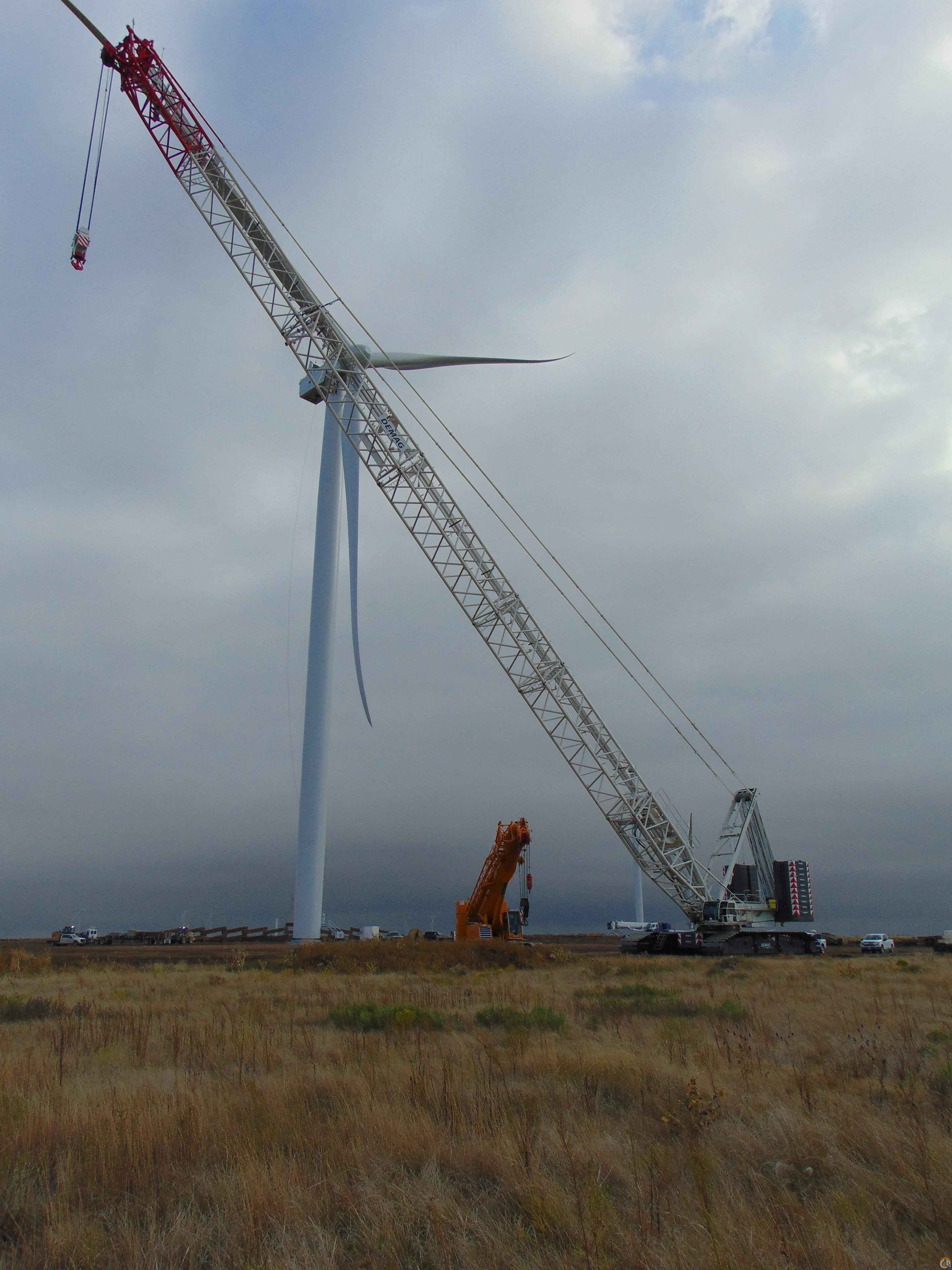

Windkit A-Upgrades SWSL to LSL3. Includes light LF connection head; 3 M Main boom section 12m LF
Jib includes 1 sheave runner Jib
W1 as.H3 with 1000m hoist rope-.rope to be same as Hl for interchangeability
Hydraulic Pinning Boom inc. Dumper with integrated hydraulic power pack
Standard. Superstructure CWT• Steel Box. 225t
Standard Central Ballast CWT-Steel Box 50t
Prep. for luffing jib (with W1)-Preparations for later attachment of luffing jib
Prep. for SL-CWT Carrier
1 x 190 Ion 5 sheave hook block
125t 3 sheave ramshorn hook
18t single line hook
Rigging Aid: 2 jacks, pin connected to crawler side frame (for erection boom combination without superlift and with superlift to reduce superlift counterweight)
2.0m track shoes with 2 additional spring loaded pendelum center guide rollers on each track
Quadro Crawler Drive A frame quick assembly/disassembly
Crawler self assembly with lifting tackles
Quick Connection for carrier/superstructure
Central Lube Superstructure
Refinery Kit-engine shutdown, airflap in intake air conduit
Fall down protection LH & LSL2
Tier 4 F MTU type OM 471 LA diesel engine
Cold Weather Package•• Hydraulic Oil preheater, Electrical Engine preheater, cabin heating (gas or diesel) and fuel filter preheater
Hydraulic oil -25 degrees-Hydraulic oil approved to -25 degrees C, Maximum temp rating of 70 degrees c.
Lift Capacity:715 Ton
Max Main Boom Length:
374 ft
Cold Weather Package:
Yes
Hook Block #1- Number of Sheaves:
5
Hook Block #1- Capacity:
190 ton
Engine Serial #: 471.919-C-0296358
