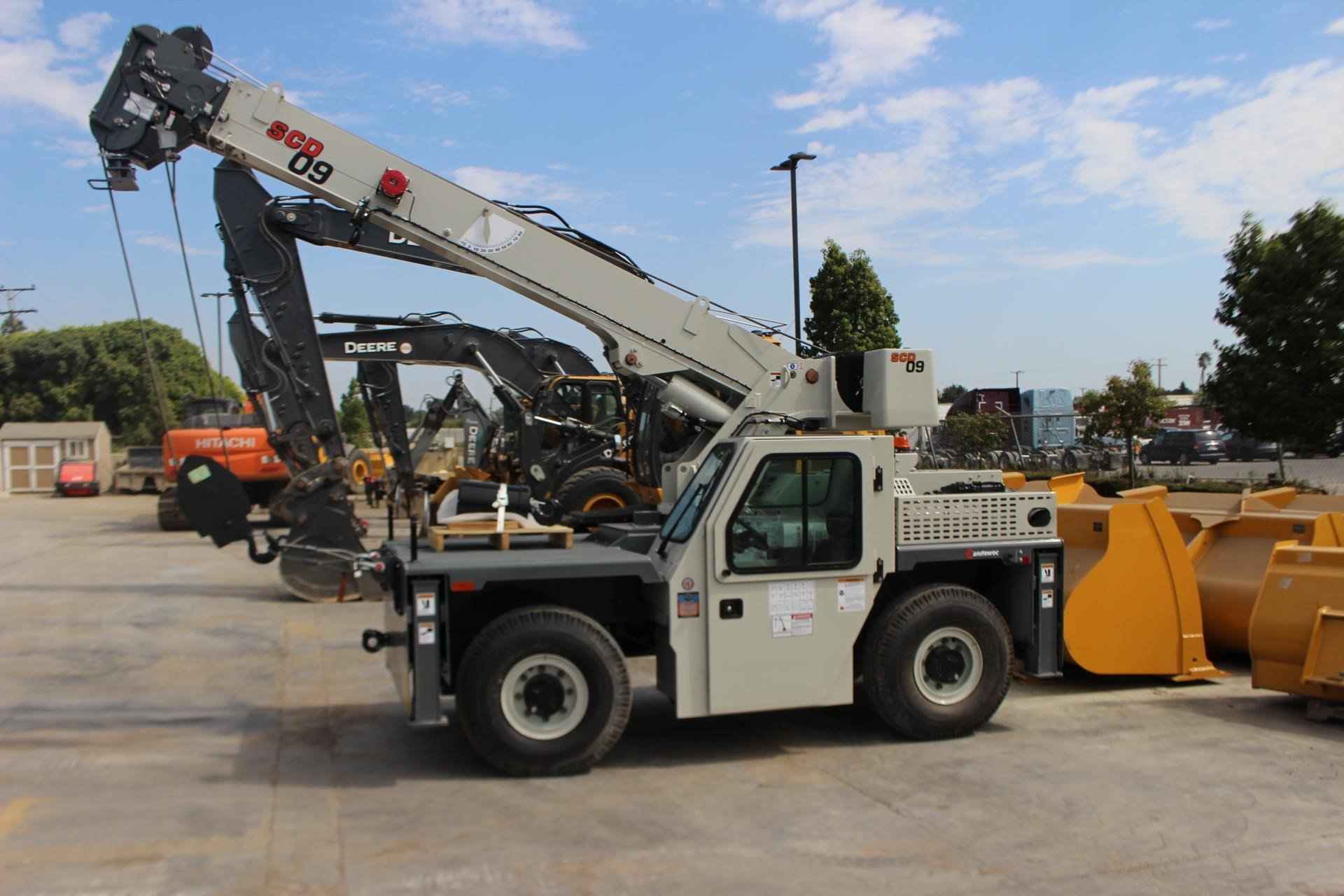

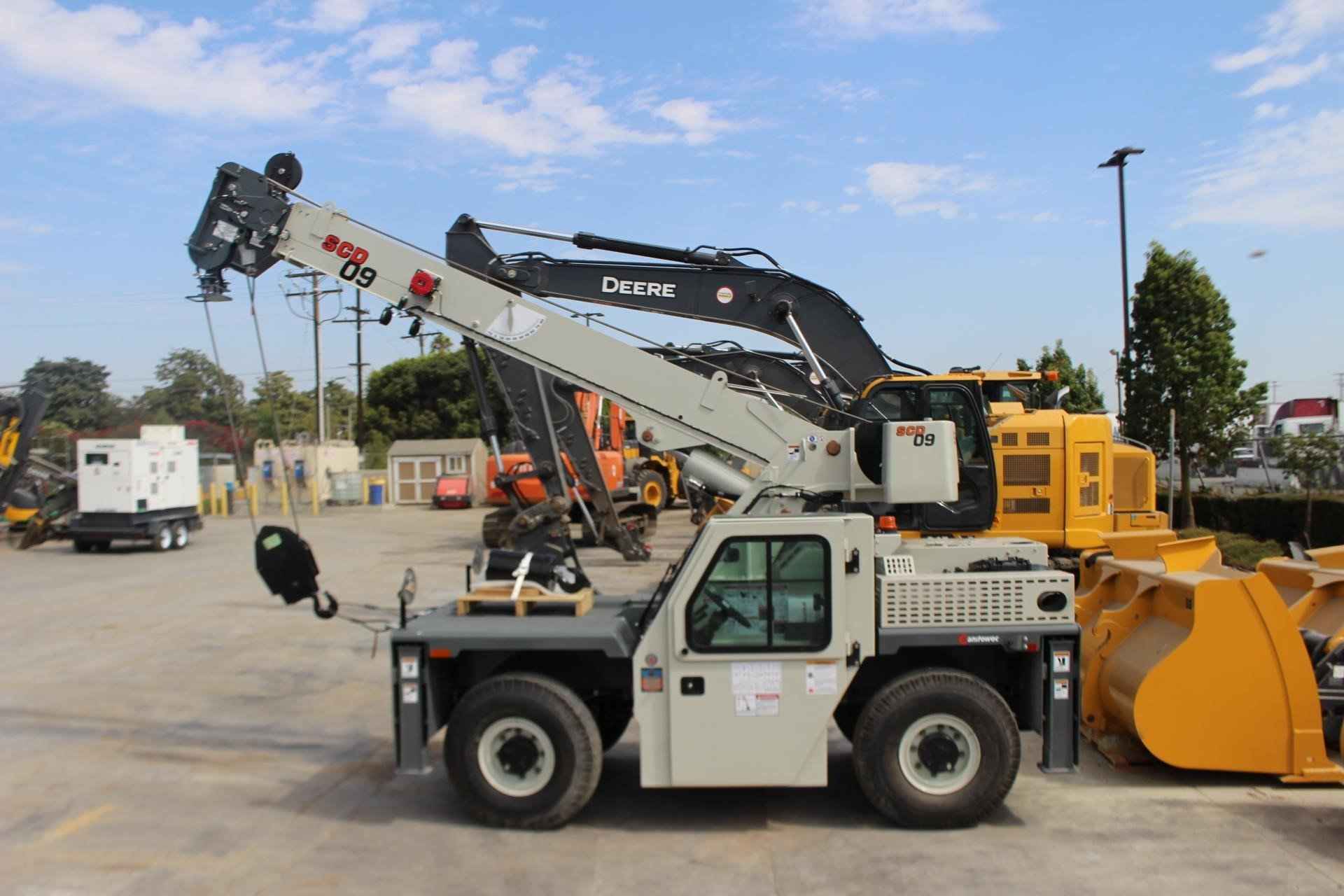

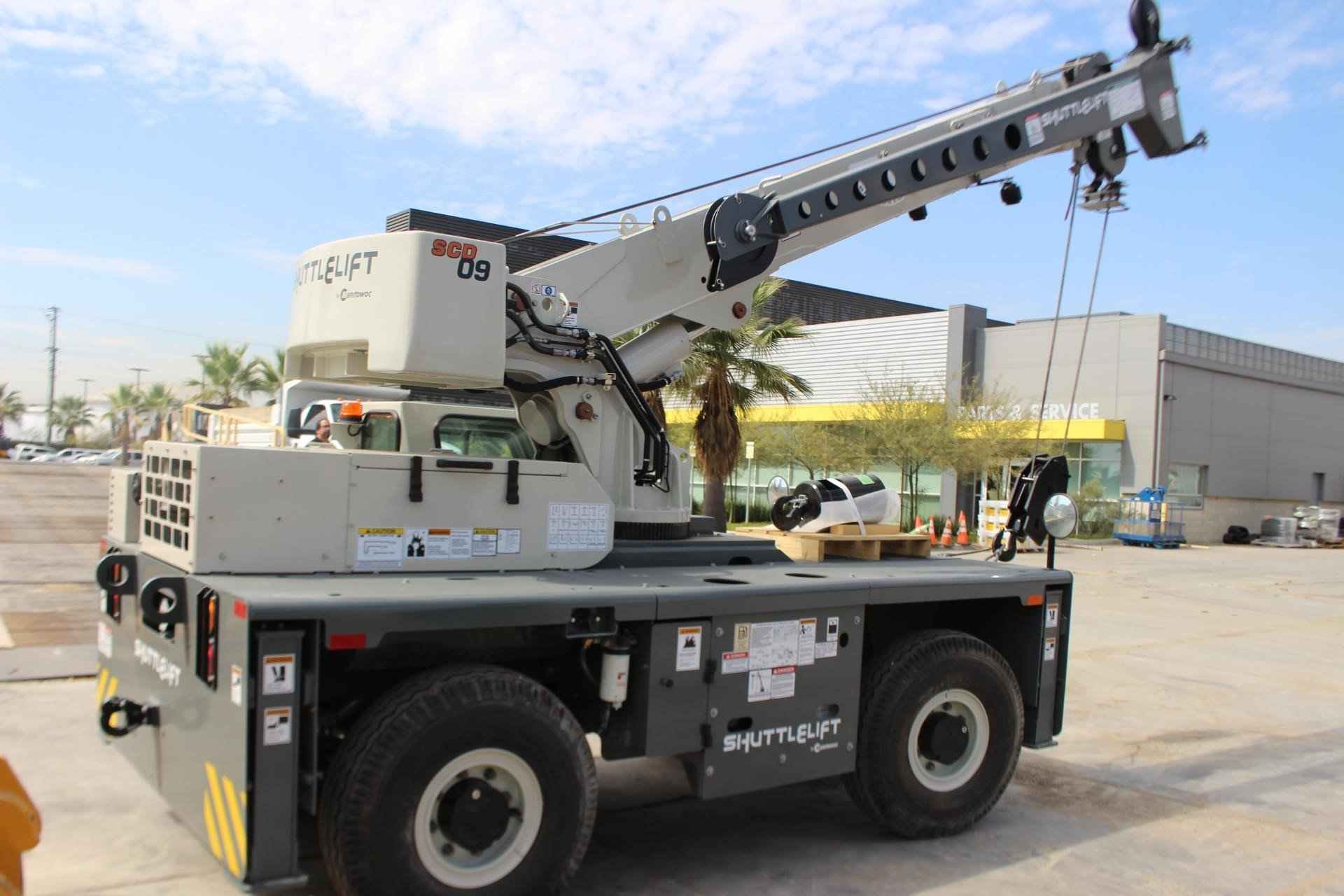

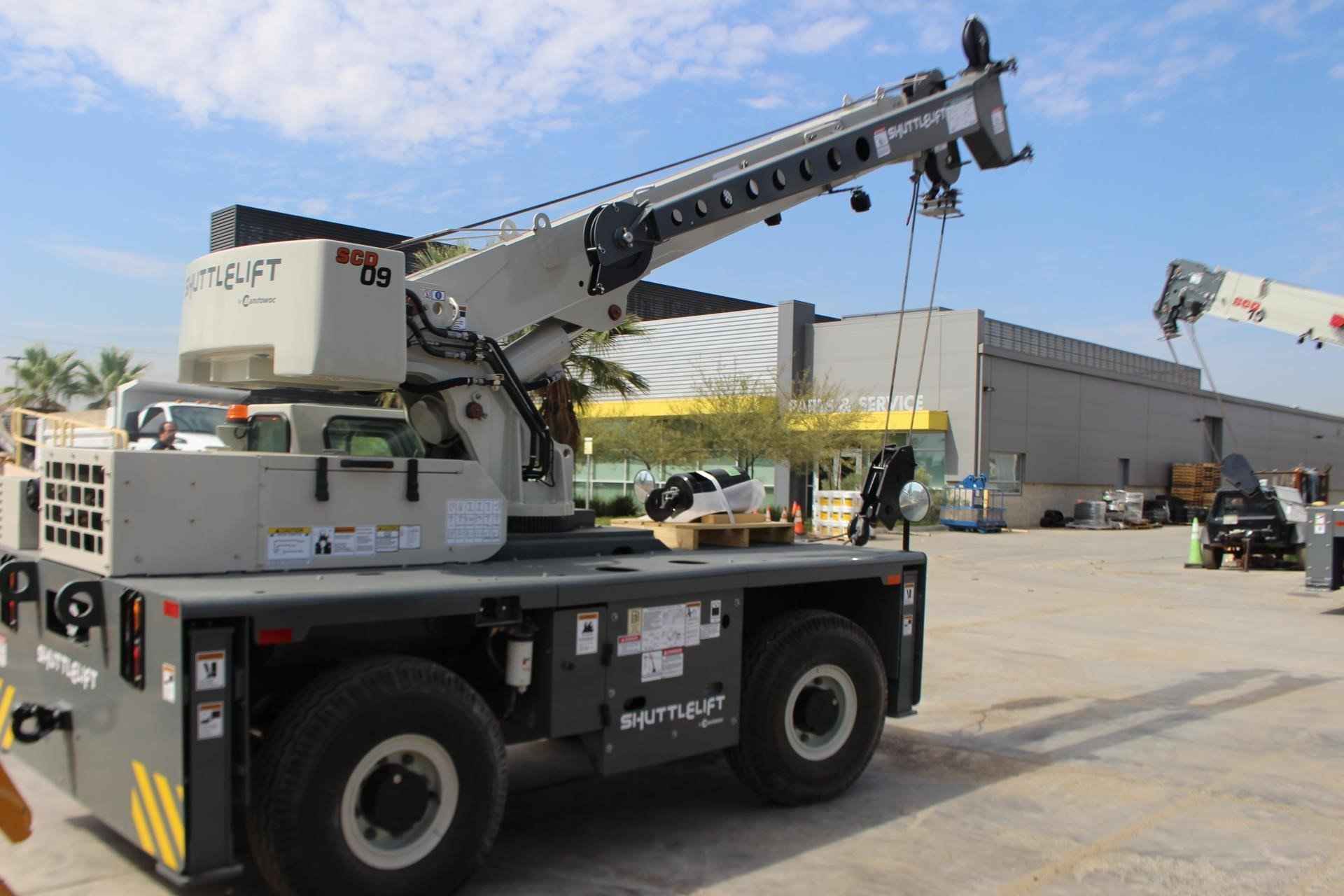

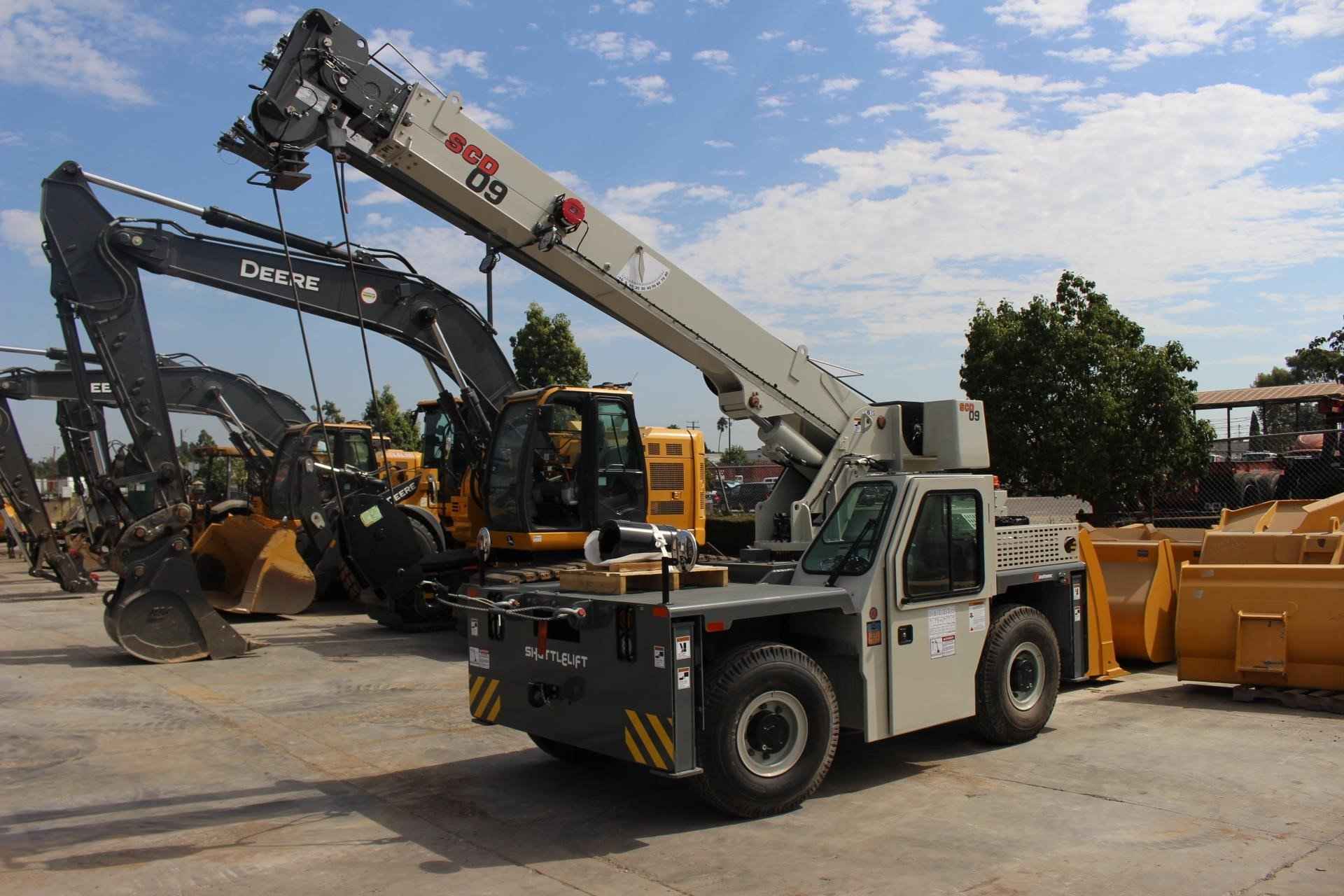

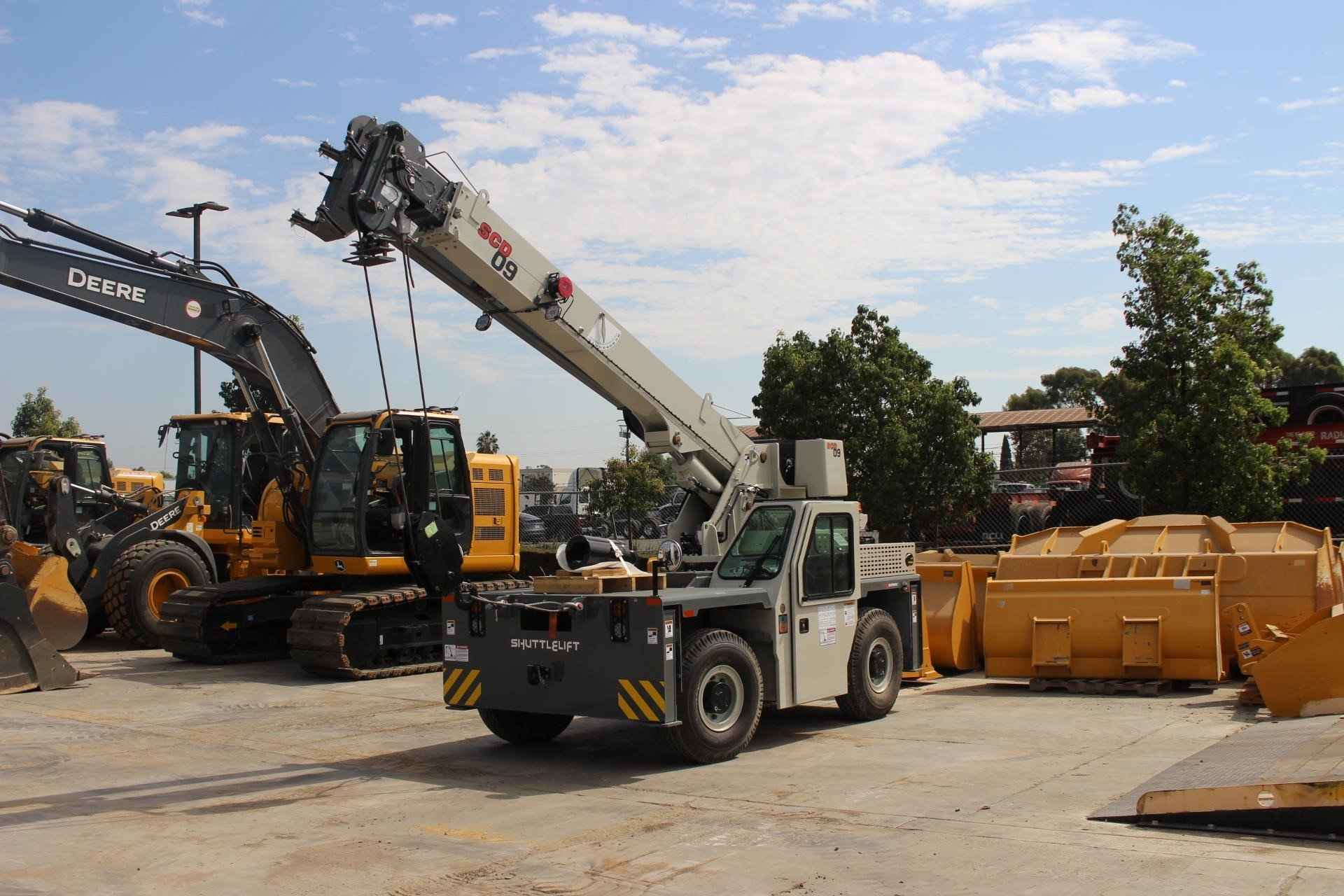

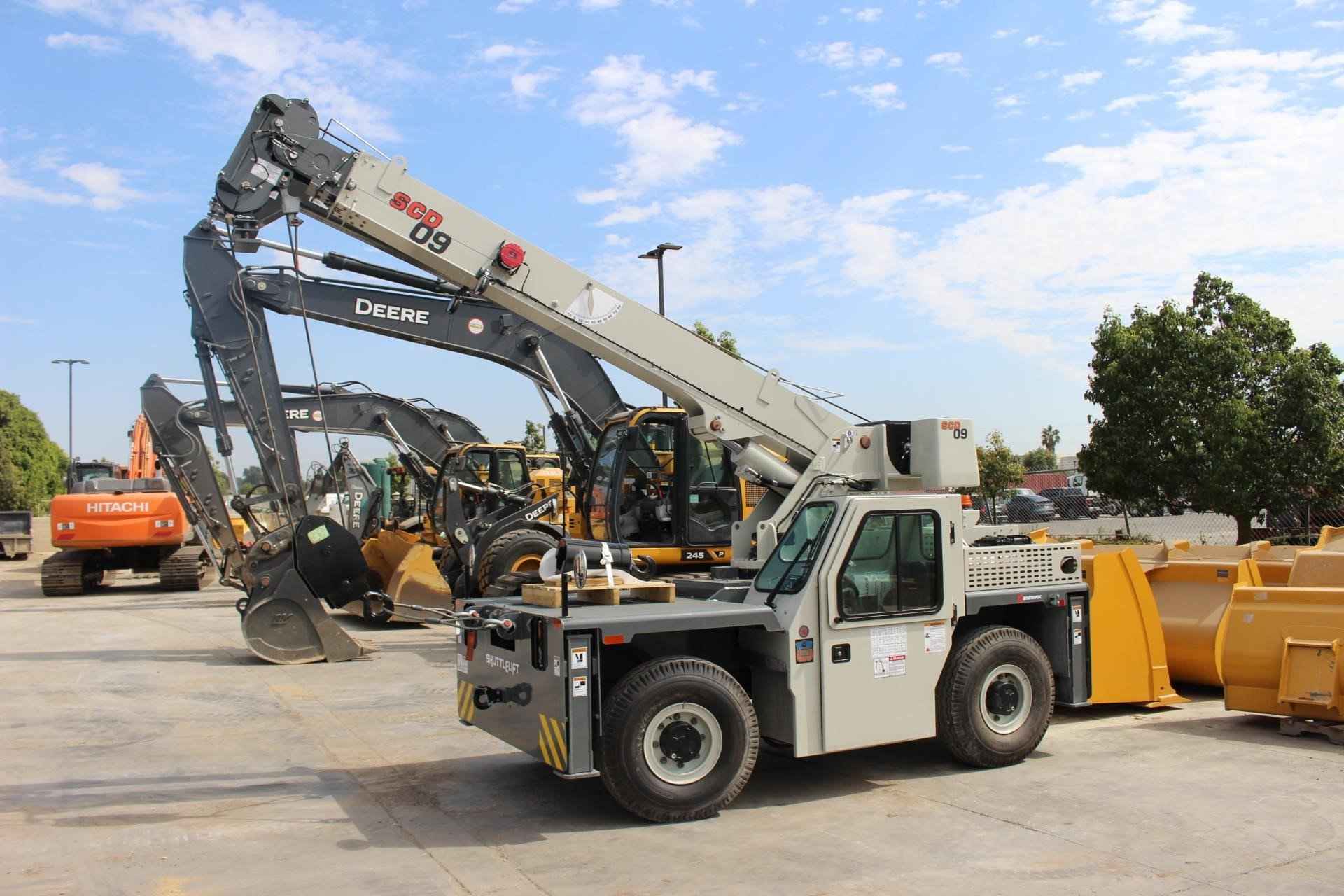

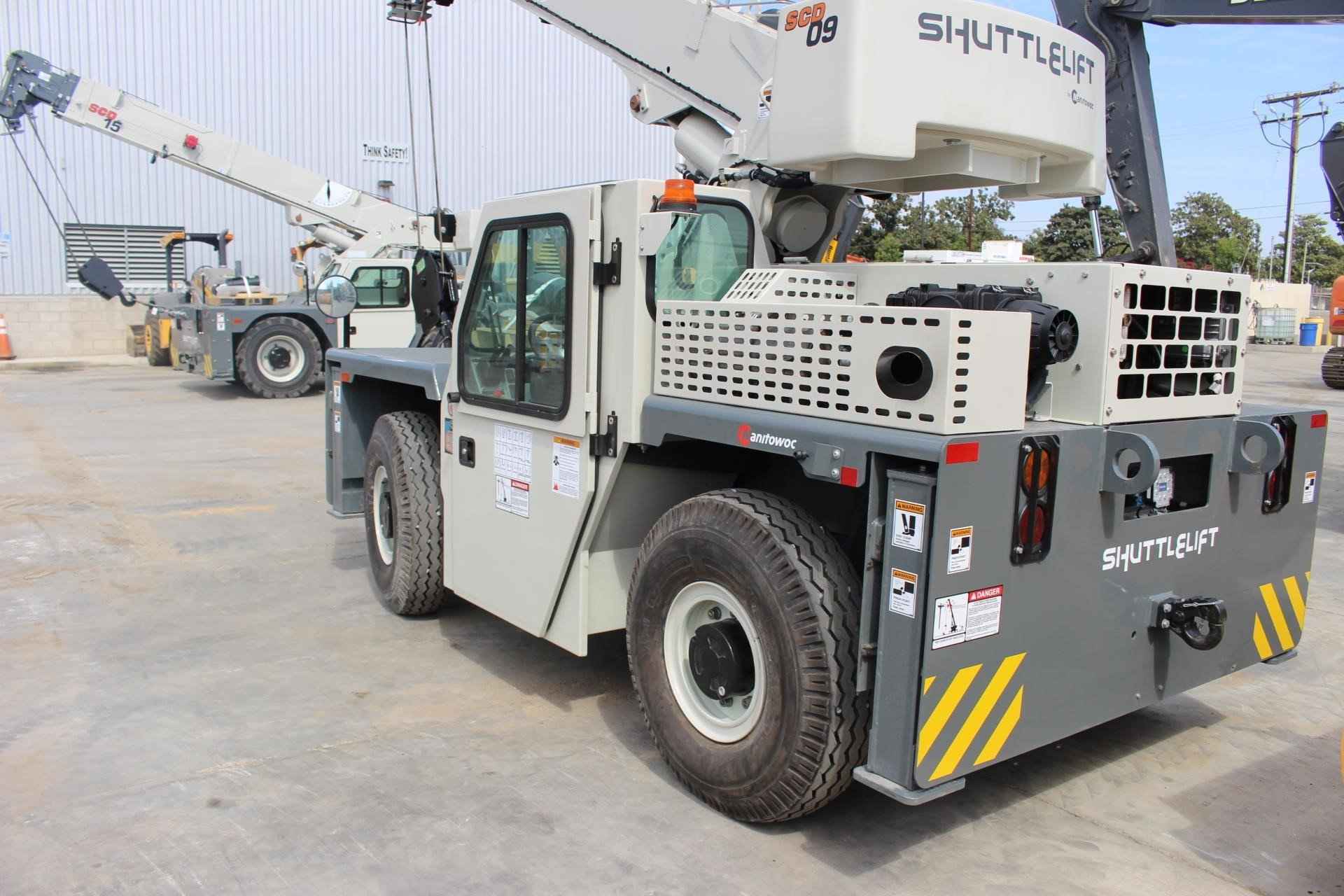

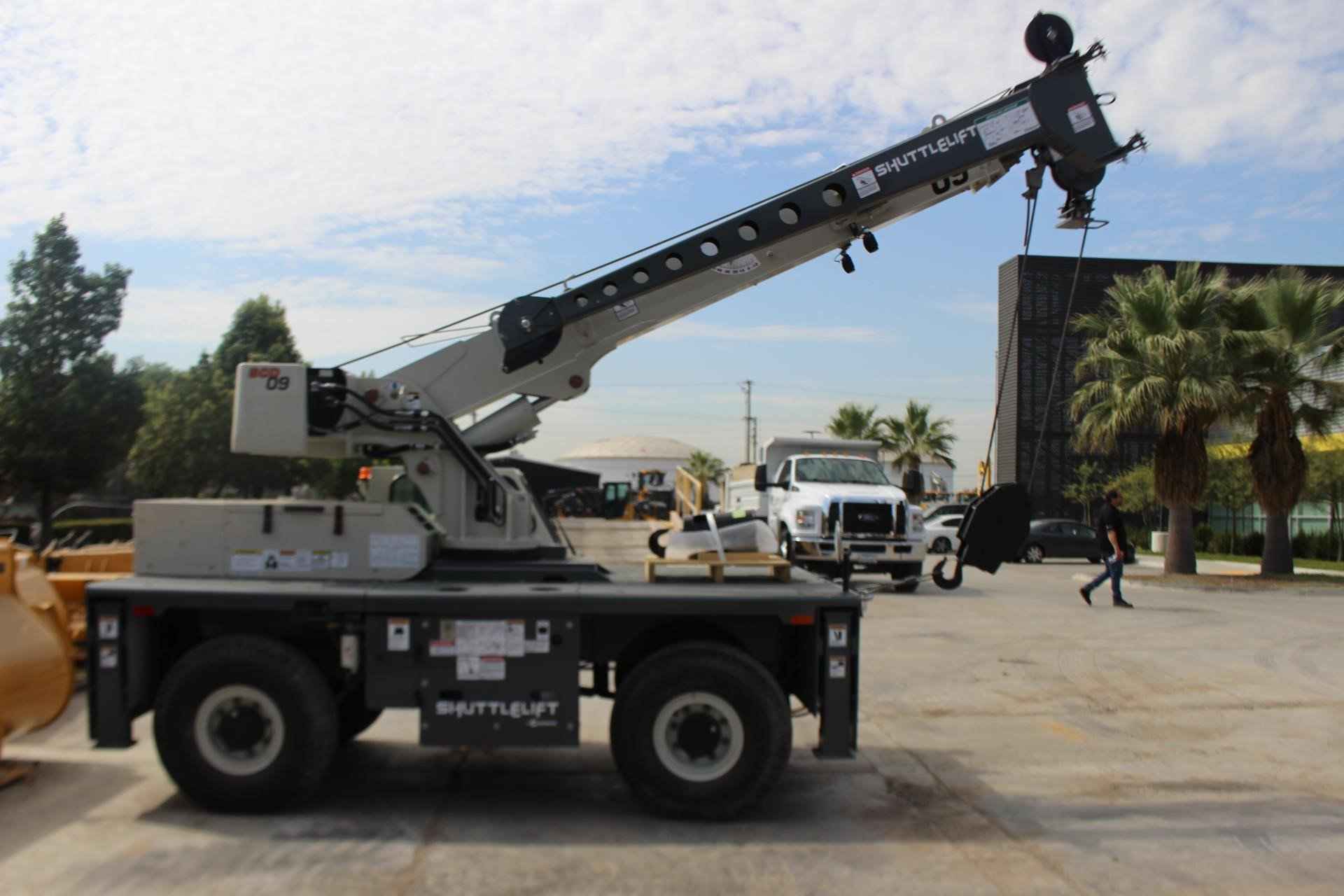

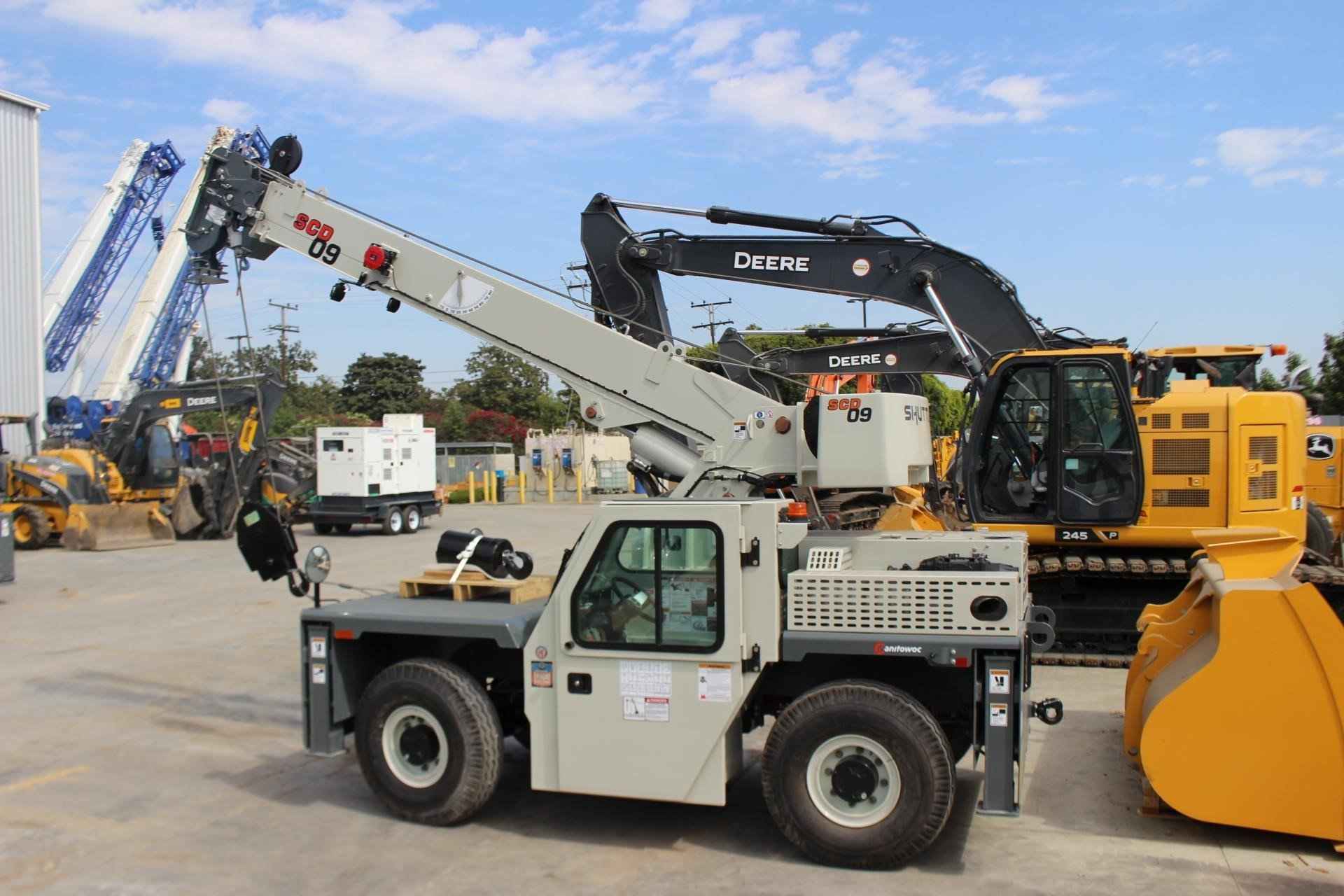

SHUTTLELIFT SCD09 9 TON NEW SHUTTLELIFT SCD09Standard features: Boom:33.2 ft. three section full power boom with integral holding valve on telescope cylinder. Three position pivoting boom nose. Boom Elevation: Single double acting hydraulic cylinder, (0° to 70°) with integral holding valve and mechanical angle indicator. Rated Capacity Indicator and Anti-two block system: Hardwired Wylie i4300 rated capacity indicating system with audio-visual (buzzer/light) warning and function cut-out. Color graphical display of boom length, load radius, boom angle, rated load, and calculated load. Hardwired A2Bsystem is a low profile style w/audio warning and auto control lock-out. Operators station: Chassis mounted cab shell with roof safety glass, suspension seat, dash mounted pilot operated control levers, gauges engine functions, tilt steering wheel, electric horn, fire extinguisher, sight level bubble, and seat belt.Swing:360 ° continuous rotation, worm & gear drive on ball bearing swing circle. Includes swing enable switch in cab. Counterweight: Three multi-piece plate assemblies bolted to the turntable. Hydraulic system: Load sensing variable displacement axial piston pump system, 22.5 gallon steel reservoir with external sight level indicator. Hoist: Planetary drive main hoist with automatic multi-disc brake. Drum rotation indicator in the hoist joystick control and hoist direction indicator light on dashboard. Includes third wrap indication with function cut out. Wire rope:120 ft. of 9/16 in diameter 35x7 EEIPS+ Rotation resistant wire rope. Hook block: Single sheave, “Quick Reeve” style hook block. 12.5 USt Outriggers: Hydraulic box/beam style at all four corners with integral check valves and integral steel outrigger pads. Independent control of outriggers and outrigger motion alarm .Engine :choice includes; hour meter, cold start aid (grid heater), 120V engine block heater, and air filter service indicator. Engine shut down feature. (TIER 4 INTERIM) Axles: Front: drive/steer type. Rear: wide track steer/non-drive (4x2 drive). Standard 2 wheel and 4wheel coordinated and crab steering with electronic self alignment. Transmission: Powershift, 4 speeds forward; three reverse. Brakes: Full hydraulic, internal multi-wet disc service brakes acting on front axle; axle mounted spring applied parking brake.Tires:10.00 x 1516 ply, bias type tires. Lights: Full LED lighting package includes front and rear chassis mounted work light, rear tail lights, turn indicators, brake and hazard .Miscellaneous standard Equipment: Non-skid deck surface, backup alarm, front and rear tie downlugs, hook block tie down, dual side rear view mirrors, owner’s USB flash drive (includes operator’ sservice/maintenance and parts manuals, troubleshooting schematics, load charts and safety book. Additional Options Included: • SCD 09 9 ton capacity with 33’ 2” in three section fullpower boom• Cummins QSF 2.8 L (Tier IV) 4-cylinder turbo charged water cooled diesel: 74 HP, includes Cummins catalyst hour meter, cold start aid (grid heather), 120v engine block heater, and air filter service indicator. Engine shut down feature, Meets EPA emissions. Requires maximum 15 ppm “Ultra Low Sulfur Diesel.” Required for USA and Canada.• Front & rear 5 ton Pintle hitch, dual rearview mirrors, headlight & taillight grilles• Amber Strobe light and boom mounted work lights• Enclosed compartment with front, side & rear window glass, windshield wiper & washer, 2-piecedoors with sliding and swing out window, heater & defroster, and cab dome light• 2-Wheel steer, 4-Wheel steer, and Crab steer w/Electronic Self Alignment• Outrigger position monitoring system• 12 ft. Offsettable Swing Away Jib Boom Extension. Stows on side of base boom when not in use and swings into position. Includes bottom swivel hook block for single part usage.
