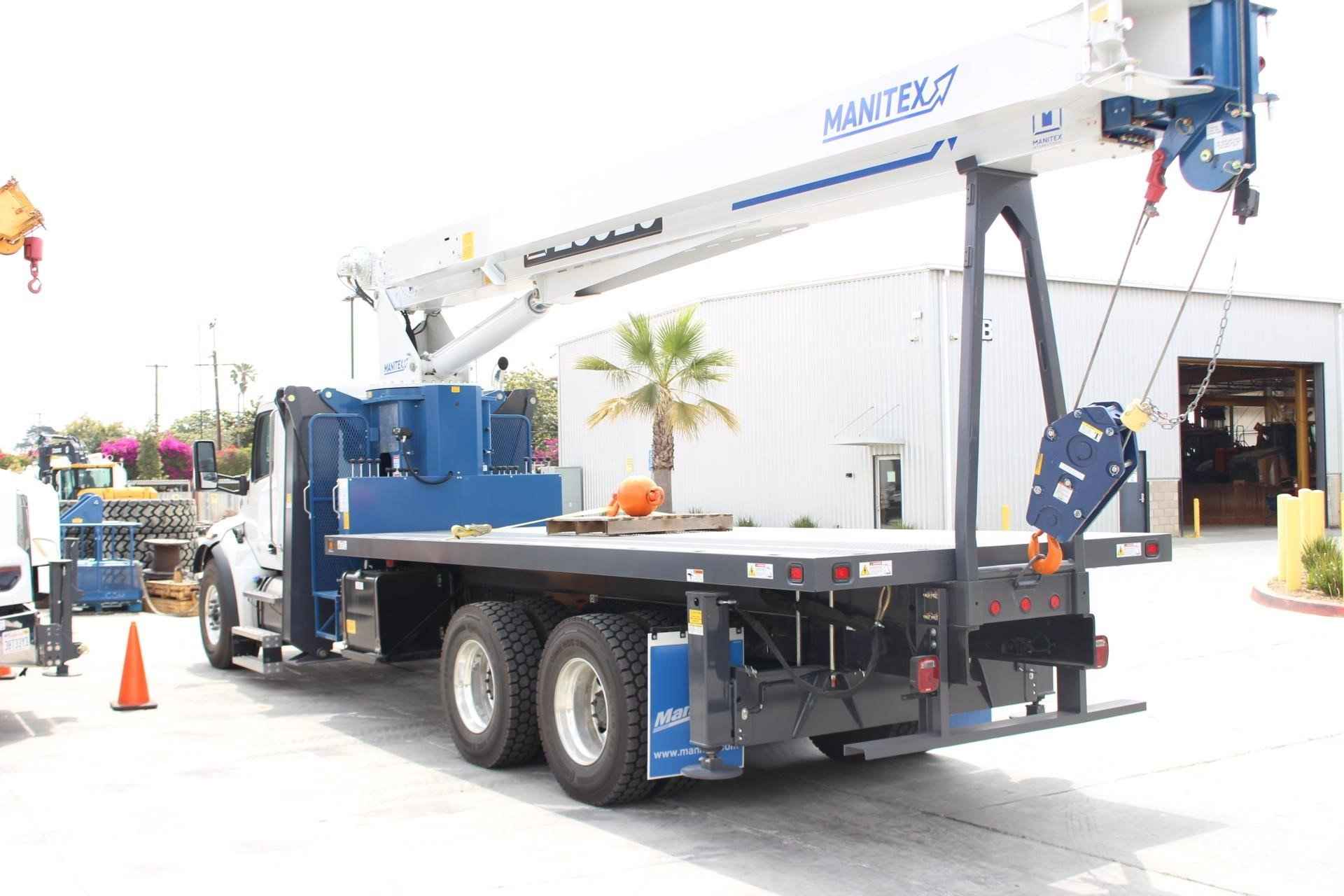

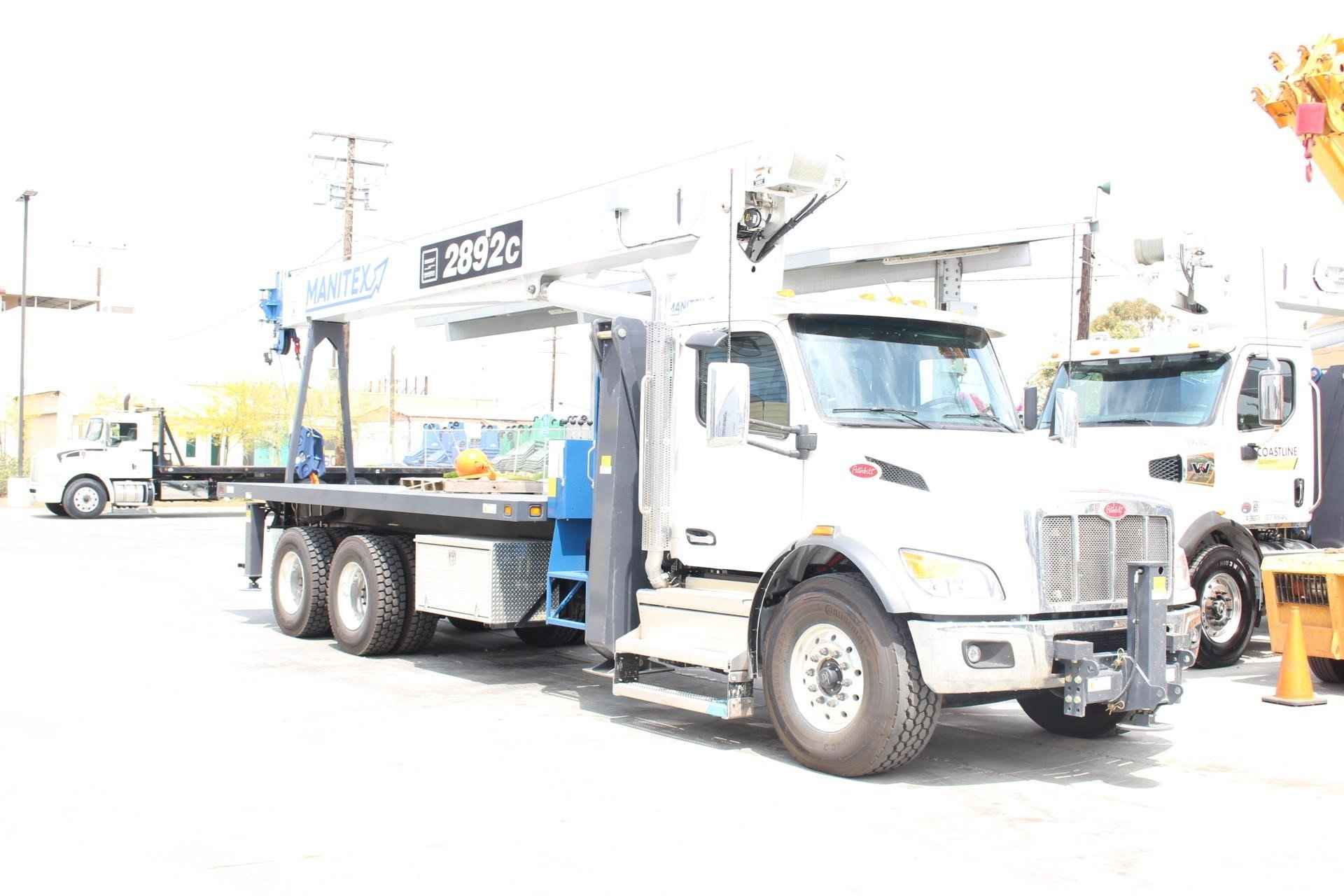

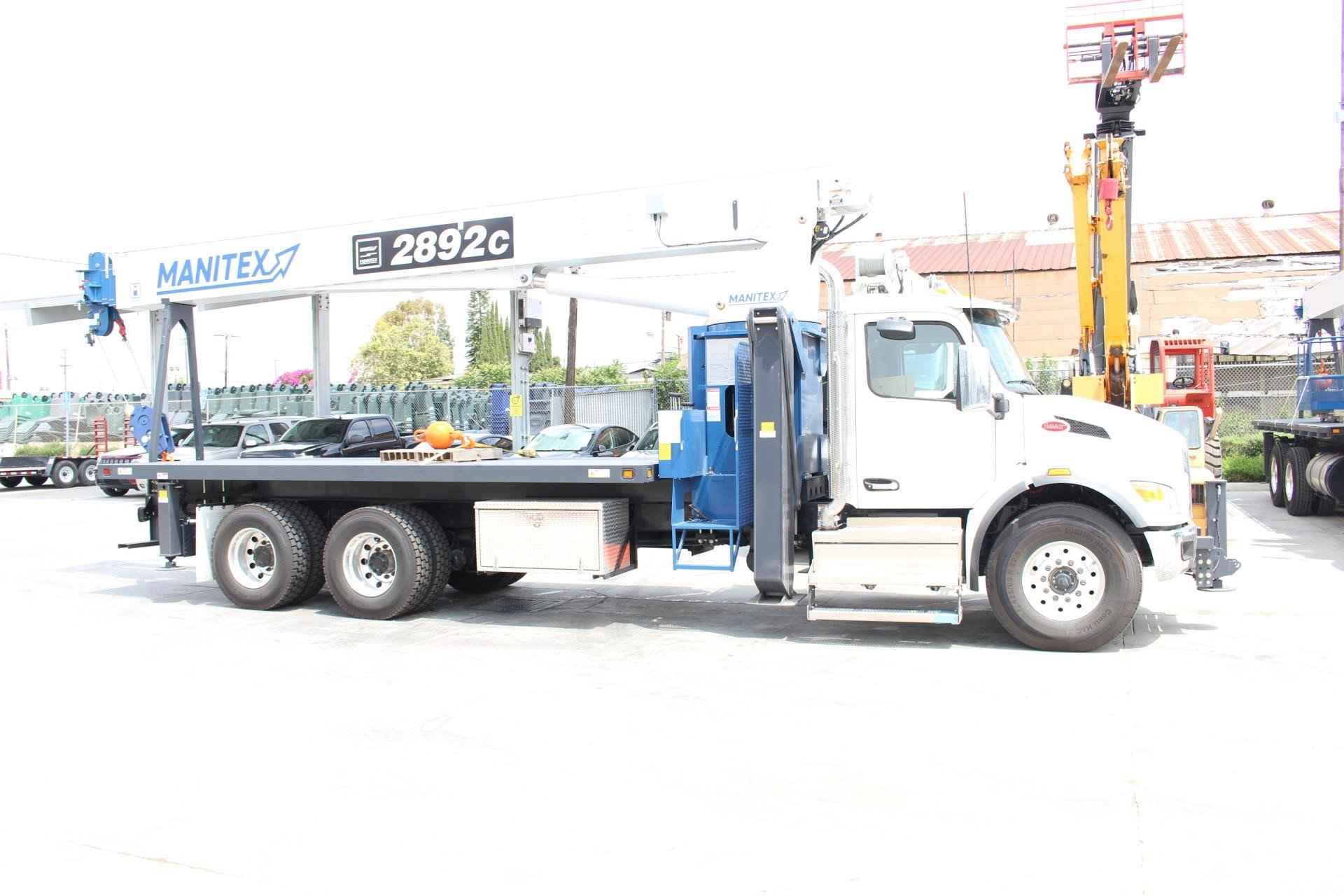

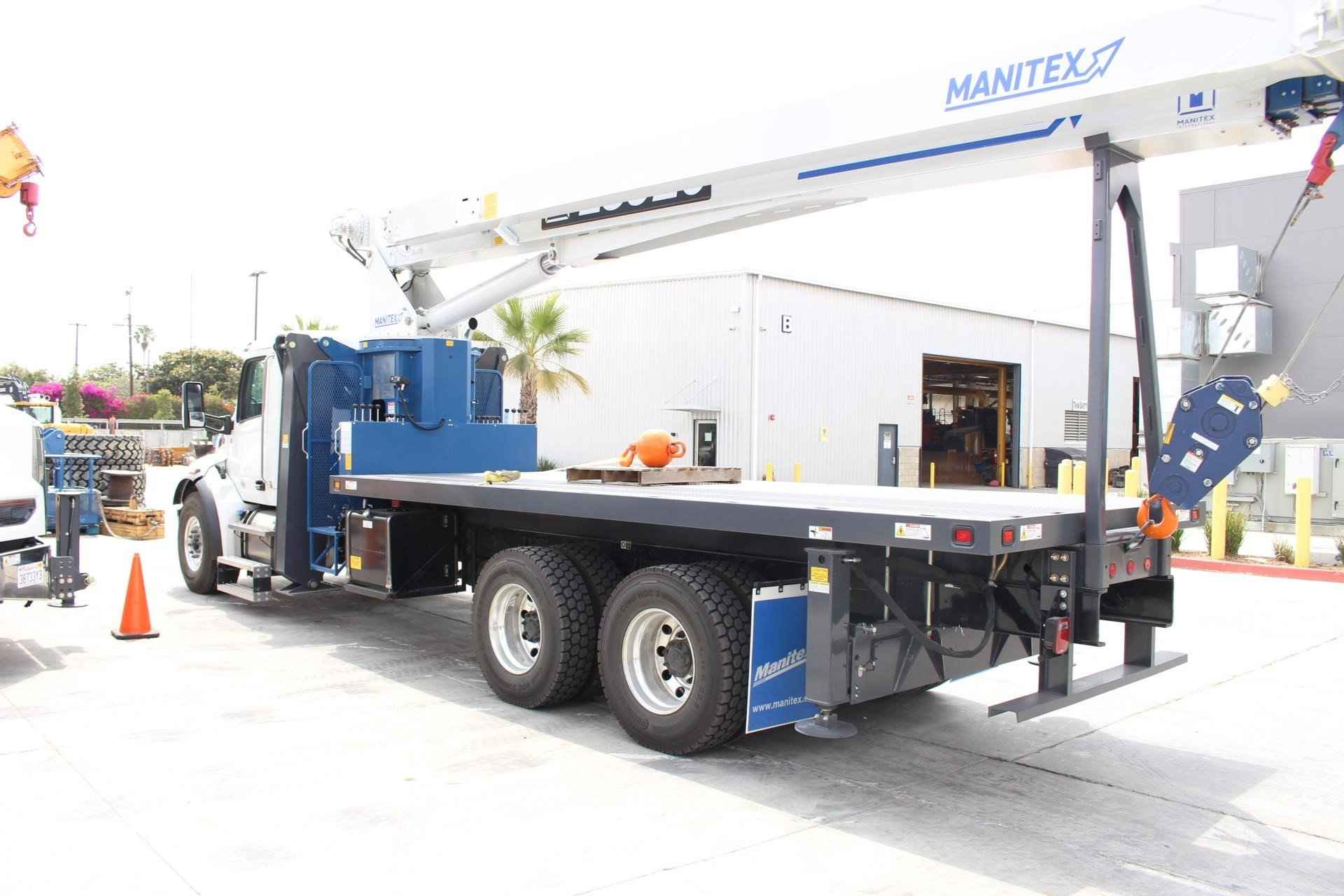

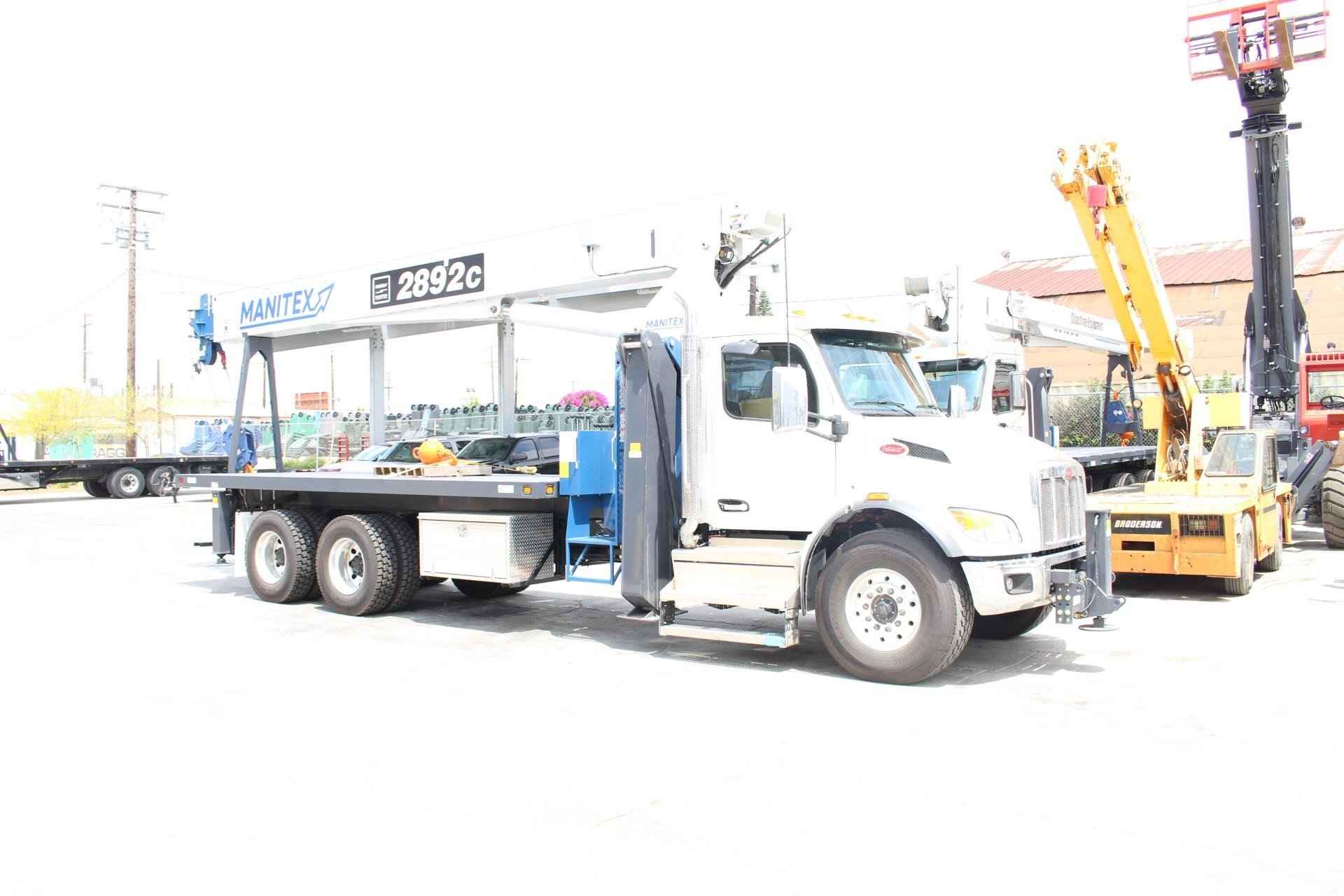

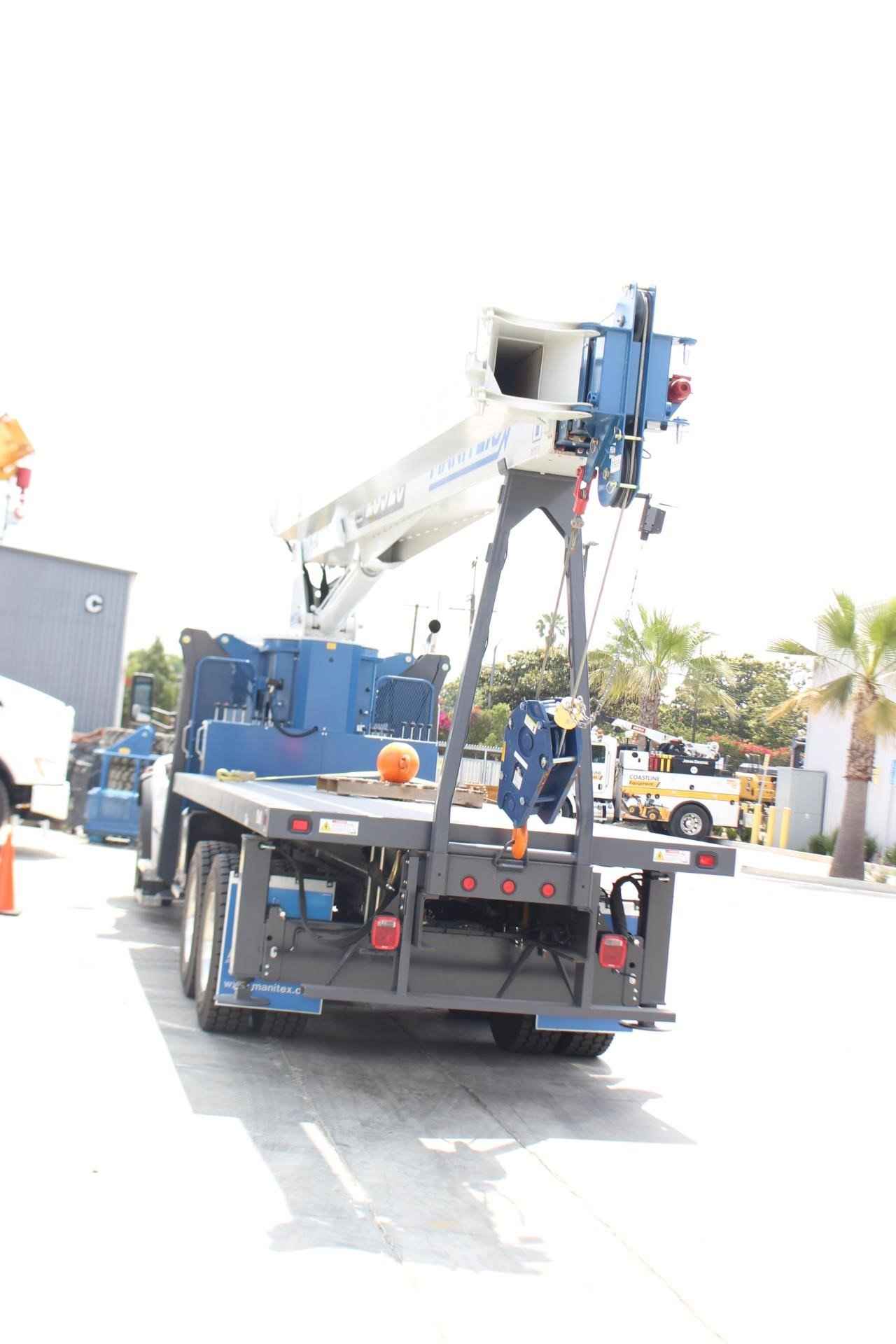

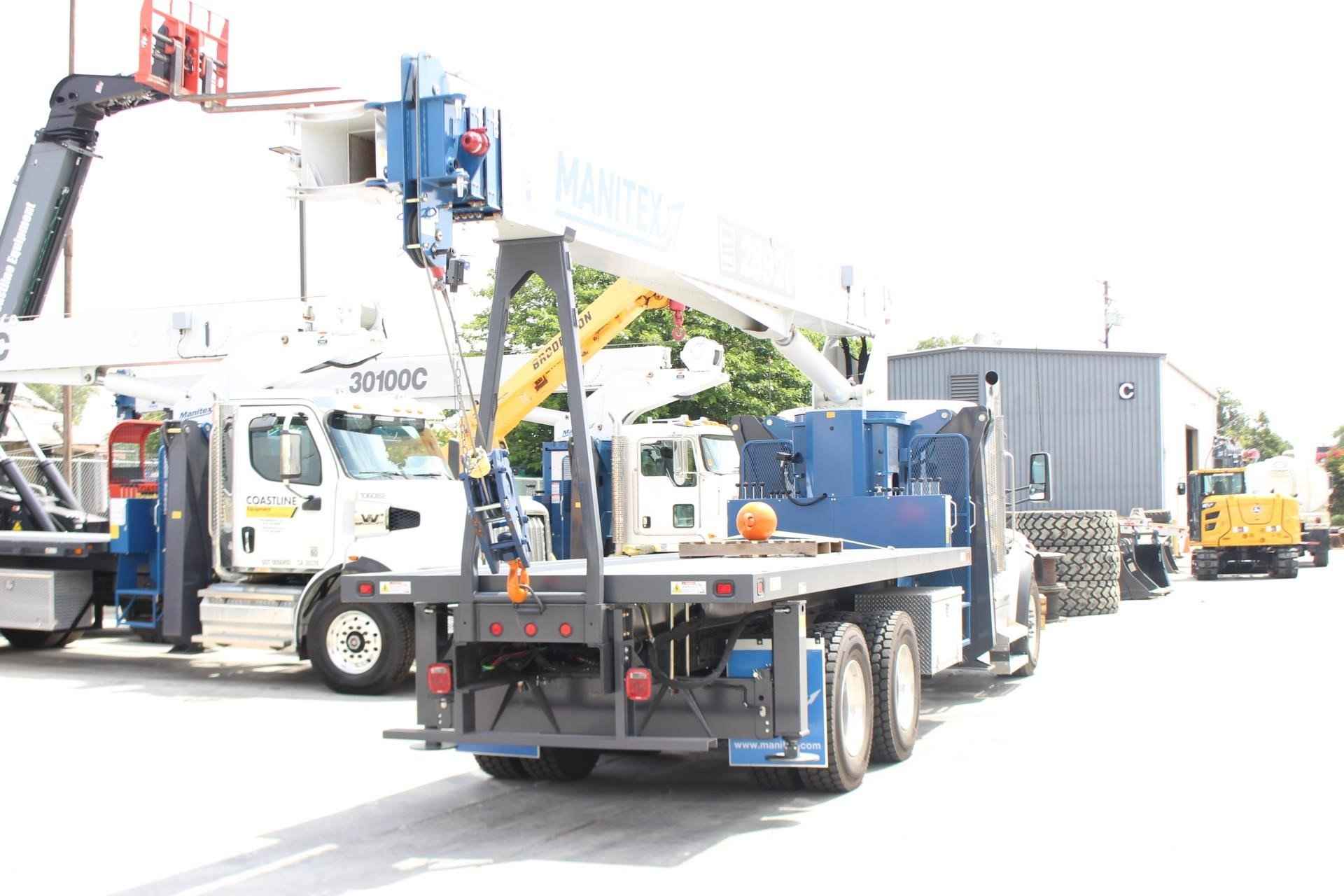

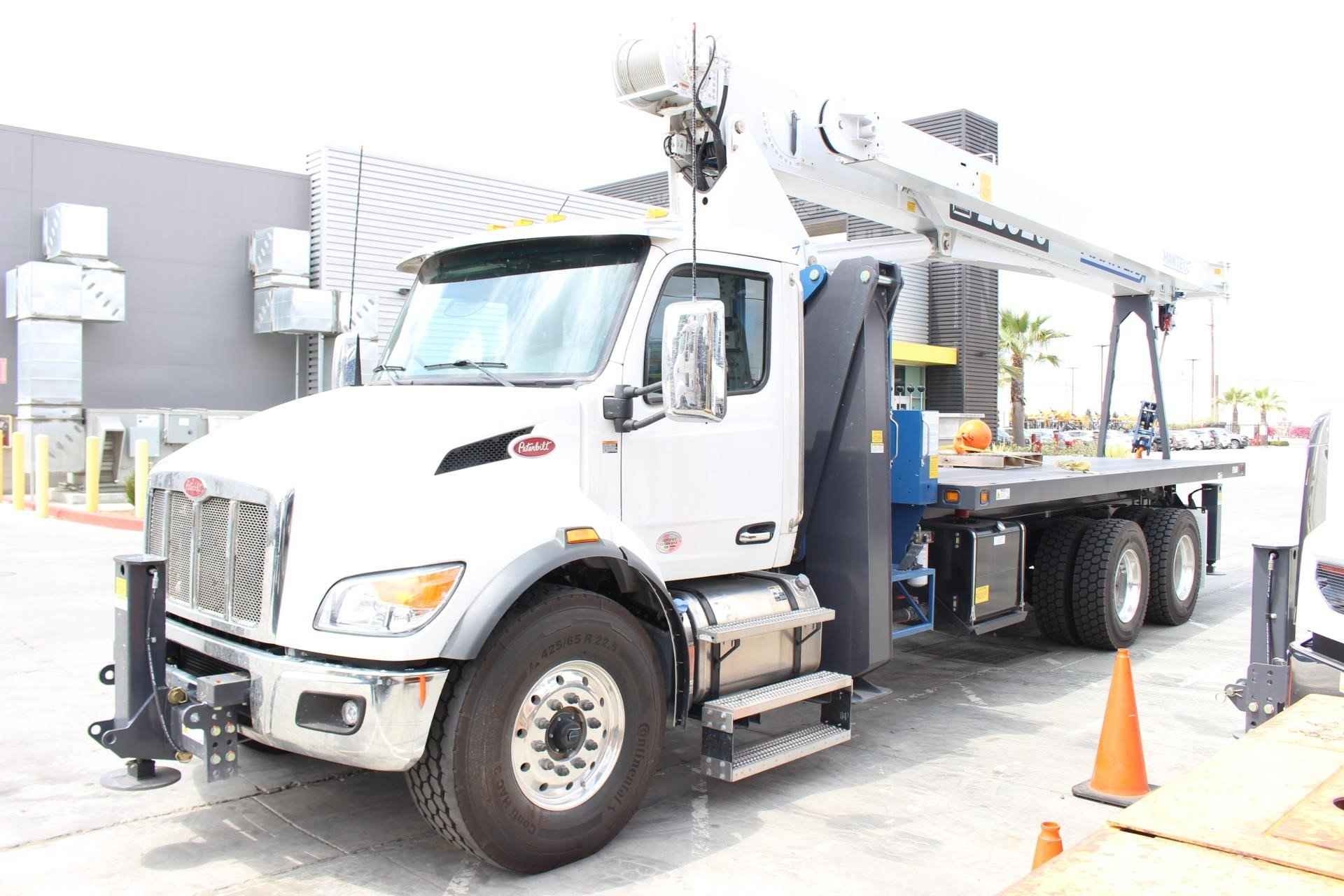

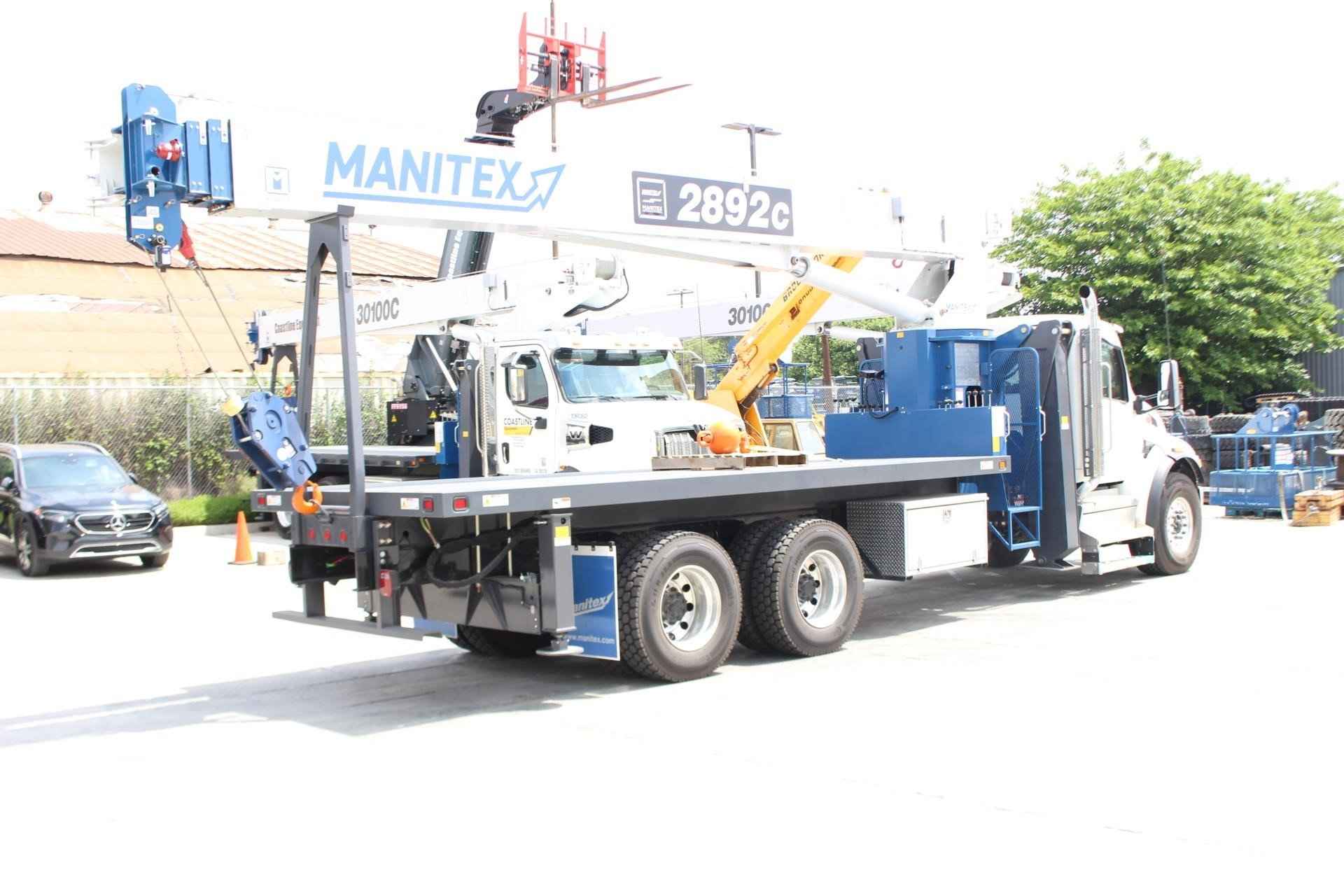

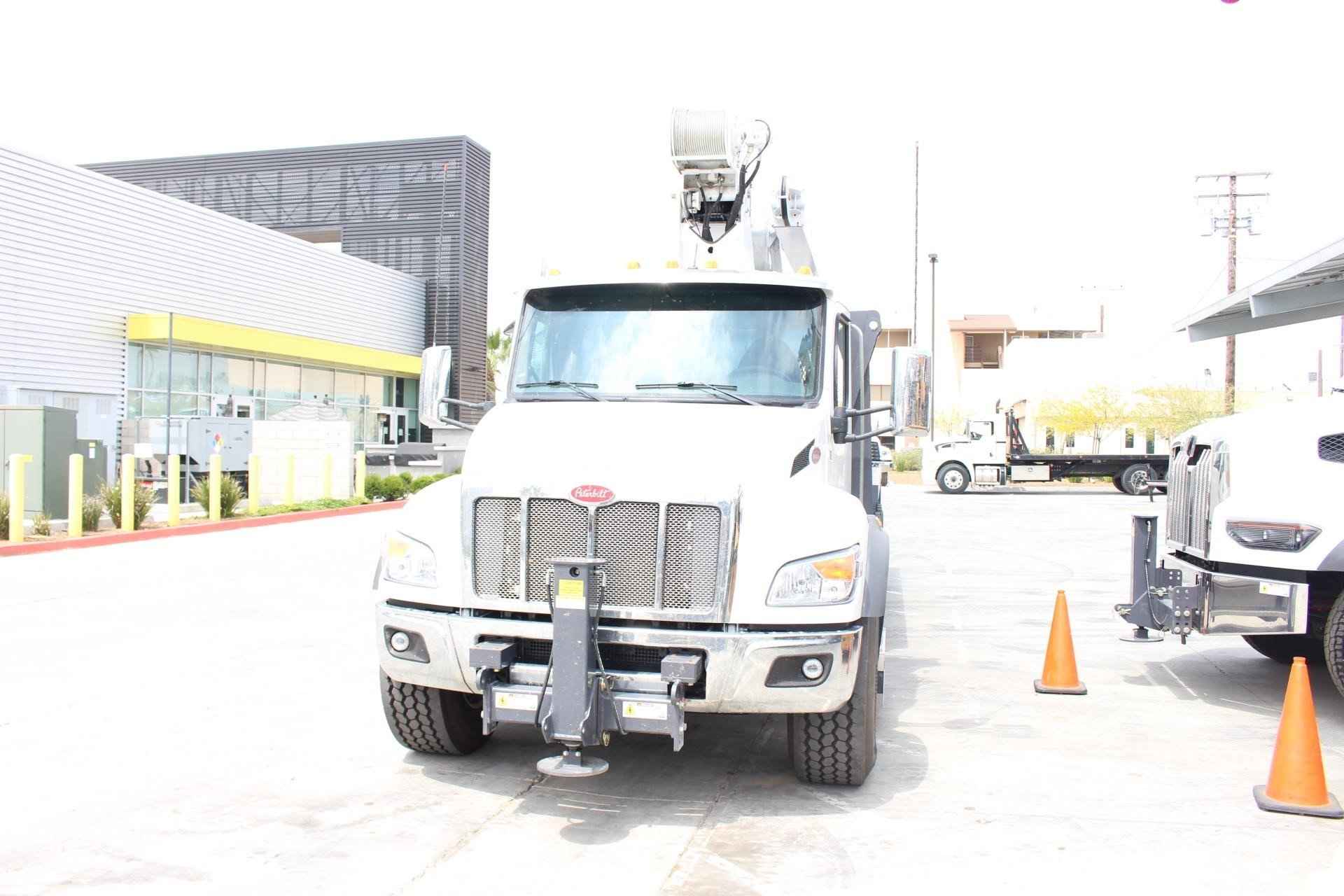

MANITEX 2892C 28 TON CRANE Standard features: 92’ Four-Section Telescopic Boom, LMI Radio ATB, 2 speed hoist with grooved drum, 7 ton hook and ball, 3 load sheave quick reeve boom head, Externally wired anti-two block with lockout, boom hoist cylinder, system pressure gauge, 372 ° non continuous rotation, removable boom rest, engine start/stop, operators service/parts manual, boom length and angle indicators, electronic throttle, foot throttle, bubble level, signal horn, 300’ 9/16” rotation resistant wire rope, 70 gallon reservoir with suction strainer and ball valve, pedestal, turret rotation bearing and swing system, dual operator control stations, load moment indicator- audio/visual alert with shutoff, audible outrigger stabilizer motion alarm, A-Frame Link Type front outriggers (22’4” spread width), out and down rear stabilizers (13’7” spread), 3 section hydraulic gear pump- counterclockwise rotation is standard, sub frame for 20' bed, outrigger monitoring system for verification only. Additional Options Included: • 1 piece 26’jib • 20’ Steel Bed with 1/8” thick Steel Thread Plate • 3 Section Vane Pump is required with an automatic transmission – Clockwise Rotation • Hotshot PTO • Heavy Duty Hydraulic Reservoir Chassis Mounted • 15 ton 1-sheave quick reeve block • Front center stabilizer • Control valve for operation of single stabilizer Required w/FBS • Aluminum toolbox (48” L x 24” W x 24” H) MOUNTED ON PETERBILT 548 Mounted on a 2024 Peterbilt 548 tractor chassis with a Paccar PX-9 370 HP diesel engine, Allison 3000 RDS-P Gen 5 Transmission, Dana Spicer D2000F 20,000 lb. front axle, Dana Spicer DSH40 40,000 lb. rear axle, Full set of Alcoa polished wheels, D-Shape Aluminum 60 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray/Black, AM/FM/WB Bluetooth Phone and audio radio, Air Horn mounted under cab, Dual heated mirrors, Stainless steel sunvisor, Halogen headlights and unit is painted Axalta Two Stage White.
