Features
Nominal Capacity @ Radius: 75 Tons @ 9'
Standard Boom: 41'-127' (12.5-38.71m) Full Power Latching
Telescope System: Latching
Max. Tip Height: 230' (70.2m)
Max. Line Pull: 16,880lb (75.09kN)
Max. Speed (ft per minute): 460 fpm (140.2m/min)
Key Features
- Excellent transportability - can be configured to meet some of the toughest transportation laws
- Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
- Both fly options feature four offset positions of 2°, 15°, 30° and 45°
- "Stow 'n go" outrigger pontoons are easily secured for transport
- Next generation operator's cab with improved visibility and ergonomics
- Pull-out CabWalk for ease of access to and from the operator's cab
- Integral air conditioning
- Large swing-out engine hood doors for ease of service
- Full length aluminum fenders
- Job site travel with counterweight
- Access ladders and folding guardrails

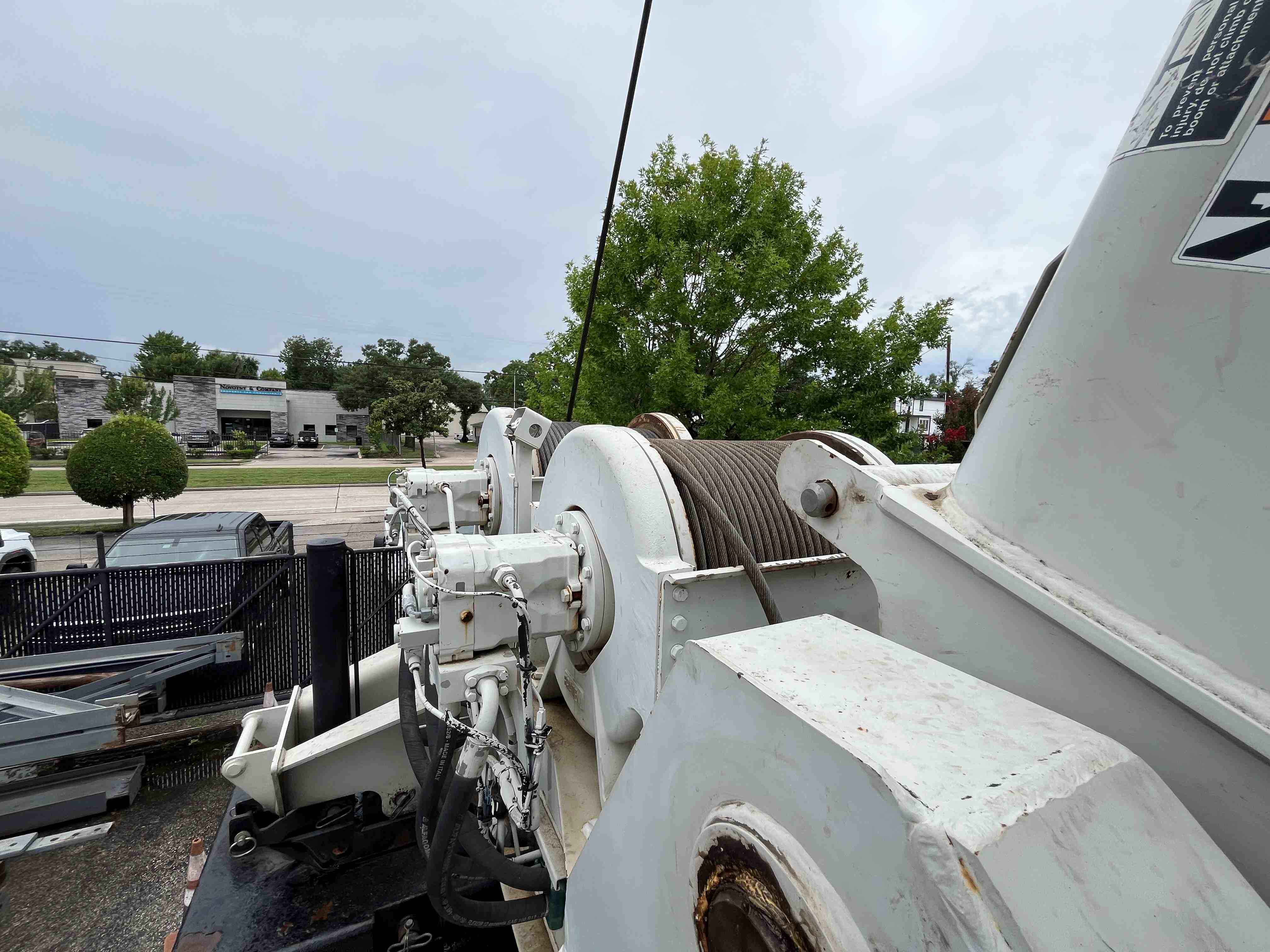

- Cameras for right side carrier, back-up, right side upper, and main and auxiliary winches
- Composite driver's cab with document storage and AM/FM radio
- Halogen daytime running headlights and LED lighting
- Illuminated compartments and controls for night-time operation
- Compliant to the highest emission requirements
