Features

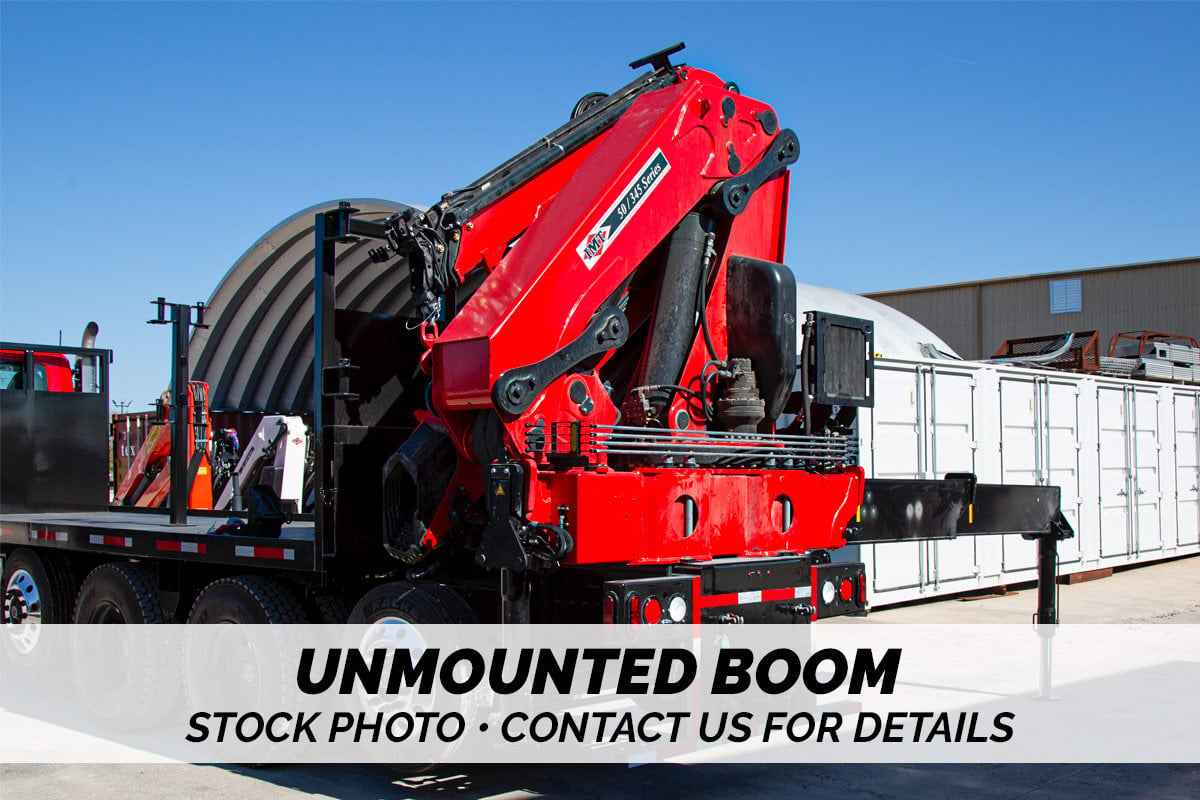

IMT® 50/345 articulating cranes feature hexagonal booms for greater strength and stability while providing a maximum horizontal boom reach of 70 ft (21.4 m) and a max lifting capacity of 22,840 lb (10,360 kg). That’s a lot of lifting power for articulating cranes that require minimal mounting space and offer the versatility to maneuver around difficult job sites. Standard features: Application-specific product offering Superior lift-to-weight ratio Long-reach capabilities Hexagonal booms for superior reach and maximum control Options: Various stabilizer configurations Double link arm system Boom mounted winch Floodlight on outer boom Boom tip functions for hydraulic attachments Oil cooler Electronic Vehicle Stability (EVS) System Technical Specifications: Crane Rating: 345,015 ft-lb Crane Weight: 11,190 lb Max Lift Capacity: 22,840 lb Max. Horizontal Reach: 70'3 "
