Features

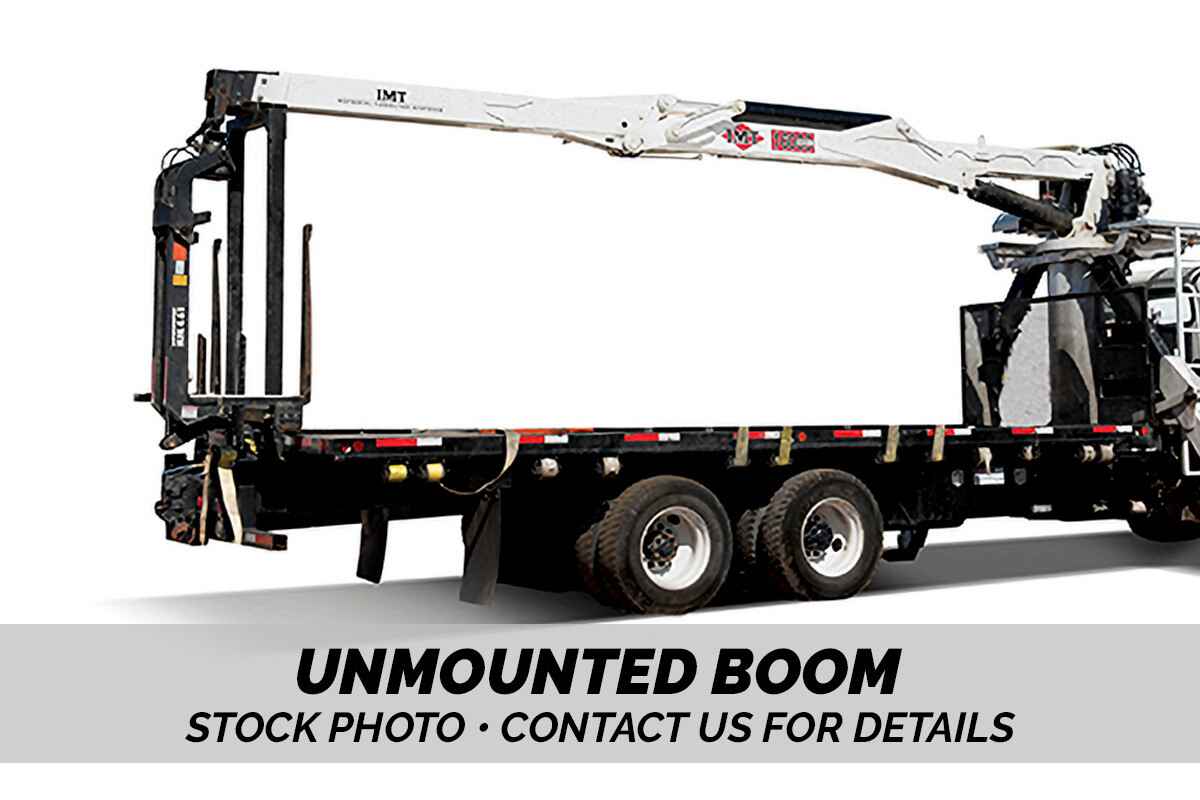

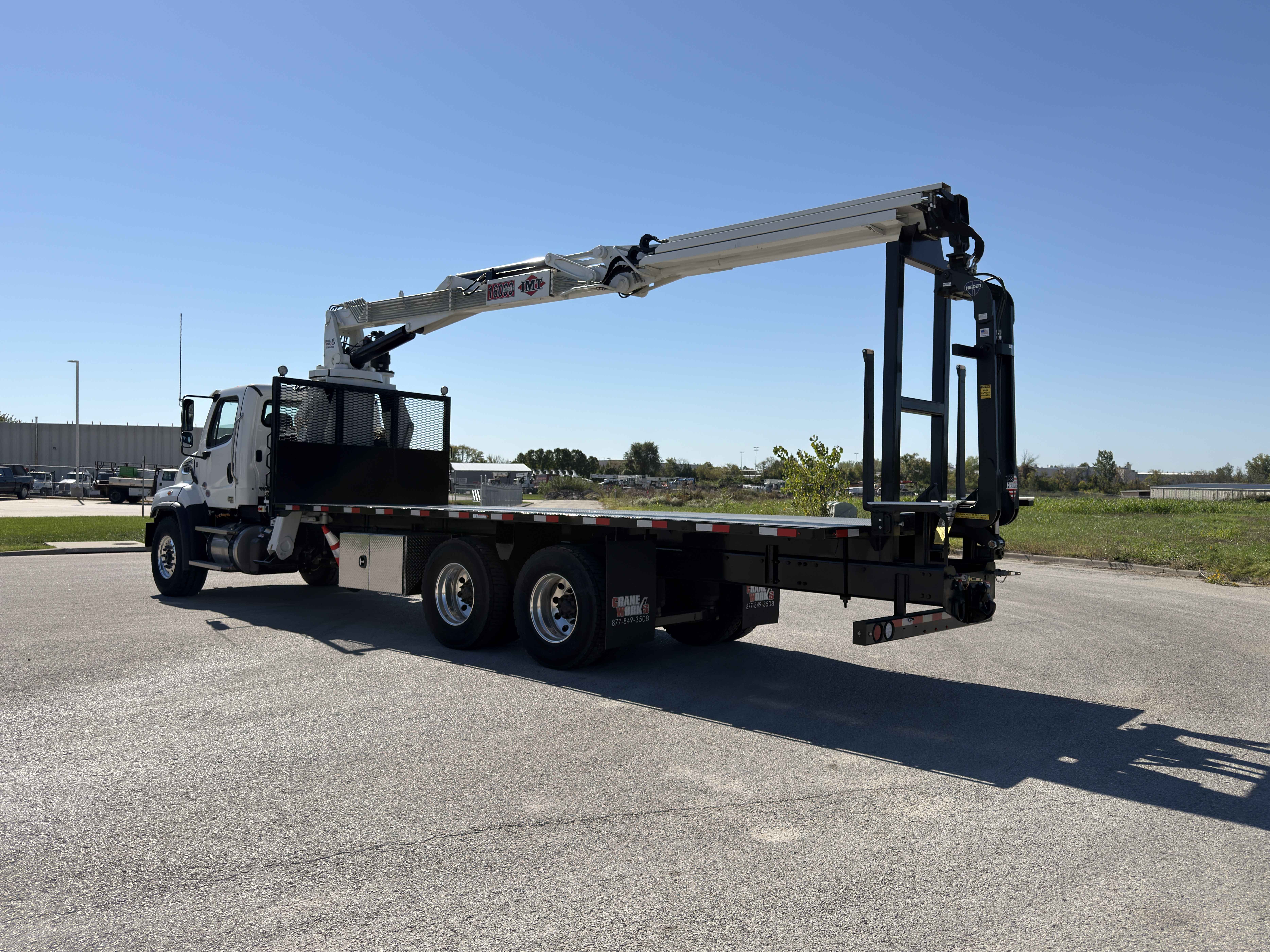

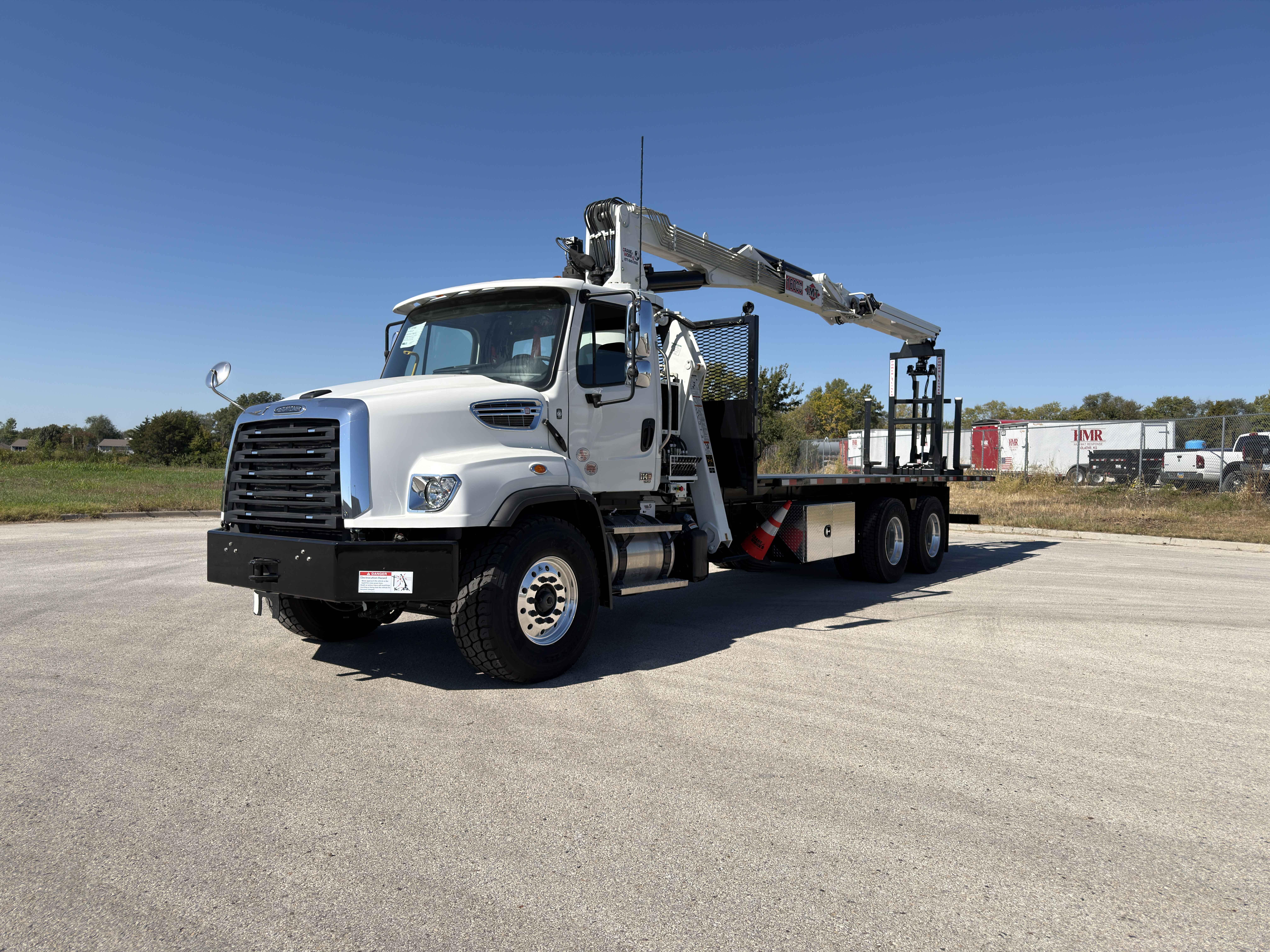

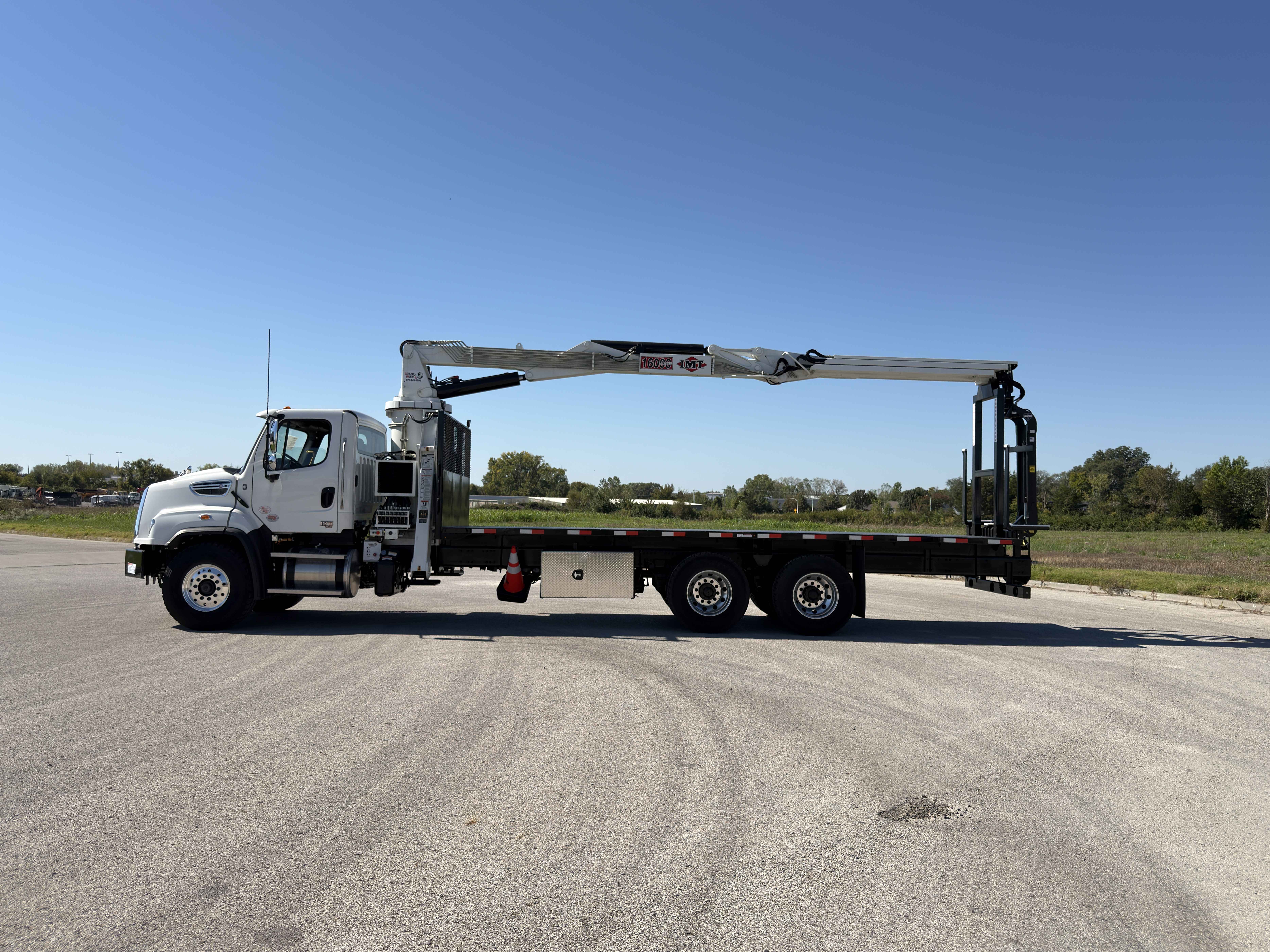

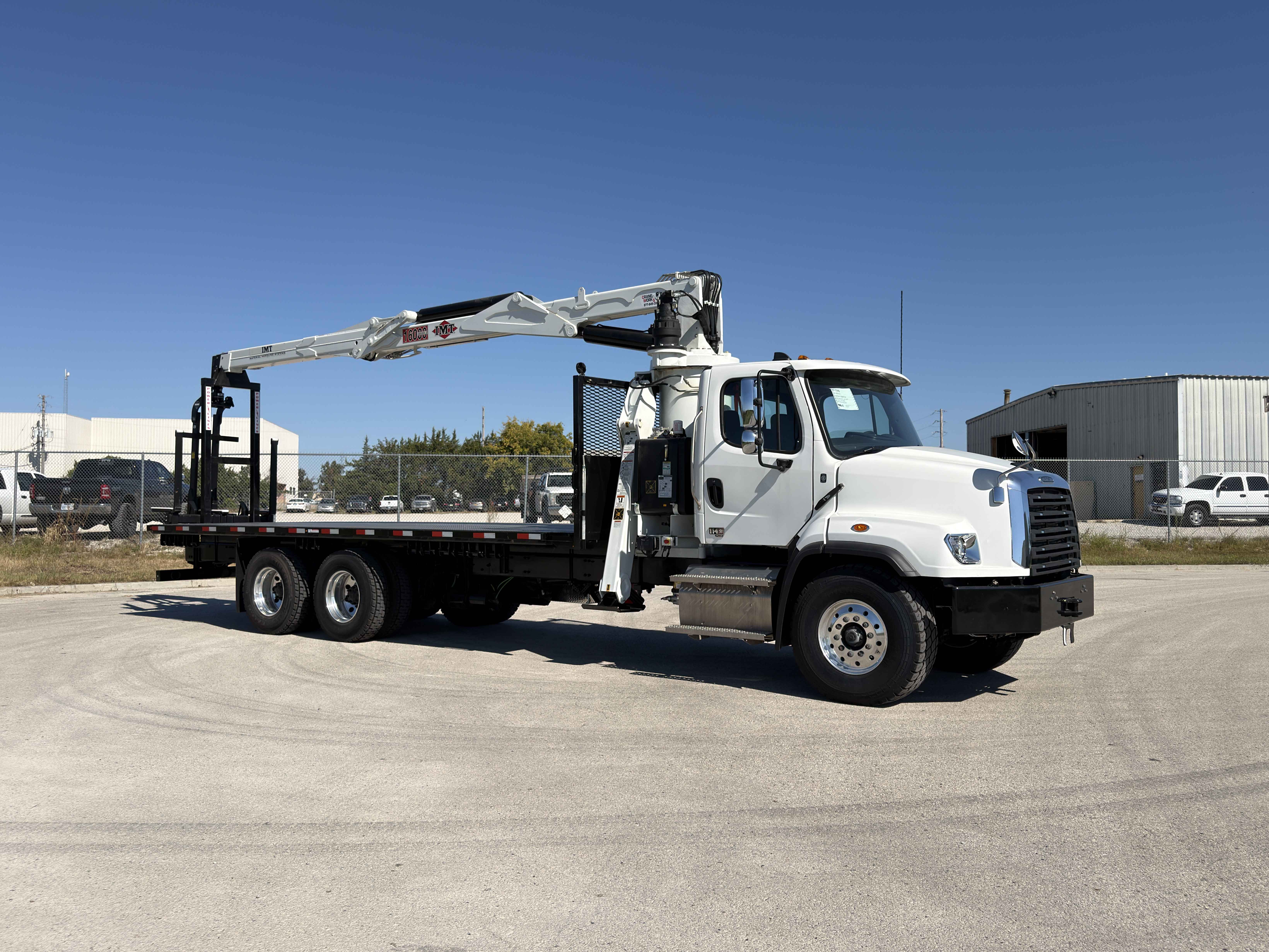

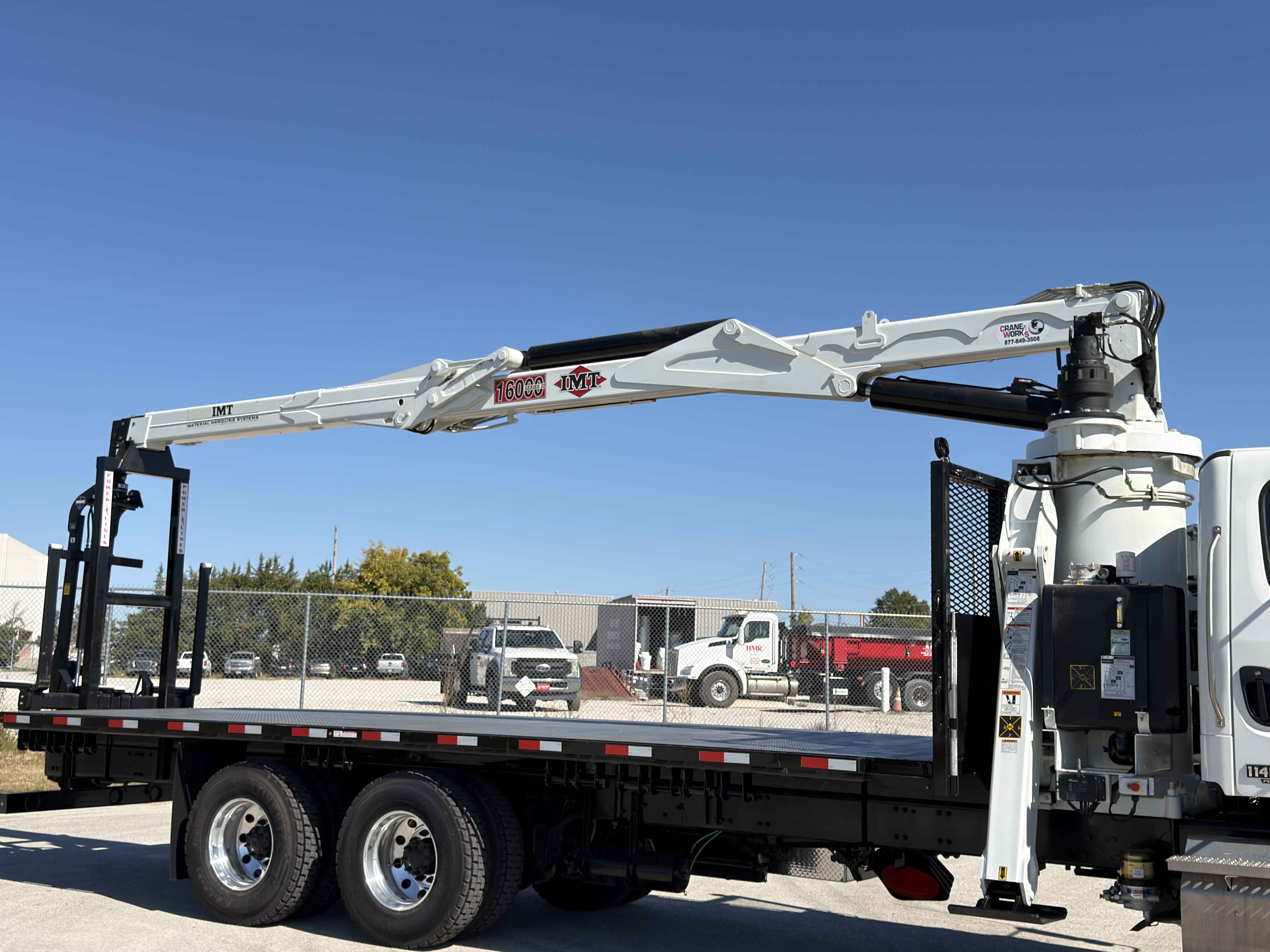

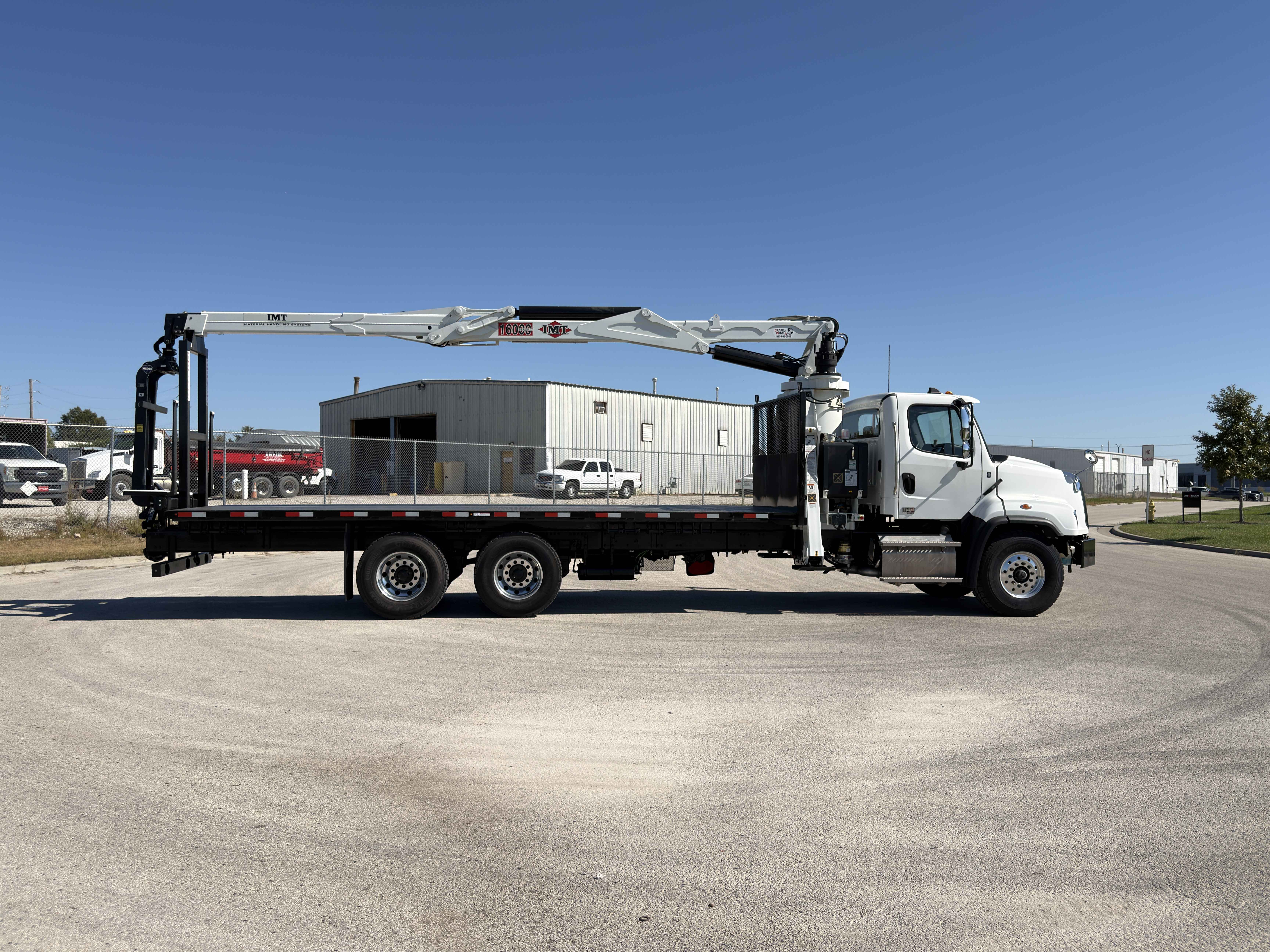

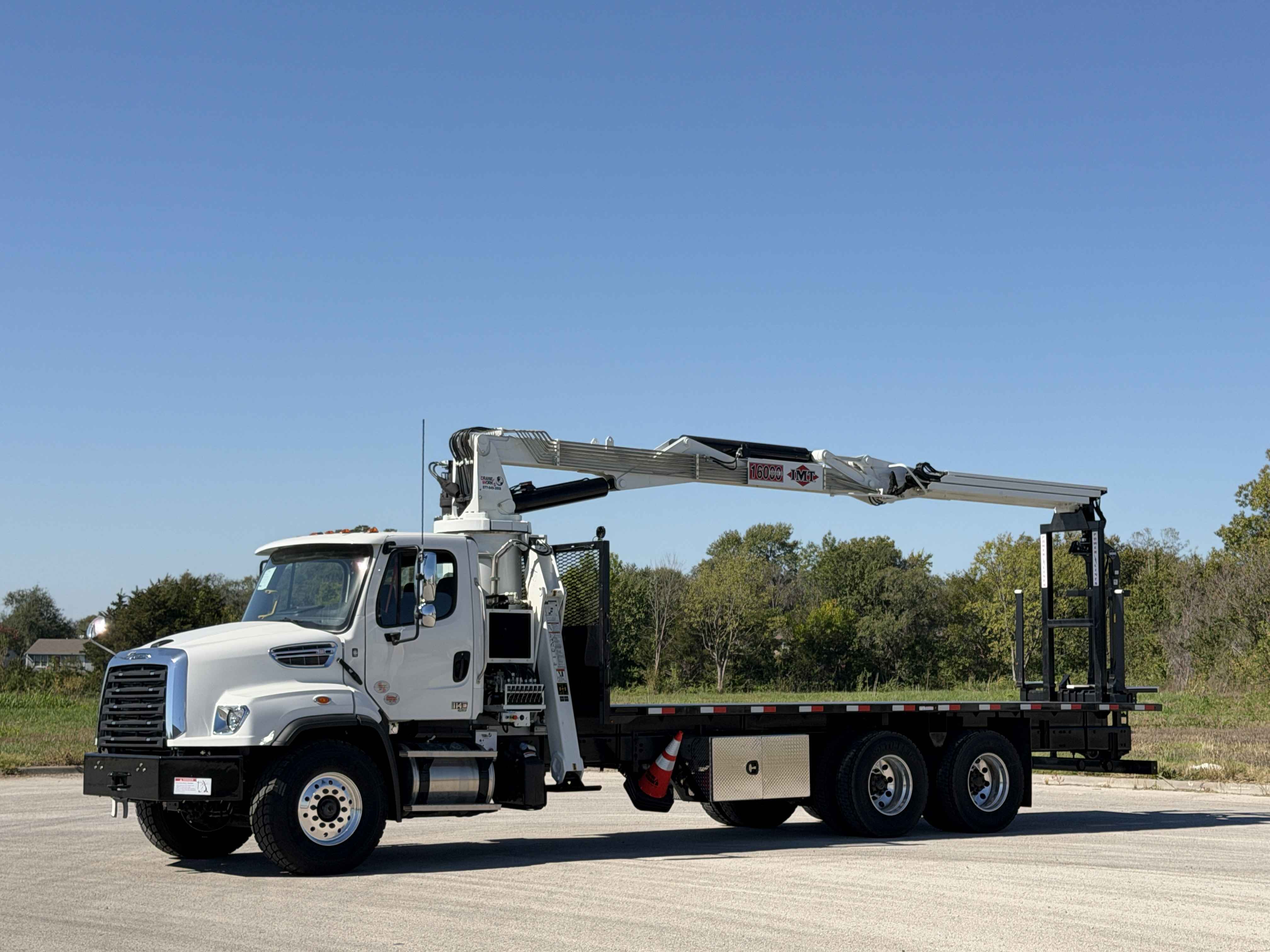

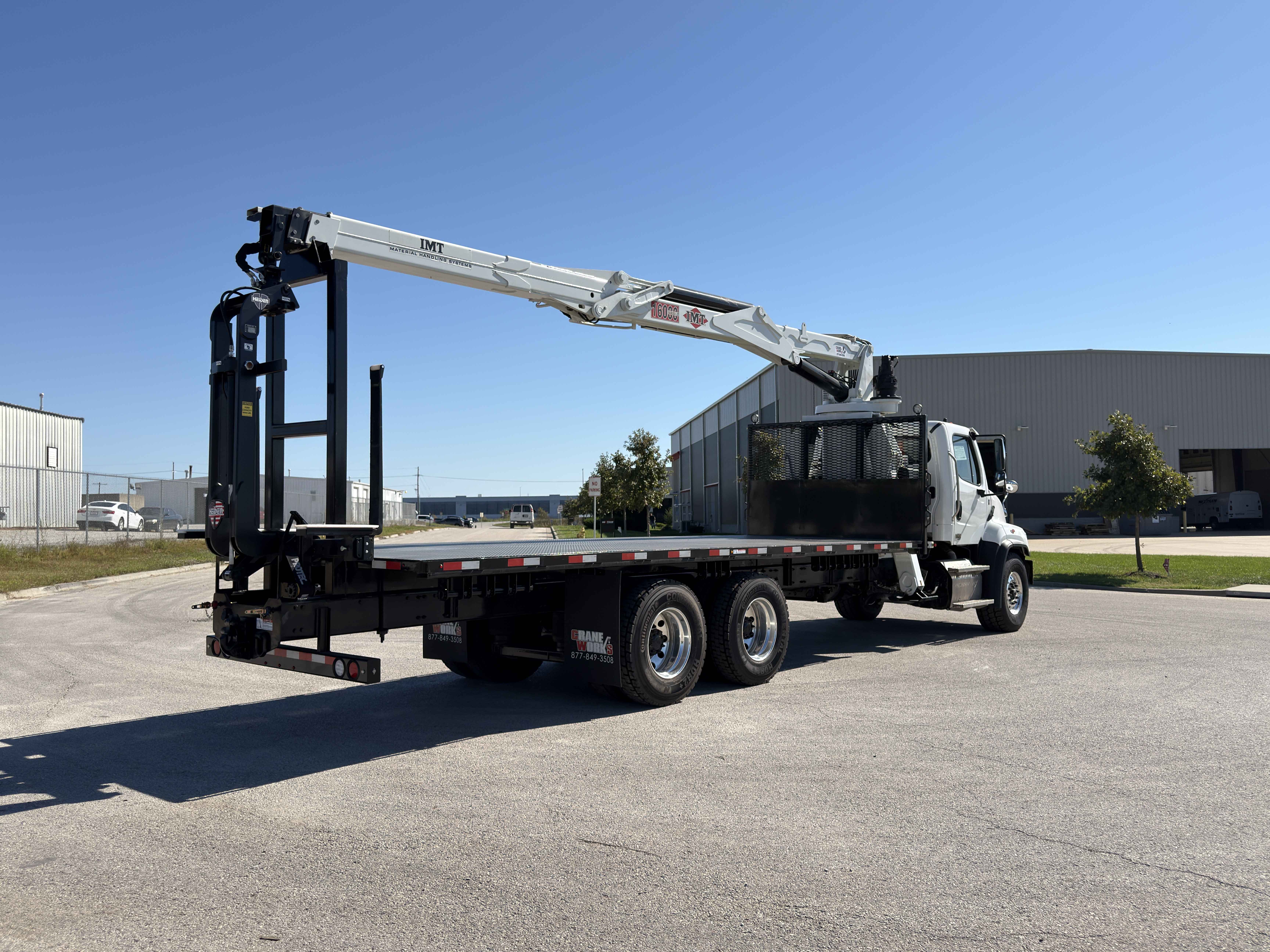

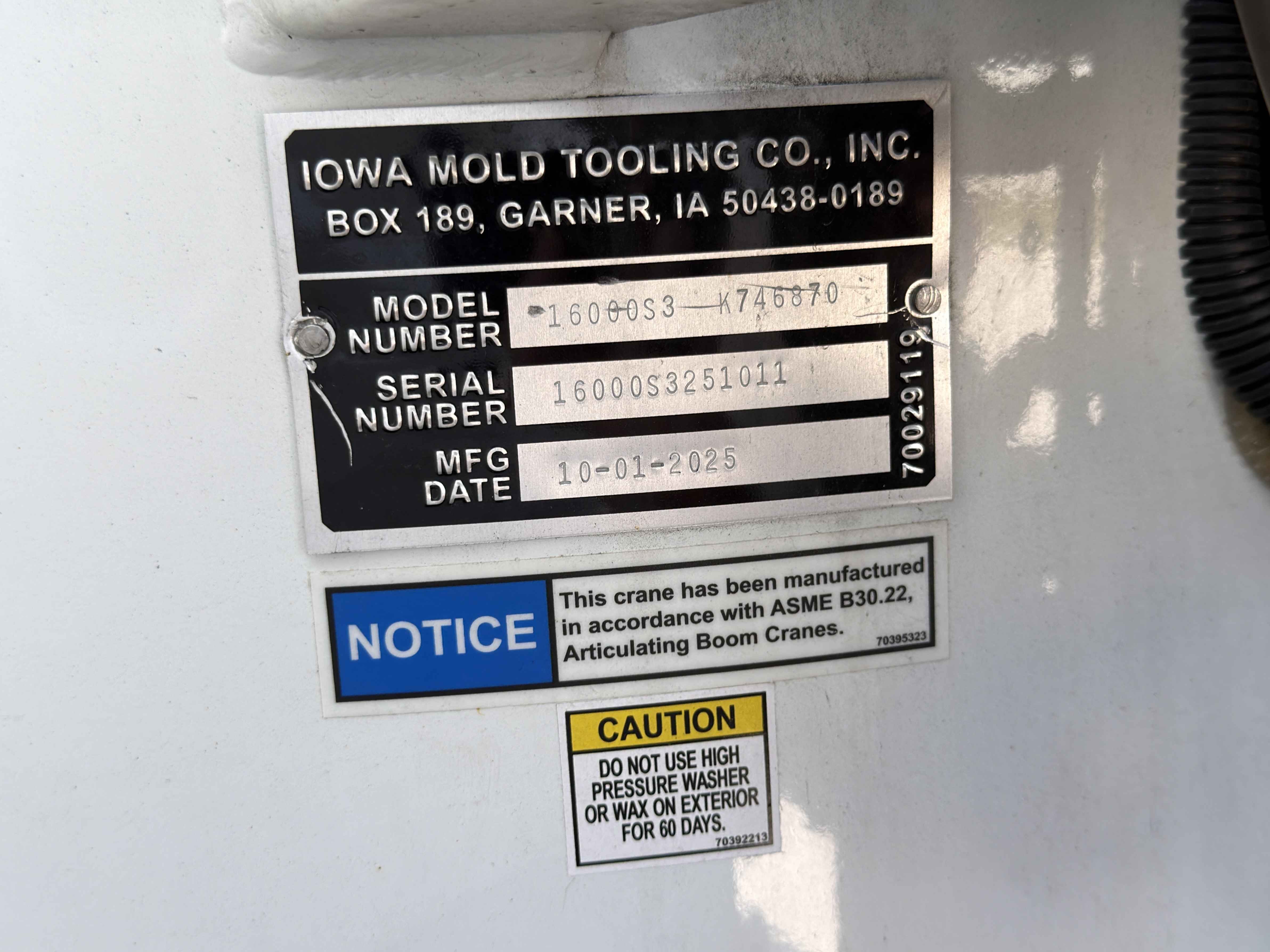

The IMT 16000 hydraulic loader is capable of lifting 3300 lb at its maximum horizontal reach of 42’. Specifications: Crane Rating: 160,000 ft-lb (22.1 tm) Horizontal Reach from centerline of rotation: 42'0" (12.8 m) Hydraulic Extension (double): 87" + 87" (221.0 cm + 221.0 cm) Lifting Height from base of crane: 54'3" (16.5 m) Crane Weight (base unit with platform and chair): 10,500 lb (4762 kg) Outrigger Span at ground level: 17'6" (5.3 m) Crane Storage Height: 13'2" (4.0 m) Mounting Space Required (crane base): 36" (91 cm) Optimum Pump Capacity tandem pump (each section): 16 + 16 U.S. gpm (60.5L/min + 60.5L/min) Oil Reservoir Capacity: 40 gallon (151 L) Center of Gravity (horizontal from centerline of rotation): 95" (241.3 cm) Center of Gravity (vertical from bottom of crane base): 62" (157.5 cm)
