Features

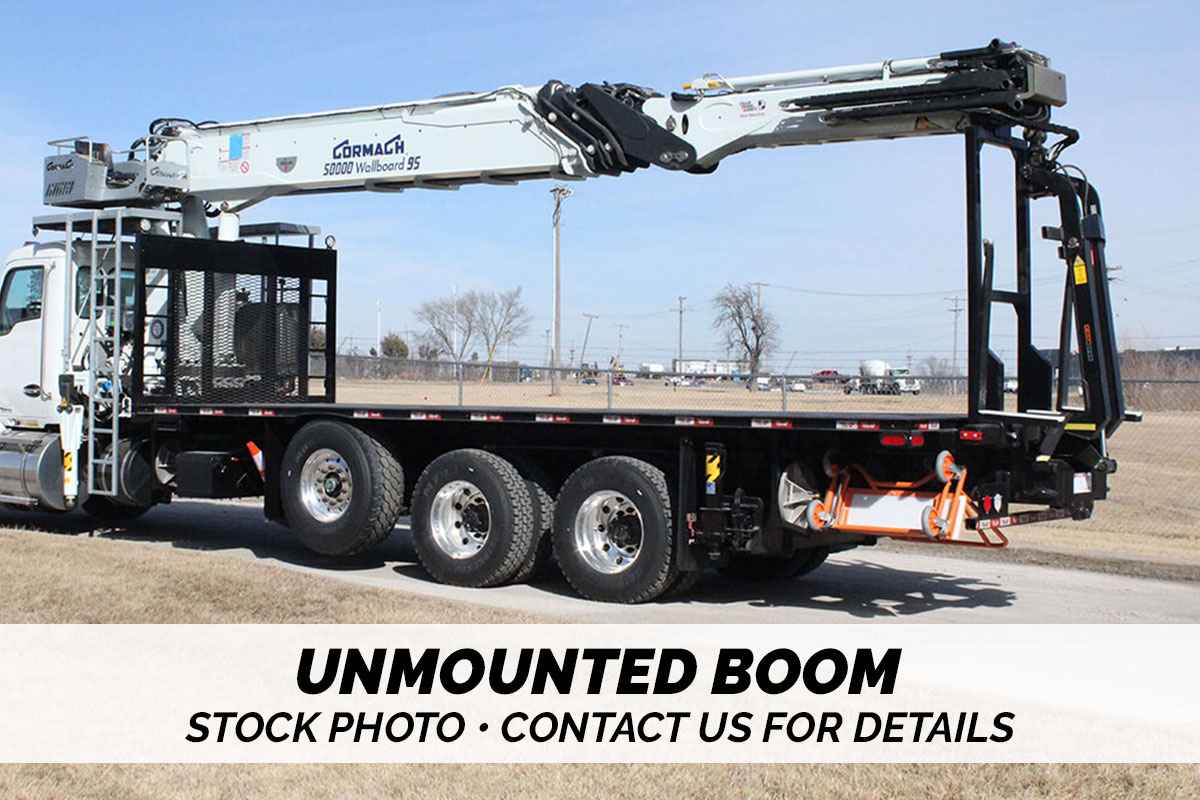

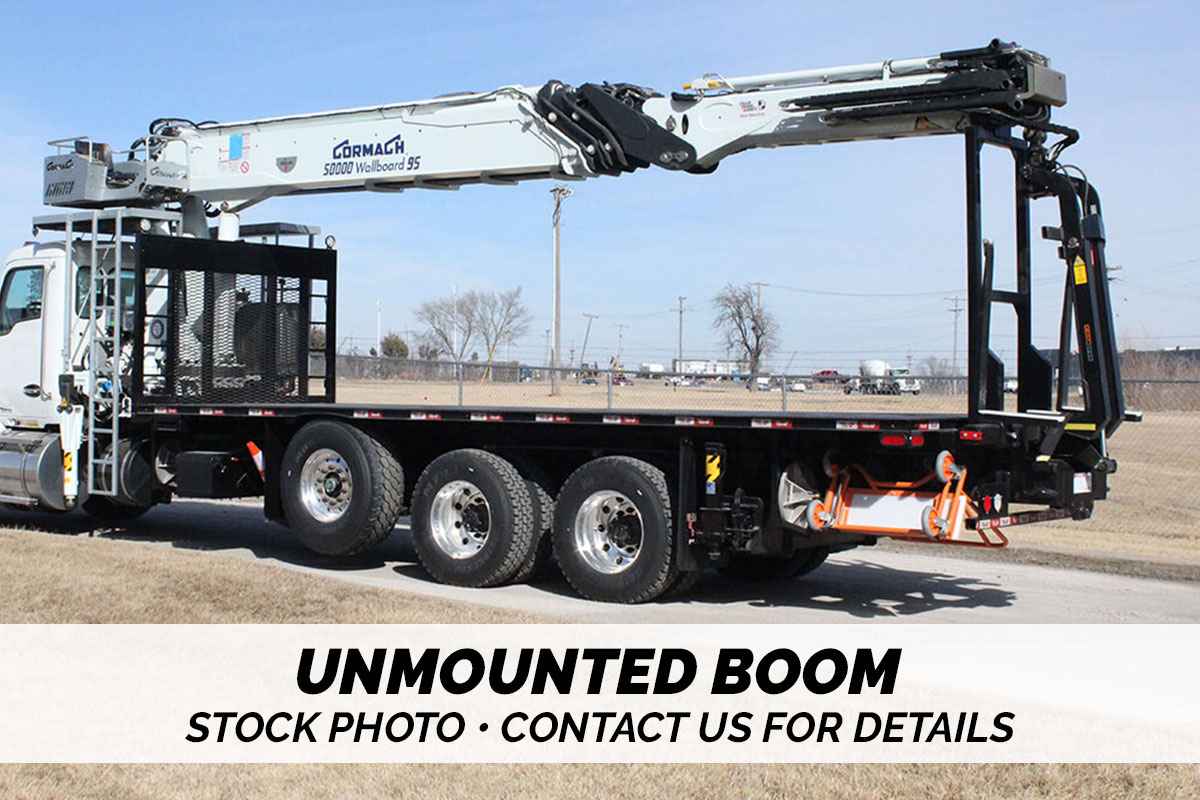

CORMACH 50000 WB Series Booms With three inner boom sections and either two, three or four outer boom sections (depending on model) the boom is able to reach higher than any other boom on the market with greater capacities. The inner boom can reach to over 72’ before the extending the outer boom. This higher range will allow you to reach places other manufacturers’ booms can’t, permitting you to accomplish higher and more accurate picks. The inner boom can be activated on a zero degree horizontal plane allowing a trailer to feed the boom drywall constantly throughout the job if necessary. Even with the greater heights and longer extensions, the 95’ boom will collapse for transportation to allow for a 24’6” bed keeping the overall length under 40’ when installed on an acceptable chassis. Technical Specifications: Static moment at the turret pin: 63000 (daN/m), 464663 (lbs/ft) Hyd. boom length: 29000 (mm), 95' 2" (in) Weight (without oil and fitting): 6410 (kg), 14130 (lbs) Lifting capacity: 2780 (kg), 6130 (lbs) Slew torque: 4000 (daN/m), 28938 (lbs/ft) Slewing speed: 360- 58 (° – sec), 360- 58 (° – sec) Outriggers extension: 2626 2626 (mm), 8' 7" 8' 7" (in) Outriggers width: 7620 (mm), 25' 0" (in) Pump delivery: 100 (lit/min), 26 (gal/min) Pressure: 320 (bar), 4640 (Psi) Oil tank capacity: 250 (lit), 66 (us gal)
