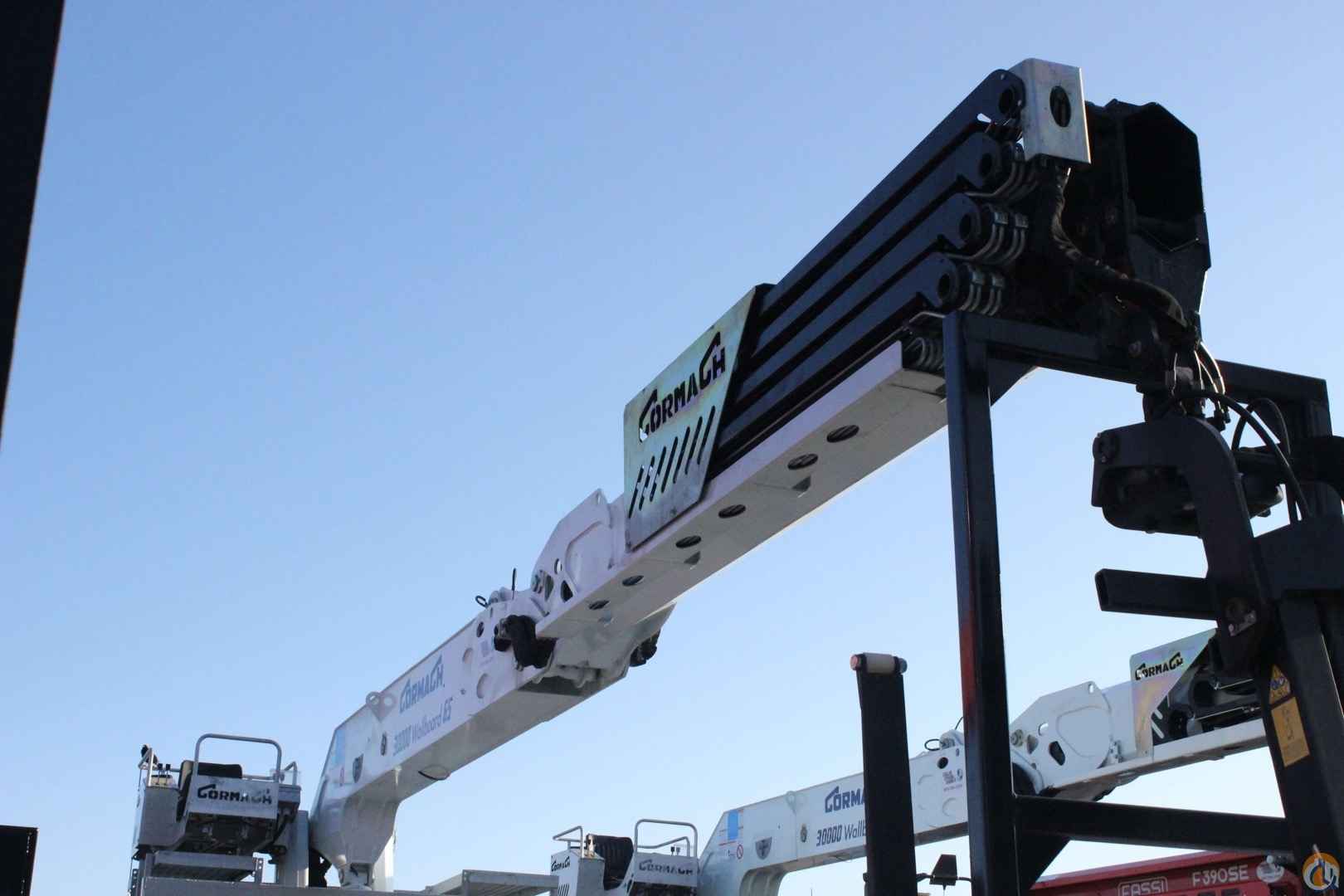

New Cormach 30000 WB65 wallboard crane (unmounted) Crane (Sold)

Technical specifications

Static moment at the turret pin: 35,700 (daN/m); 258,270 (lbs/ft)

Hyd. boom length: 20,060 (mm); 65' 10" (in)

Weight (without oil and fitting): 5,060 (kg); 11,160 (lbs)

Lifting capacity: 2,380 (kg); 5,250 (lbs)

Slew torque: 4,000 (daN/m); 28,938 (lbs/ft)

Slewing speed: 360° - 58 (° – sec); 360° - 58 (° – sec)

Outriggers extension: 1,750 1,750 (mm); 5' 9" 5' 9" (in)

Outriggers width: 5,765 (mm); 18' 11" (in)

Pump delivery: 100 (lit/min); 26

Pressure: 290(bar); 4120(psi)

Oil tank capacity: 250(lit); 66(US gals)
