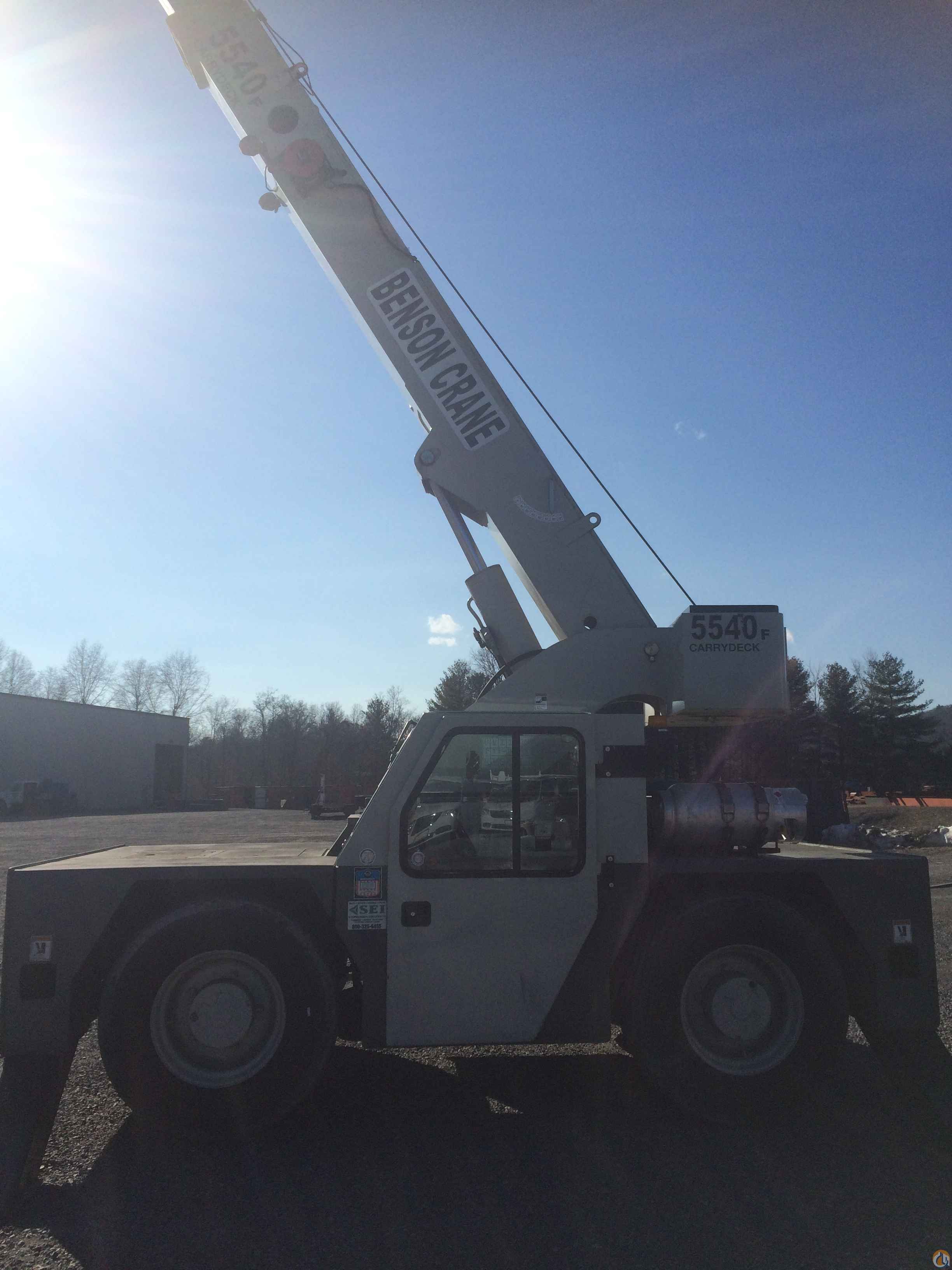

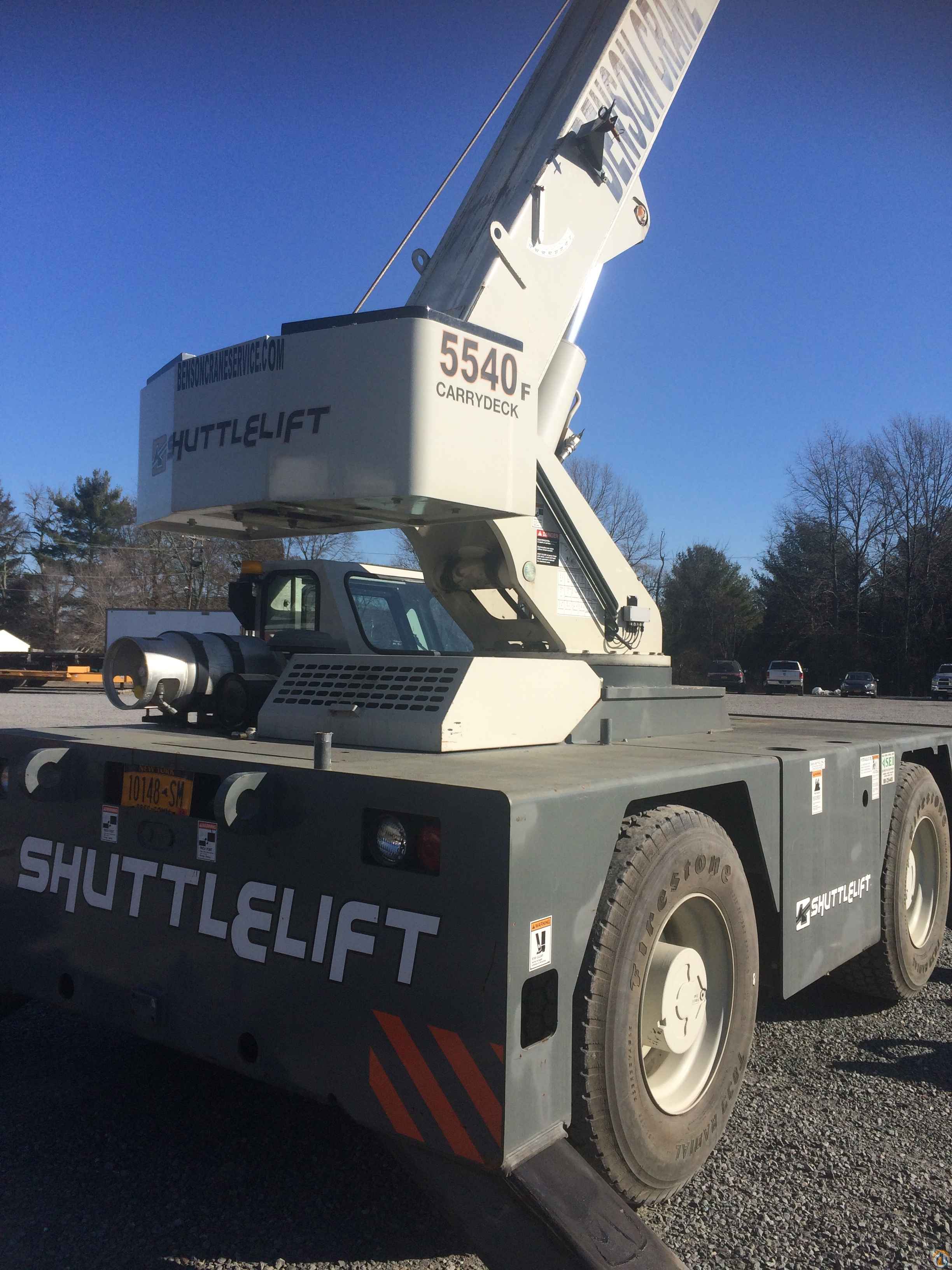

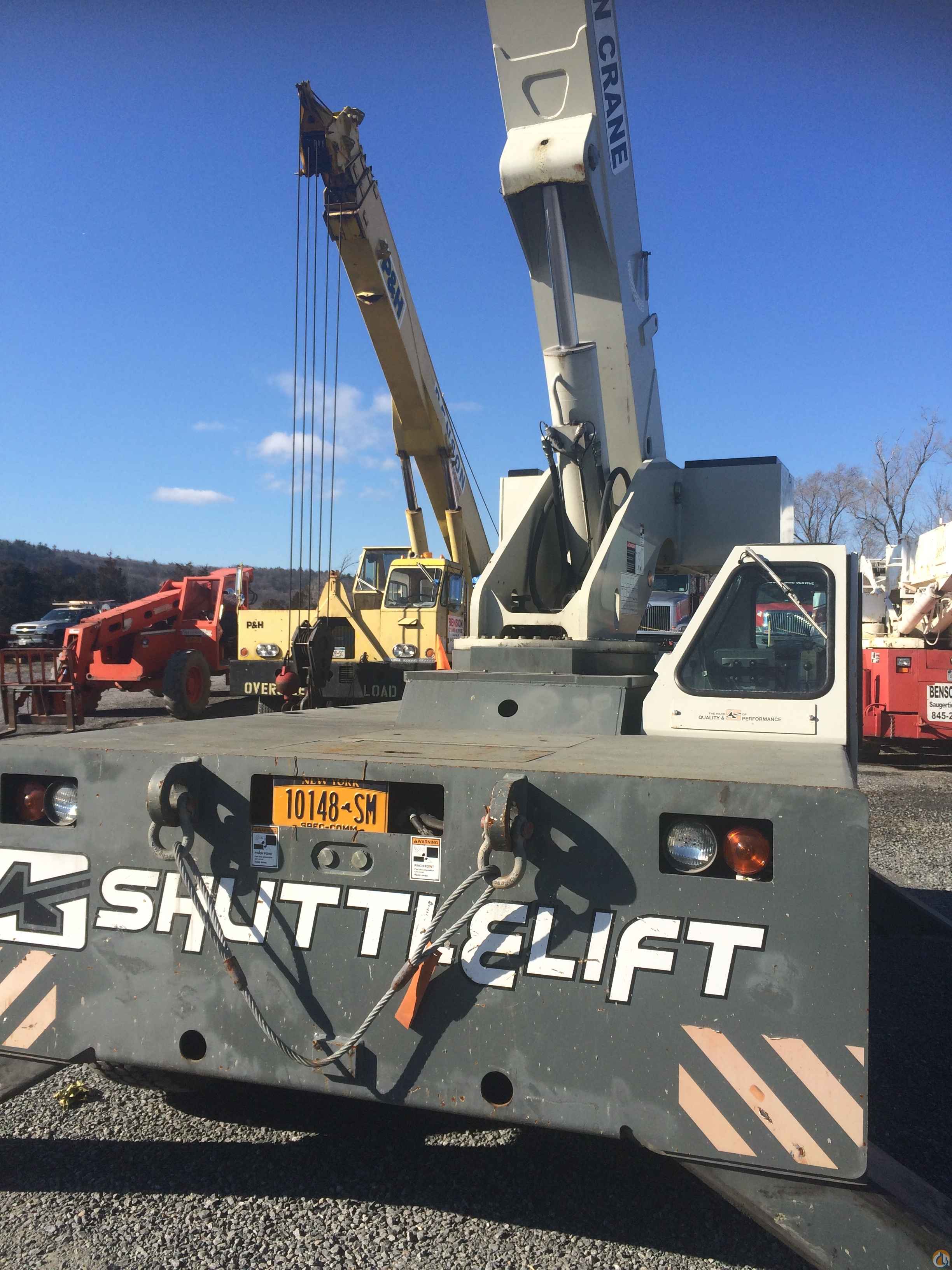

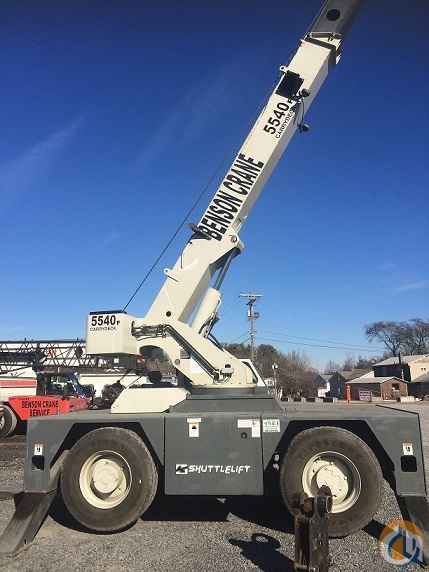

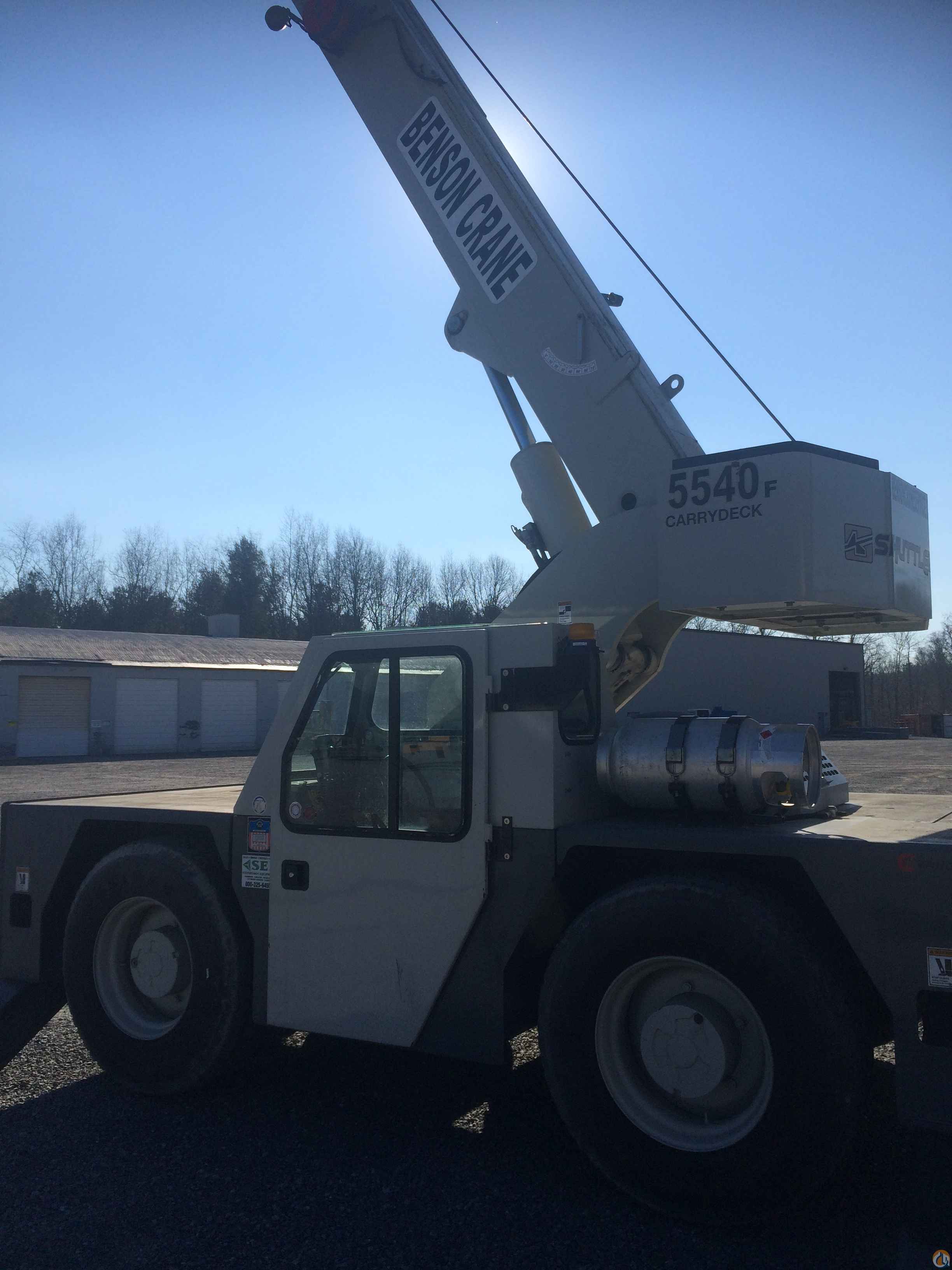

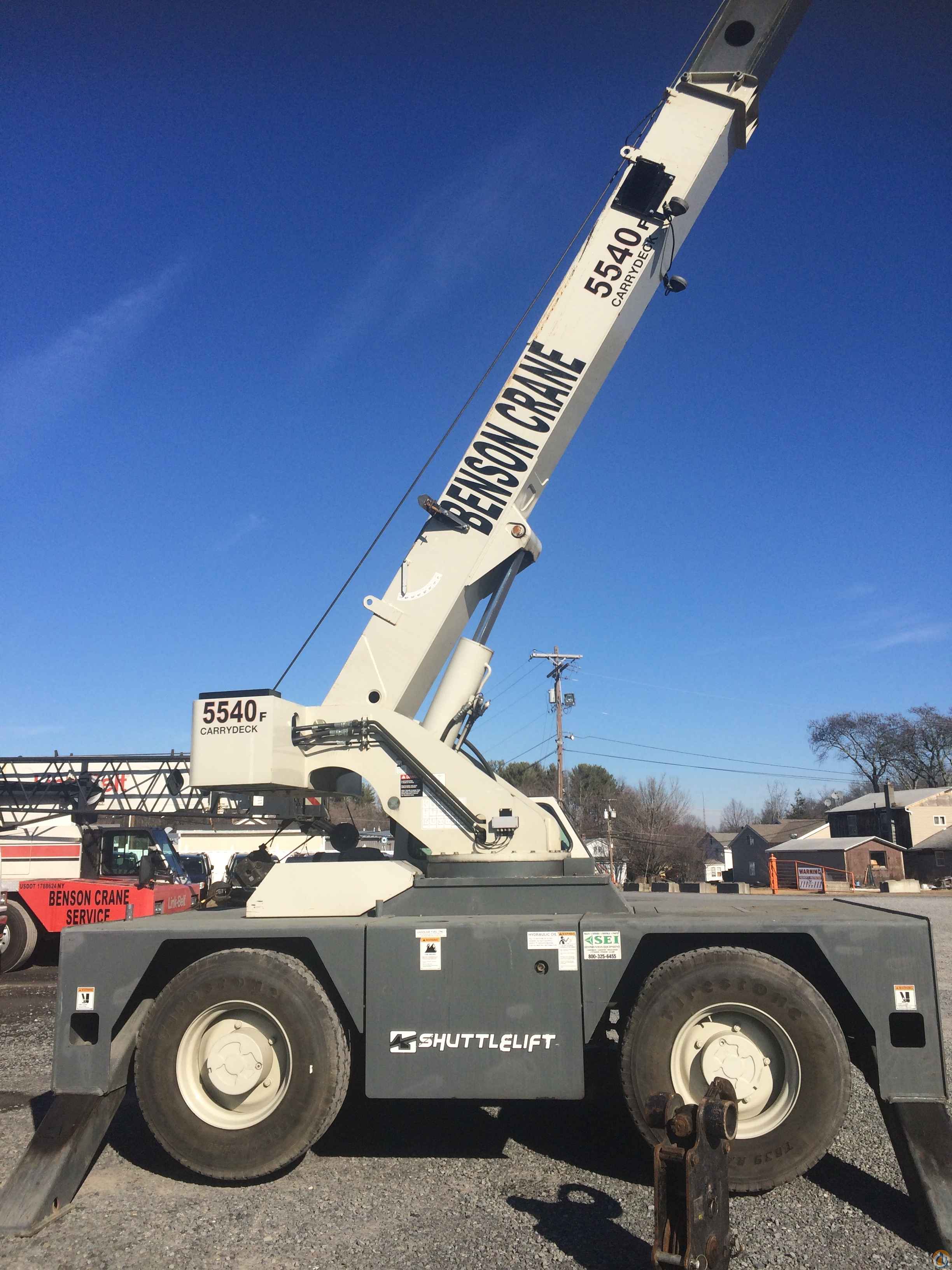

2009 Shuttlelift 5540F
The Carrydeck line of industrial cranes offer a durable and versatile crane in a compact design. Carrydeck cranes are designed for both indoor and outdoor jobsites and feature telescoping booms and a load deck for material handling.
Shuttlelift 15 Ton Industrial Carrydeck Crane
Option Set: 0 IND15TON 1114010014 CD/YB5500 SERIES
A107 Basic 5540f w/ 41’ Boom :

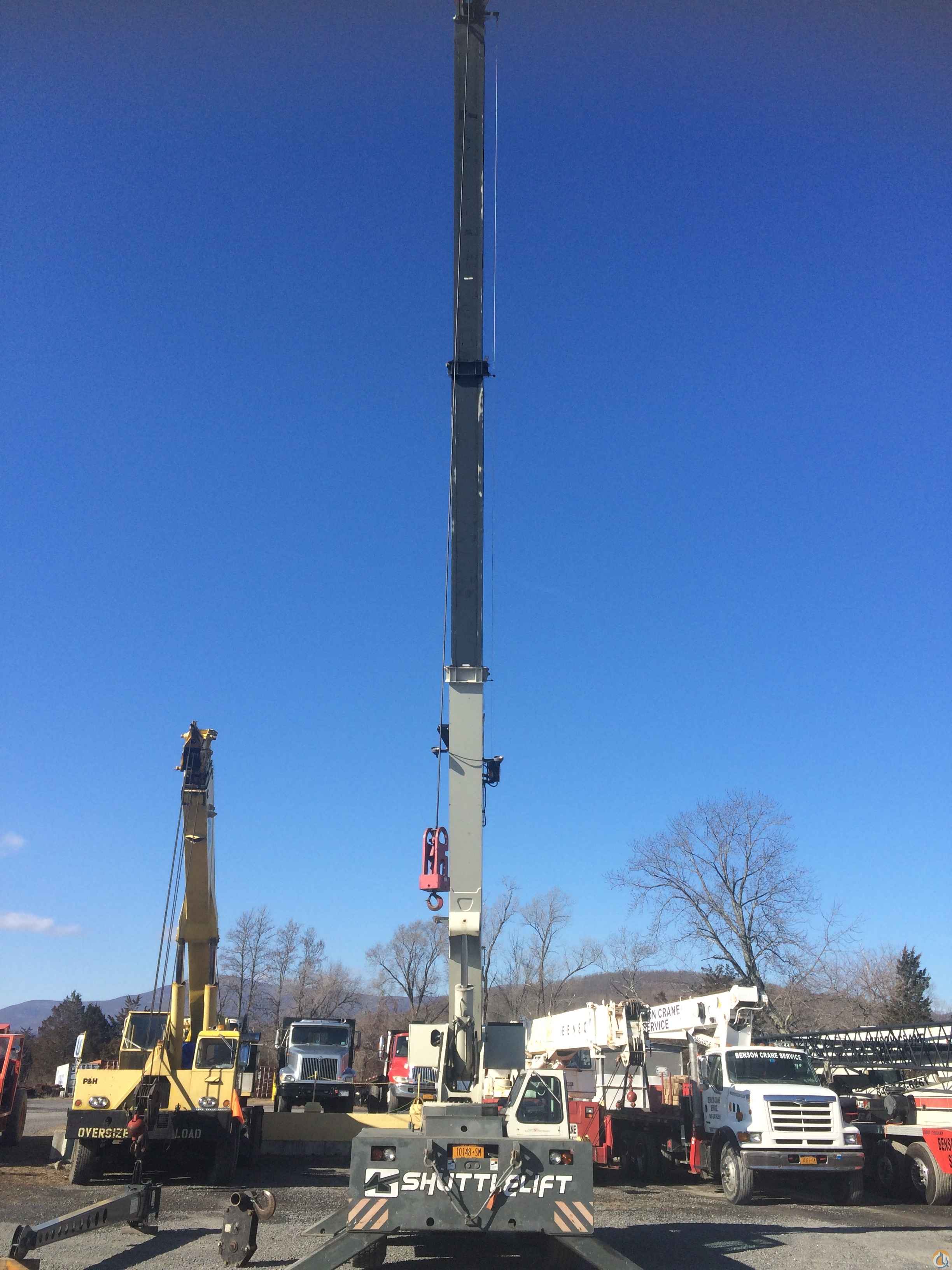

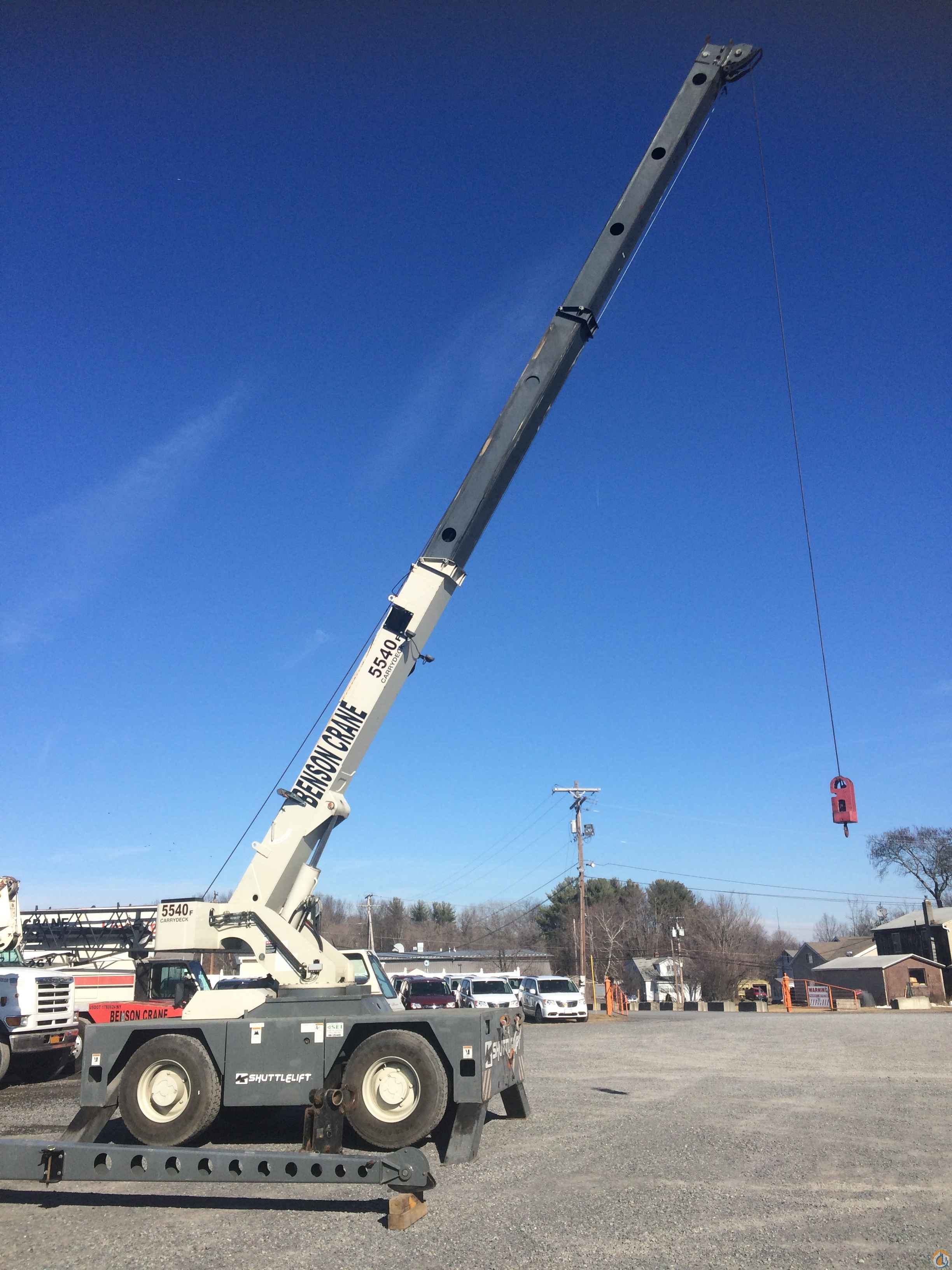

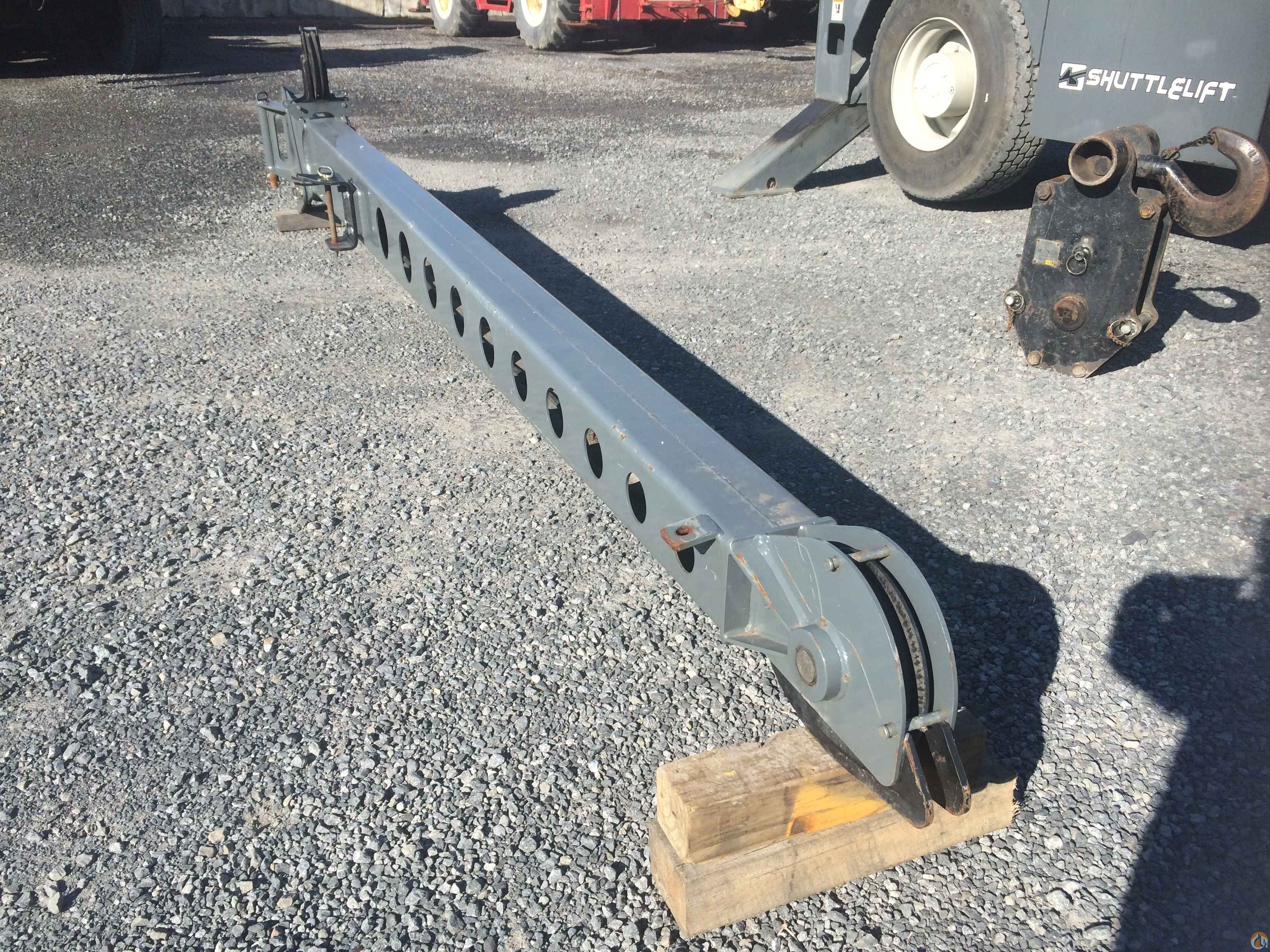

BOOM: 41’ full power boom with integral holding valve on telescope

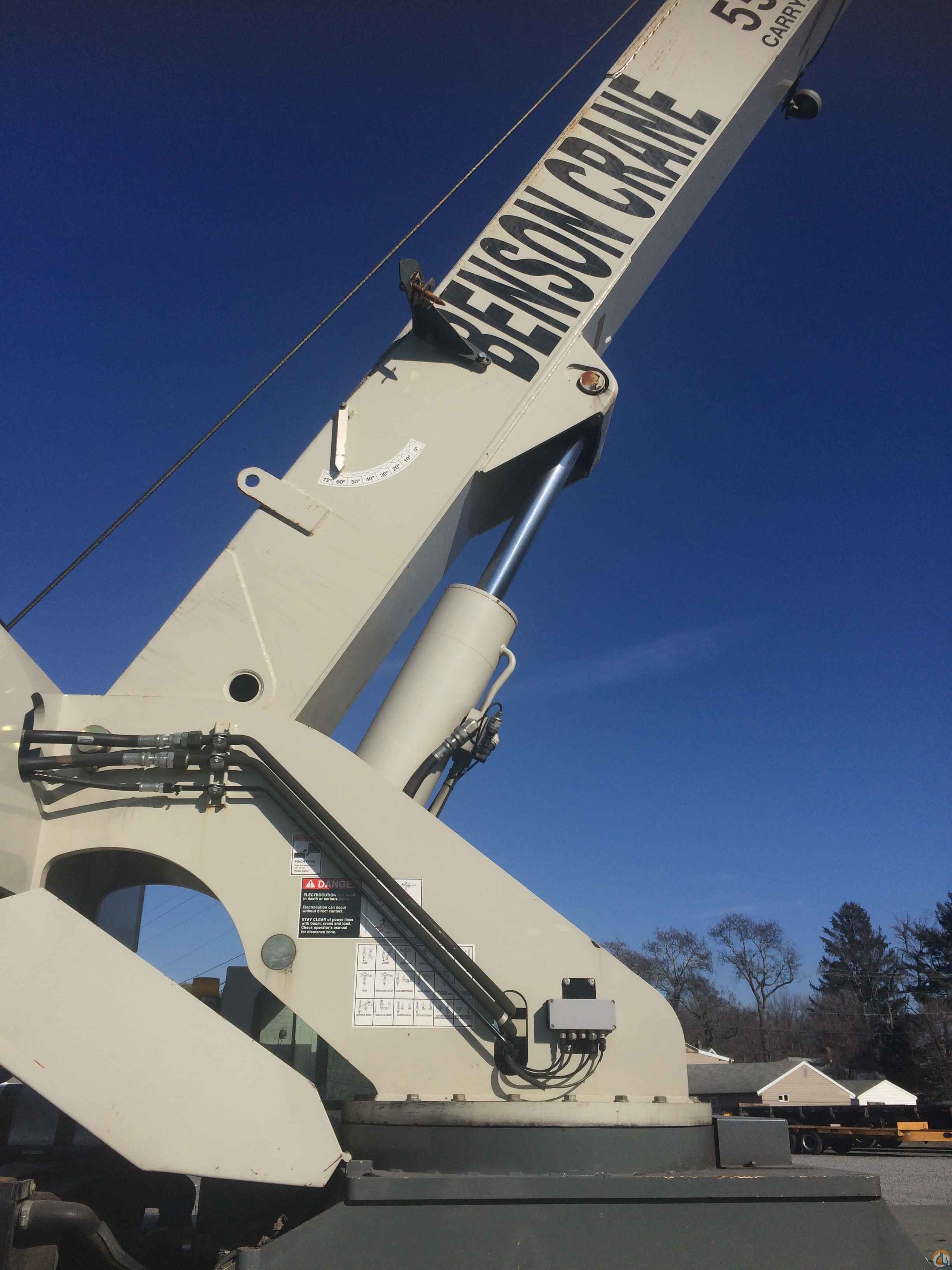

BOOM ELEVATION: Twin double acting hydraulic cylinders, (0 degree to
80 degree) with integral holding valve & mechanical angle indicator.

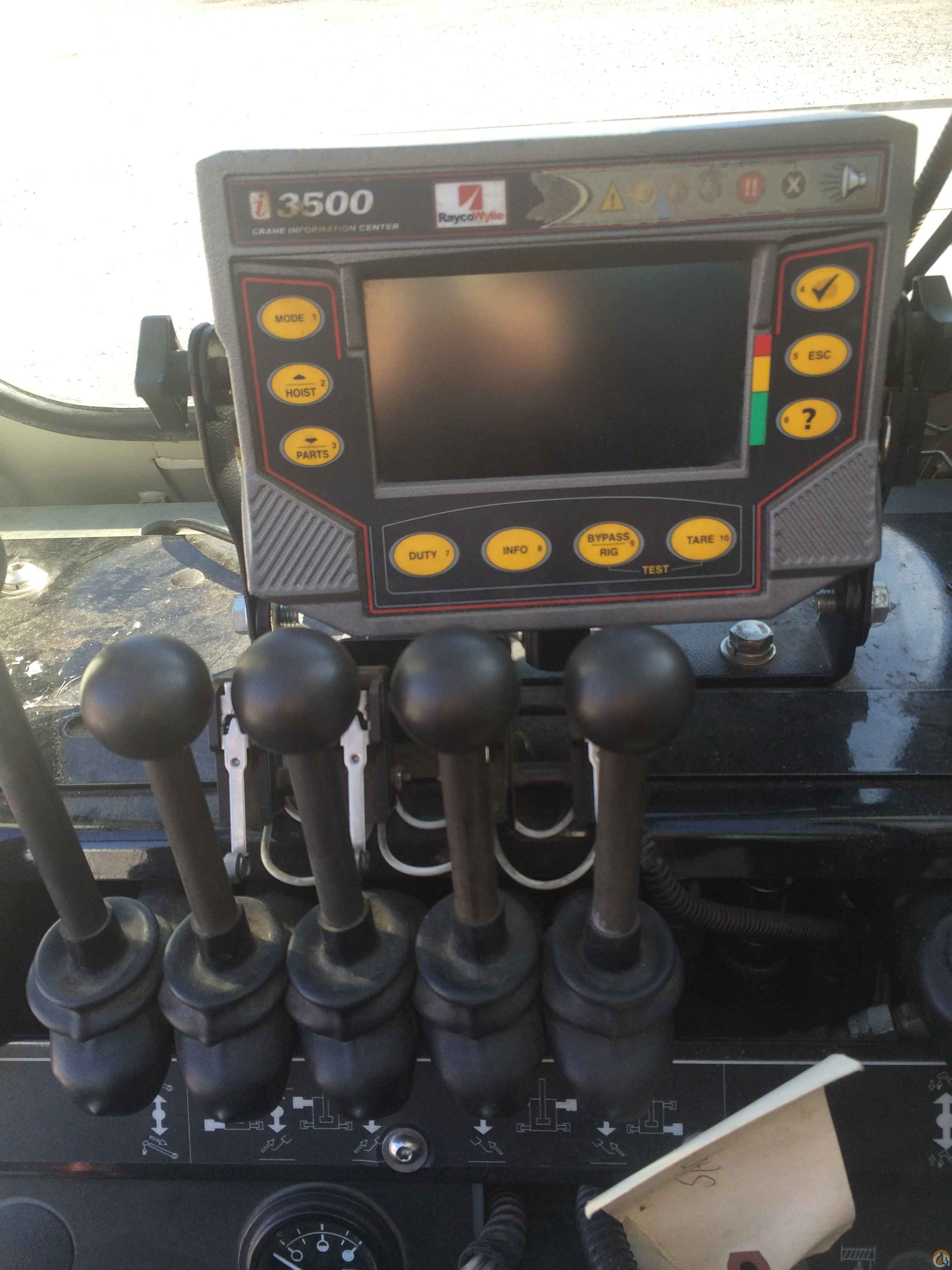

ANTI-TWO BLOCK SYSTEM: Low profile style w/ audio-visual (light/buzzer)
warning w/ auto control lever lockout system and load indicating system.

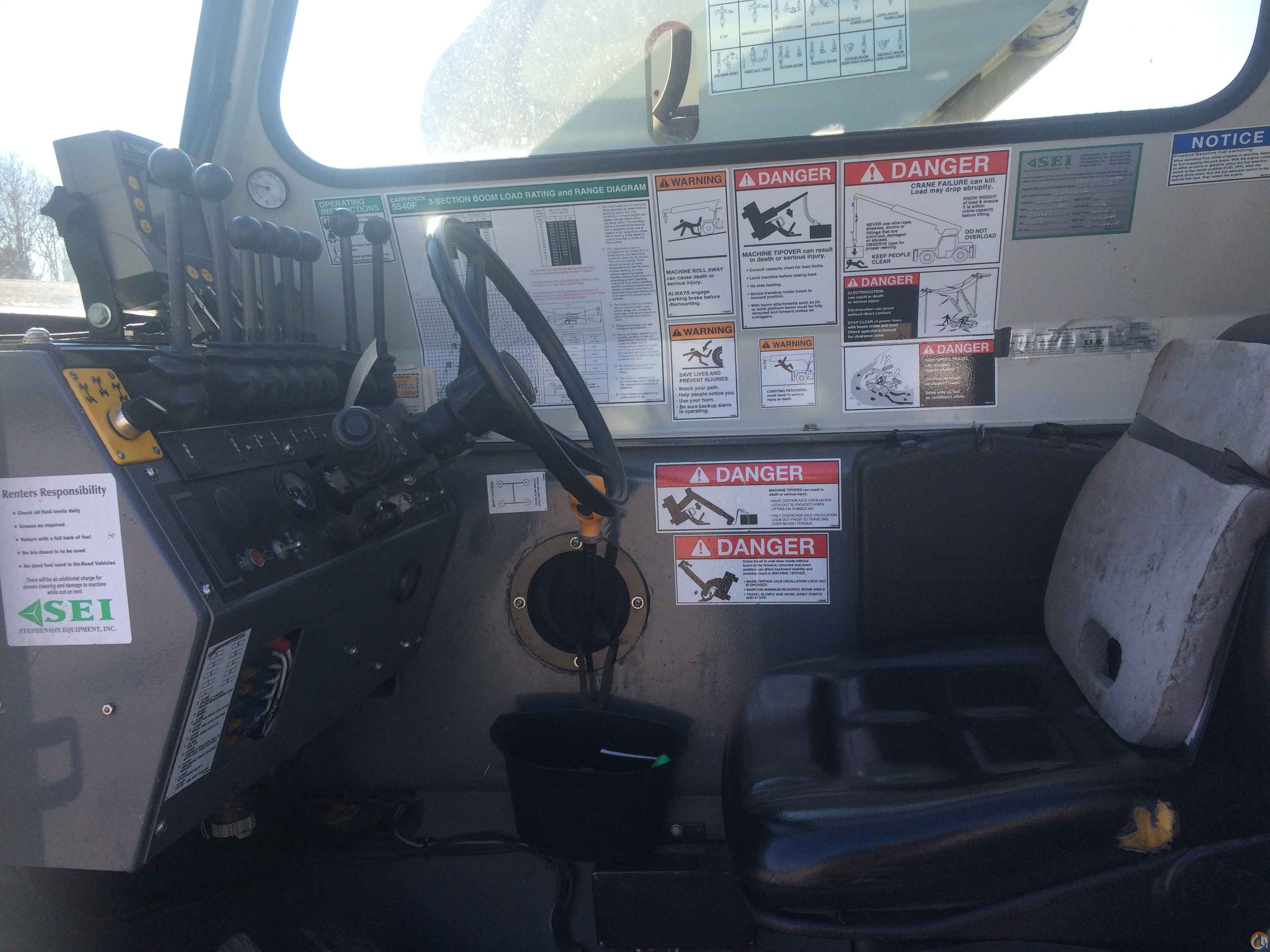

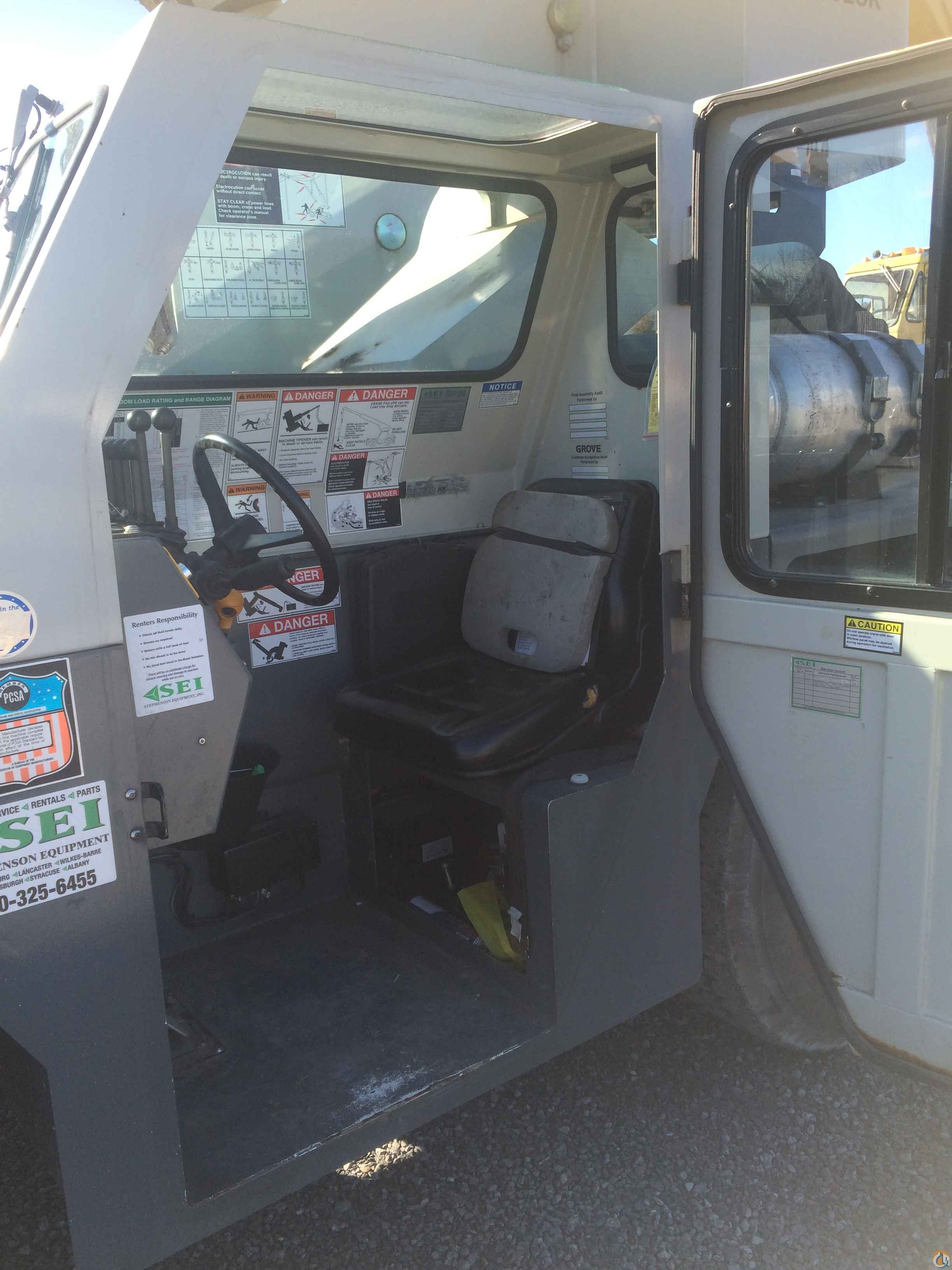

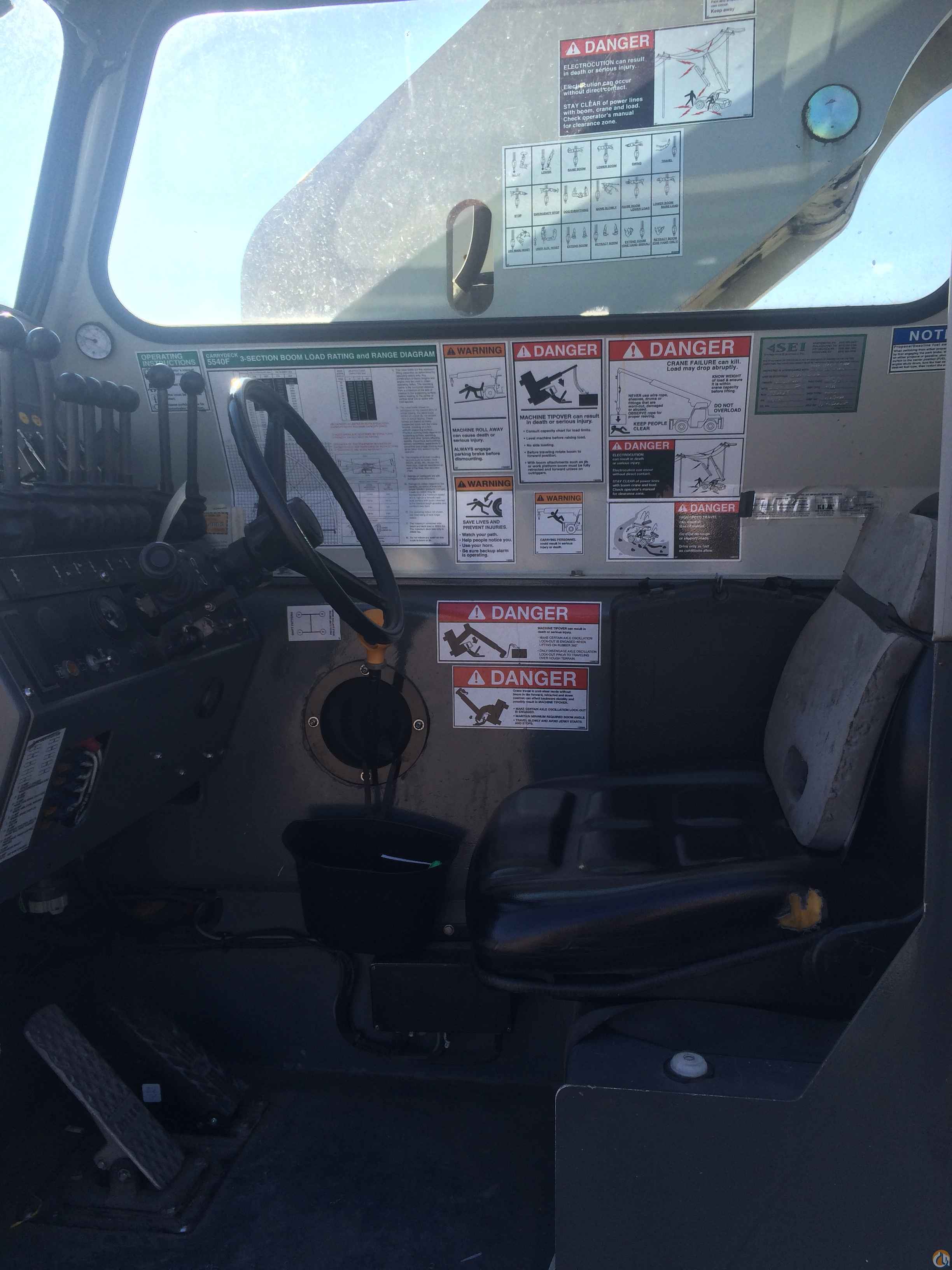

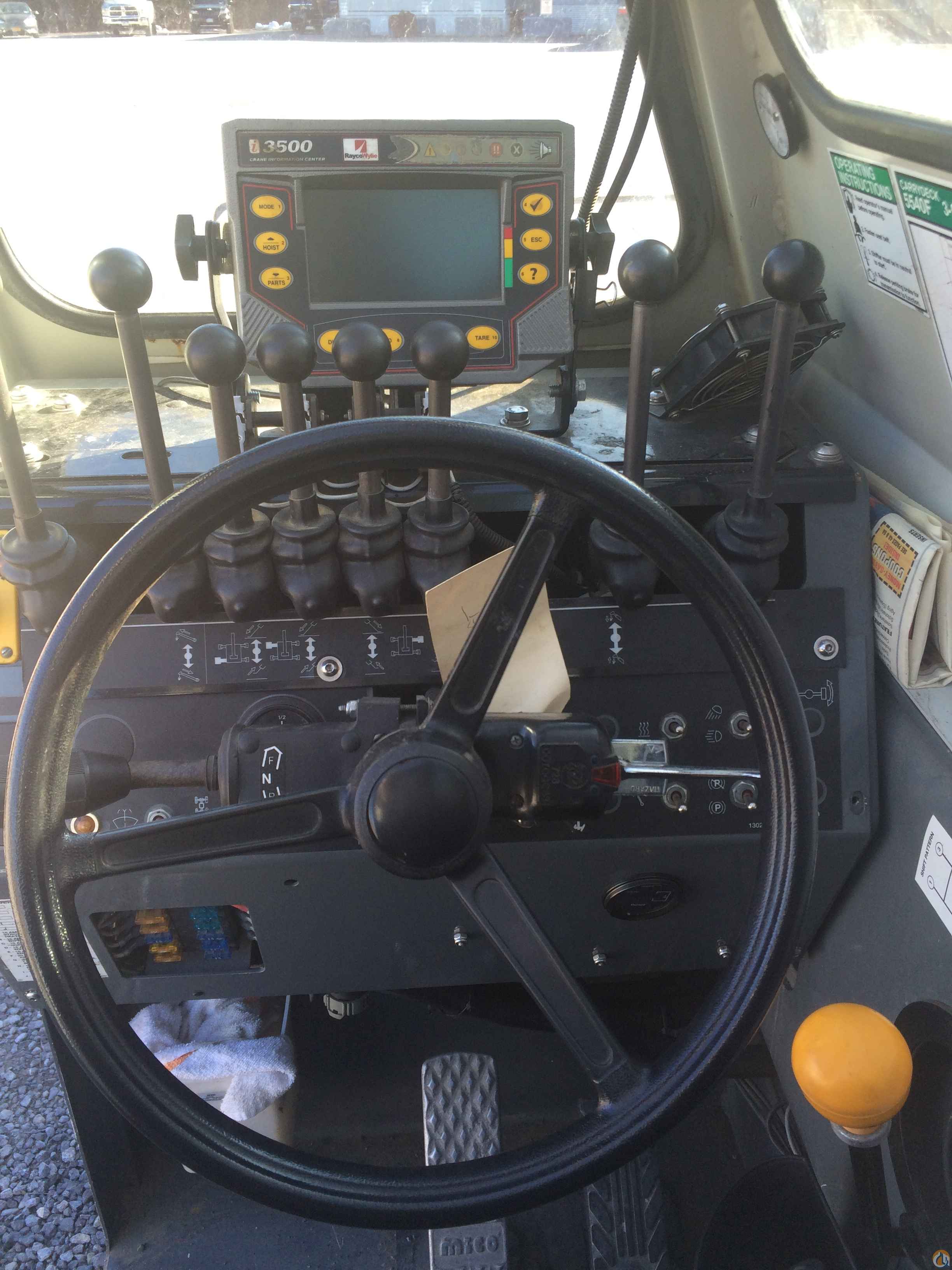

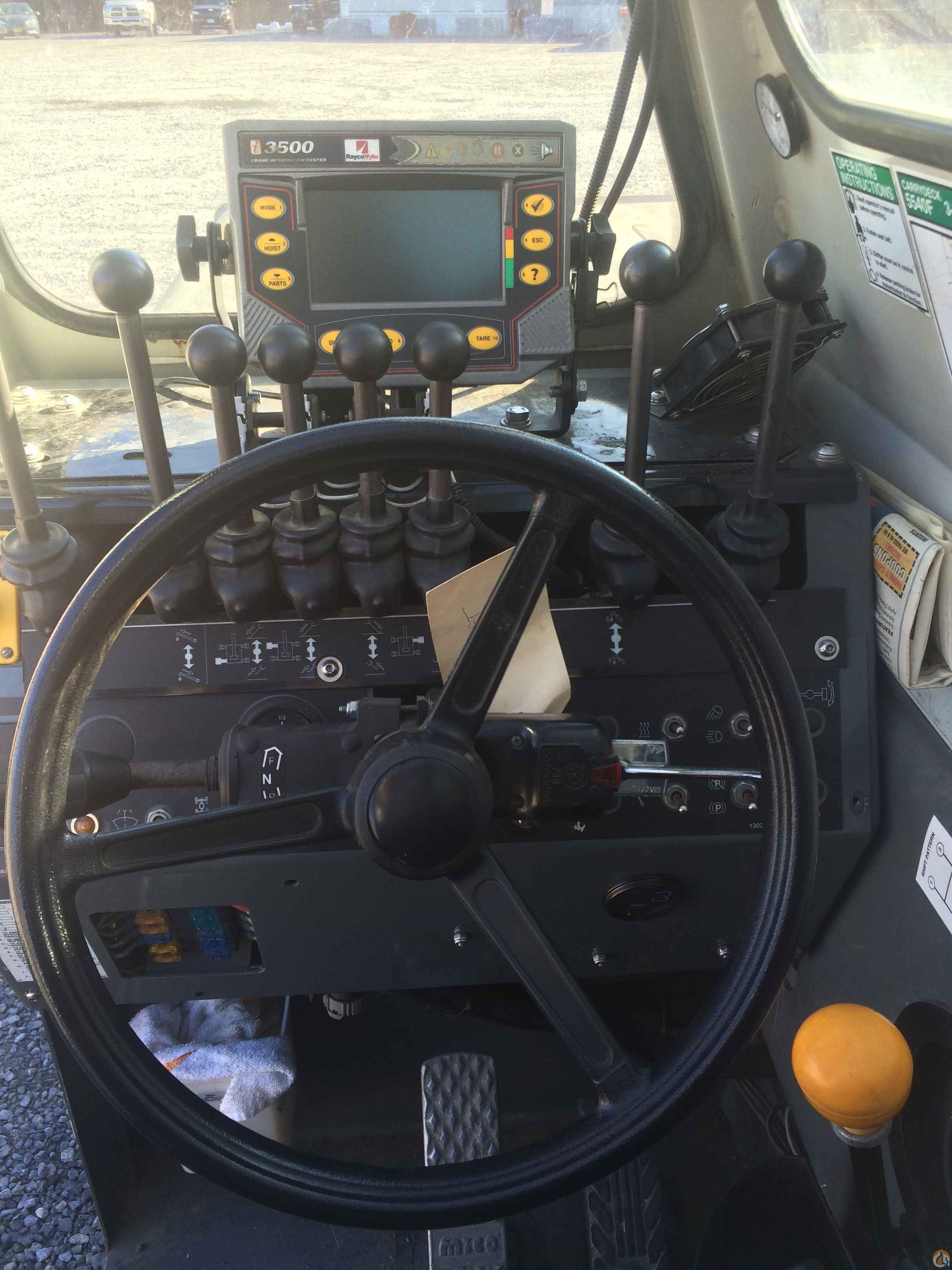

OPERATOR’S STATION: Chassis mounted cab shell with roof safety glass,
durable vinyl all weather seat, dash mounted control levers, gauges for
engine functions, steering wheel, electric horn, fire extinguisher,
sight level bubble, and seat belt.
SWING: 360 degree continuous rotation, worm & gear drive on ball
bearing swing circle.

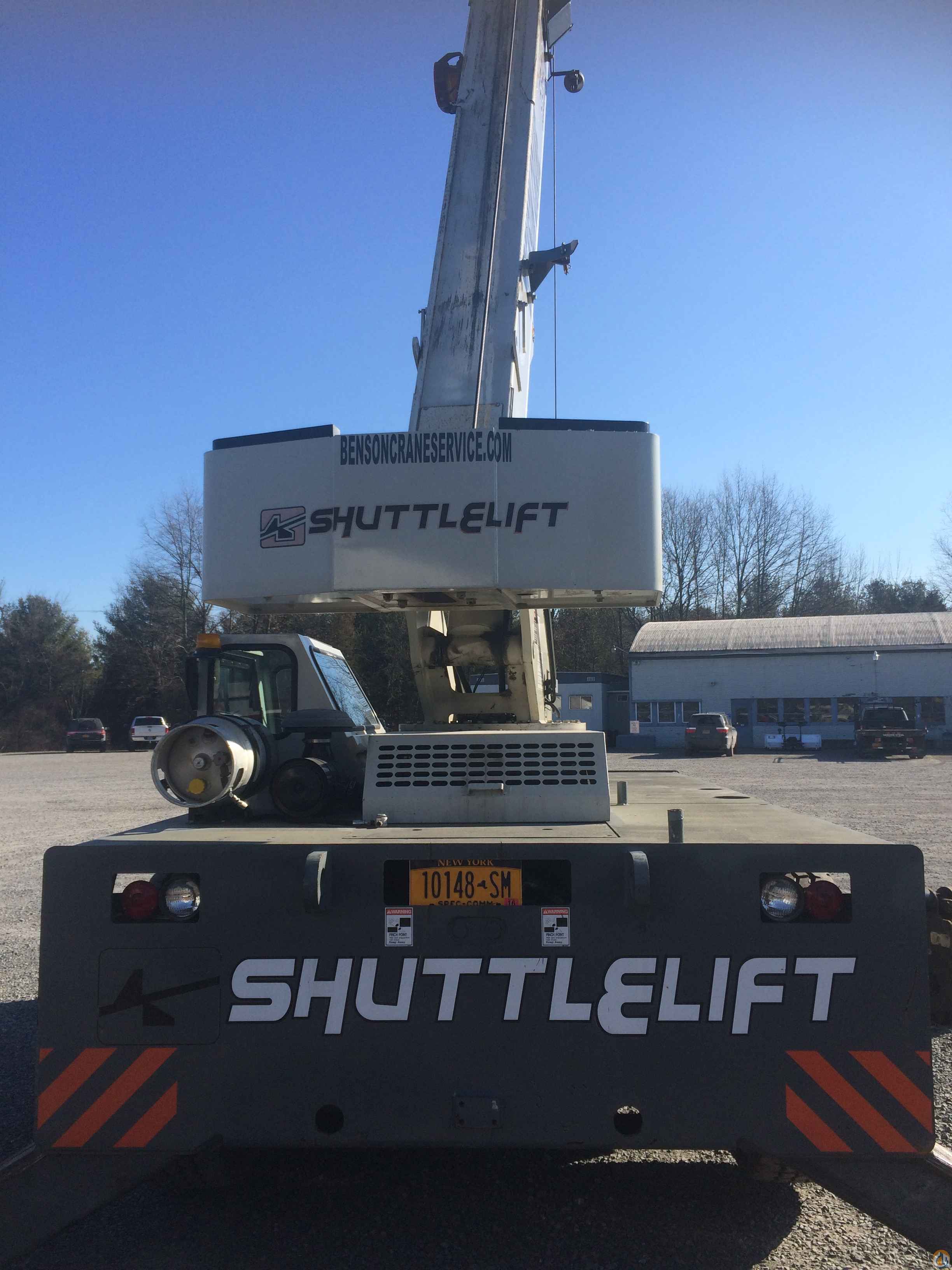

COUNTERWEIGHT: One piece cast type bolted to the turntable.
HYDRAULIC SYSTEM: 3 gear pump system, 40 gal (151L) steel reservoir
with external sight level indicator.
HOIST: Planetary drive main hoist. Equal speed power up and down with
automatic multi-disc brake.
WIRE ROPE: 1/2 in (12mm) 6x19 class EIPS IWRC

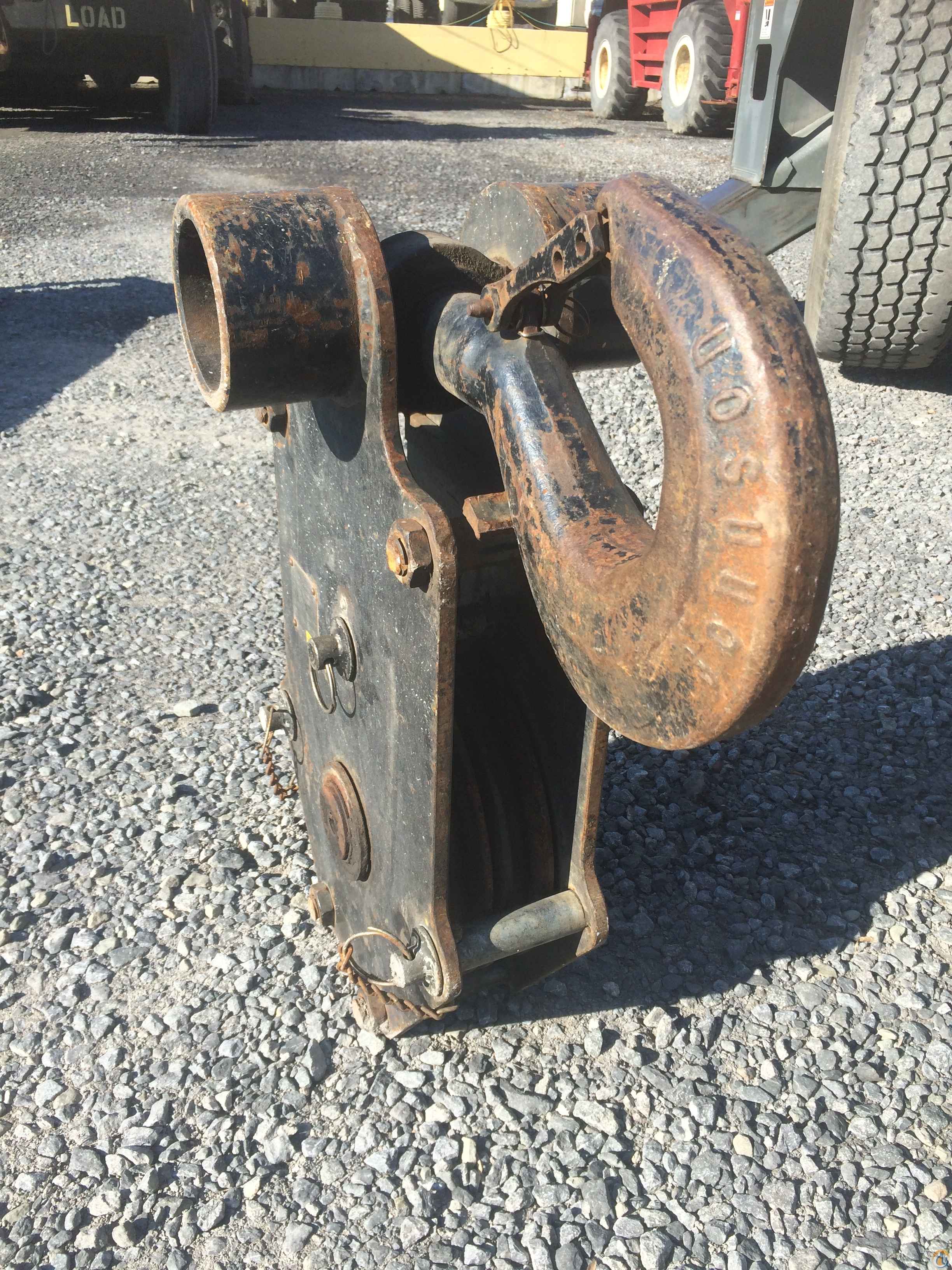

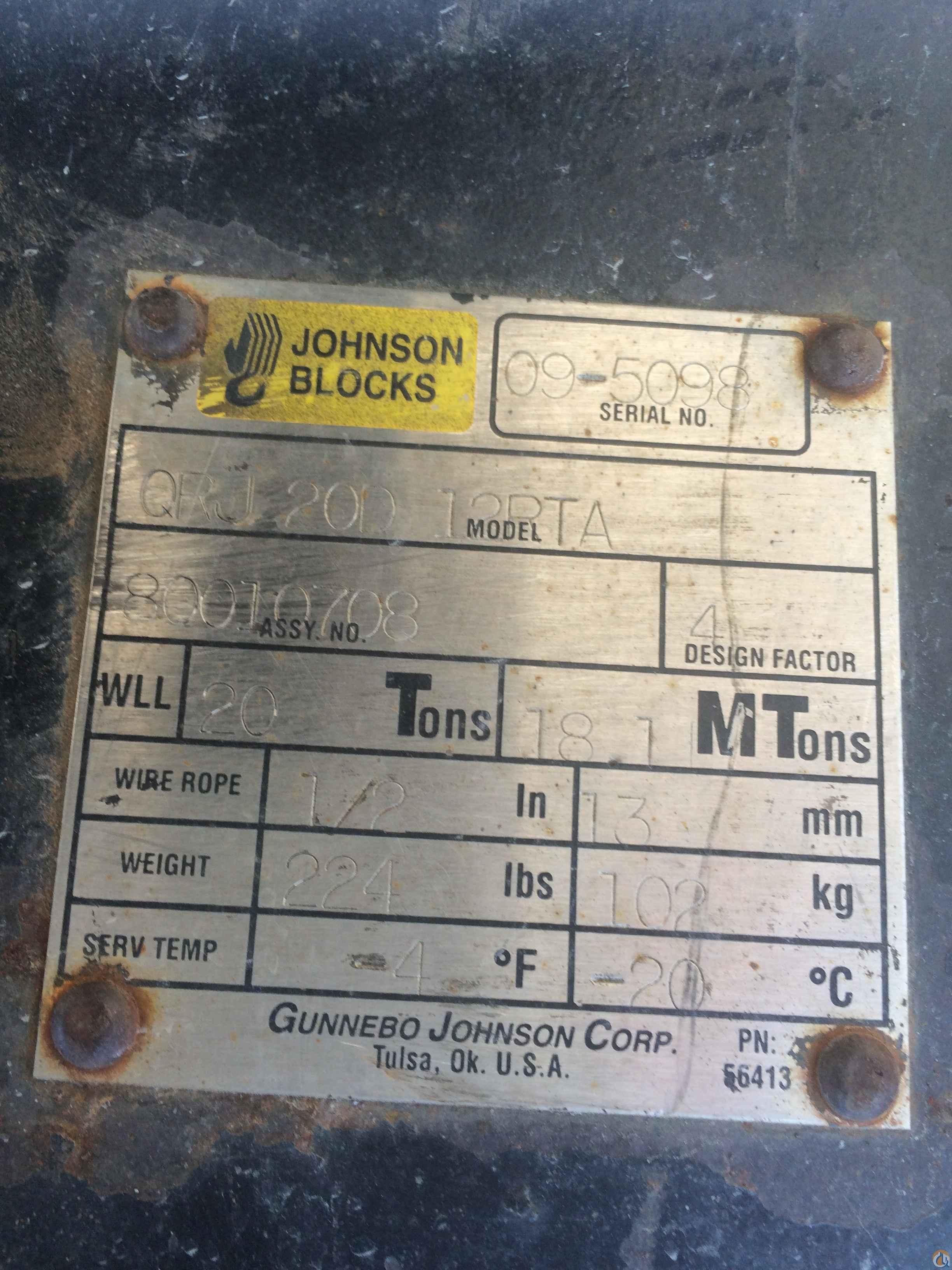

HOOK BLOCK: Two sheave, "Quick Reeve" style hookblock; 15T (12mt)
OUTRIGGERS: Hydraulic oblique style at all four corners with intergral
check valves and integral steel outrigger pads. Synchronized controlled
extension of outriggers (right side/left side).

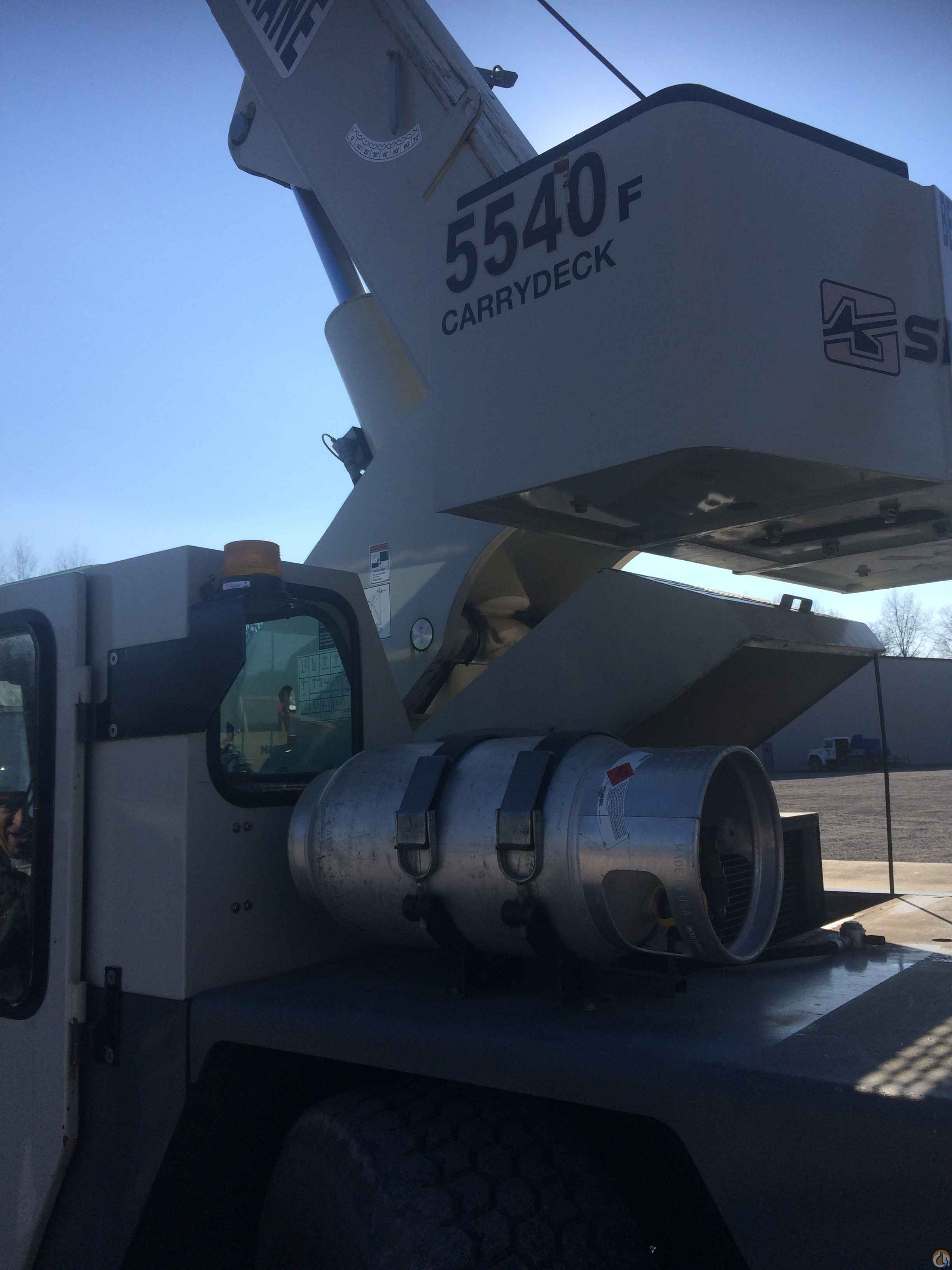

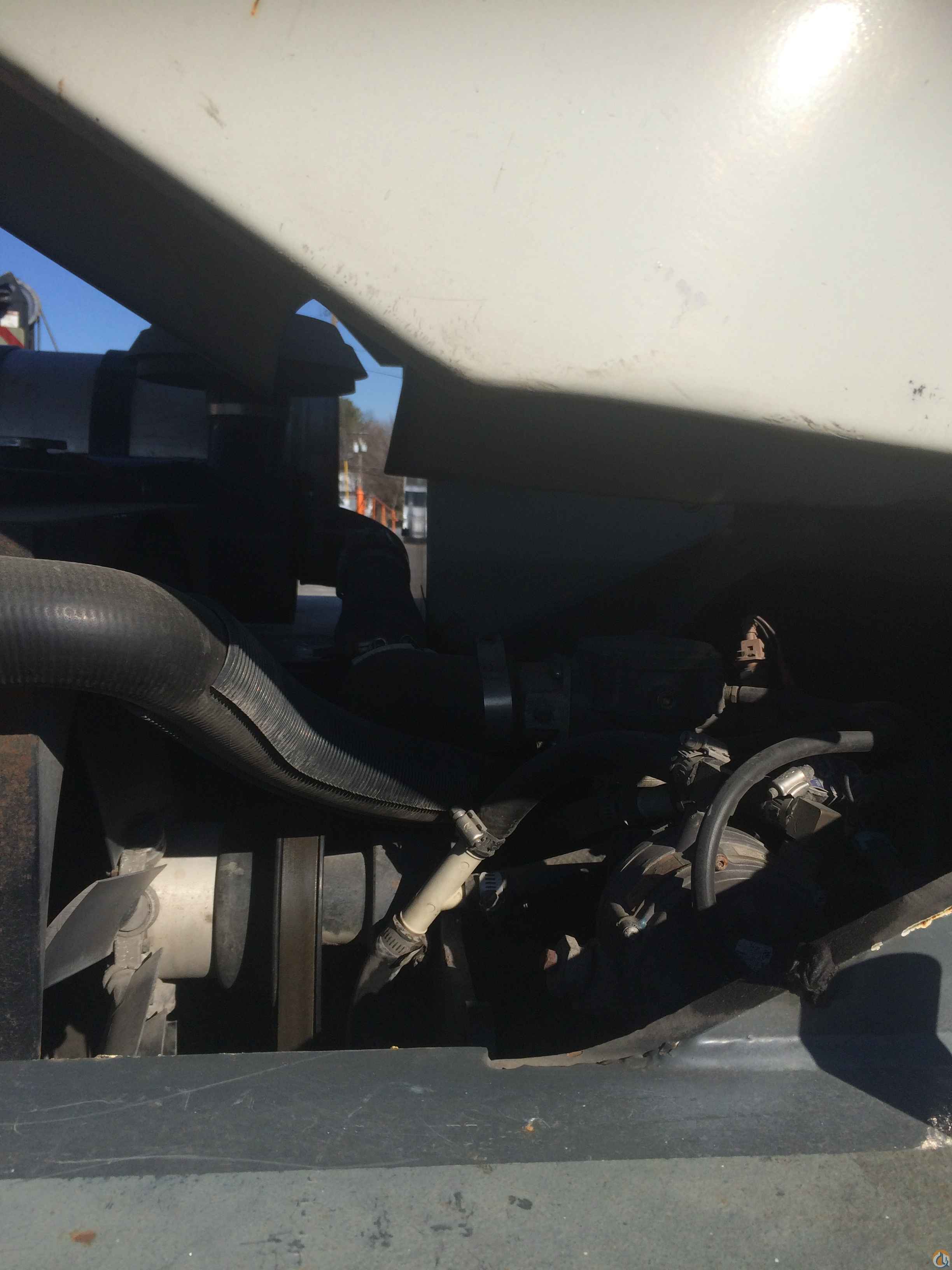

ENGINE: Dual Fuel Gas & LPG; EPA, CARB offhighway
certified; Includes hourmeter, cold start aid (grid heater),
and air filter service indicator. Engine shutdown feature.
AXLES: Front: Drive/Steer type w/ limited slip differential. Rear:
steer/ non-drive (4/2 drive); rear axle oscillated 1.5 degree. 2-wheel,
4-wheel & crab steering modes std.
TRANSMISSION: Synchromesh transmission
BRAKES: 4 wheel full hydraulic, internal multi-wet disc service brake
system with mechanically applied disc type parking brake on
LIGHTS: Full lighting package inculdes front headlights, rear tail
lights, turn indicators, brake, backup and hazard.
MISCELLANEOUS STANDARD EQUIPMENT: Non-skid deck surface, backup alarm.
C21 GM4.3L EFI V-6 Gas/LP Eng
C72 engine block heater
H34 2-wheel drive standard

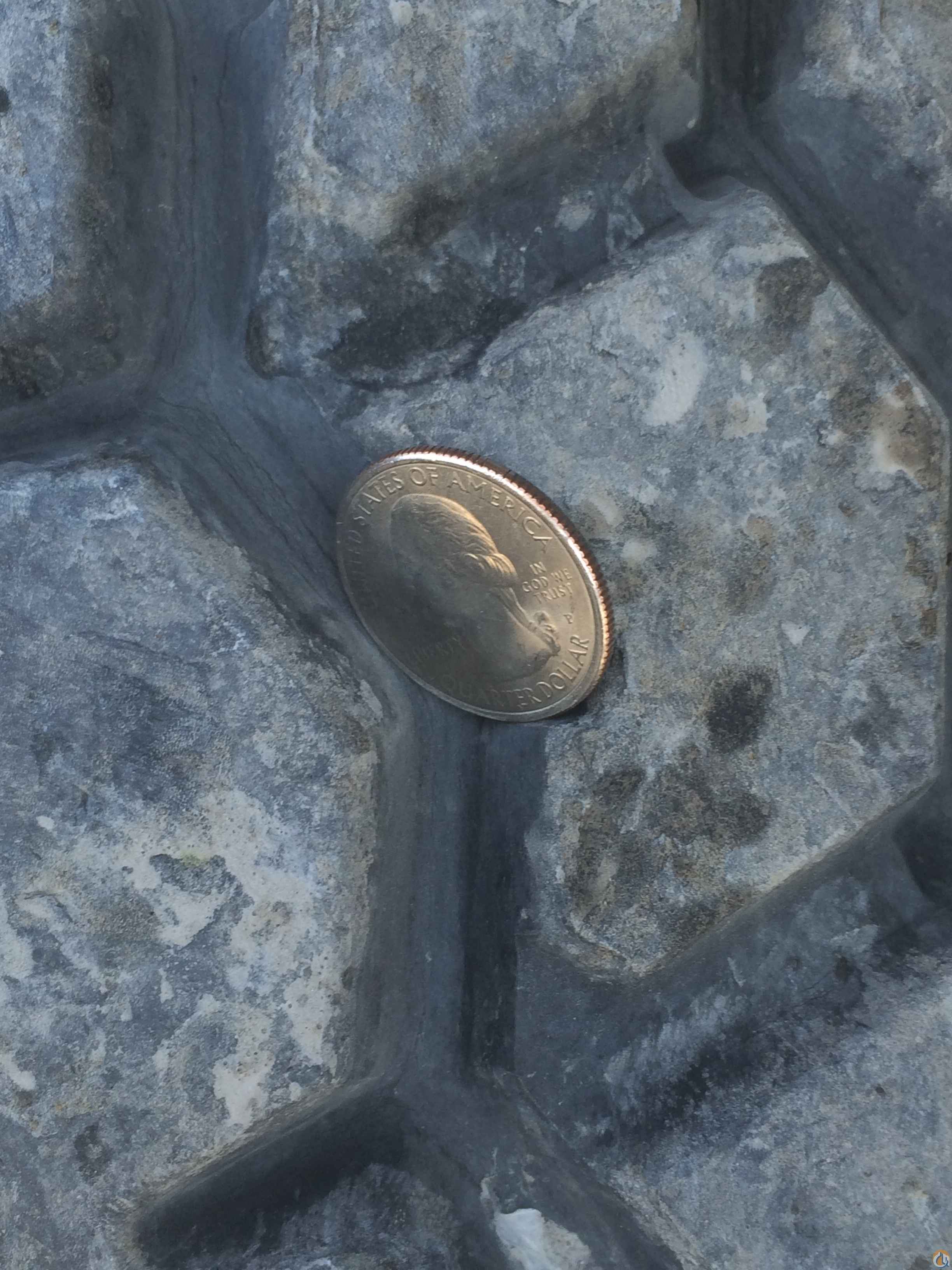

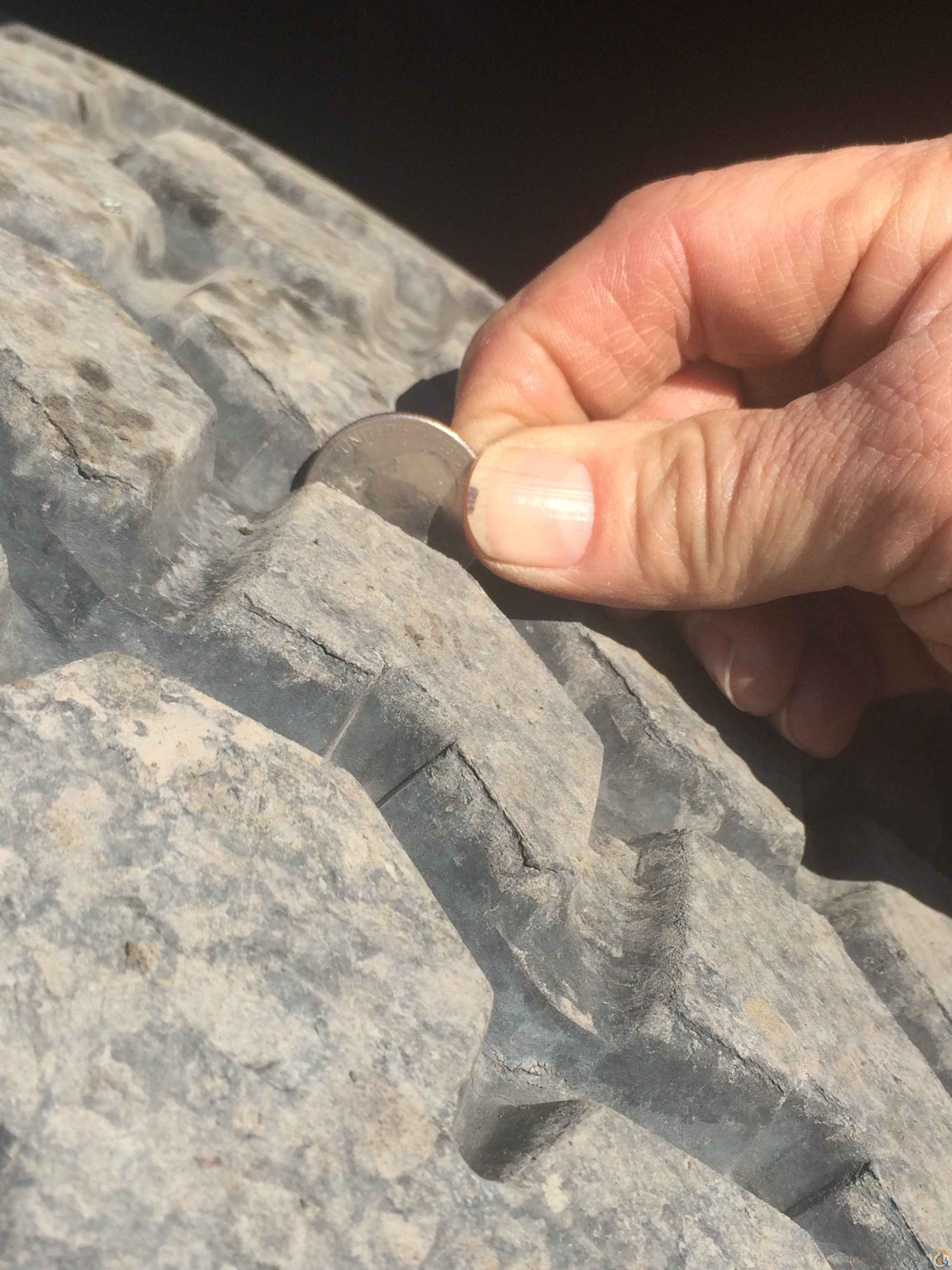

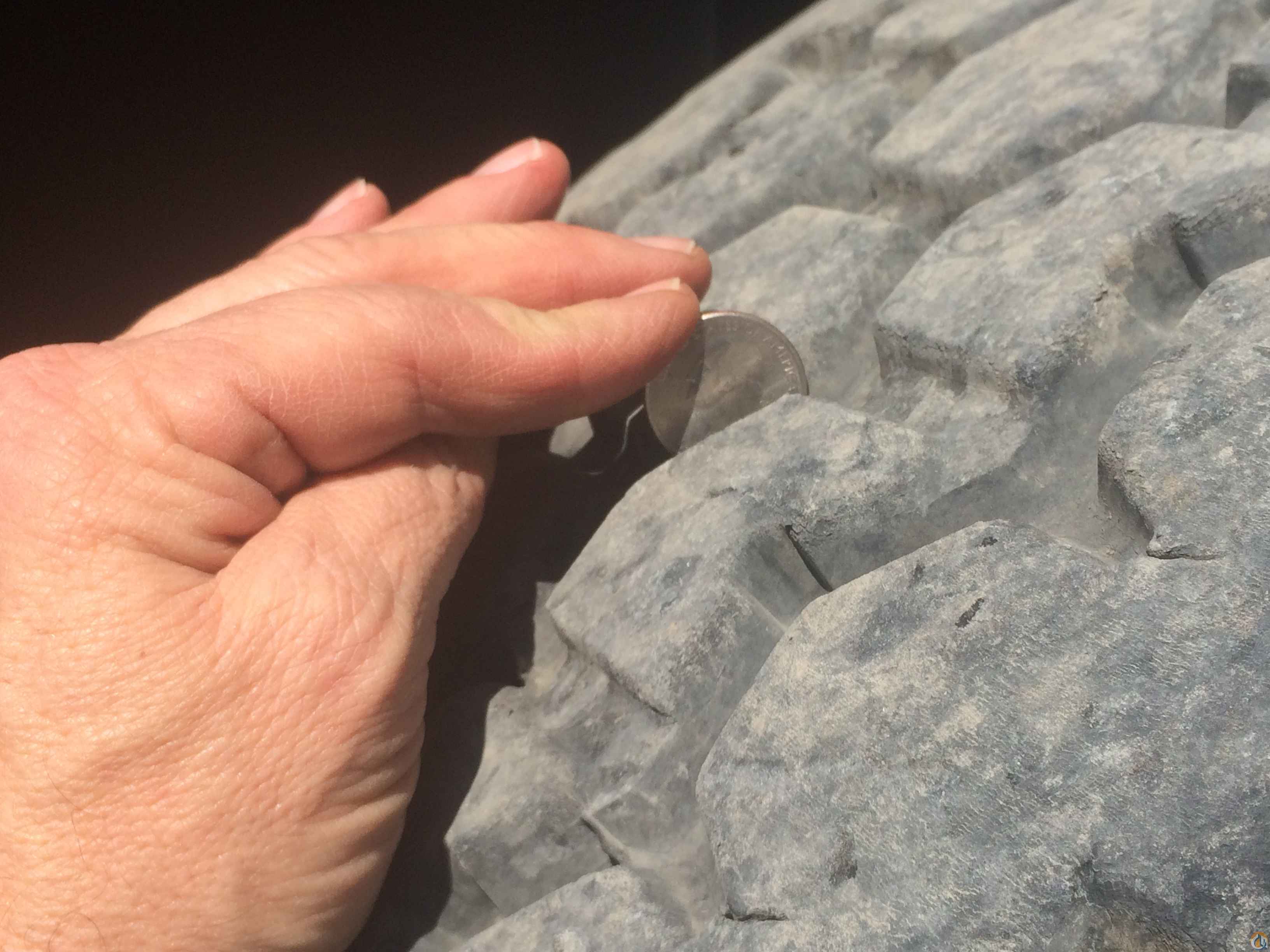

I08 tires 385/65 R22 high trac
L20 Headlight & Tailight Grill
H08 Lifting & Tie Down Lugs(4):
H54 o/r control independent
E04 Cab Enclosed
E36 Fire Extinguisher
E50 Cab Dome Light
L13 Boom Mtd Work Light Packag
E51 Outrigger Alarm System
M02 A2B Low Profile Style
