Your Price:
Equipment Specifications:
Year:
2015
Boom/Jib:
Inquire
Capacity:
10.00
Condition:
New
Unit #:
Verify
Serial #:
Verify
Hours:
0
Location:
Cleveland, Tennessee, USA
Seller Contact:
Renegar-Driggers Machinery Co., Inc.
Bob Renegar - President
423-593-2067
423-472-2463 (alt)
423-472-2804 (fax)
www.rdcranes.com
474 Industrial Drive Southwest, Cleveland, TN 37311, USA
Seller Notes:
TECHNICAL DESCRIPTIONS & OPTIONS

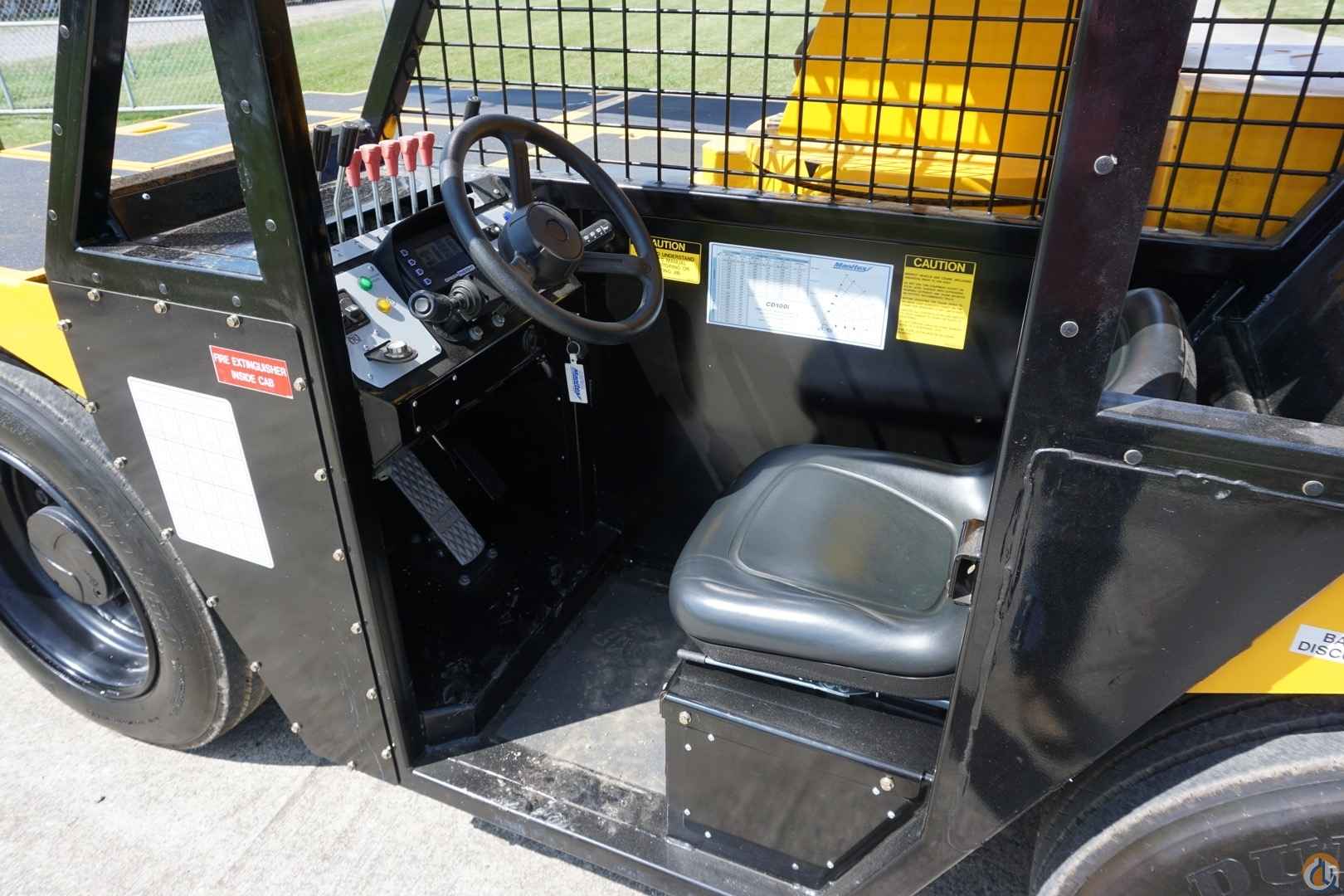

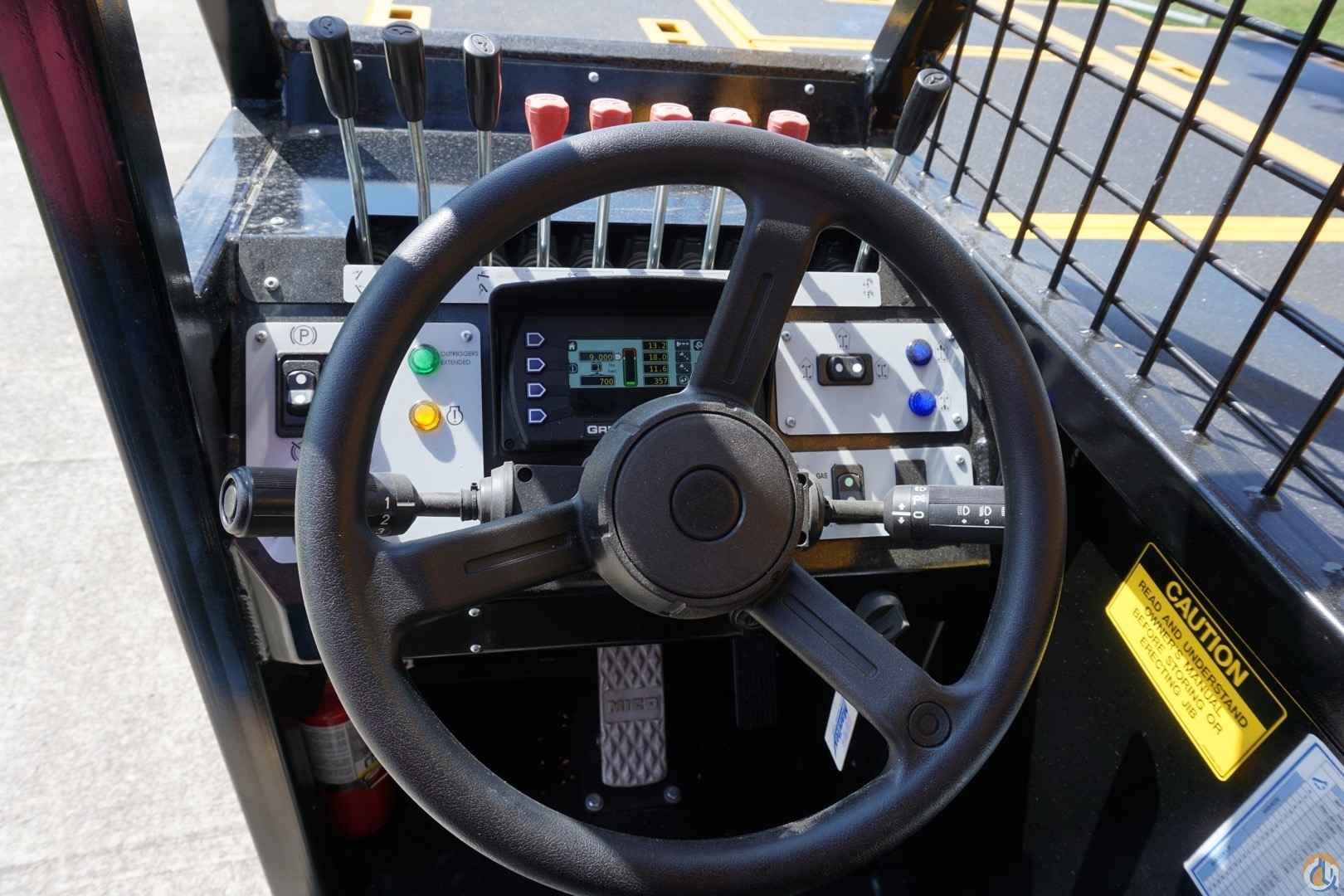

Operator’s Station
Frame mounted non-vibrating open style operator’s control station

Standard features:

Weather resistant seat

Hour meter


Dash panel includes:

Engine water temperature gauge

Fuel gauge

Tachometer, Check engine light, Engine Stop Light, Outrigger position indicator, wheels centered indicator

Operator aids
Graphic interface for load indicator
Load Moment Indicator (LMI)
Anti-Two Block Device (ATB)

Rated Capacity Limiter (RCL)

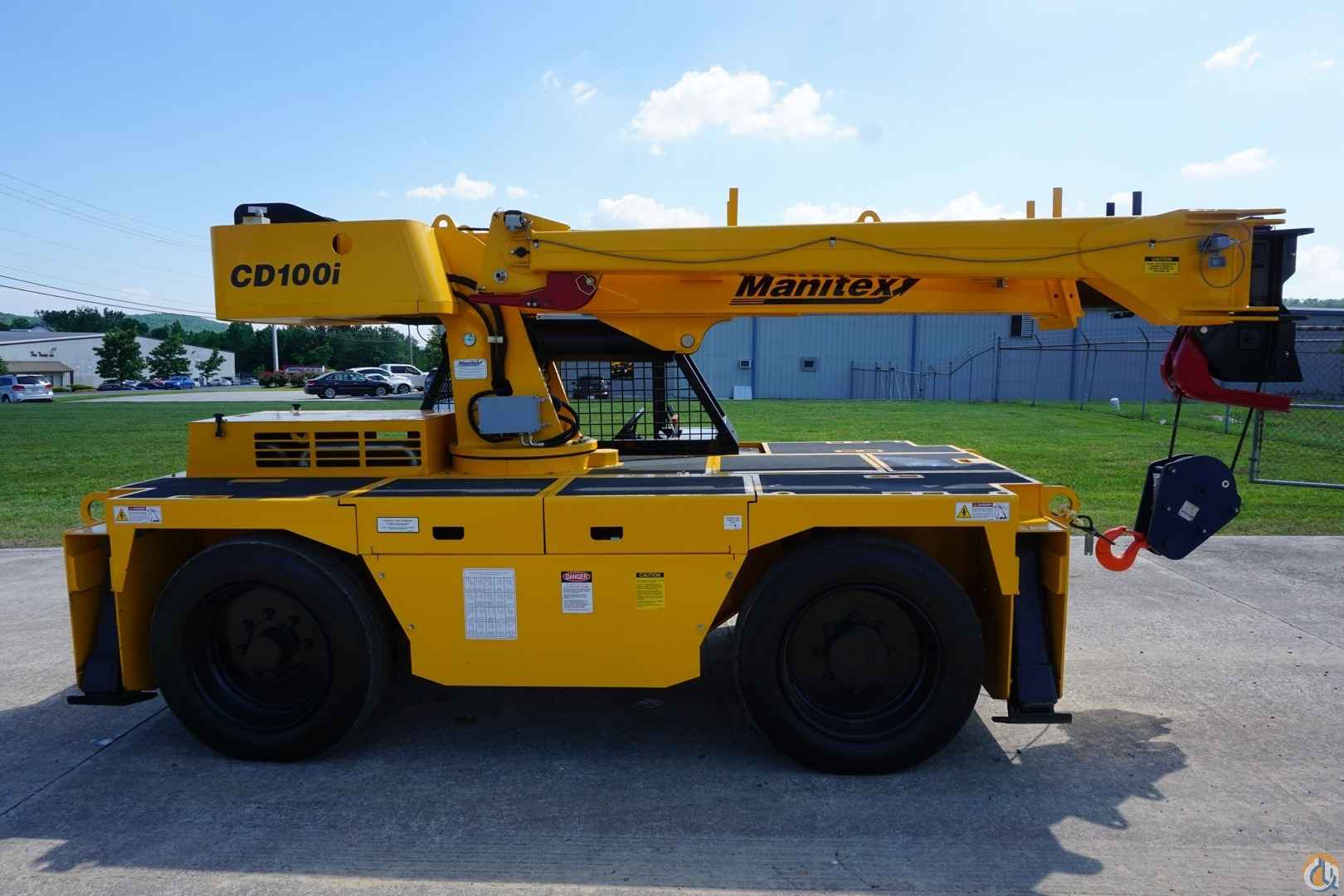

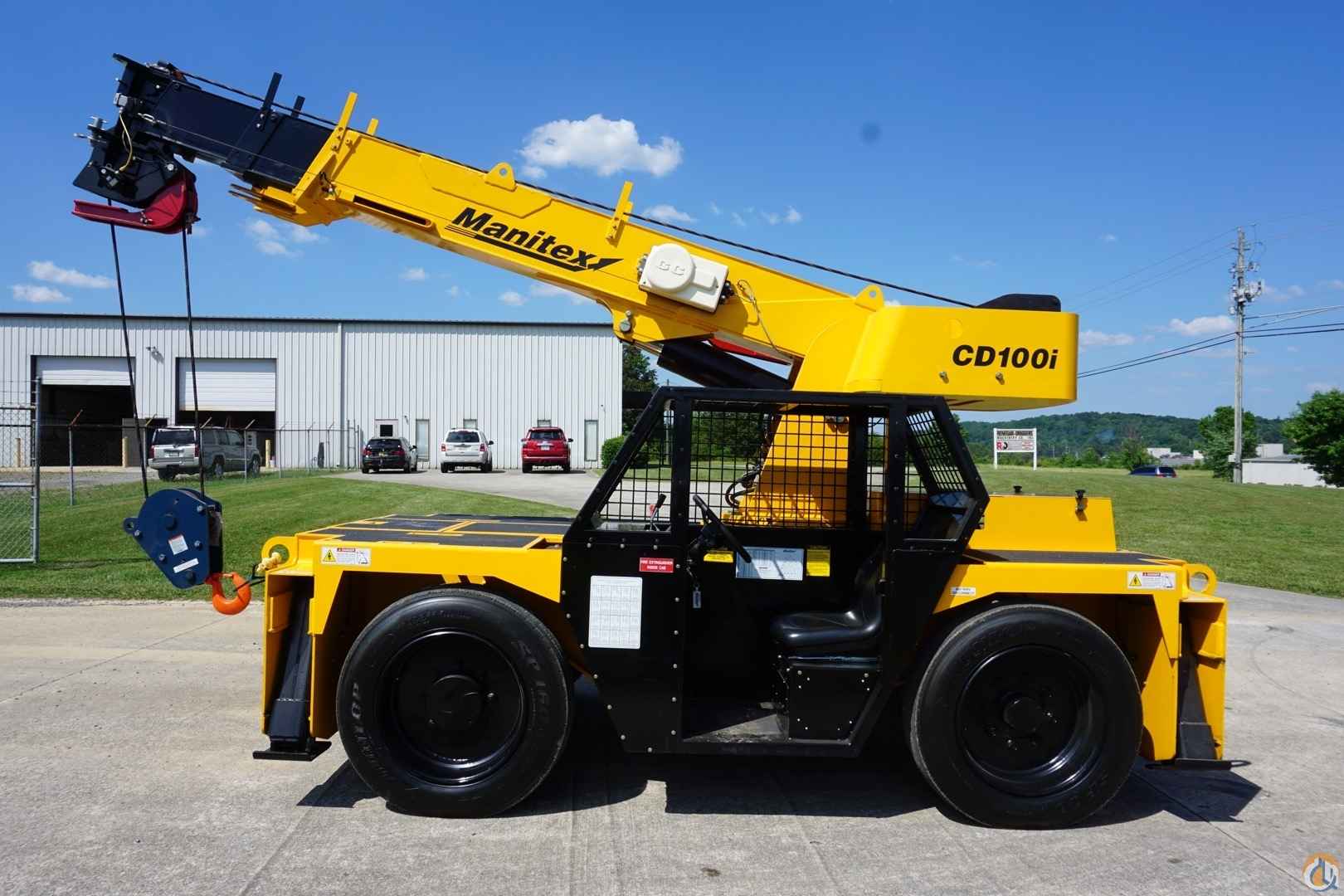

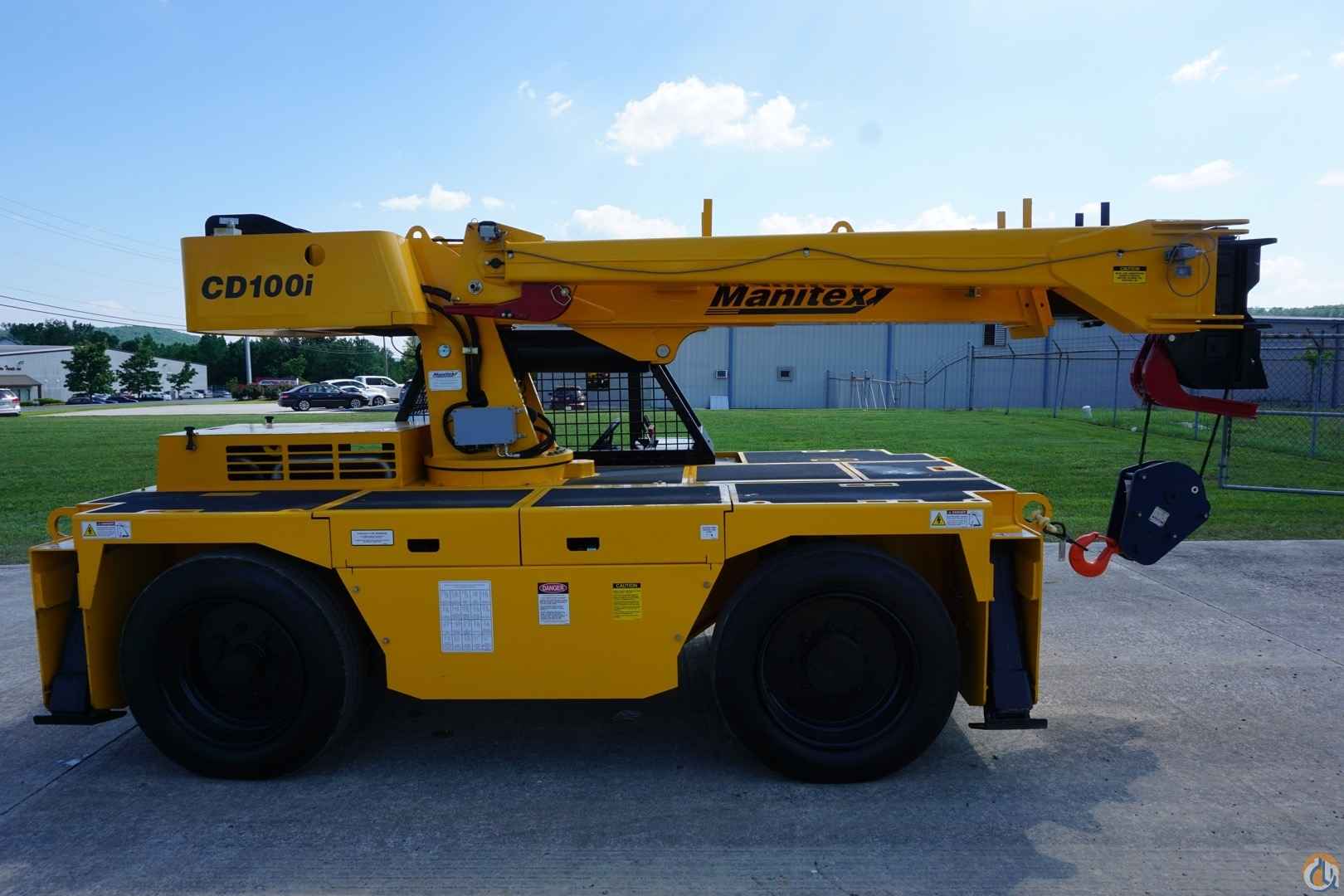

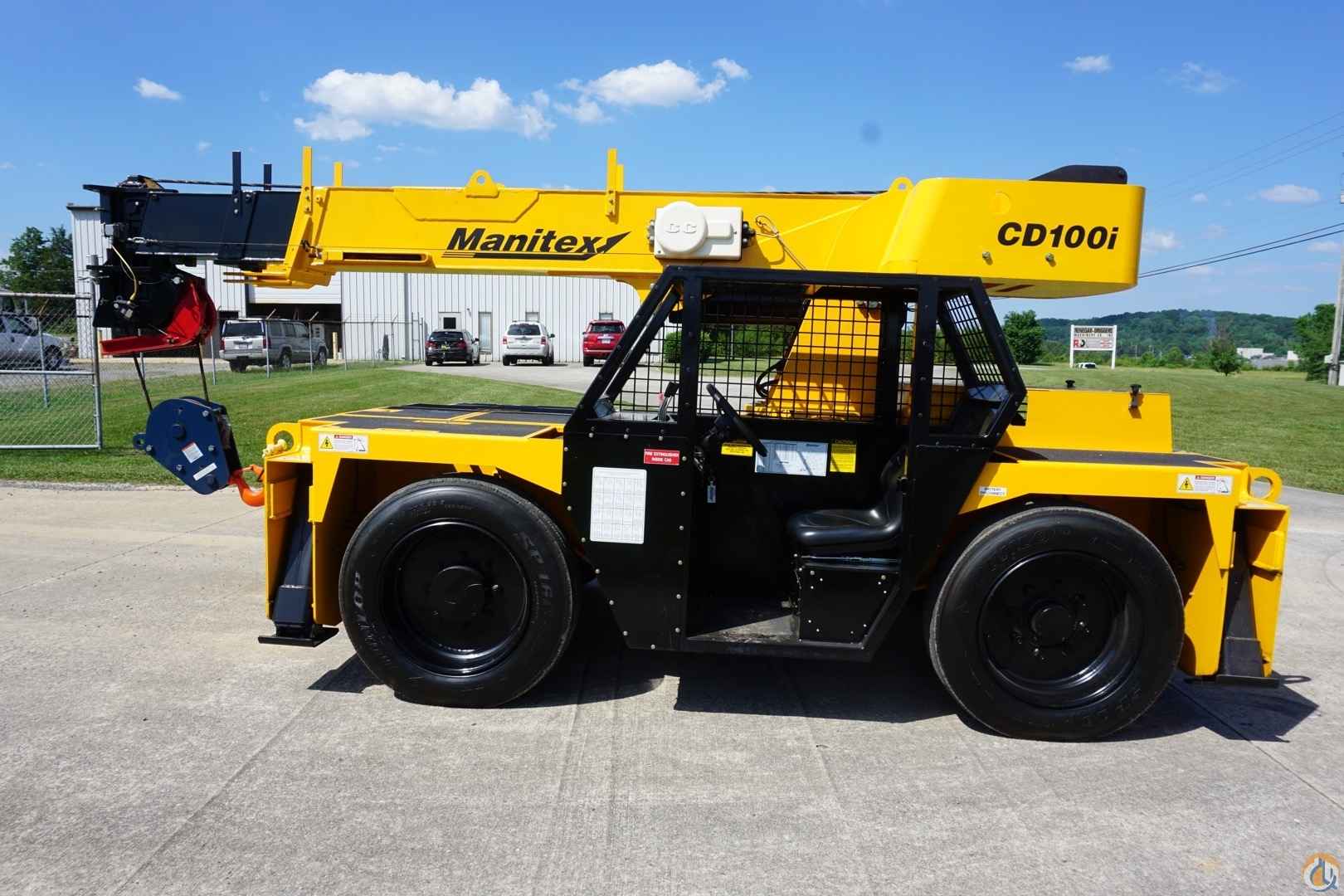

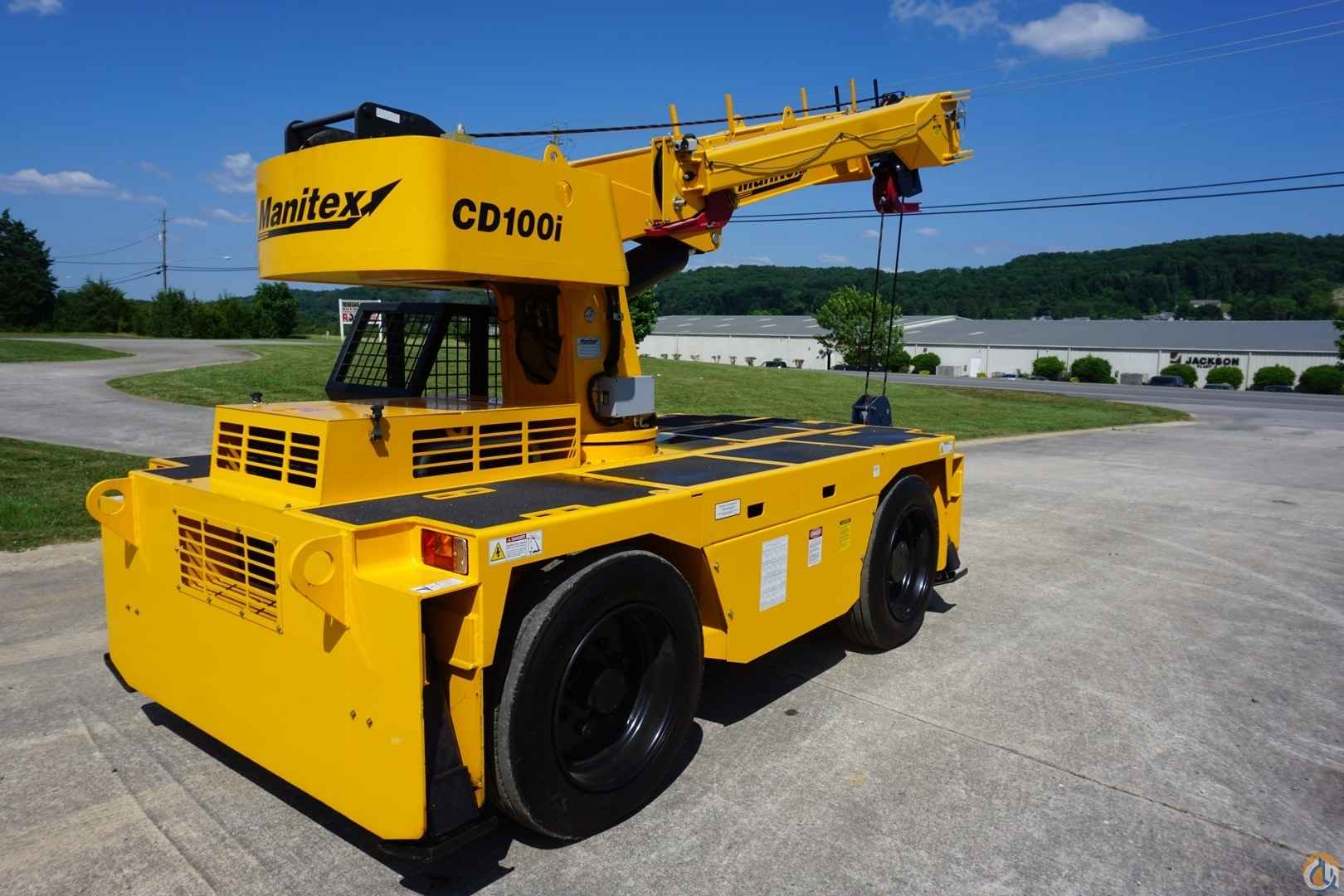

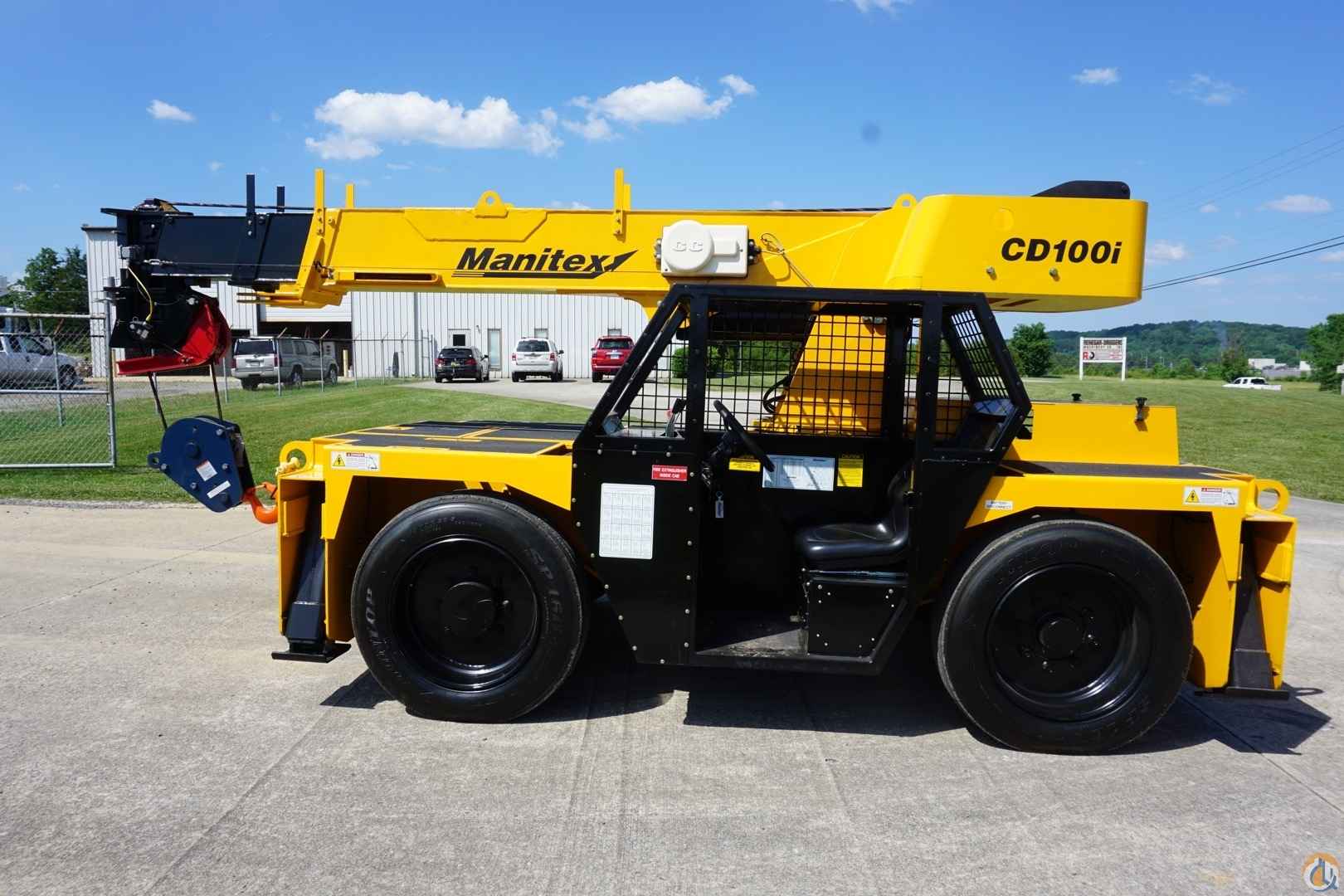

Boom
Boom length: 3-section 25.4 ft. (7,7 m) 2-sheave quick reeve boom point

Full power mechanically synchronized
Boom max. tip height: 33 ft. (10,1 m)
Boom angle (min/max): 0° / 69°

Hydraulics
Winch section 29 gpm, Auxiliary section 16 gpm @ 2500 rpm.
Hydraulic oil reservoir capacity: 50 gal. (189 L)
Maximum system operation pressure: 2000 psi
Return line filter with full flow by-pass protection and service indicator

Engine
PSI 3.0L Dual Fuel

Rated power: 70 hp (52.1 kW) @ 2500 rpm
Fuel type: Gas / LP

Fuel tank capacity: 16 gal. (60.6 L)

Tires
H16 Pneumatic 255/70 R22.5

Drive-line
DANA syncromesh 4-speeds forward and 3 reverse with electrical steer model 1102FT12410

Steering
2-wheel, 4-wheel and crab steer with manual alignment
4x2-Front axle drive with planetary hubs and limited slip differential
Front: DANA 212 planetary steer with internal multi-wet-disc brakes and limited slip differential
Rear: Fabricated non-drive steer with disc brakes

Rotation
Hydraulic driven worm gear and pinion
Slewing brake: Spring-applied hydraulic released brake
Boom rotation: 360° continuous
Slewing speed: 1.6 - 2 rpm

Outriggers
Outriggers: Front and rear, all four corners
Style: Out-and-down, integral holding valve, outrigger pads
Controls: Five (5) 3-position direct hydraulic levers
Outrigger position sensors Fully extended:
Front and rear
 Center of pad: 11.3 ft. (3,5 m) 3!

Electrical System
State-of-the-art, weather-resistant components throughout
IP67 rated components

Frame
High strength alloy steel constructed with integral outrigger housings: front and rear lifting, towing, and tiedown lugs.

Carry decks:
Front: 23.2 ft2 (2,2 m) with 6,620 lbs. (3,003 kg) carrying capacity
Side right: 21.8 ft2 (2 m) with 2,200 lbs. (998 kg) carrying capacity
 Deck includes adhesive anti-skid treatment.

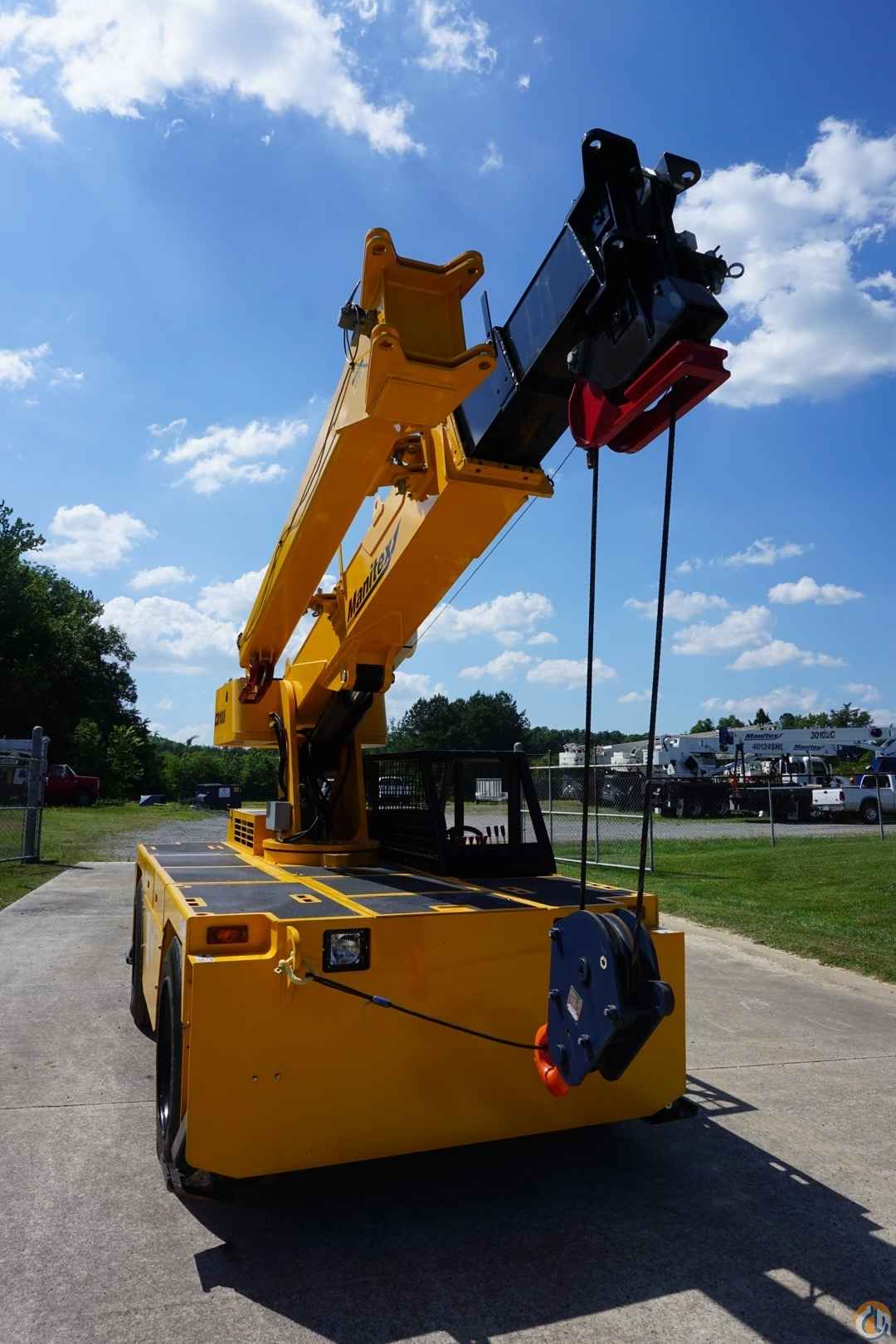

Hook
Downhaul weight & swivel hook:

110 lbs. (49.9 kg) - use with single part line


Options (Included In Price)
Sheave block: 1-sheave: 145 lbs. (65.7 kg)

In stock in Cleveland, TN and ready to go to work, subject to prior sale.

Call 423-593-2067 for quote.
