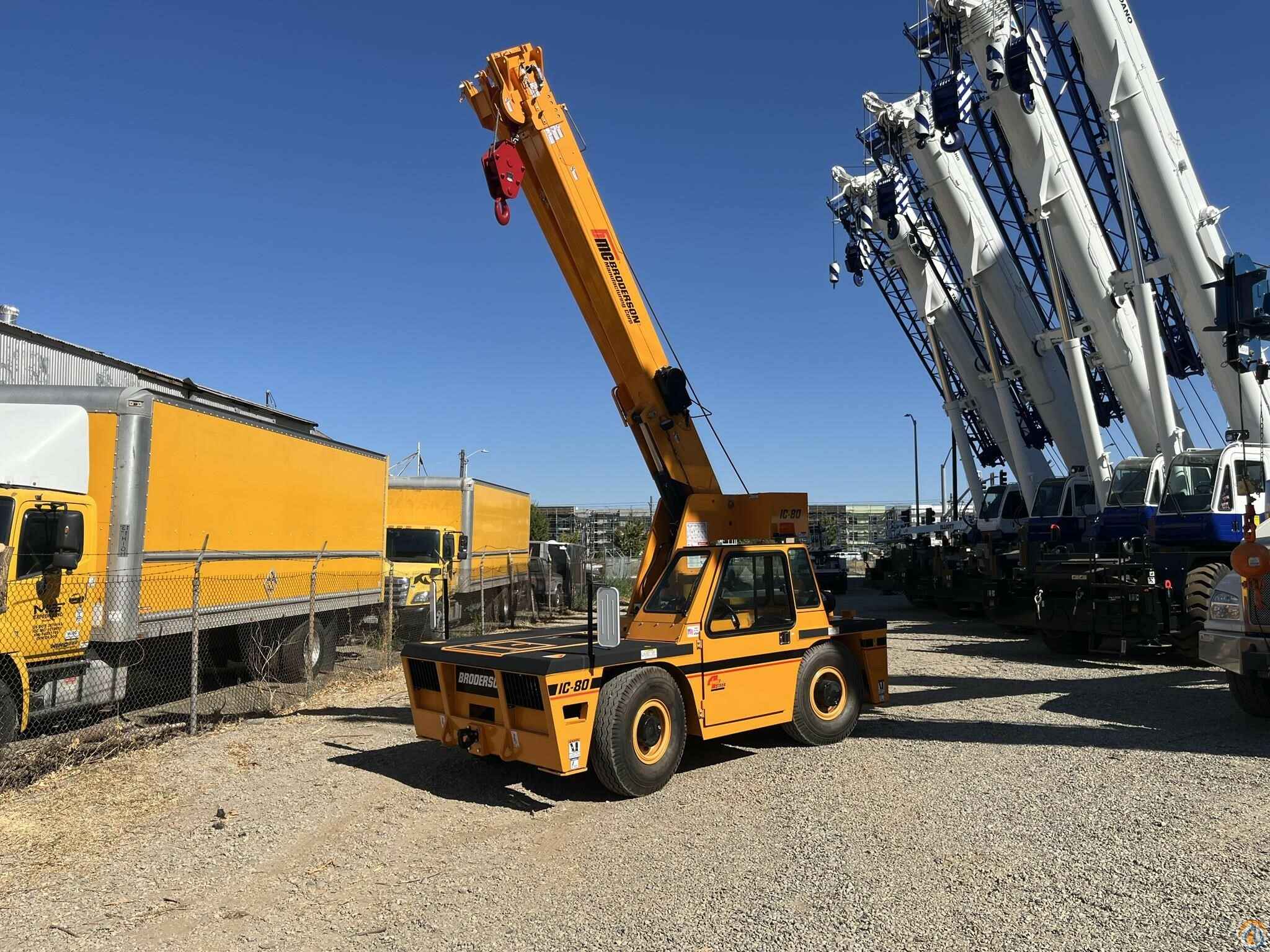

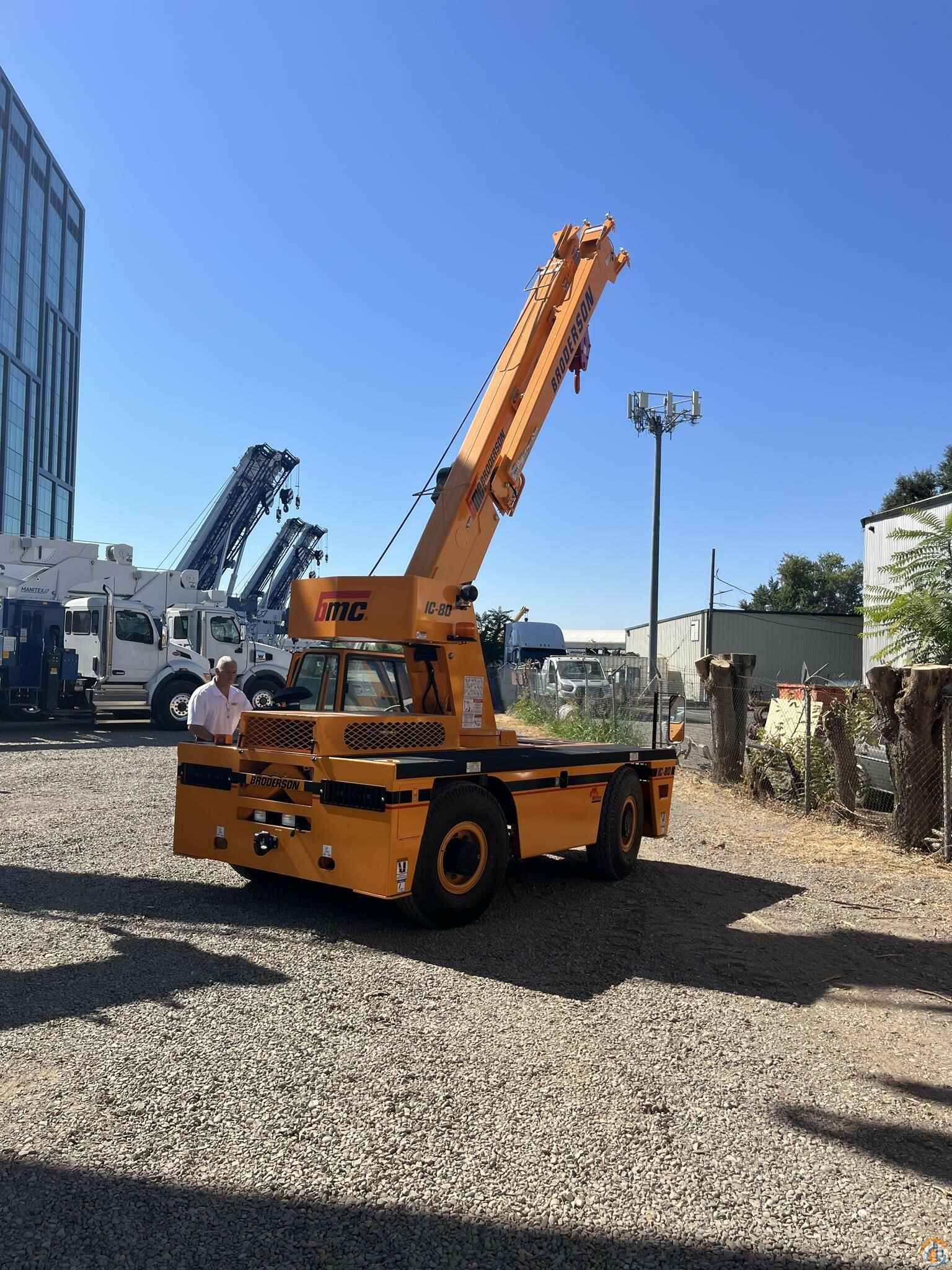

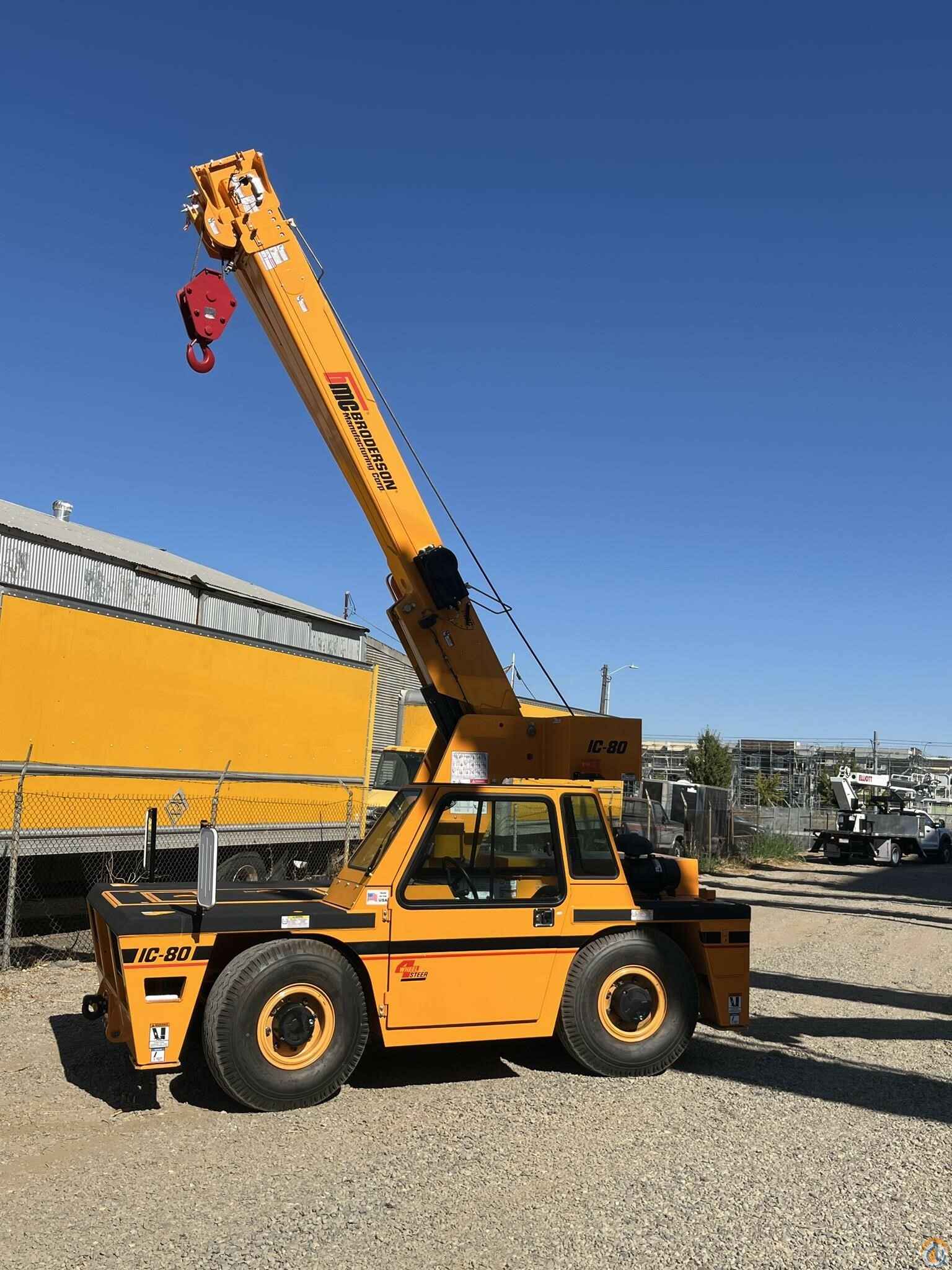

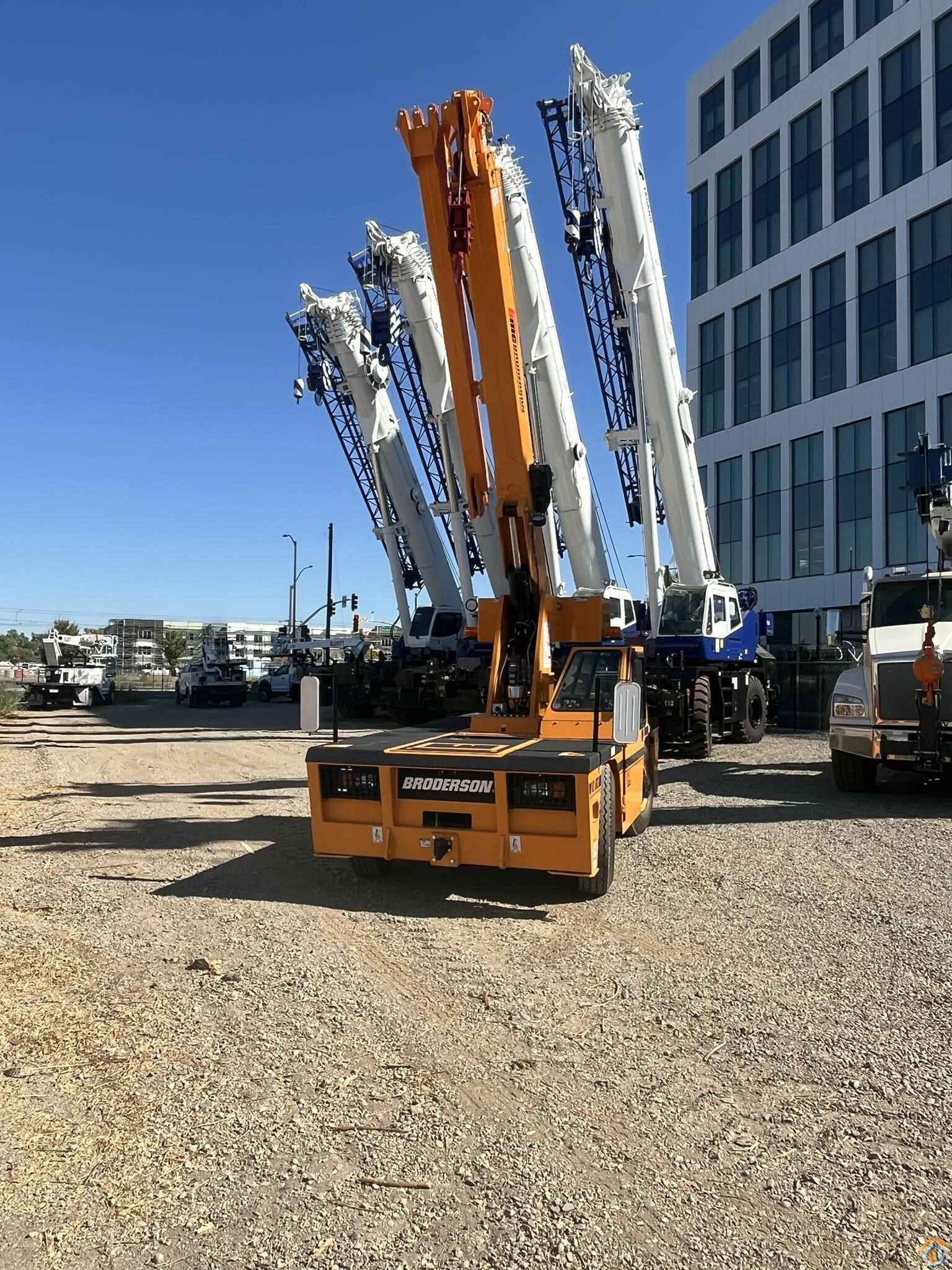

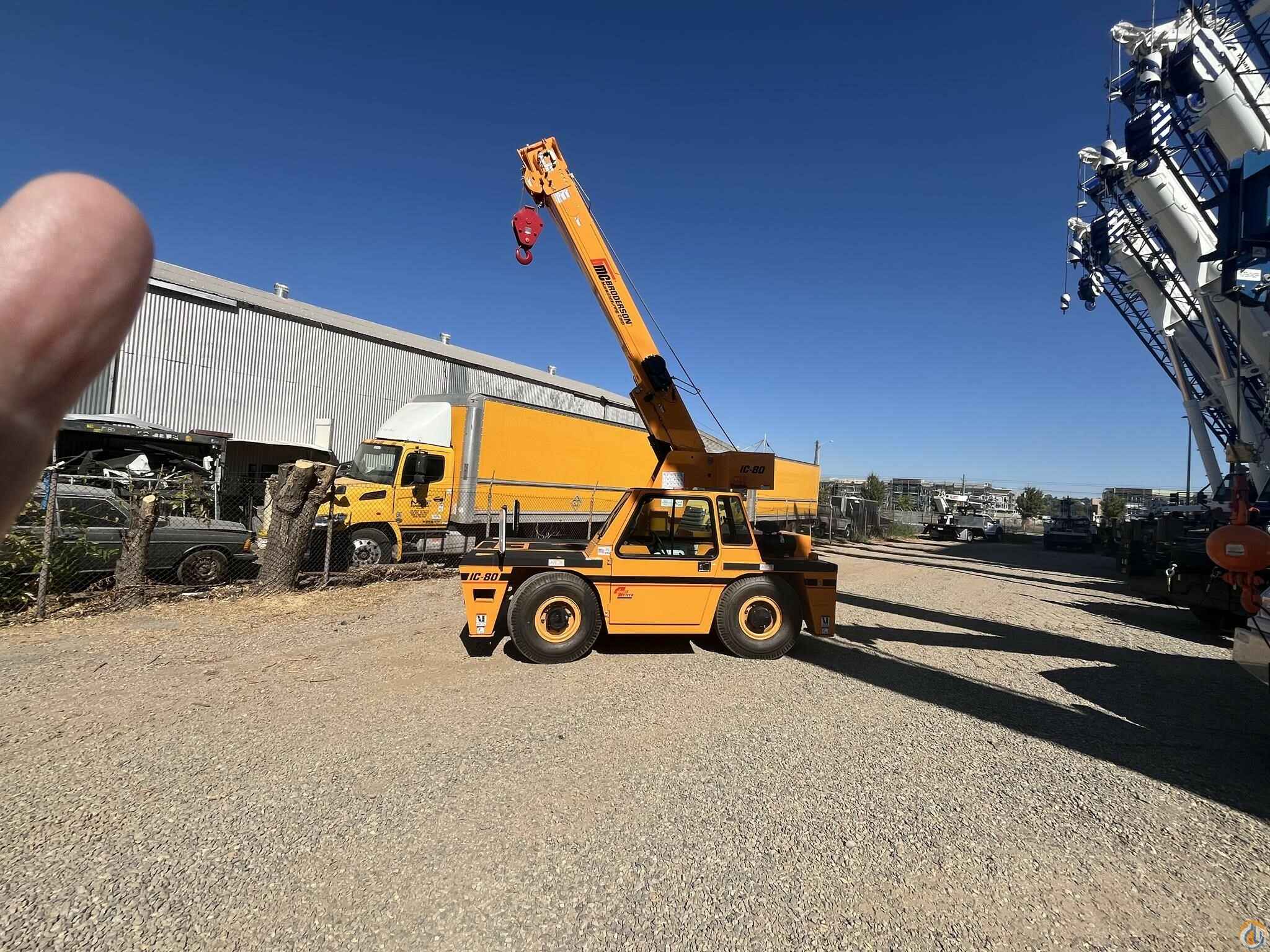

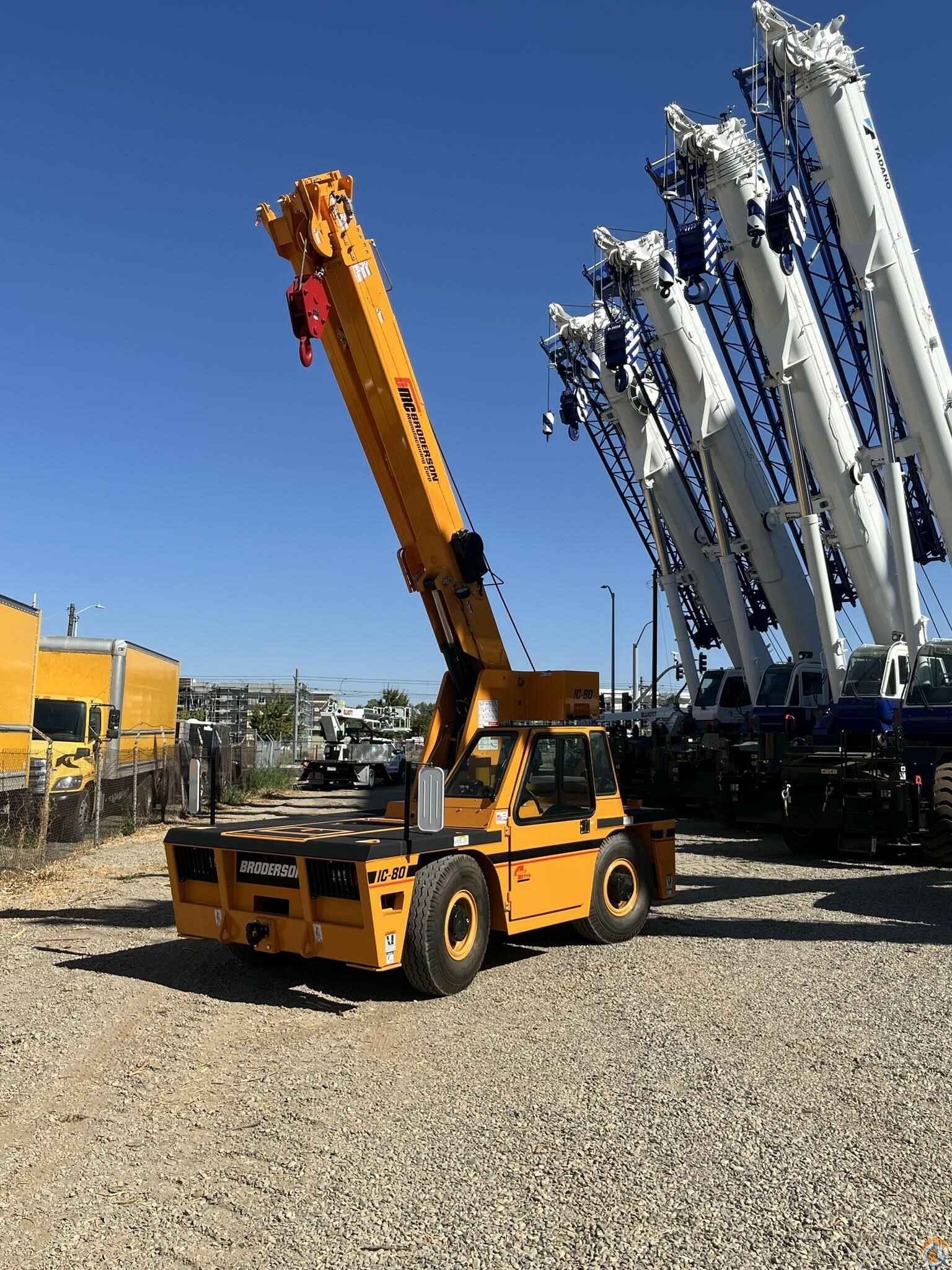

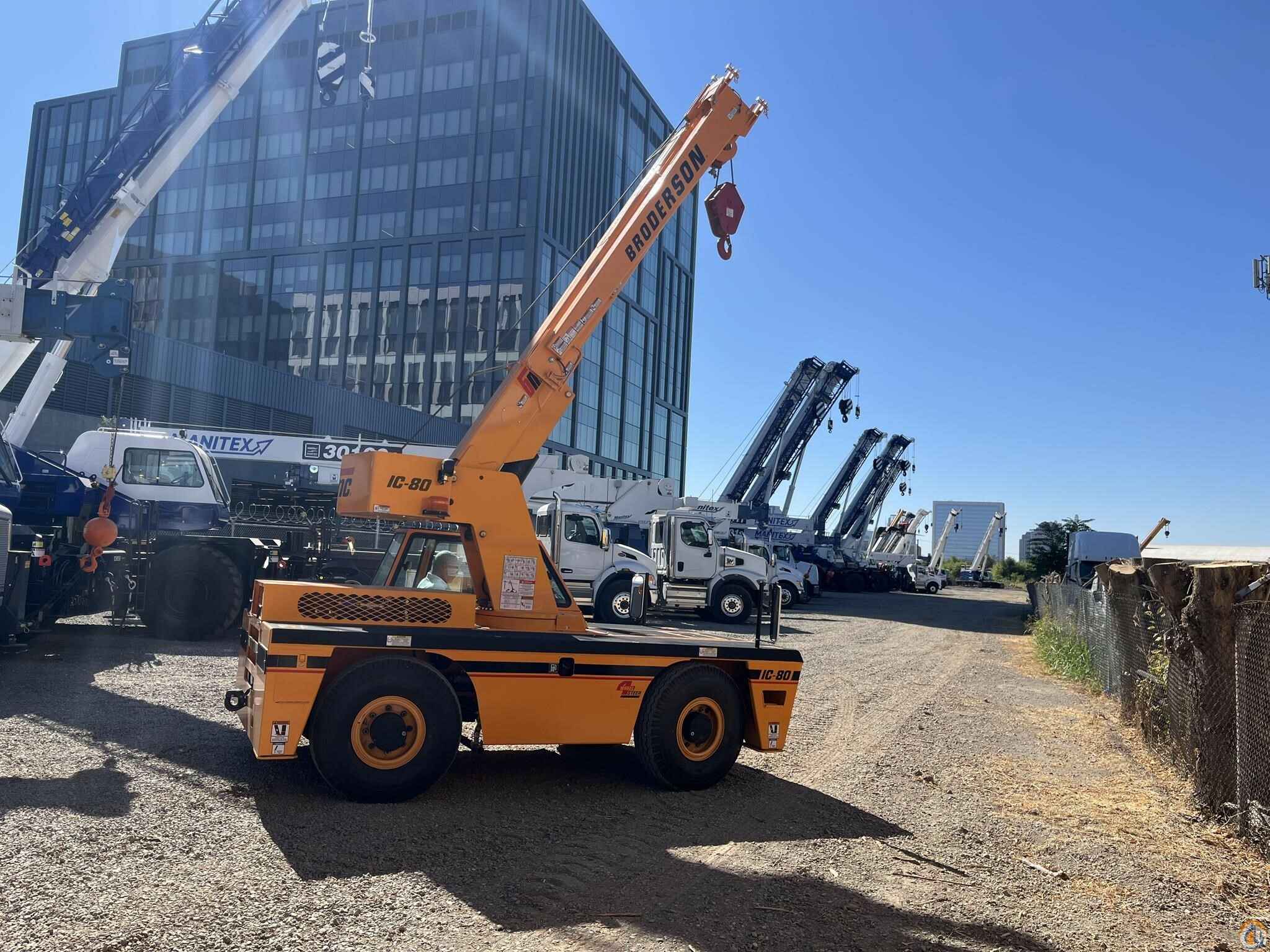

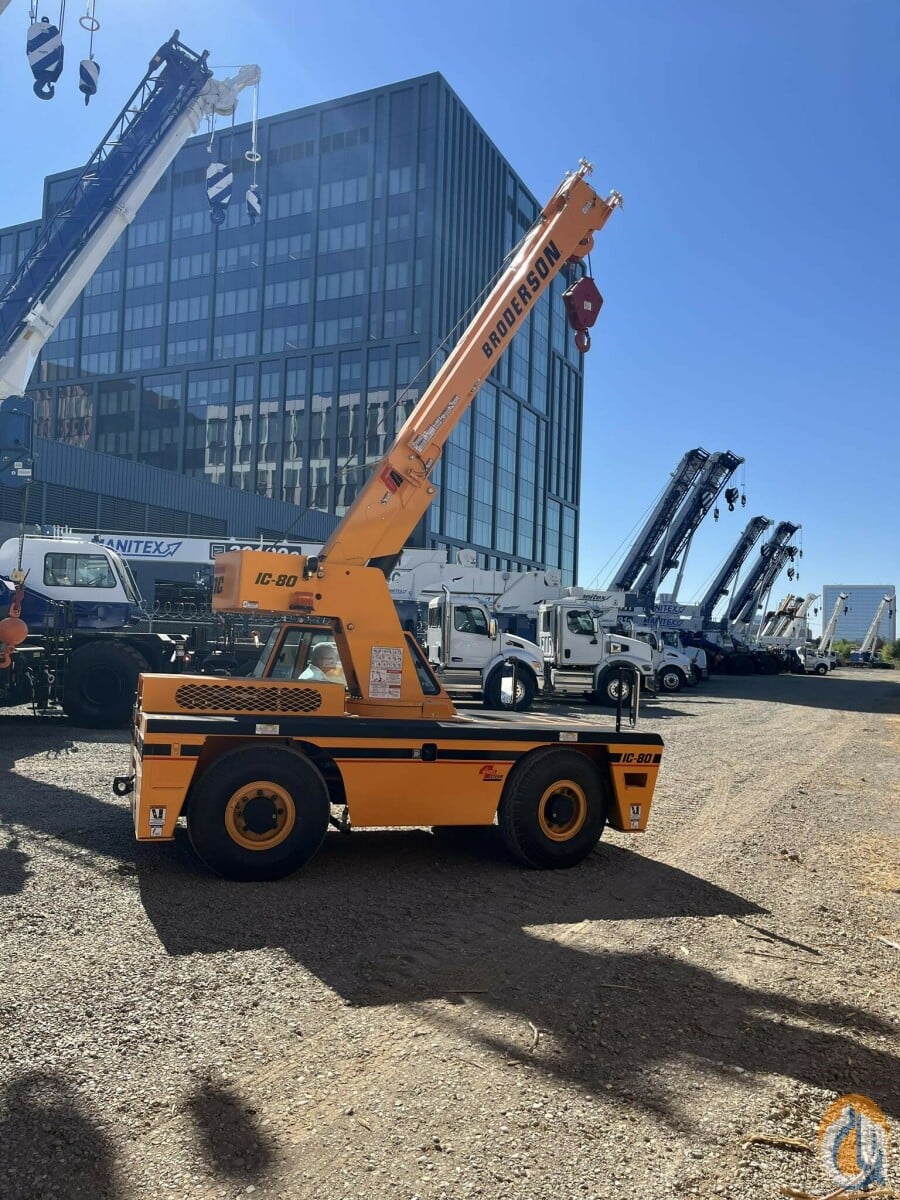

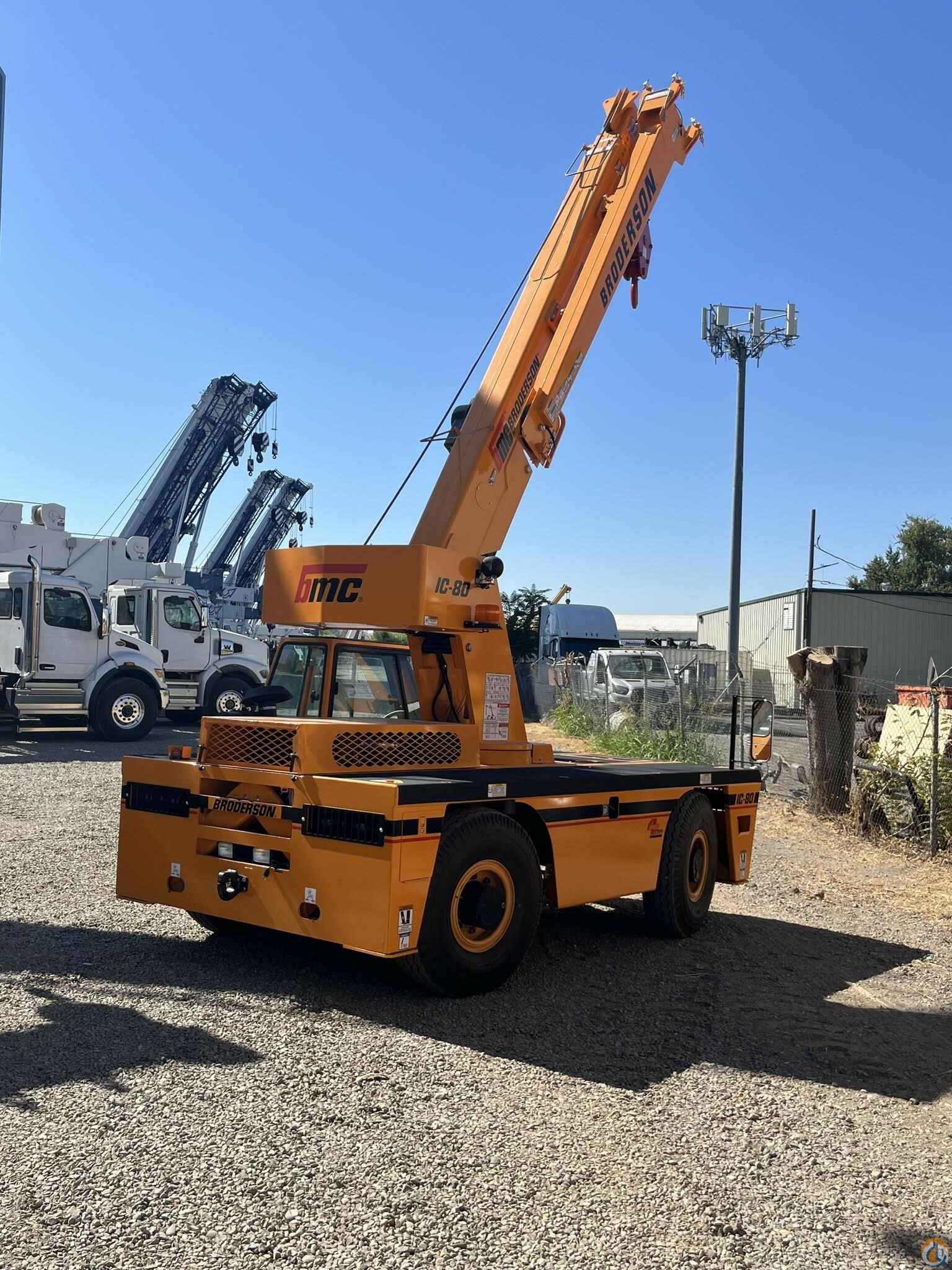

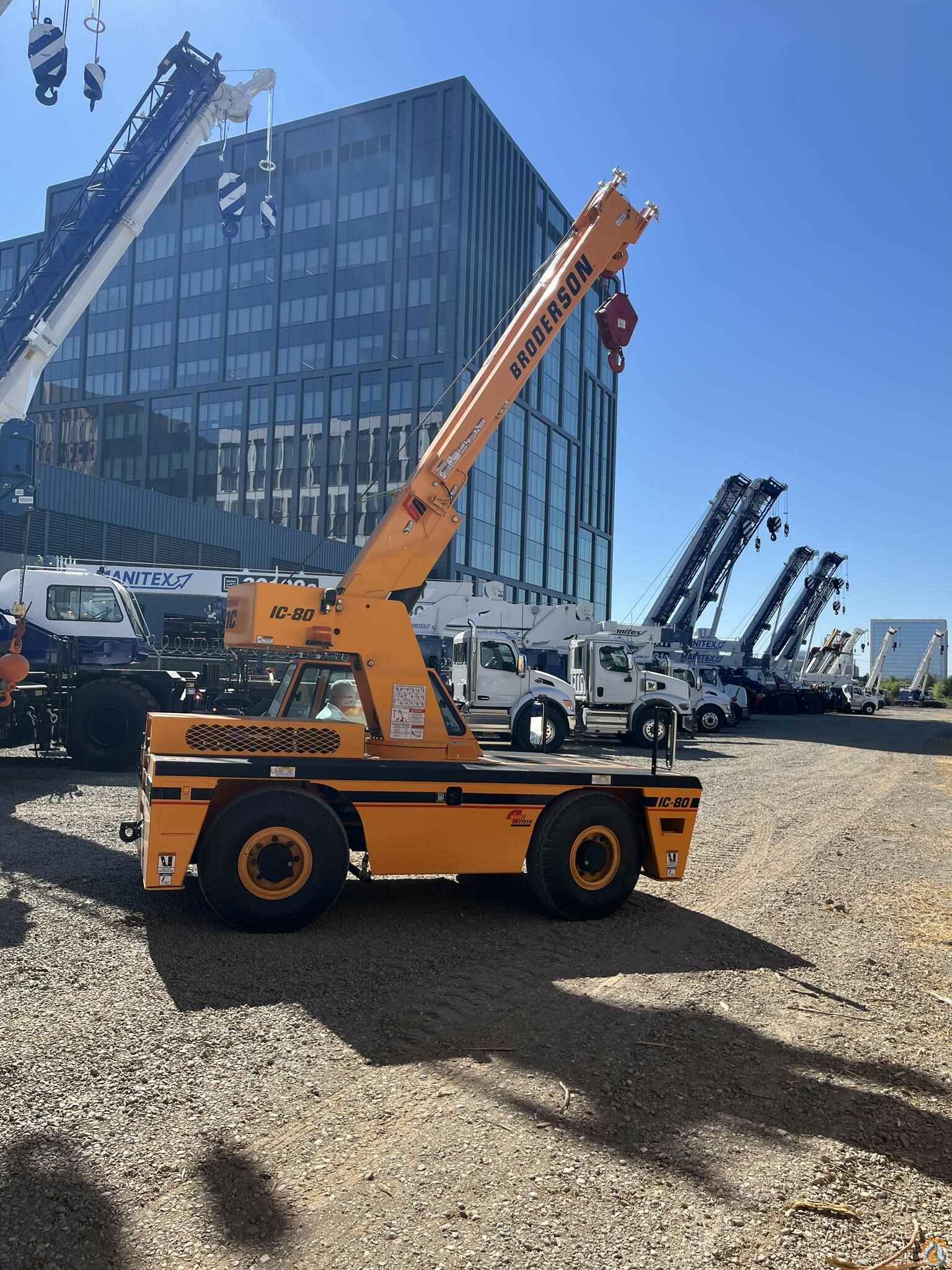

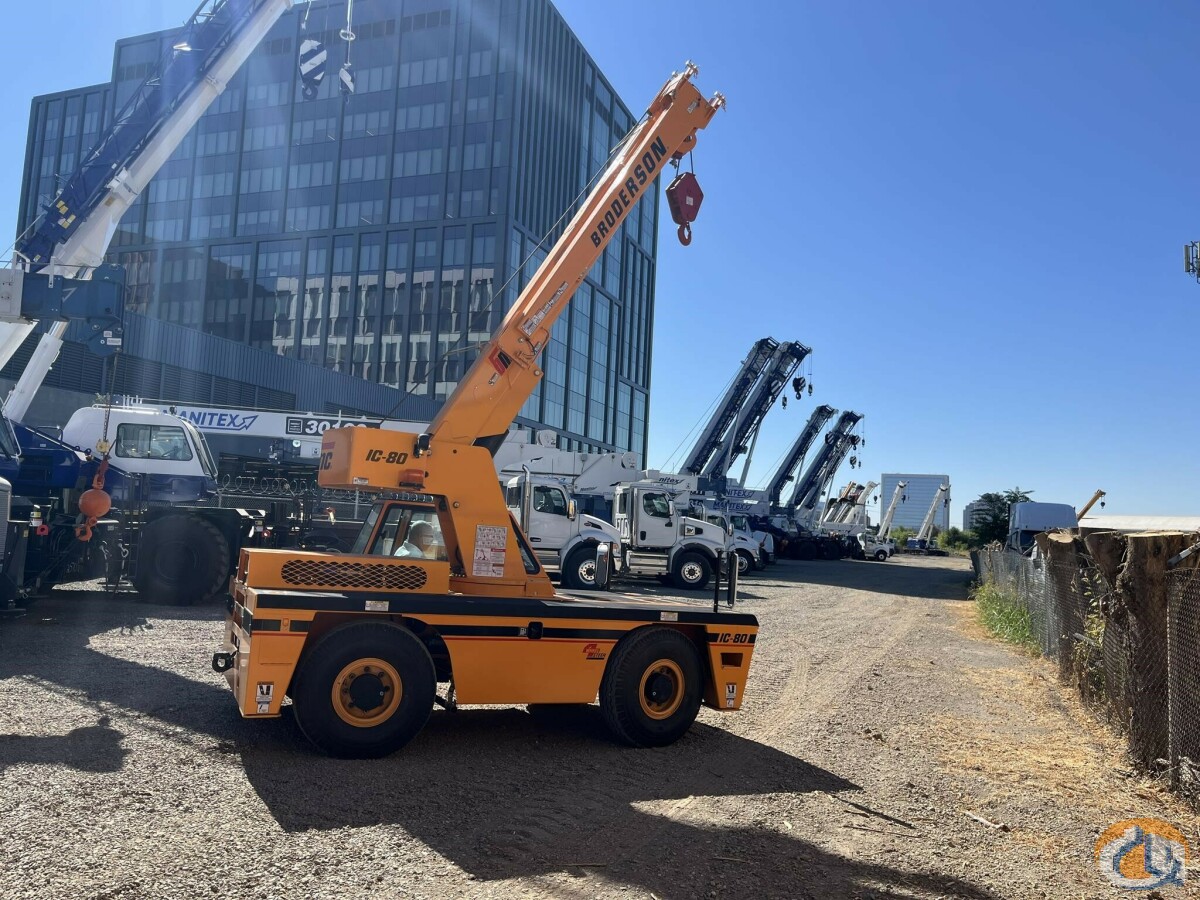

BRODERSON IC80-3L
9 TON CRANE
Standard Features:
Self-Loading Carry Deck provides practical load-carrying capability.
4-Wheel Steer, where the front and rear wheels steer in opposite directions, permits a very tight turning radius for quick positioning in constrained spaces. Operator can quickly switch between rear-wheel steering, 4-wheel, or crab steering.
Hoisting with a hydraulically-powered turret-mounted planetary gear system provides all the low speed power to lift heavy loads, and a high speed setting for faster cycle times when lifting lighter loads.
Four Hydraulic Independently Controlled Outriggers partitioned from boom functions ensures safer and more precise operations.
Sequentially Extending/Retracting 3-Section Boom with continuous 360 degree swing rotation turret. Simplicity of the worm drive gear box results in greater reliability.
Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stopping boom functions in the event of overloads.
Hoist Drum Rotation Indicator provides better awareness of boom rotation and position.
Diesel or Dual Fuel Engine available.
Powershift Transmission, with 4 speeds forward and reverse, allows power shifting at any engine speed in any gear.
Easy Access to engine compartment and hydraulic equipment components simplifies maintenance and repair.
Narrower and Lower Profile Design enables maneuvering and positioning in tight quarters and simplifies transportation.
Available Features Included:
• Industrial Crane with 11’6” – 30’ Boom
• Kubota V3307, US EPA Tier 4F diesel engine
• 4 Wheel-Steer & 2-Wheel Drive
• Highway Tread 10.00x15, 16-Ply Bias
• Pintle Hook, Rear
• Pintle Hook, Front
• Rearview Mirrors
• All Weather Cab, w/heater, defroster, & wiper
• Deluxe Seat with Upholstery Springs
• Strobe Lights
• Boom Work Lights
• Work Lights Rear
• Boom Extension, 10 FT
