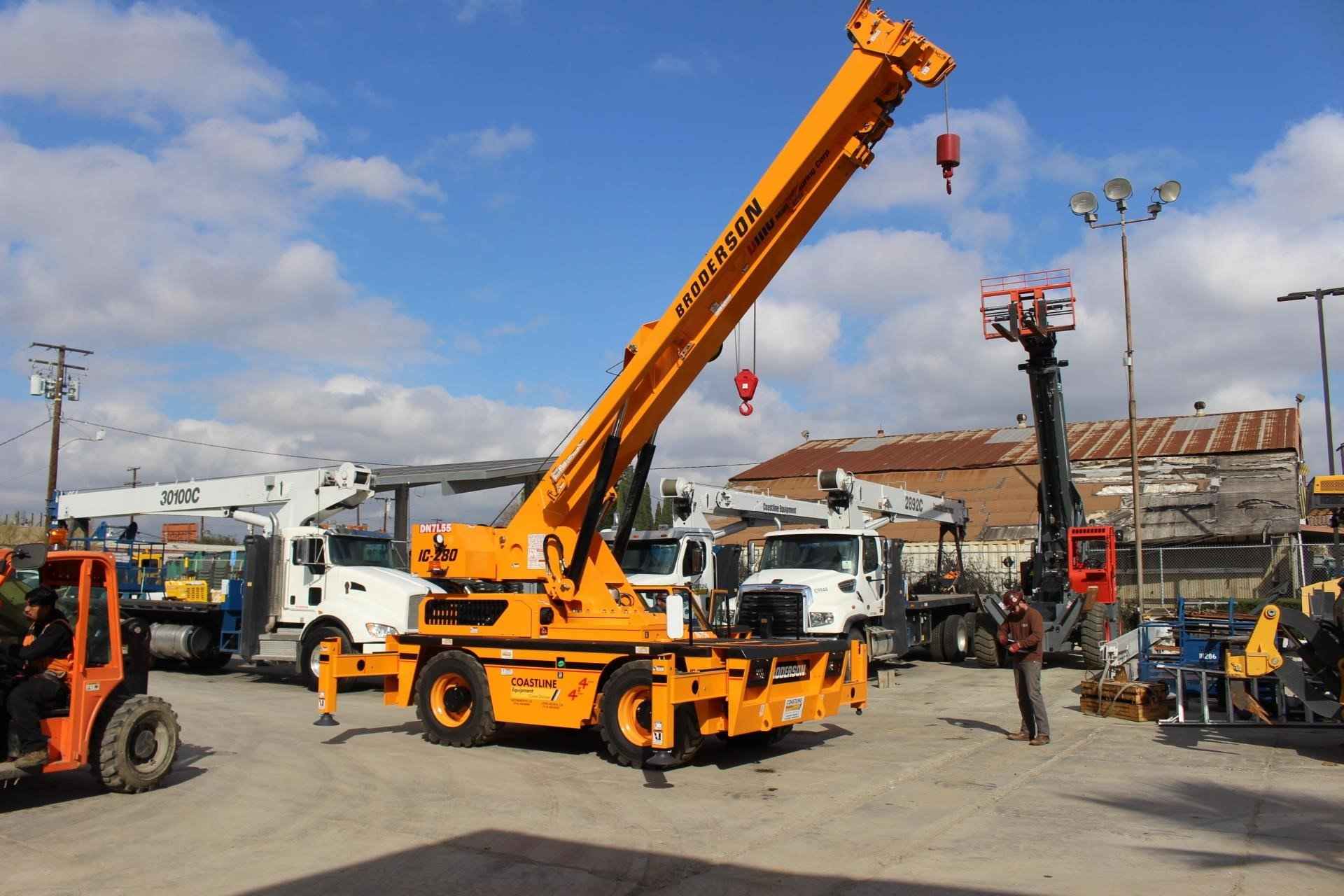

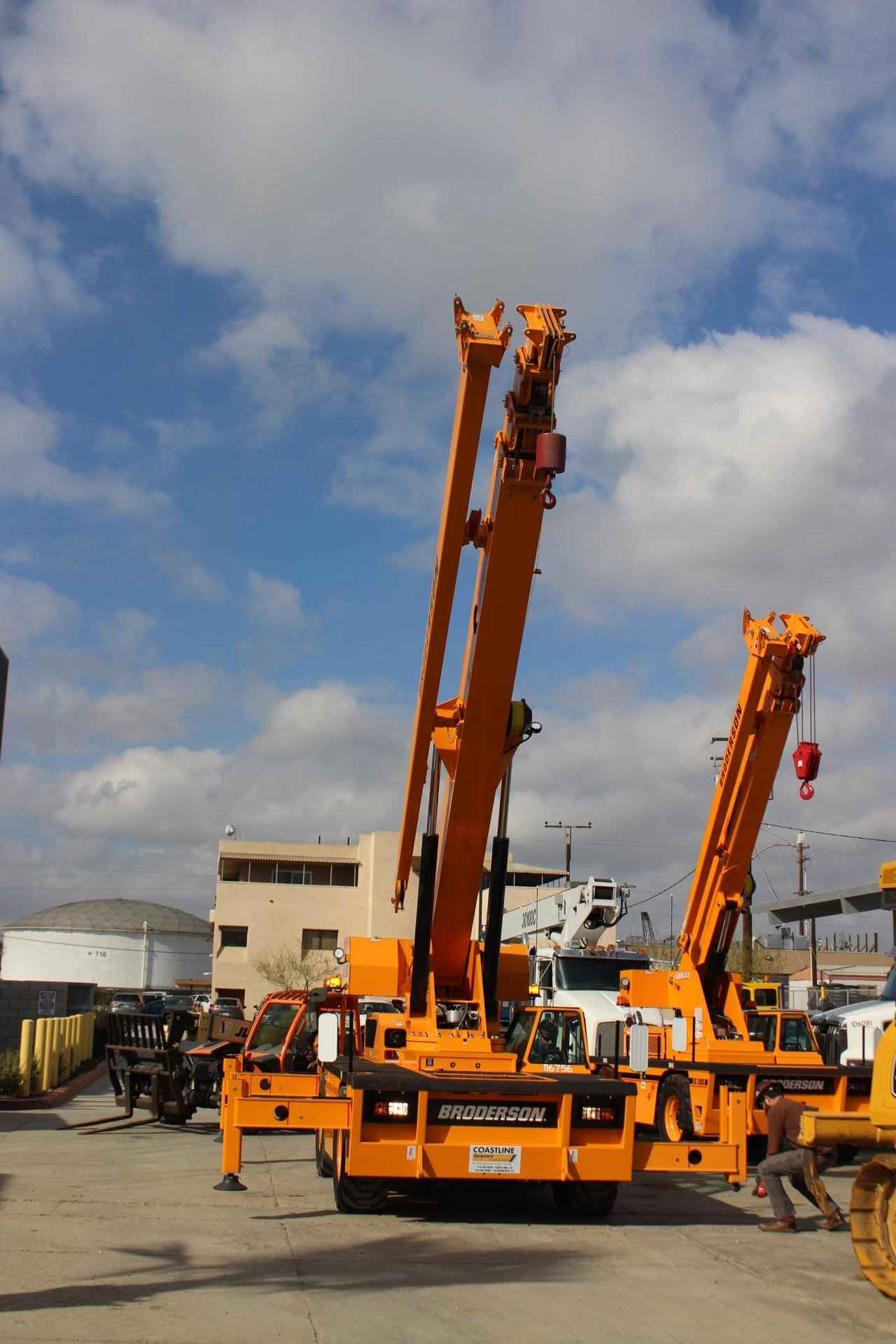

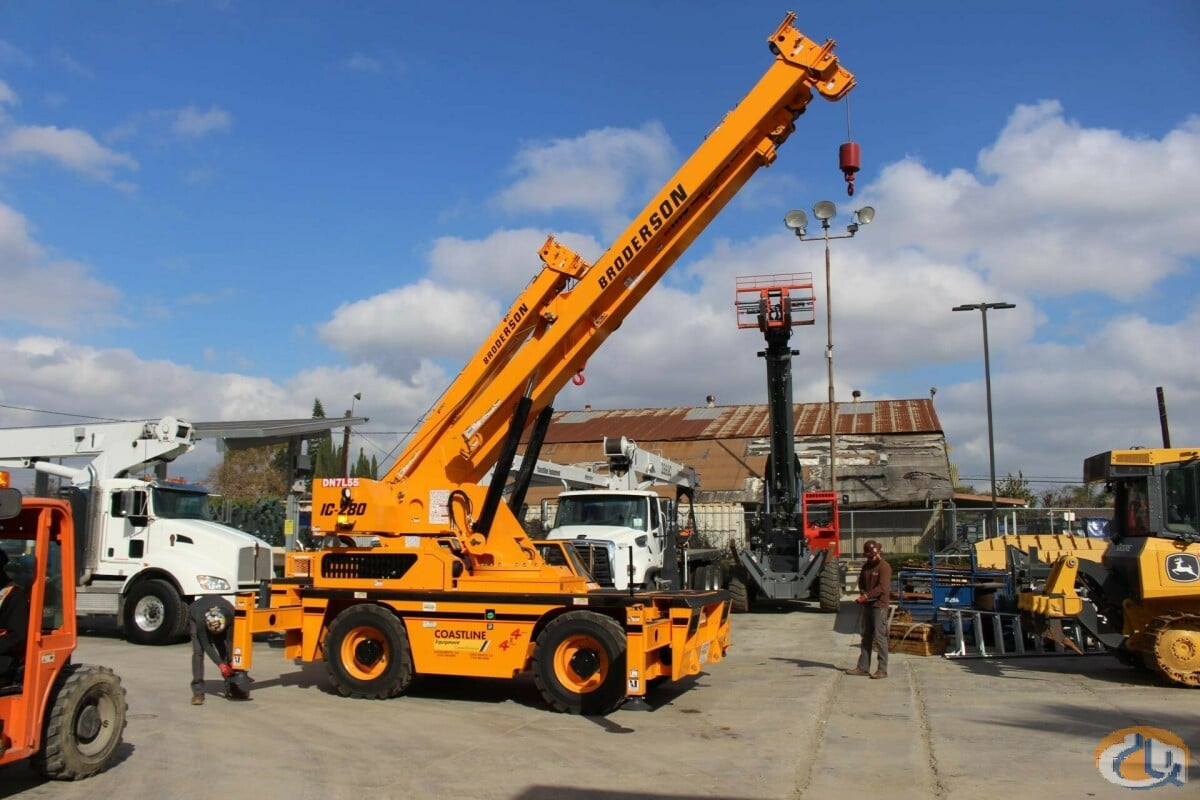

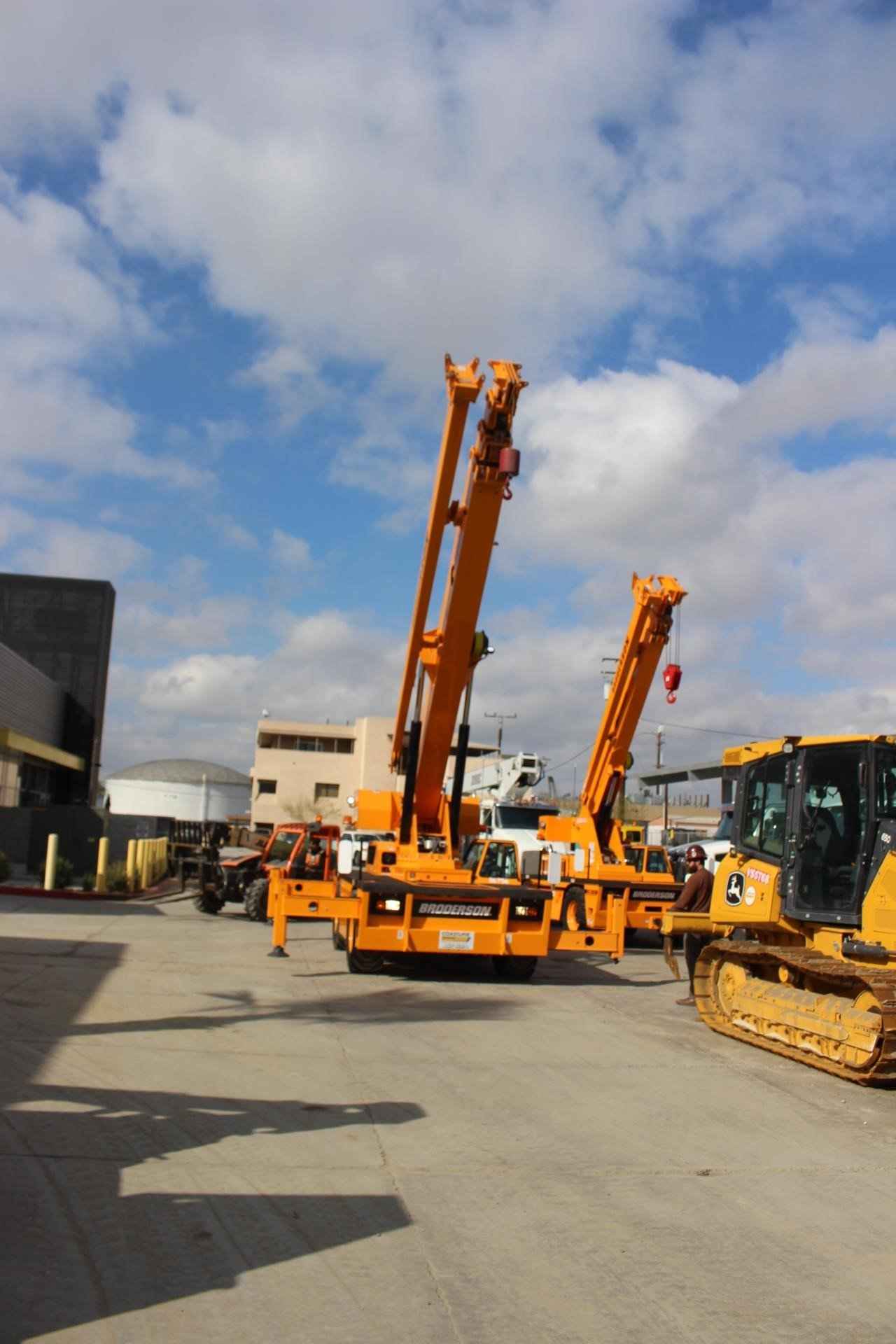

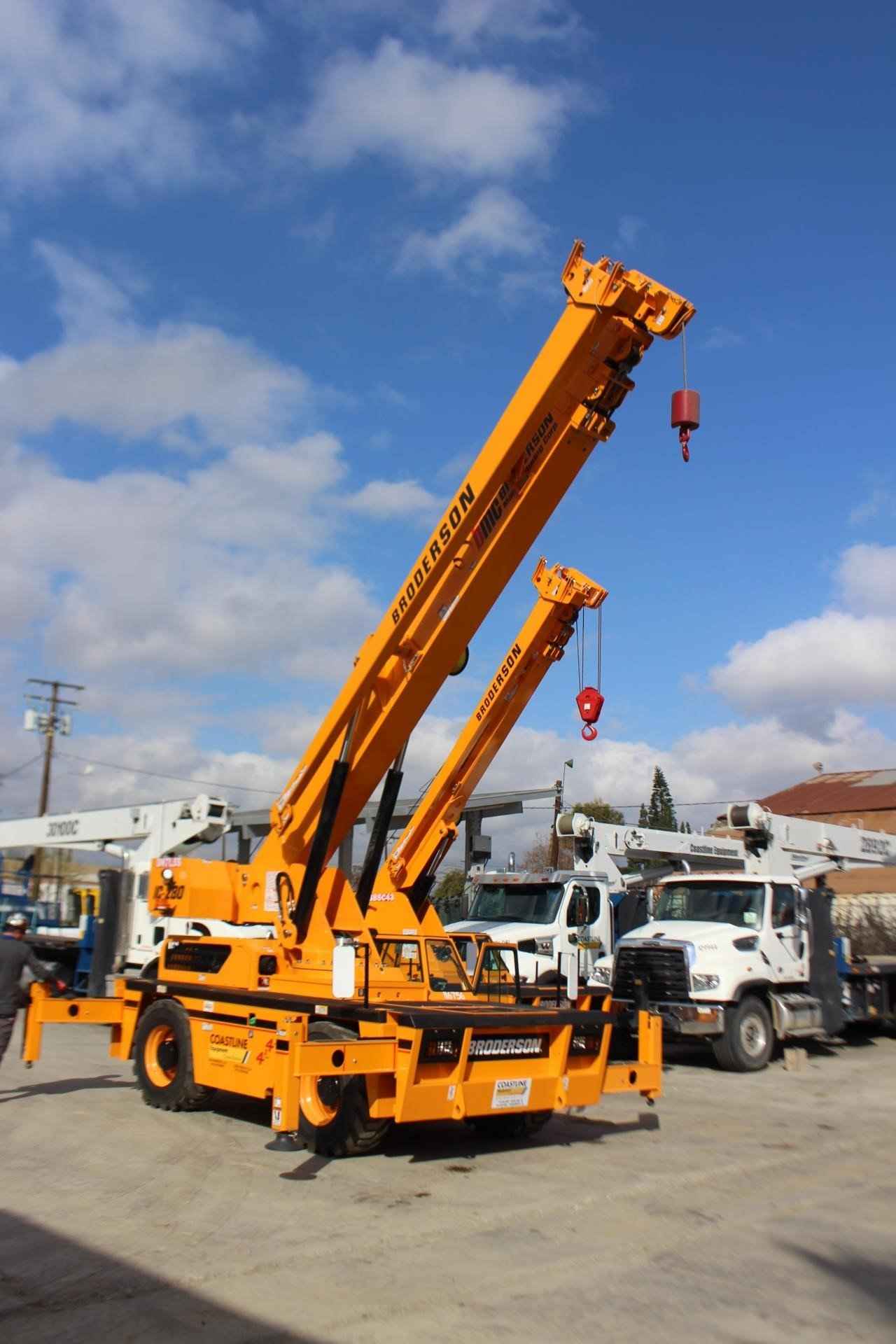

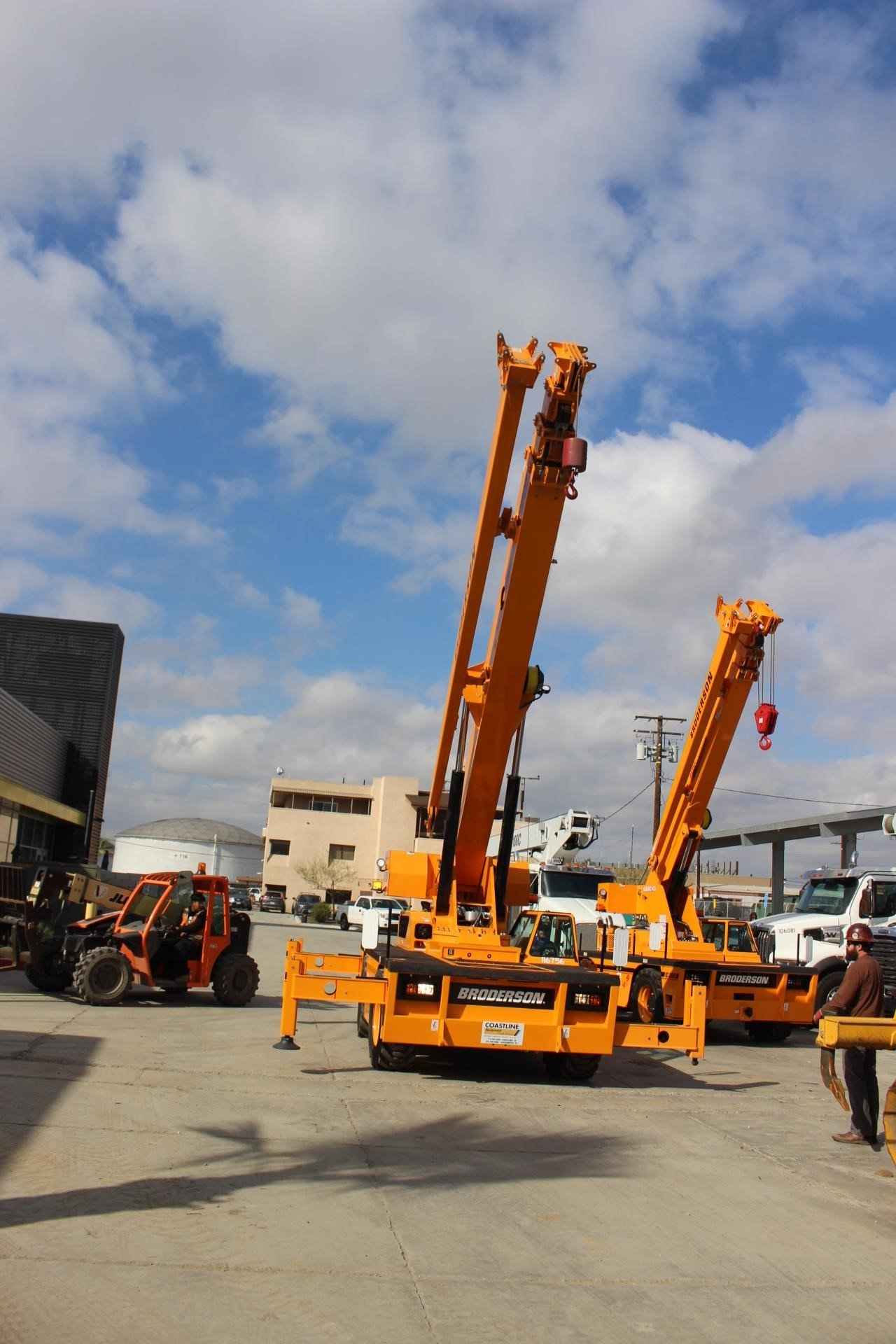

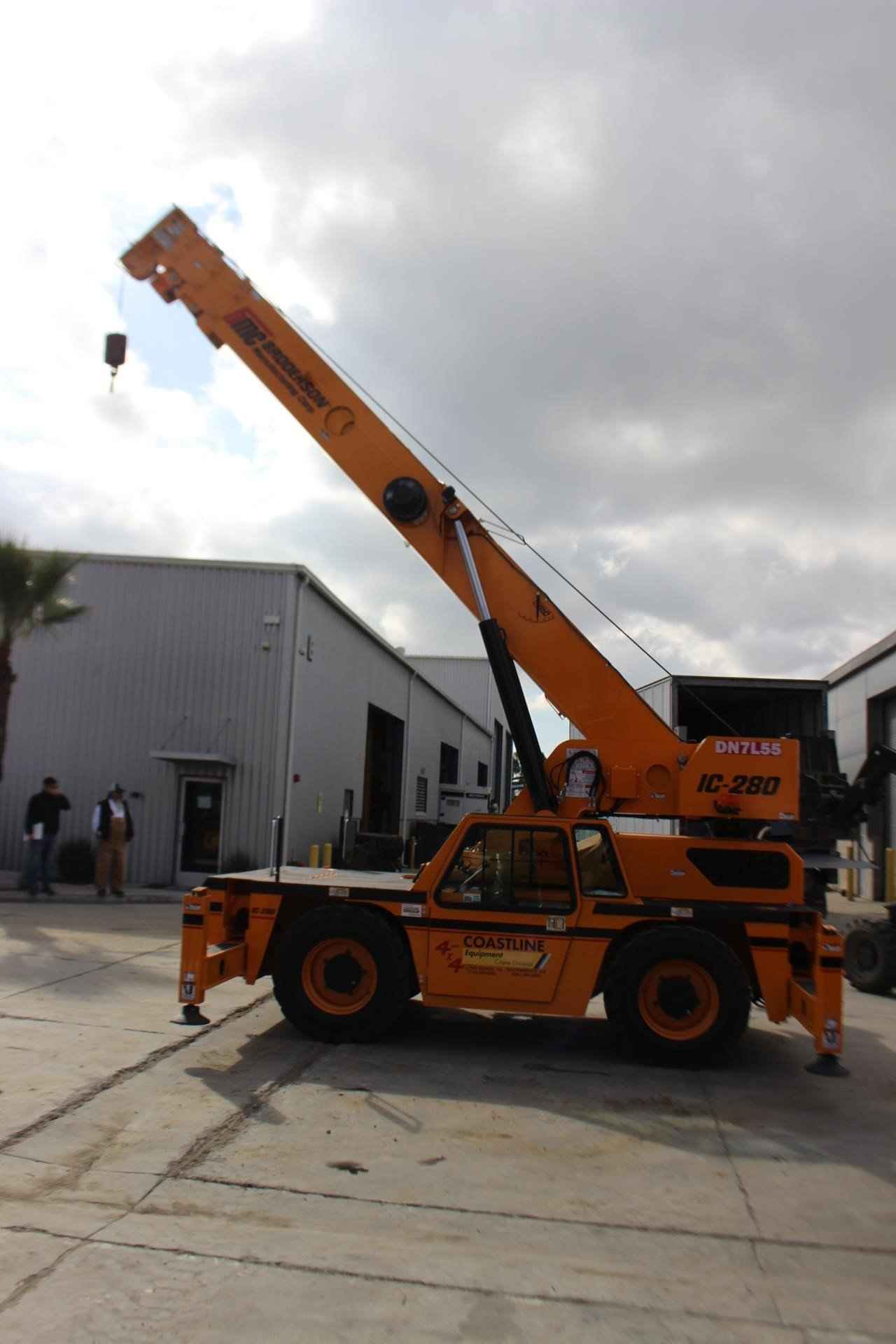

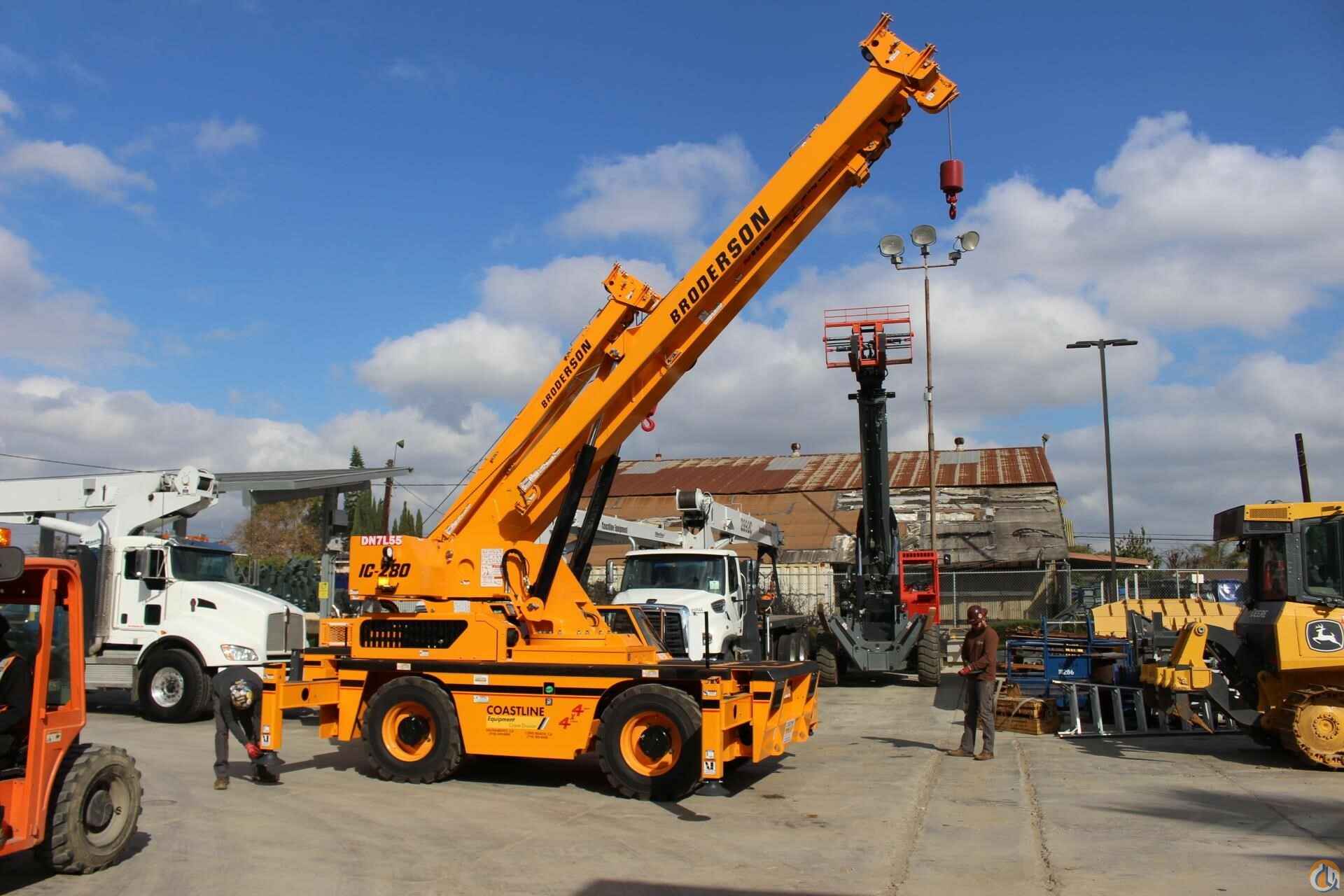

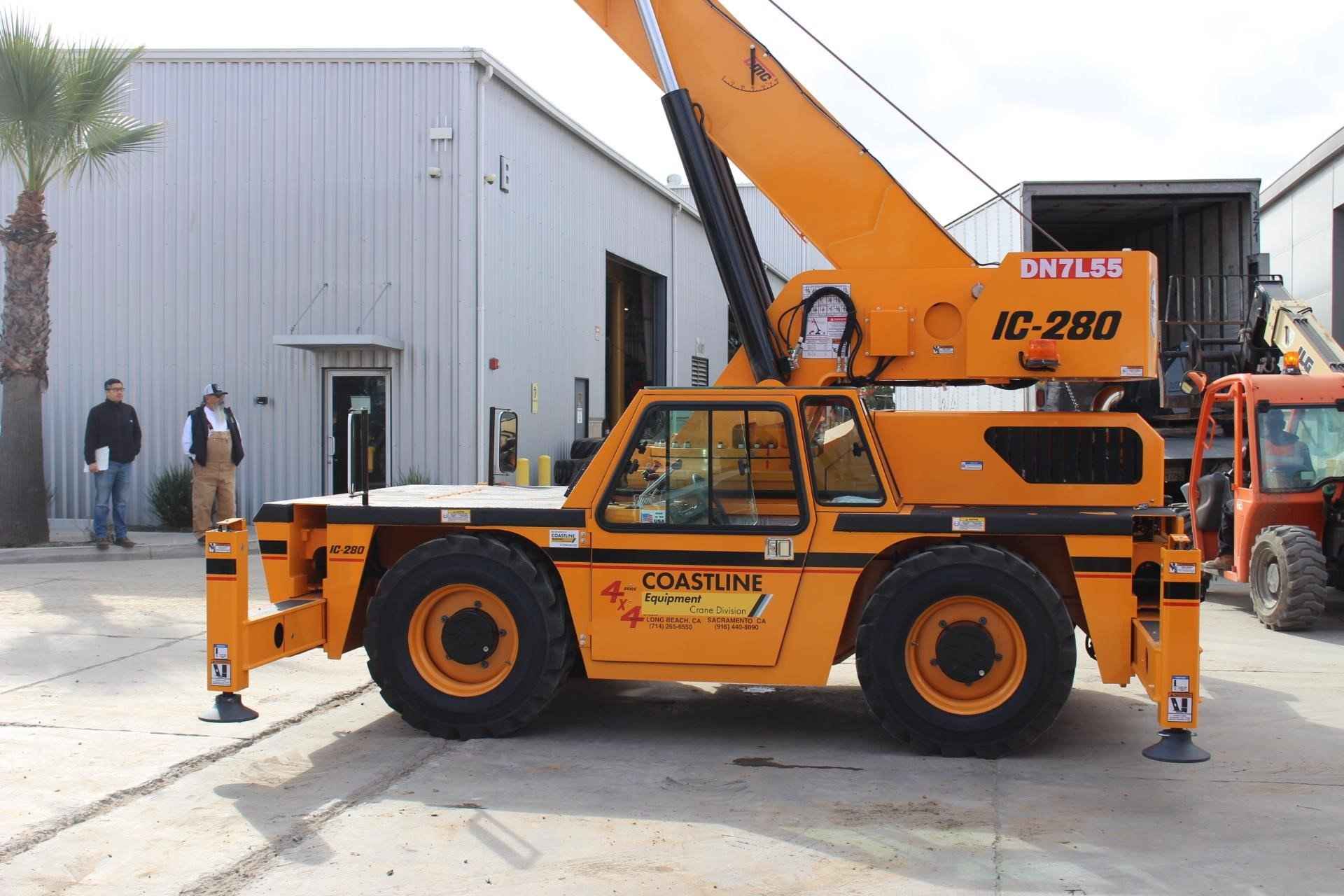

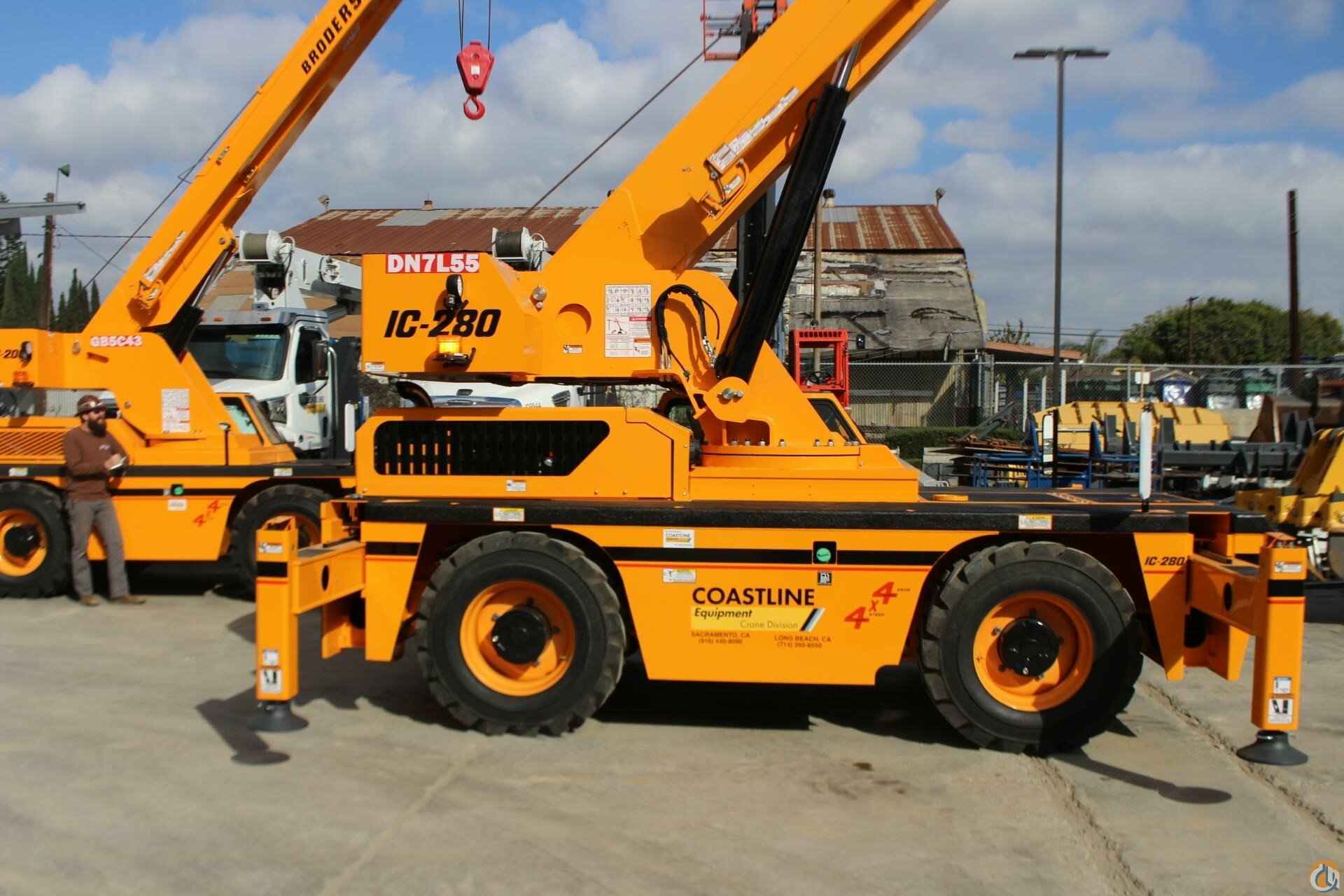

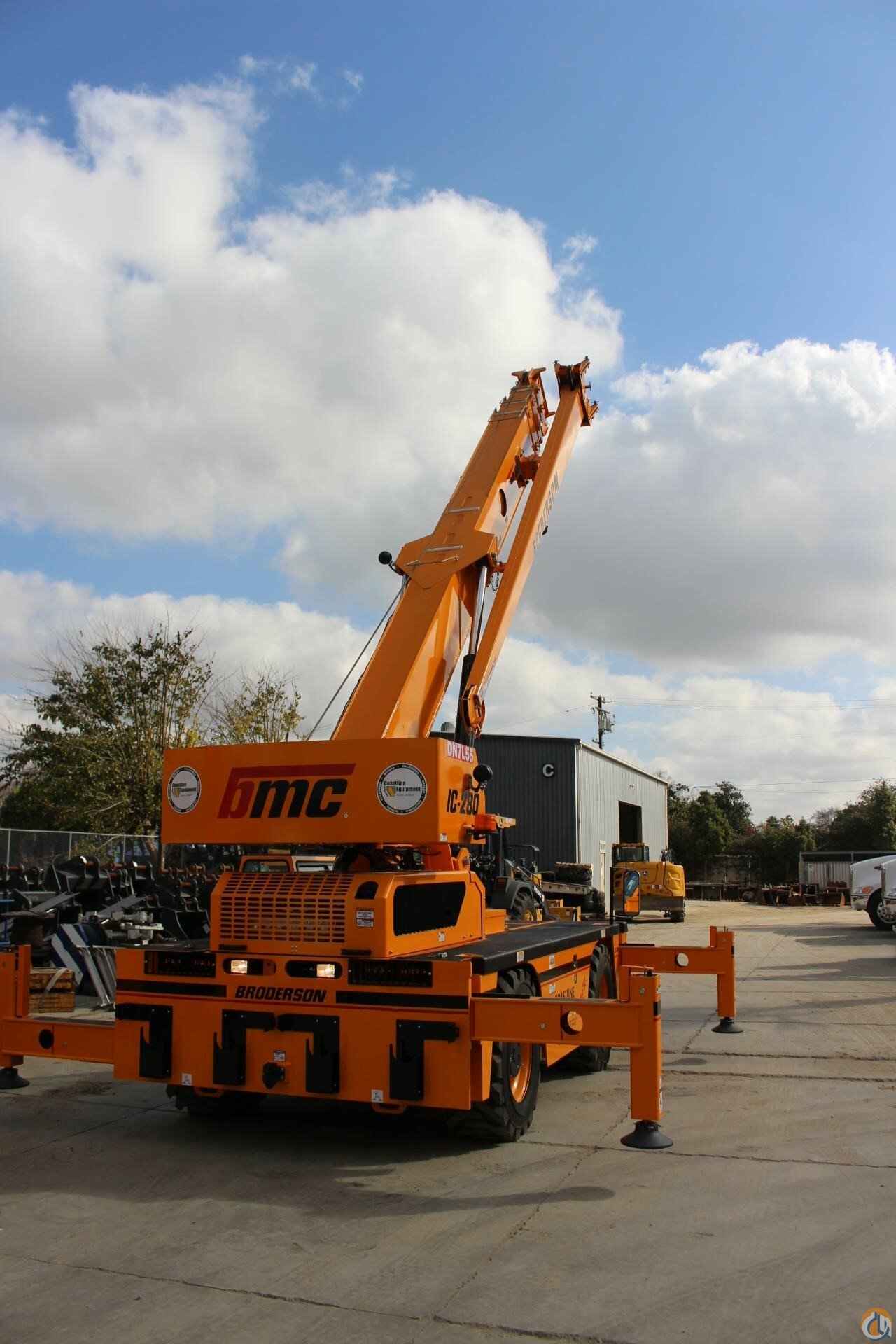

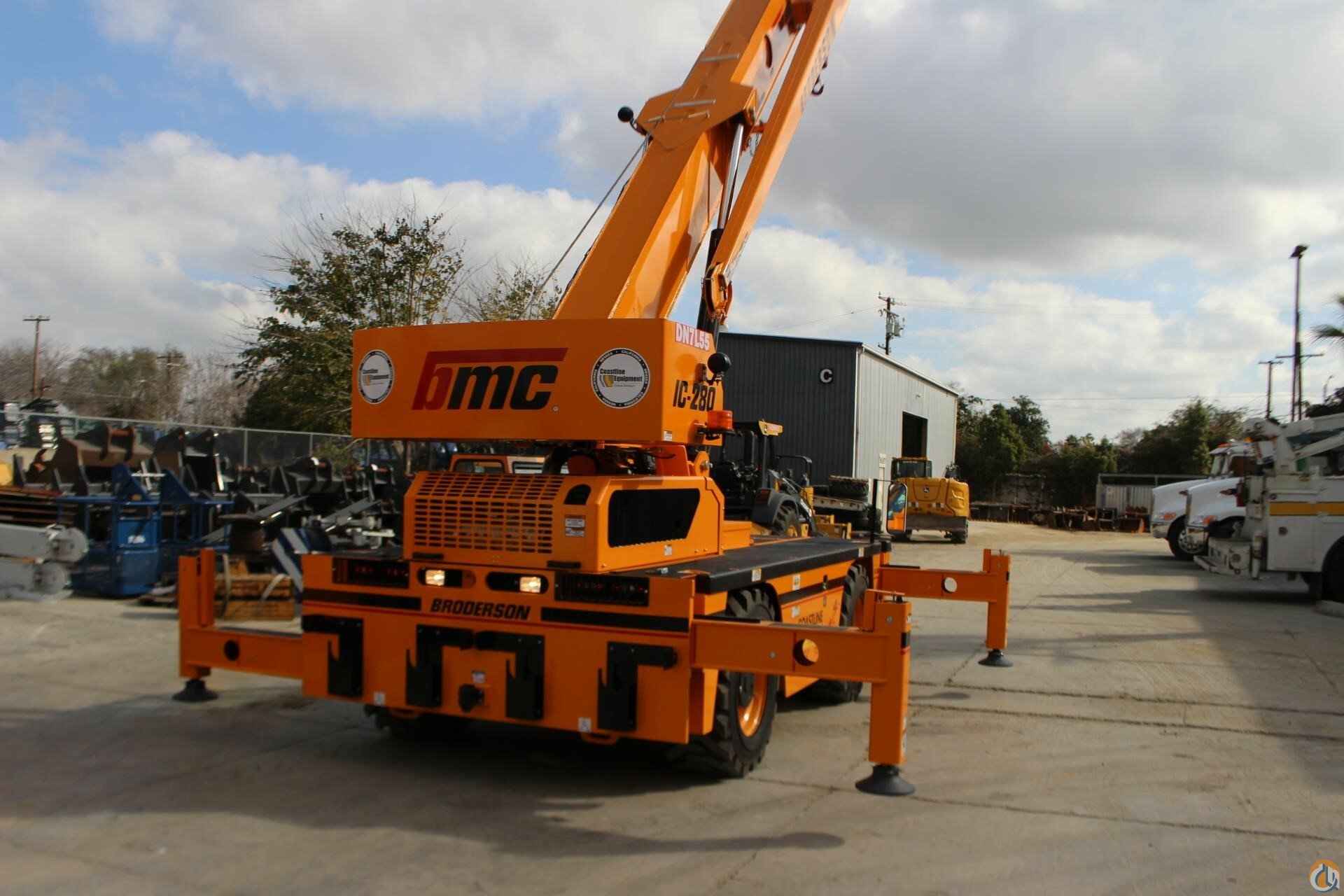

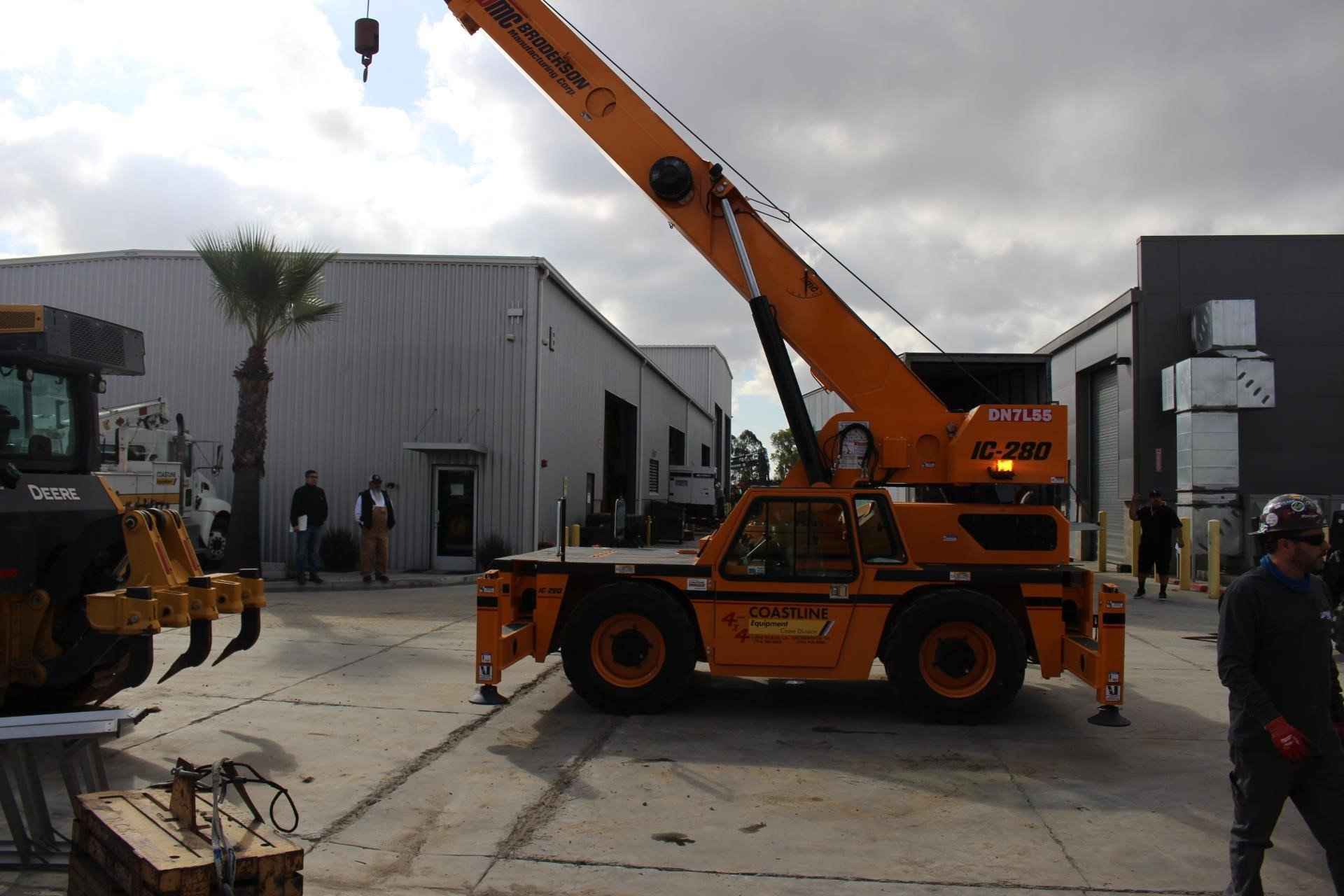

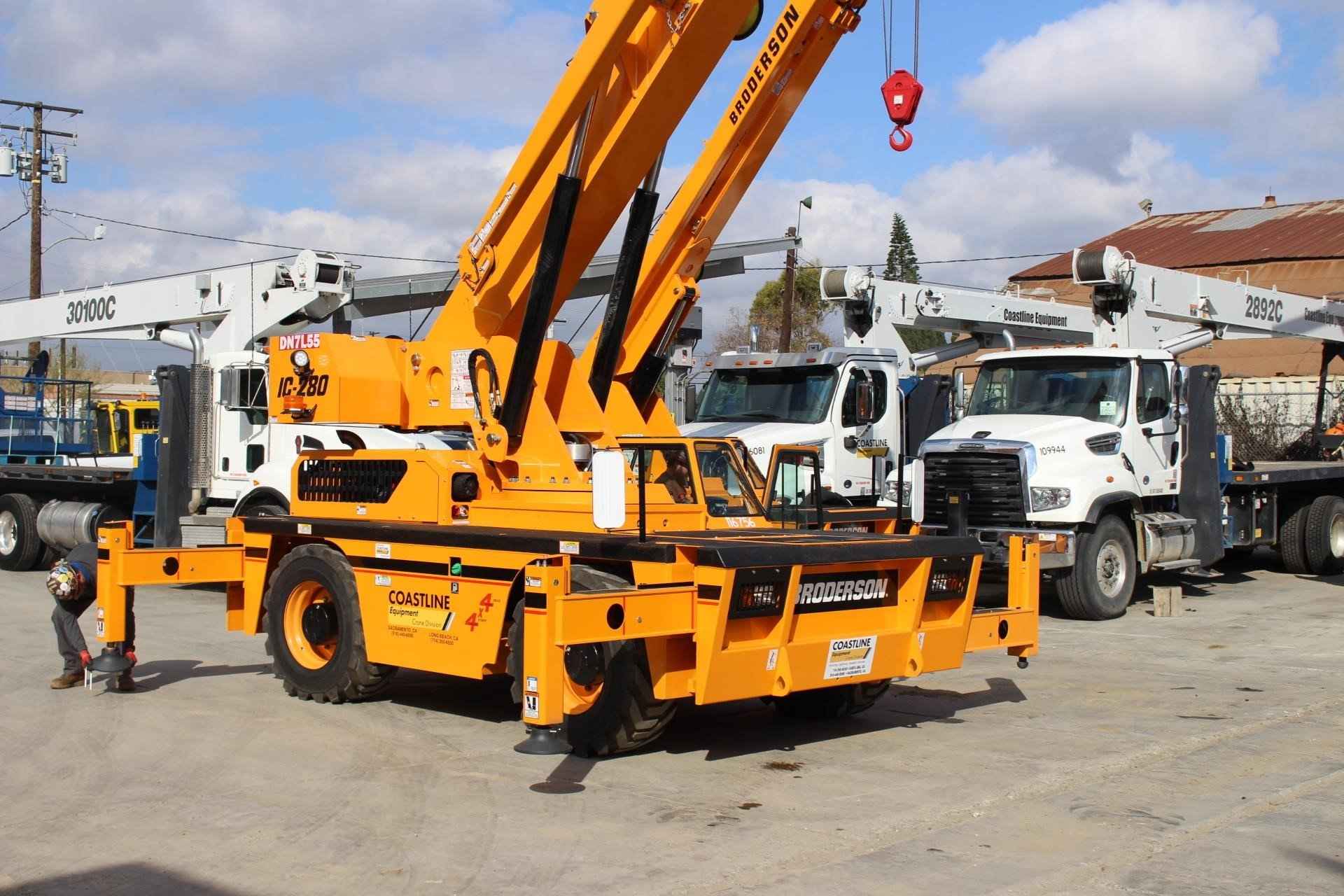

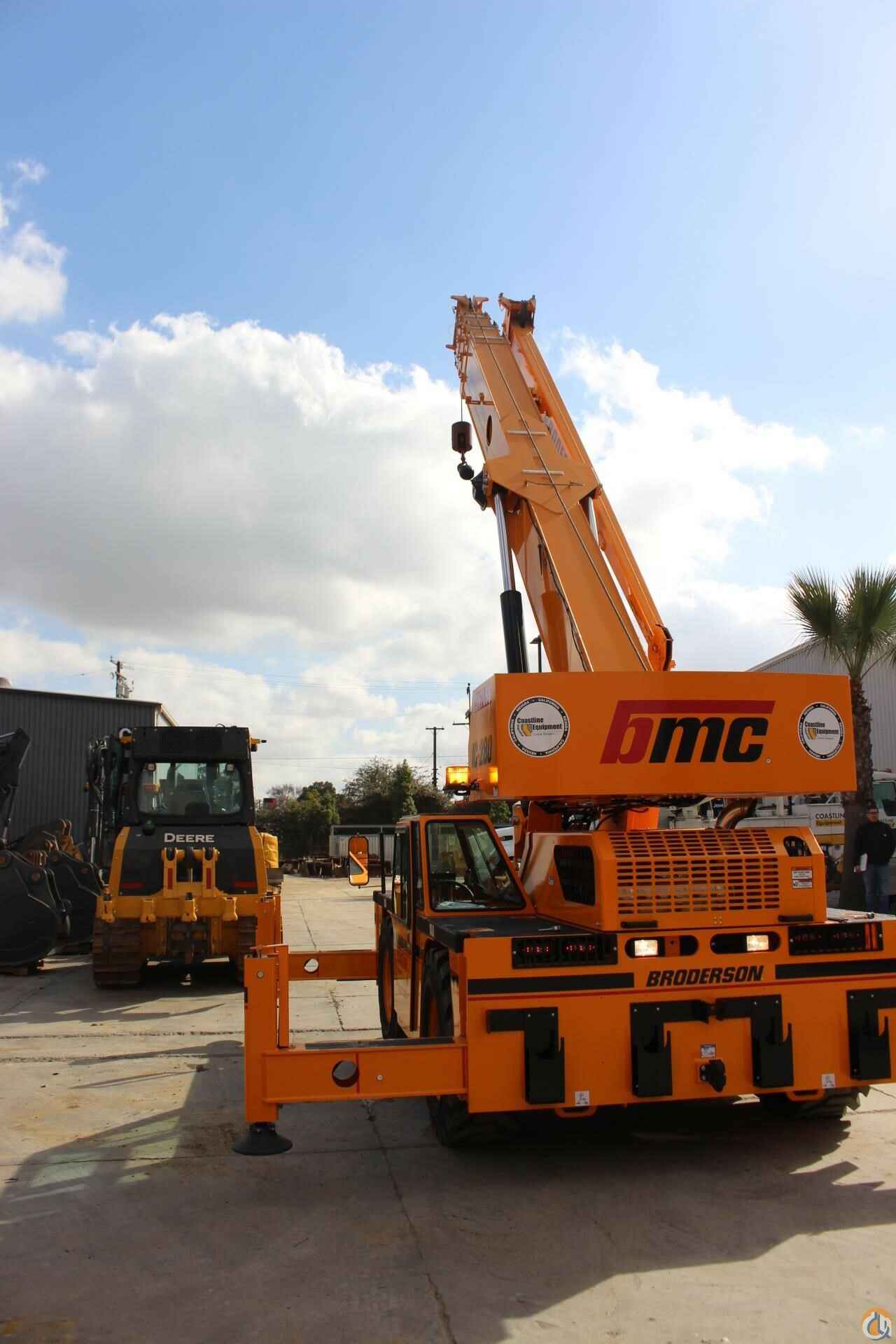

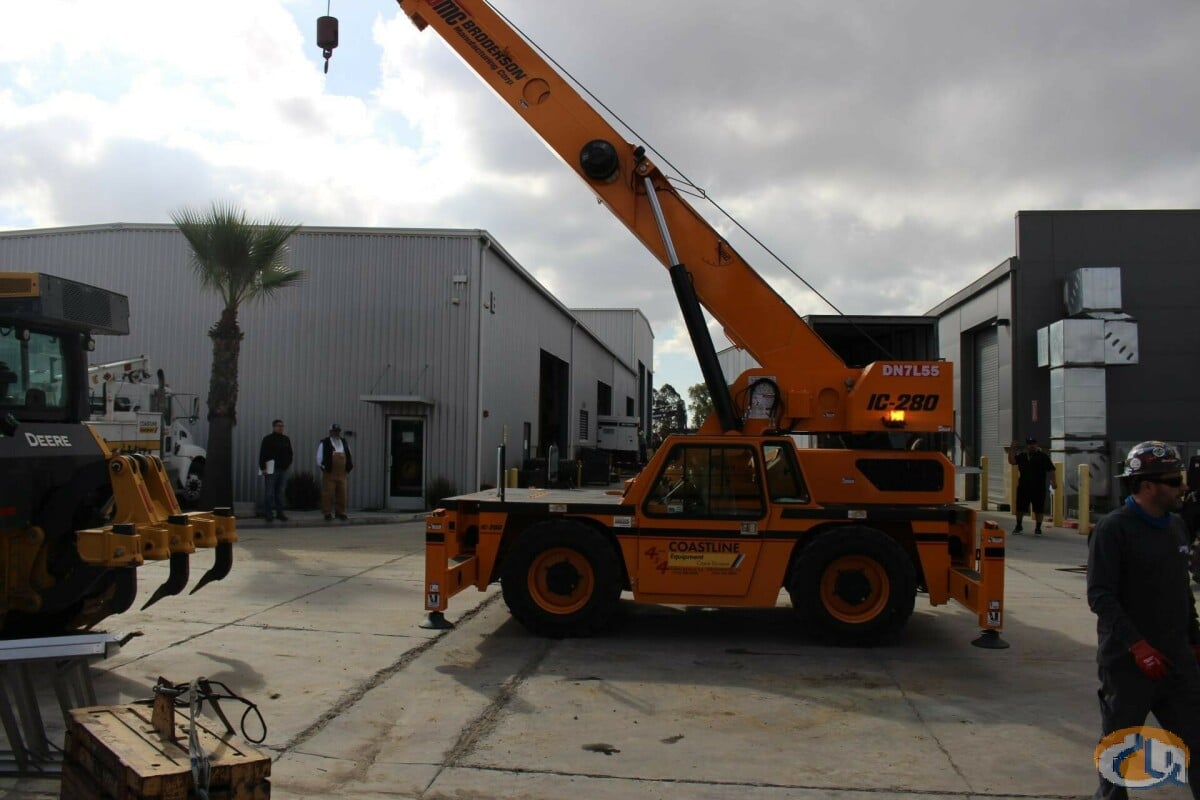

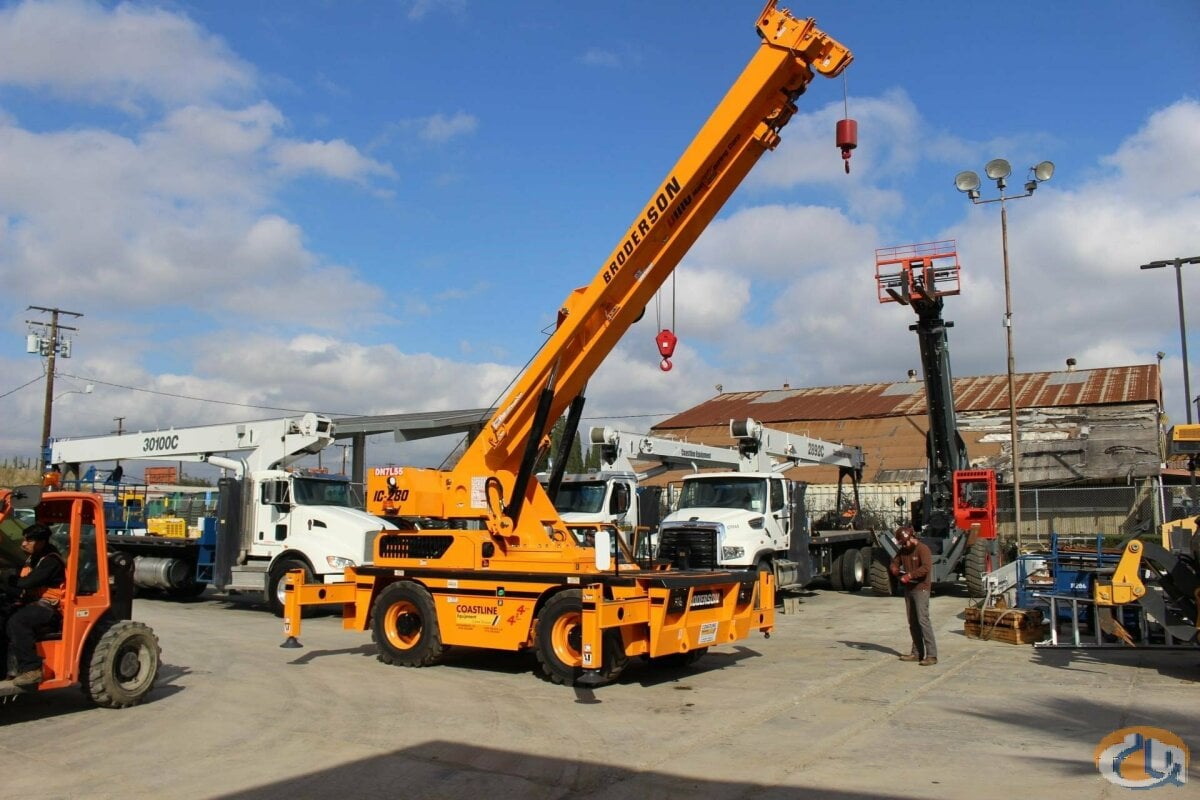

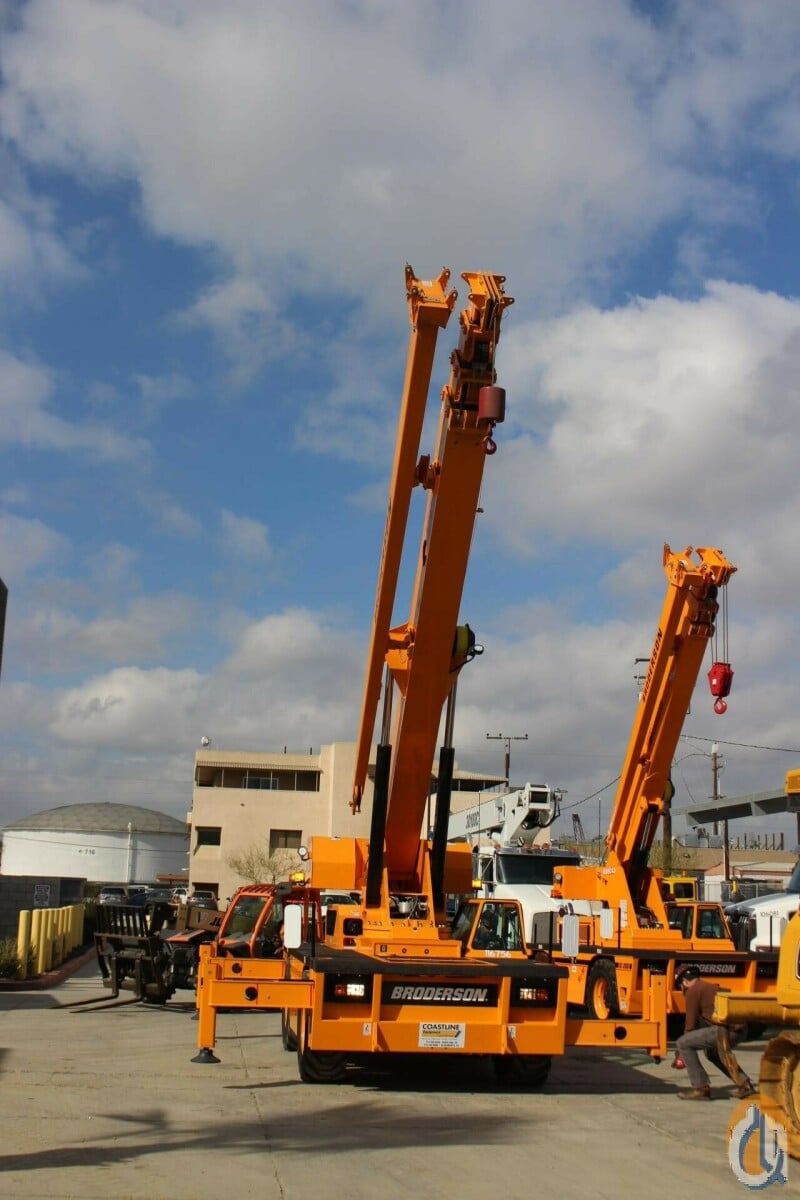

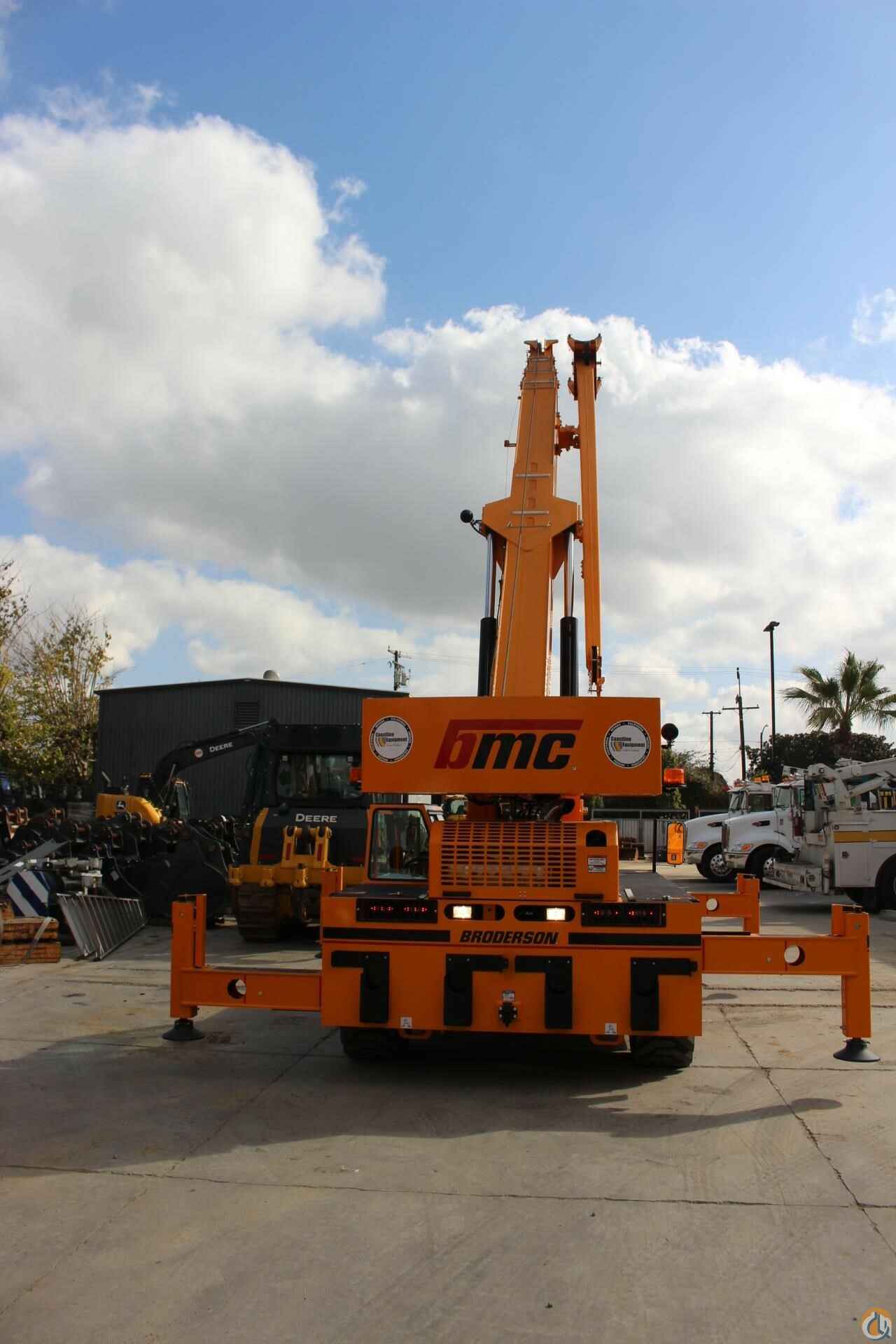

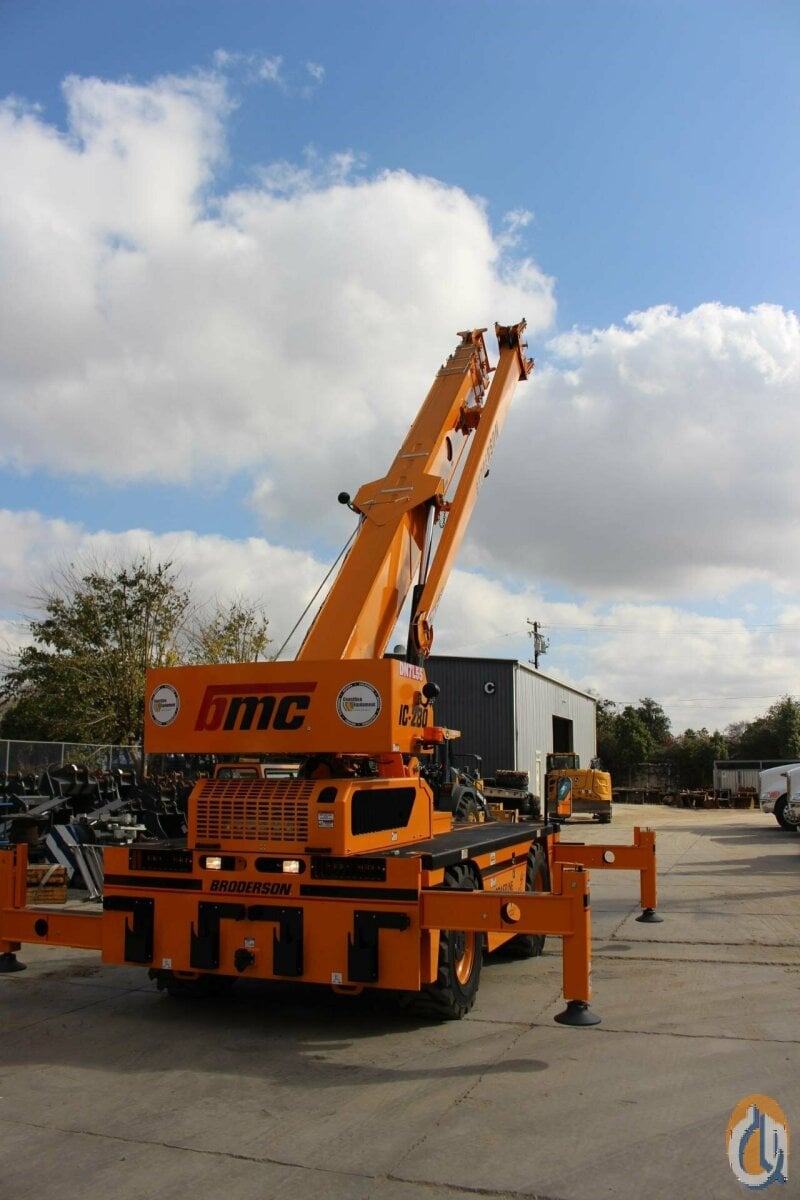

BRODERSON IC-280-A
20 TON CRANE
Standard Features:
The 20 ton capacity IC-280-A Industrial crane features:
4-Section, 23’1” to 64’5” Full-Power Boom, Proportional Extending Telescopic Boom with continuous 360 degree swing rotation turret. Rotation is powered by hydraulic motor and worm gear drive.
Four Hydraulic, 3-Position Independently Controlled Outriggers can be set in-and-down, mid-and-down, and out-and-down. Outrigger pad dimension: 11” (30 cm) diameter.
Two-Speed Hoist with maximum line speed of 186 fpm (57m/min) and maximum bare drum line pull of 12,500 lbs (5,670 kg).
Telematics Hardware provides cellular data transmission with 15-minute data update interval. GPS, engine data & faults, & run time. Email alerts, web and mobile access.
Hydraulic Power is provided by a direct driven tandem pump delivering 61 gpm (231L/min) at rated RPM.
Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stops boom functions in the event of overloads.
Multiple Steering Configurations including 4-Wheel Steer, where the front and rear wheels steer in opposite directions, permits a very tight turning radius for quick positioning in constrained spaces. Operator can quickly switch between rear-wheel steering, 4-wheel, or crab steering, aided by electronic sensors and a control box that automatically aligns the steering after a new mode is selected. Rear wheels steer in two-wheel drive mode.
EPA Tier 4 Final Diesel Engine Rehlco ( Kohler) 120 HP – 2200 RPM
Powershift Transmission with 4 speeds forward and reverse, minimizes bumps and jolts during shifting that is possible at any engine speed in any gear.
Heavy Duty Chassis Frame provides a front deck carrying capacity of 14,800 lbs (6,713 kg).
Easy Access to engine compartment and hydraulic equipment components simplifies maintenance and repair.
Low Profile Design ideal for tight work spaces and simplifies transportation by flatbed truck.
Available Features Included:
• Four-Wheel Steer & Four-Wheel Drive
• High traction tread, 445/65D22.5, 18 Ply
• Pintle Hook, Rear
• Rearview Mirrors
• All Weather Cab, w/heater, defroster, & wiper & Air Conditioning
• Strobe Lights
• Boom Work Lights
• Rated Capacity Limiter
• RCL Light Bar
• Hoist Drum Rotation Indicator
• Telematics with 24 month data subscription
• Boom Extension, 20 Ft. Offset
