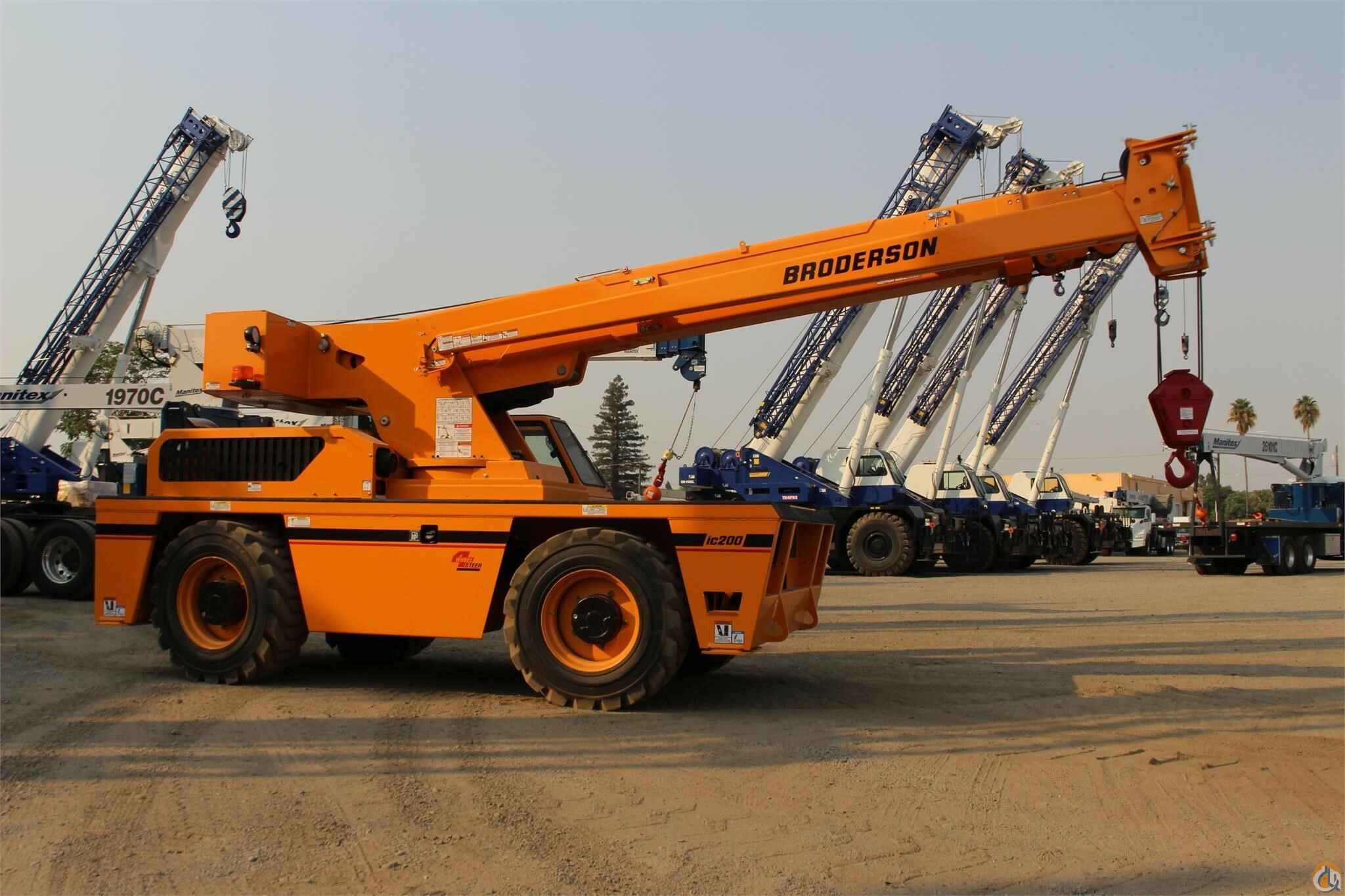

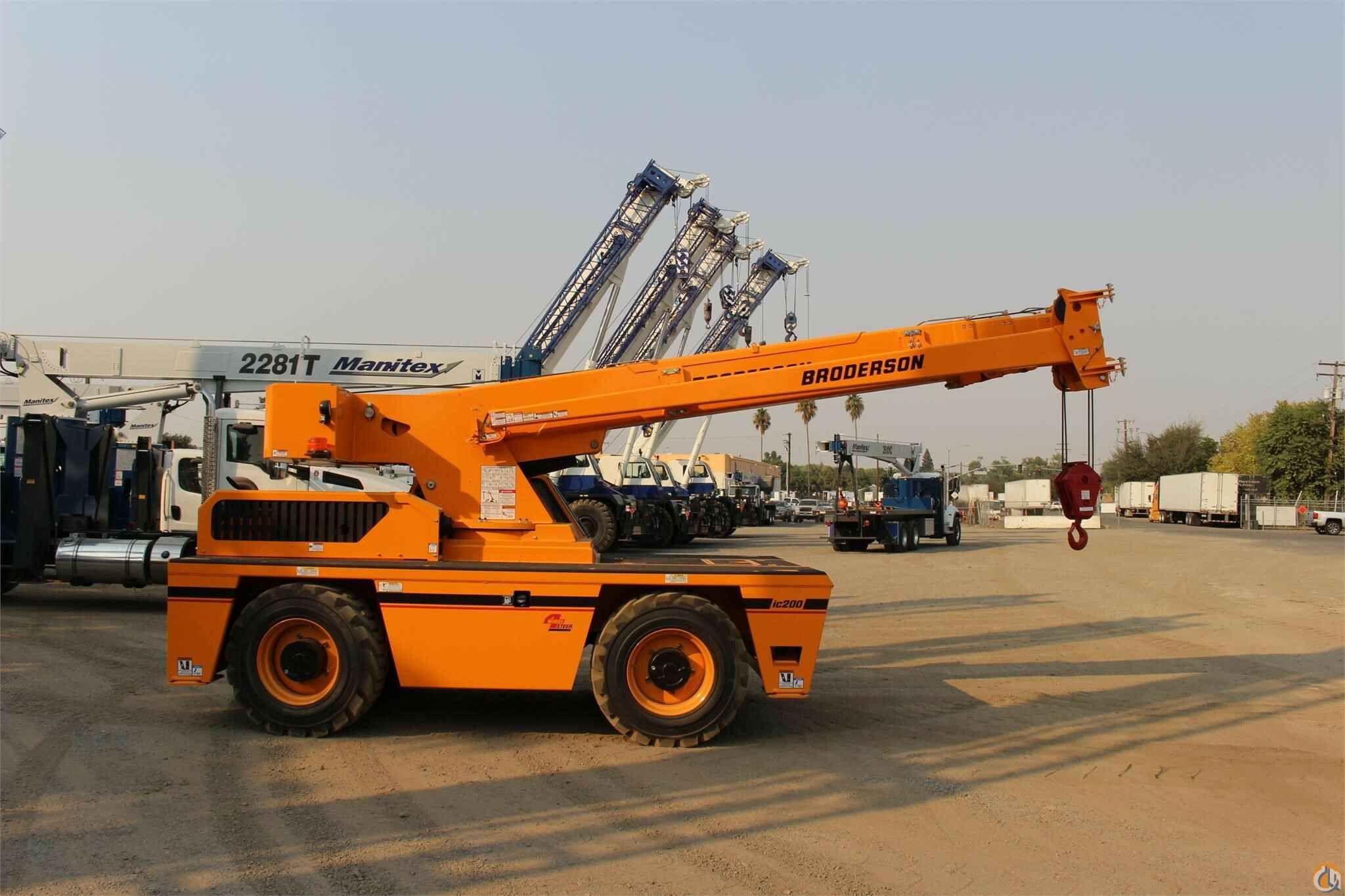

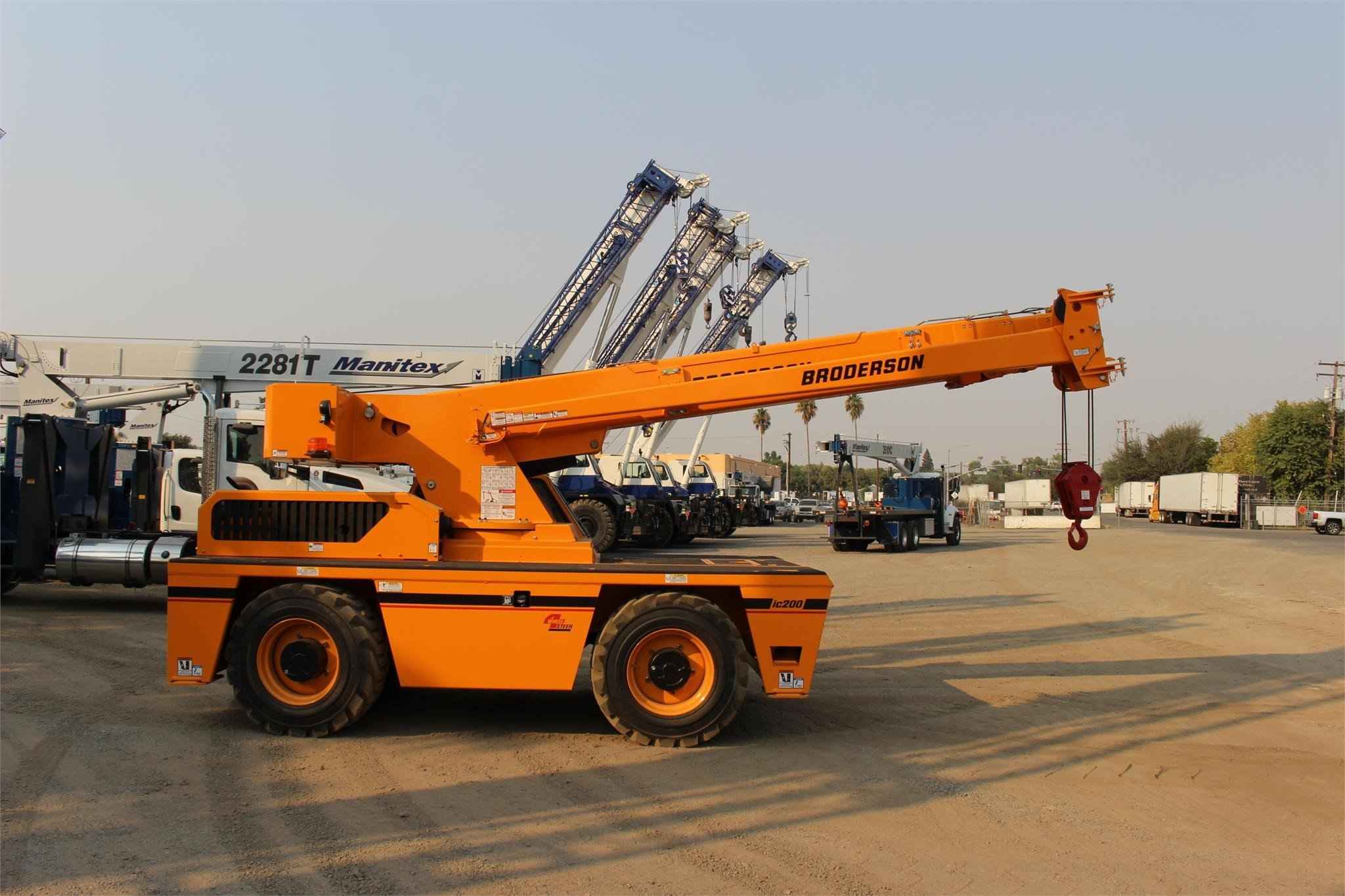

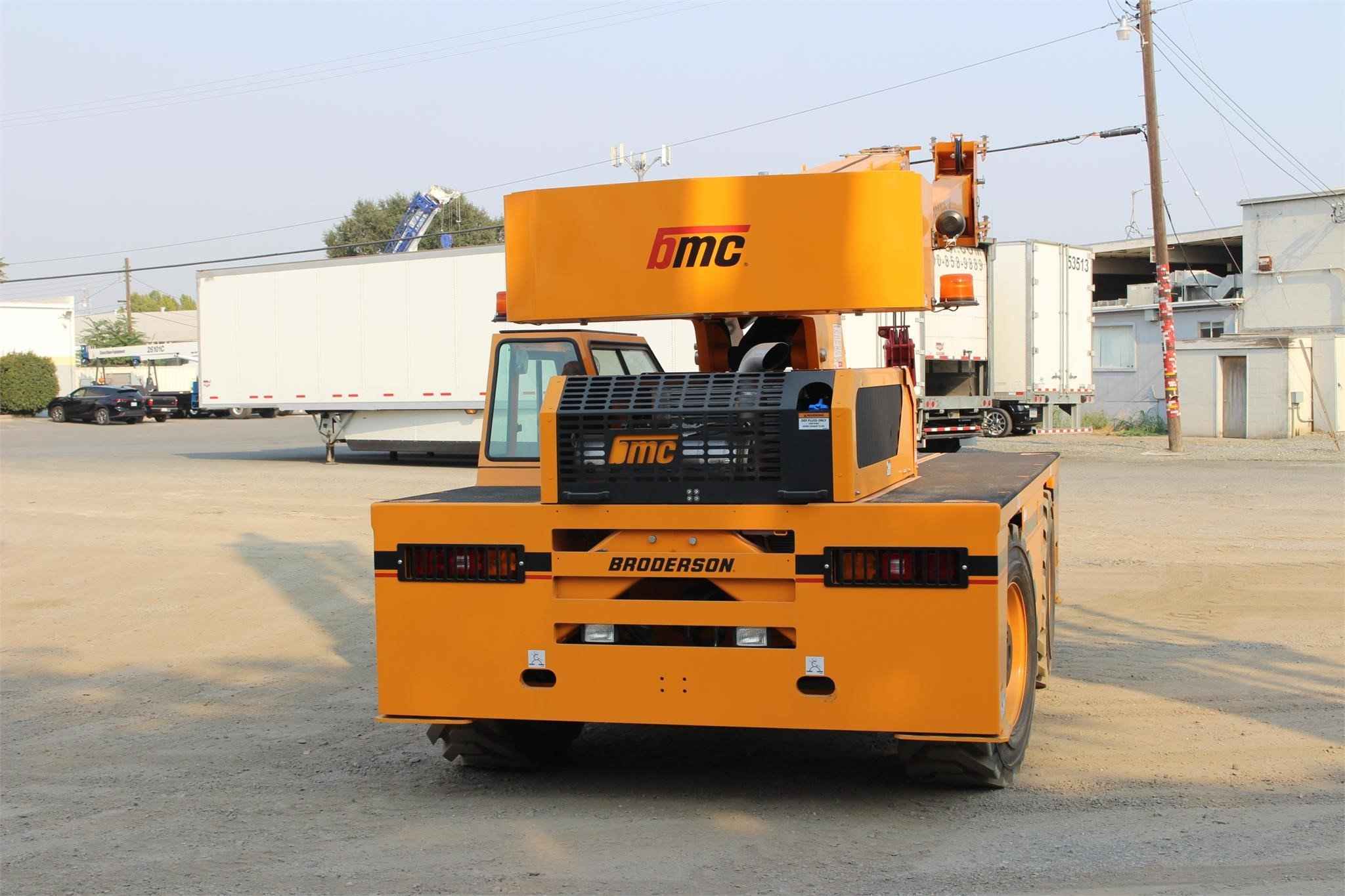

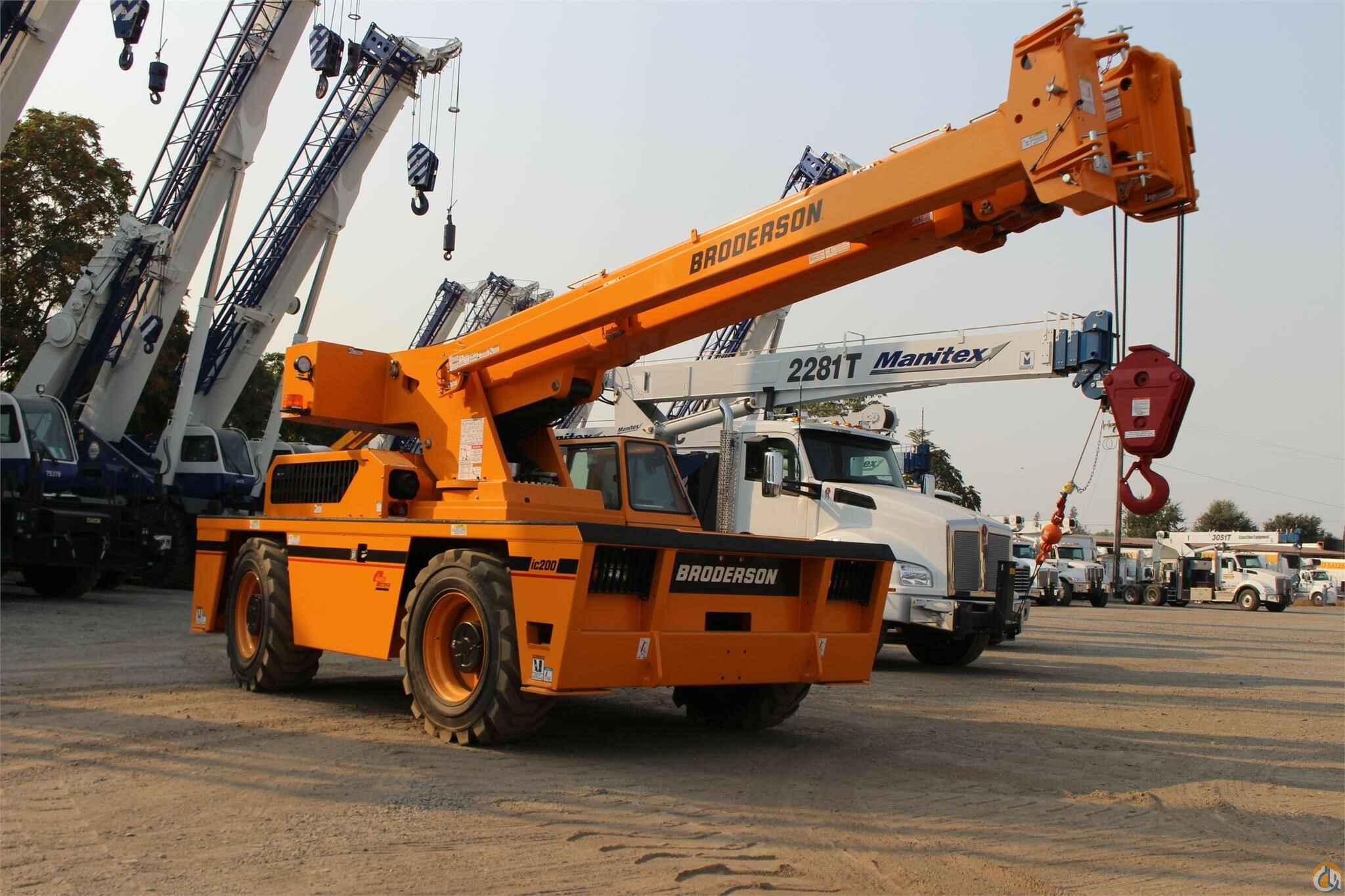

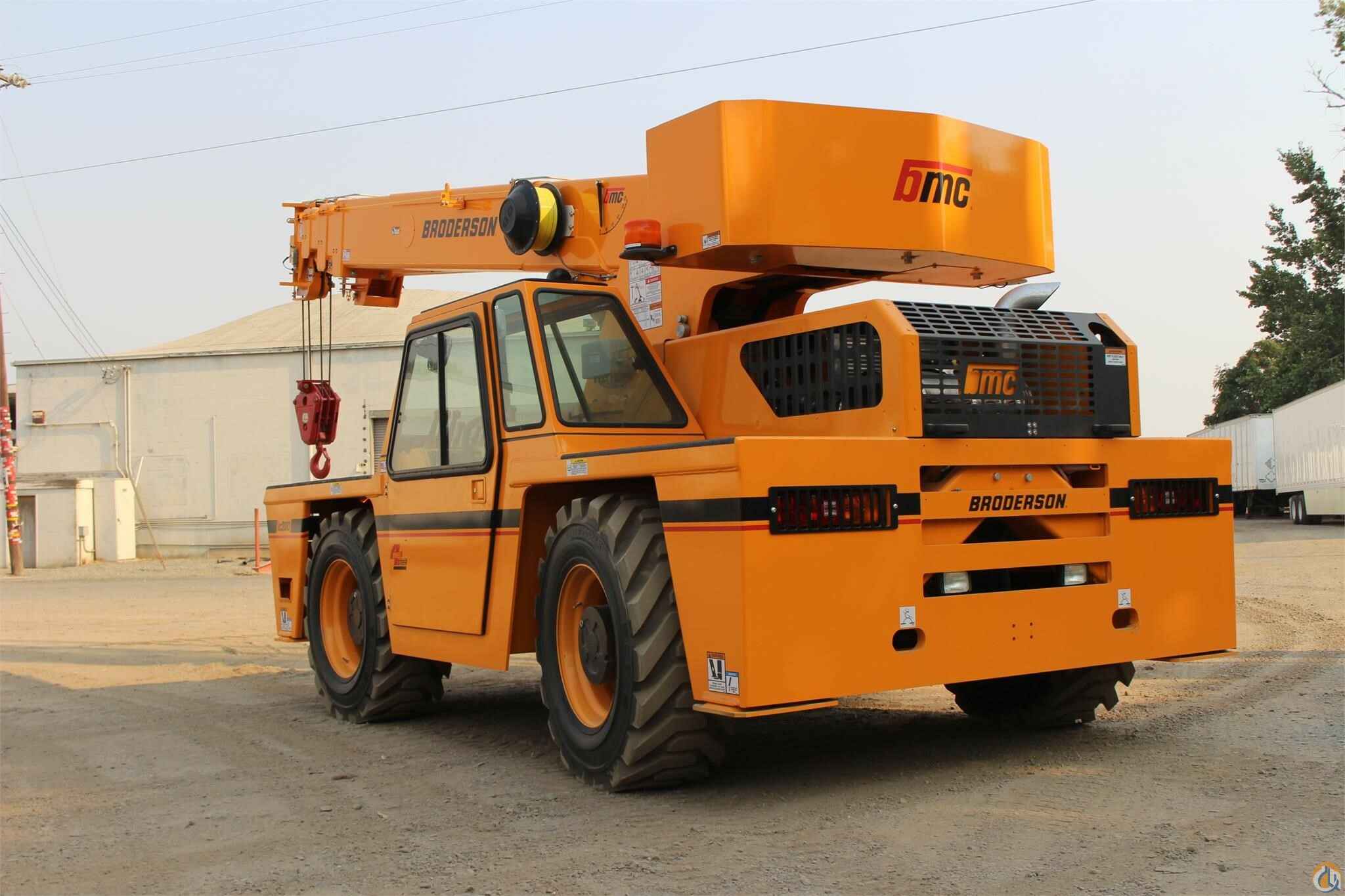

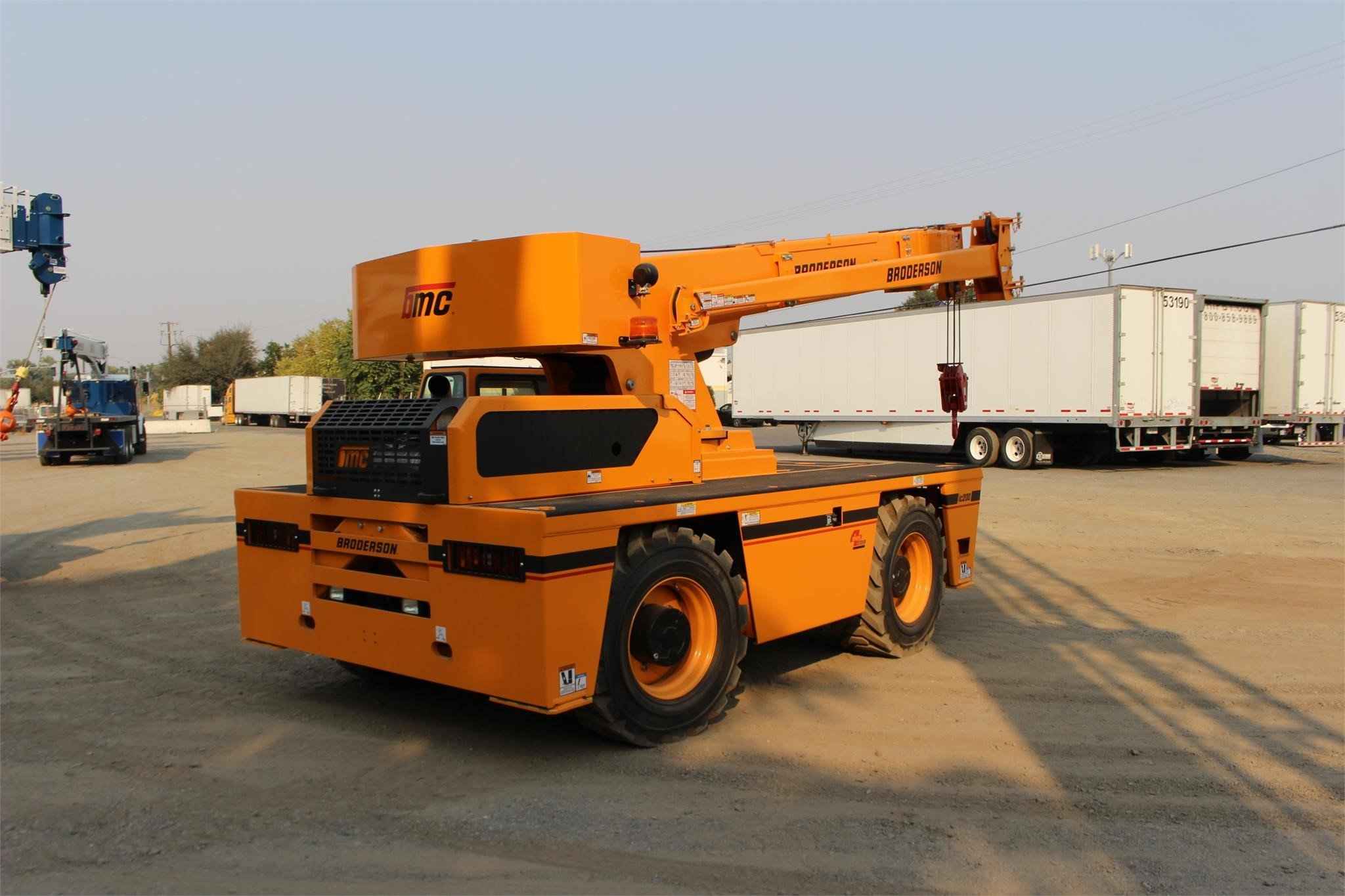

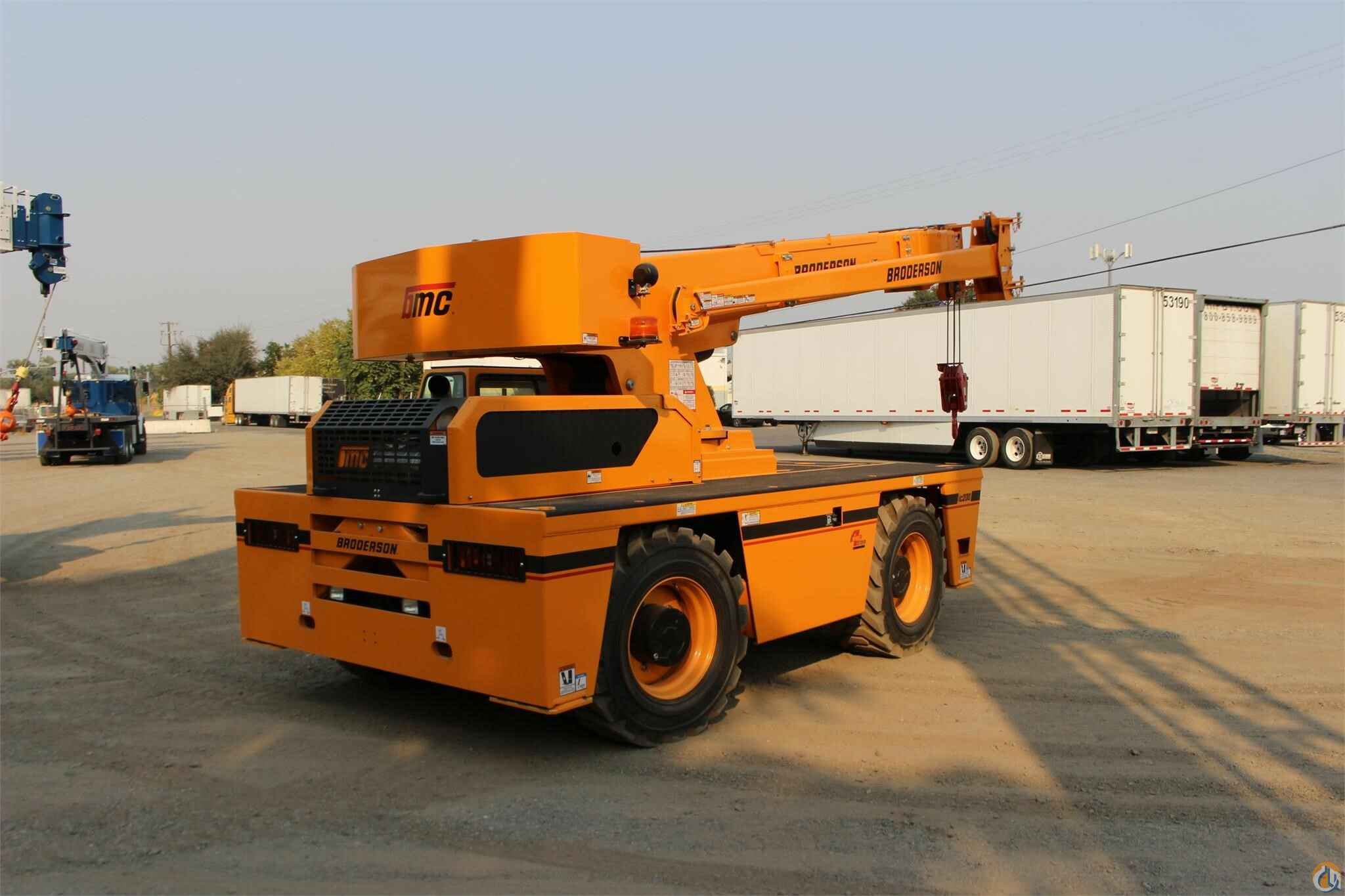

BRODERSON IC-200-3J
15 TON CRANE
Standard Features:
Self-Loading Carry Deck crane increases the range of current and potential future applications.
4-Section Boom with a continuous 360 degree swing rotation turret. Simple, rugged worm drive gear box results in greater reliability, 15’6” – 50’0” Boom.
Hoisting with a hydraulically-powered turret-mounted planetary gear system provides all the low speed power to lift heavy loads, yet also a high speed setting for faster cycle times when lifting lighter loads.
Hydraulic Power is provided by a direct driven tandem pump delivering 29 gpm.
Rated Capacity Limiter warns the operator of impending overload with audible and visual signals, and stops boom functions in the event of overloads.
Multiple Steering Configurations: 2-Wheel, 4-wheel or crab steering. Electronic sensors and control box automatically align the steering when a new mode is selected.
EPA Tier 4 Cummins QSF3.8L Diesel Engine
Powershift Transmission, with 4 speeds forward and reverse, minimizes bumps and jolts during shifting that is possible at any engine speed in any gear.
Heavy Duty Chassis Frame provides a front deck carrying capacity of 17,000 lbs.
Drum Rotation Indicator improves operator productivity.
Easy Access to engine compartment and hydraulic equipment components simplifies maintenance and repair.
Narrower and Lower Profile Design for better access to tight workspaces as well as easy transport.
Available Features Included:
• Industrial Crane with 15’6” – 50’0” Boom
• Four -Wheel Steer & Two Wheel Drive
• High Traction Tread, 385/65D22.5 16 ply
• All Weather Cab, w/heater, defroster, & wiper
• Deluxe Operator Seat
• Strobe Lights
• Boom Work Lights
• Work Lights – Rear
• Boom Extension – 16 ft. Offset
• Rated Capacity Limiter
• Hoist Drum Rotation Indicator
• Sheave Block, 4-Part
