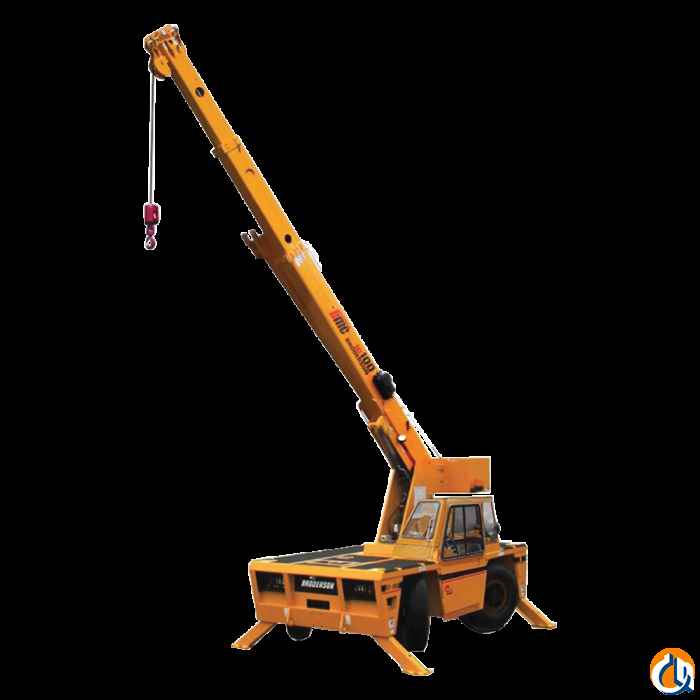

The Broderson IC-100 provides heavy duty capacity to take care of all your long reach light and heavy duty lifting needs. Capacity on Outriggers 20,000 lbs Pick and Carry Capacity 11,200 lbs Carry Deck Capacity 14,000 lbs (centered) Height 7’ 6″ Width 6’ 6″ Maximum Tip Height 49’ 4″ (59’ 4″ with 10’ boom extension) Horizontal Reach 39’ 8″ (49’ 8″ with 10’ boom extension) Available Features: Boom Work Lights—one to light the boom tip, one mounted to turret, and to light the ground under boom tip—to keep working during the dusk to dawn operating hours. 4-Wheel Drive improves accessibility when encountering severe conditions at off-road sites. Front-Mounted Auxiliary Winch with a capacity of 10,000 lbs. Two Strobe Lights mounted on opposite sides of counterweight box. Boom Extension 10′ offsetable to three positions (0 degree, 15 degree, 30 degree)
