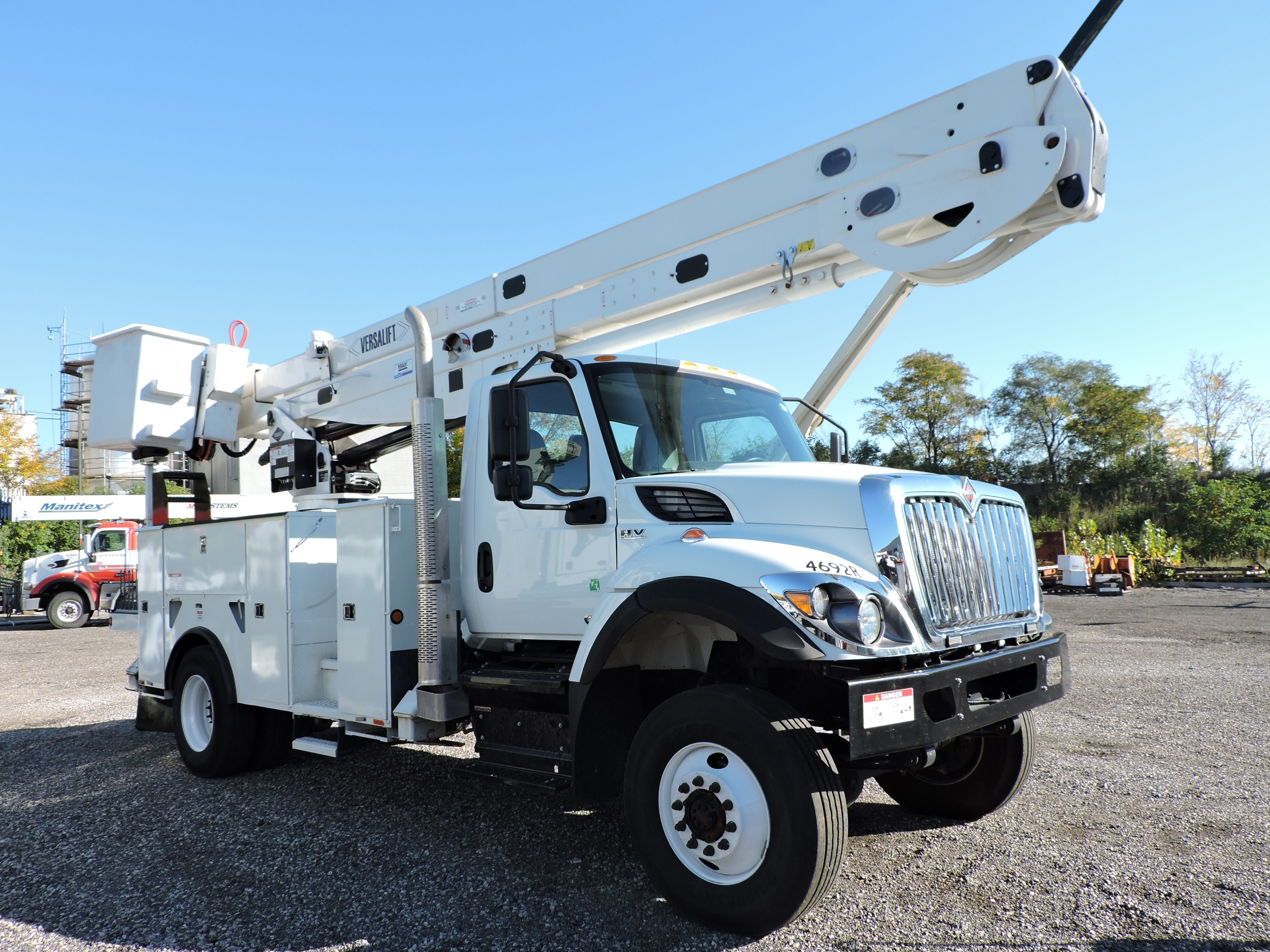

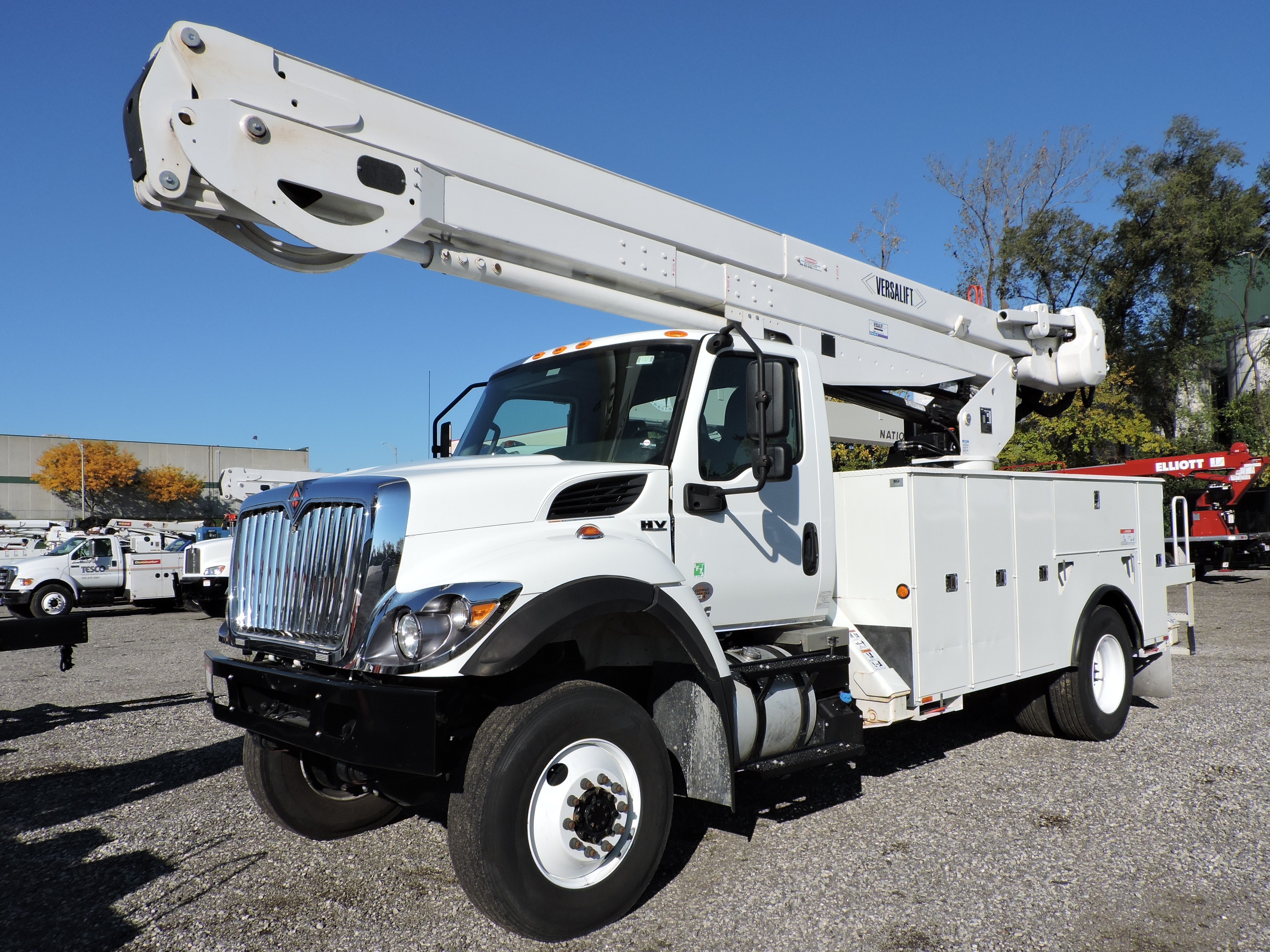

VERSALIFT VST-6000-MHI equipped as follows:

-          Platform capacity with the jib and winch and platform elevator is 500 lbs.

-          VERSALIFT TruGuard™ dielectric system with RH single stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

-          Includes 180° platform rotator

-          24 inch Platform Elevator for 67’ working height

-          Hydraulic dual arm articulating jib pole and winch package for up to 1000 lbs. maximum capacity

-          Radio controlled remote engine start/stop and emergency power from platform

-          Continuous rotation

-          7.5 GPM open center hydraulic system with a 2250 psi operating pressure

-          Side mounted telescopic upper boom allows low stowing of platform.  Fiberglass inner boom provides insulation gap of 48 inches fully retracted meeting ANSI A92.2

-          Chassis insulating system (fiberglass lower boom insert) providing 24 in. insulation gap and including accommodations to bridge insulation gap for testing per ANSI 92.2

-          ANSI 92.2 Category B 69 KV rating including test bends on inner boom

-          Inner boom finished with white urethane paint over a white gel coat

-          Non-lube bearings used throughout

-          One set of hydraulic tool outlets at platform.  Quick disconnect fittings included

-          Main A-frame outriggers with pivot feet, two control valves, and a

selector valve

-          Auxiliary outriggers with pivot feet and two control valves

-          Outrigger boom interlock system for main and auxiliary outriggers

-          Integral reservoir with a 25-gallon capacity and dual sight gauges

-          Closed heavy-duty one-step 24 in. X 48 in. X 42 in. fiberglass platform

-          Platform liner and vinyl cover

-          Master/slave hydraulic leveling with upper and lower control to tilt for cleanout or rescue

-          12 volt DC backup pump

-          Automatic boom latch for upper boom

-          Full length sub frame with tubular rubber platform support

-          Painted Time standard White Urethane



Brand FX fiberglass line body equipped as follows:

-          Aluminum tread plate floor and steel understructure

-          Compartment height-48 inches and compartment depth-18 inches

-          Flexglo compartment lights mounted in top and sides of all compartments

-          LED lighting package with standard backup light

-          Stainless steel rotary latches and hardware

-          Clear vinyl rock guards

-          Aluminum tread plate tail shelf

-          Wheel chock storage

-          Master locking system excluding 1st vertical curbside

-          Street side compartments:

-          1^st Vertical - (2) adjustable shelves with dividers

-          2^nd Vertical - (2) adjustable shelves with dividers

-          3^rd Vertical - (3) adjustable shelves with dividers

-          Horizontal - (1) fixed shelf with dividers and divider tray

-          Rear Vertical - (5) locking swivel hooks



-          Curbside compartments:

-          1st Vertical - (2) adjustable shelves with dividers

-          2nd Vertical - Access steps to bed area with grab handle and cable step

-          3rd Vertical - (3) adjustable shelves with dividers

-          Horizontal - (1) adjustable shelf with dividers

-          Rear Vertical - (5) locking swivel hooks



Installation includes the following:

-          BP-100A pintle hitch, reinforcements, and 7 prong trailer connector

-          Install two (2) amber strobe light in rear tail shelf and two (2) strobe lights in front grill

-          Install mud flaps, outrigger pad holders, slope indicators, access steps and handrails

-          Install grounding kit system, park brake interlock system and quick disconnect fittings

-          Paint black non-skid on body floor

-          Furnish outrigger pads, wheel chocks, fire extinguisher, and 3 piece triangle reflector kit

-          Test ride completed unit for one (1) hour

-          Test and certify per ANSI A92.2

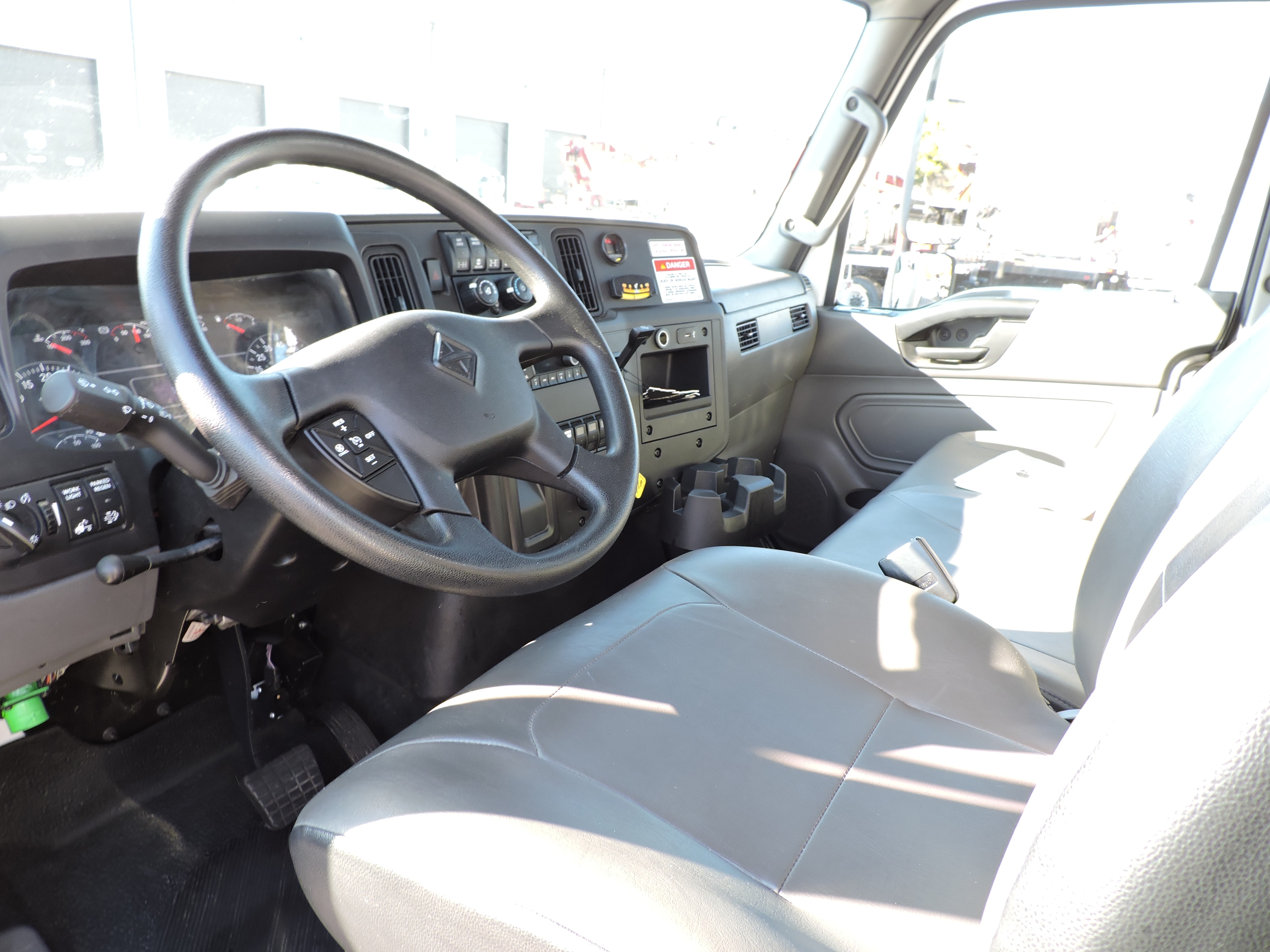

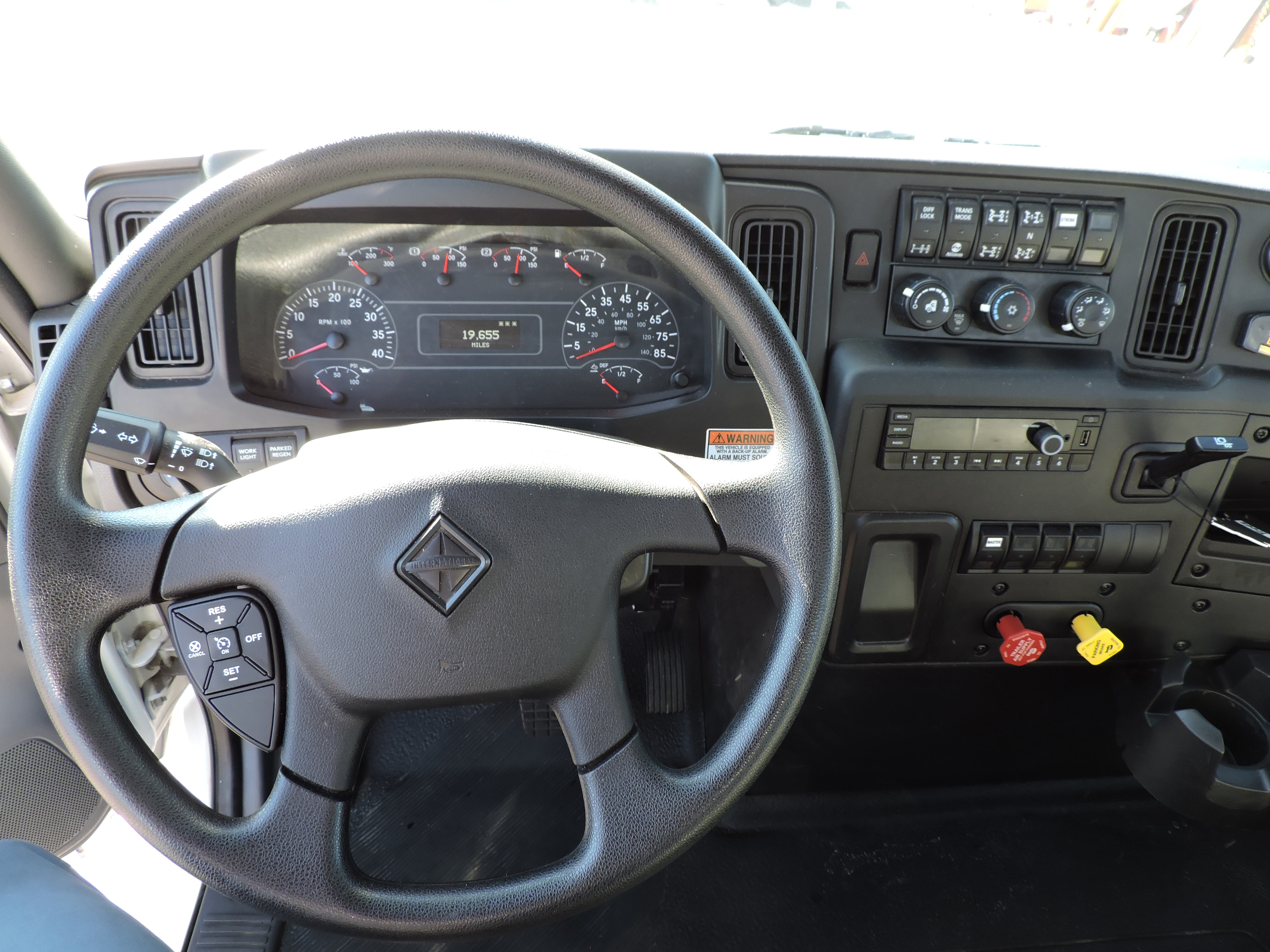

2022 International HV507 4x4 equipped as follows:

-          Cummins B6.7 - 325 HP diesel engine,750 lb-ft Torque

-          Allison 3500 RDS automatic transmission

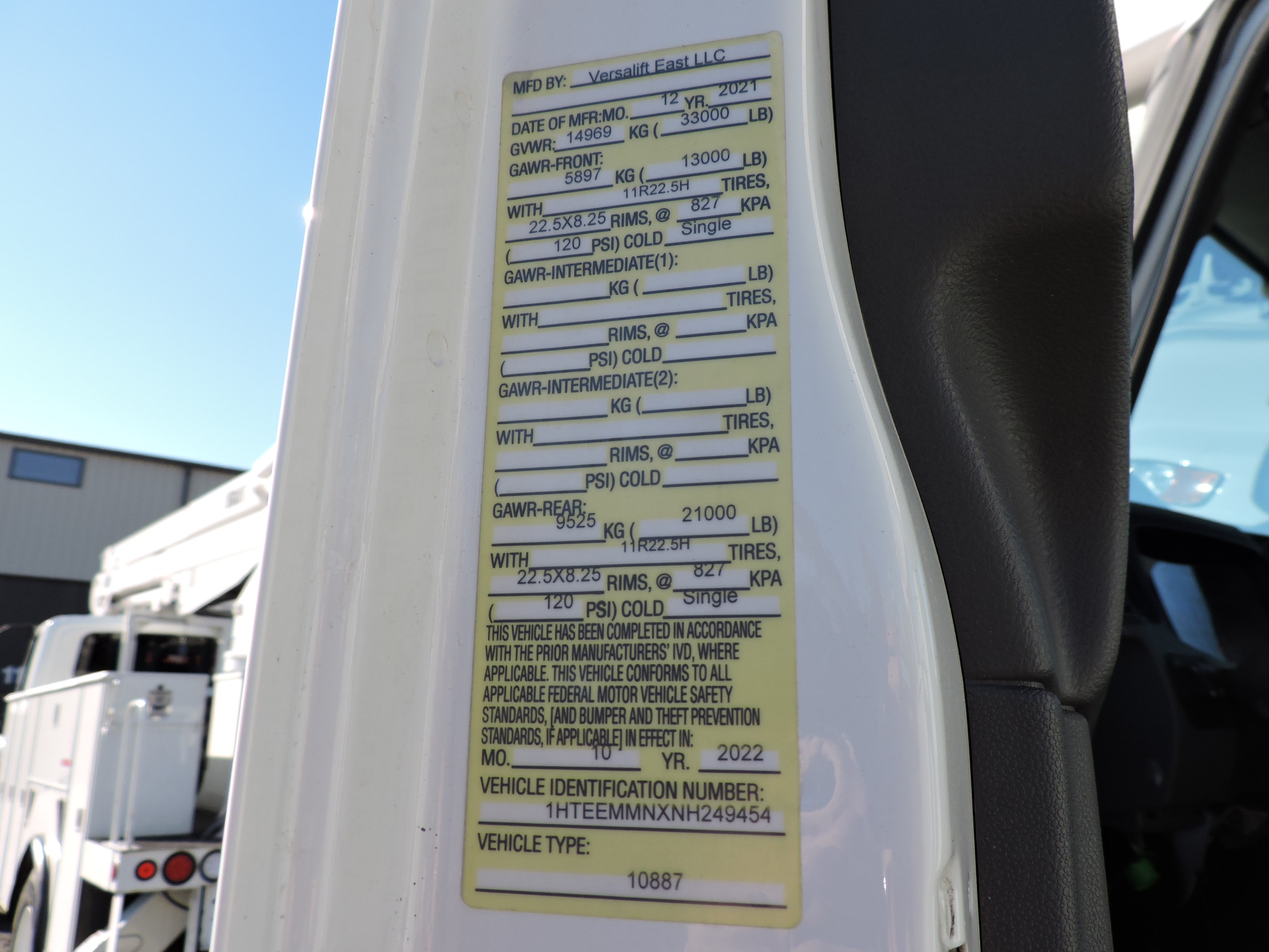

-          33,000 lb. GVWR

-          14,000 lb. front GAWR

-          21,000 lb. rear GAWR

-          22.5x8.25 powder coated steel disc wheels with 11R22.5 tires

-          Driver seat air suspension, passenger fixed

-          Engine block heater

-          Air brake system

-          100 gallon fuel tank

-          Back up alarm

-          Power windows and locks

-          Air conditioning and AM/FM radio

-          Painted Winter White
