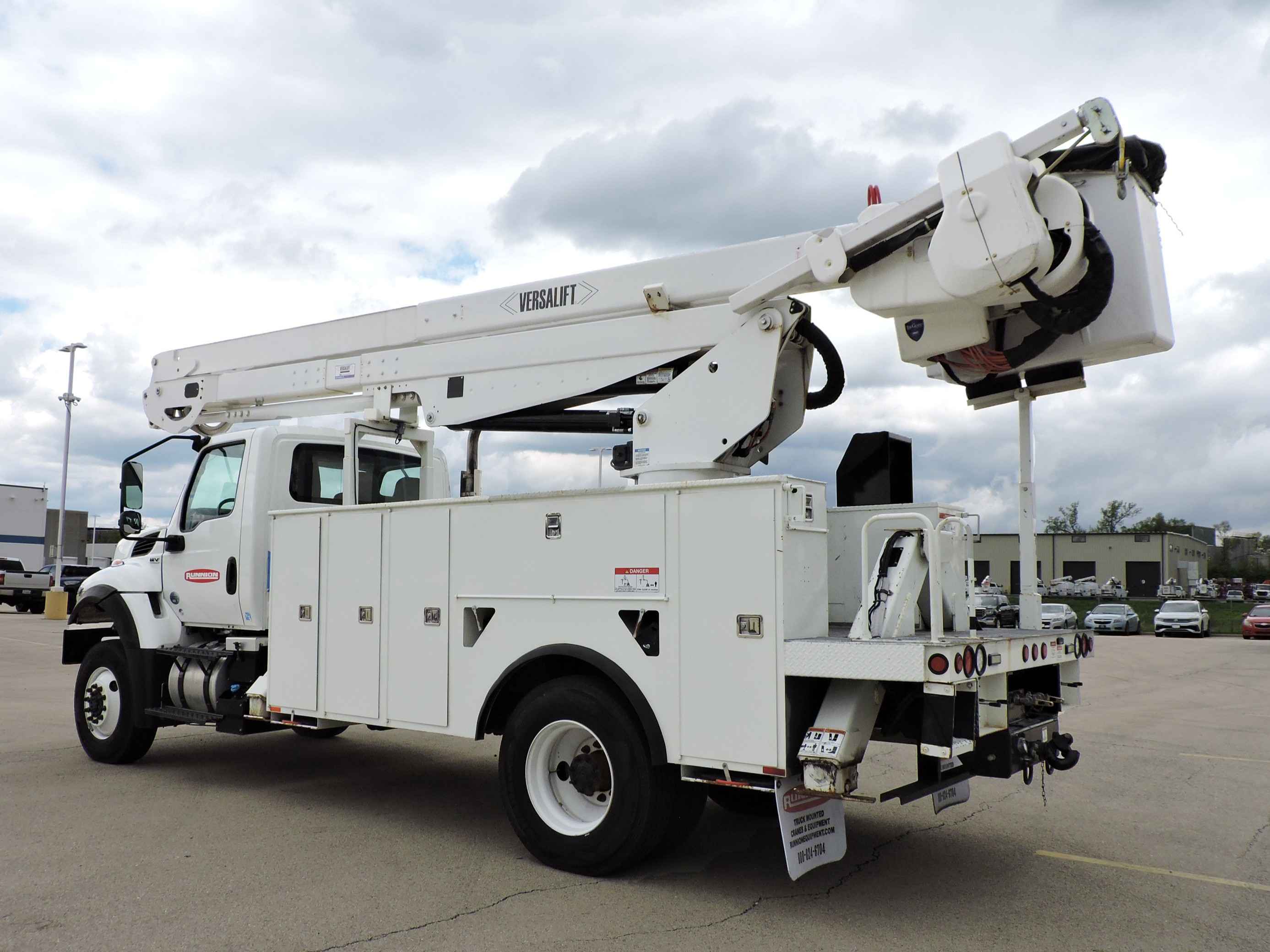

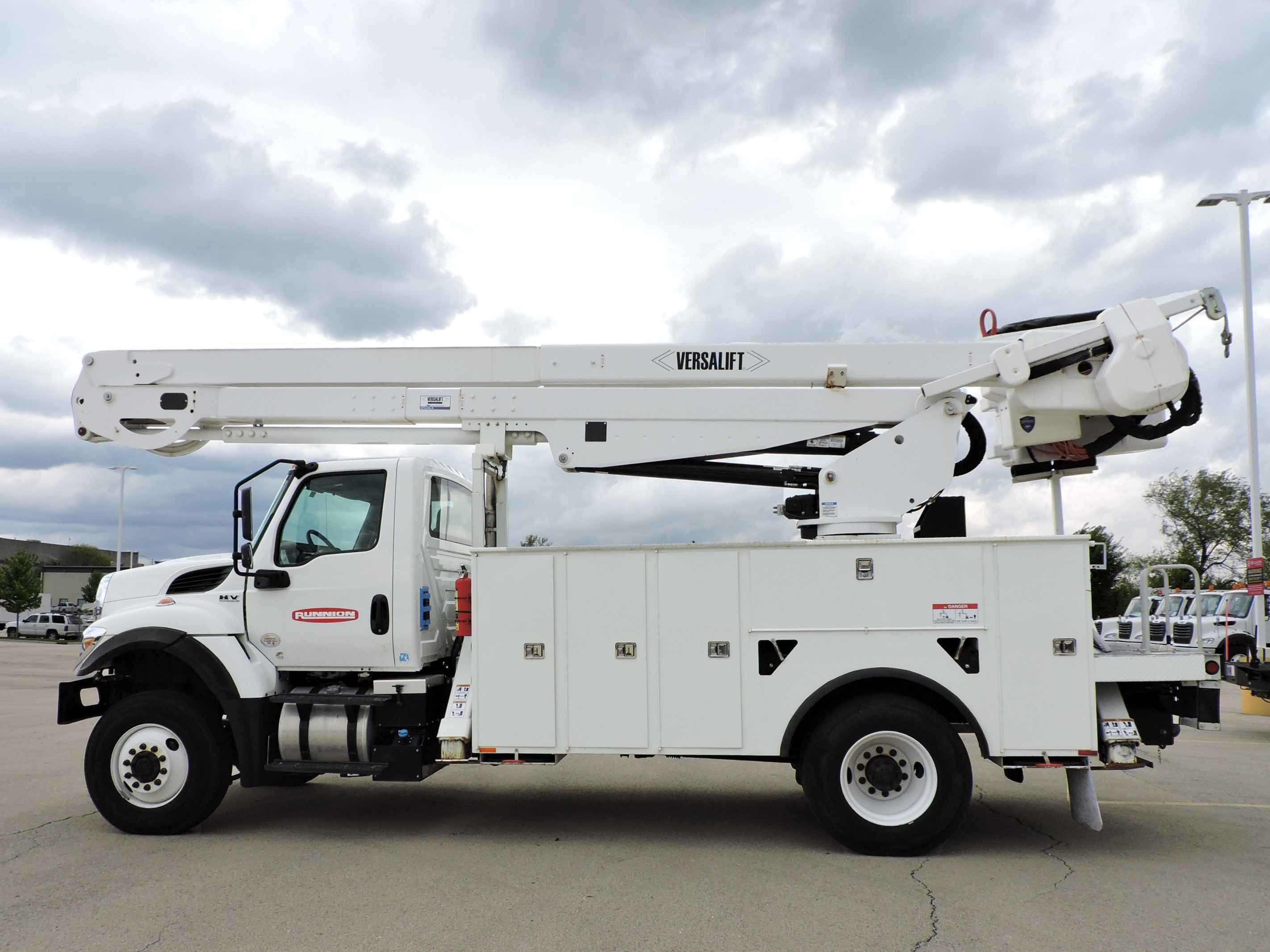

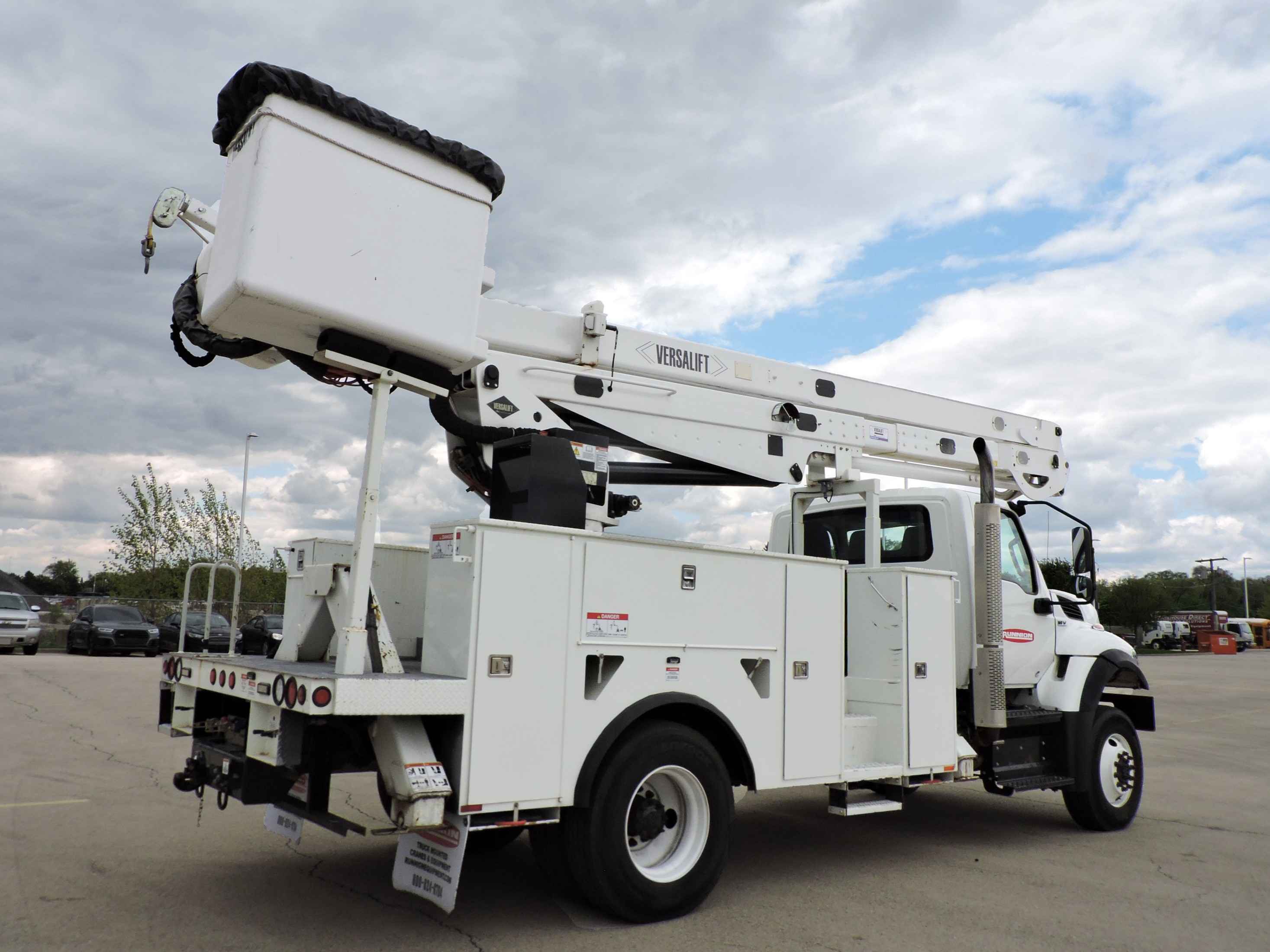

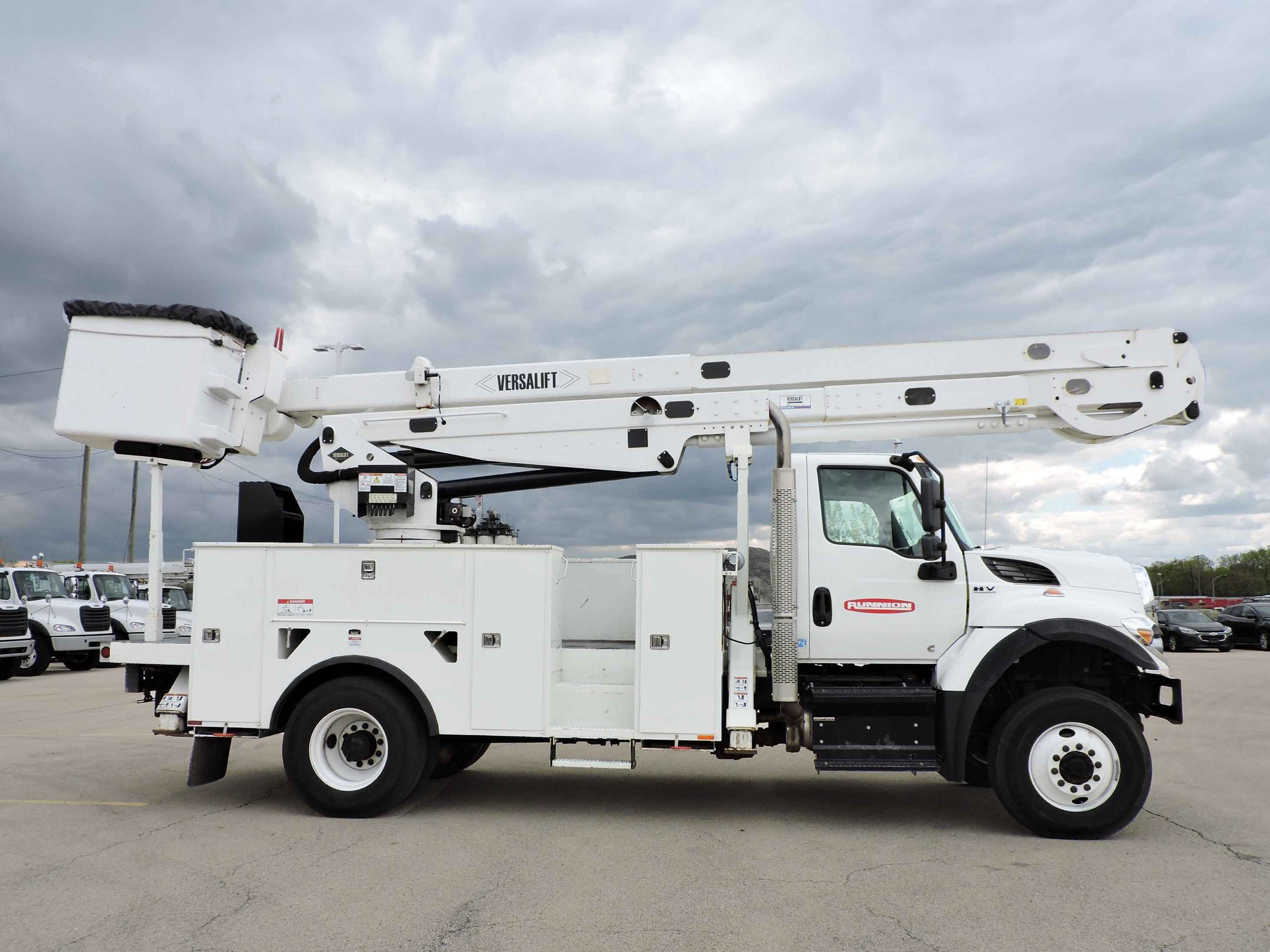

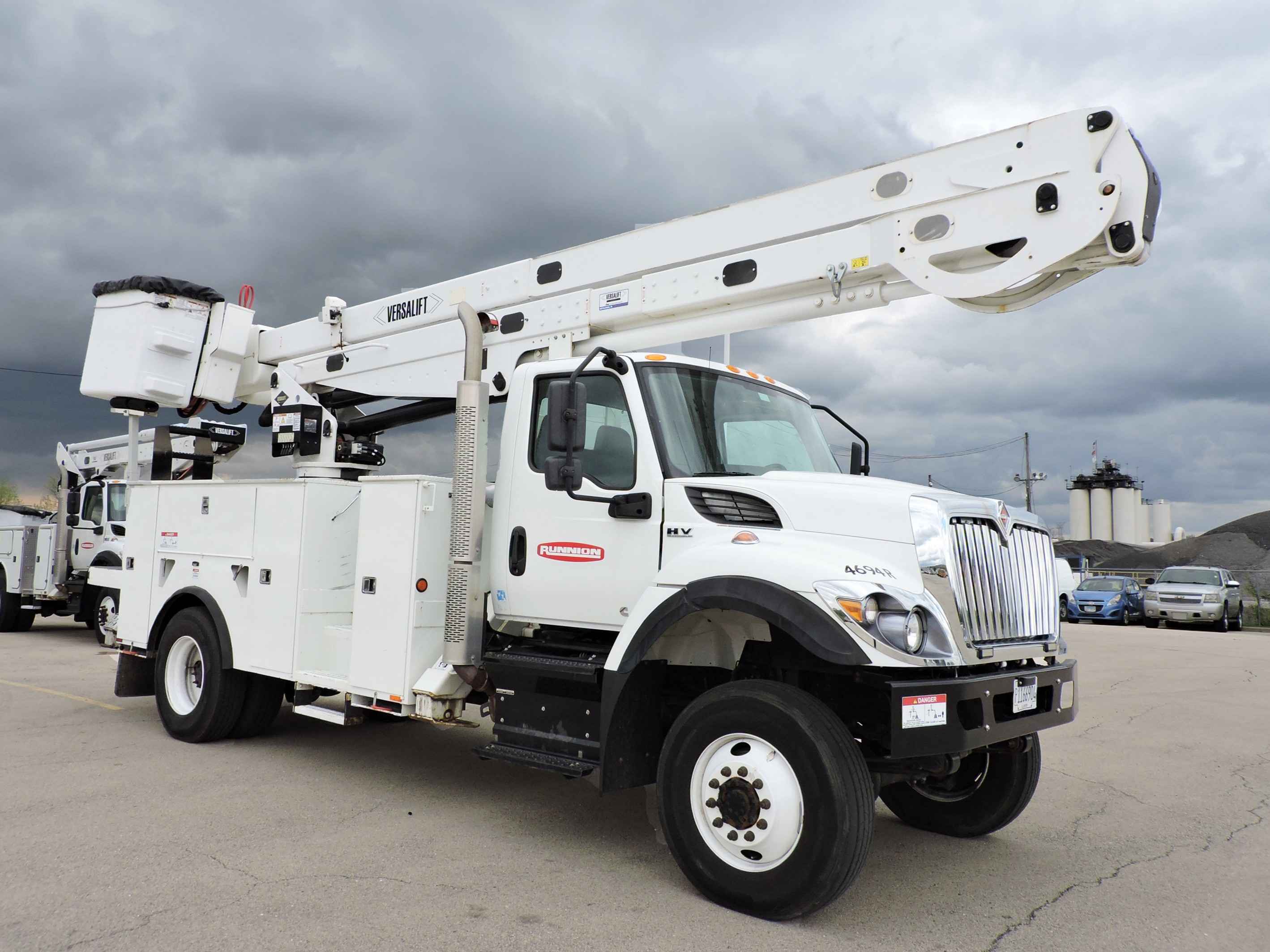

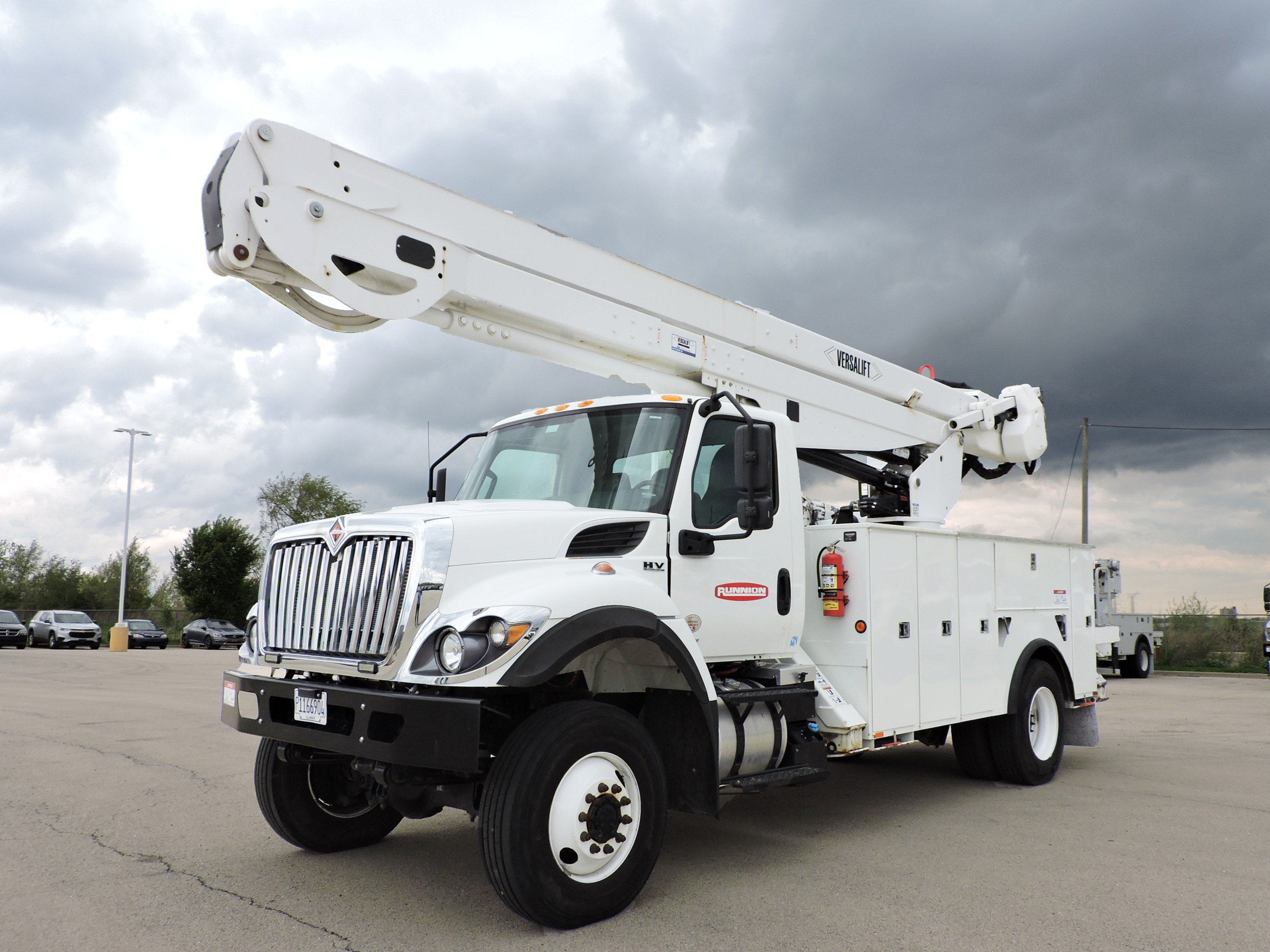

Versalift VN-555-MHI
- Insulated 55'3" non-over center, articulating aerial lift
- 60'3" working height
- 42'' 10'' horizontal side reach
- Platform capacity 700lbs.
- Liner for 24 in. x 48in. platform
- (1) two-man 24'' x 48'' x 42'' deep closed fiberglass basket with two steps
- Continuous rotation
- 6.5ft. jib and winch with 2000lbs. capacity
- 90° hydraulic platform rotation with hydraulic tilt
- Fiberglass upper boom
- Chassis insulating system (lower boom insert)

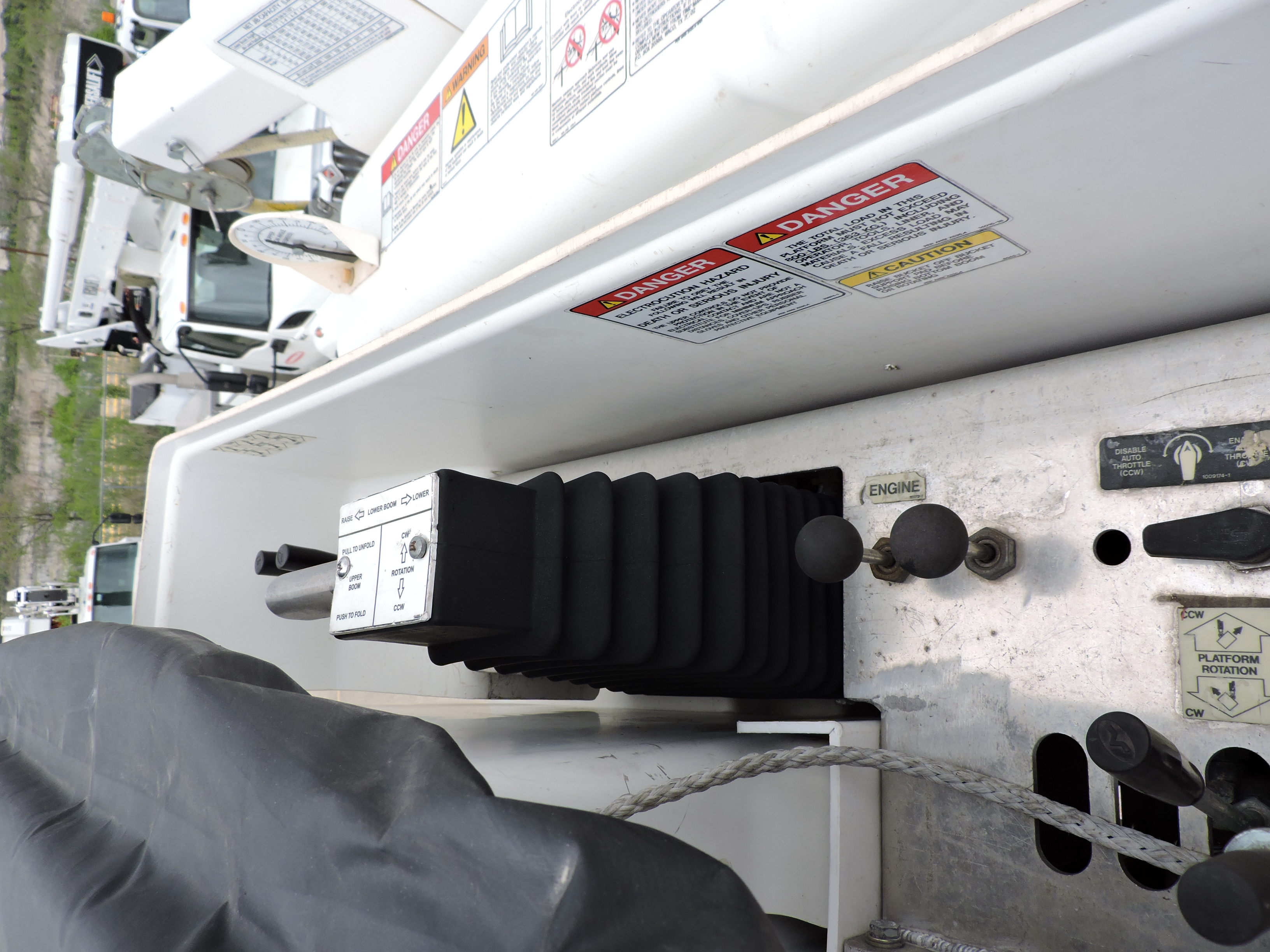

- Two (2) sets of hydraulic tool outlets at platform with 2000 psi reducing valve
- Dual A-frame outriggers with 158 in. spread
- Automatic boom latch. The rotary auto boom latch works off the lift hydraulic pressure to open and close

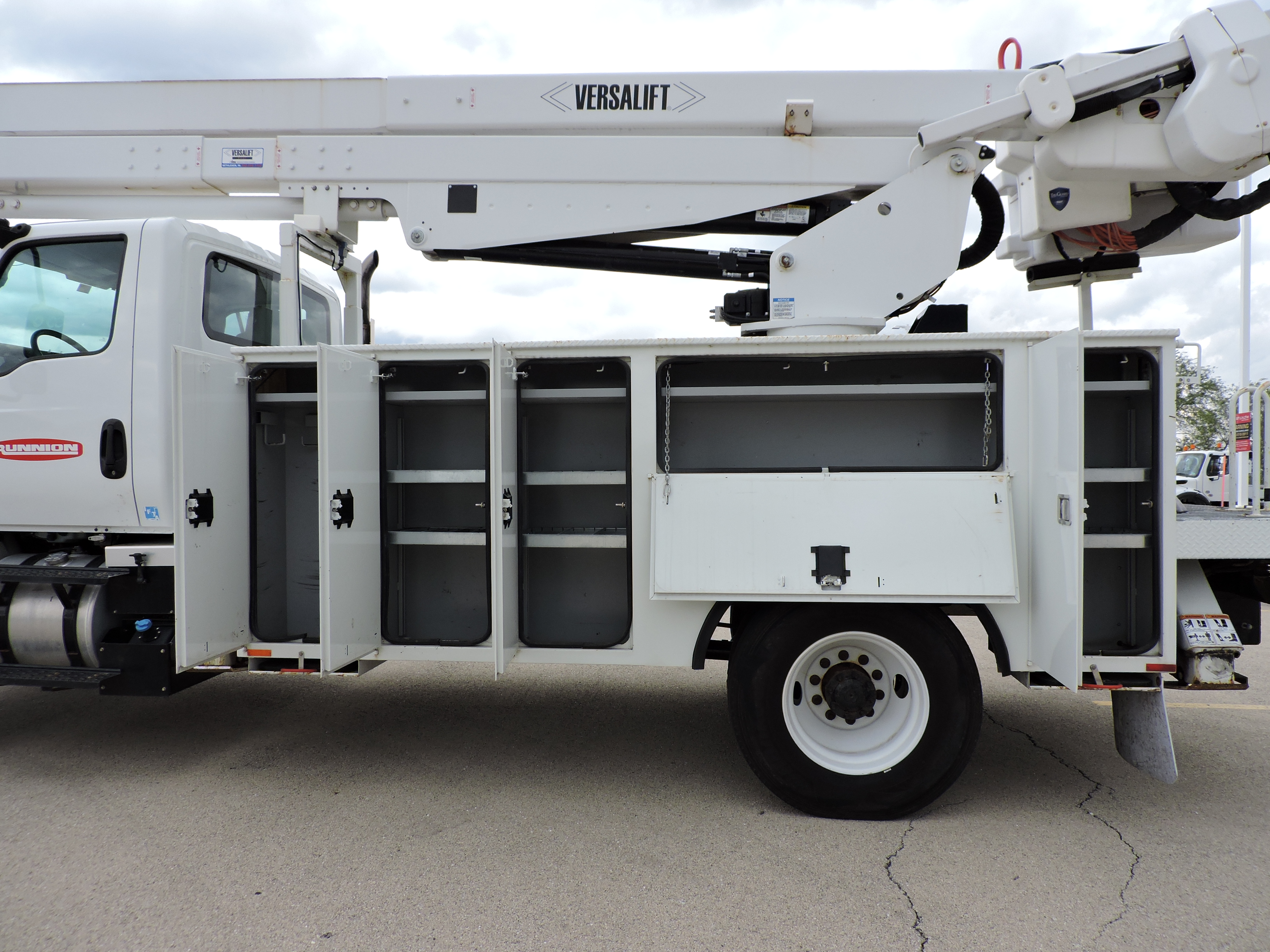

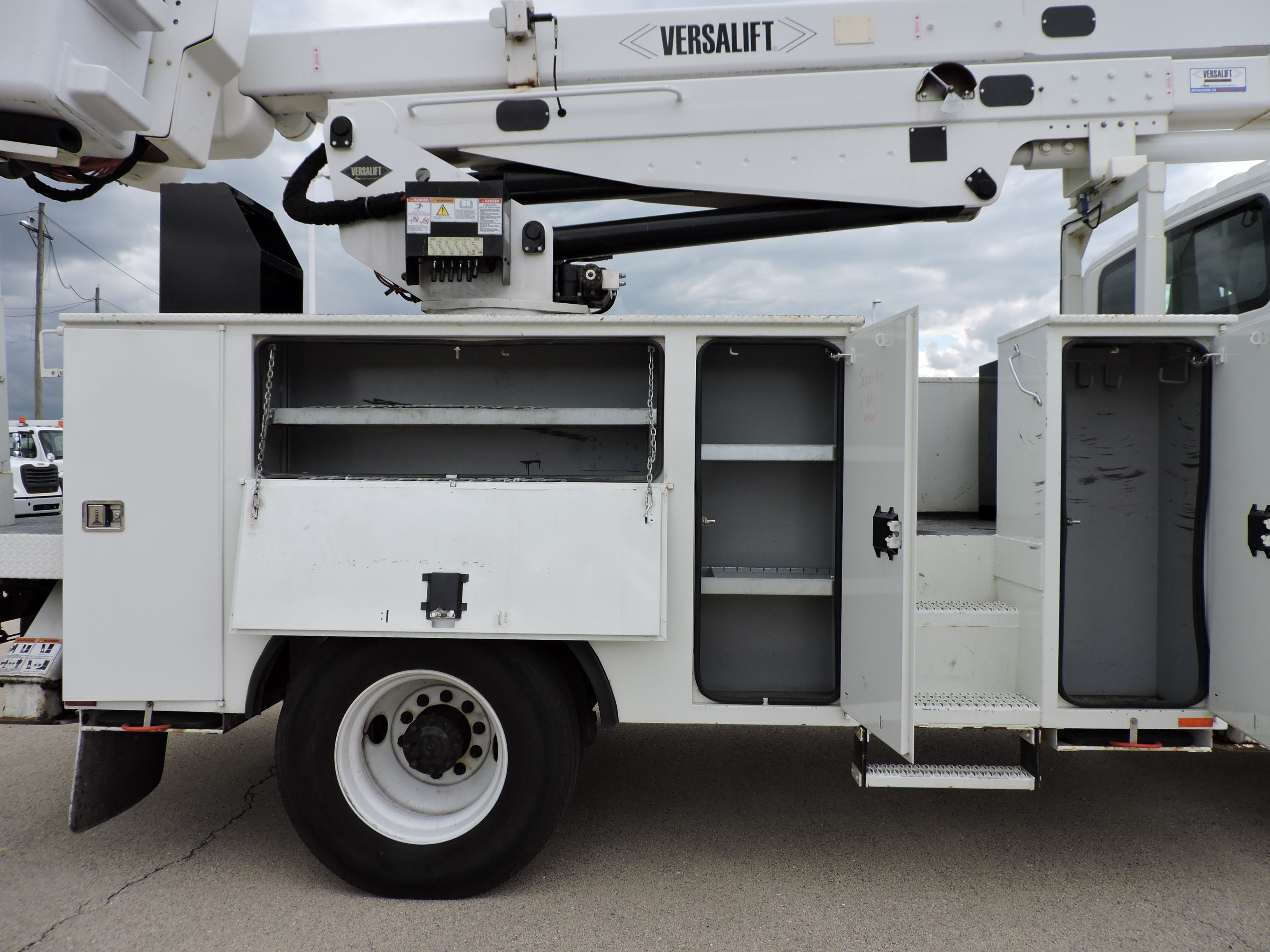

- Steel line body
- Wheel chock storage: (1) each side built into wheel wells
- BP-100A pintle hitch, and 7 prong trailer connector
- (2) strobe lights in front grill
- (2) amber strobe lights in rear tailshelf
- Outrigger pads with holders
2022 International HV507 4x4
- Cummins B6.7 - 325 HP diesel engine @ 2400 RPM,725 lb-ft Torque @ 1800RPM
- Allison 3500 RDS automatic transmission
- 33,000lb. GVWR
- 22.5 x 8.25 powder coated steel disc wheels with 11R22.5 tires
- Air brake system
- Back up alarm
- Power windows and locks

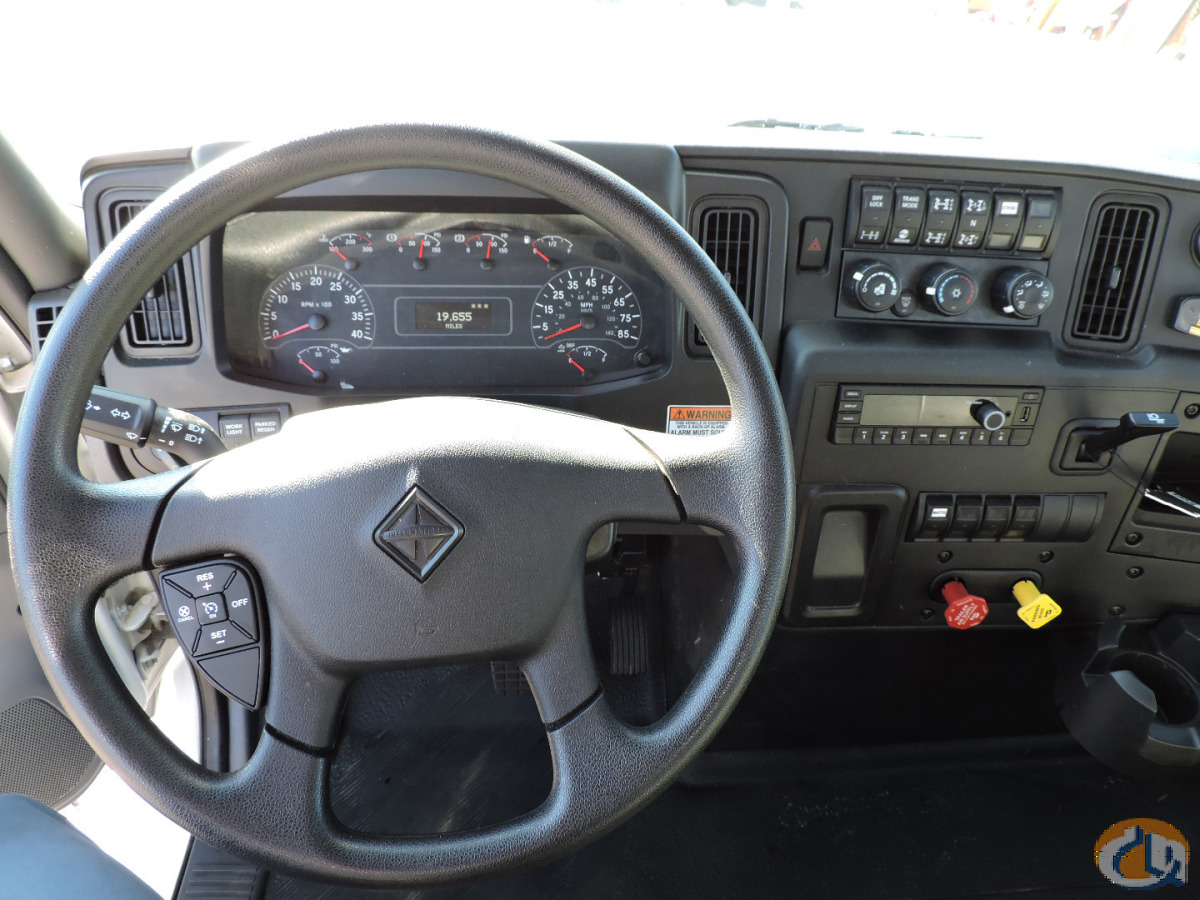

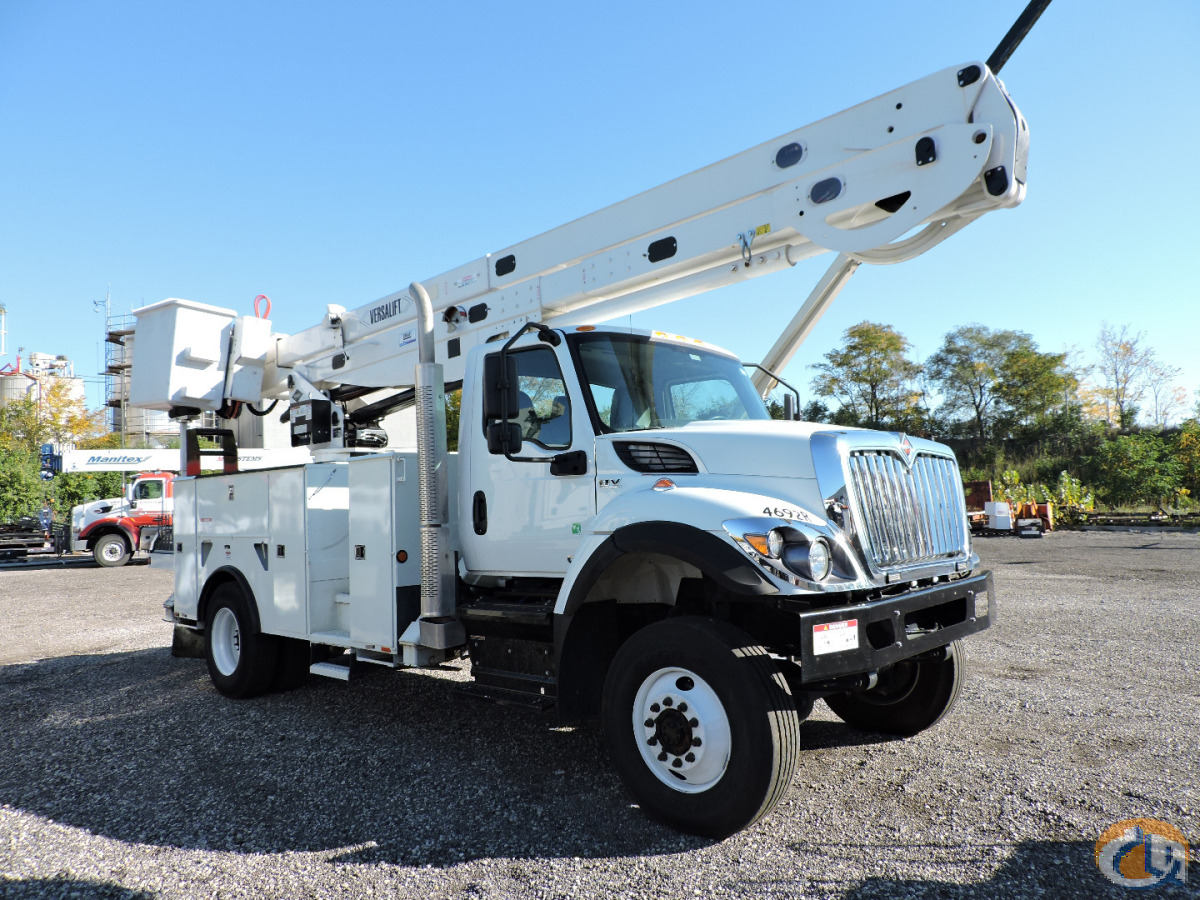

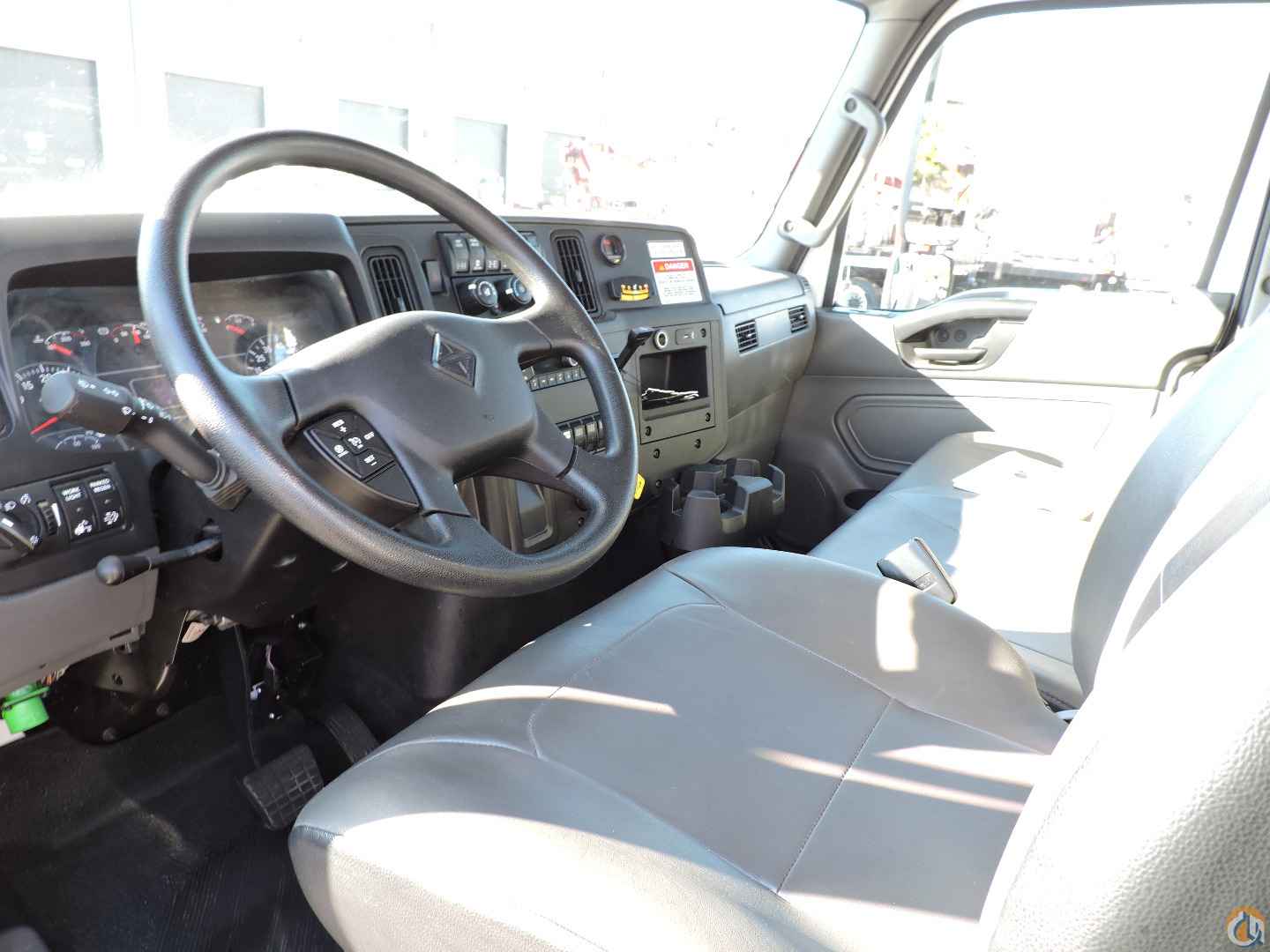

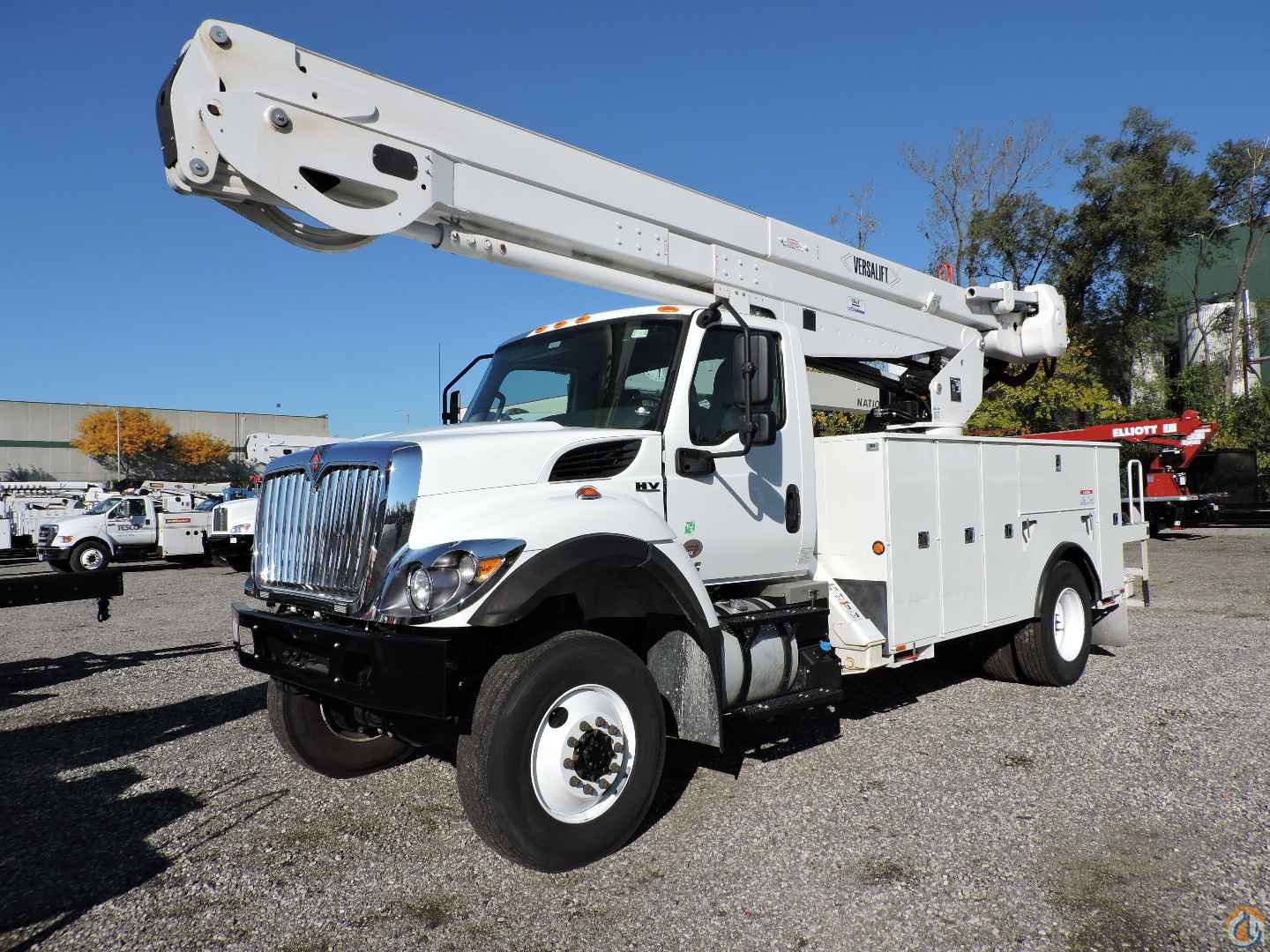

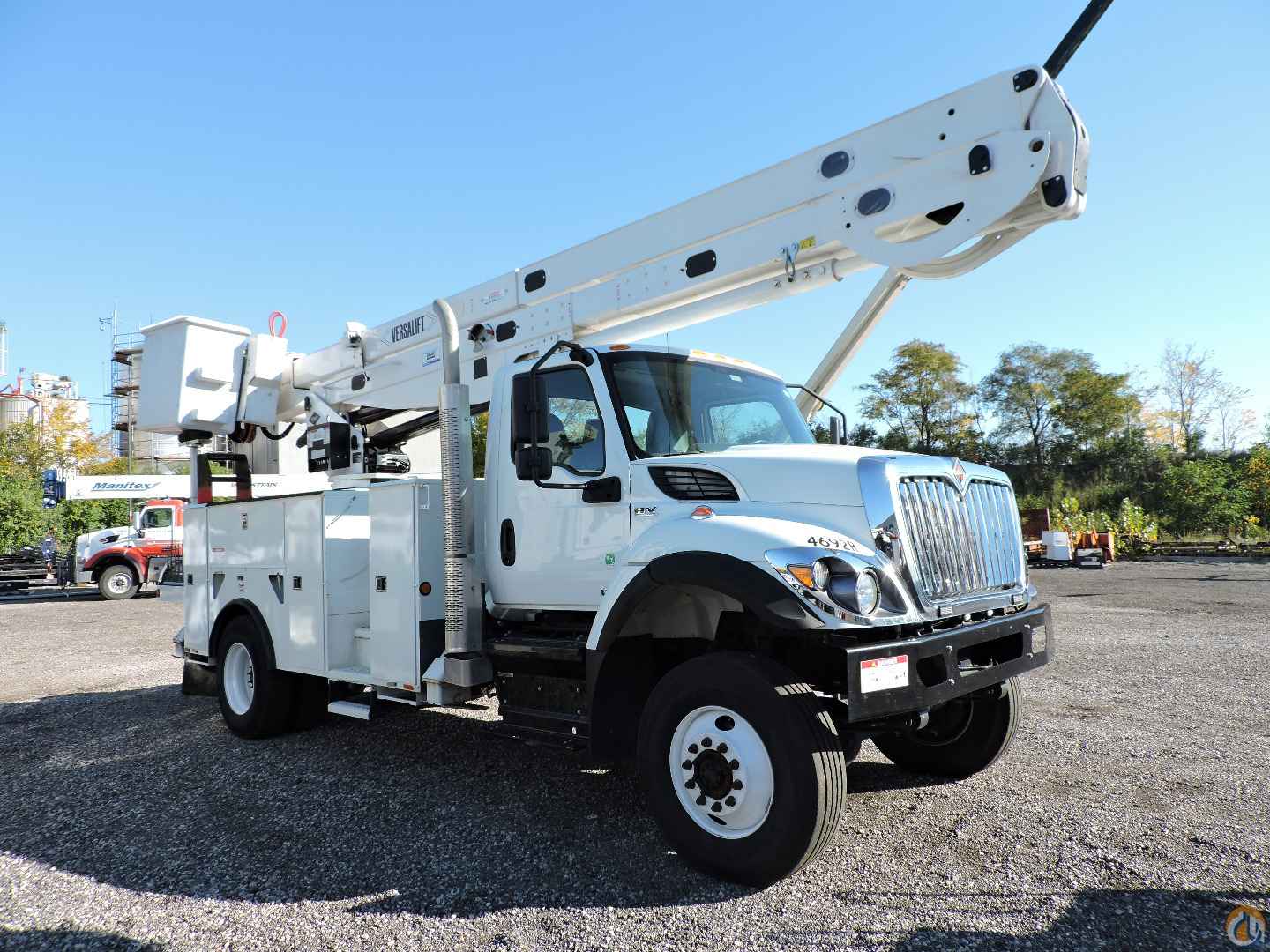

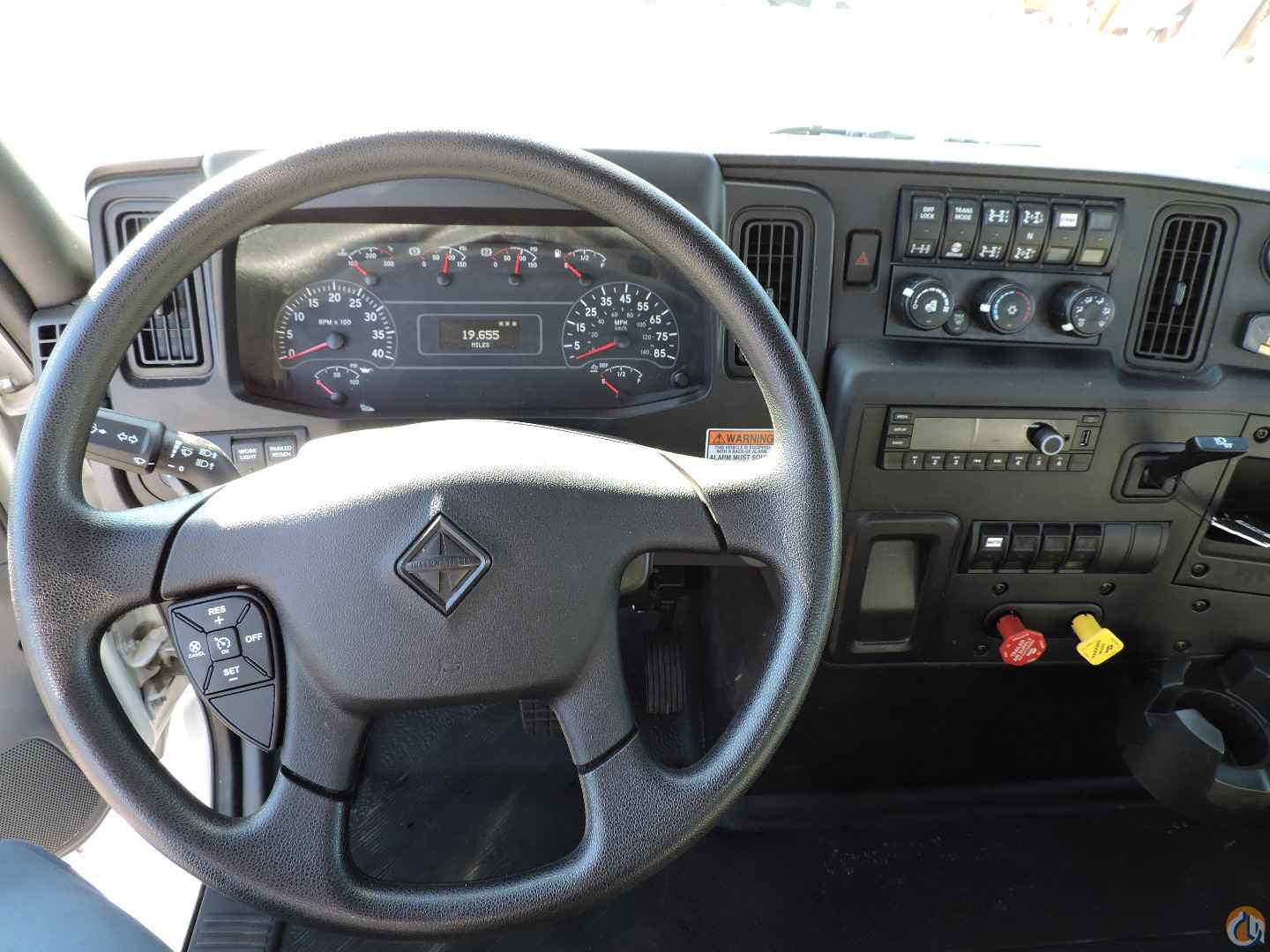

STOCK PHOTOS
