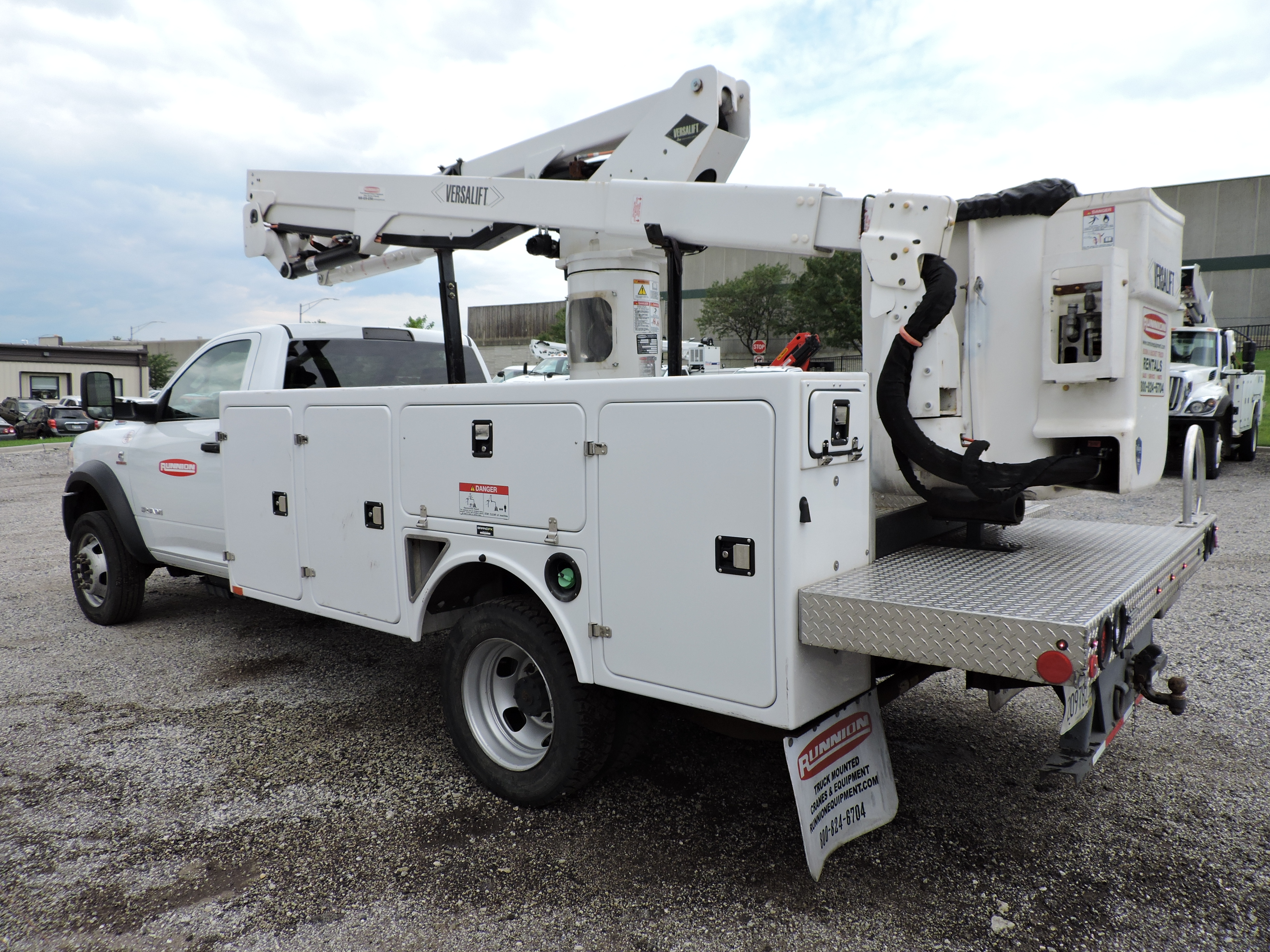

Versalift SST-40-EIH-02 equipped as follows:

-          45 ft. working height

-          Platform capacity of 350 lbs

-          End mounted closed 24 in. x 30 in. x 42 in. fiberglass platform with one step, liner, and cover

-          Versalift TruGuard™ dielectric isolating system with right hand single stick control. All control handles are isolated and tested per ANSI 92.2. The high resistive dielectric system is protected from direct environmental and job-related contamination. TruGuard™ technology incorporates the use of full hydraulic controls with durable metal handles and linkages

-          180° hydraulic platform rotator

-          Full pressure turret mounted lower controls including override

-          Engine start/stop system with controls at platform and lower controls

-          Continuous unrestricted rotation including three pass collector ring

-          Five GPM open center hydraulic system

-          Chassis insulating system (lower boom insert) including fiberglass compensation link providing 12 inches insulation gap

-          Fiberglass inner boom and patented Electrogard providing 42 in. insulation gap fully retracted meeting ANSI A92.2 requirements for Category C, 46 KV and below

-          Hydraulic tool power at bucket. Quick disconnect couplers not included

-          Electrogard and inner boom finished with white urethane paint over white gel coat

-          Integral hydraulic oil reservoir with dual sight gauges and 15 gal. capacity

-          Master/slave hydraulic leveling with upper control to tilt for clean-out and rescue. Leveling control at lower controls

-          Non‑lube bearings used at all pivot points

-          Multi‑link hose carrier system through booms

-          Boom cradle and ratchet type tie down strap

-          Automatic throttle control

-          12 Volt DC backup pump providing power to all boom functions

-          Mounting hardware for chassis/cab installation

-          Full body harness and lanyard

-          Painted standard white urethane

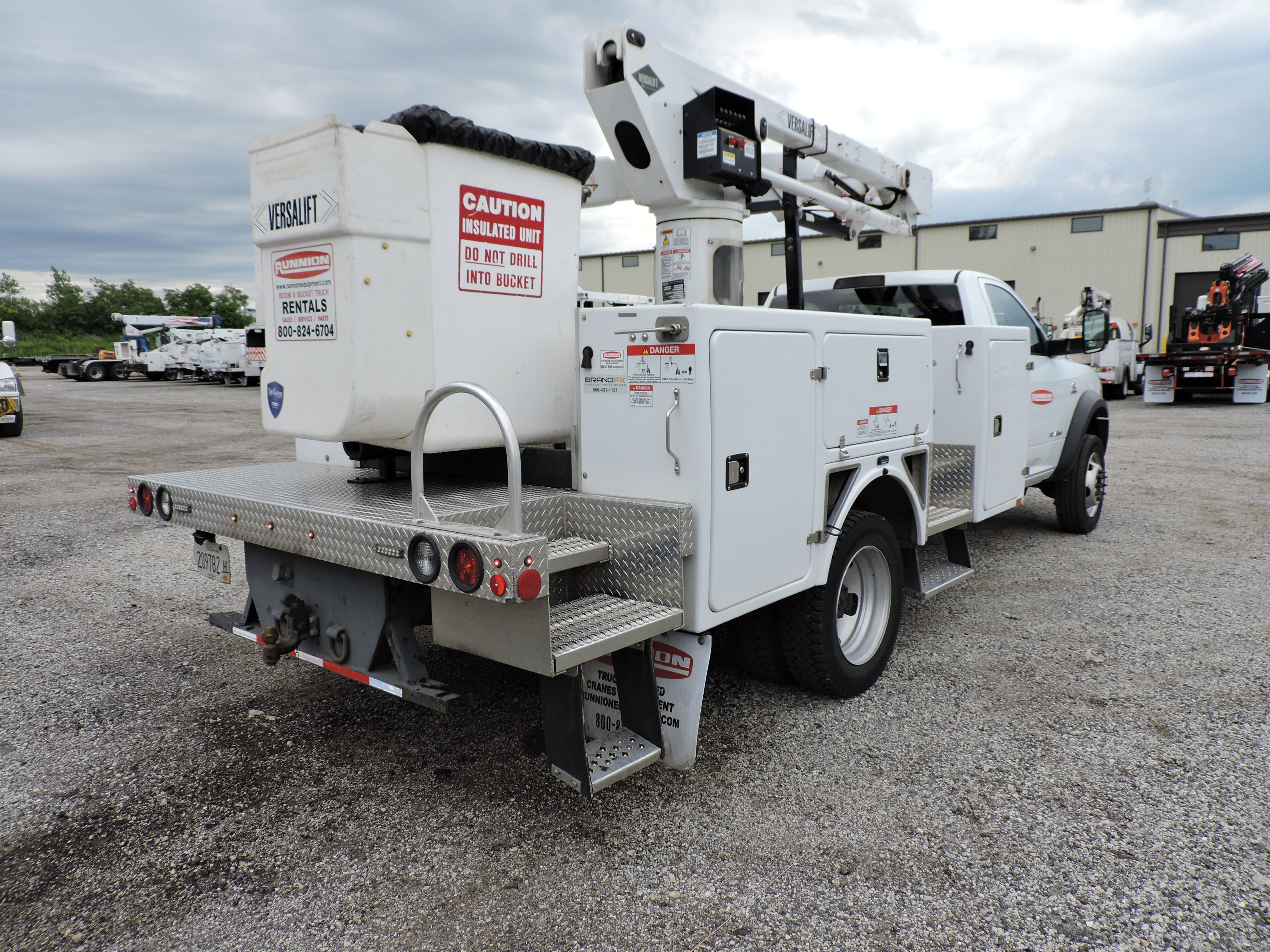

Brand FX Body equipped as follows:

-          132” long x 42” high x 94” wide

-          30” aluminum tread plate platform extension

-          BFX LED lighting package installed in tail shelf.

-          Cable access step at rear and side access.

-          Two (2) stainless steel grab handles at side access and two (2) aluminum grab rails at rear tail shelf.

-          Wheel chock storage and outrigger pad holders.

-          Push/pull rod lock system

-          42” High Curbside compartments as follows

-          1st Vertical: (2) adjustable shelves with dividers and cutout for outrigger

-          2nd Vertical: Grip strut access steps to bed area with removable plastic tail board

-          Horizontal: (1) adjustable shelf with dividers

-          Rear Vertical: (5) fixed material hooks 1-3-1

-          42” High Street side compartments as follows

-          1st Vertical: (2) adjustable shelves with dividers

-          2nd Vertical: (2) adjustable shelves with dividers

-          Horizontal: (1) removable shelf with dividers

-          Rear Vertical: (2) adjustable shelves with dividers

-          Hotstick shelf with rear access door





MOUNTED ON:

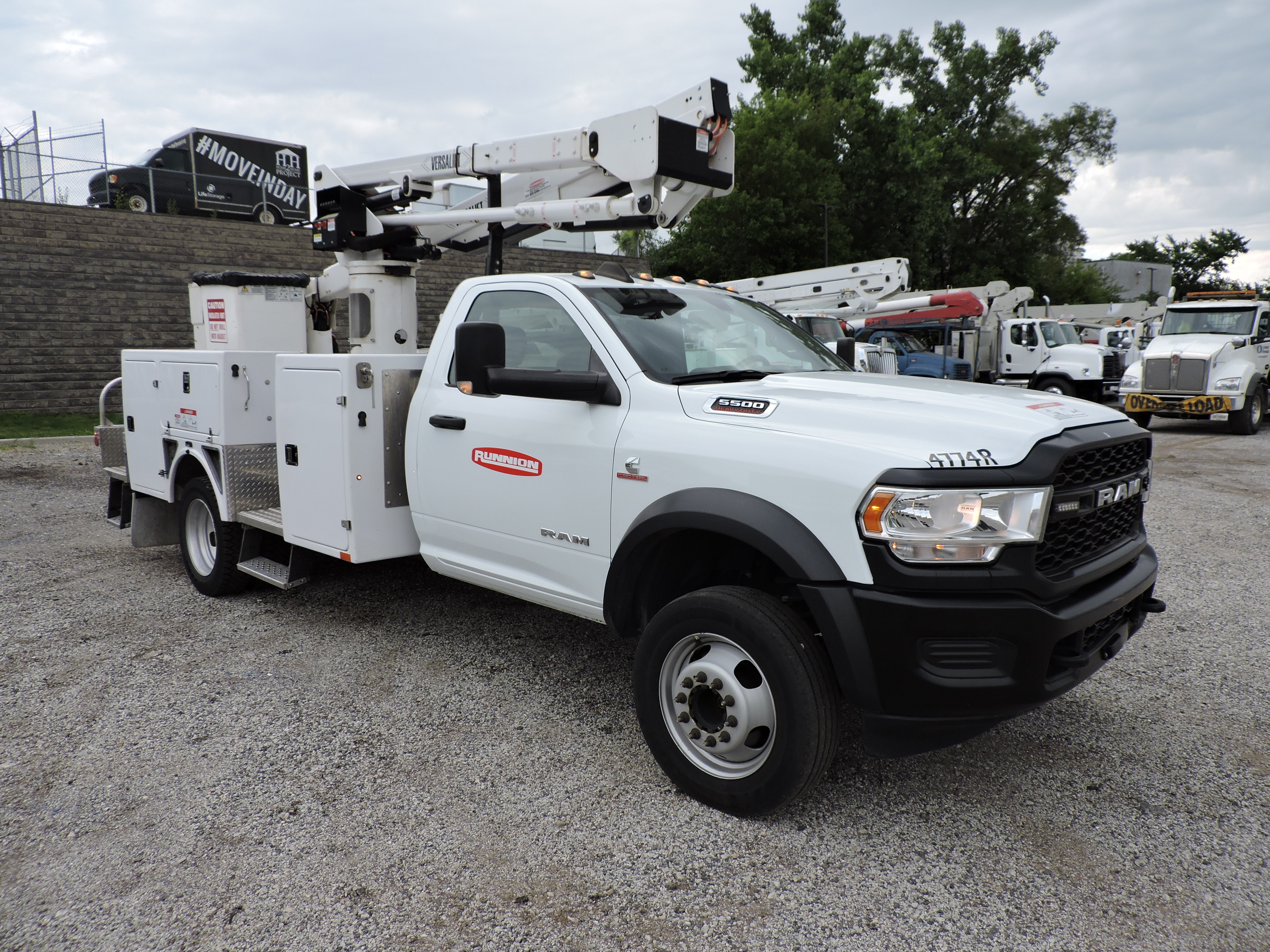

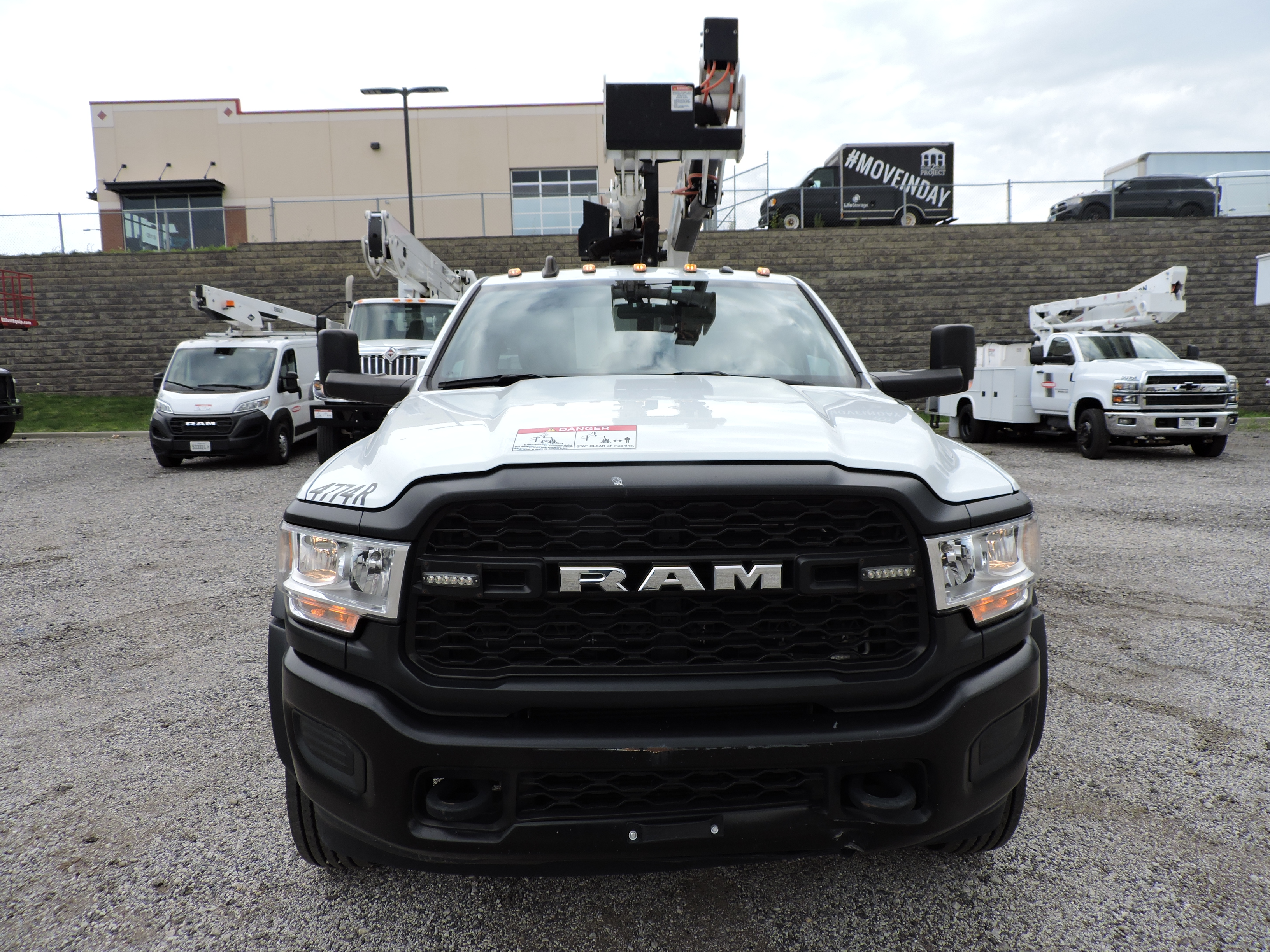

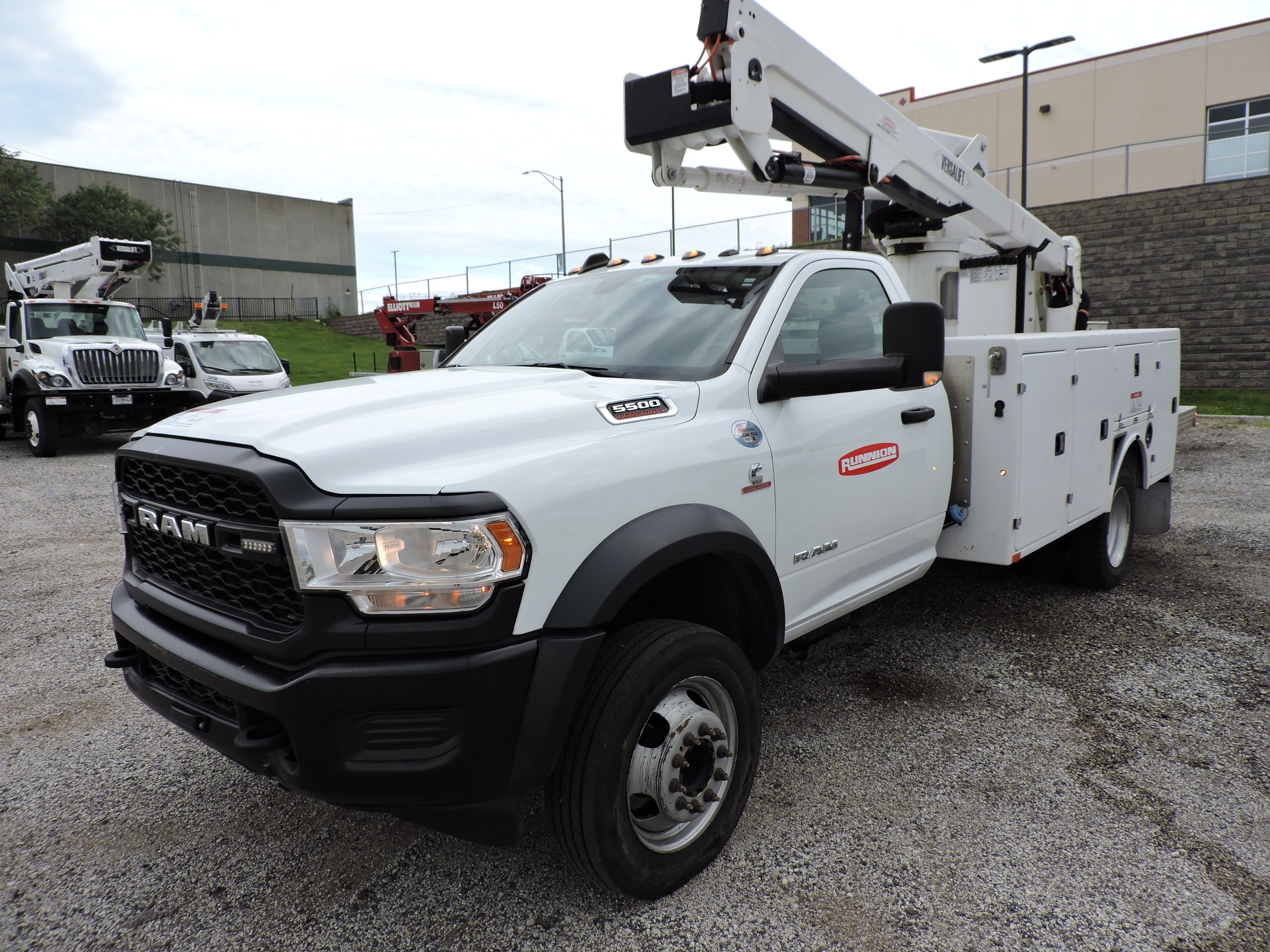

2022 Dodge 5500 4x4 equipped as follows:

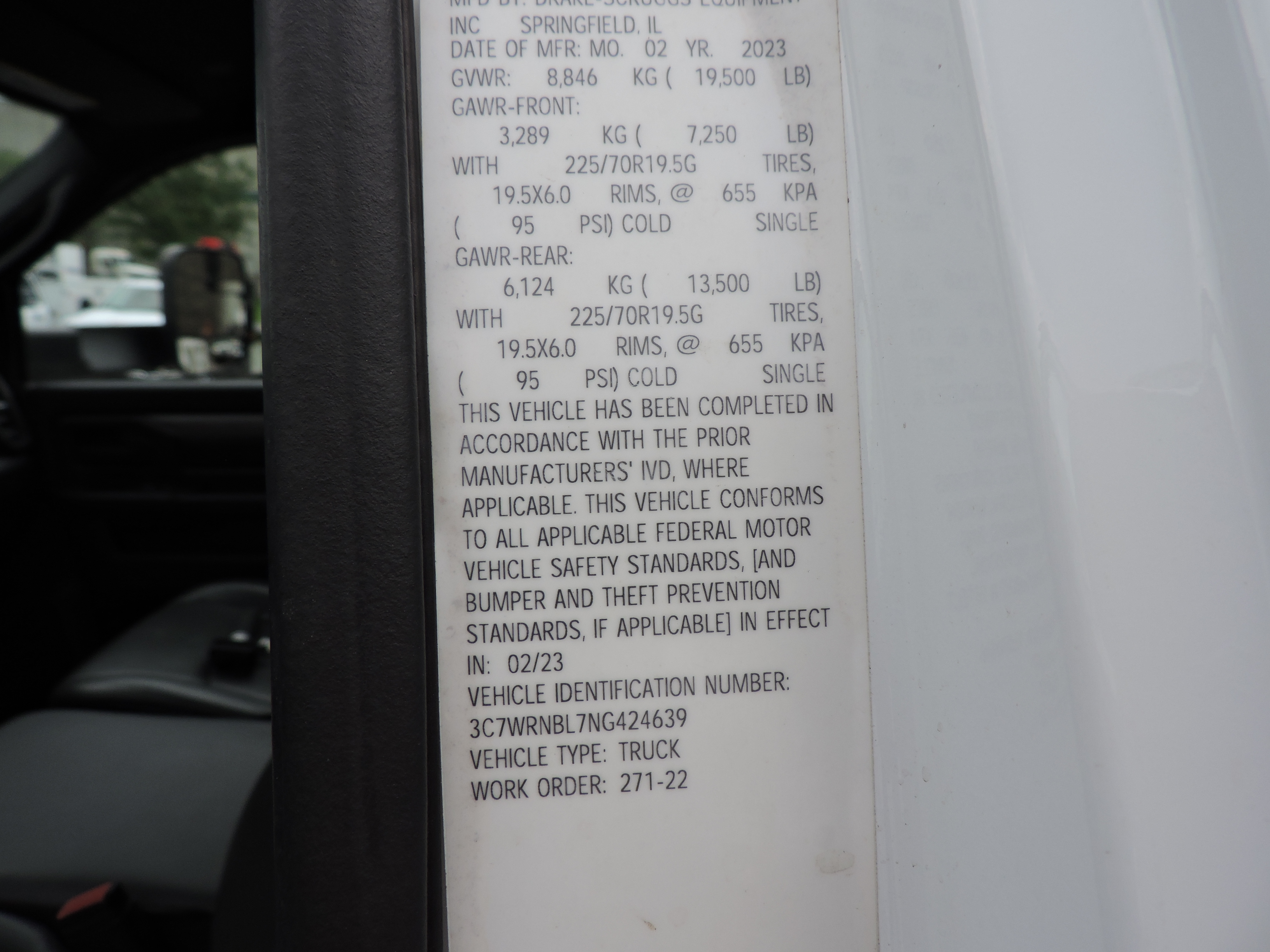

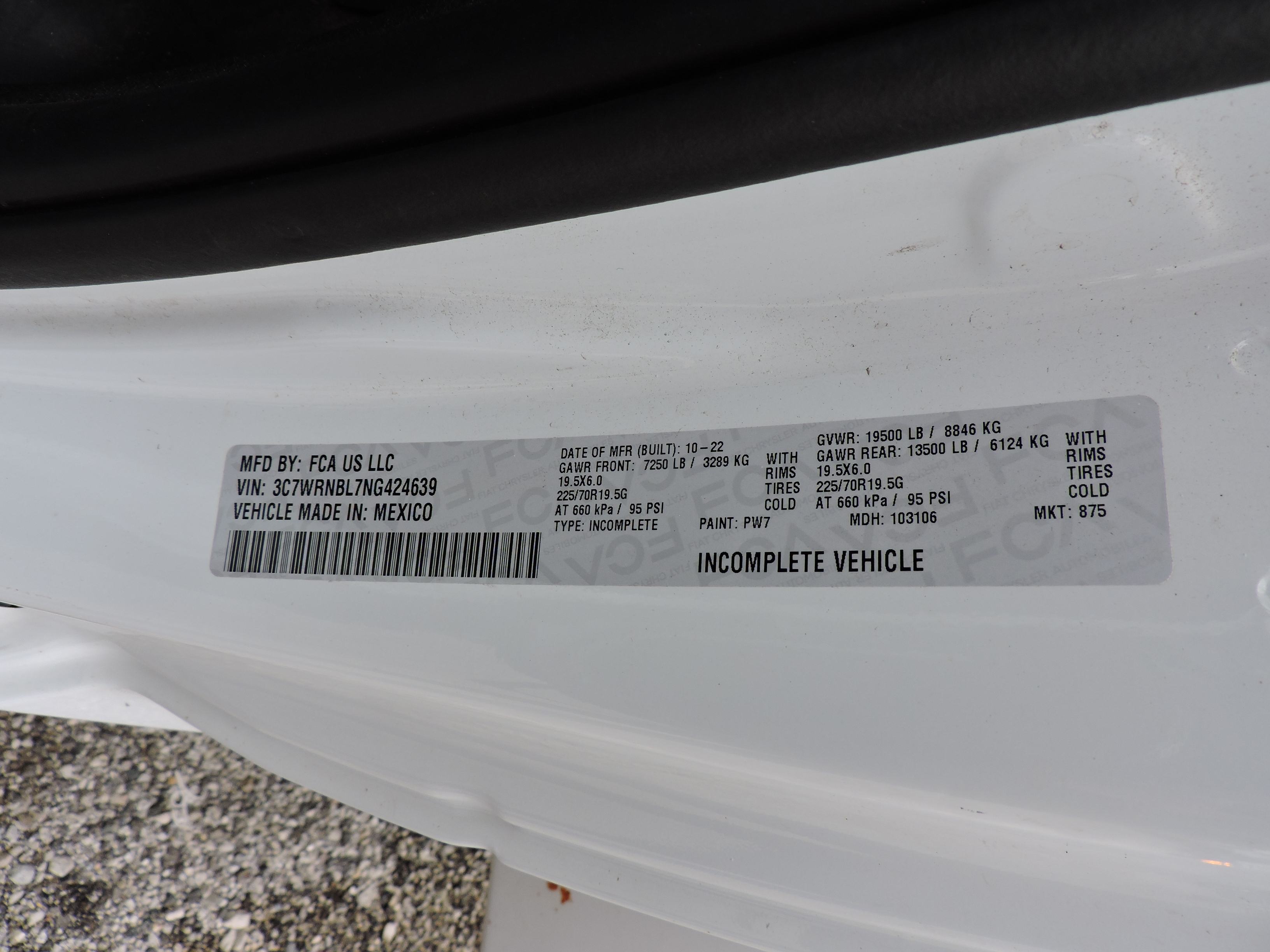

-          19,500 lb GVWR

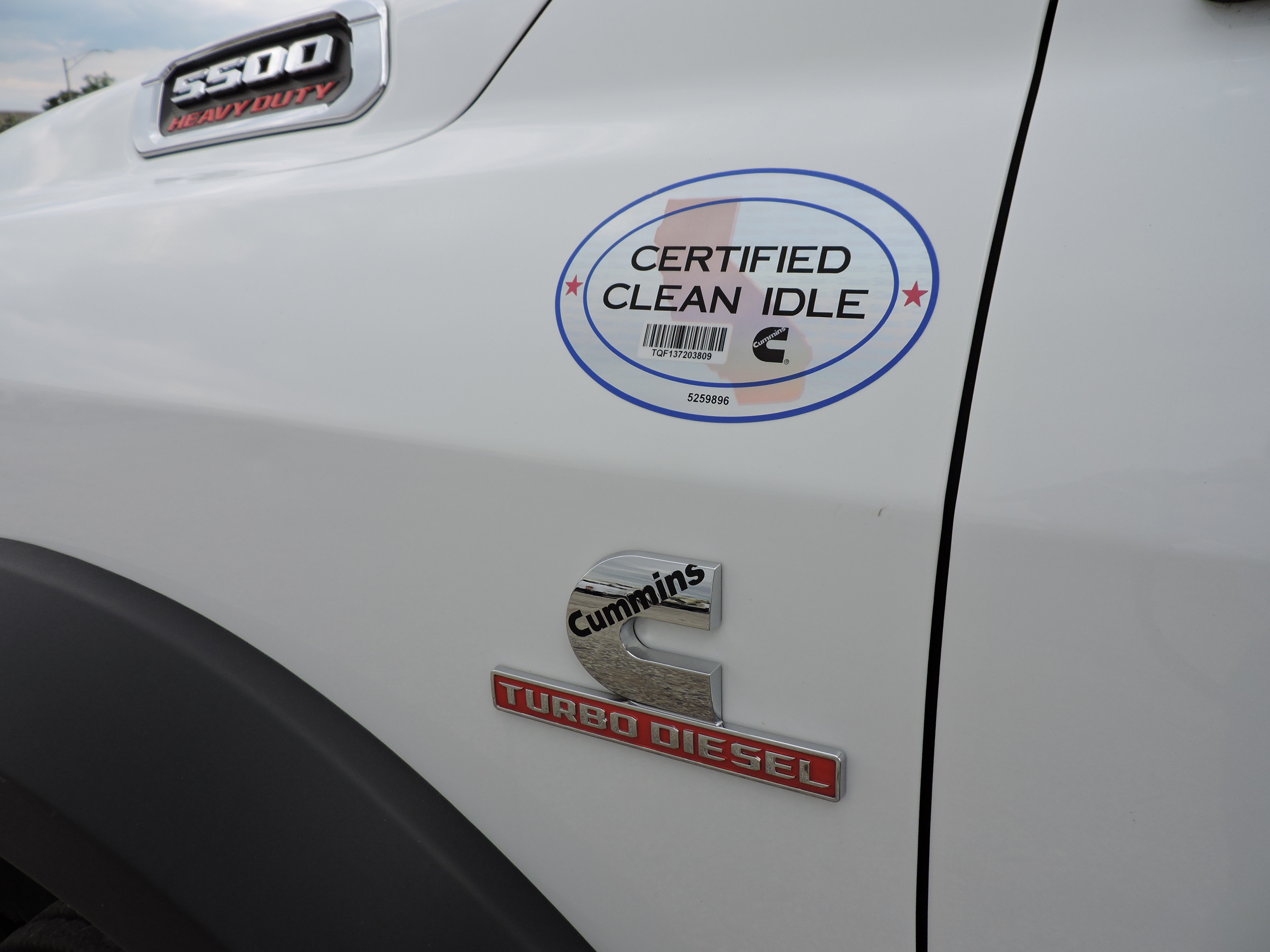

-          6.7L Cummins turbo diesel engine

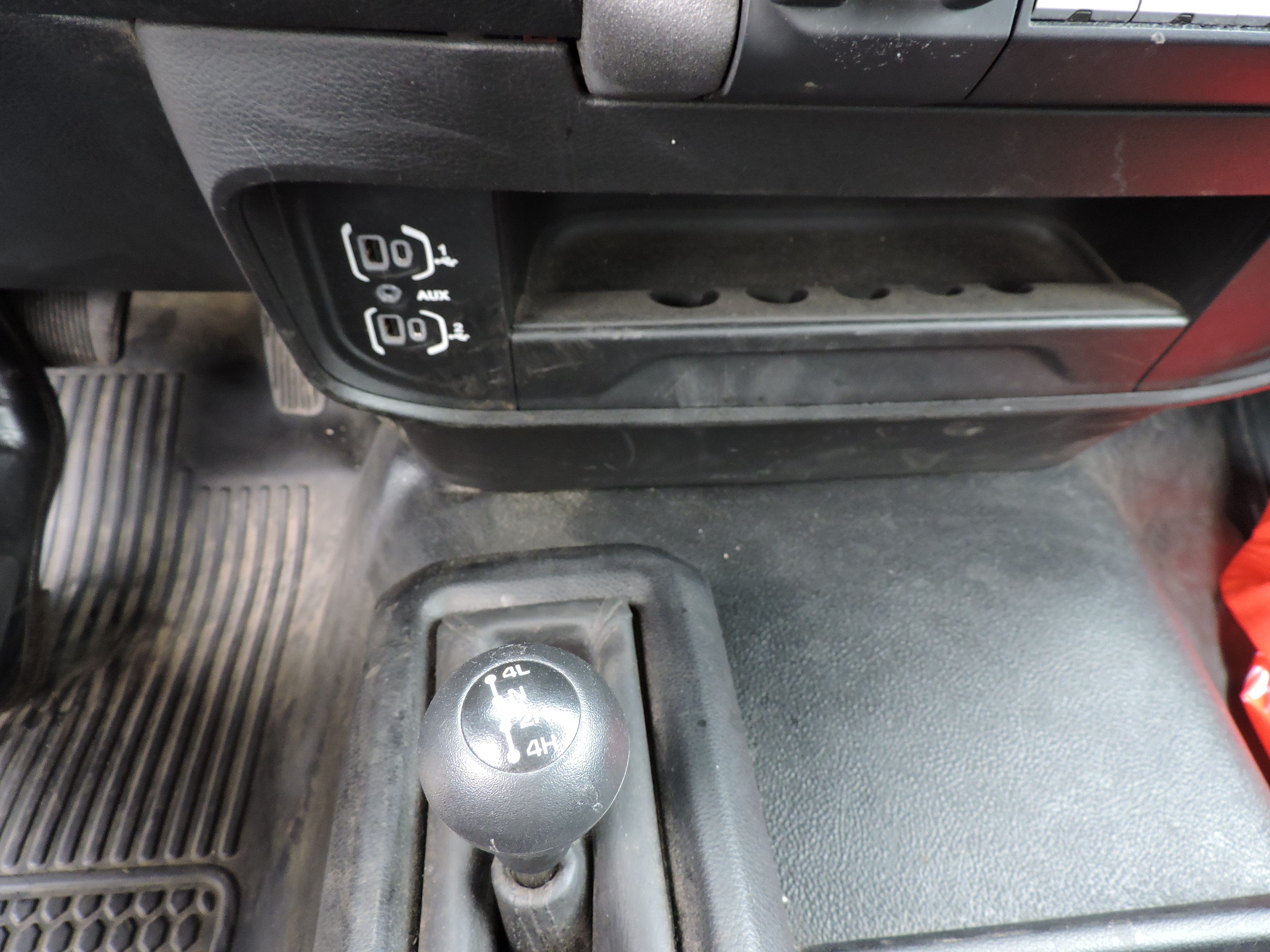

-          Automatic transmission

-          Engine block heater

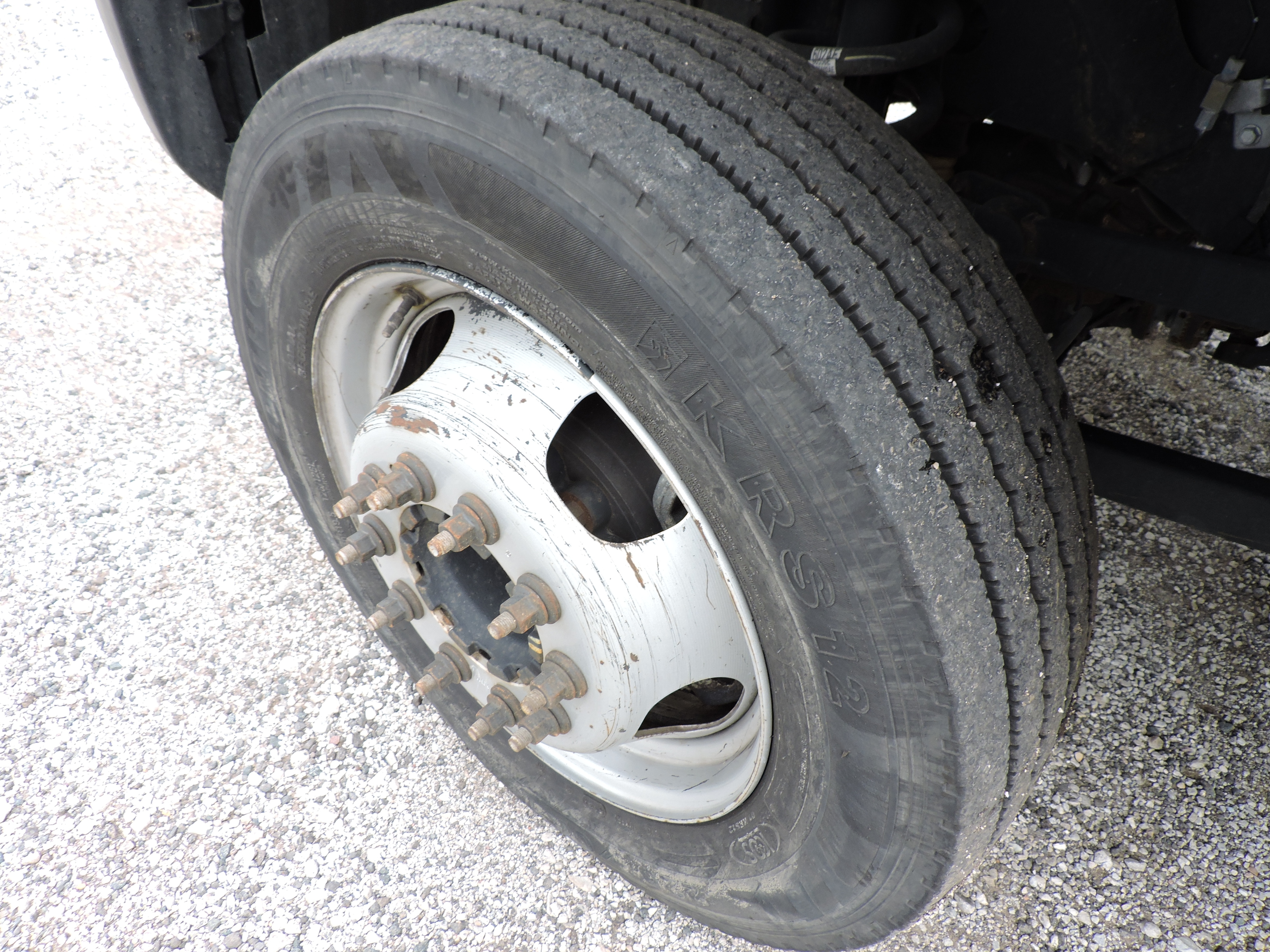

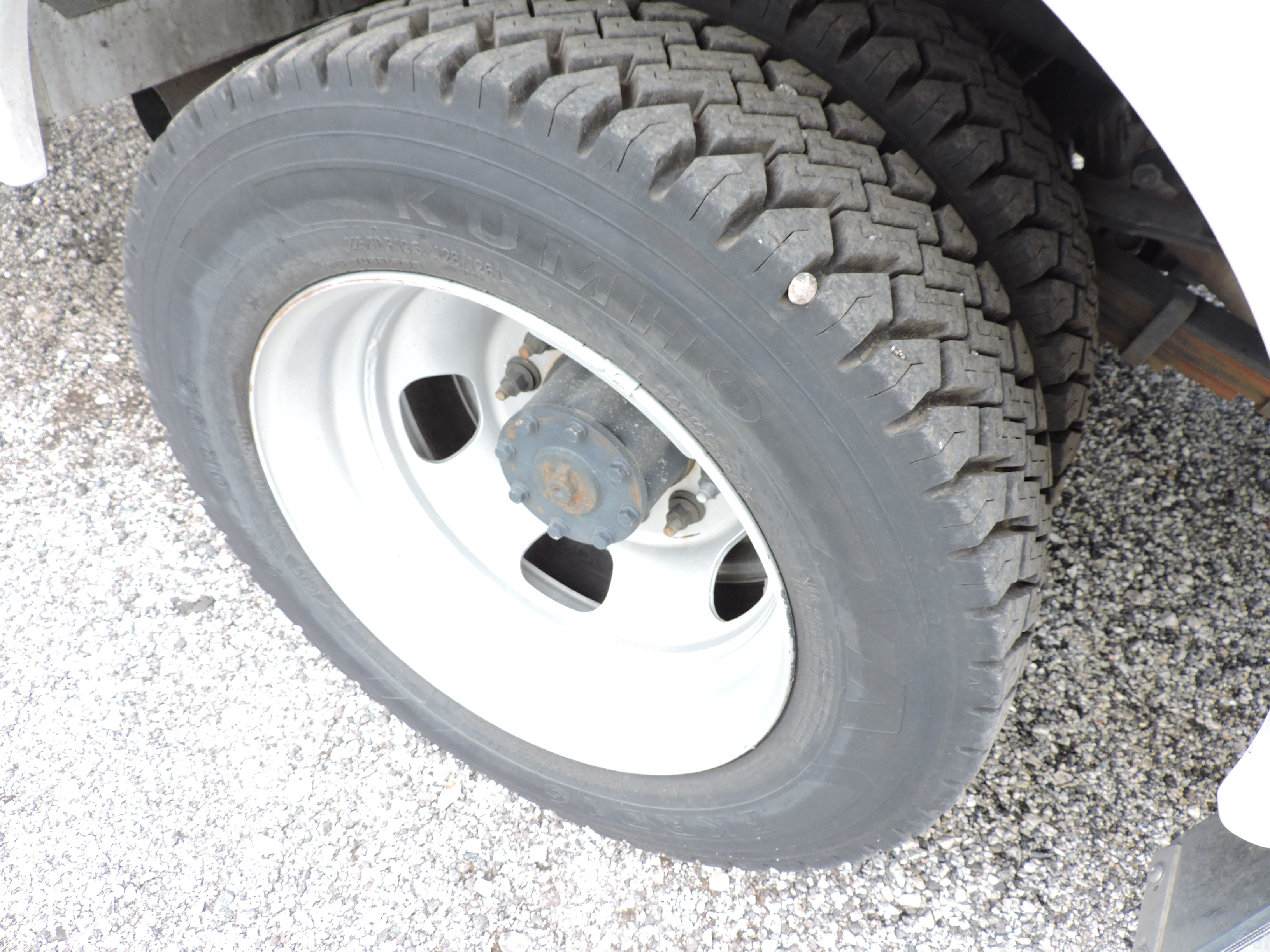

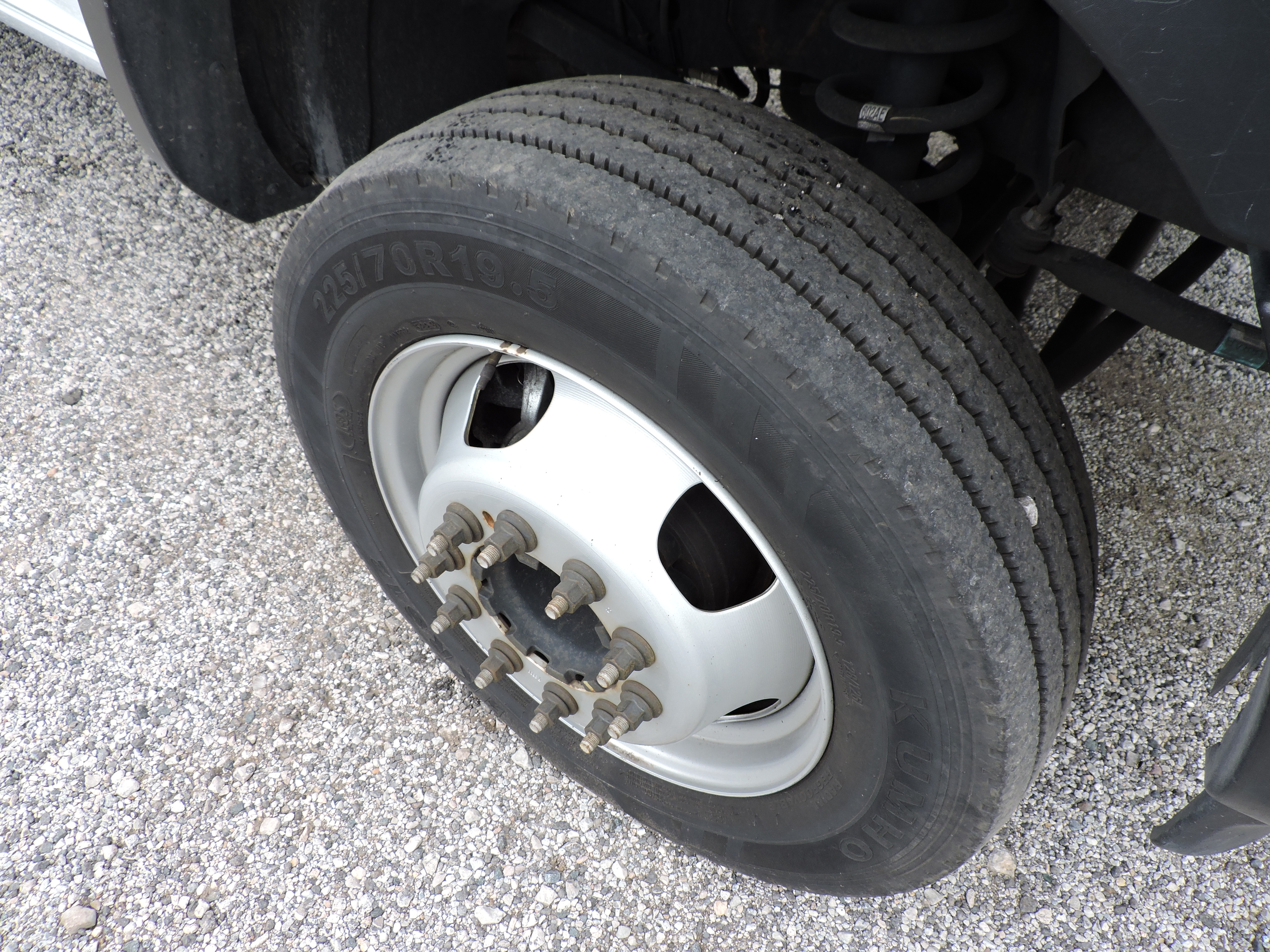

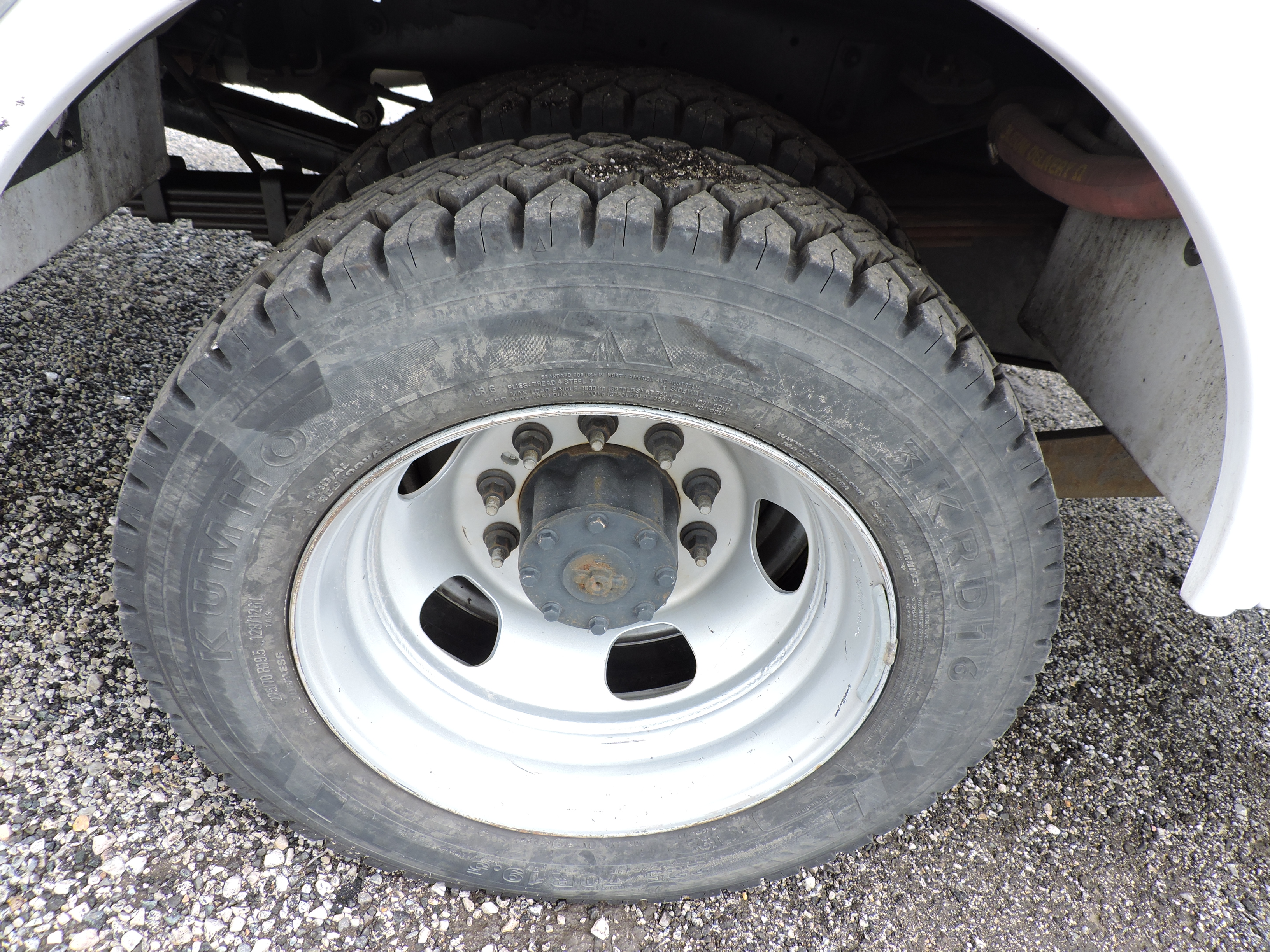

-          225/70Rx19.5 tires

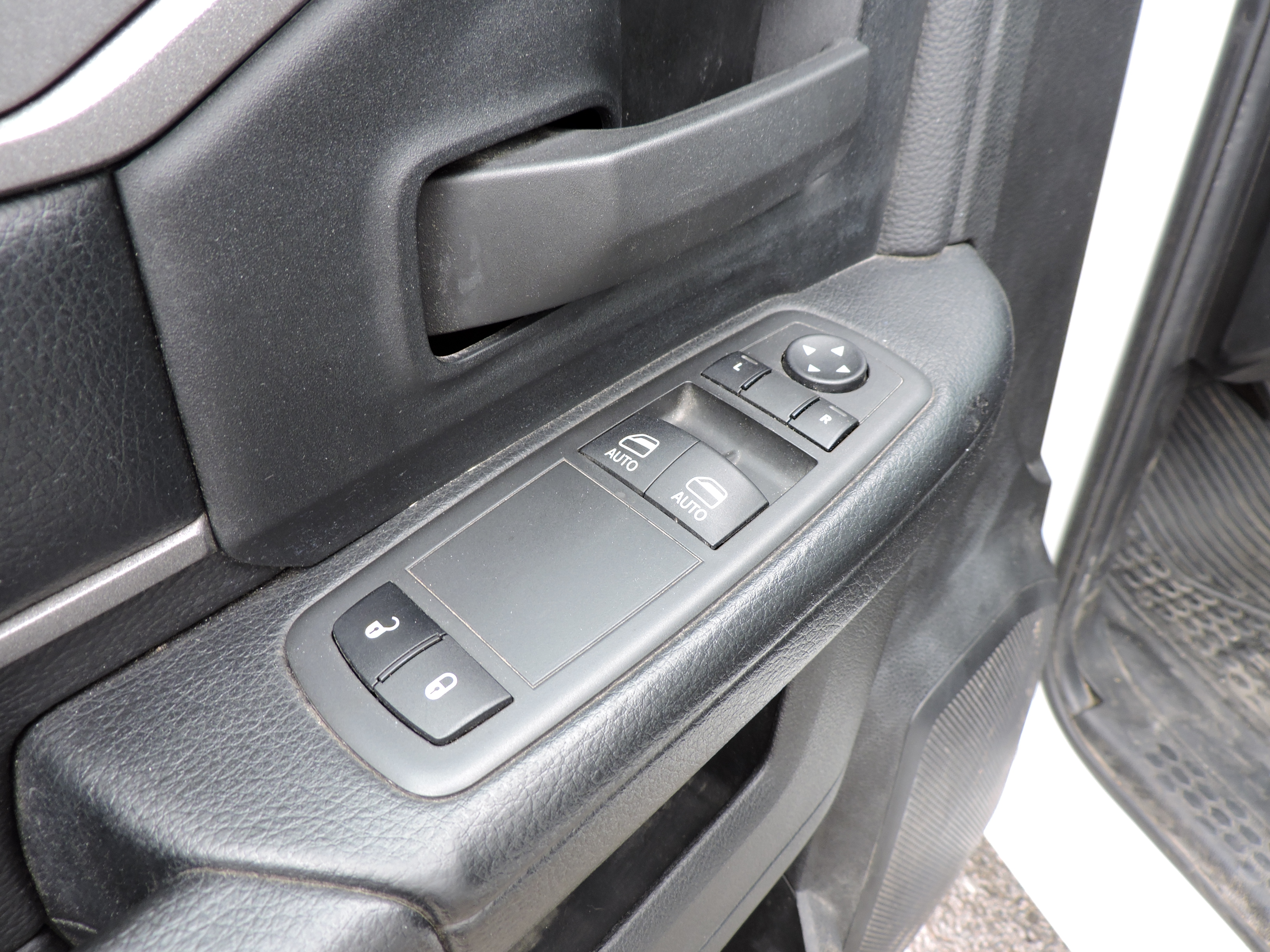

-          Power locks and windows

-          Cruise control

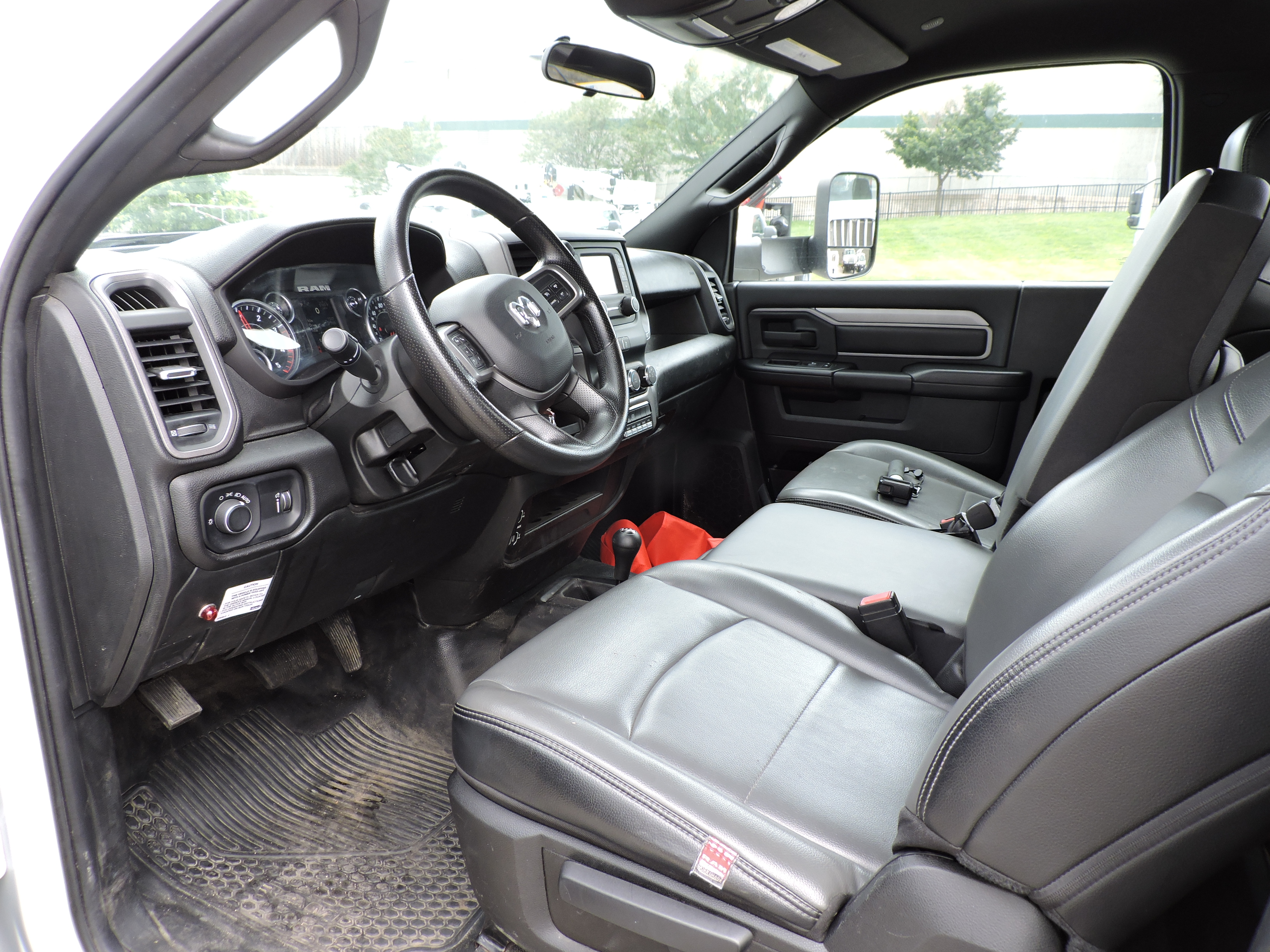

-          40/20/40 vinyl bench

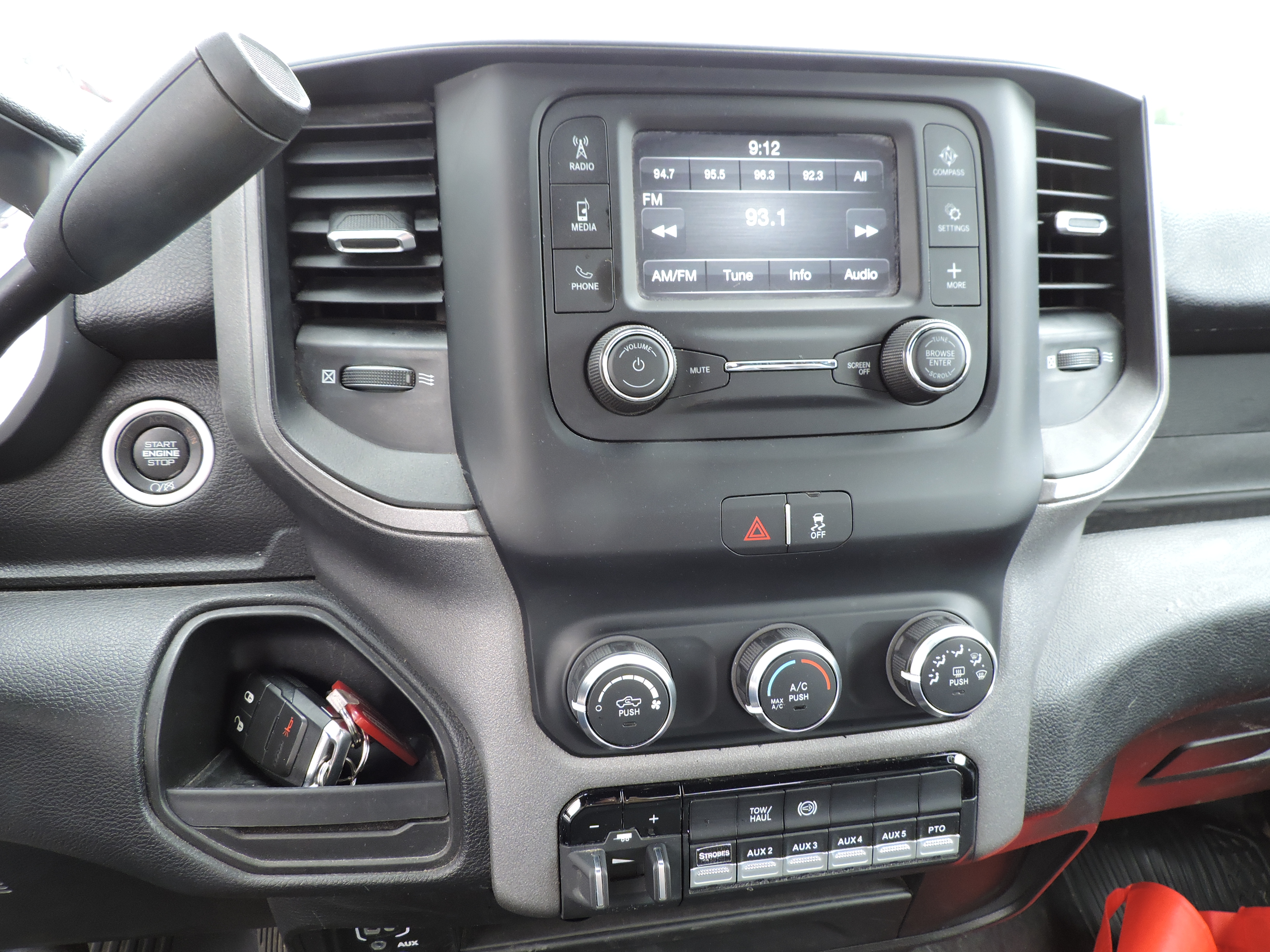

-          AM/FM radio

-          Painted white
