Stellar 8630 Bucket/Service Truck Crane for Sale

Stellar TMAX1-13 Aluminum Mechanic Body equipped as follows:

- Aluminum doors and side packs

- Torsion box understructure with isolated, steel crane compartment

- Master-Lock system

- 157” long

- Six (6) recessed cargo tie-downs

- Two (2) rear mounted grab handles

- 12” fold down tailgate – painted black

- 21” work bench bumper with thru compartment

- Rubber fenderettes

- All compartments raised to 52” H

- Overlapped doors on SS1V/CS1V and horizontal compartments

- 2- & 3-point stainless steel compression latches

- Stainless steel “Billet Style” hinges

- Spring loaded door stops

- Dual-seal automotive type compartment weather seal

- SS1VF – Heavy duty aluminum drawer set – 35.5”H x 34”W x 18”D, 3-3”, 3-5”, 1-7”

- SS1VR – Shelf with (3) dividers

- SS Horizontal – Heavy duty aluminum drawer set – 3-3”

- SS Rear – Shelf with (3) dividers

- CS1V – 2 bottle oxy-acet holder

- CS2V – Shelf with (3) dividers

- CS3V – Shelf with (3) dividers

- CS Horizontal – Shelf with 3 dividers

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

- Stellar 40P hydraulic driven air compressor – produces 40 CFM at 100 psi, 2-cylinder, single stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor

- 25-gallon air tank kit (1 10-gallon, 1 15-gallon)

- FLR system – (filter, lubricator, regulator)

- Backup alarm

- ICC safety kit – 2.5# fire extinguisher and reflector kit

- Weld-on receiver hitch

- Spray-on bed liner for load bed walls and floors, and workbench

- Undercoated

- Prime painted white

Stellar 8630 telescopic crane equipped as follows:

- 53,100 ft/lb rated when in boost mode

- 8,600# maximum capacity at 6’2” radius

- 29’8” maximum hydraulic reach

- Boom elevation: -10° to +80°

- 400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

- Planetary winch with 120’ of 3/8” wire rope

- Max line pull speed 60ft/min

- Quick release snatch block stow

- CDTpro Control System. The most advanced crane remote ever. Save time by knowing your crane can lift the load before you set up. The innovative, industry-only Range Finder technology provides real-time max lifting capacity from any point around the crane

- On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

- Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

- Hydraulic stabilizers

MOUNTED ON:

Ford F600 equipped as follows:

- 6.7L diesel engine

- 10-speed automatic transmission

- Cruise control

- Air conditioning

- Power group

- 40/20/40 split vinyl bench seat

- Backup camera

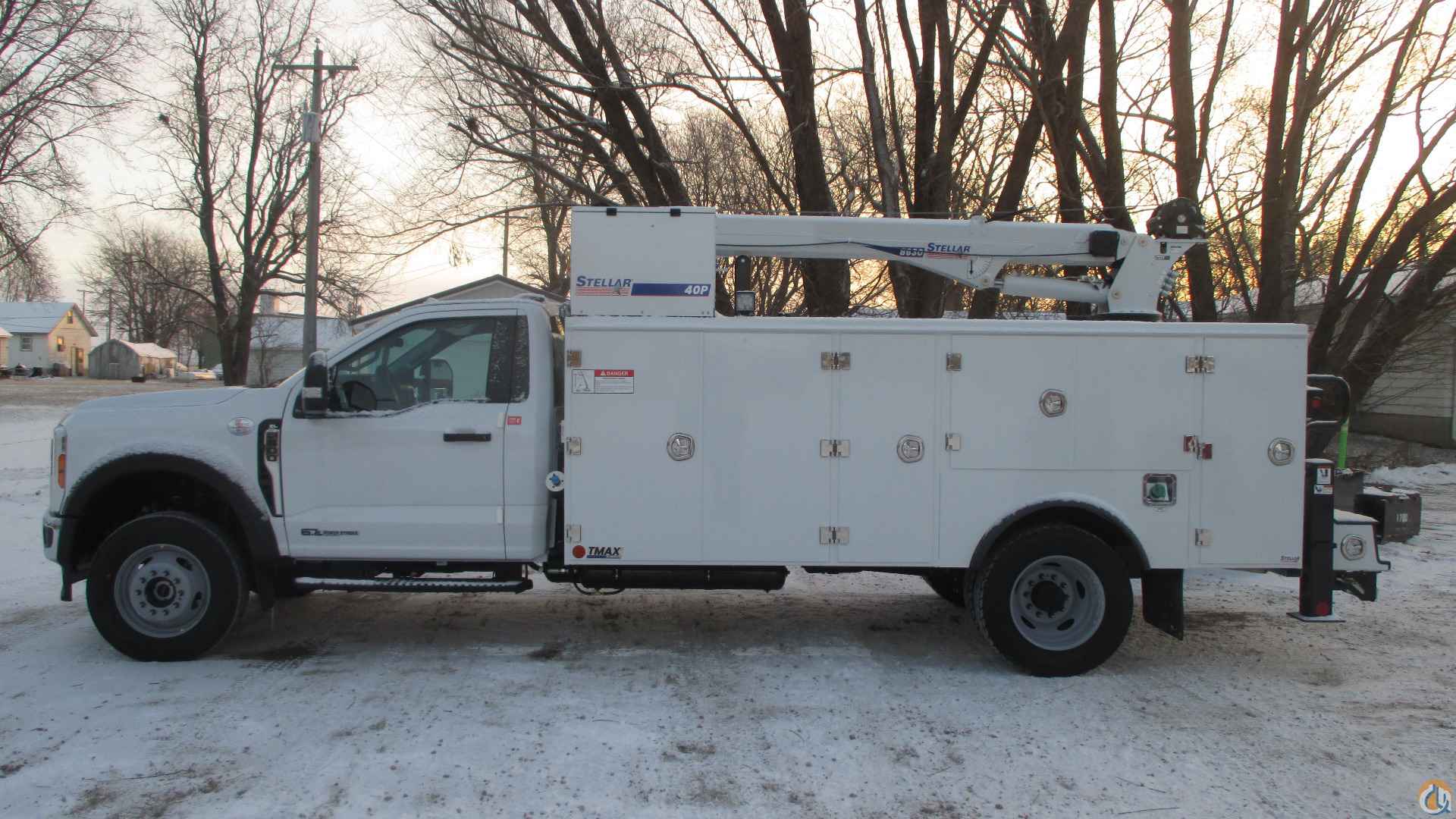

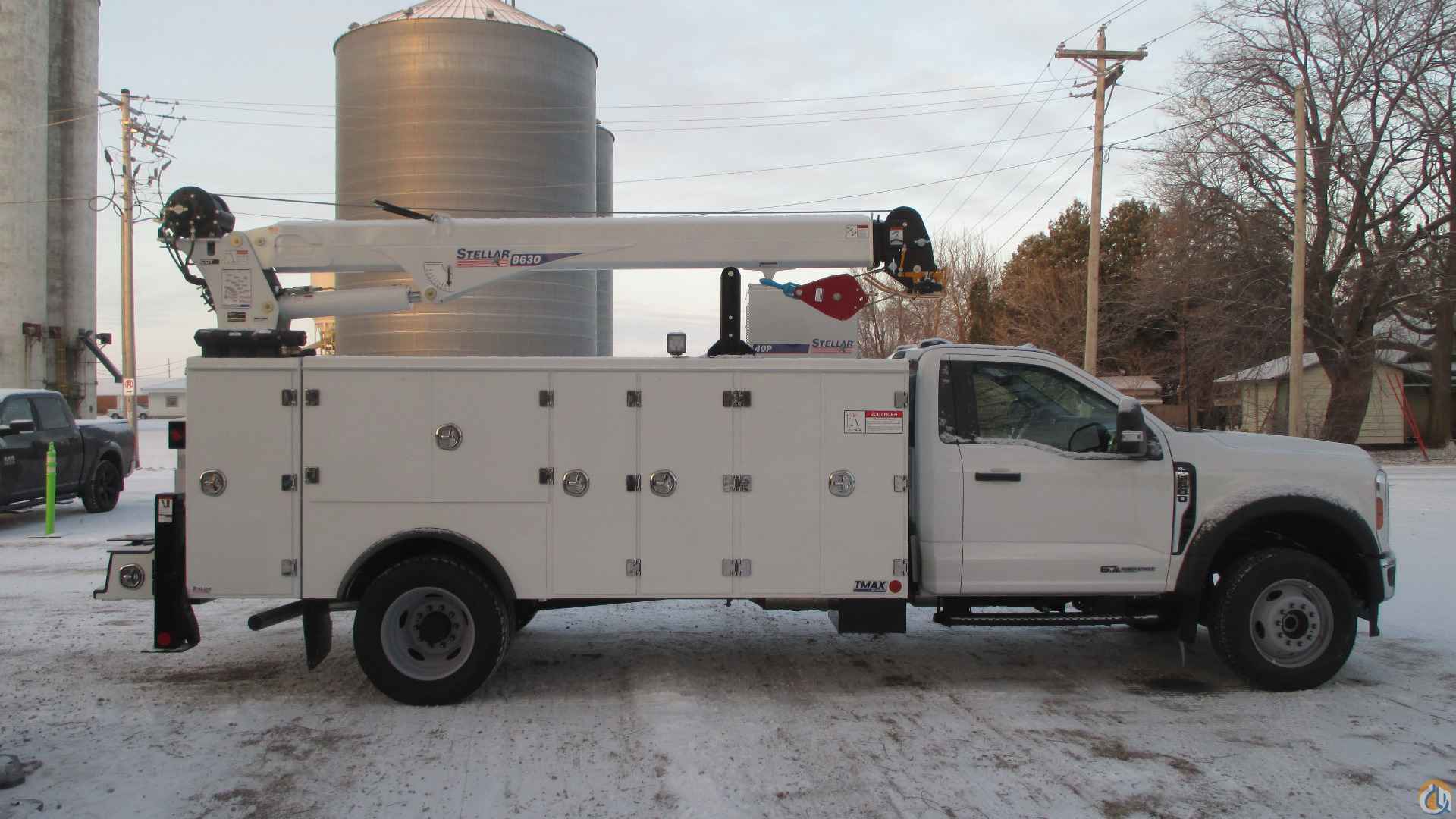

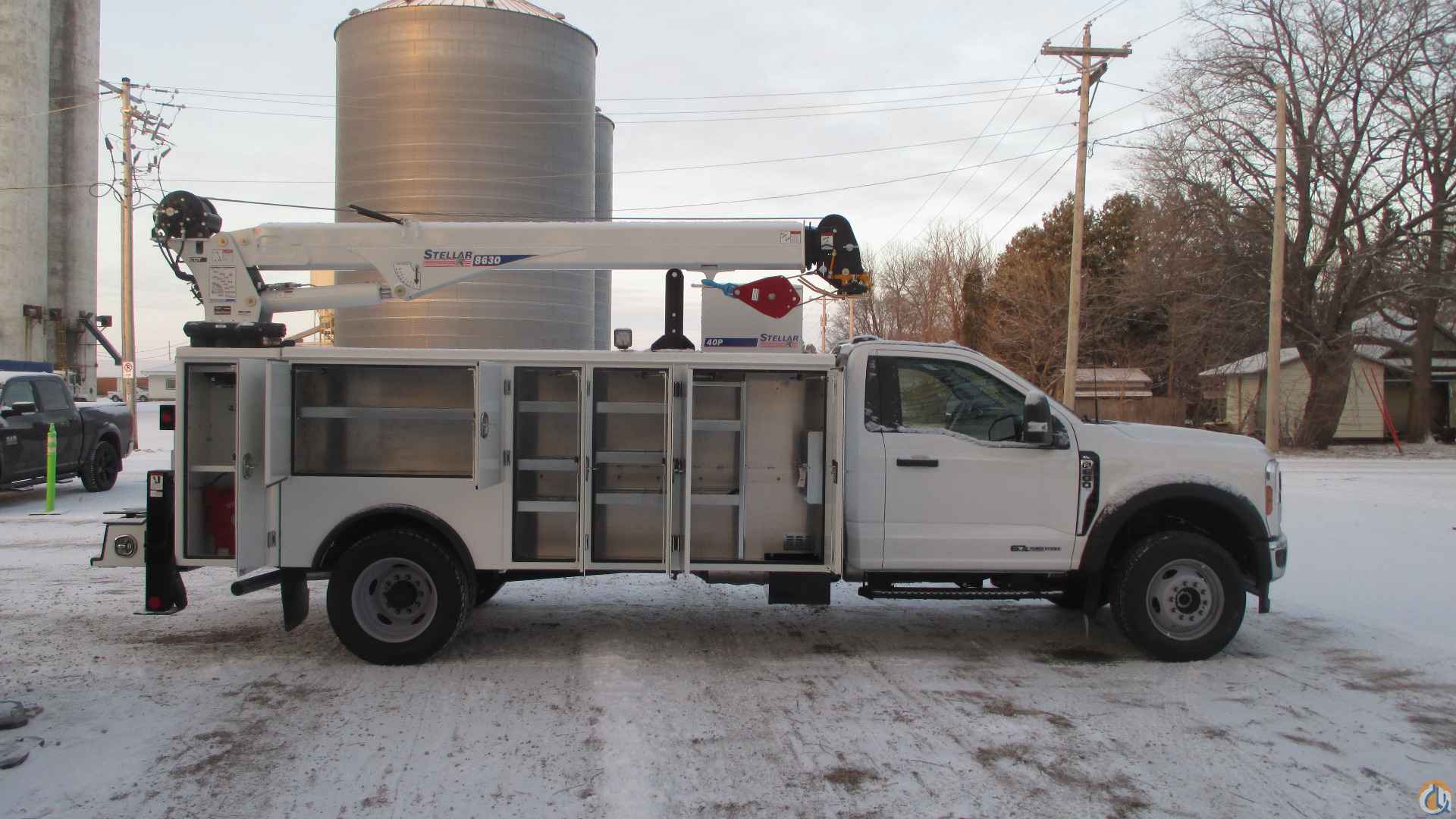

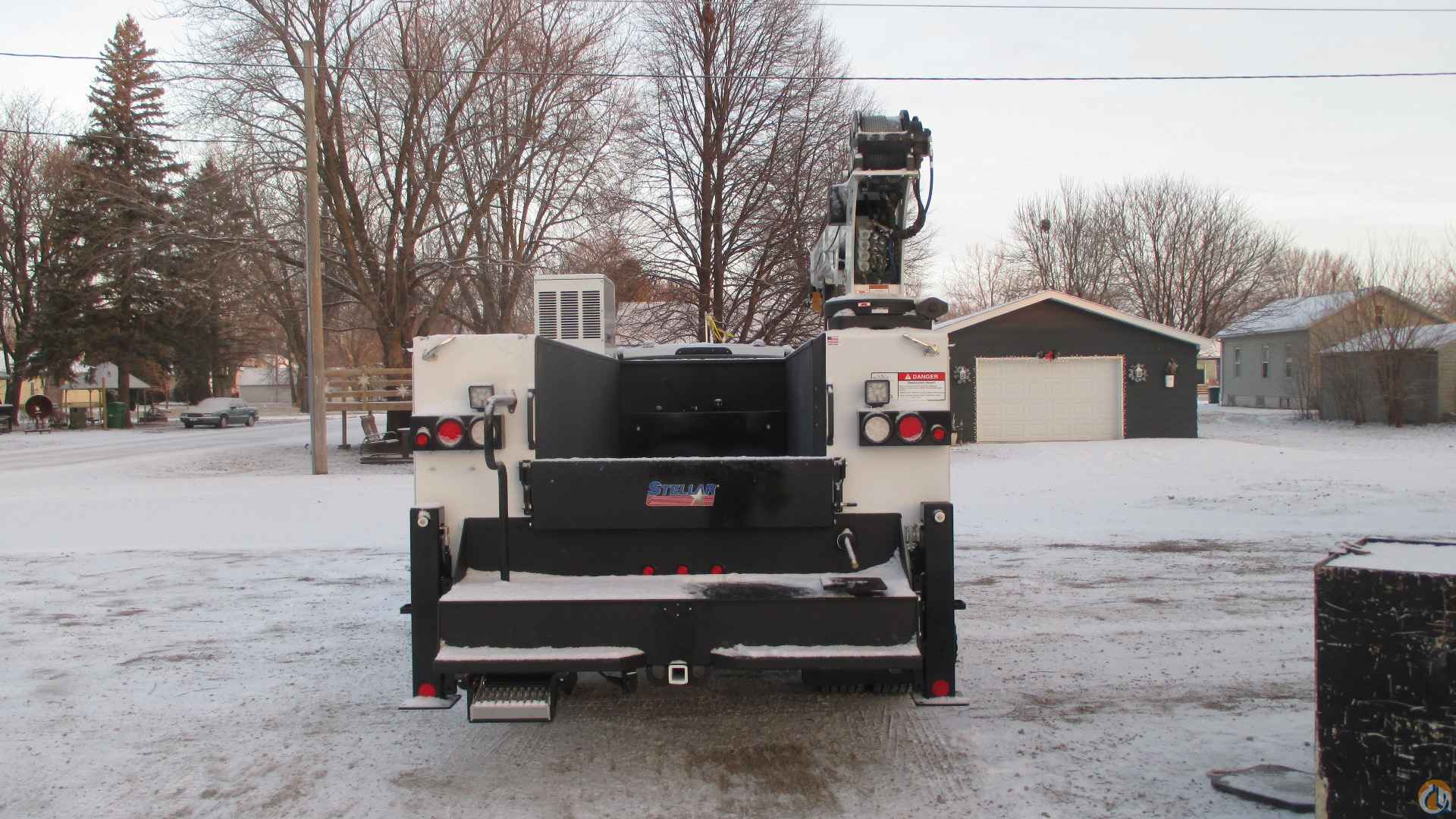

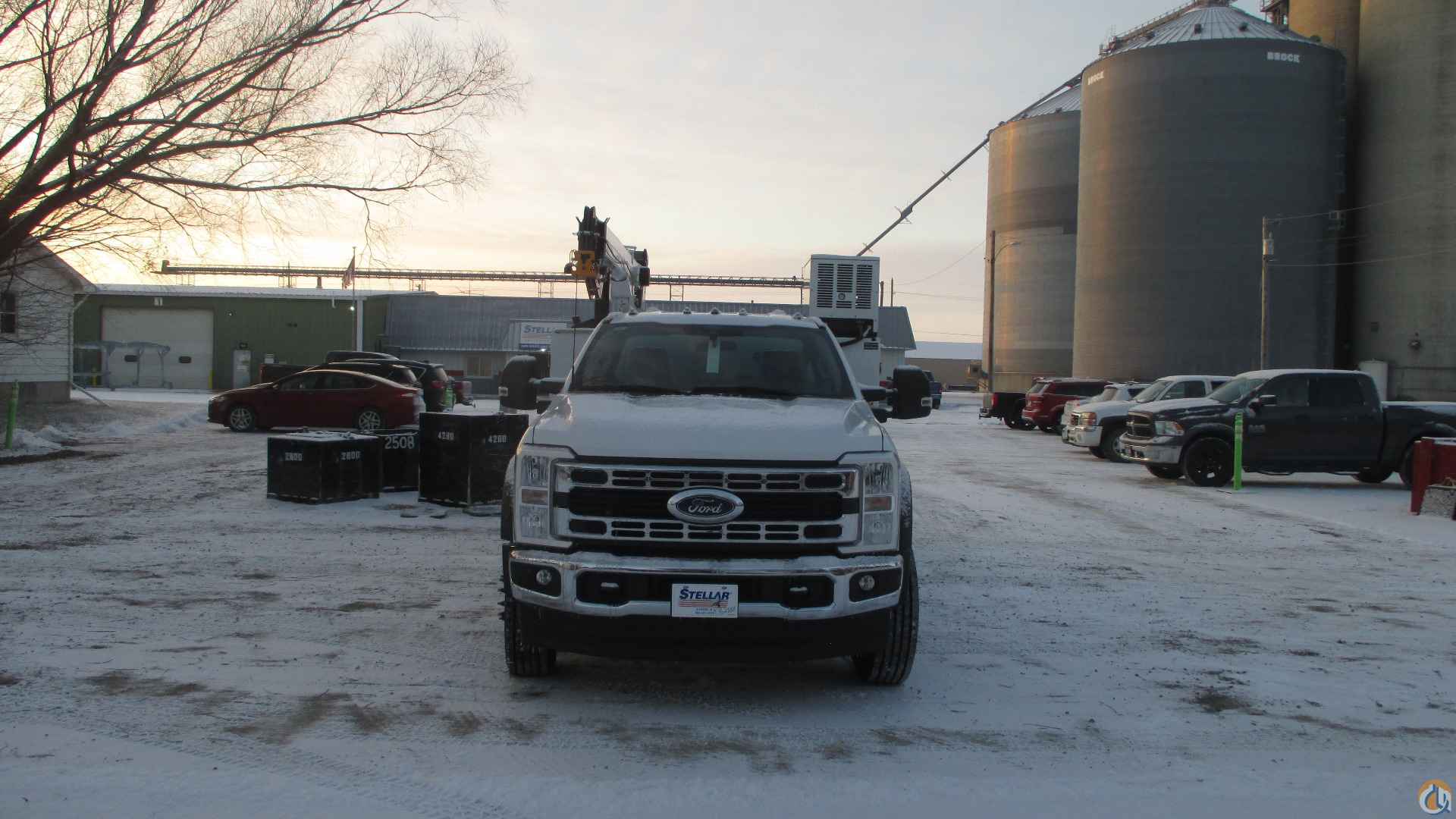

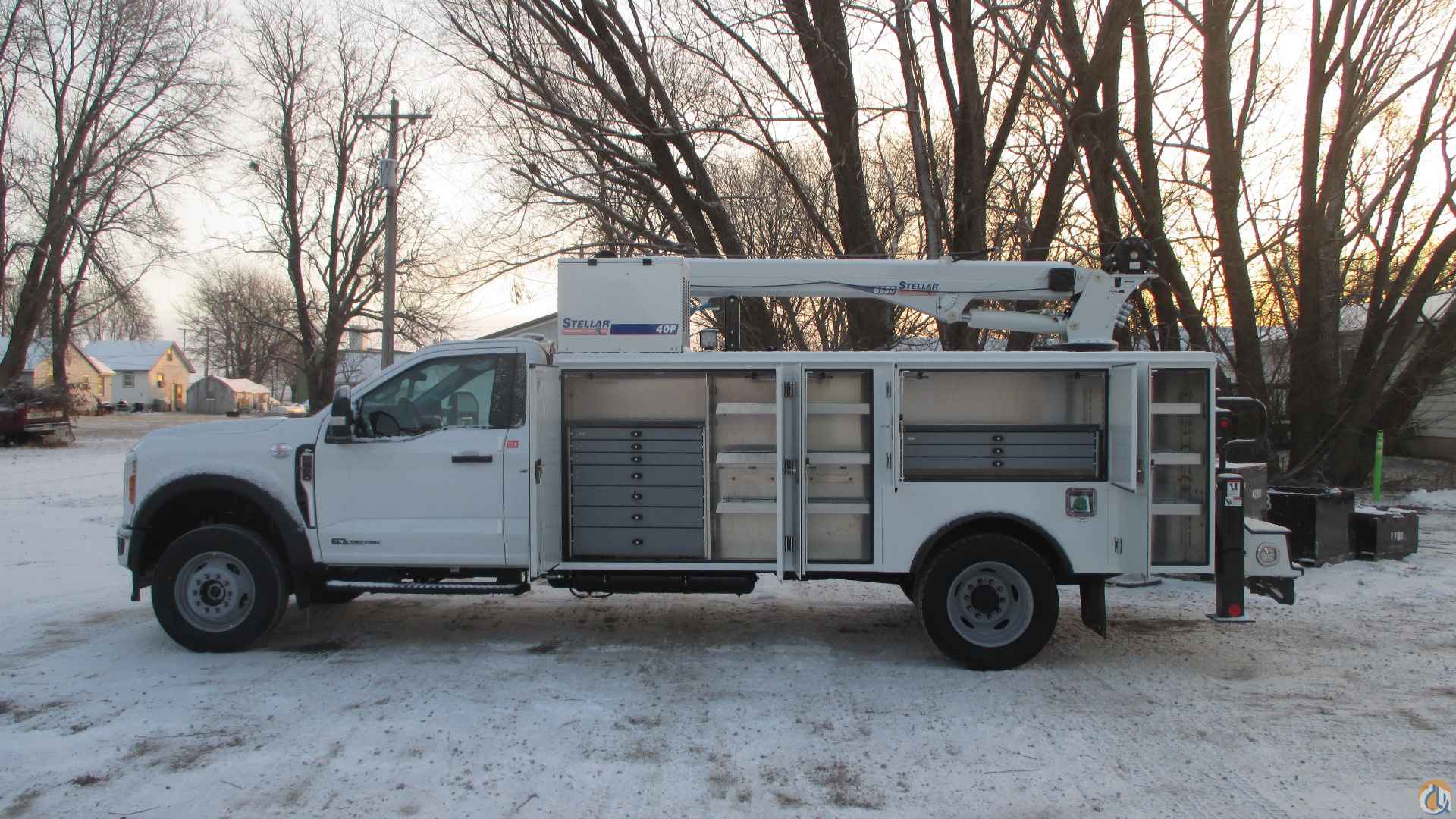

STOCK PHOTOS
