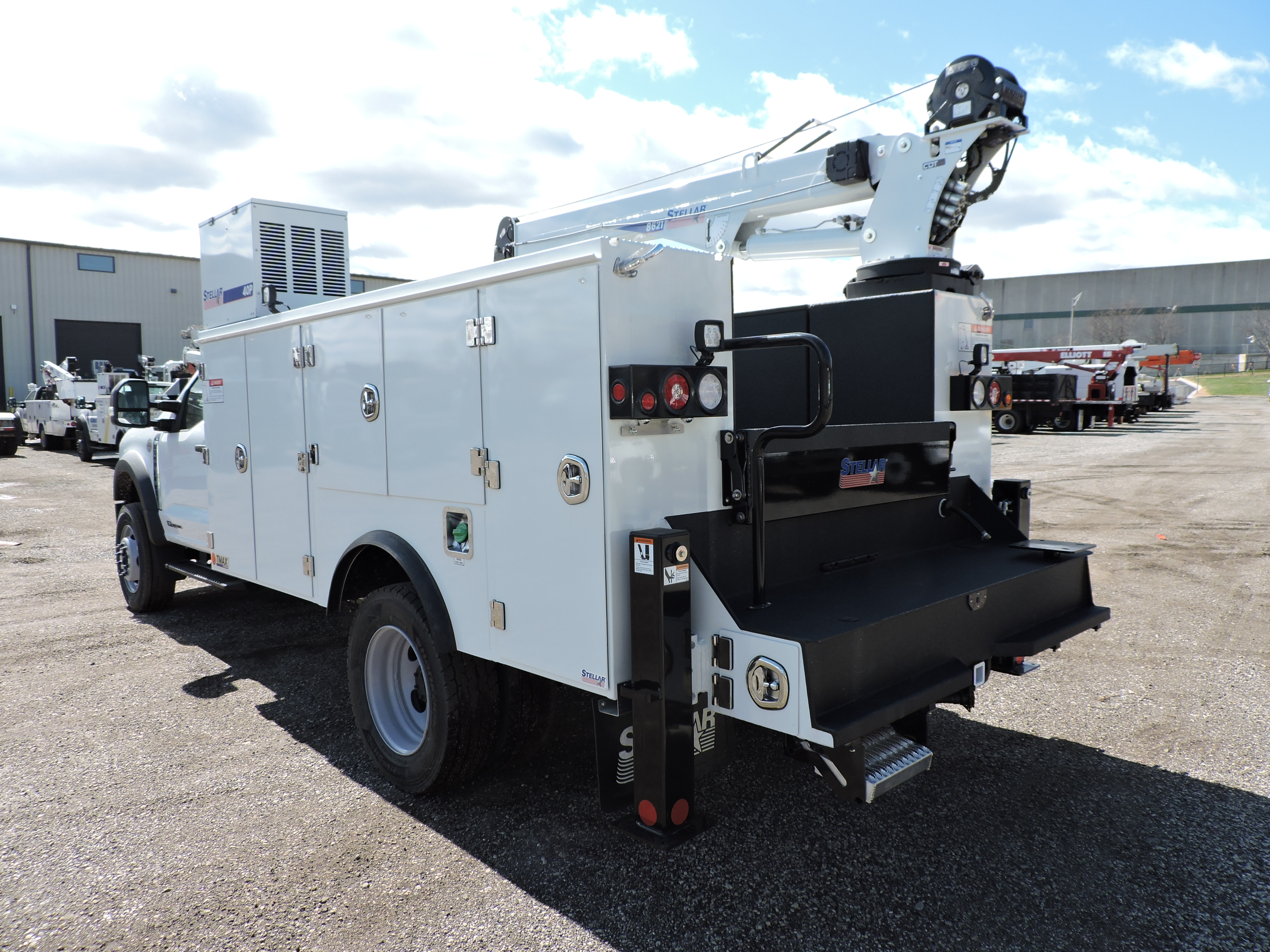

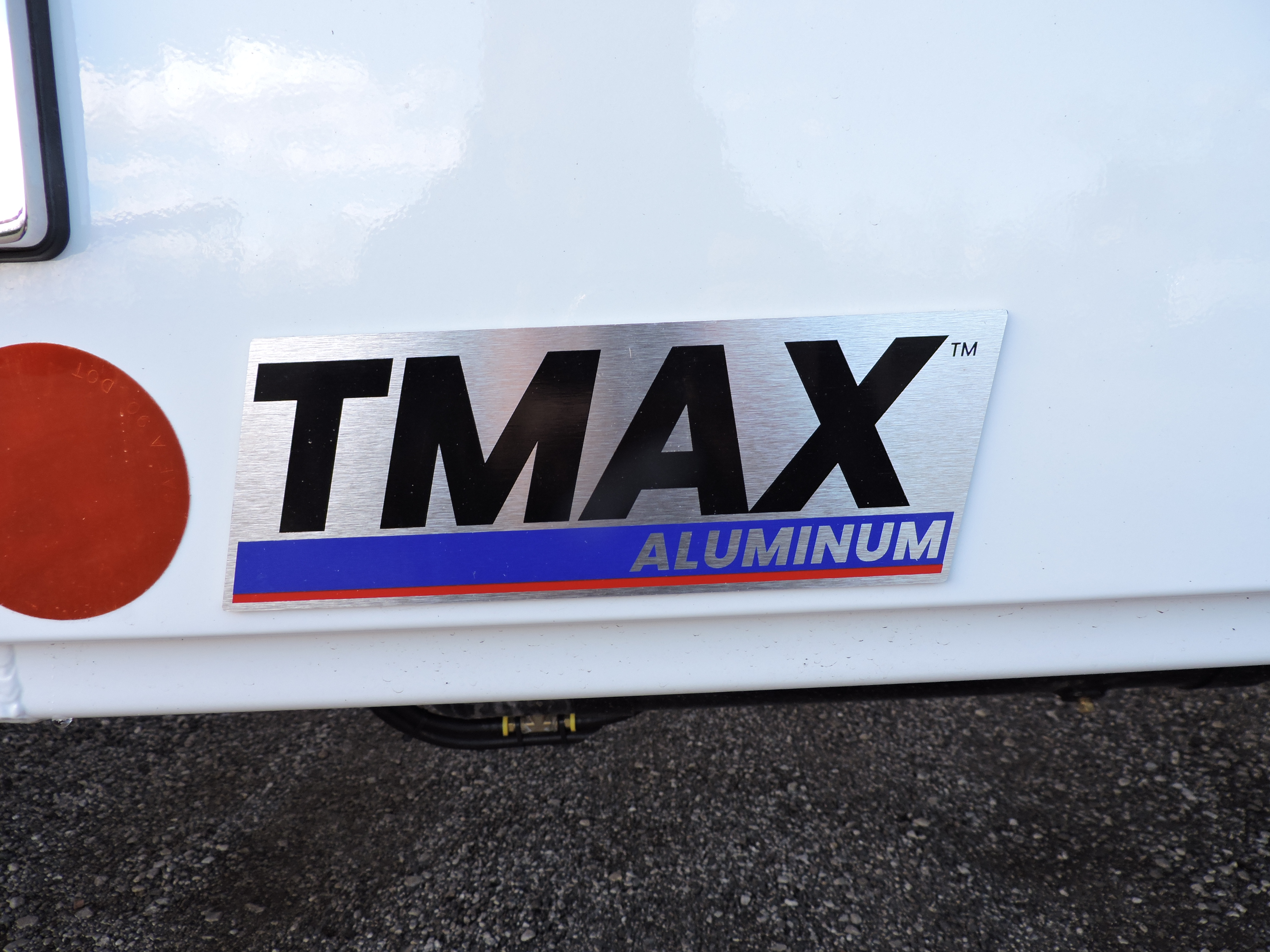

Stellar TMAX1-11 Aluminum Mechanic Body equipped as follows:

-          Aluminum doors and side packs

-          Torsion box understructure with isolated, steel crane compartment

-          Master-Lock system

-          133” long

-          Six (6) recessed cargo tie-downs

-          Rear mounted grab handle

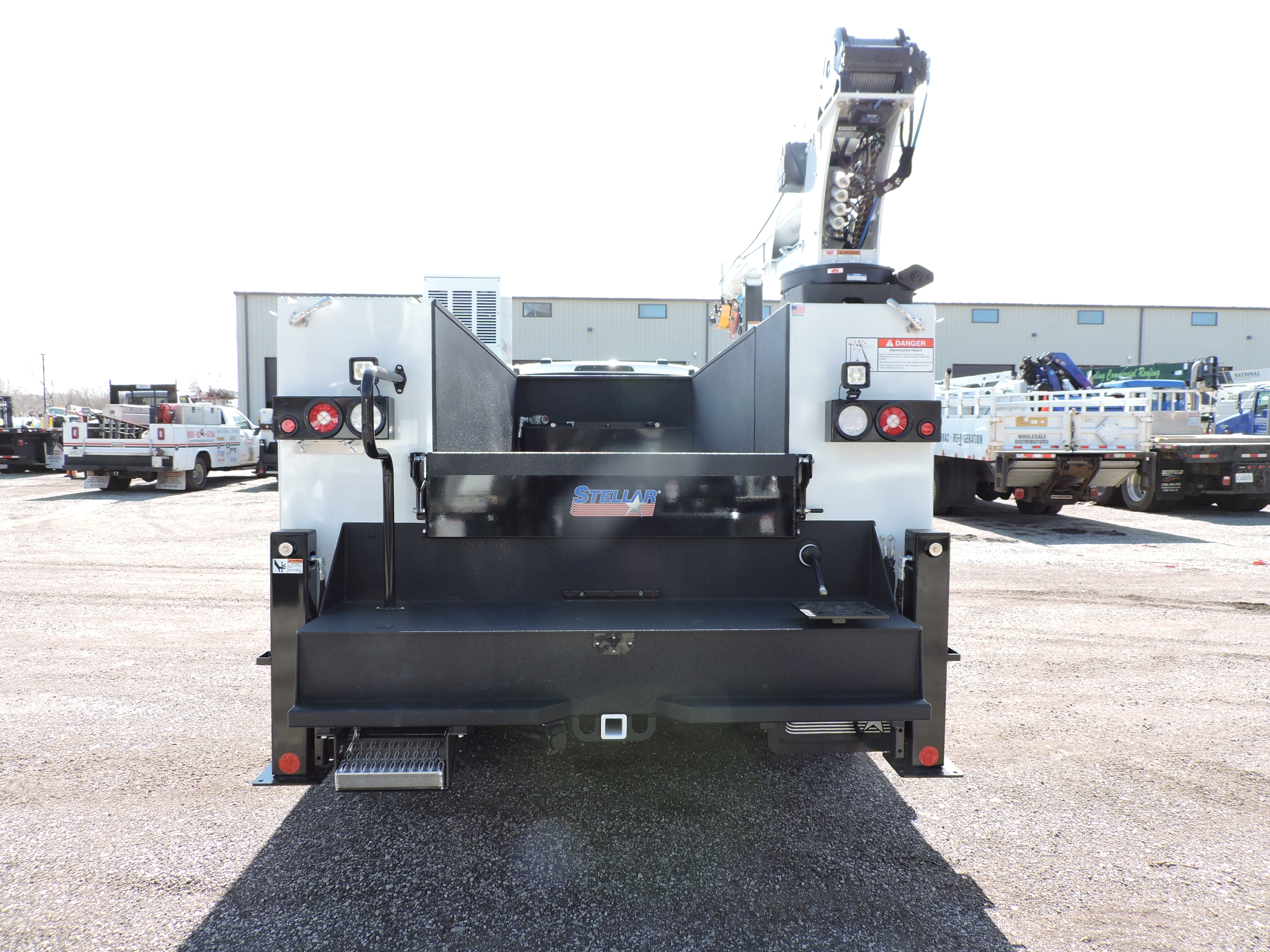

-          12” fold down tailgate – painted black

-          21” work bench bumper with thru compartment

-          Vise mounting plate – receiver workbench mount

-          Step, slide out for TMAX mechanics work bench bumper

-          Rubber fenderettes

-          All compartments raised to 52” H x 22” D

-          Overlapped doors on SS1V/CS1V and horizontal compartments

-          2 & 3 point stainless steel compression latches

-          Stainless steel “Billet Style” hinges

-          Spring loaded door stops

-          Dual-seal automotive type compartment weather seal

-          LED compartment lights

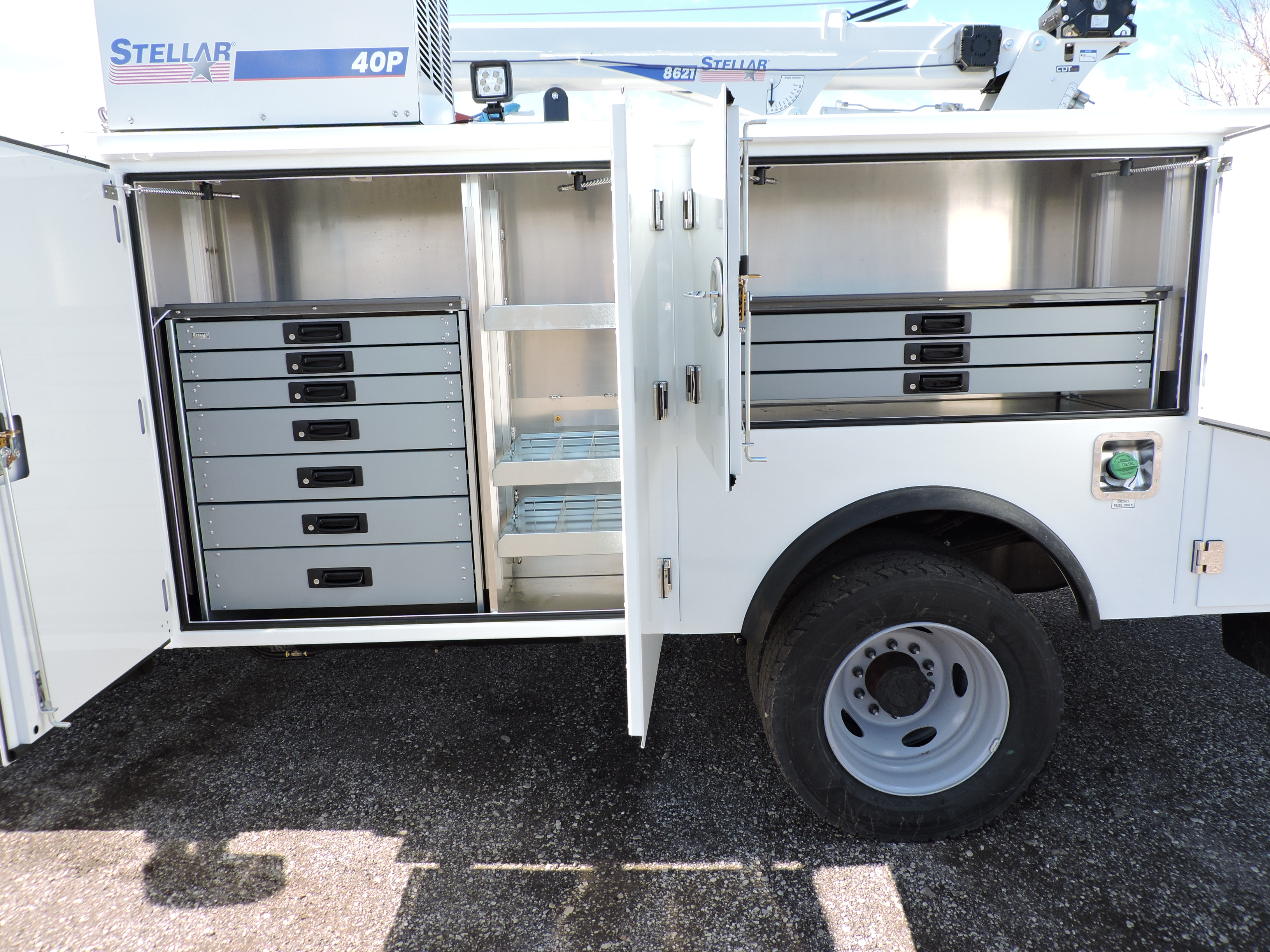

-          SS1VF – Heavy duty aluminum drawer set – 35.5” H x 31” W x 18” D – 3-3”, 3-5”,1-7”

-          SS1VR – Three (3) shelves with (3) dividers

-          SS Horizontal – Heavy duty aluminum drawer set

-          SS Rear – Three (3) shelves with (3) dividers

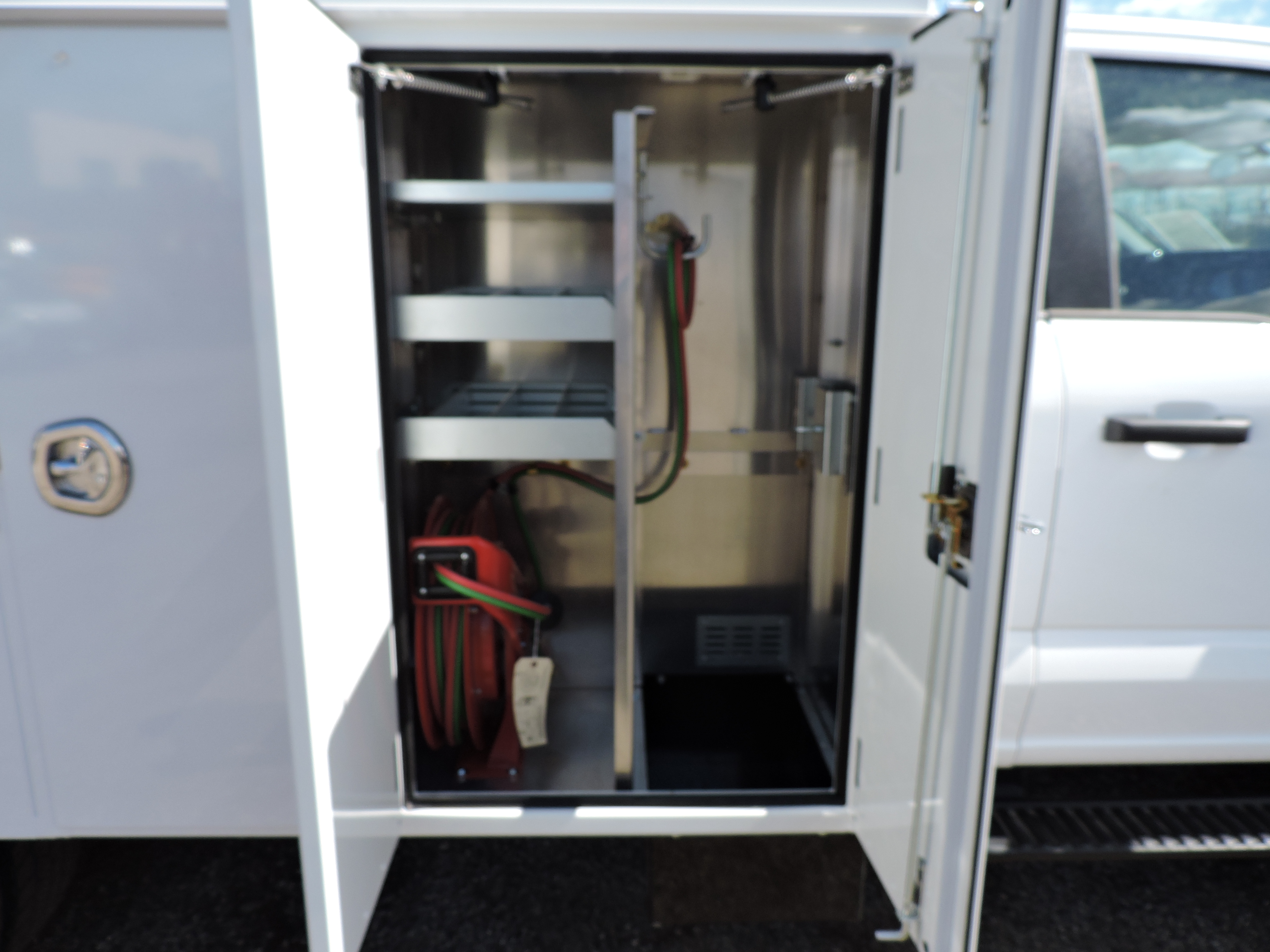

-          CS1V – Divider kit with shelves and 8” drop well. Oxy-Acetylene bottle holder holds 2 bottles. Oxy-acetylene twin hose reel with 50’ twin hose

-          CS2V – Three (3) shelves with (3) dividers

-          CS Horizontal – Shelf with 3 dividers

-          CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

-          Stellar 40P hydraulic driver compressor – produces 40 CFM at 100 psi, 2-cylinder, single stage compressor, direct drive coupling, and hydraulic motor

-          25-gallon air tank kit (1 10-gallon, 1 15-gallon)

-          FLR system – (filter, lubricator, regulator)

-          20-gallon hydraulic reservoir – bulkhead mounted

-          Two (2) LED floodlights

-          Backup alarm

-          ICC safety kit – 2.5# fire extinguisher and reflector kit

-          Weld-on receiver hitch

-          Spray-on bed liner for load bed walls and floors, and workbench

-          Undercoated

-          Prime painted white

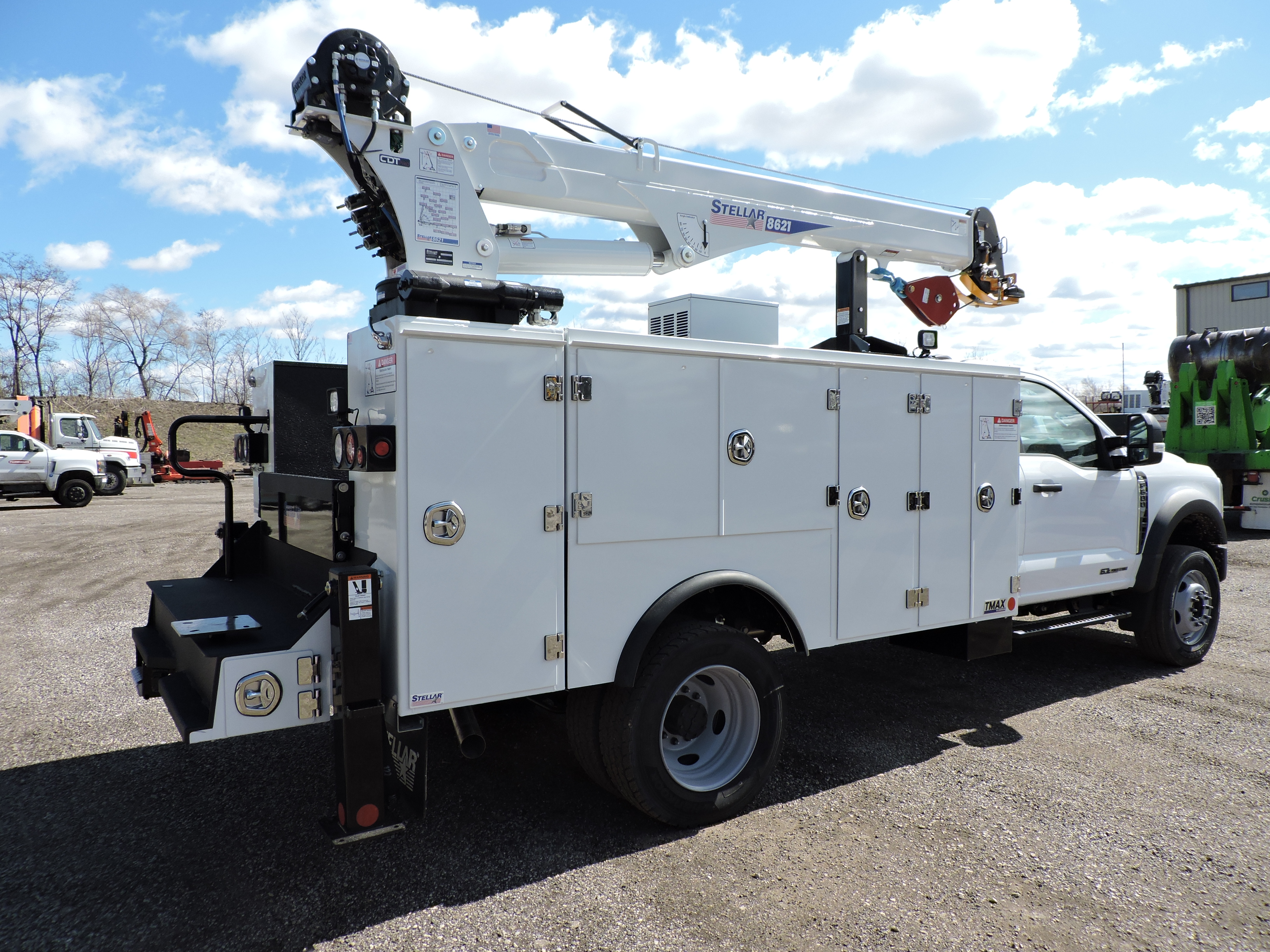

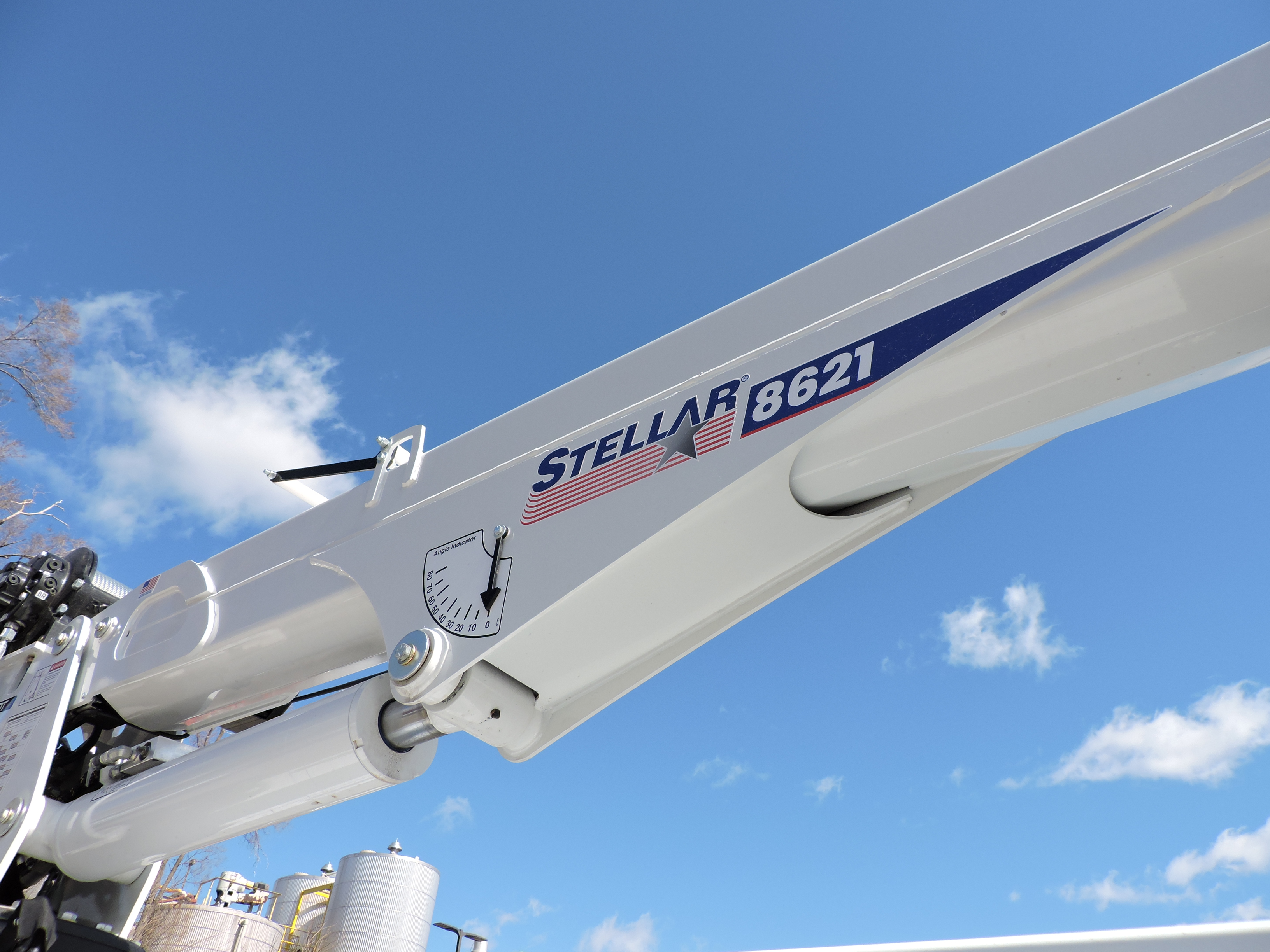

Stellar 8621 telescopic crane equipped as follows:

-          53,1000 ft/lb rated

-          8,600# maximum capacity

-          21’ maximum hydraulic reach

-          Boom elevation: -10° to +80°

-          400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

-          Planetary winch with 100’ of 3/8” wire rope

-          Max line pull speed 60ft/min

-          Quick release snatch block stow

-          Adjustable boom support, roller rest

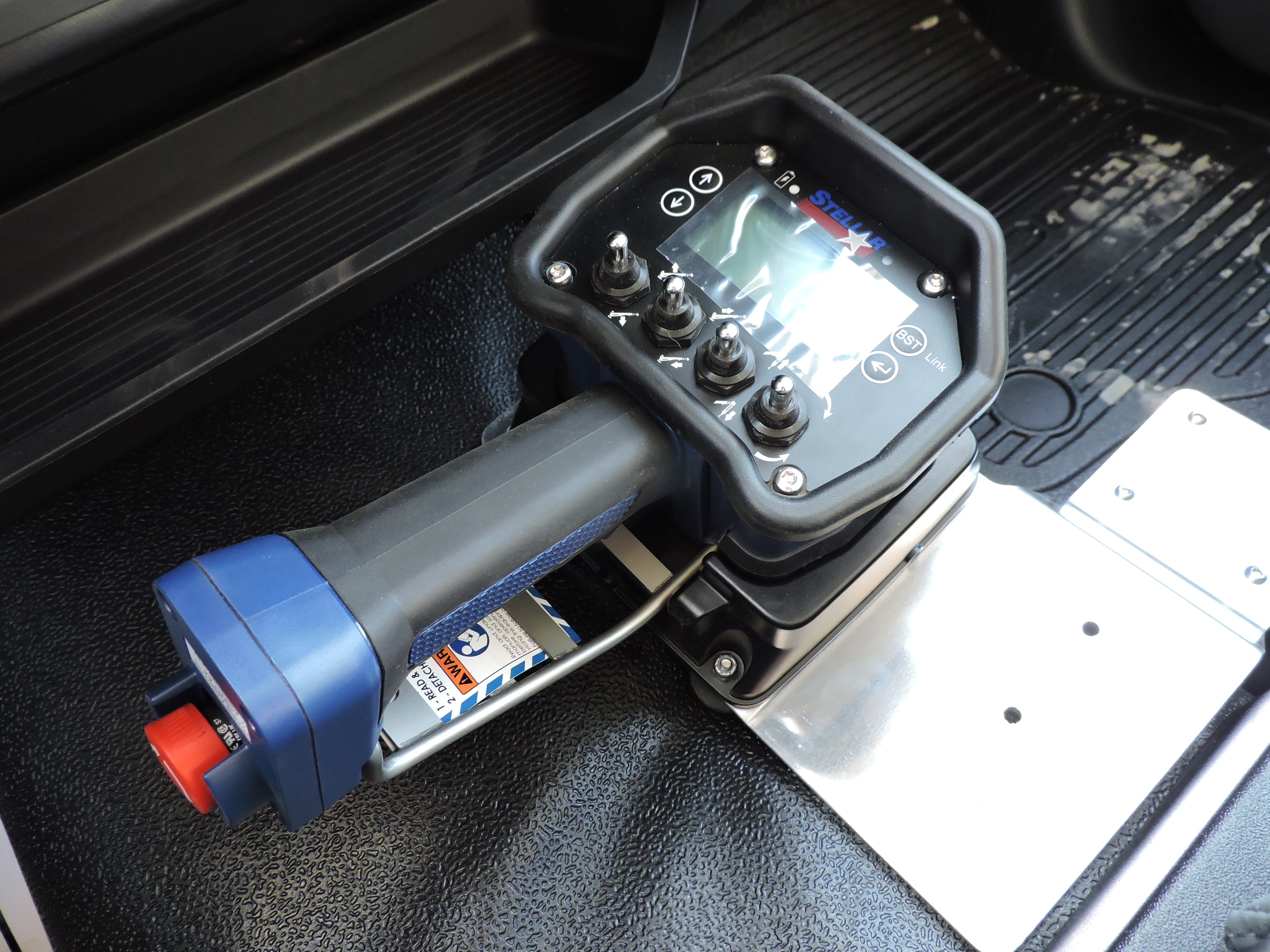

-          Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

-          CDTpro Control System. The most advanced crane remote ever. Save time by knowing your crane can lift the load before you set up. The innovative, industry-only Range Finder™ technology provides real-time max lifting capacity from any point around the crane

-          On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

-          Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

-          Hydraulic stabilizers



MOUNTED ON:

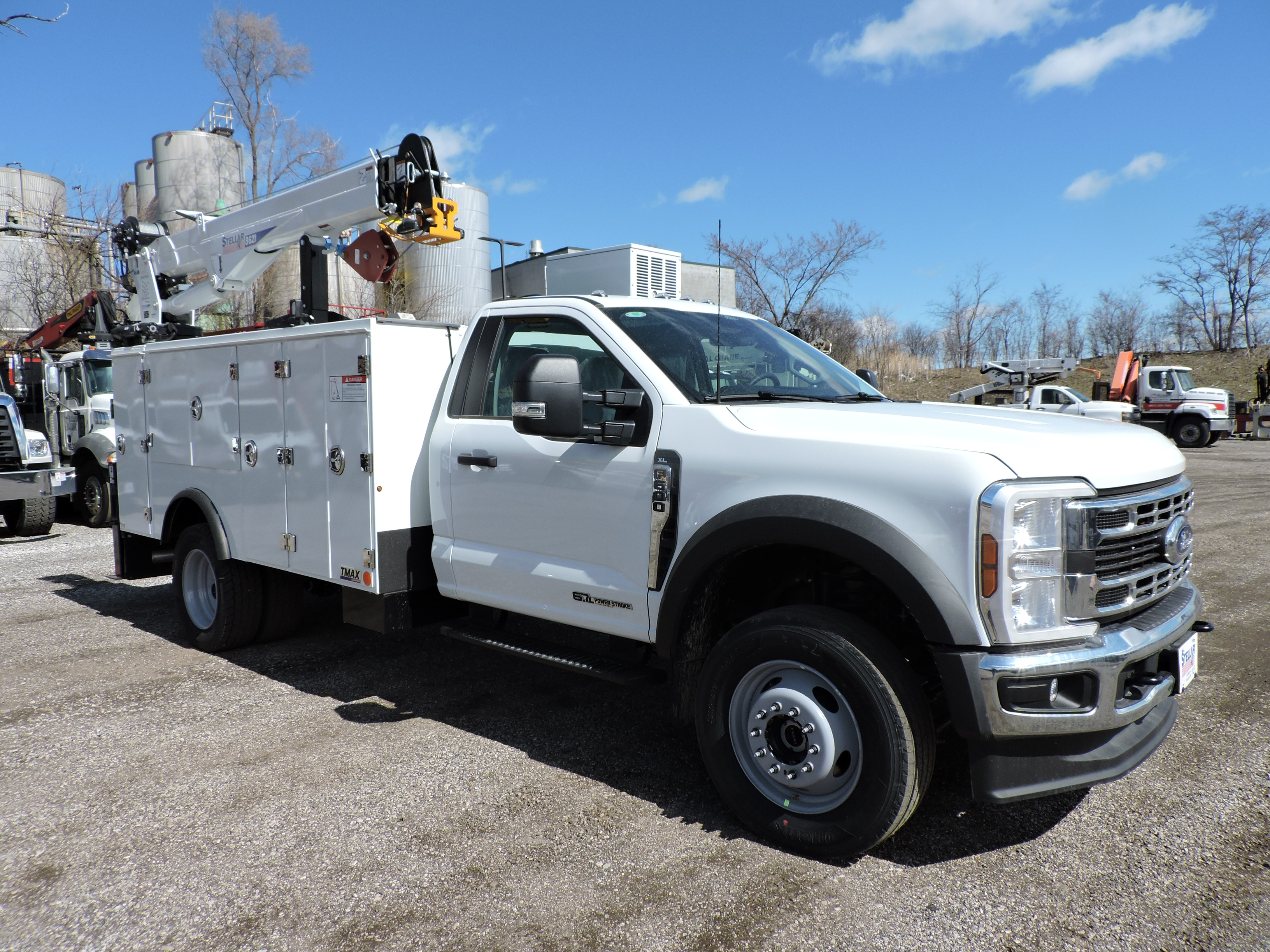

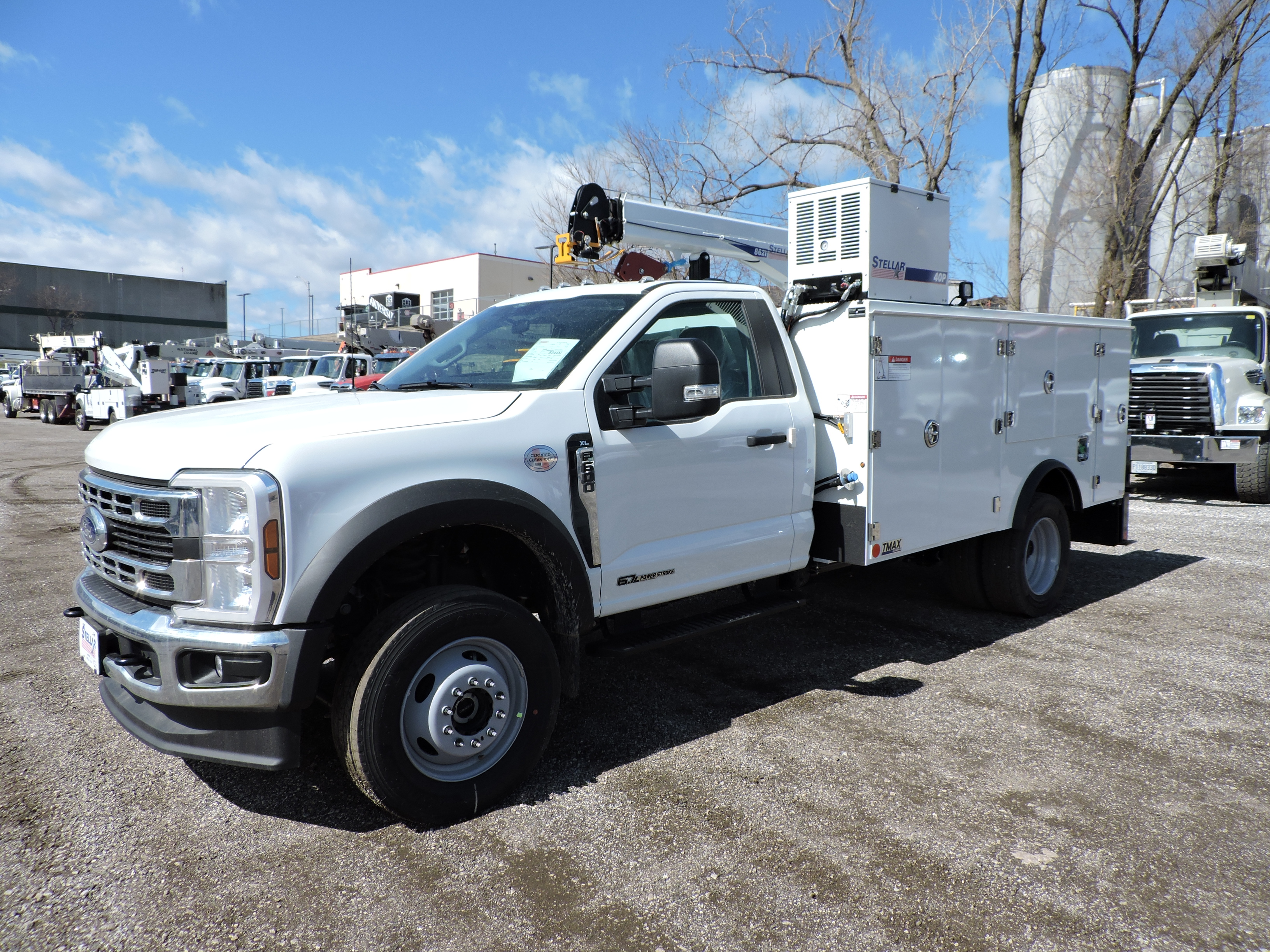

2026 Ford F600 4x4 equipped as follows:

-          22,000 GVWR

-          6.7L 4V OHV Power Stroke V8 Turbo-Diesel B20 – 330 HP @ 2200 RPM, 950 lb/ft torque @ 1800 RPM

-          TorqShift 10-speed automatic transmission

-          Engine block heater

-          Front and rear 19.5” painted steel wheels

-          Tires – 245/70Rx19.5

-          Front axle 7,500 lb

-          Rear axles 15,500 lb

-          169” wheelbase

-          4-wheel ABS brakes

-          Air conditioning

-          Chrome bumper with bright grille

-          40-gallon fuel tank

-          AM/FM stereo with LCD display and USB port

-          40/20/40 split bench seat- vinyl

-          Color white
