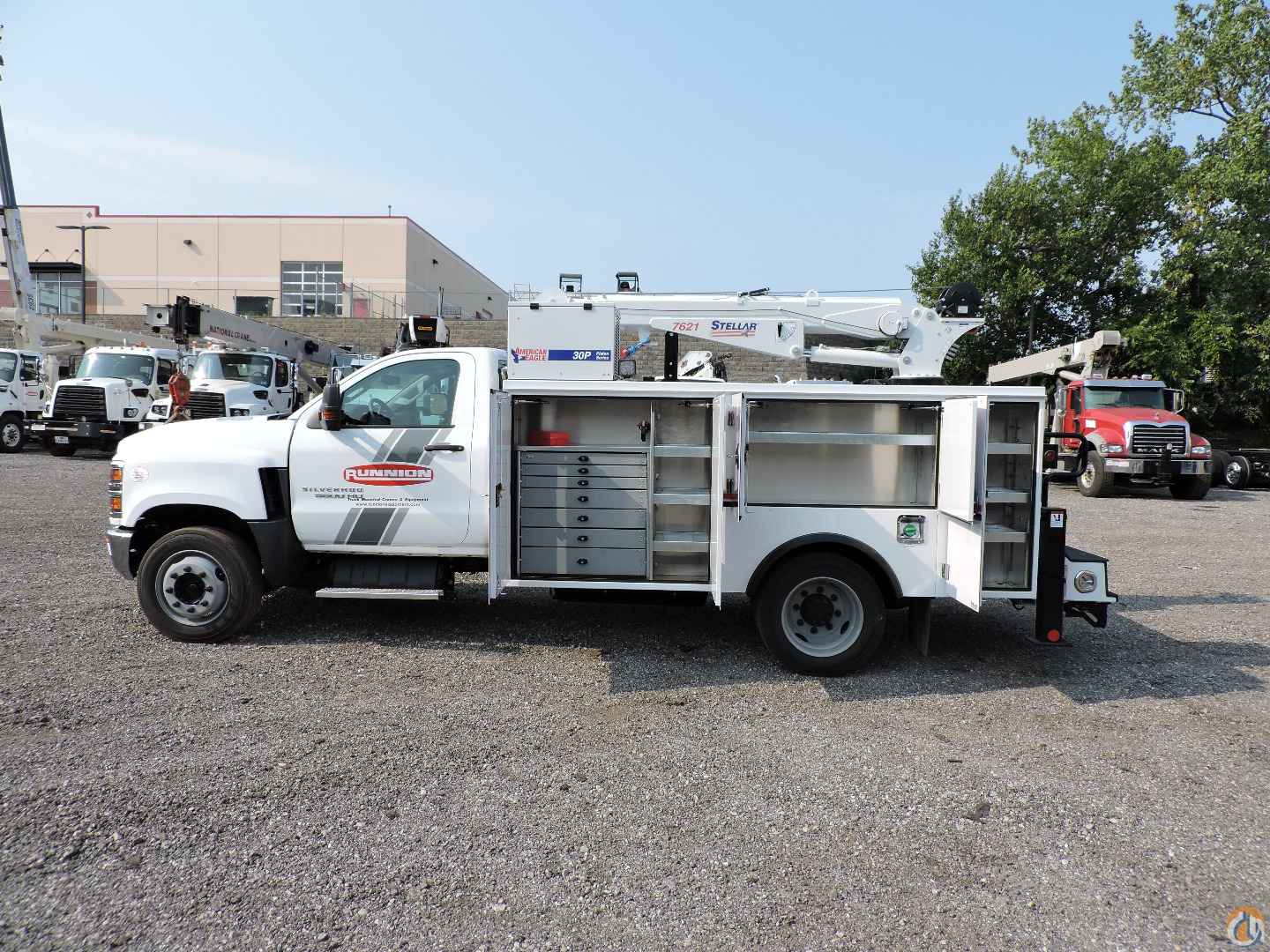

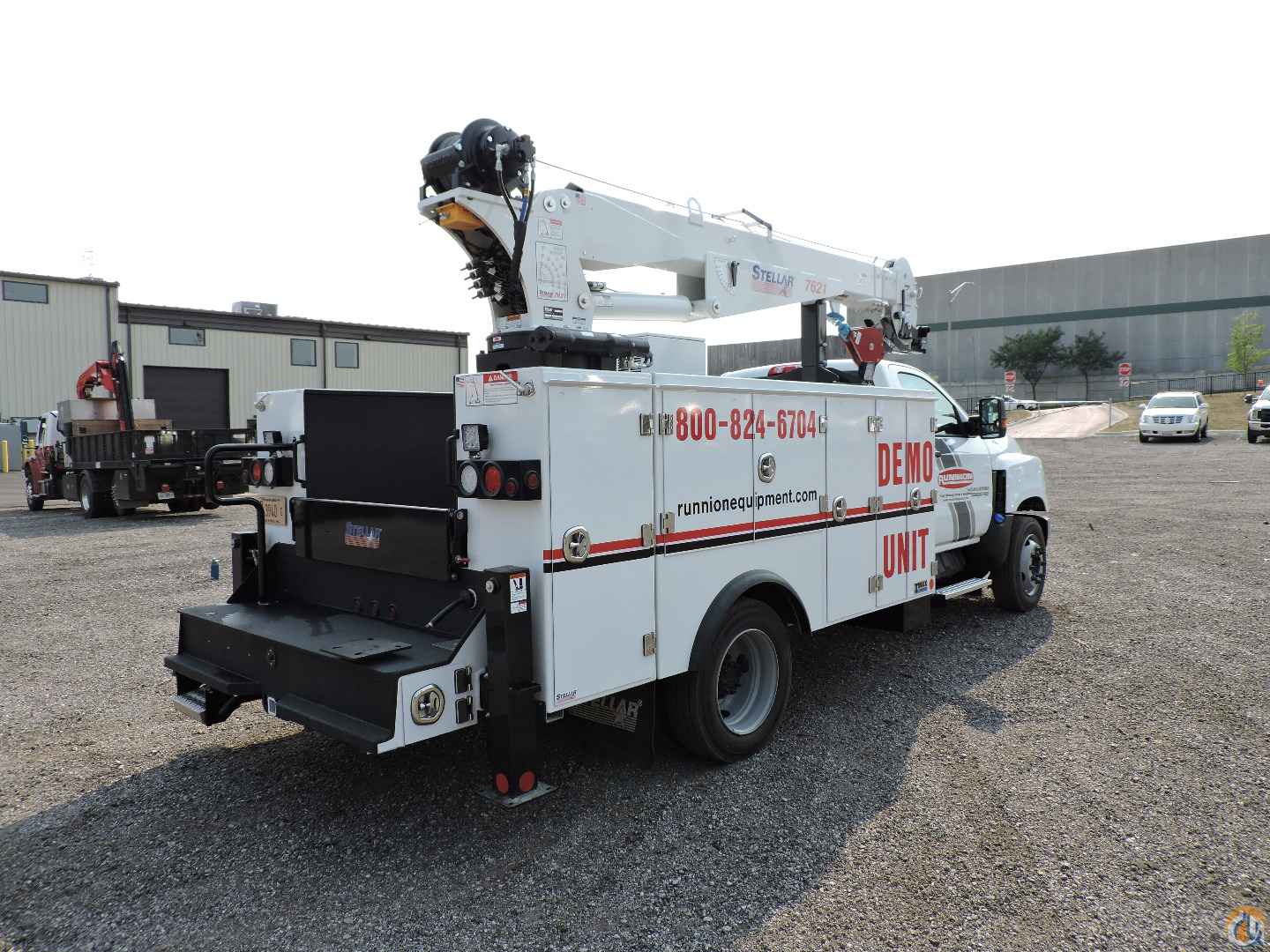

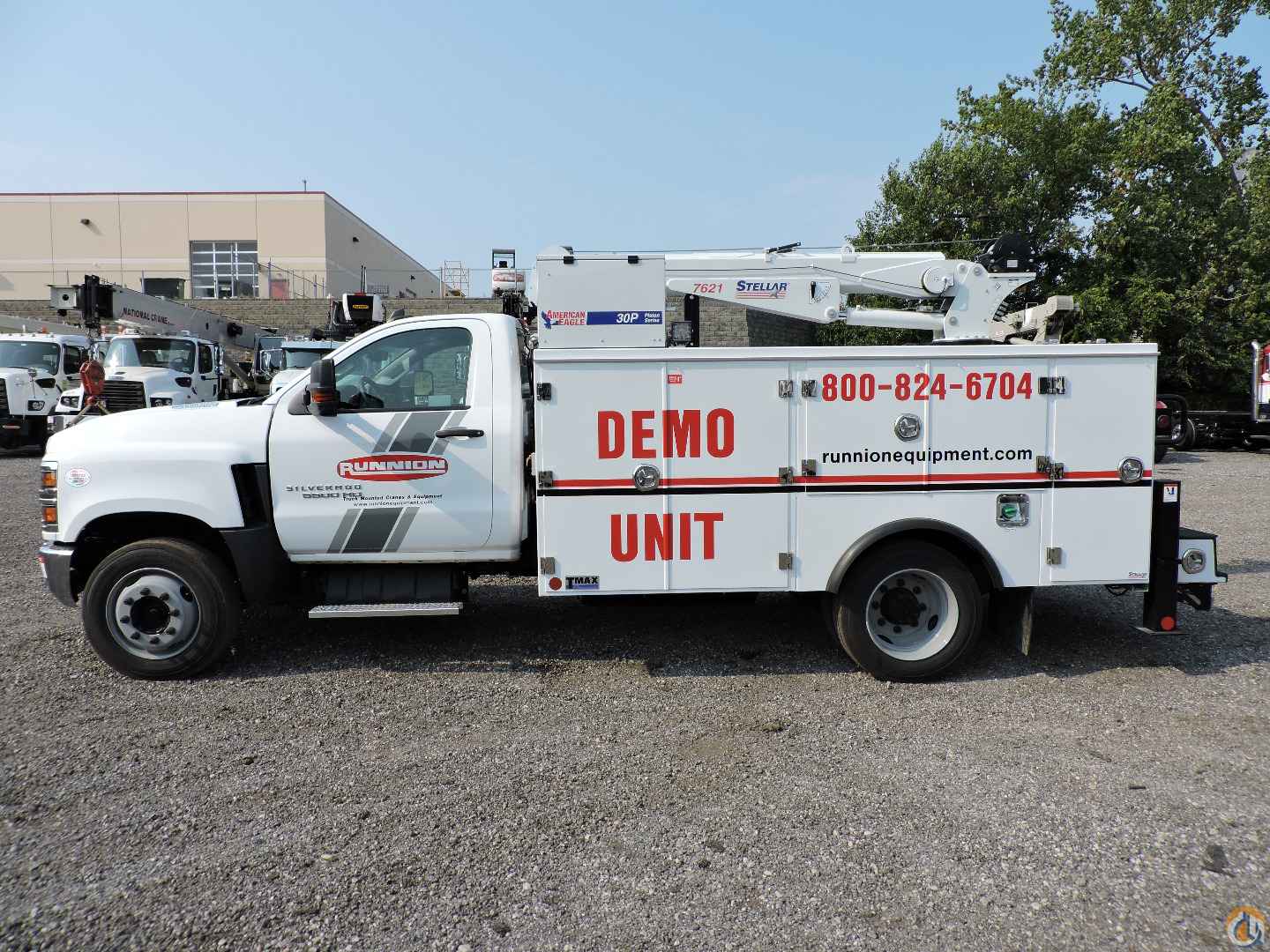

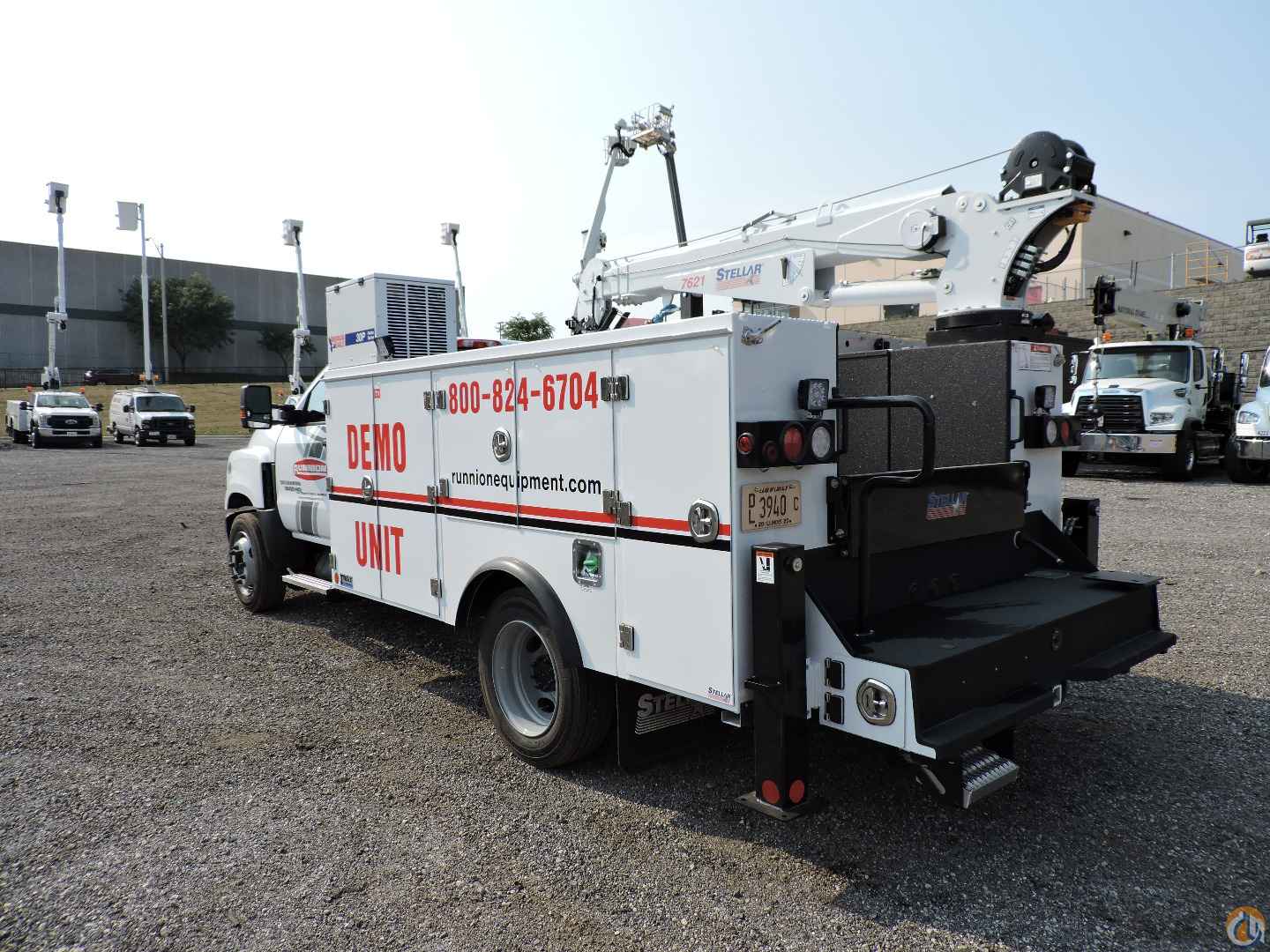

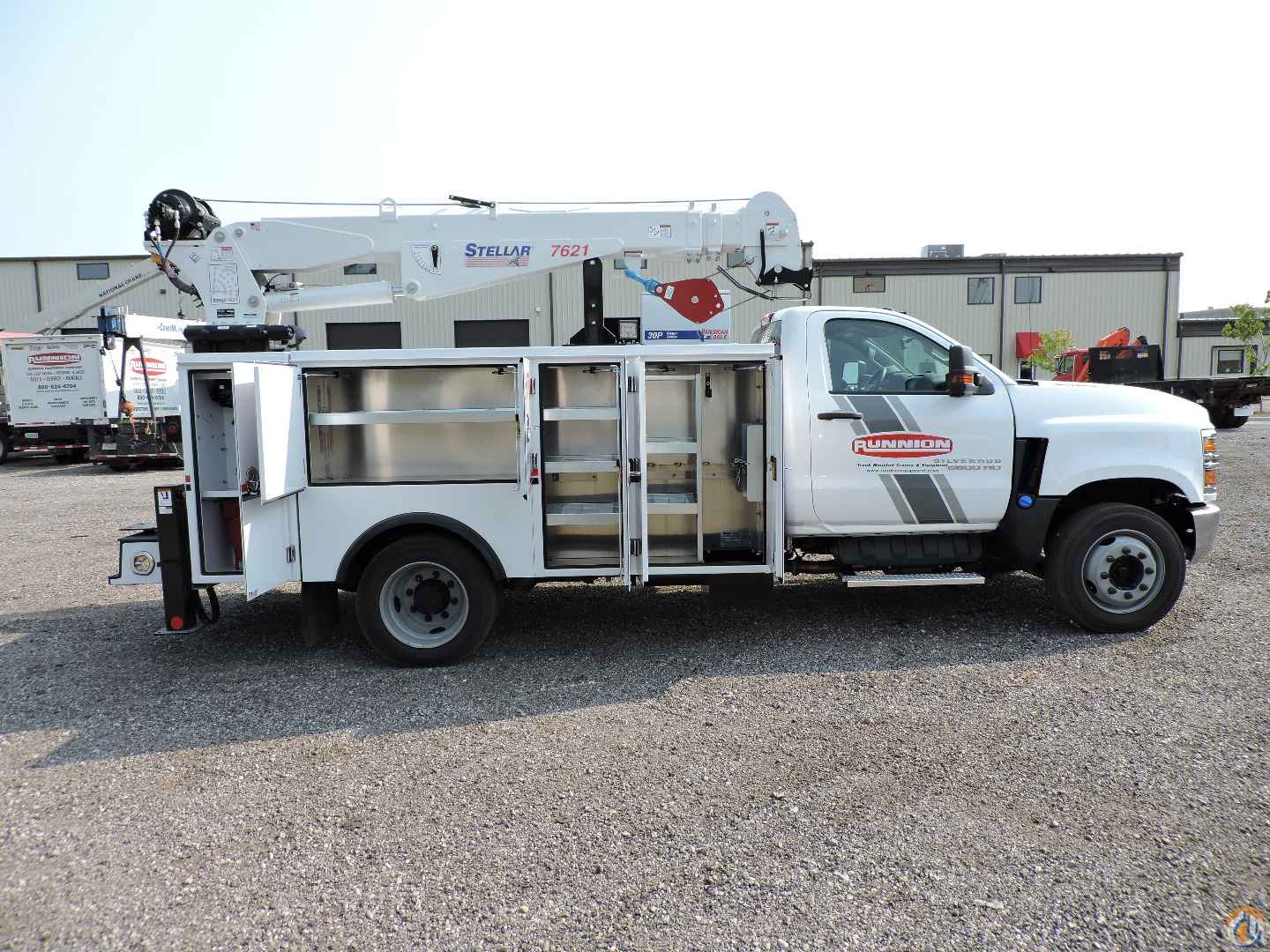

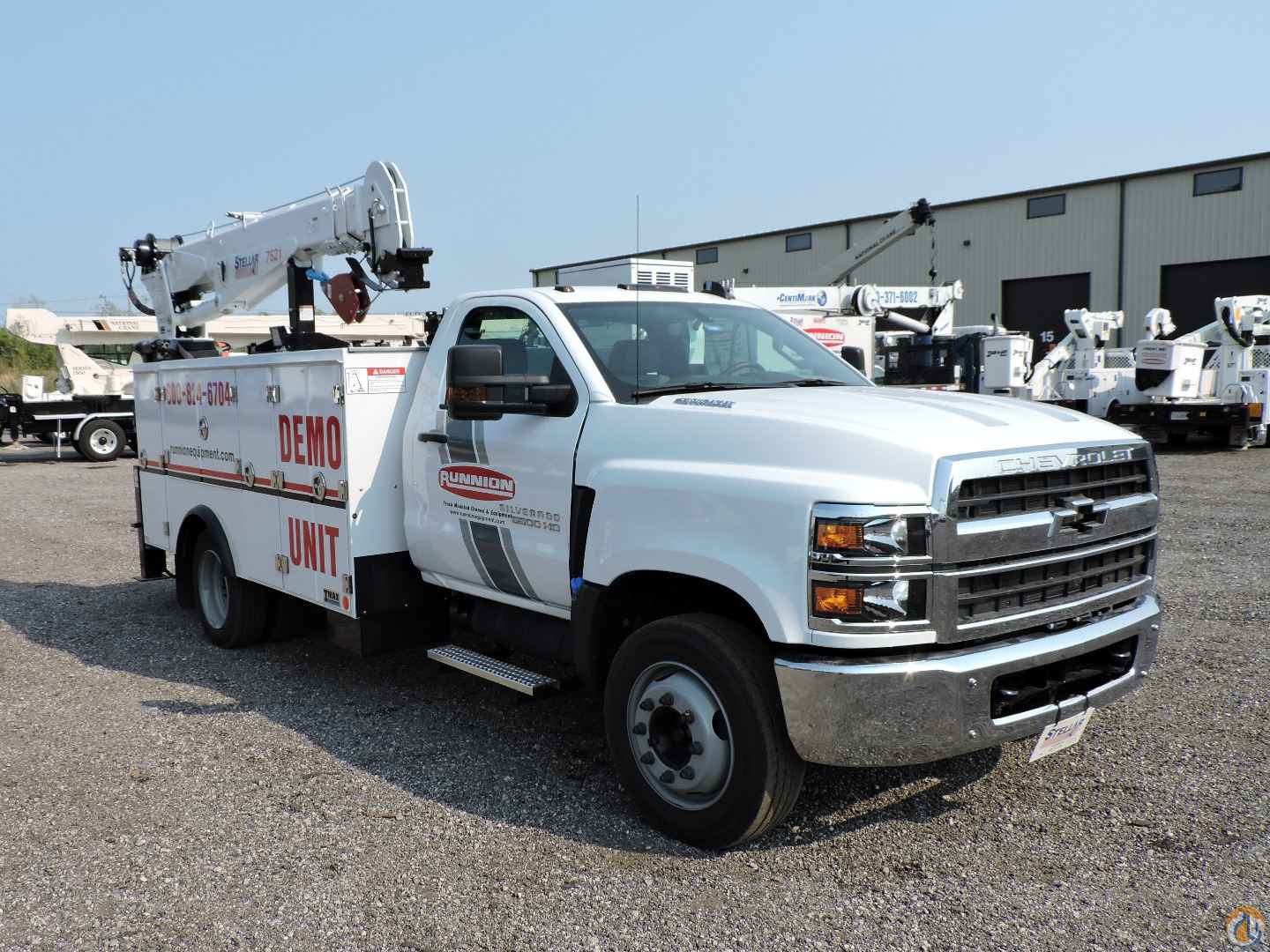

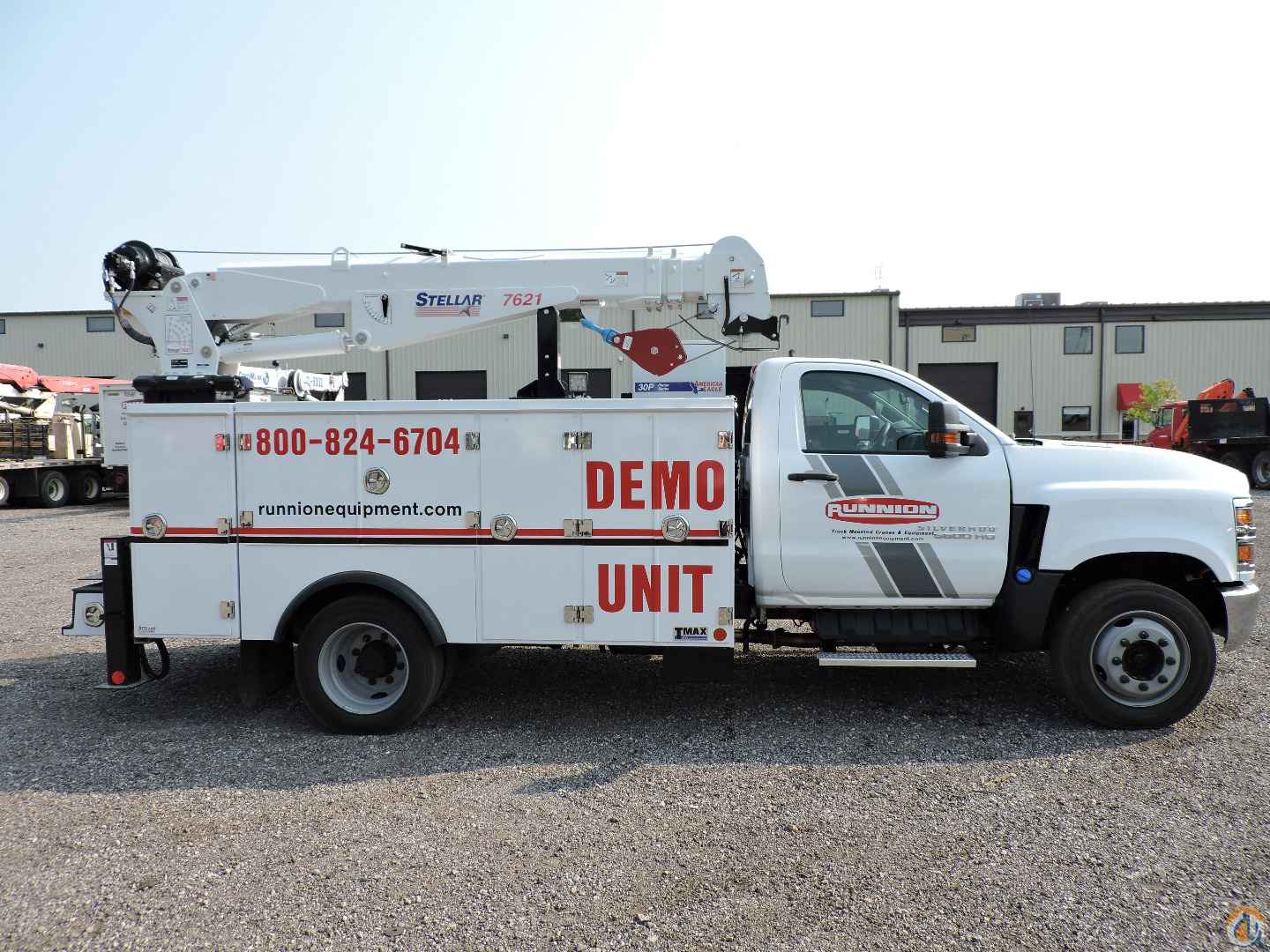

Stellar TMAX1-11’ V2 Aluminum Mechanic Body
- Aluminum doors and side packs
- Torsion box understructure with isolated, steel crane compartment
- Master-Lock system
- 133” long
- 50” load bed width
- Six (6) recessed cargo tie-downs
- Two (2) rear mounted grab handles

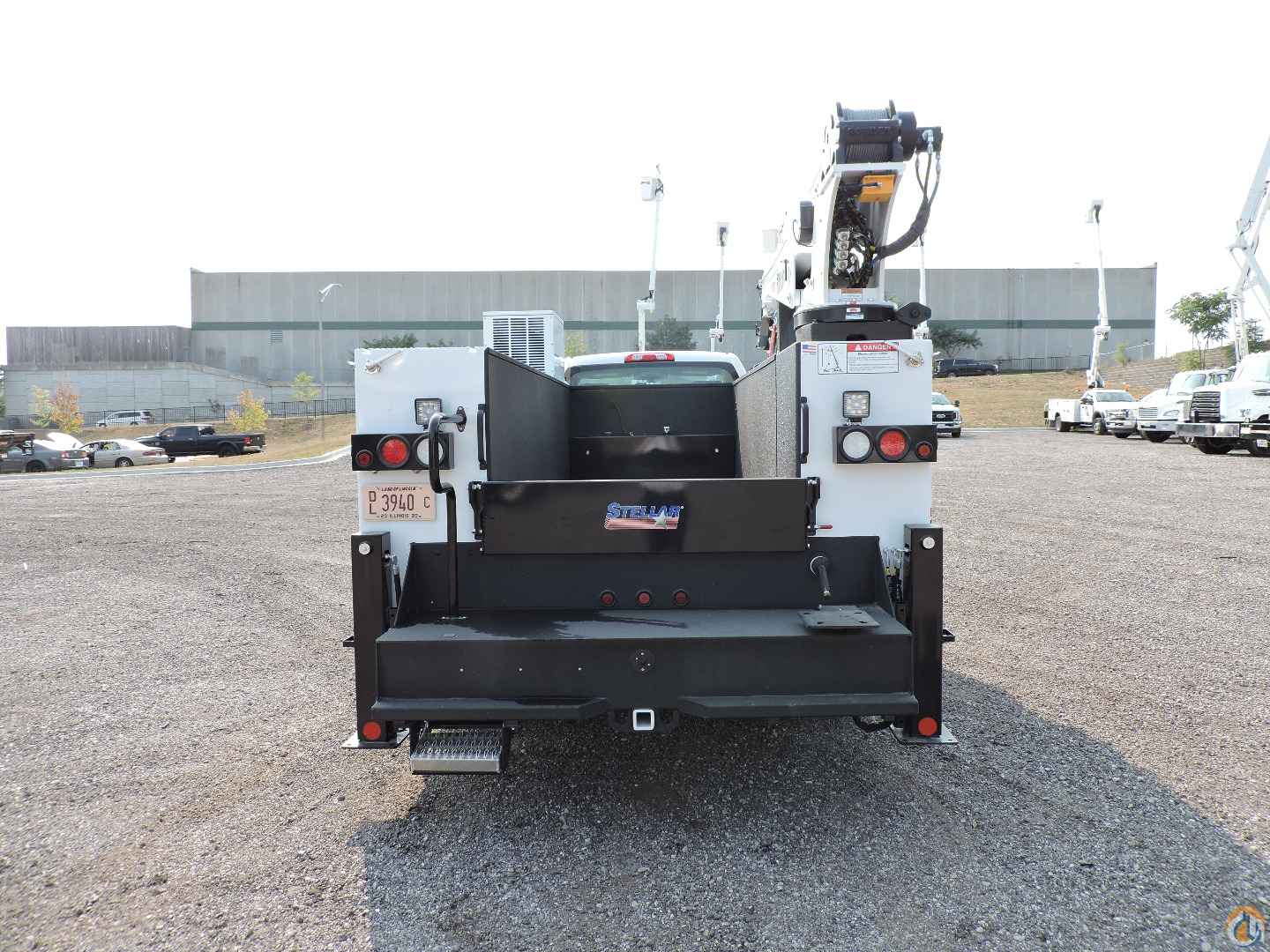

- 12” fold down tailgate – painted black

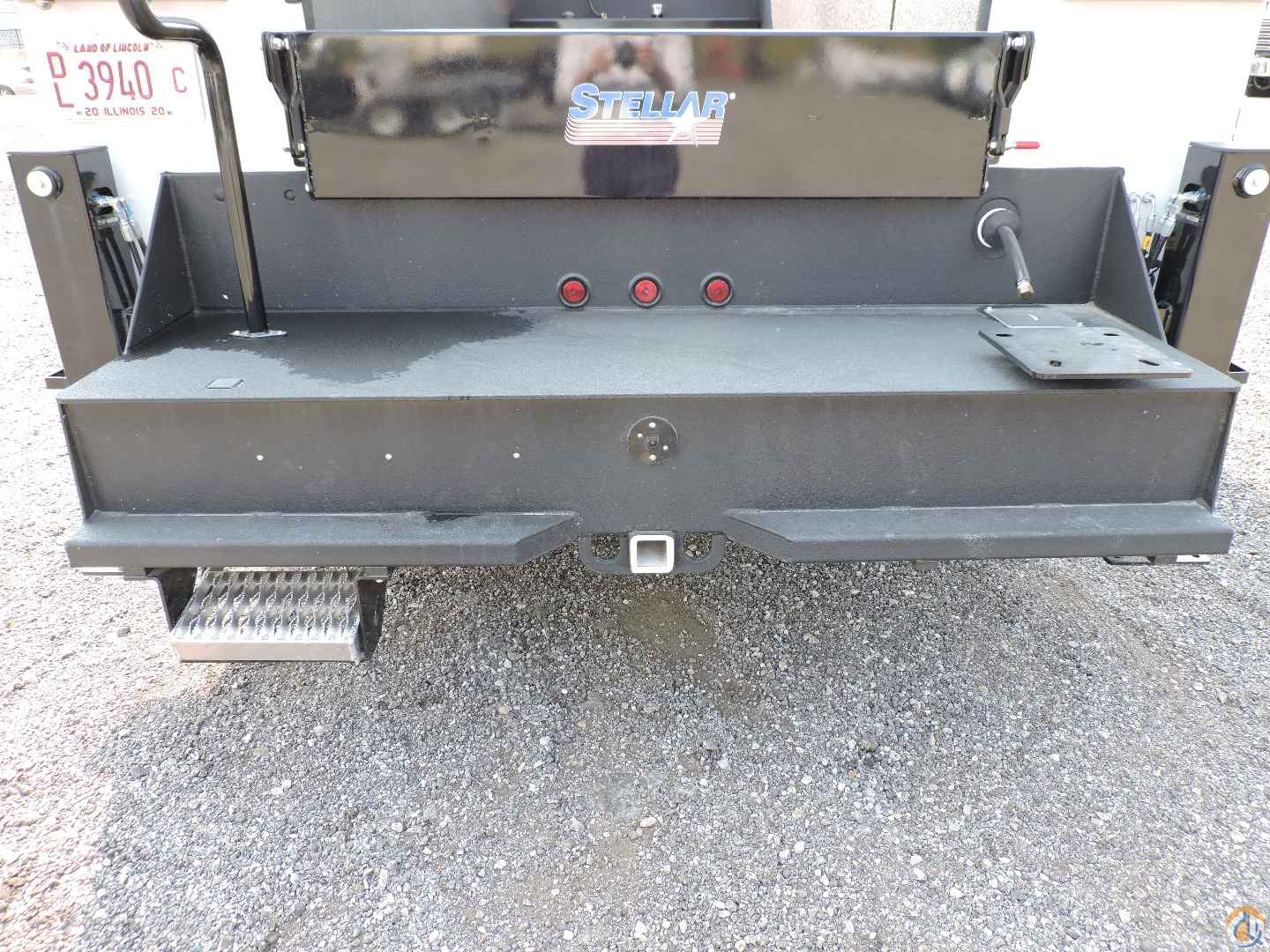

- 21” step bumper with thru compartment
- Vise mounting plate – receiver workbench mount
- Step, slide out for TMAX mechanics work bench bumper
- Rubber fenderettes
- All compartments raised to 52” H x 22” D
- Overlapped doors on SS1V/CS1V and horizontal compartments
- 2 & 3 point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Dual-seal automotive type compartment weather seal
- LED compartment lights

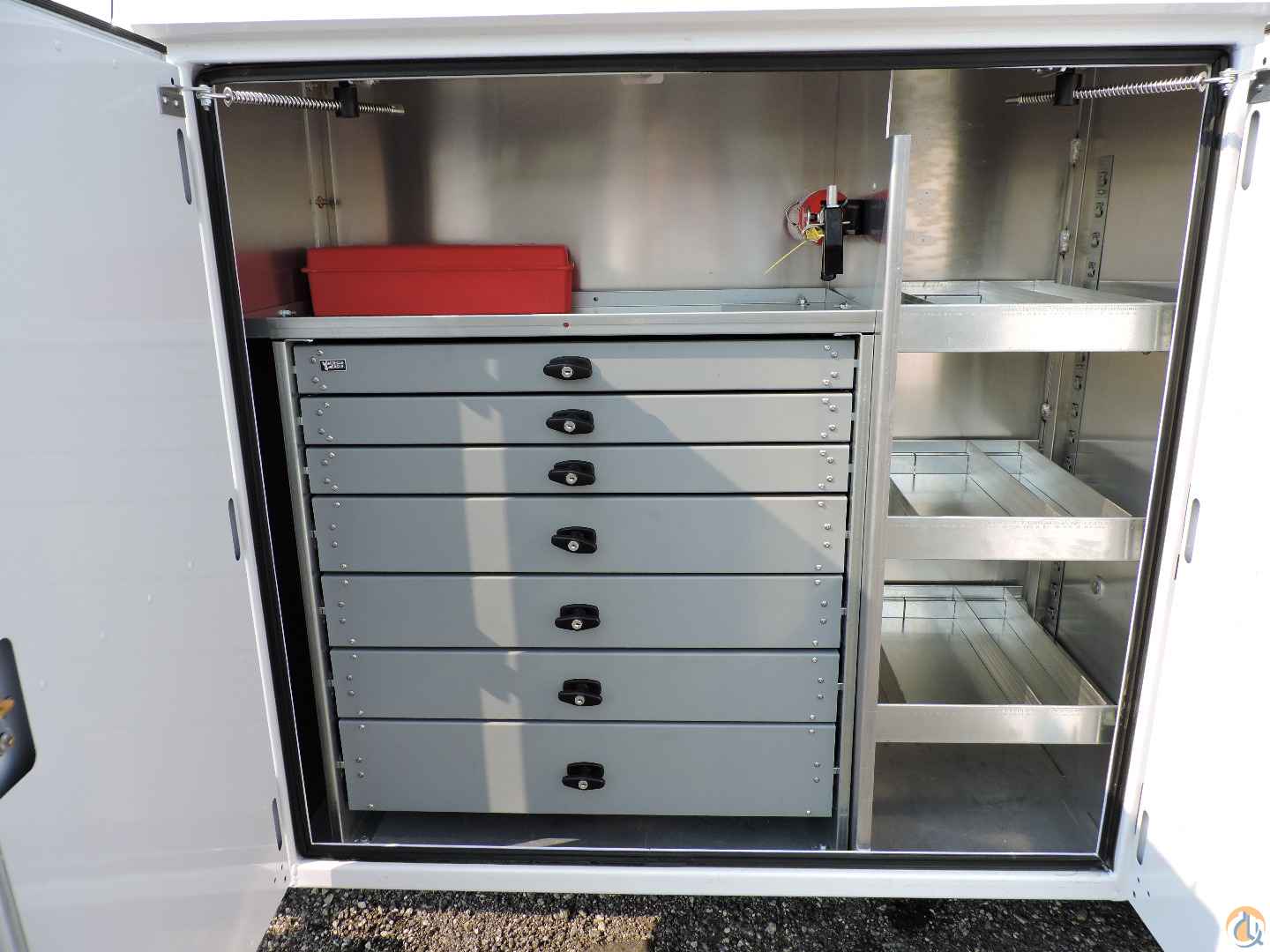

- SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18”D

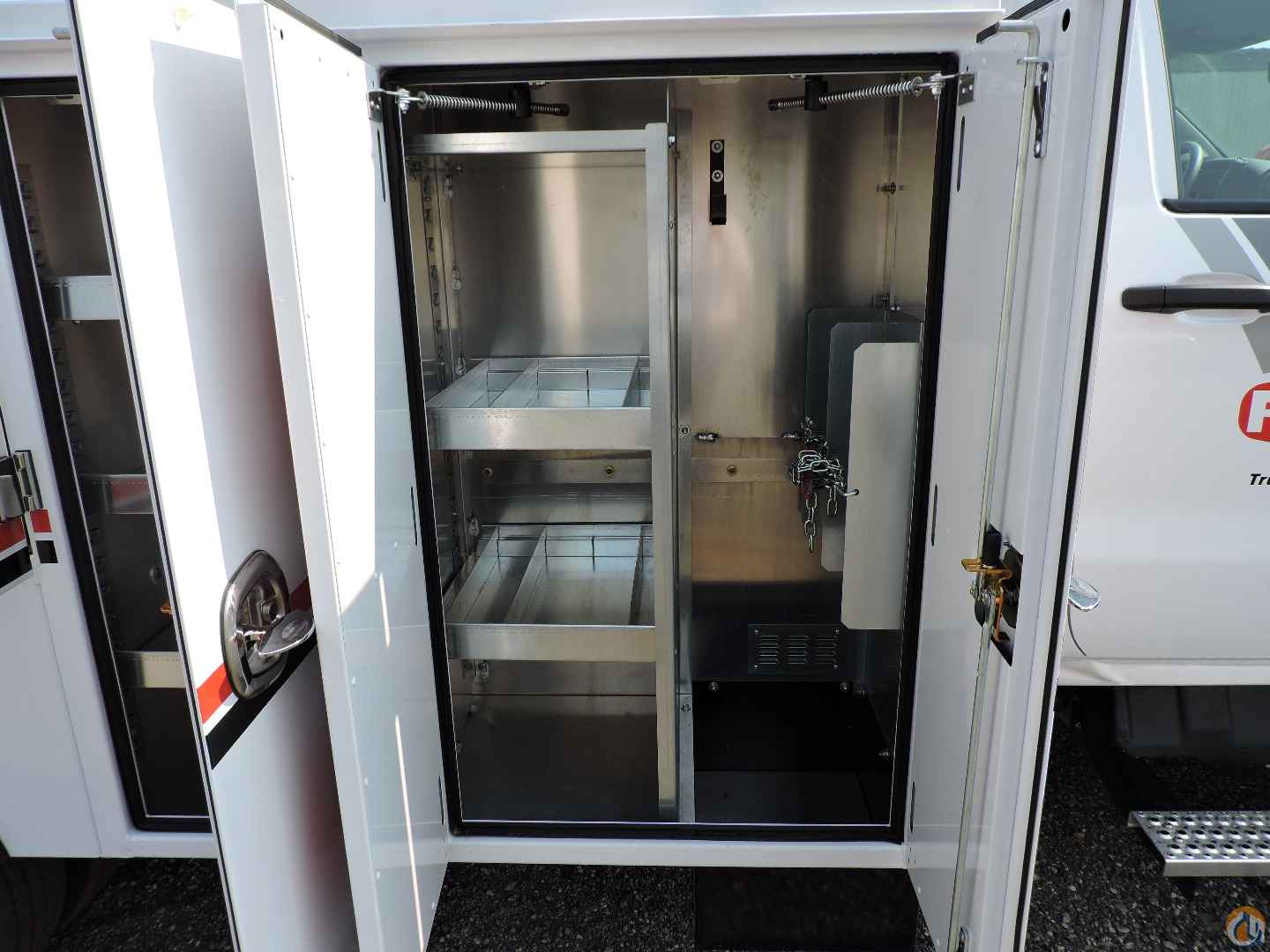

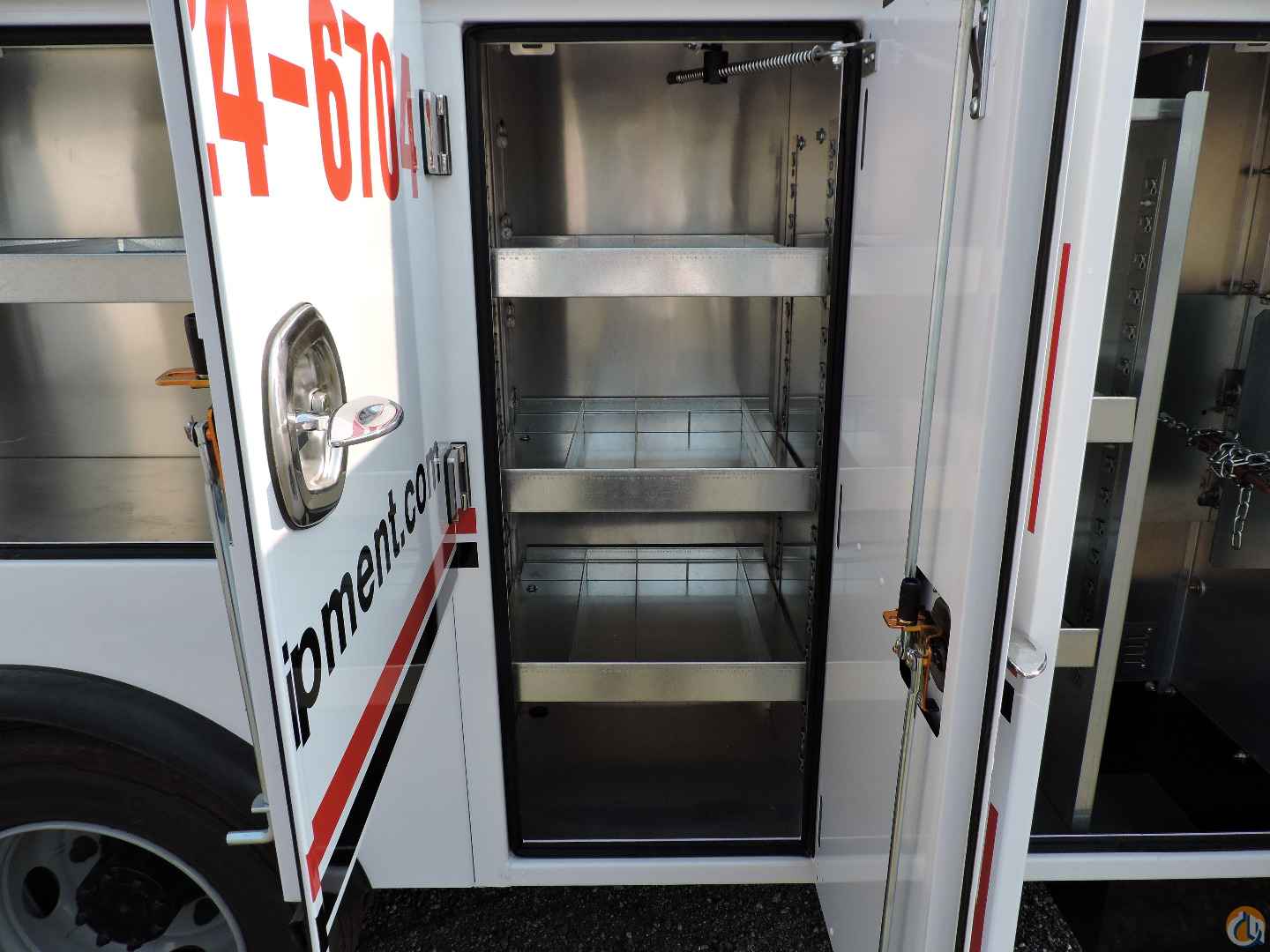

– 3-3”, 3-5”,1-7” - SS1VR – Three (3) shelves with (3) dividers

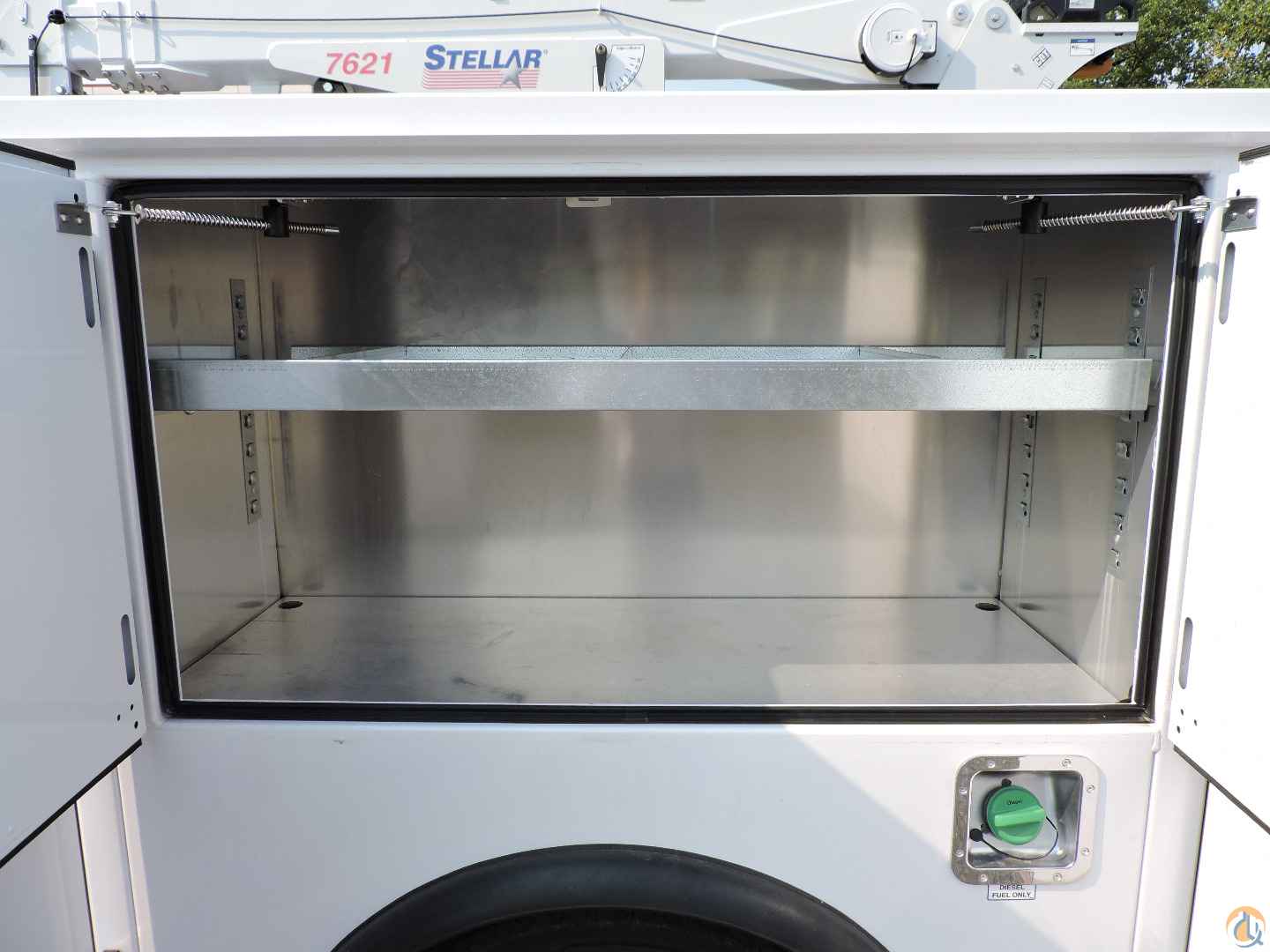

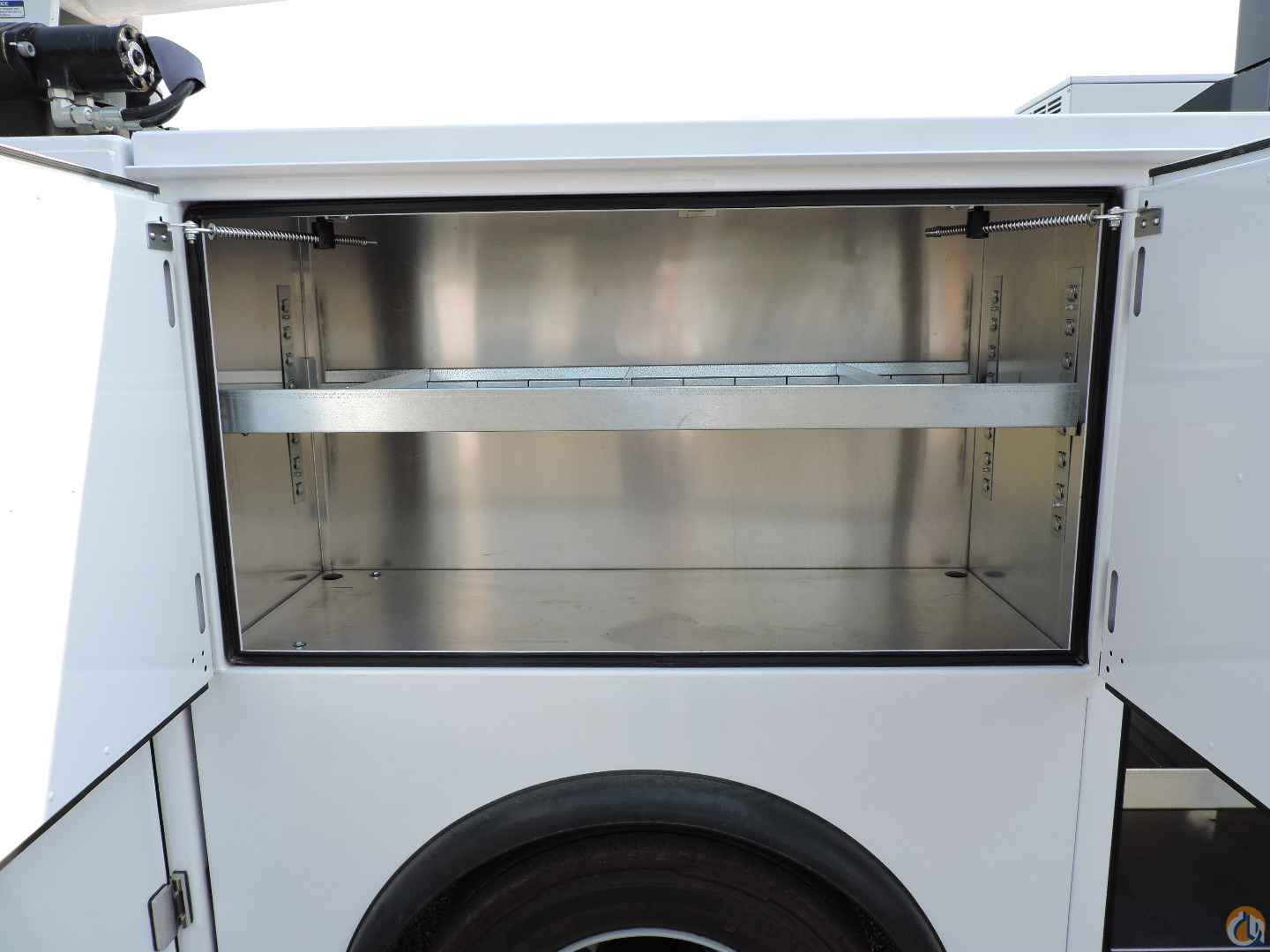

- SS Horizontal – One (1) shelf with (3) dividers

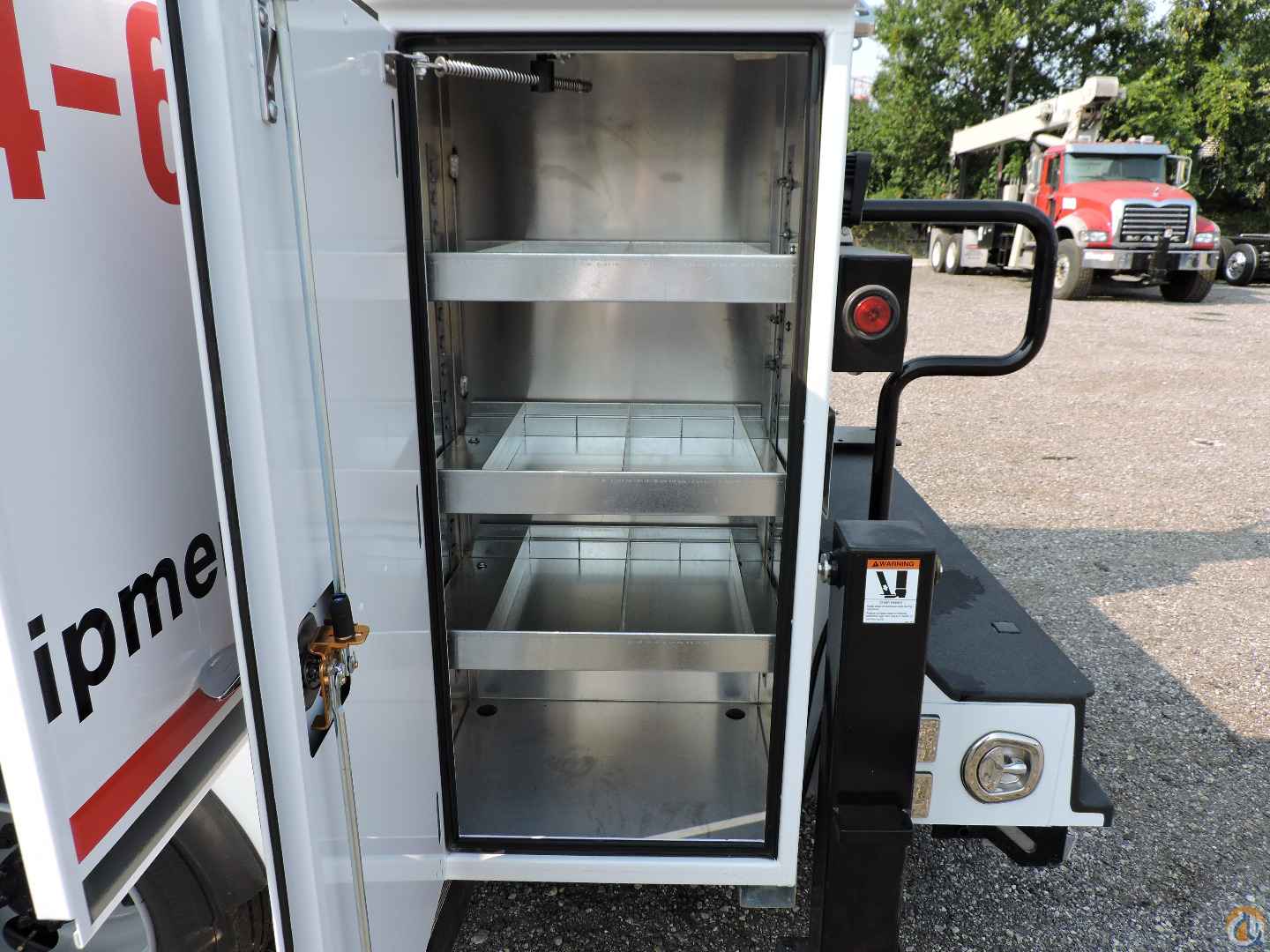

- SS Rear – Three (3) shelves with (3) dividers
- CS1V – Divider kit with shelves and, 8” drop well. Oxy-Acetylene
bottle holder holds 2 bottles - CS2V – Three (3) shelves with (3) dividers
- CS Horizontal – Shelf with 3 dividers

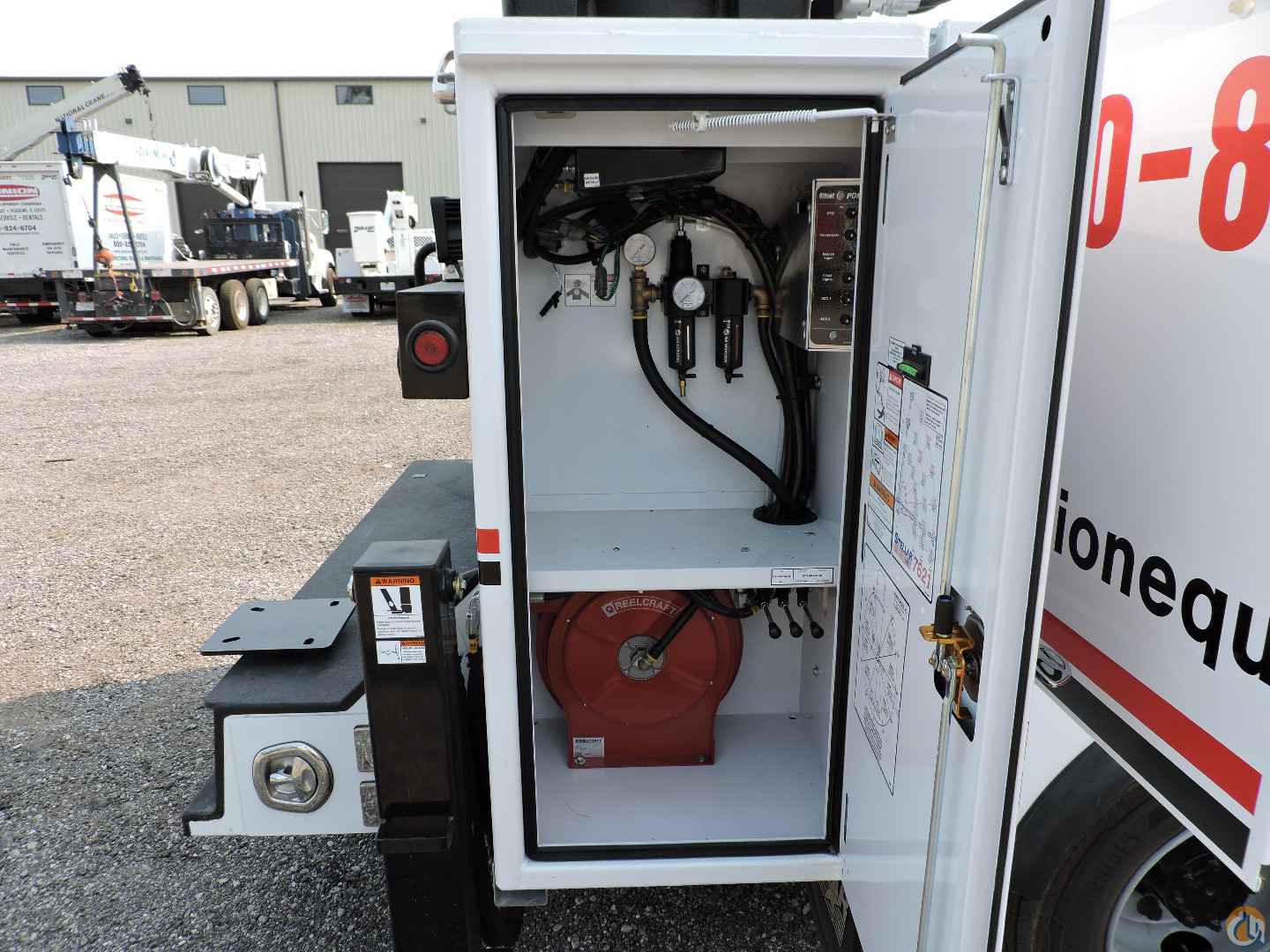

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

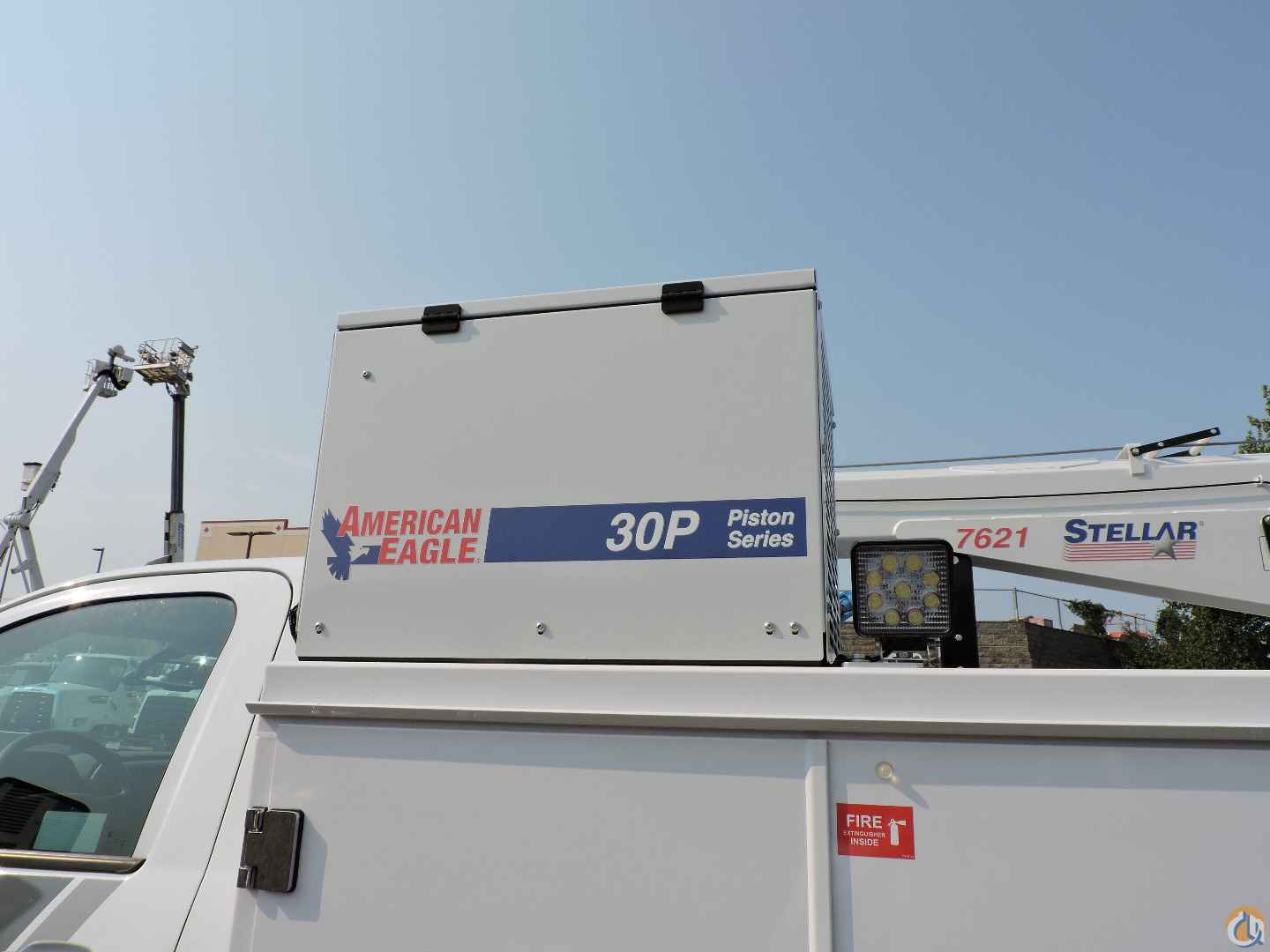

- American Eagle 30P hydraulic driver compressor – produces 30 CFM at
100 psi, 4-cylinder, single stage compressor, direct drive coupling,
and hydraulic motor - 21-gallon air tank kit
- FLR system – ¾” air feed for ½ hose reel (filter, lubricator, regulator)
- 20-gallon hydraulic reservoir – bulkhead mounted
- LED floodlights – Four (4) total. 1 on boom support, 1 SS behind
compressor, 1 on each rear taillight box - Backup alarm
- ICC safety kit – 2.5# fire extinguisher and reflector kit

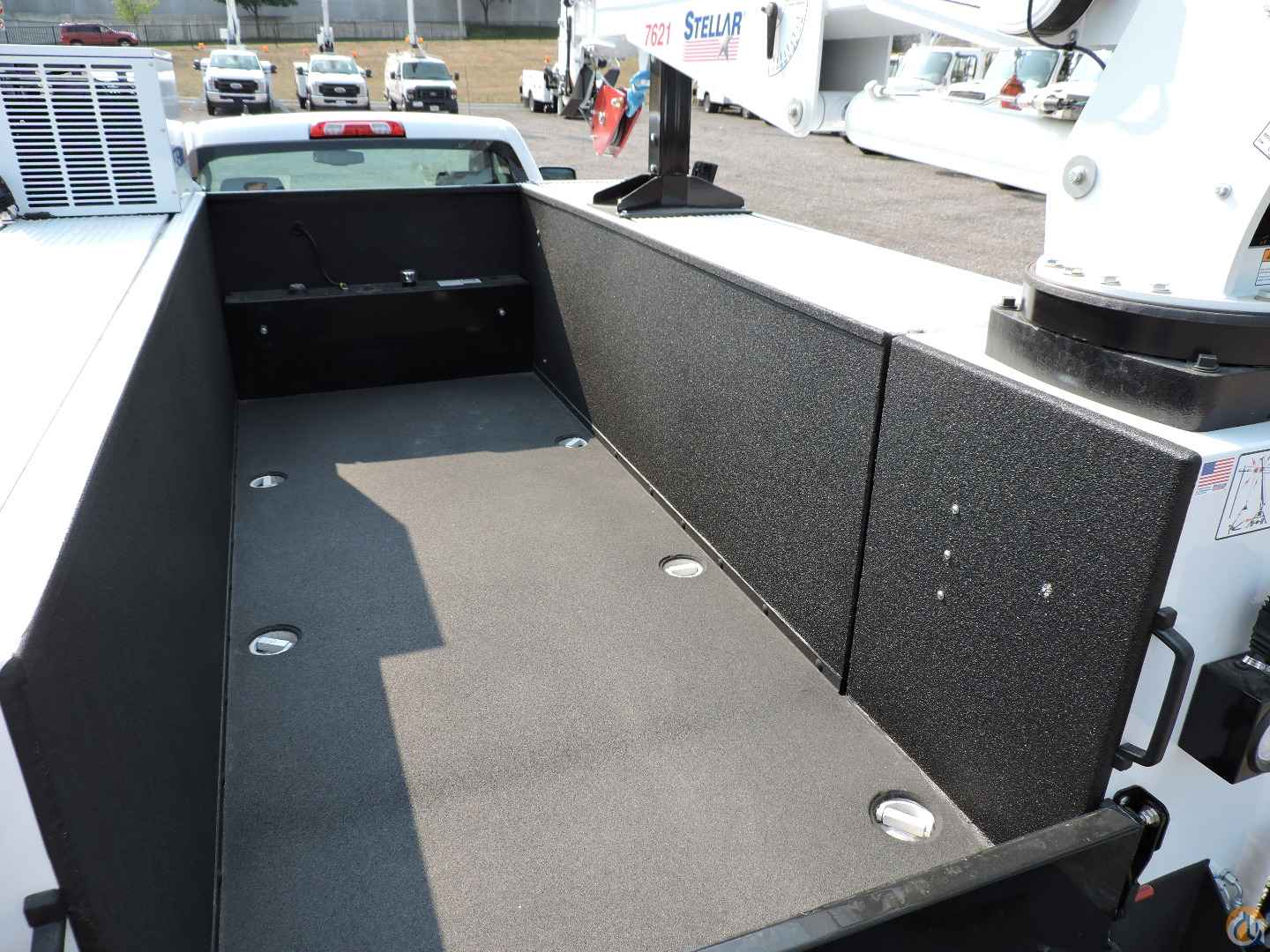

- Spray-on bed liner for load bed walls and floors, and workbench
- Undercoated
- Prime painted white

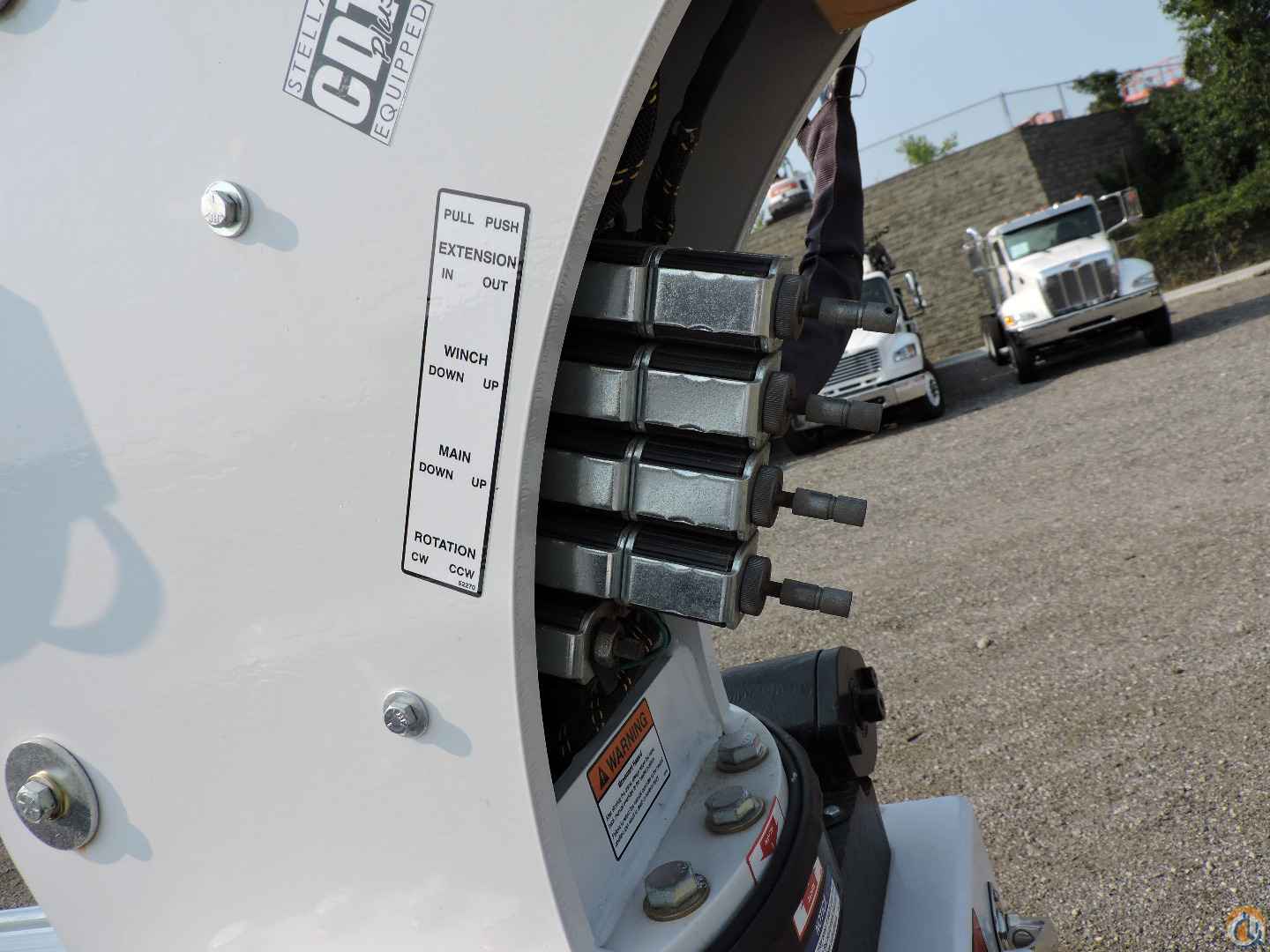

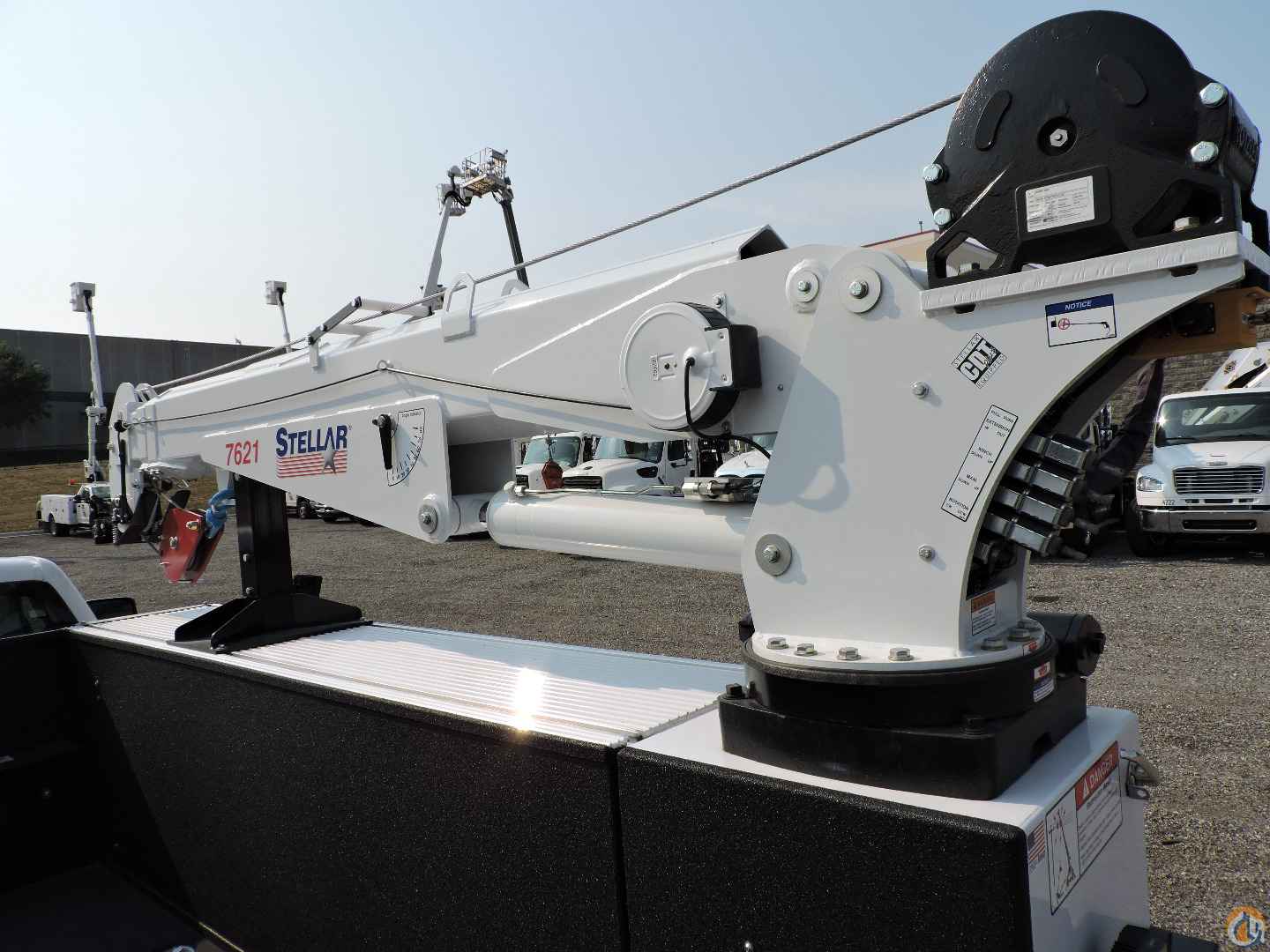

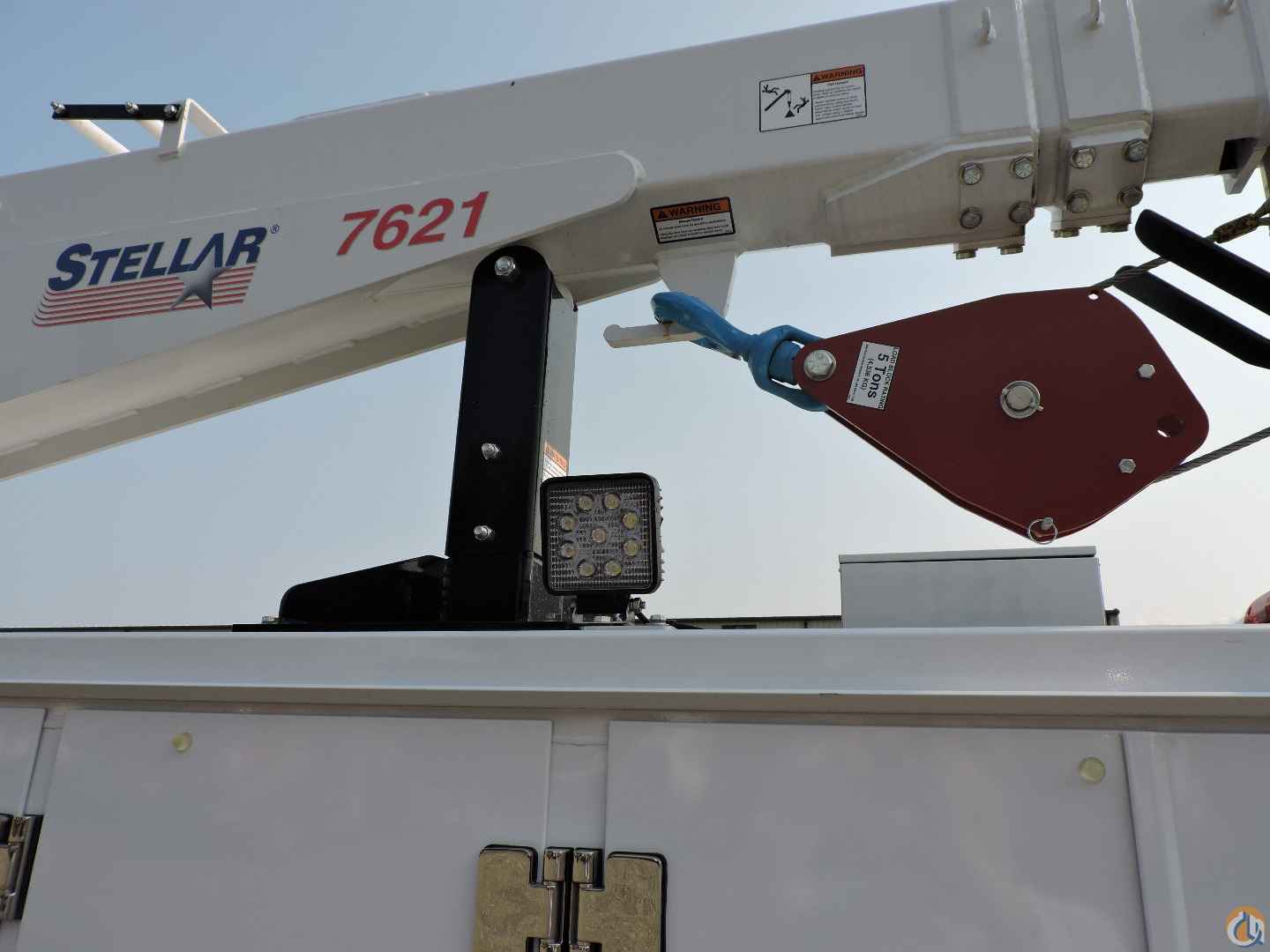

Stellar 7621 telescopic crane
- 44,840 ft/lb rated when in boost mode
- 7,500# maximum capacity at 5’10’ radius
- 21’ maximum hydraulic reach – 2,135# at 21’ when in boost mode
- Hexagonal boom – optimized to deliver dramatically less boom flex
and side to side movement - Boom elevation: -10° to +80°
- 400°non-continuous rotation – durable enclosed rotation system
with a cast iron base and an internal mechanical stop - Planetary winch with 100’ of 3/8” wire rope
- Max line pull speed 60ft/min
- Quick release snatch block stow
- Adjustable boom support, roller rest

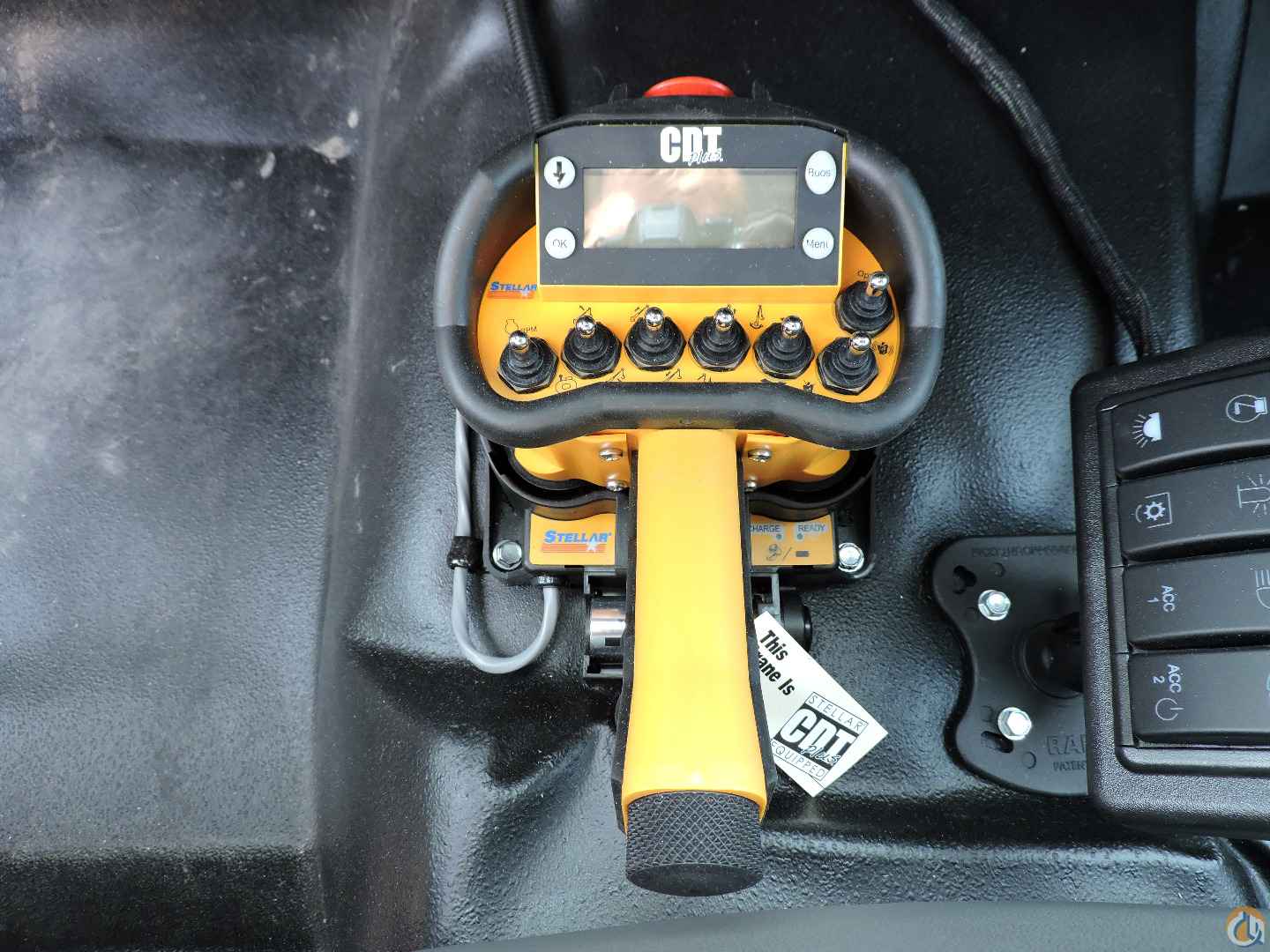

- Proportional radio remote control – LCD features real time load
capacity, maximum distance with the current load, boom angle, and
percentage of load - CDTplus boost mode allows for a momentary 18% increase in the
capacity of the crane, and a Safe Mode to keep the crane and operator
safe should a load indicating device fail to operate correctly - On-Demand speed control ramps engine RPM up only when the crane
is being used. When crane is not used for 5 seconds engine RPM
returns to idle. This lowers fuel consumption and reduces noise
pollution in the work area - Greasable pivot bushings, each pivot pin location includes bushings
and grease zerks to provide for years of use - Hydraulic stabilizers

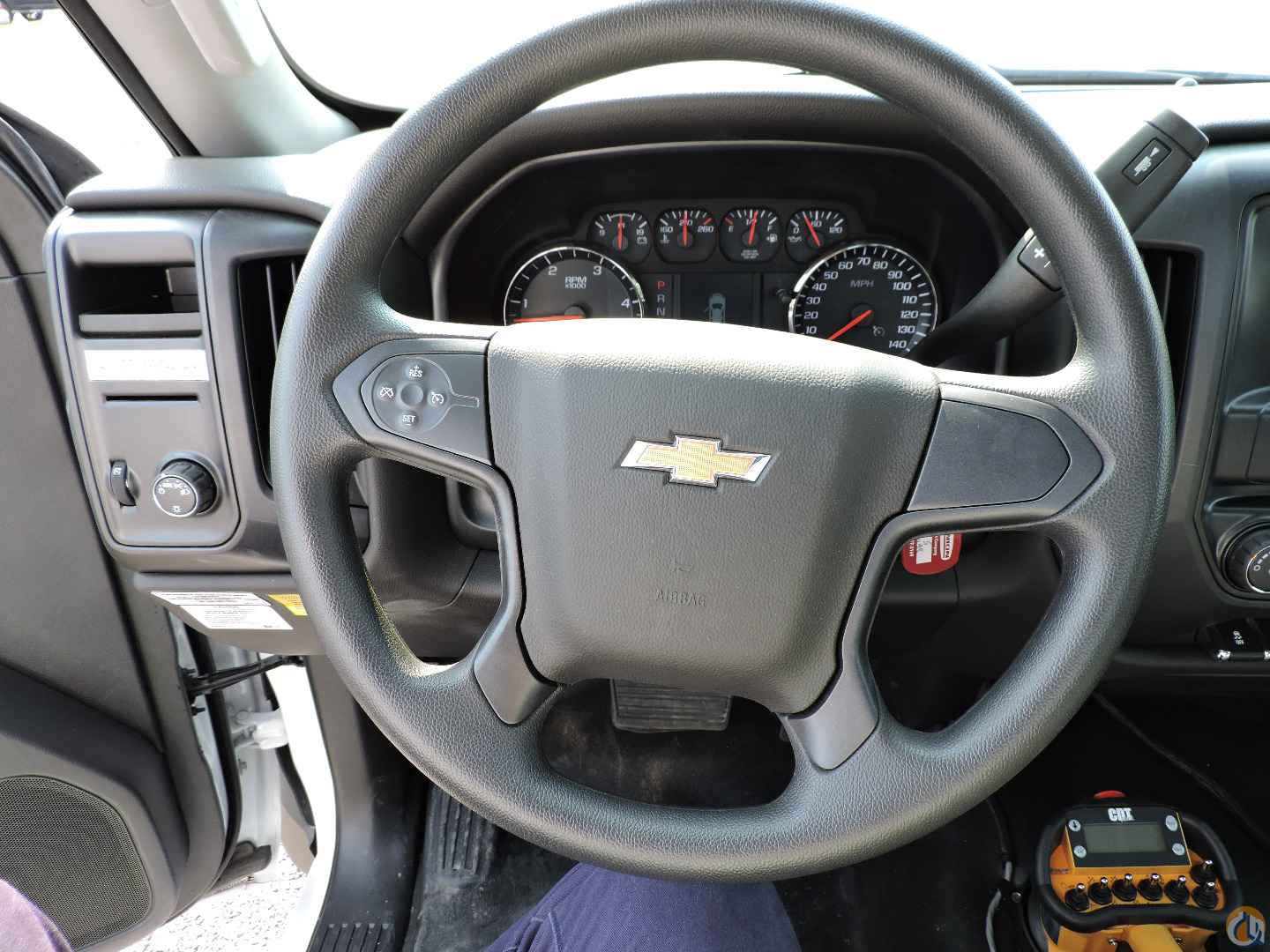

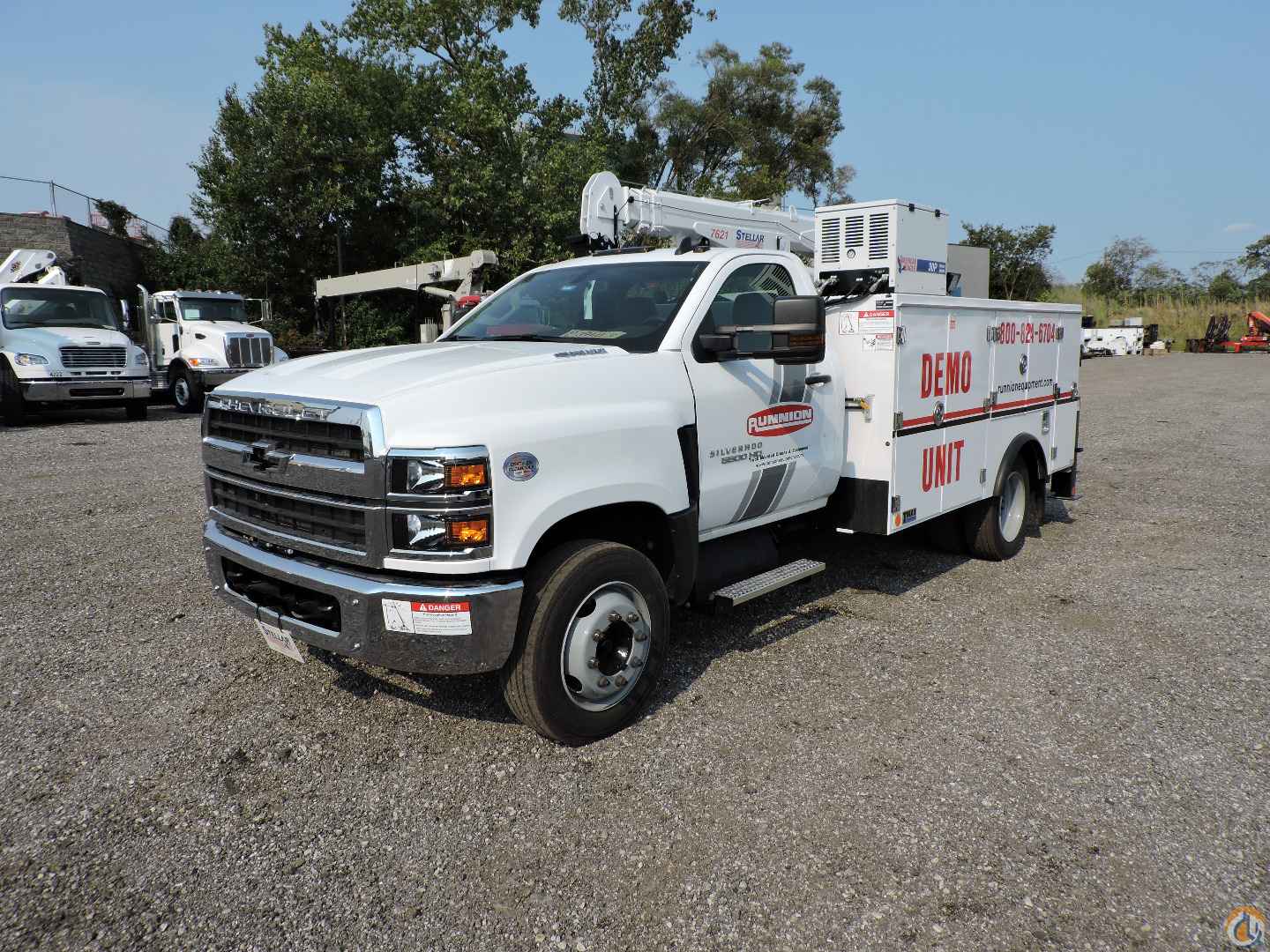

2019 Chevrolet 5500 4x2
- 19,500# GVW
- 6.6L Duramax diesel engine
- Allison automatic transmission
- 84” CA, wheelbase 165”

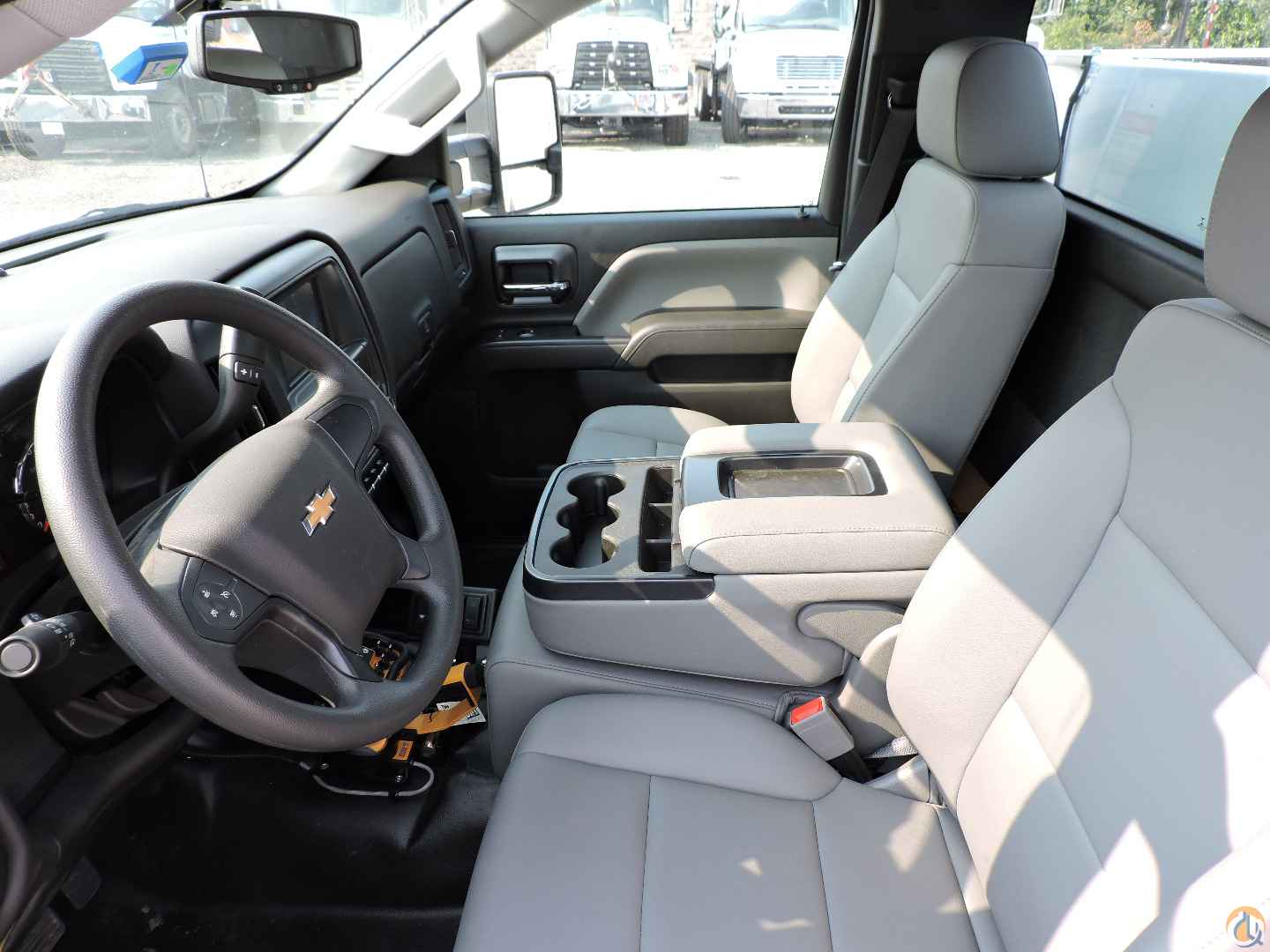

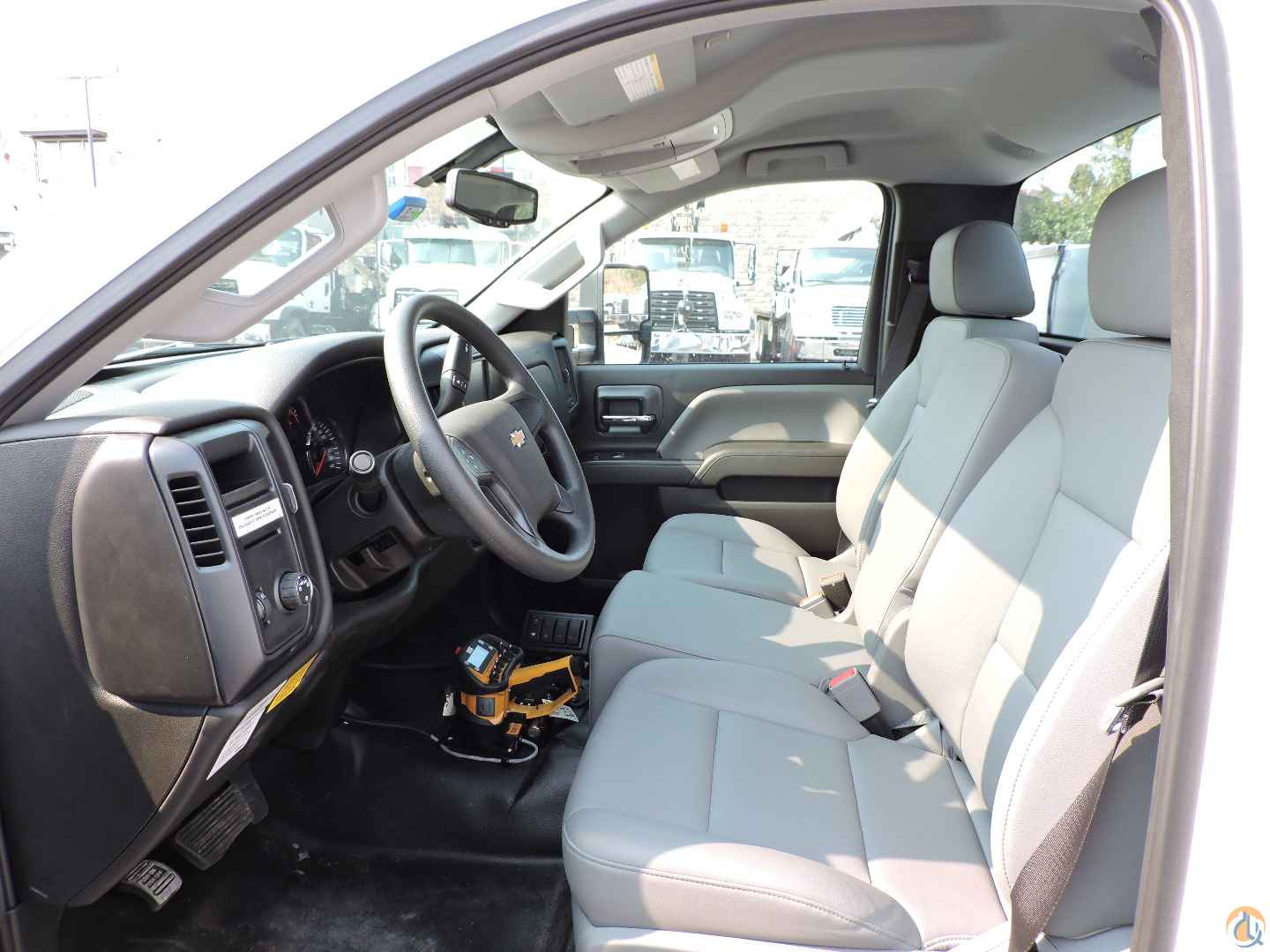

- 40/20/40 split bench seat-vinyl
- Cruise control
- Air conditioning

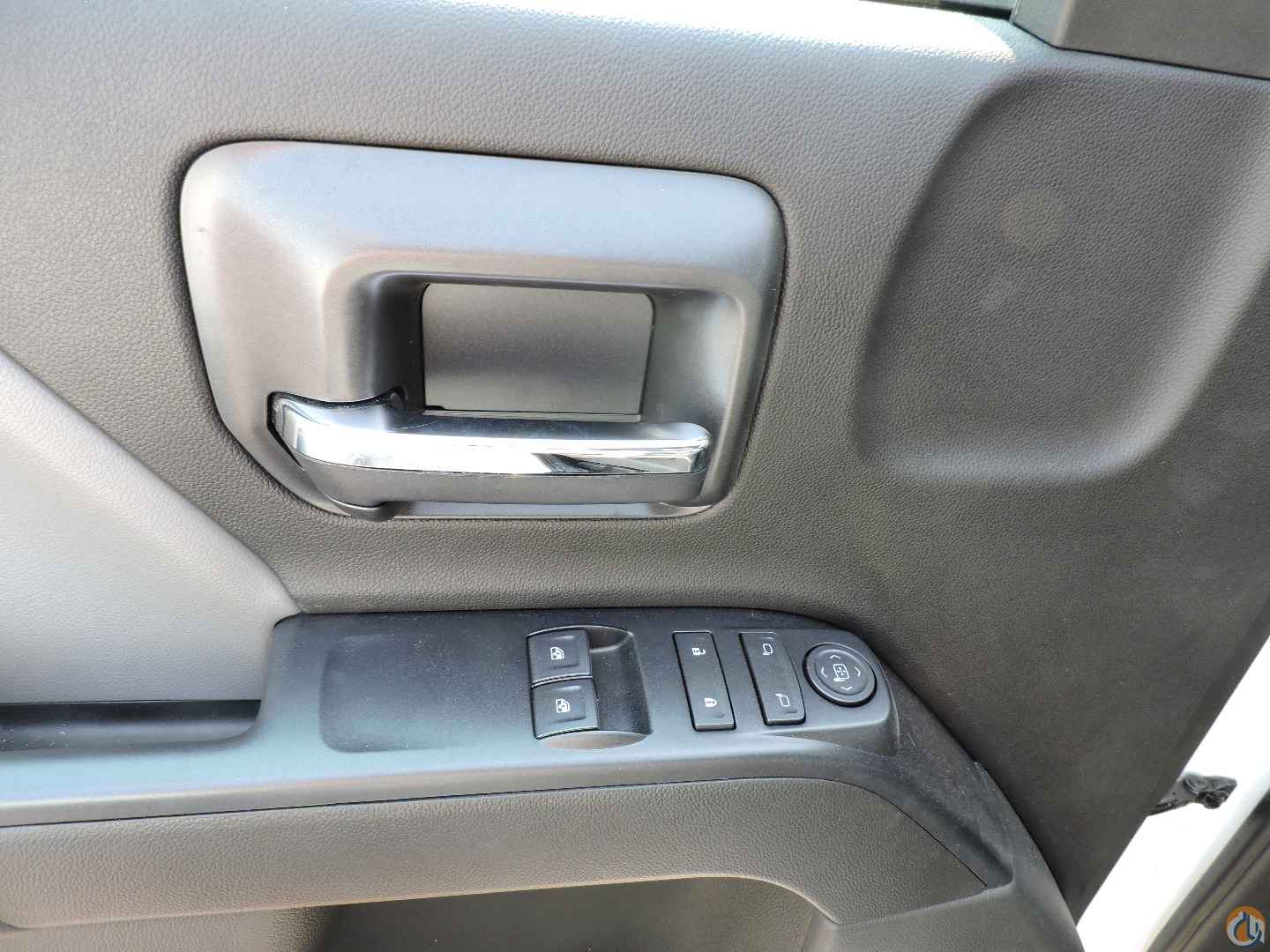

- Power group

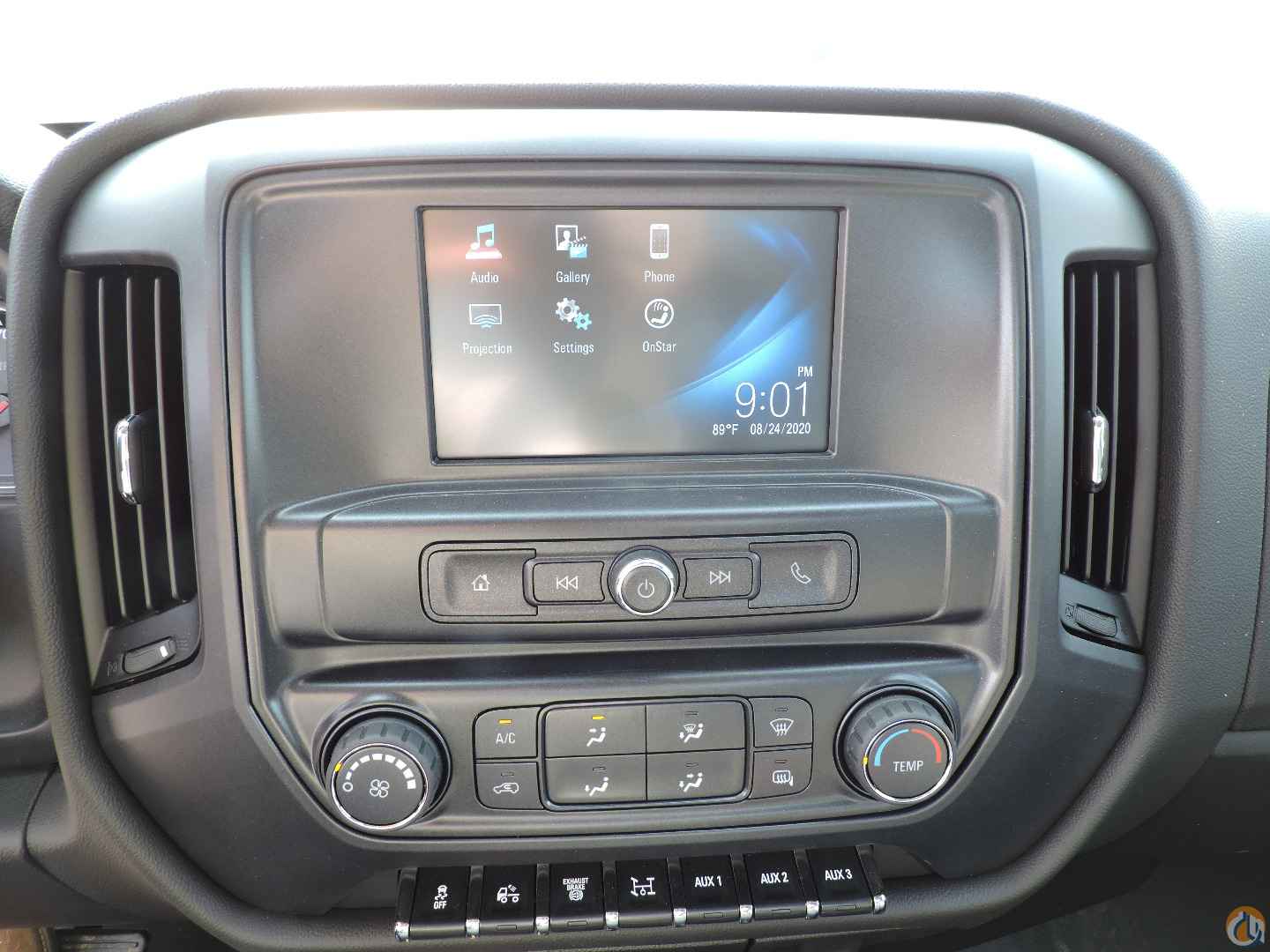

- Upgraded radio with Bluetooth

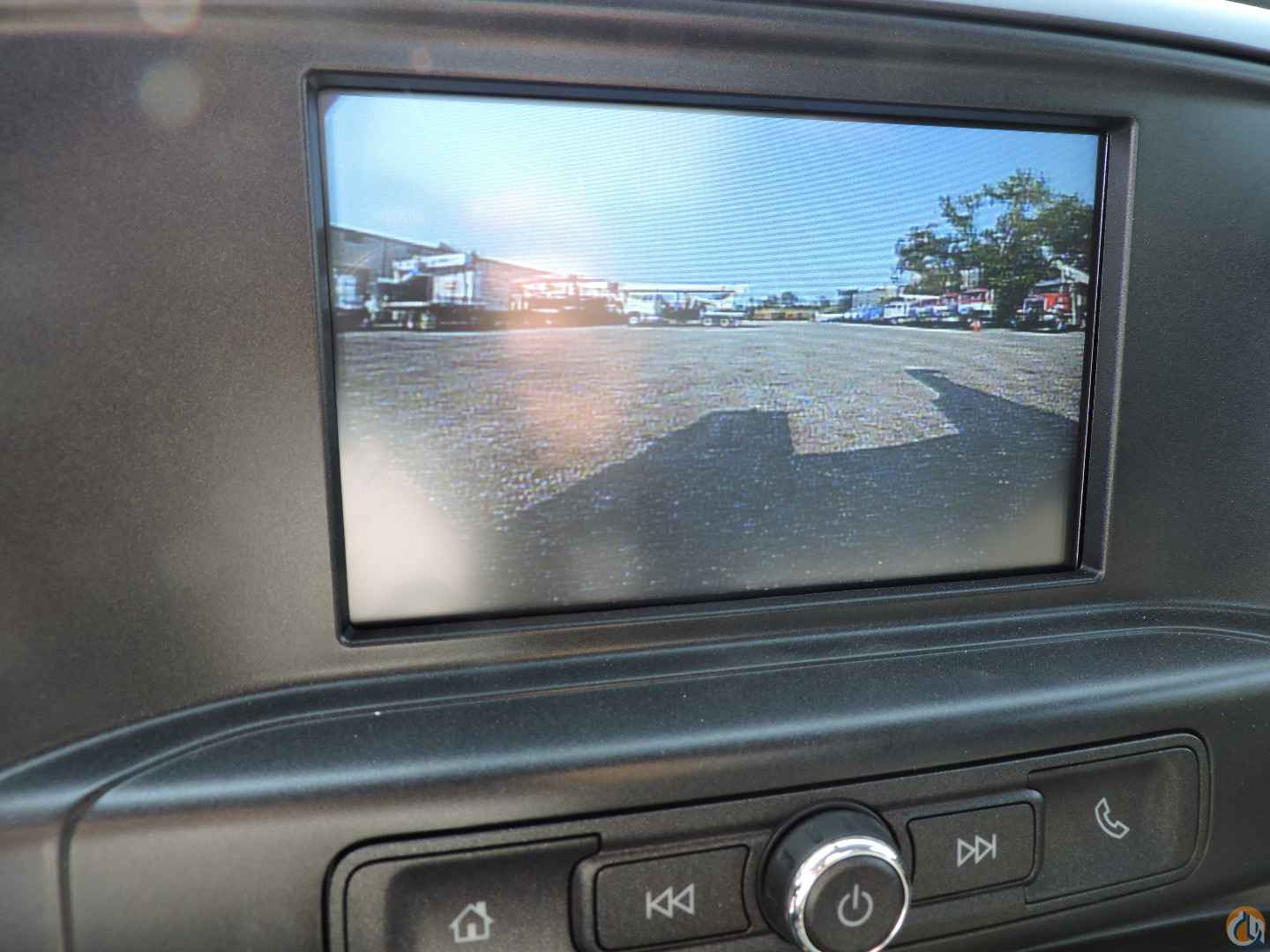

- Backup camera

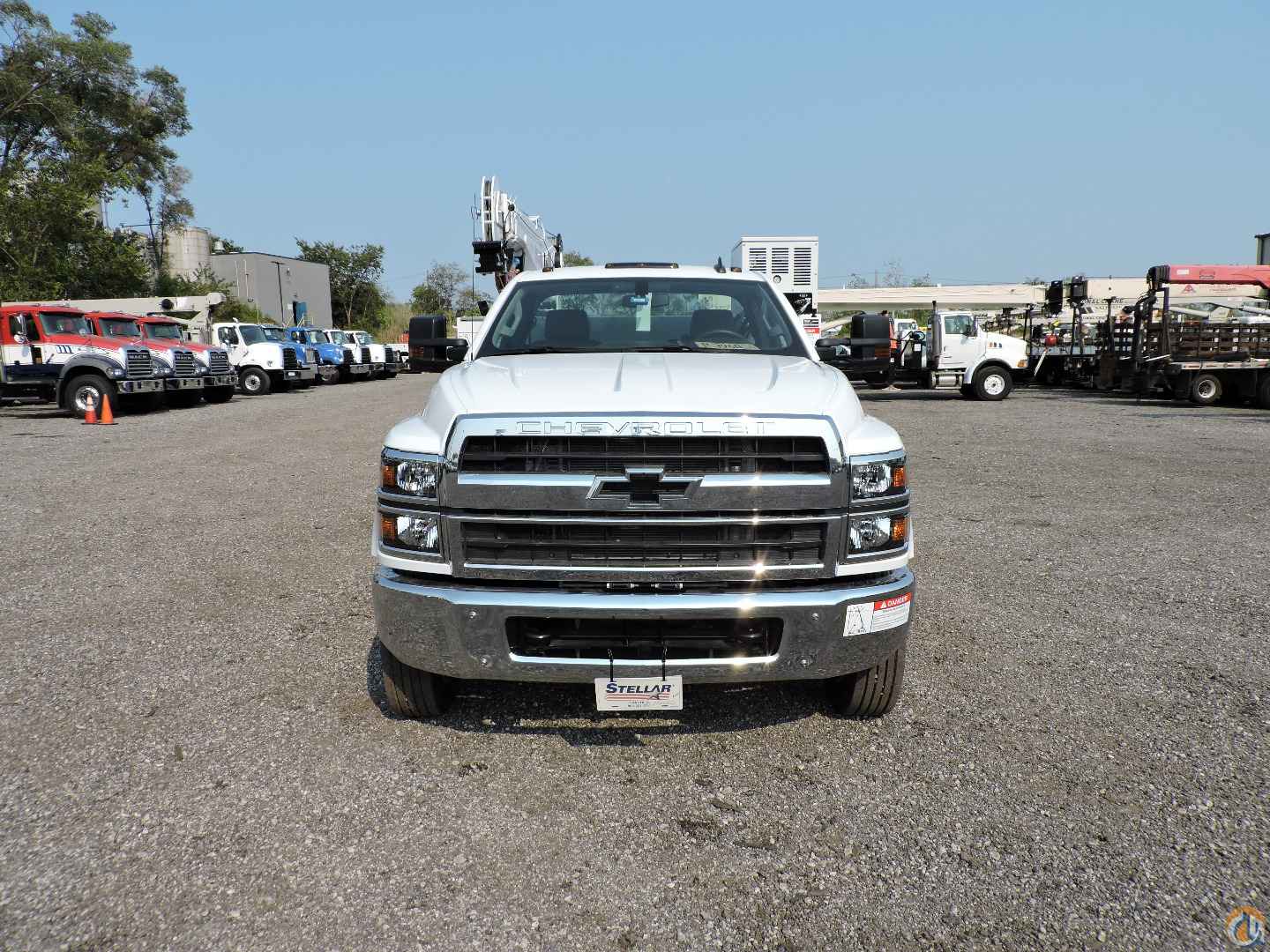

- Chrome bumper and grille
