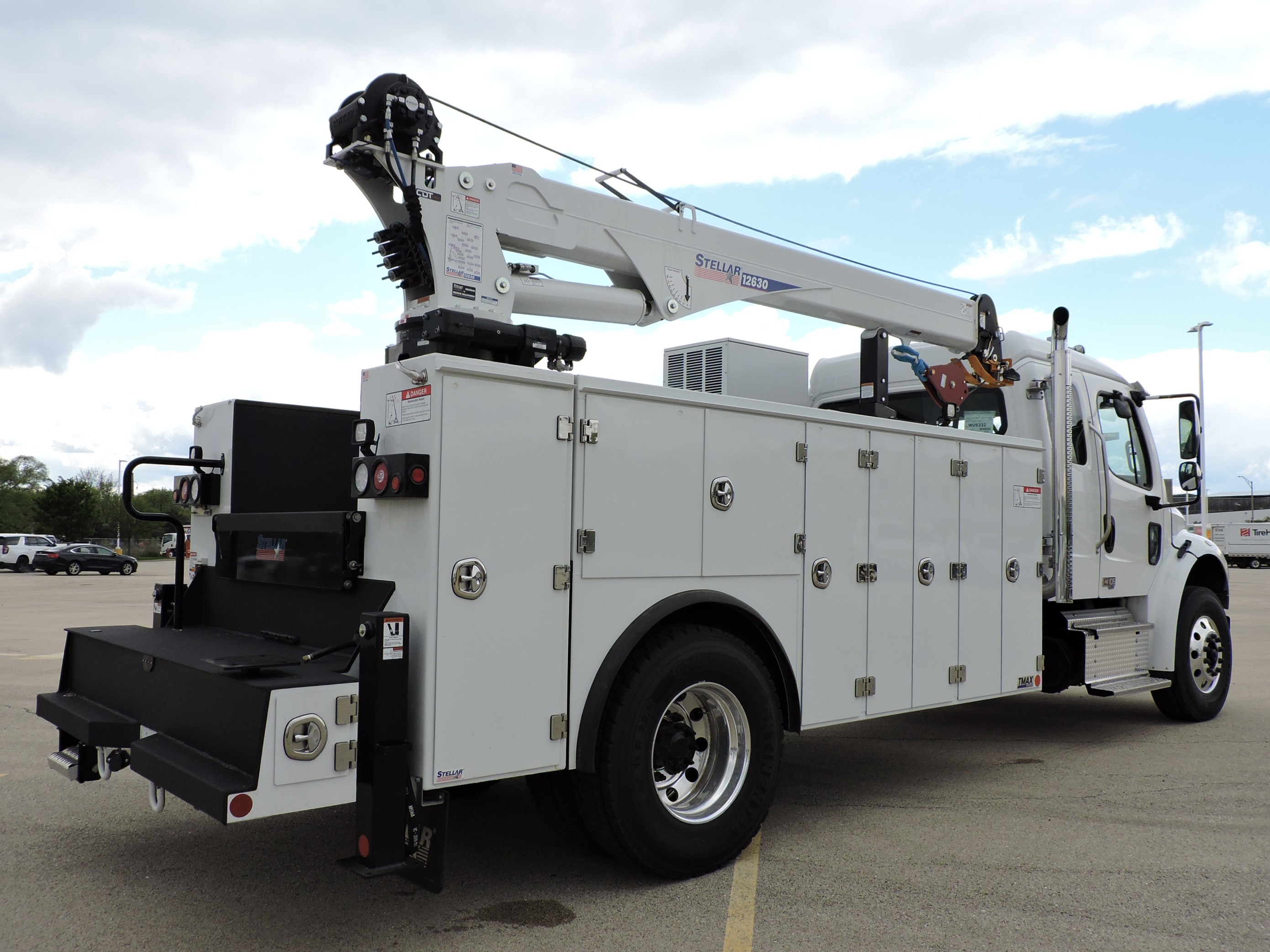

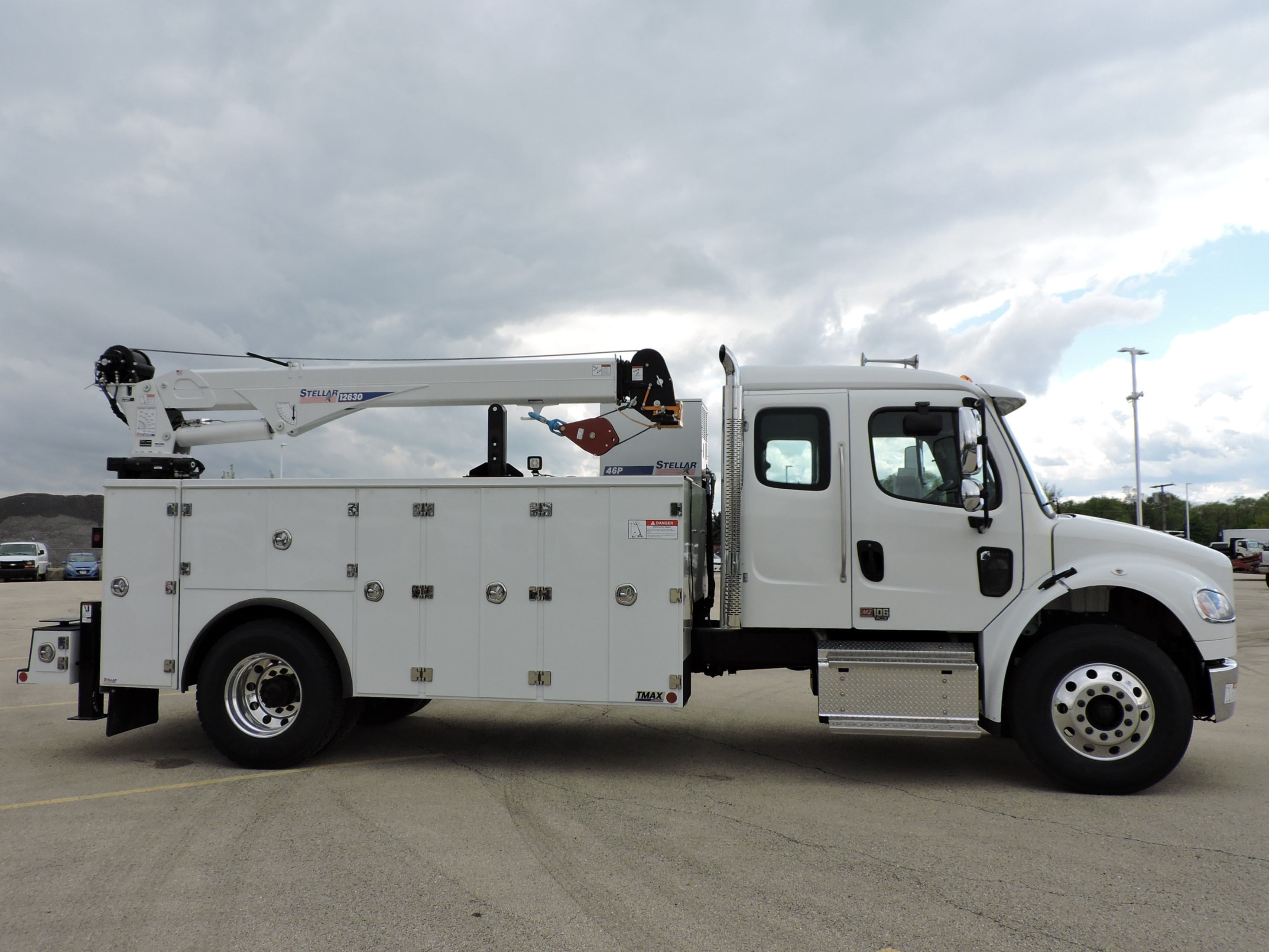

Stellar TMAX2-14 Aluminum Mechanic Body equipped as follows:

-          Aluminum doors and side packs

-          Torsion box understructure with isolated steel crane compartment

-          Master-Lock system

-          168” long

-          Six (6) recessed cargo tie-downs

-          Rear mounted grab handle

-          12” aluminum tailgate – painted black

-          21” work bench bumper with thru compartment

-          Vise mounting plate – receiver workbench mount

-          Step, slide out for TMAX mechanics work bench bumper

-          Rubber fenderettes

-          All compartments raised to 60” H

-          Overlapped doors on SS1V/CS1V and horizontal compartments

-          2- & 3-point stainless steel compression latches

-          Stainless steel “Billet Style” hinges

-          Spring loaded door stops

-          Dual-seal automotive type compartment weather seal

-          LED compartment lights

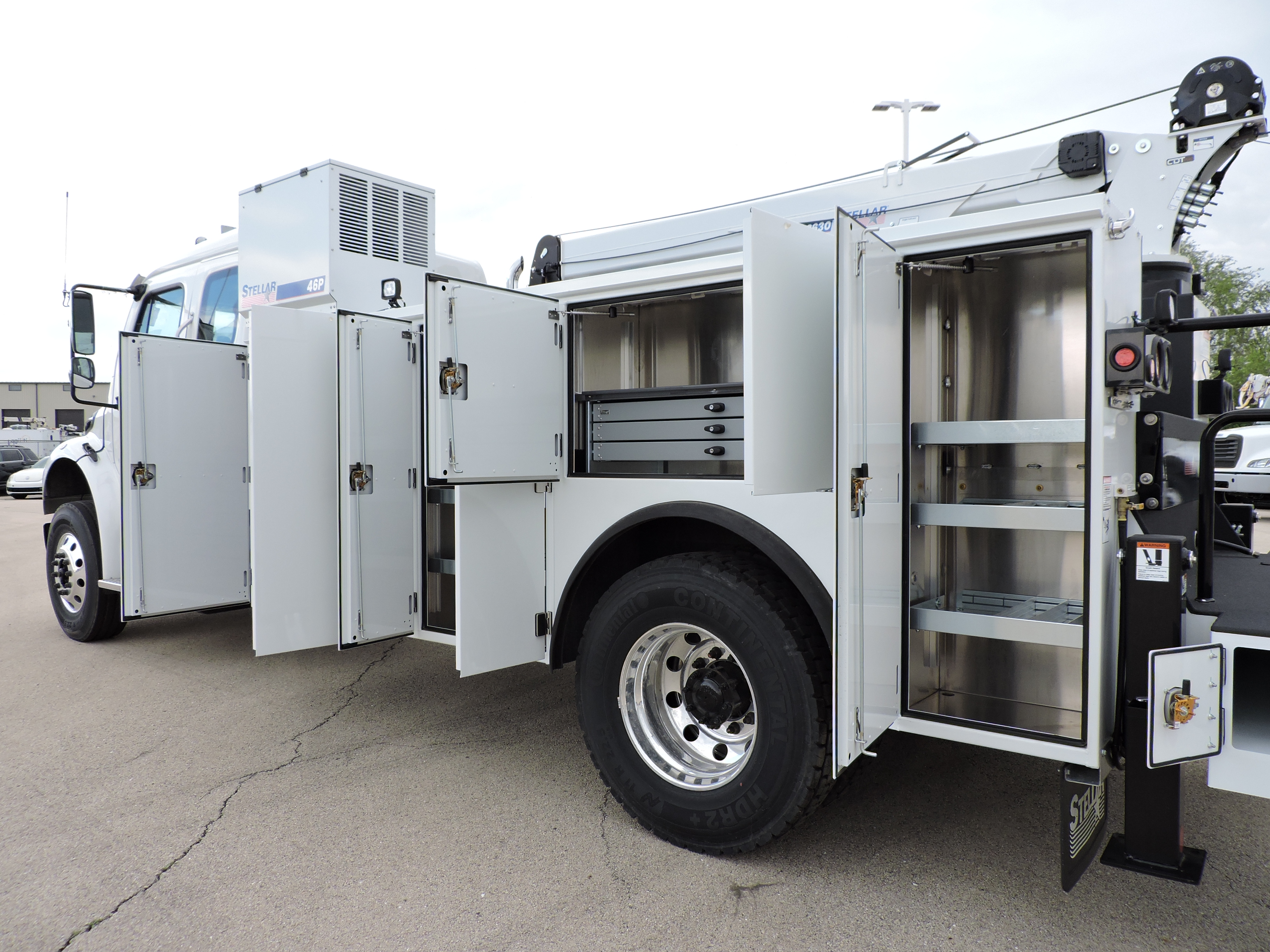

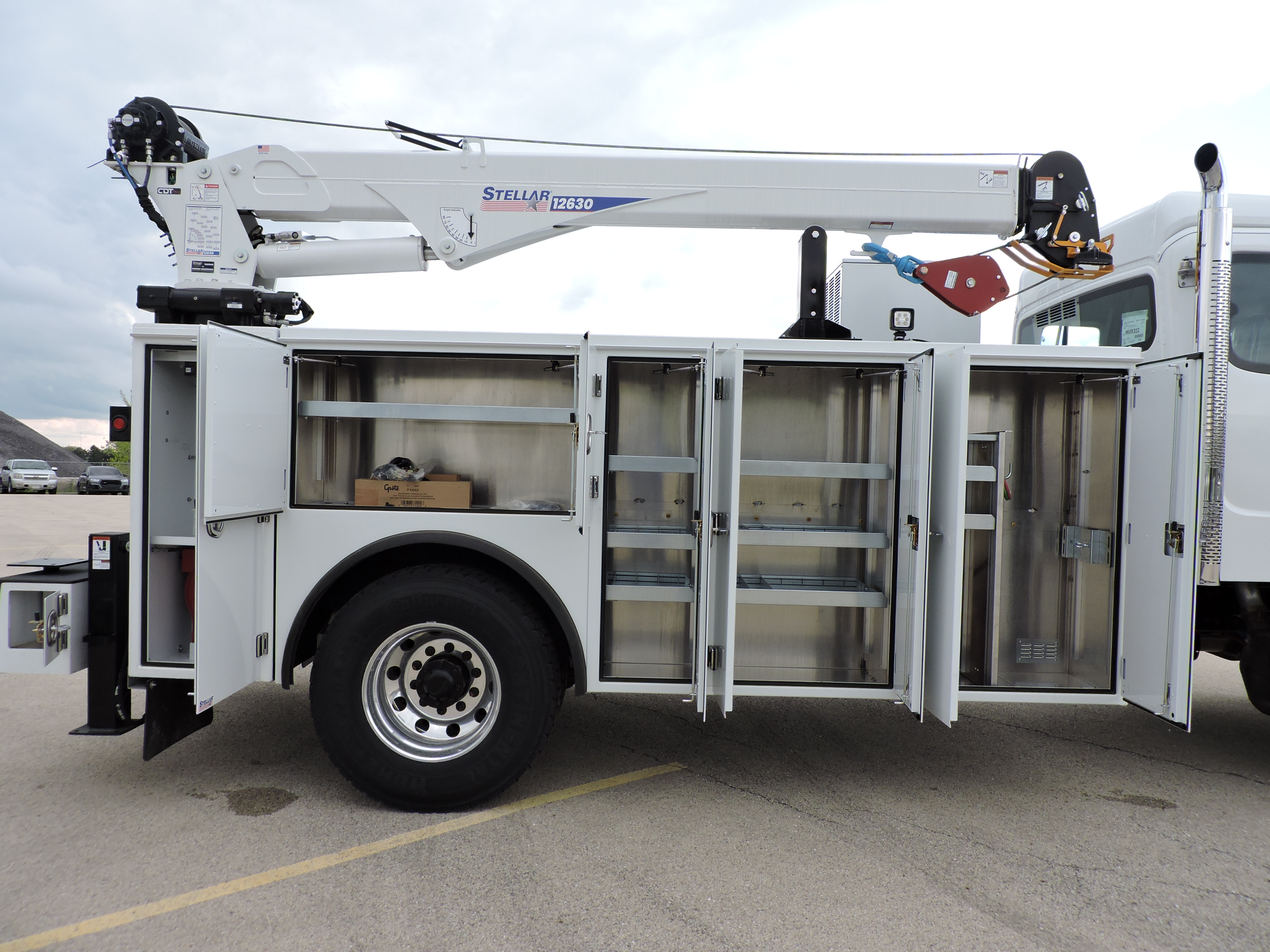

-          SS1VF – Heavy duty aluminum drawer set – 35.5” H x 33.5” W x 18” D – 3-3”, 3-5”, 1-7”

-          SS1VR – Three (3) shelves with (3) dividers – 16.5” W x 19” D

-          SS2V - One (1) shelf with (3) dividers – 35.38” W x 19” D

-          SS Horizontal – Heavy duty aluminum drawer set – 11’H x 48” W x 18” D, 3-3”

-          SS Rear – Three (3) shelves with (3) dividers – 23.38” W x 19” D

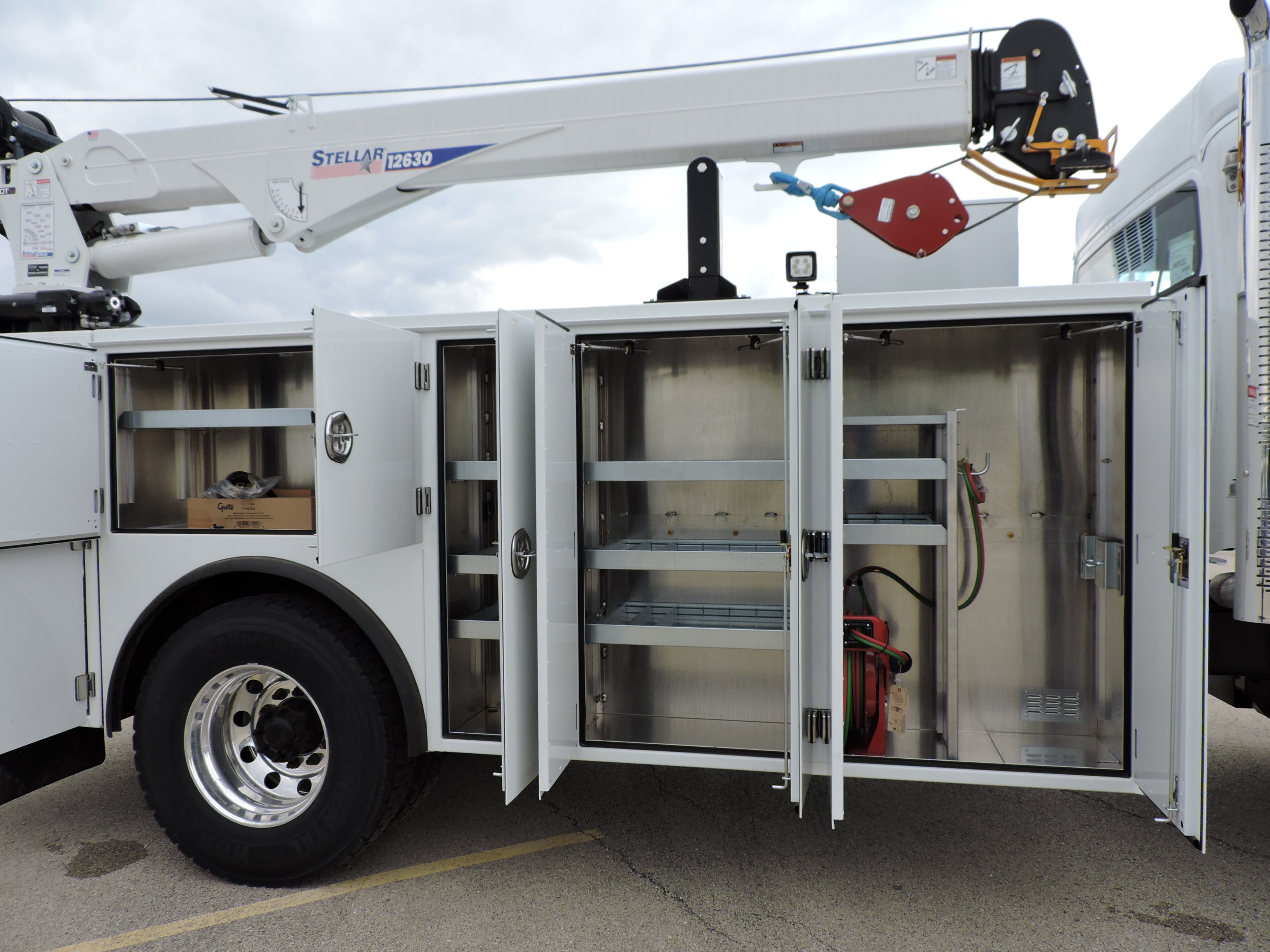

-          CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder, holds 2 bottles

-          CS2V – Three (3) shelf with (3) dividers – 31.75” W x 19” D

-          CS3V – Three (3) shelf with (3) dividers – 18.50” W x 19” D

-          CS Horizontal – Shelf with 3 dividers – 52” W x 19” D

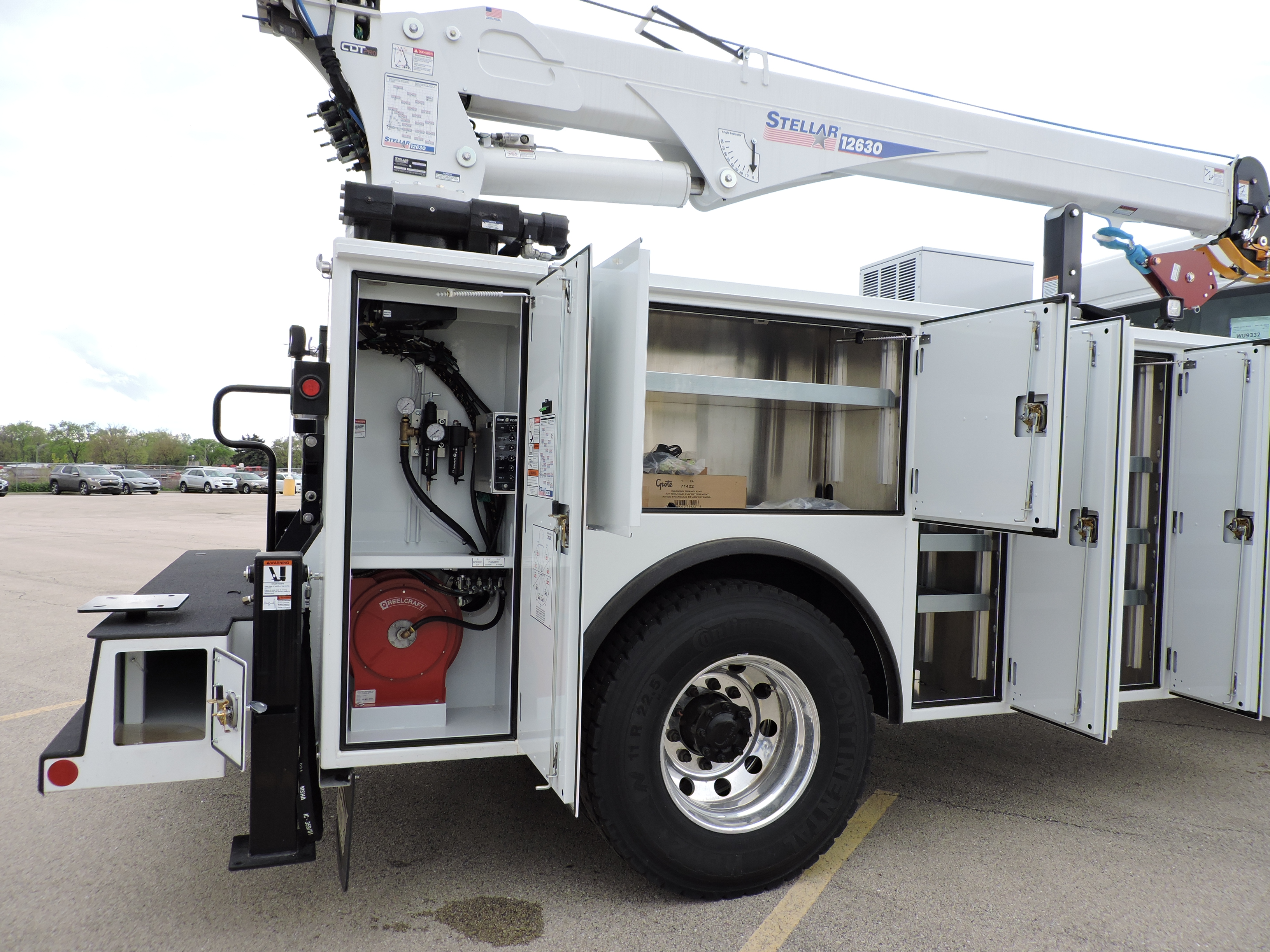

-          CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

-          Rock guard kit

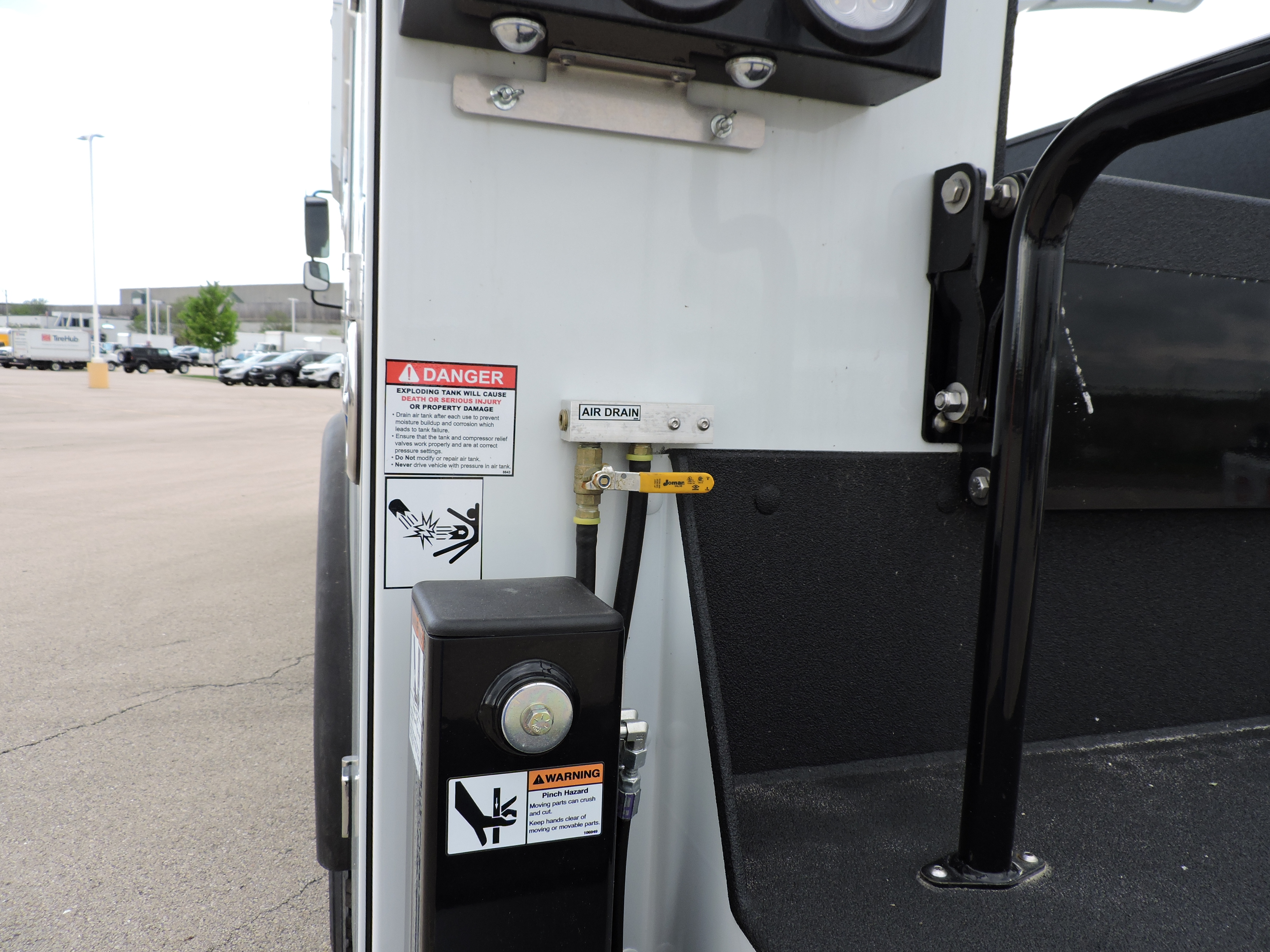

-          22-gallon air tanks

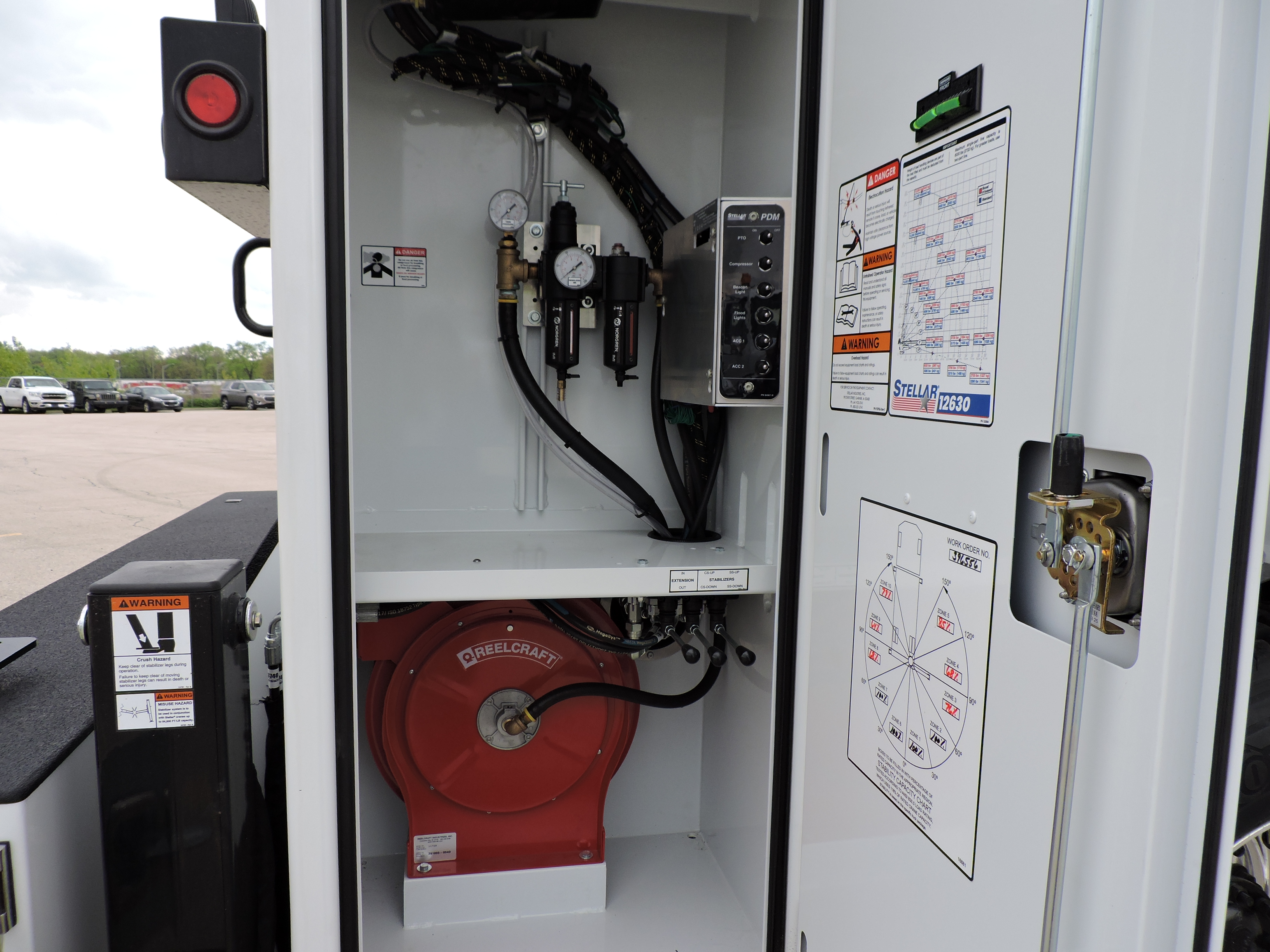

-          FLR system – 1 outlet for air hose (filter, lubricator, regulator)

-          LED floodlights – Two (2) total

-          Backup alarm

-          ICC safety kit – 2.5 lb fire extinguisher and reflector kit

-          Adjustable boom support, roller rest

-          Weld-on receiver hitch

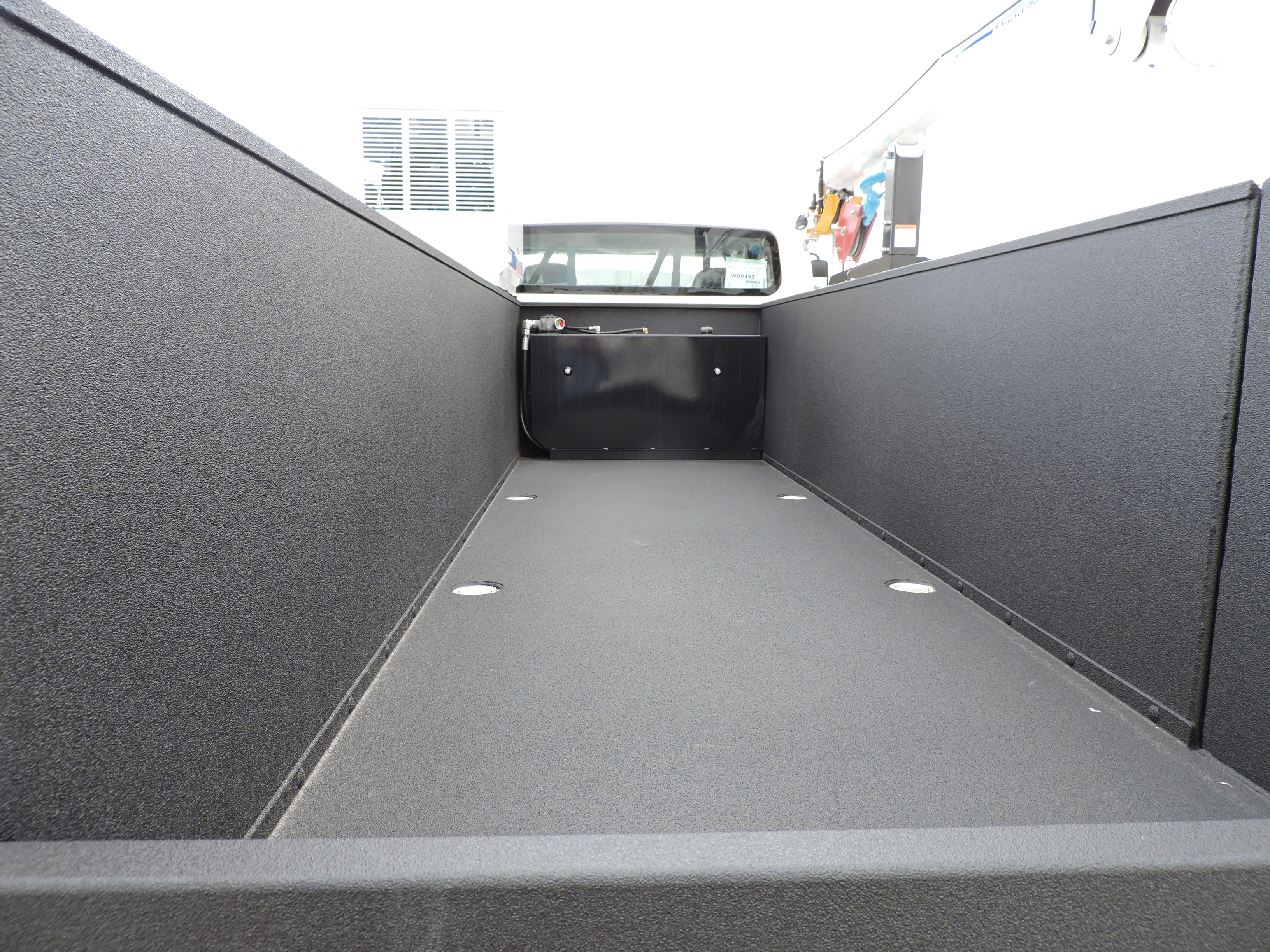

-          Spray-on bed liner for load bed walls and floors

-          Spray-on bed liner for work bench bumper

-          Rock guard kit

-          Prime painted white

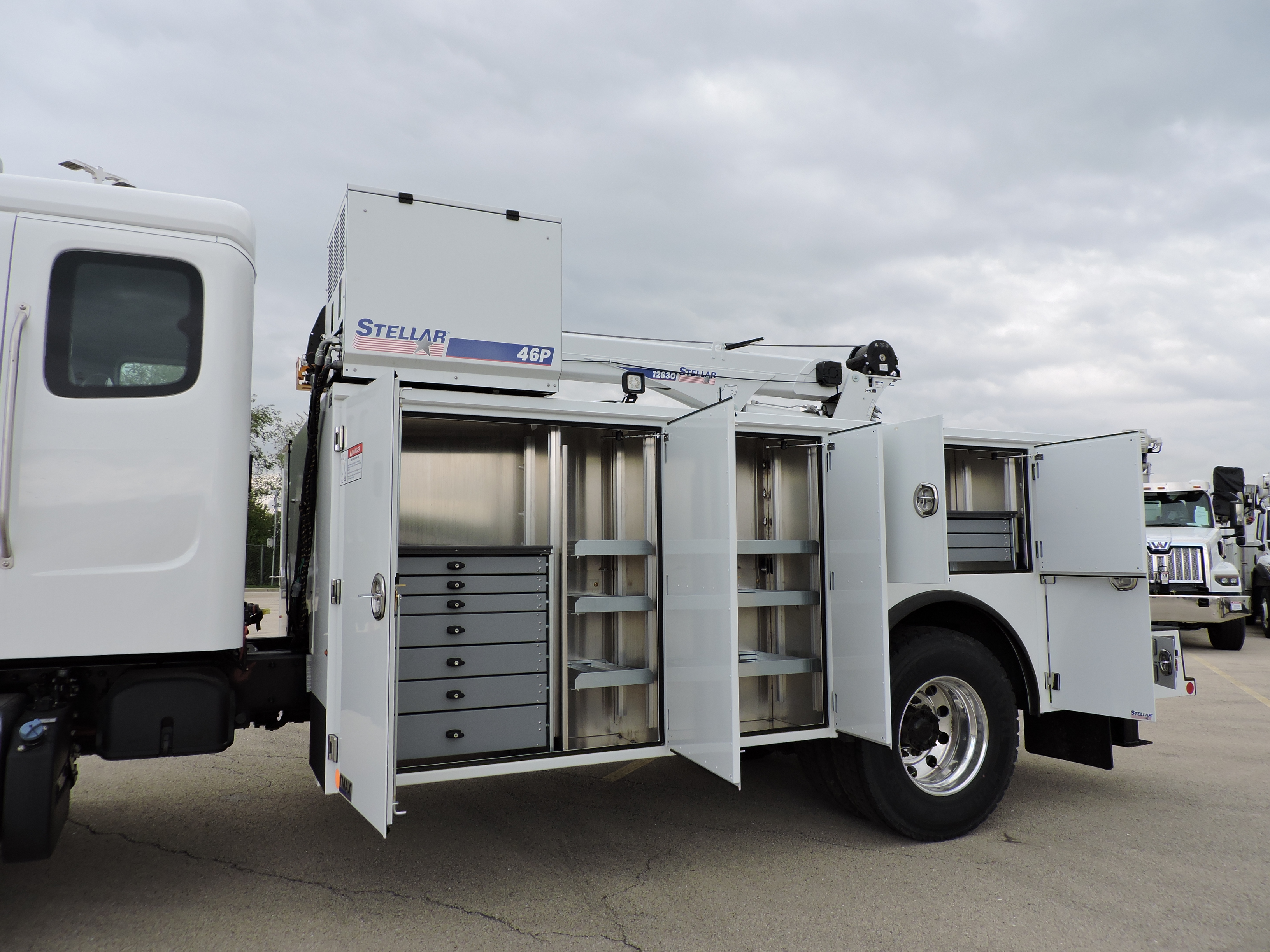

-          Stellar 46P hydraulic driven air compressor that produces 46 CFM @ 175 PSI, 4-cylinder 2 stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor



Stellar 12630 telescopic crane equipped as follows:

-          77,800 ft/lb rated when in boost mode

-          12,000 lb maximum capacity at 6’5” radius when in boost mode

-          30’ maximum hydraulic reach

-          Octagon boom – optimized to deliver dramatically less boom flex and side to side movement

-          Boom elevation: -10° to +80°

-          400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

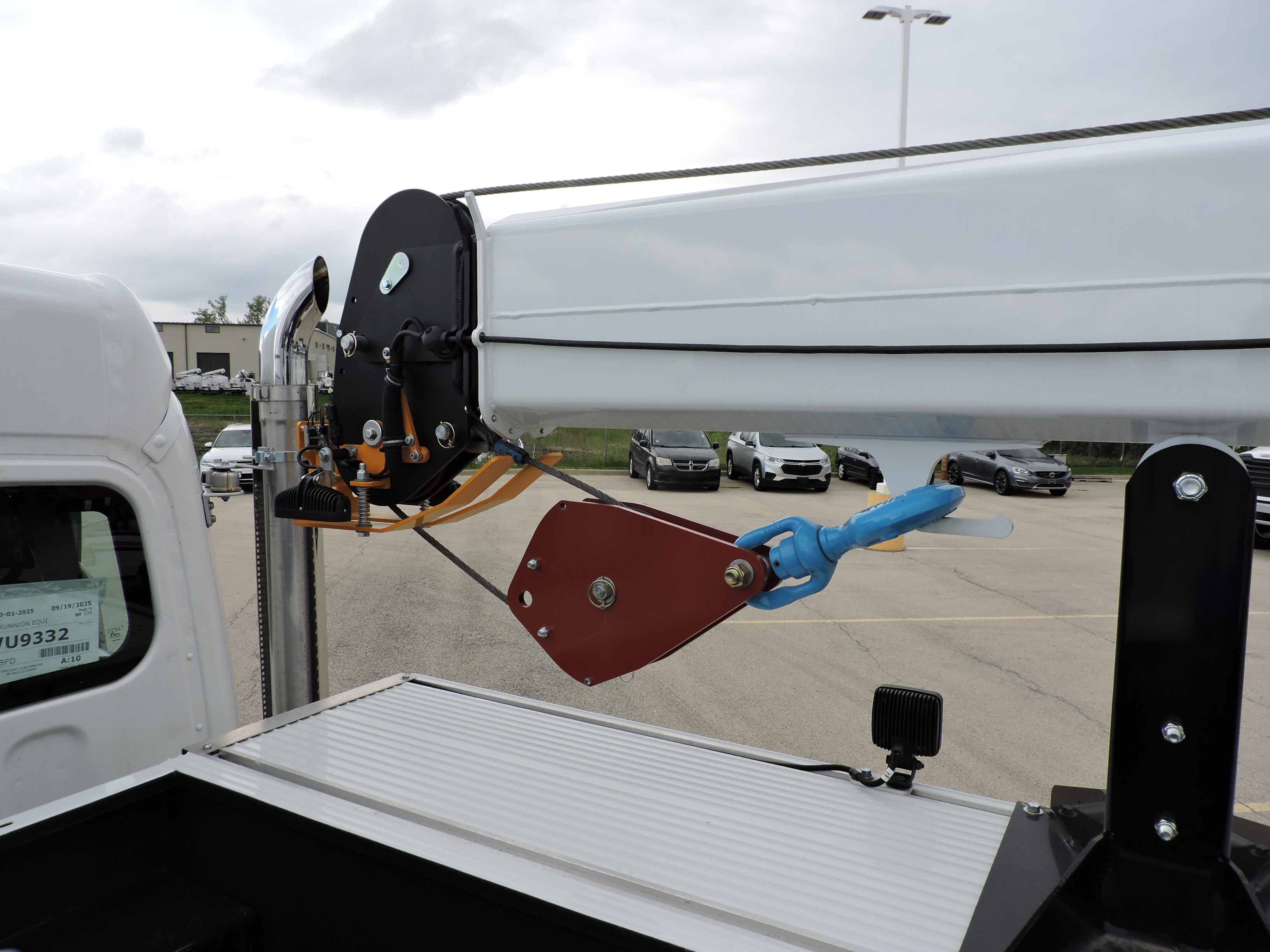

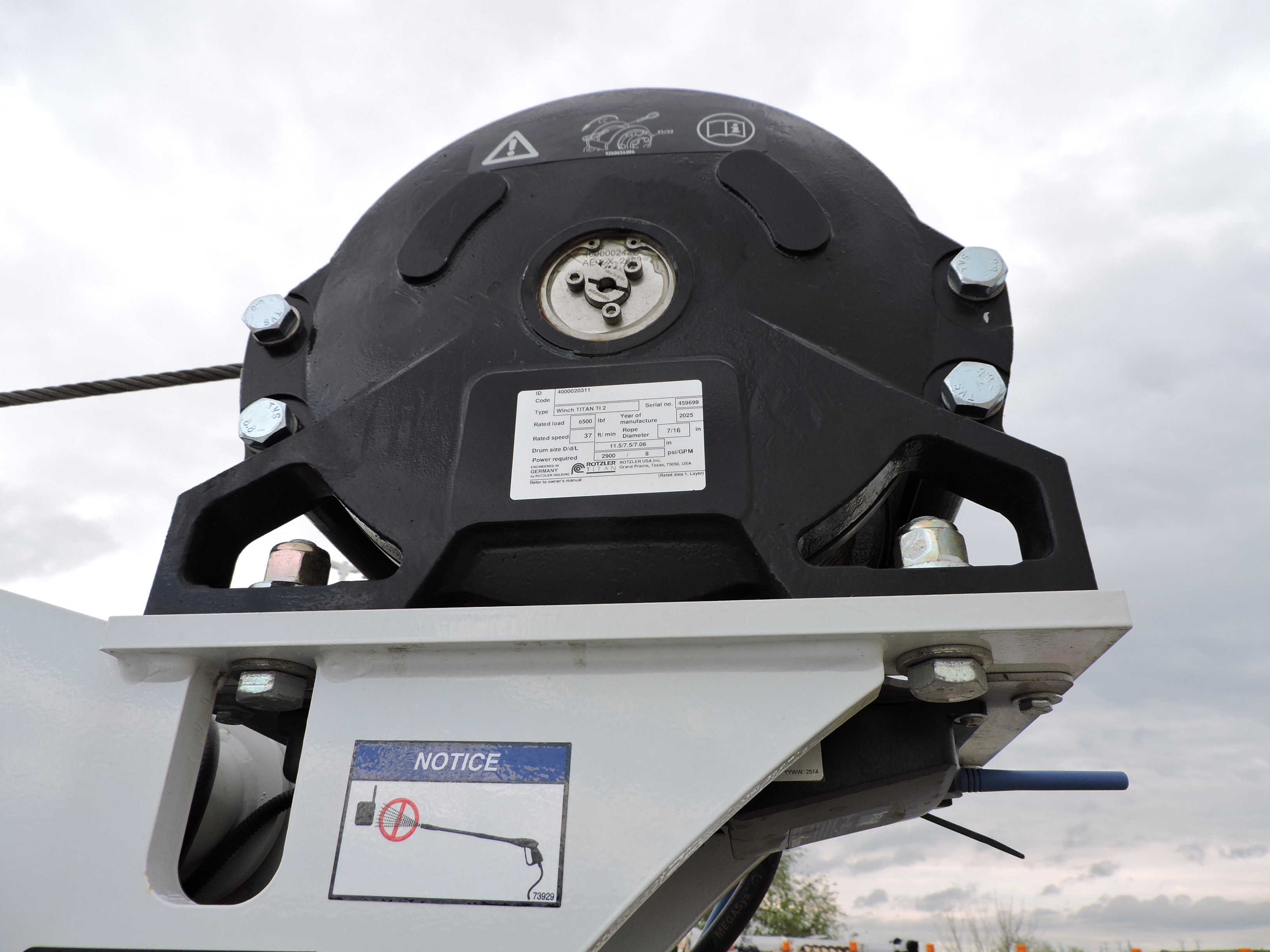

-          Planetary winch with 100’ of 7/16” wire rope

-          Max line pull speed 55ft/min

-          Quick release snatch block stow

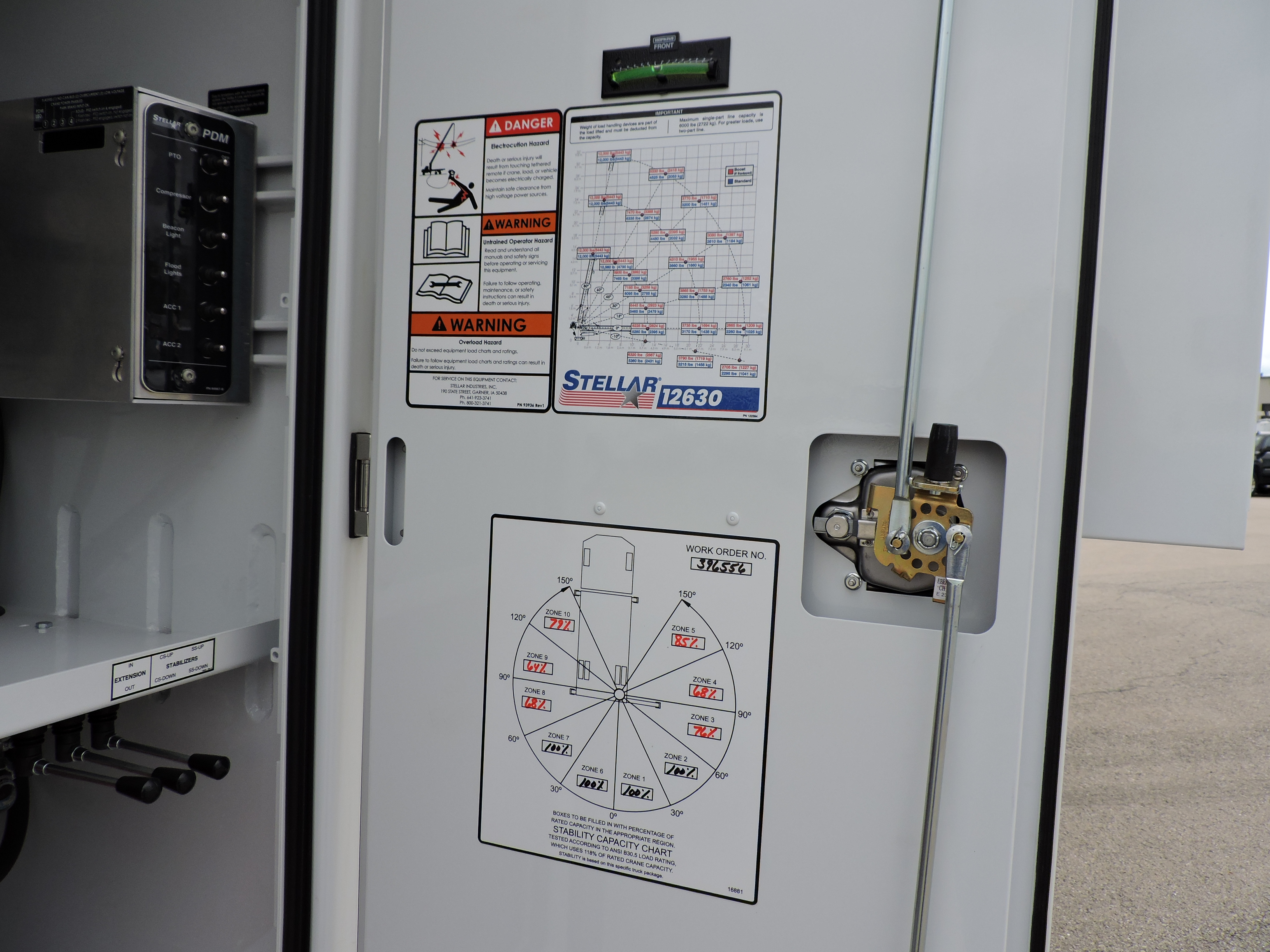

-          Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

-          CDTplus boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

-          On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

-          Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

-          Dual LED Trilliant lights - mounted on boom tip – gravity rotating

-          Hydraulic stabilizers



MOUNTED ON:

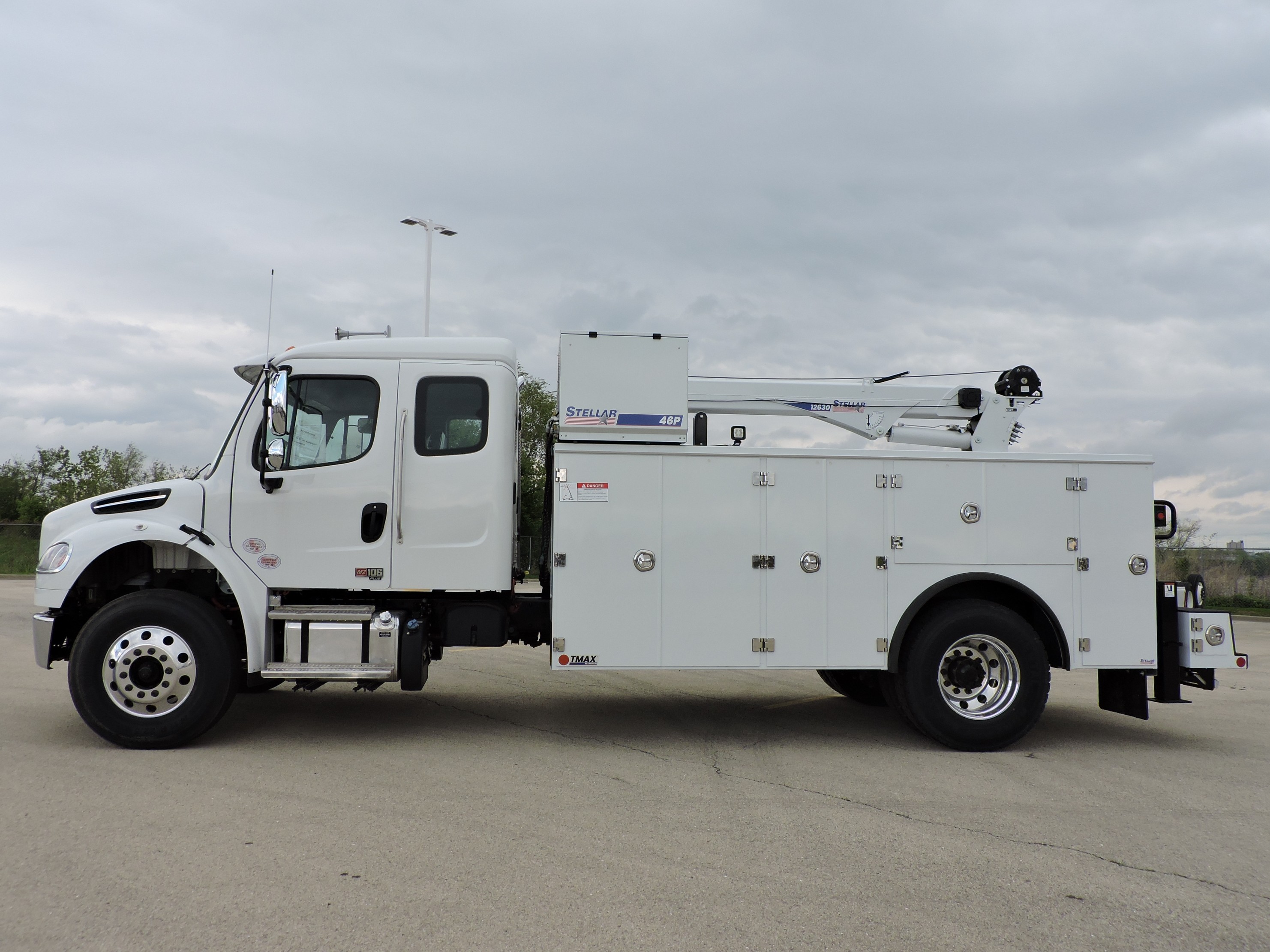

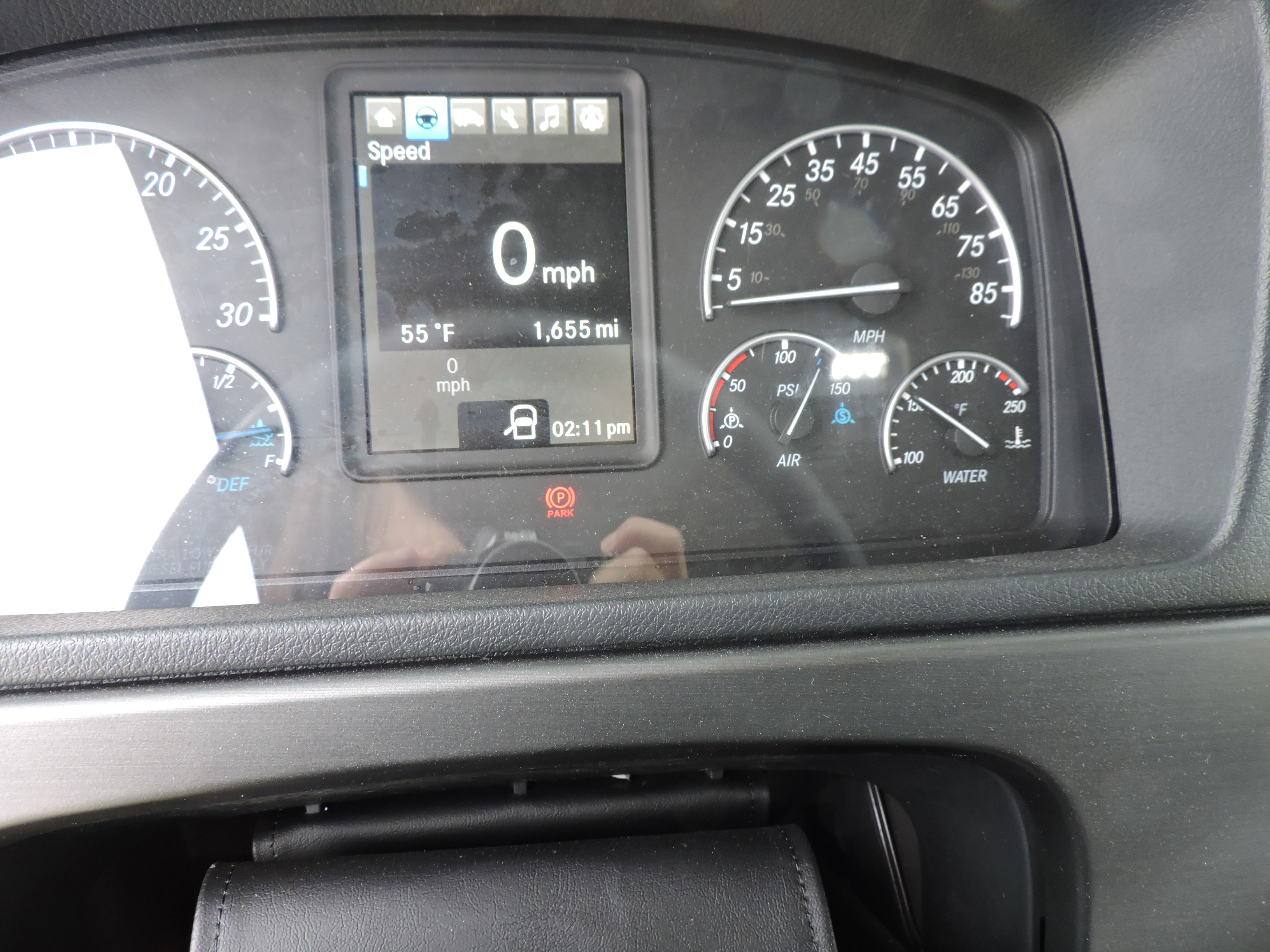

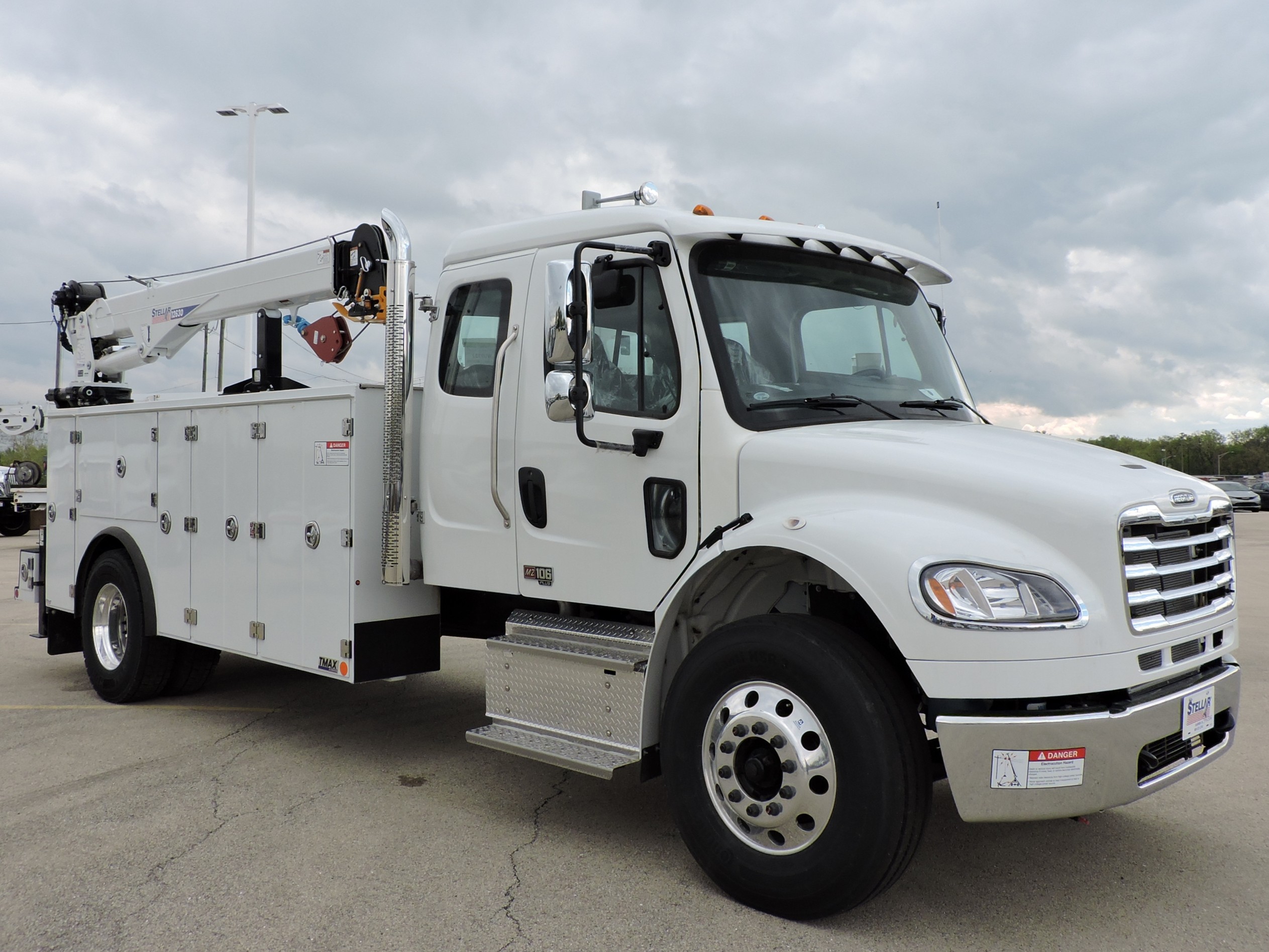

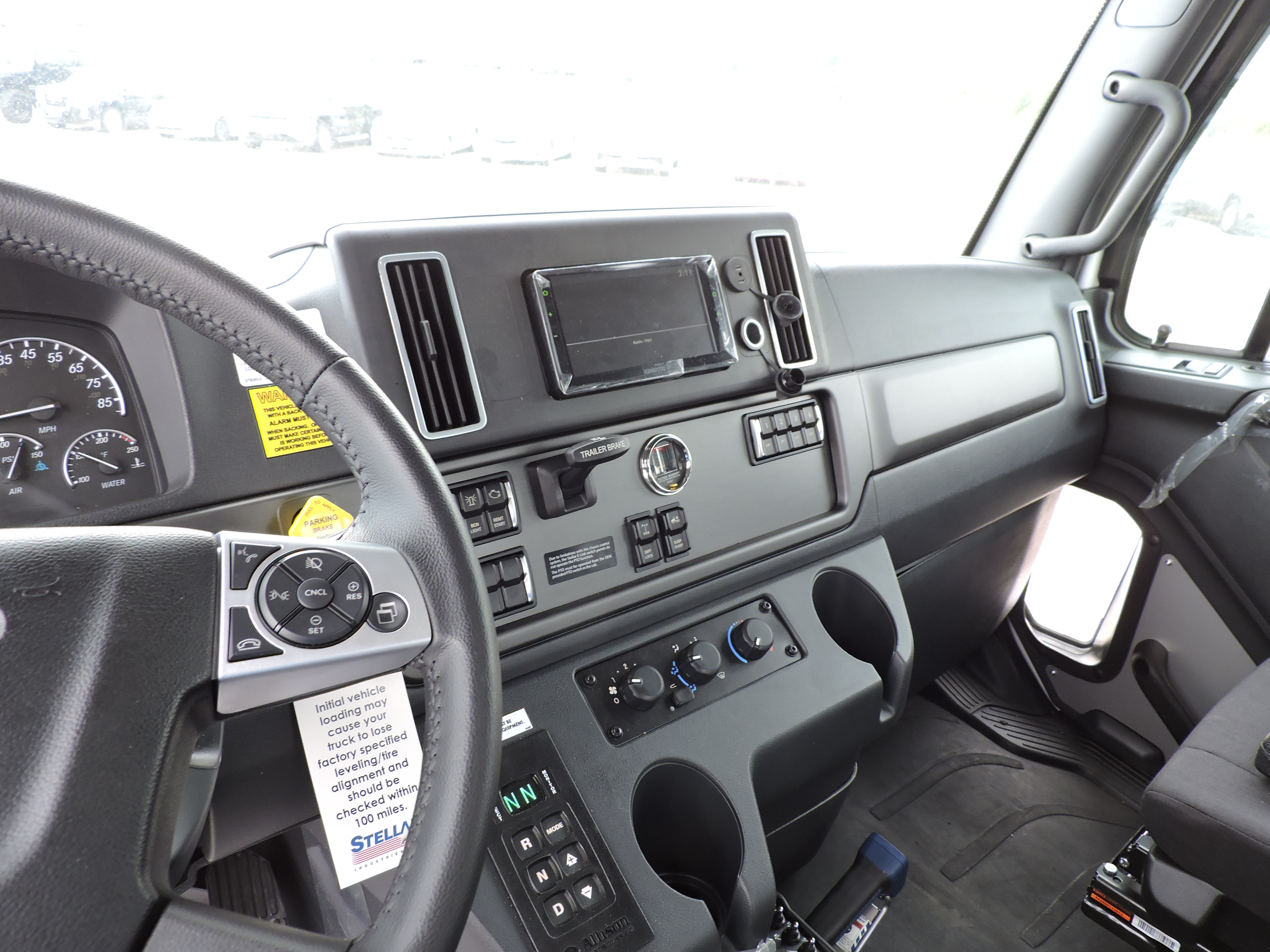

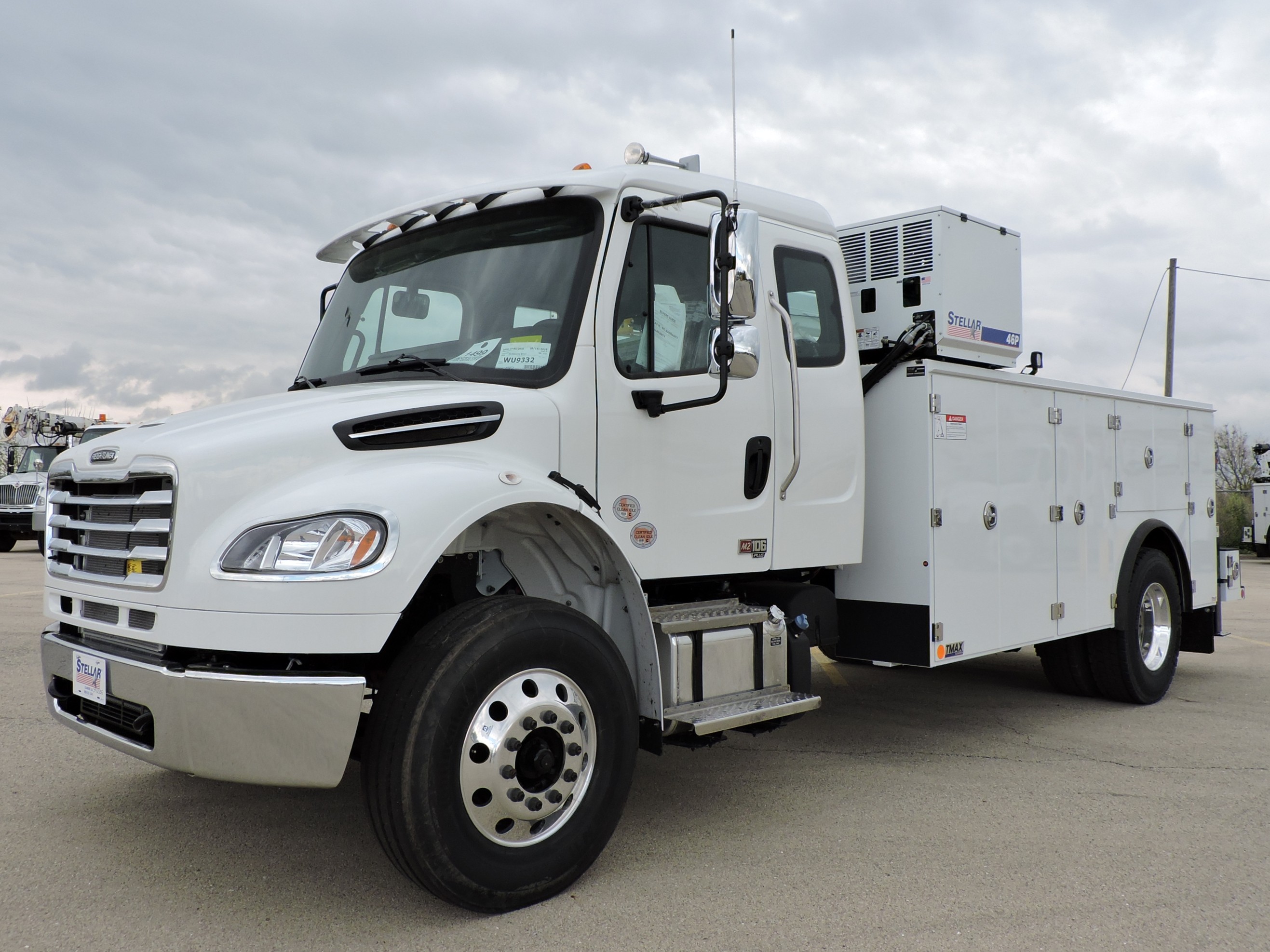

2026 Freightliner M2 106 Plus equipped as follows:

-          Extended cab

-          33,000 lb GVW

-          Cummins L9 engine – 350 hp at 2200 rpm, 1050 ft./lb at 1200 RPM

-          Cummins engine brake

-          1000W engine block heater

-          Allison 3000 RDS automatic transmission

-          219” wheelbase

-          Front axle: 12,000 lb with Taperleaf suspension

-          Rear axle: 21,000 lb with Airliner suspension

-          5.22 rear axle ratio

-          Mounted front tow hooks

-          Chromed steel bumper

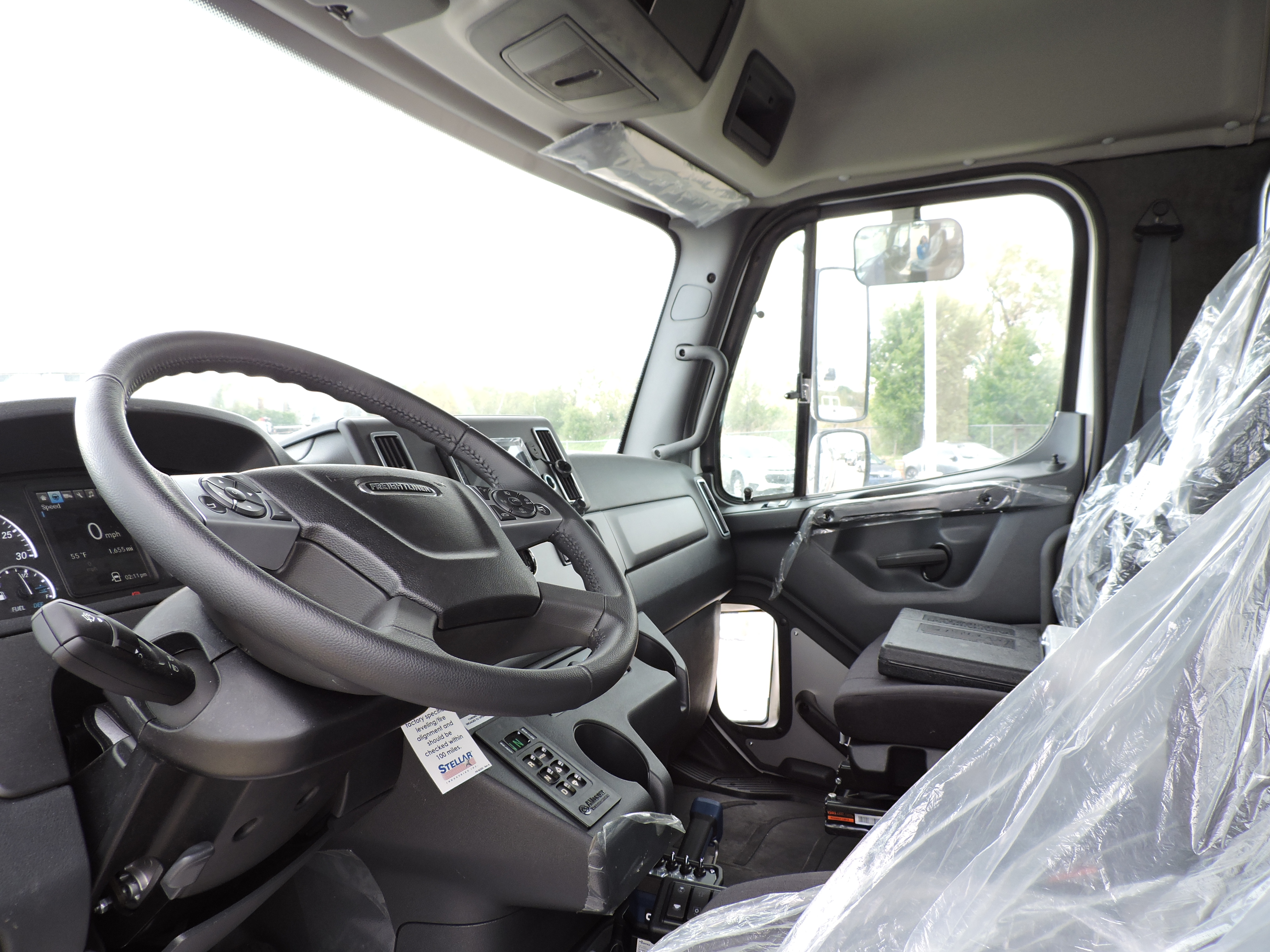

-          Telescope and tilt steering column

-          Driver and passenger’s seat - high back air suspension with lumbar support, cloth, dual armrests

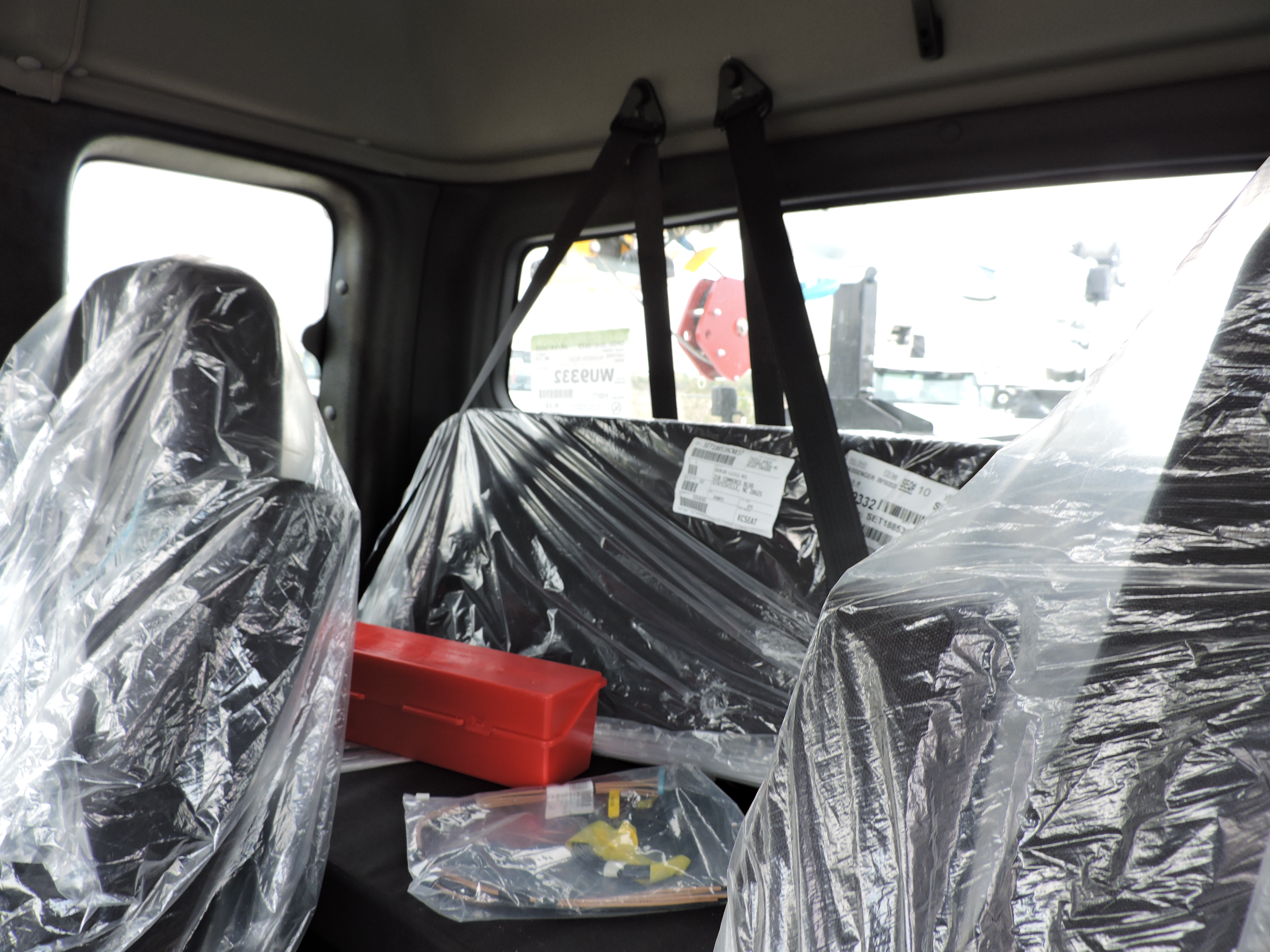

-          Full width rear bench seat

-          Dual polished air horns mounted

-          Composite exterior sun visor

-          Air brakes

-          Heated air dryer

-          Air cab

-          50-gallon fuel tank

-          11R22.5 tires – Continental

-          Aluminum wheels – polished finish on outside wheels

-          Air conditioning

-          Power windows

-          AM/FM/WB/USB radio with Bluetooth

-          Heated and motorized mirrors

-          RH down view mirror

-          Painted white
