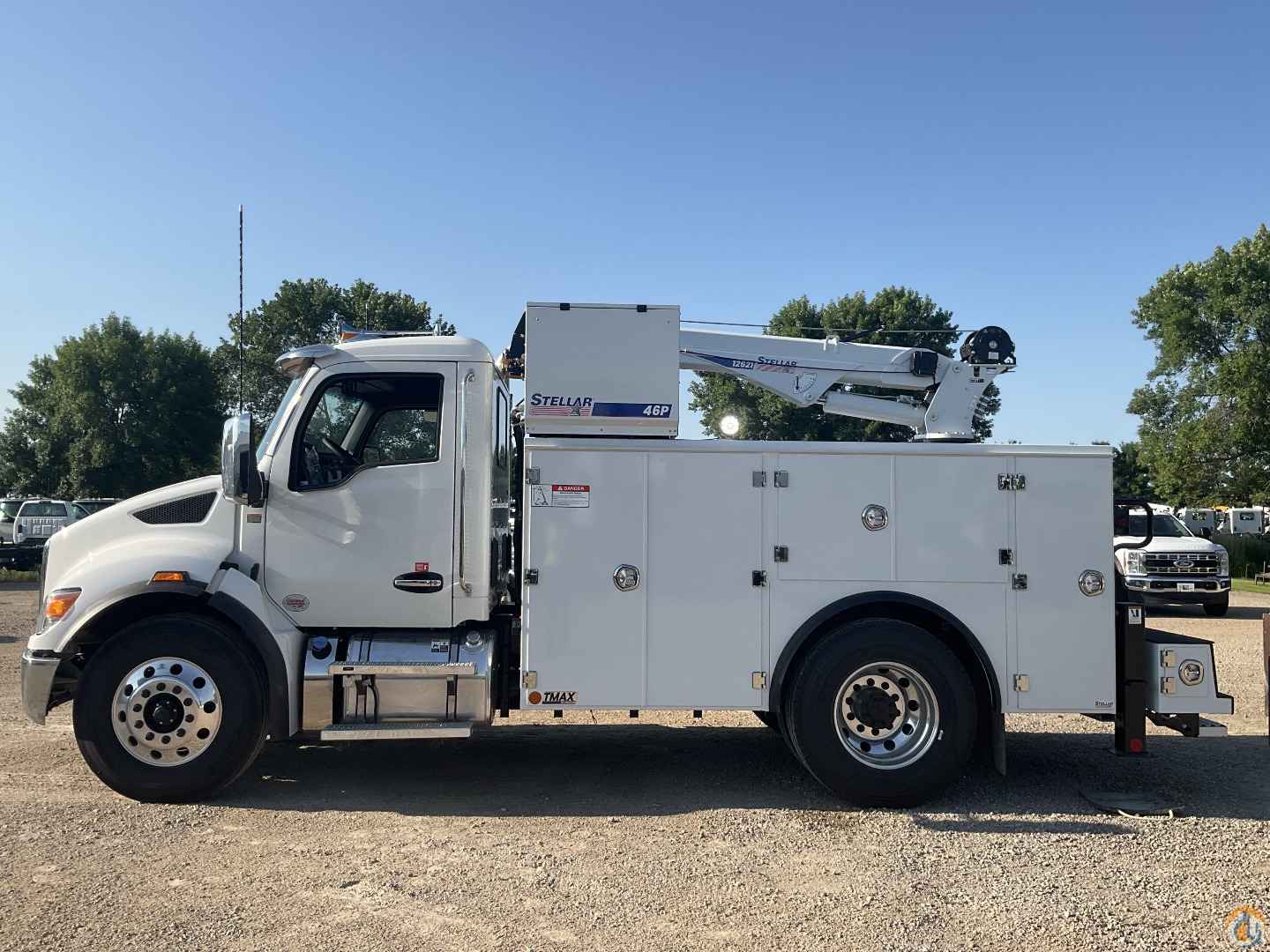

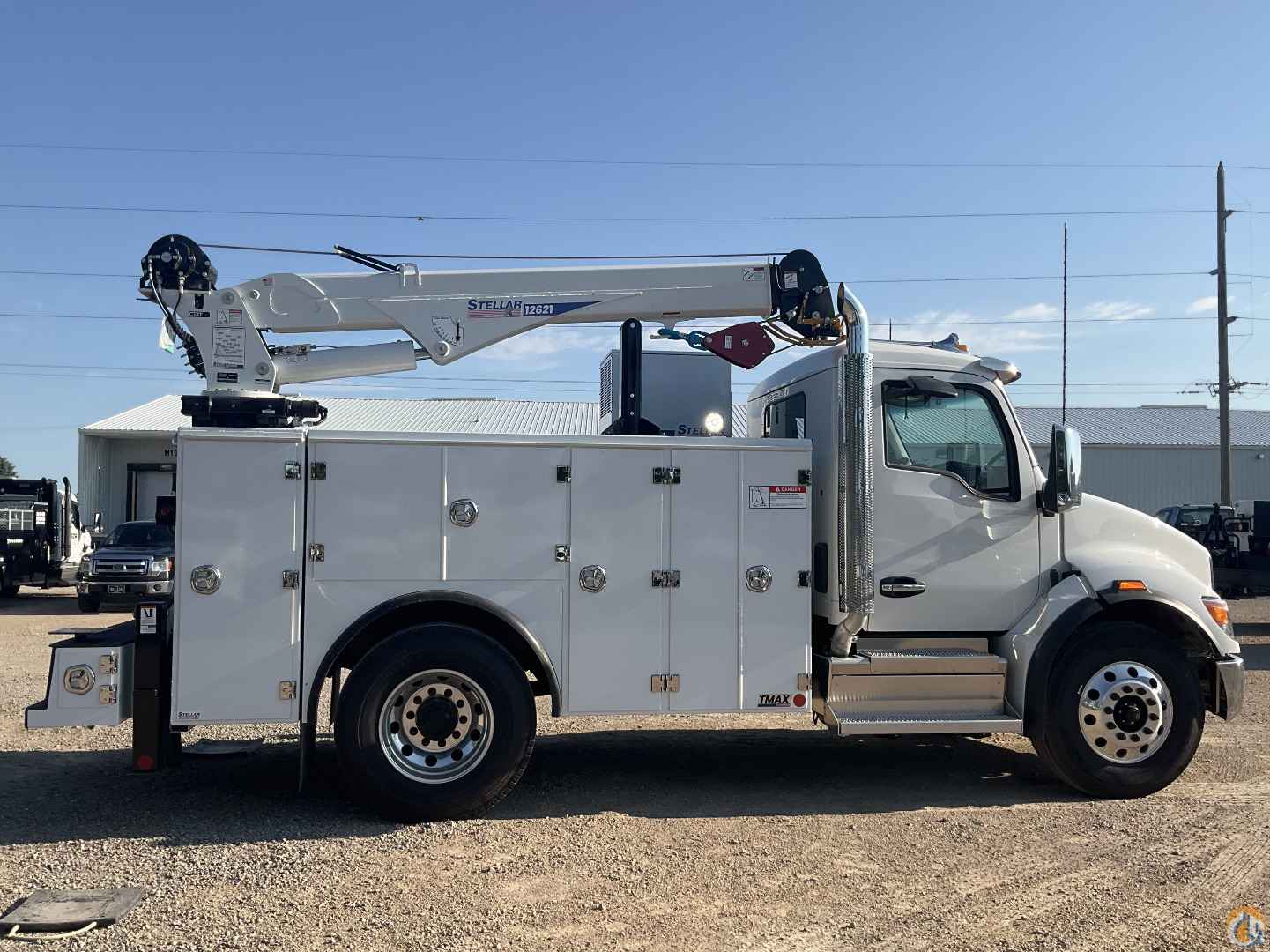

Stellar TMAX2-11 Aluminum Mechanic Body equipped as follows:

- Aluminum doors and side packs

- Torsion box understructure with isolated steel crane compartment

- Master-Lock system

- 133” long

- Six (6) recessed cargo tie-downs

- Two (2) rear mounted grab handles

- 12” aluminum fold down tailgate – painted black

- 21” work bench bumper with thru compartment

- Rubber fenderettes

- All compartments raised to 60” H

- Overlapped doors on SS1V/CS1V and horizontal compartments

- 2- & 3-point stainless steel compression latches

- Stainless steel “Billet Style” hinges

- Spring loaded door stops

- Dual-seal automotive type compartment weather seal

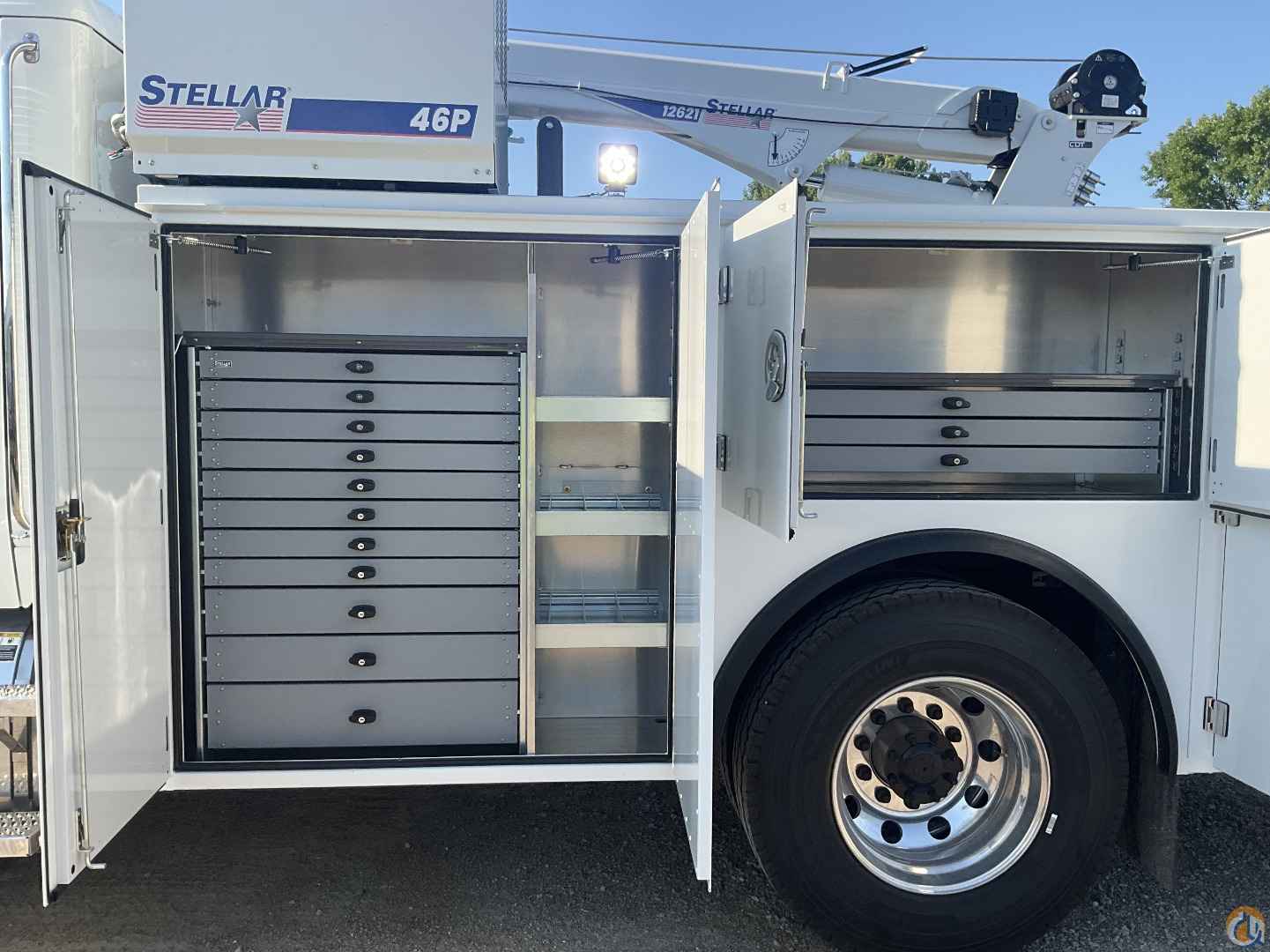

- SS1VF – Heavy duty aluminum drawer set – 43”H x 34”W x 18”D – 8-3”, 2-5”, 1-7”

- SS1VR – Shelf with (3) dividers – 17.63”W x 19”D

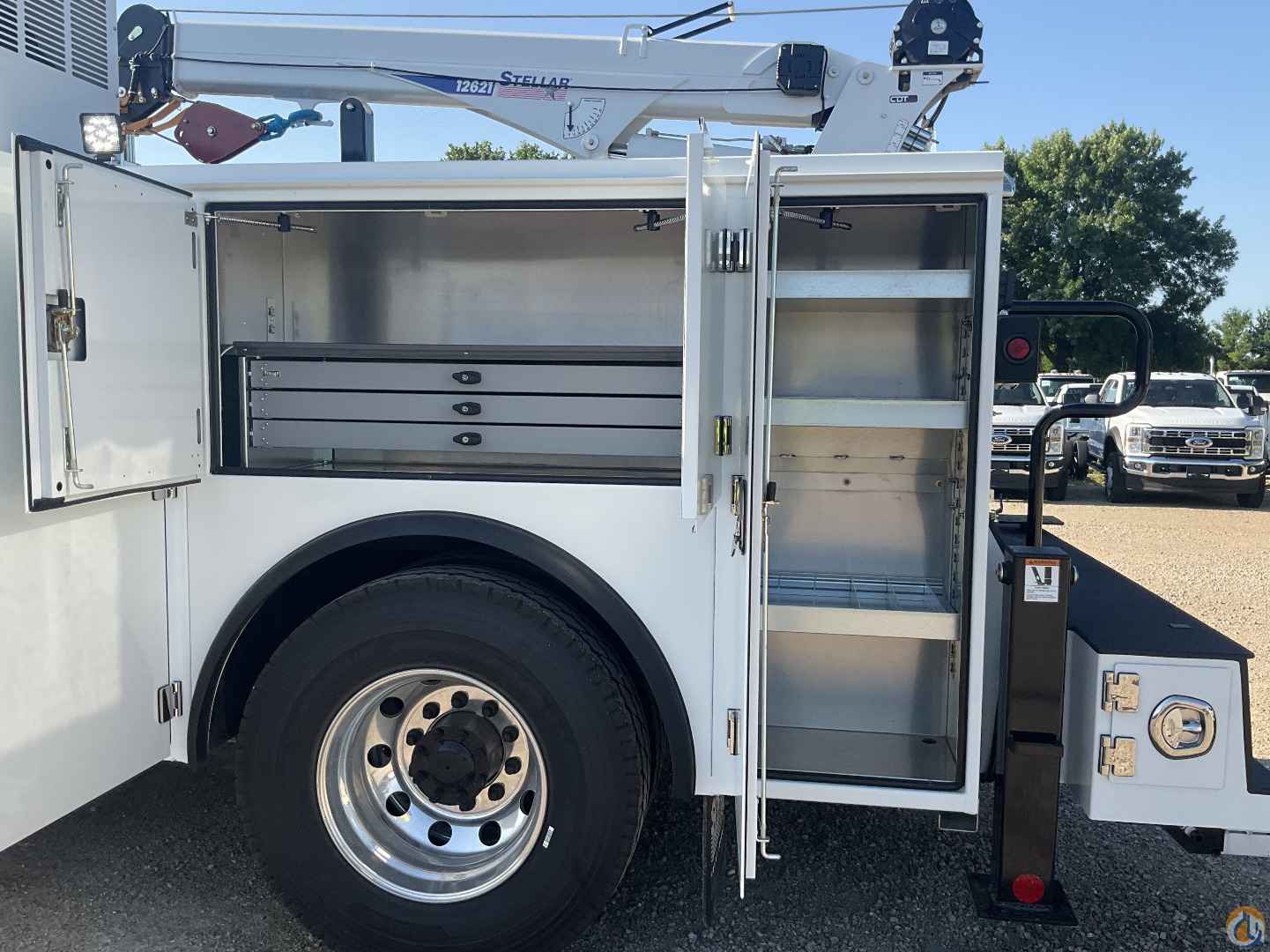

- SS Horizontal – Heavy duty aluminum drawer set

- SS Rear – Shelf with (3) dividers – 24.38” W x 19” D

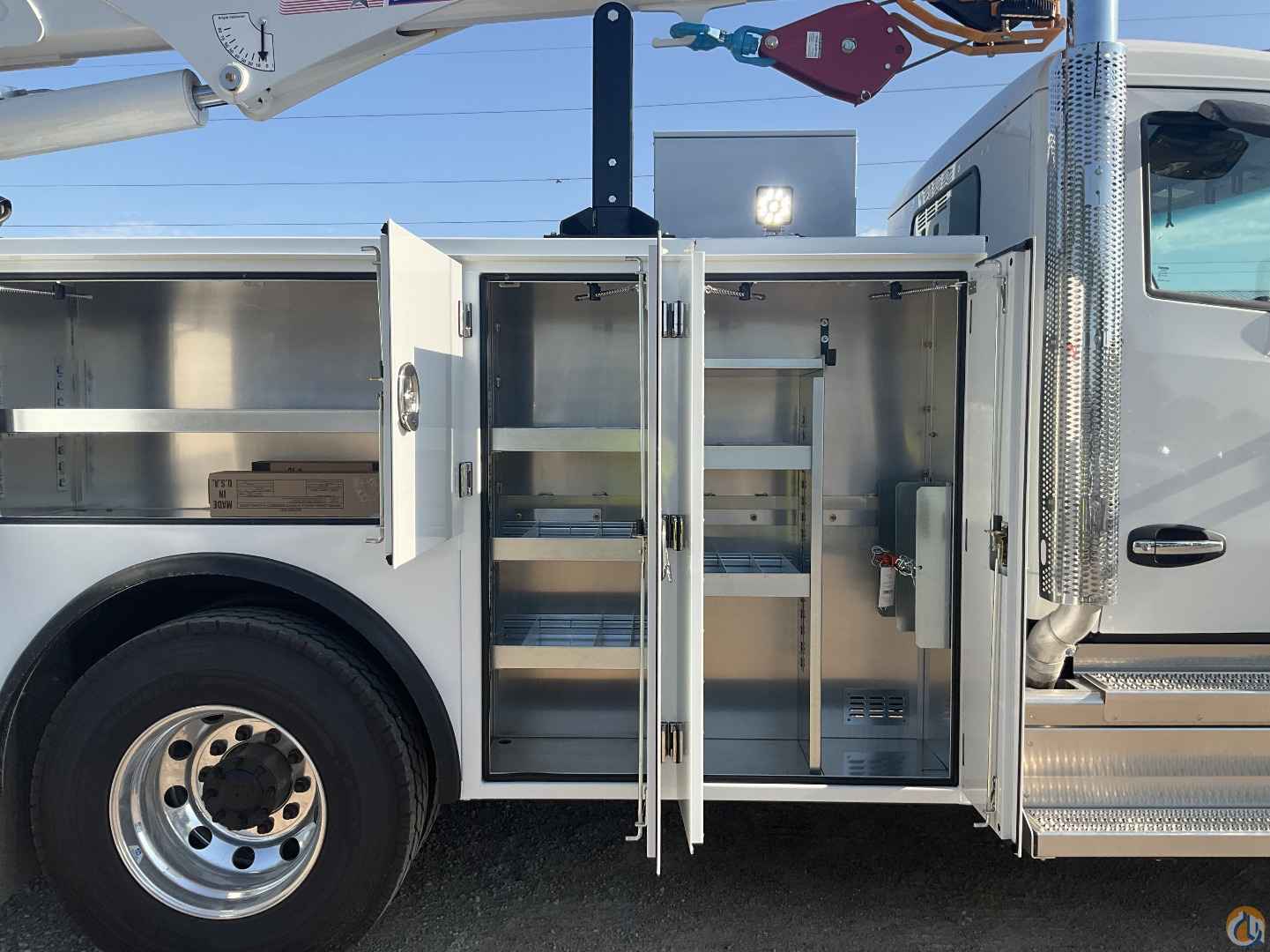

- CS1V – Divider kit with shelves and Oxy-Acetylene bottle holder holds 2 bottles

- CS2V – Shelf with (3) dividers – 21” W x 19” D

- CS Horizontal – Shelf with 3 dividers – 52” W x 19” D

- CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

- 22-gallon air tanks

- FLR system – 1 outlet for air hose (filter, lubricator, regulator)

- Backup alarm

- ICC safety kit – 2.5 lb fire extinguisher and reflector kit

- Pintle hitch mount

- Spray-on bed liner for load bed walls and floors

- Undercoated

- Prime painted white

- Stellar 46P hydraulic driven air compressor – 46 CFM @ 175 PSI, 4 cylinder 2 stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor

Stellar 12621 telescopic crane equipped as follows:

- 77,800 ft/lb rated when in boost mode

- 12,000 lb maximum capacity at 6’5” radius when in boost mode

- 21’ maximum hydraulic reach

- Boom elevation: -10° to +80°

- 400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop

- Planetary winch with 100’ of 7/16” wire rope

- Max line pull speed 55ft/min

- Quick release stow hook

- Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load

- CDTpro boost mode allows for a momentary 18% increase in the capacity of the crane, and a Safe Mode to keep the crane and operator safe should a load indicating device fail to operate correctly

- On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area

- Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use

- Hydraulic stabilizers

MOUNTED ON:

2025 Kenworth T280 equipped as follows:

- Paccar PX-7 engine 300hp diesel

- Allison 2500 RDS automatic transmission

- Horizontal exhaust with vertical pipe

- Air brakes

- 56 gallon aluminum fuel tank

- Tires – 11R22.5

- Air conditioning

- Air cushion driver’s seat

STOCK PHOTOS
