Standard Features

Body rating – 75,000 ft lb

Enhanced strength and stability for higher crane loads

Multiplex electrical system with programmable logic

25” deep workbench with 3” clamp edge and 7.7 cu ft of storage

Body Structure

Patented inverted A-frame design with torsion plate

10-gauge galvanneal steel

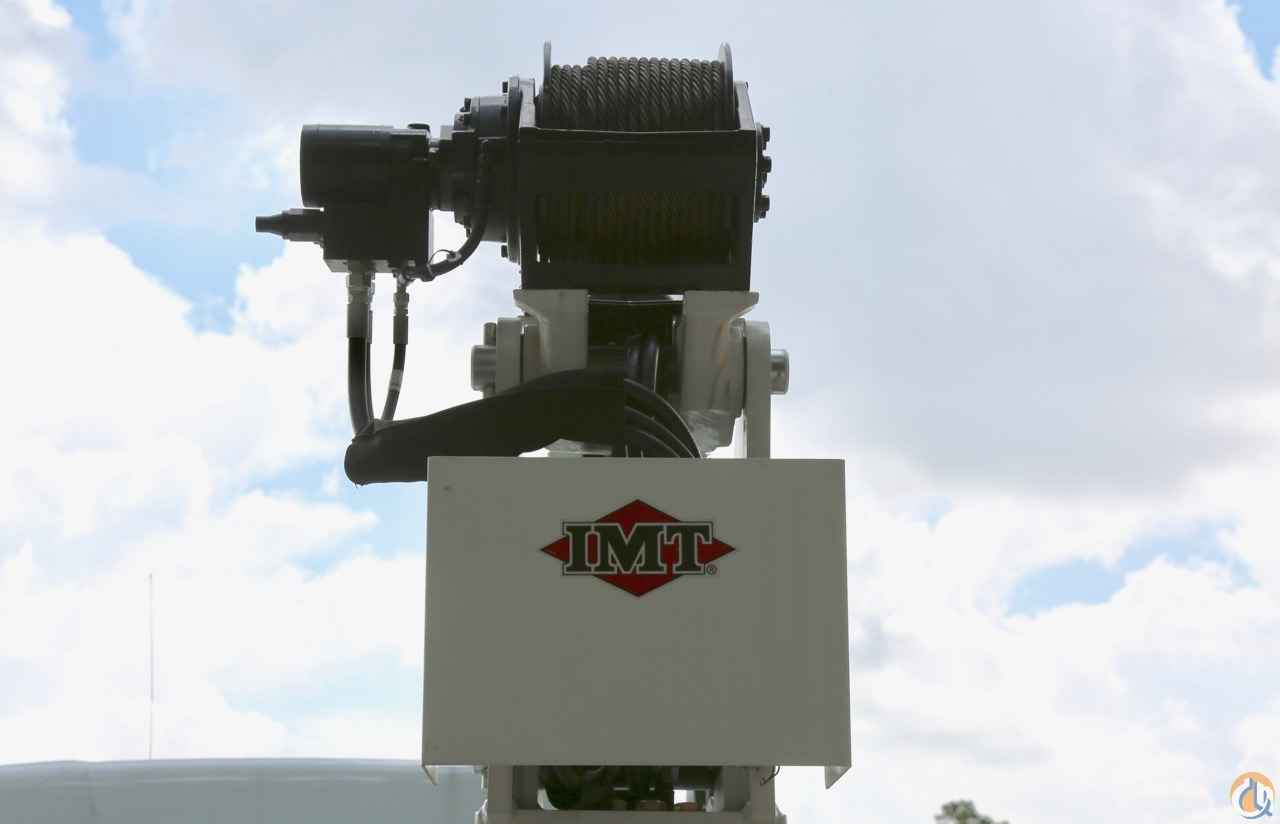

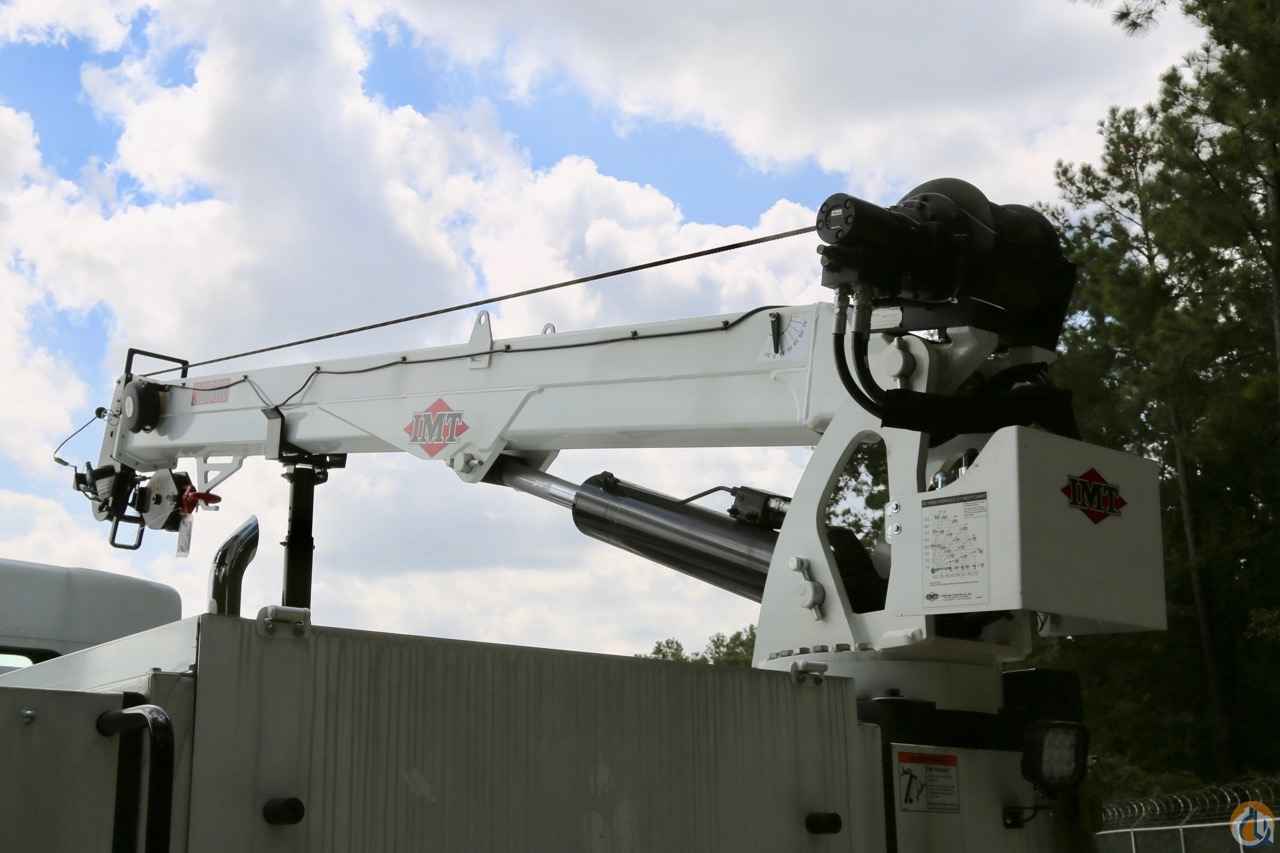

Integral crane box

Front and rear stabilizer housings

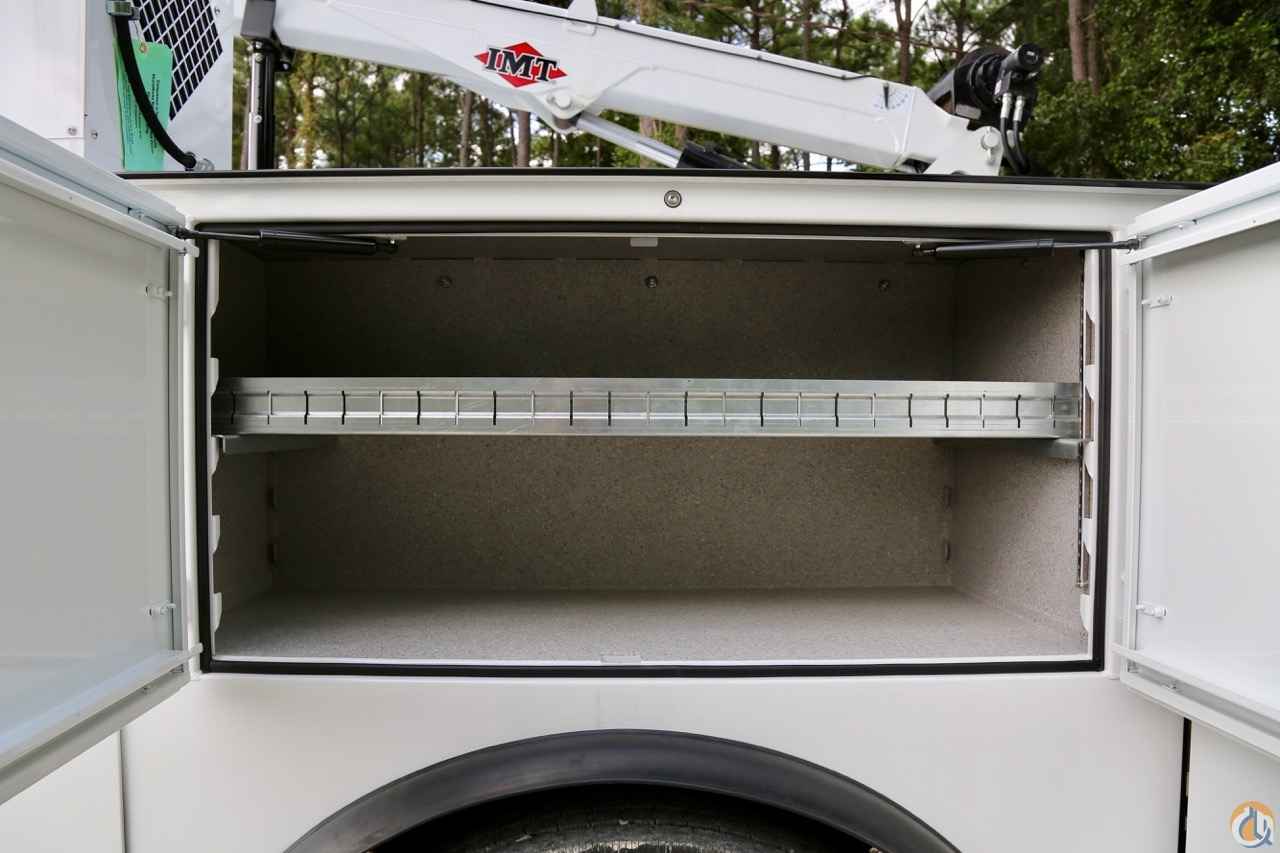

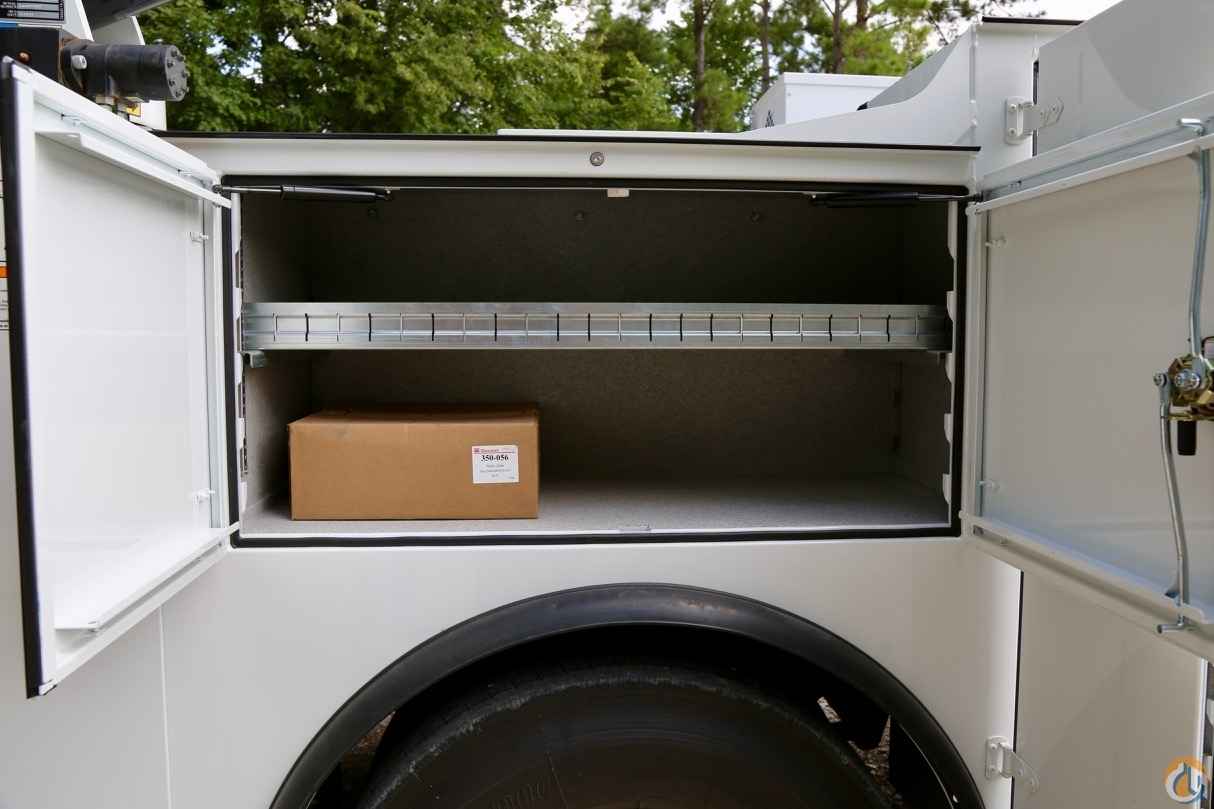

Body Materials

Side packs constructed of 10-gauge and 12-gauge galvannealed steel

Deck Plate is 1/8” steel

Workbench is constructed of both galvannealed and cold-rolled steel

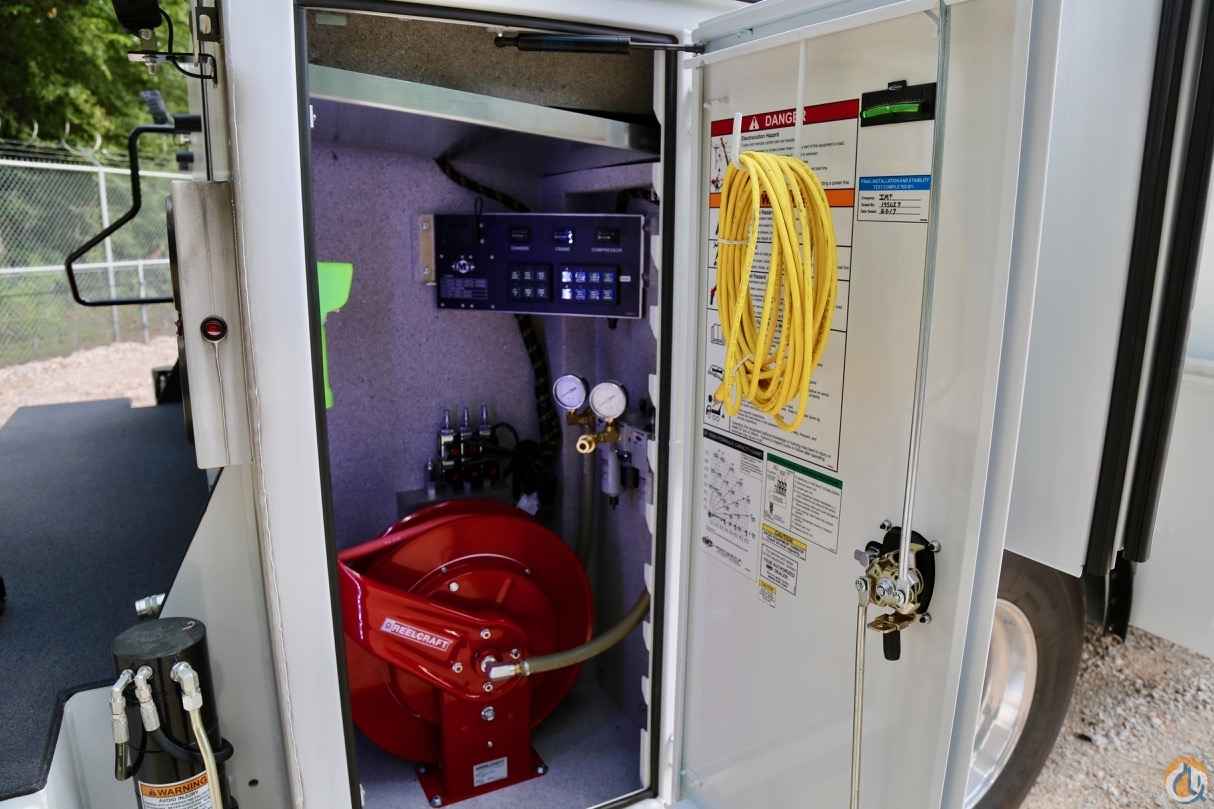

Electrical System

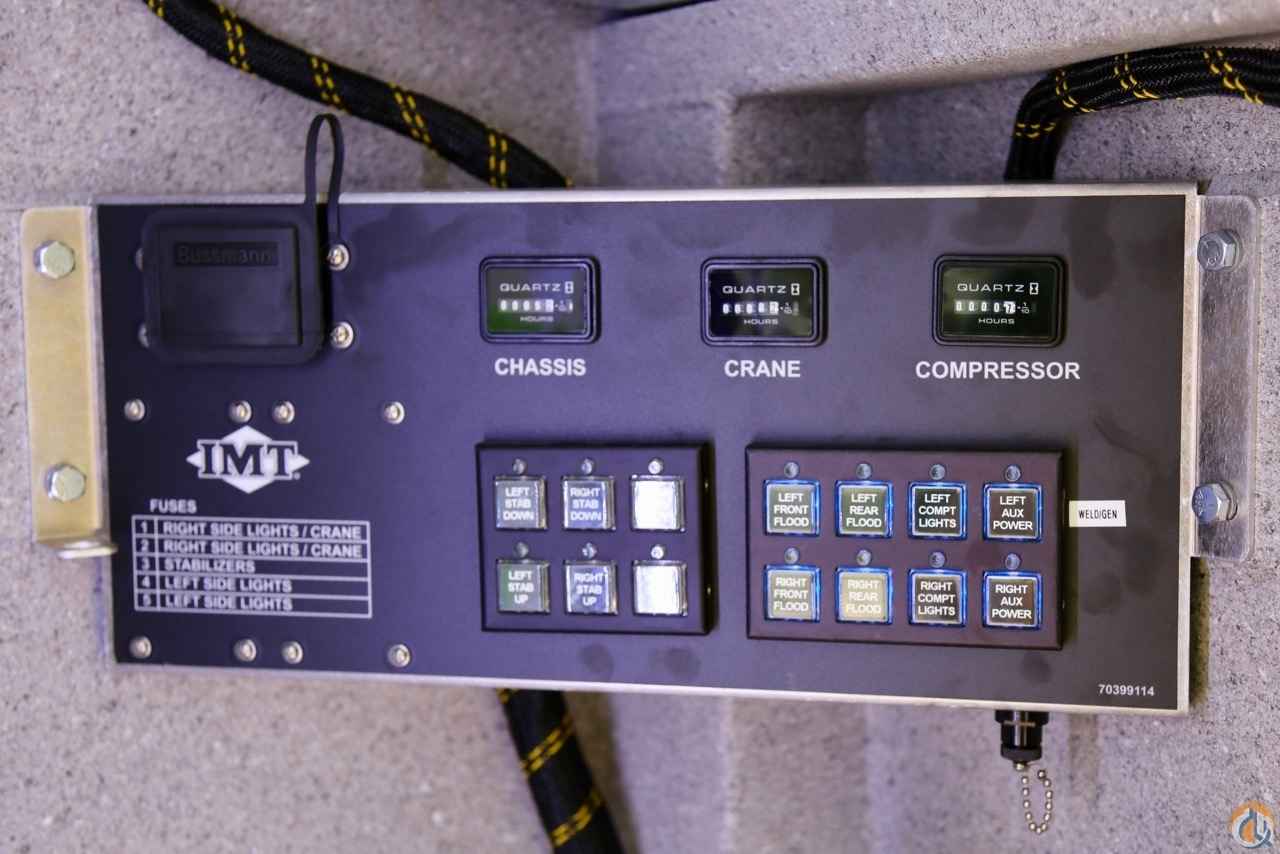

Multiplex electrical system with programmable logic for increased reliability

Central power distribution point

Automotive-style harnesses protected by overbraid

White wire has circuit function printed every 3”

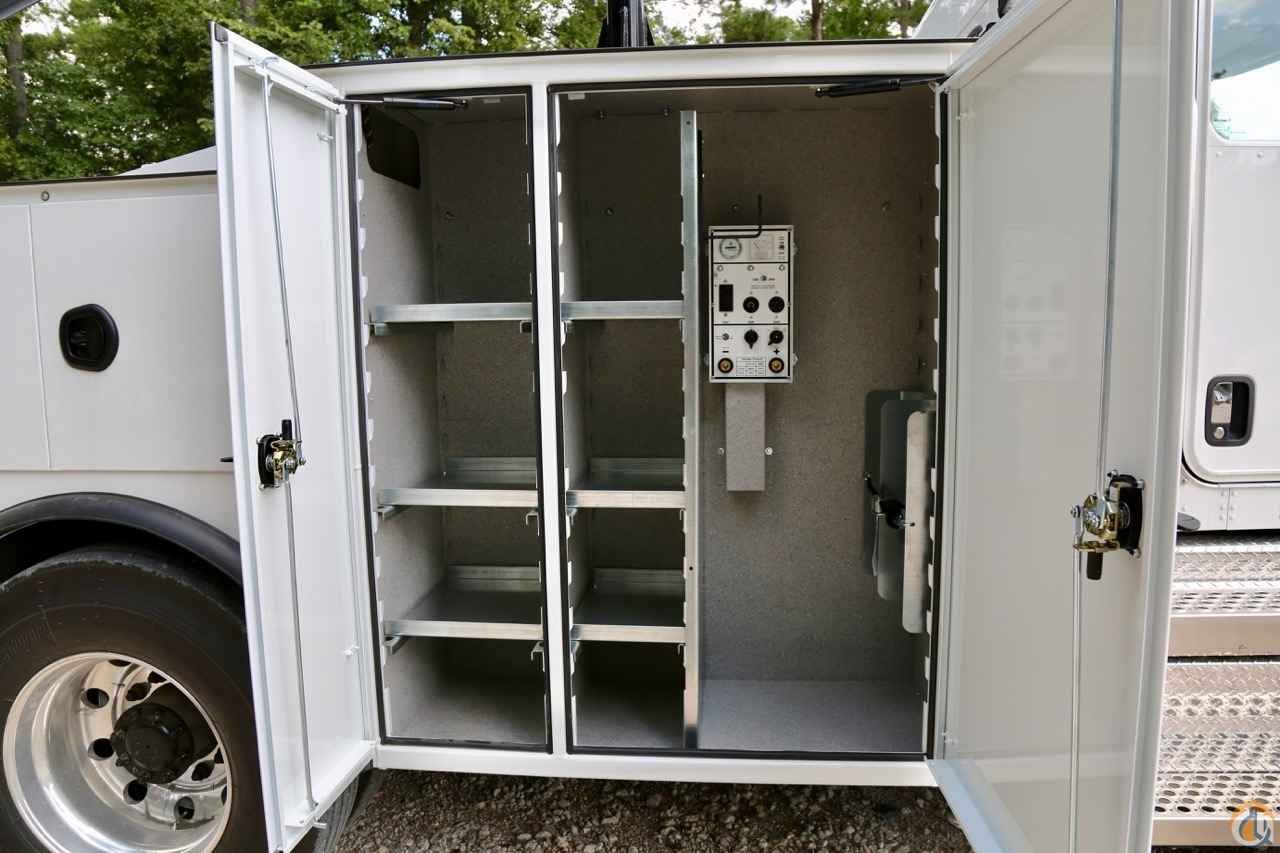

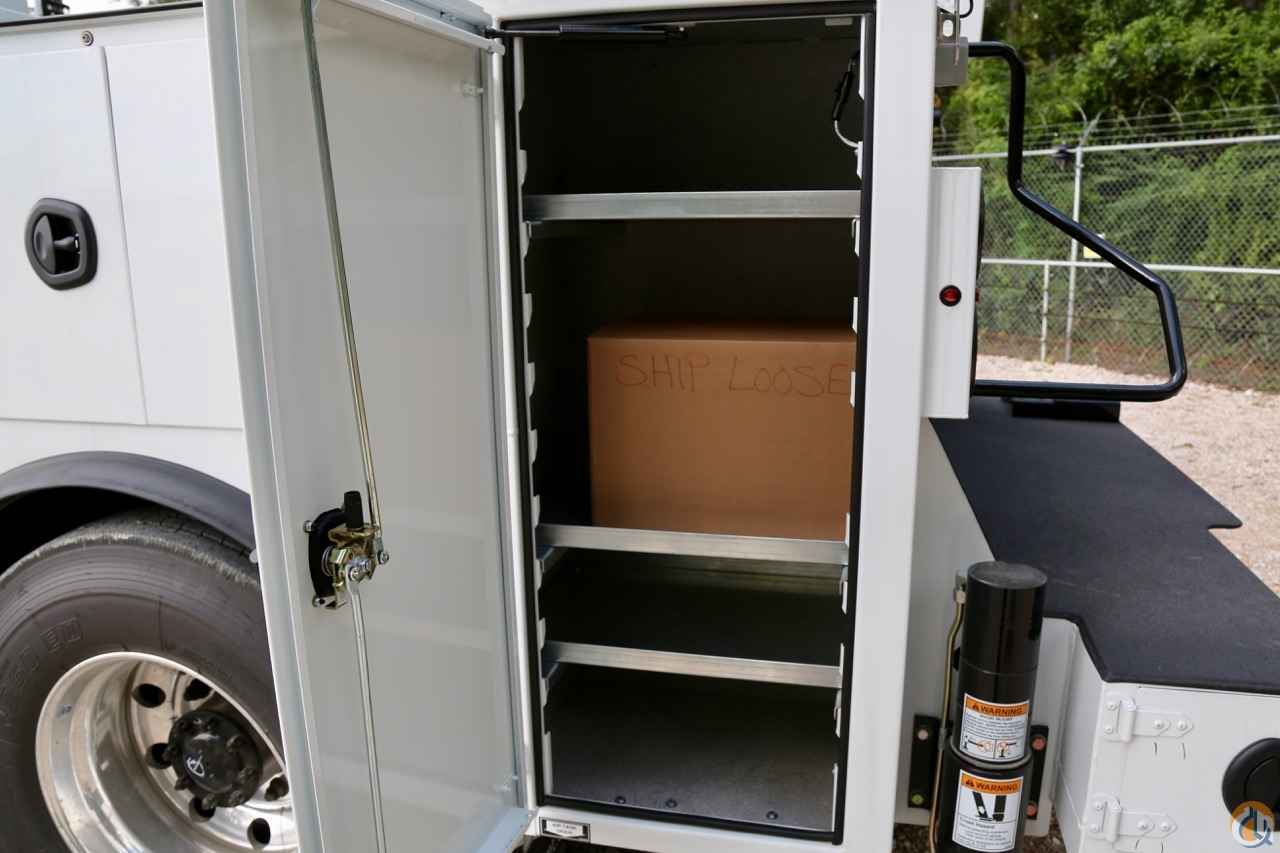

Doors

Constructed of 14-gauge galvannealed steel

Internal formed eaves and hemmed edges

3-point latches with locking rotary T-handle

Stainless steel hinges with composite washers

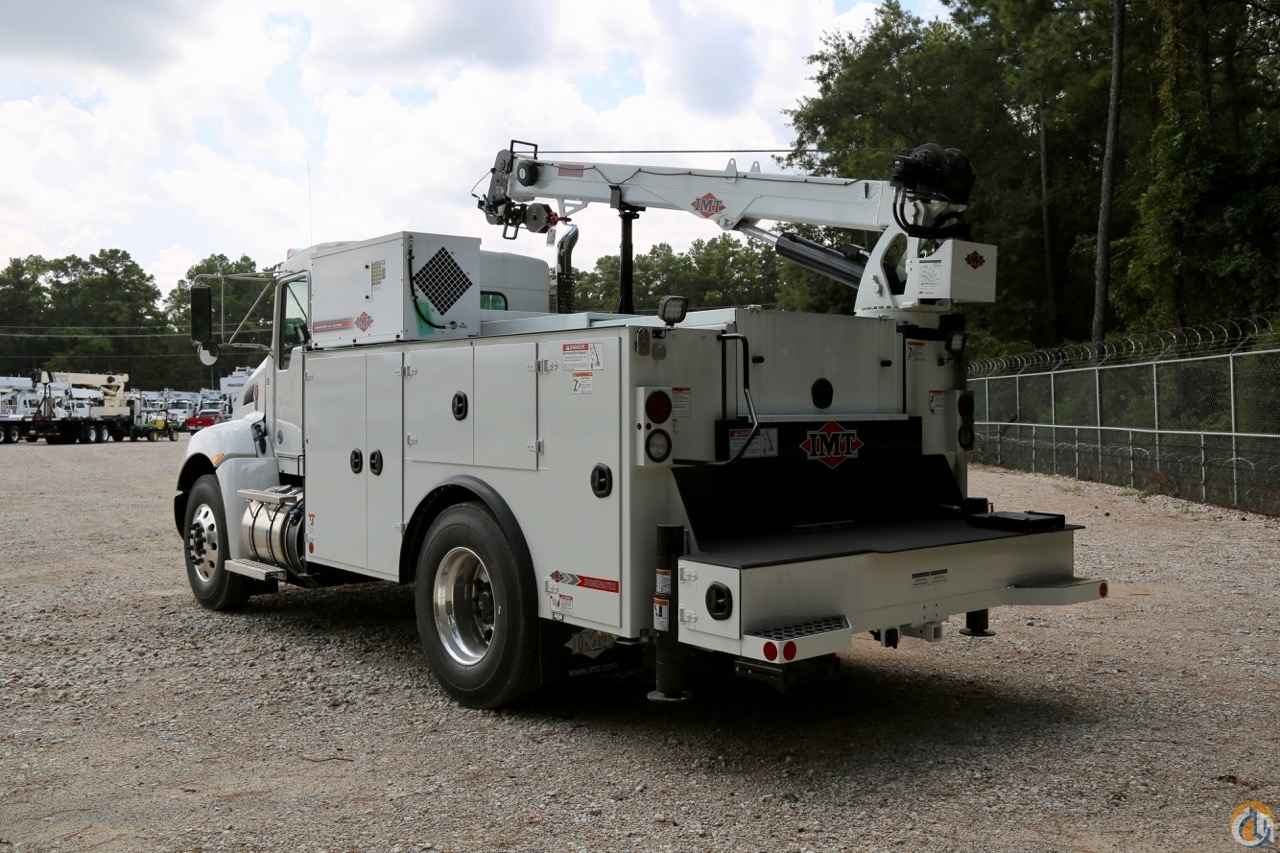

Tailgate

10”

Single-hand operation

90 degree positive stop

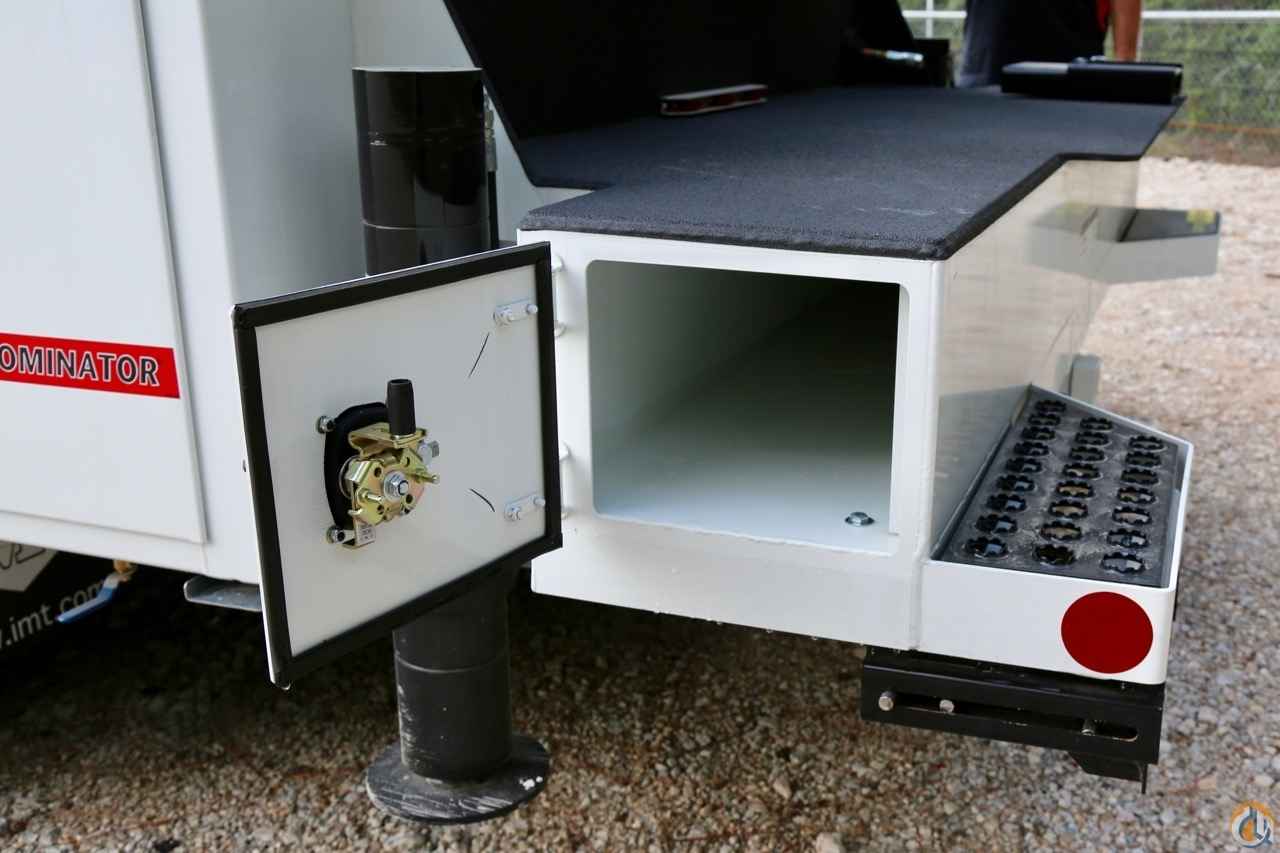

Stabilizer Weights

Left front drop down: 24 lb

Right front manual out/drop down: 71 lb.

Left front manual out/drop down: 71 lb.

Rear manual out/manual down: 289 lb.

Rear manual out/ power down: 376 lb.

Rear power out/power down: 400 lb.

Ref no: PO39317
