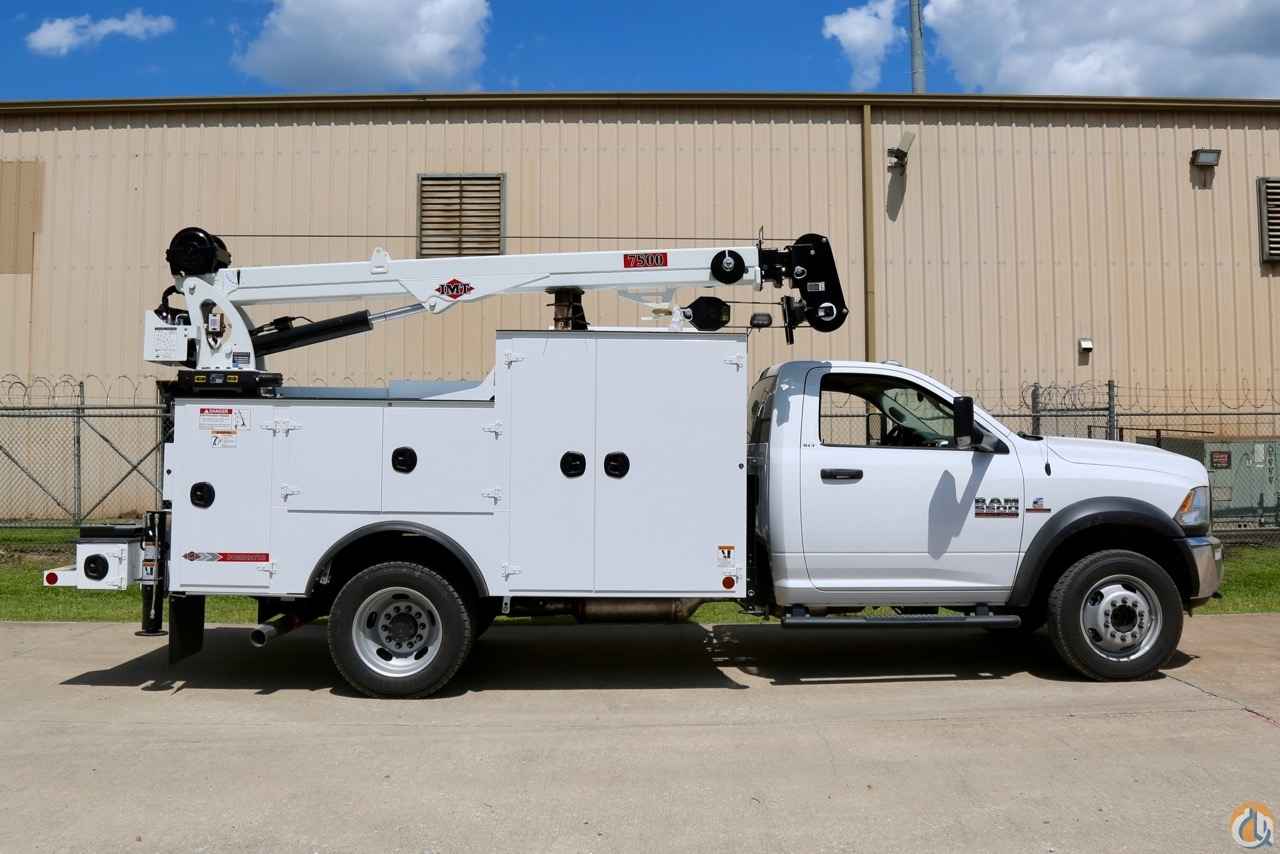

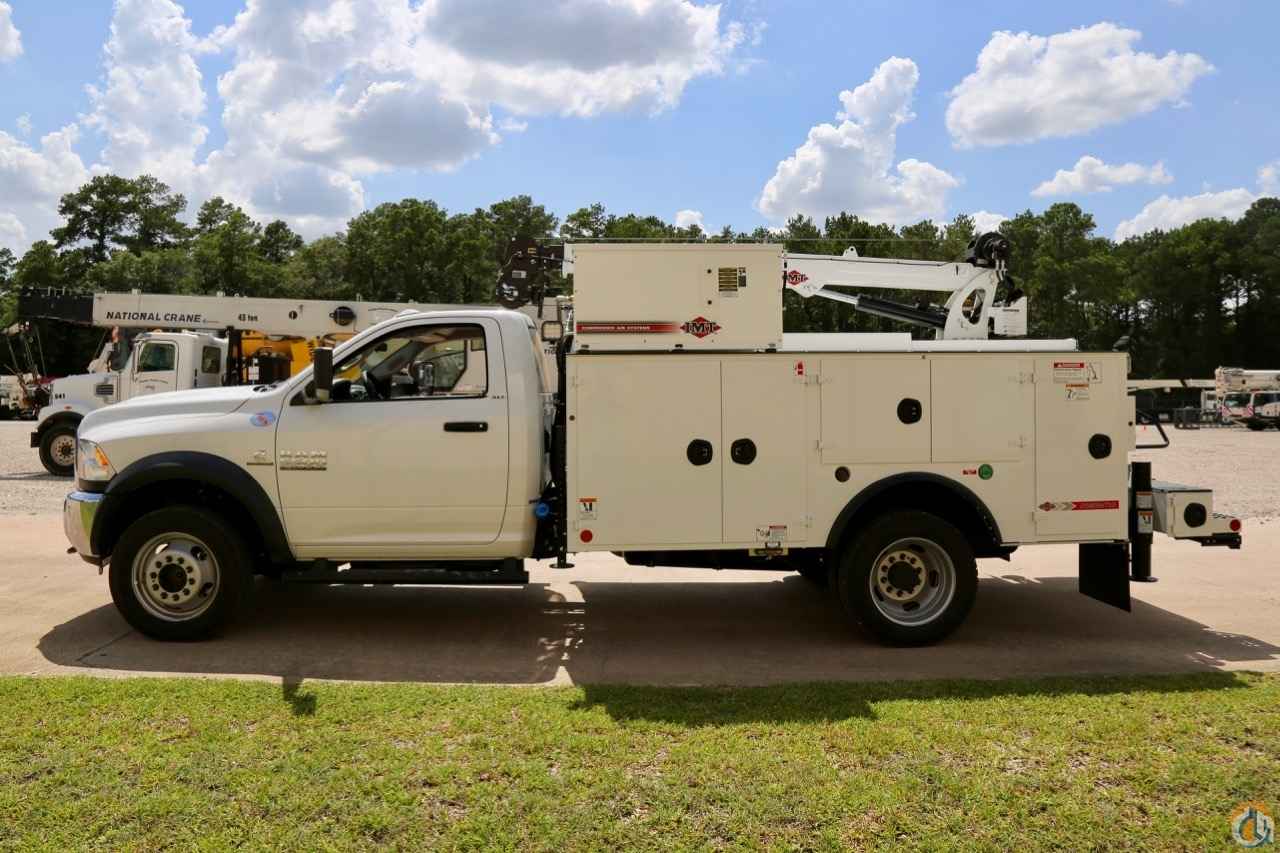

Standard Features
Body rating – 52,000 ft lb
Enhanced strength and stability for higher crane loads
Multiplex electrical system with programmable logic
22” deep workbench with 3” clamp edge and 6.4 cu ft of storage
Body Structure
Patented inverted A-frame design with torsion plate
10-gauge galvanneal steel
Integral crane box
Front and rear stabilizer housings
Body Materials
Side packs constructed of 10-gauge and 12-gauge galvanneal steel

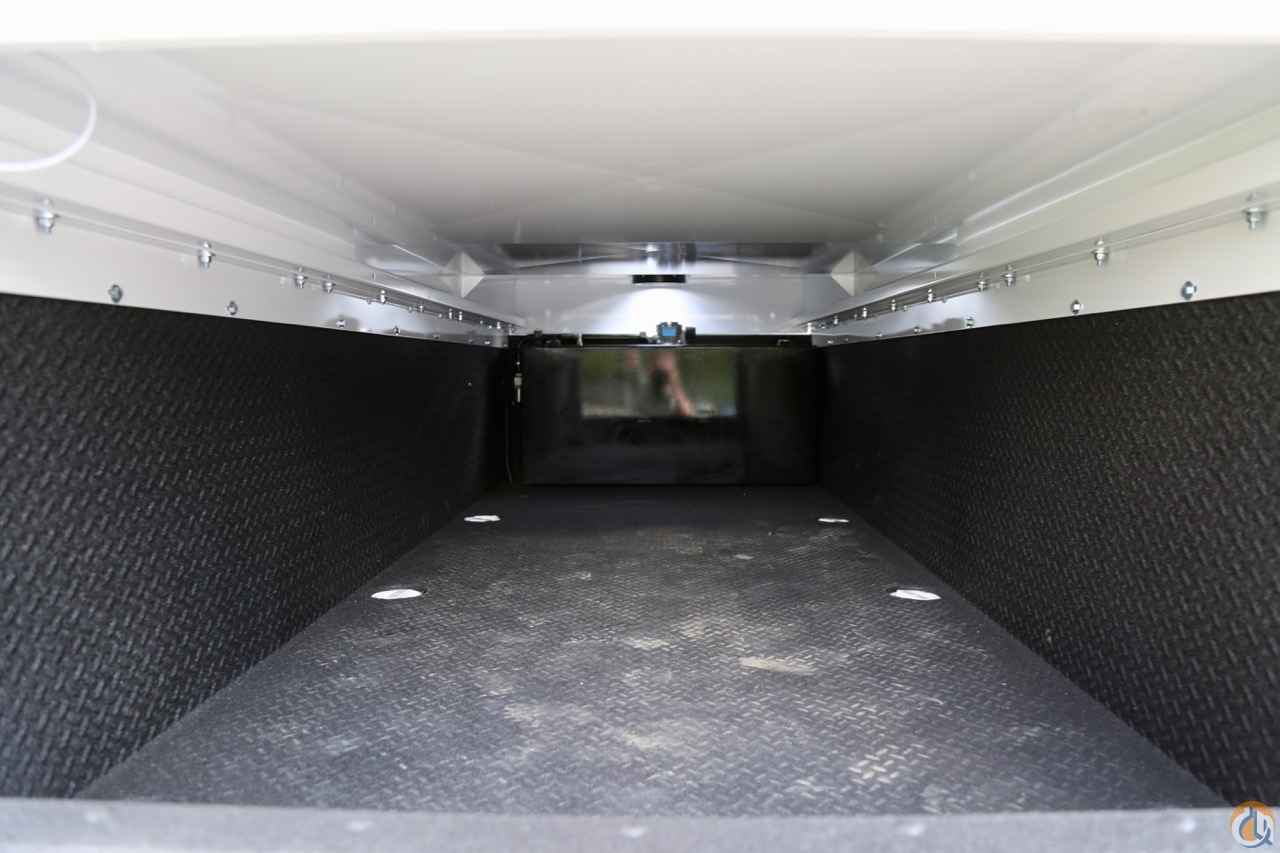

Deck Plate is 1/8” steel
Workbench is constructed of both galvanneal and cold-rolled steel
Electrical System
Multiplex electrical system with programmable logic for increased reliability
Central power distribution point
Automotive-style harnesses protected by overbraid
White wire has circuit function printed every 3”

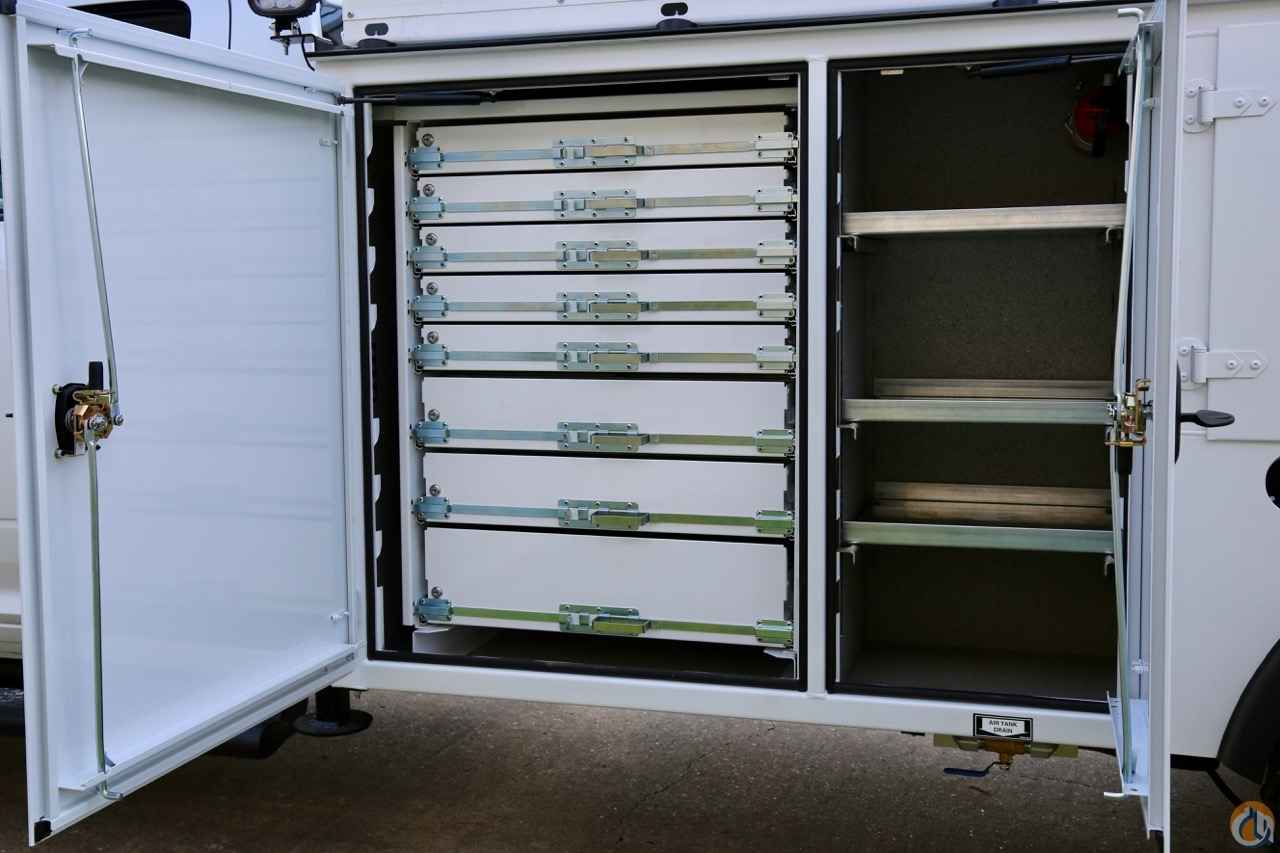

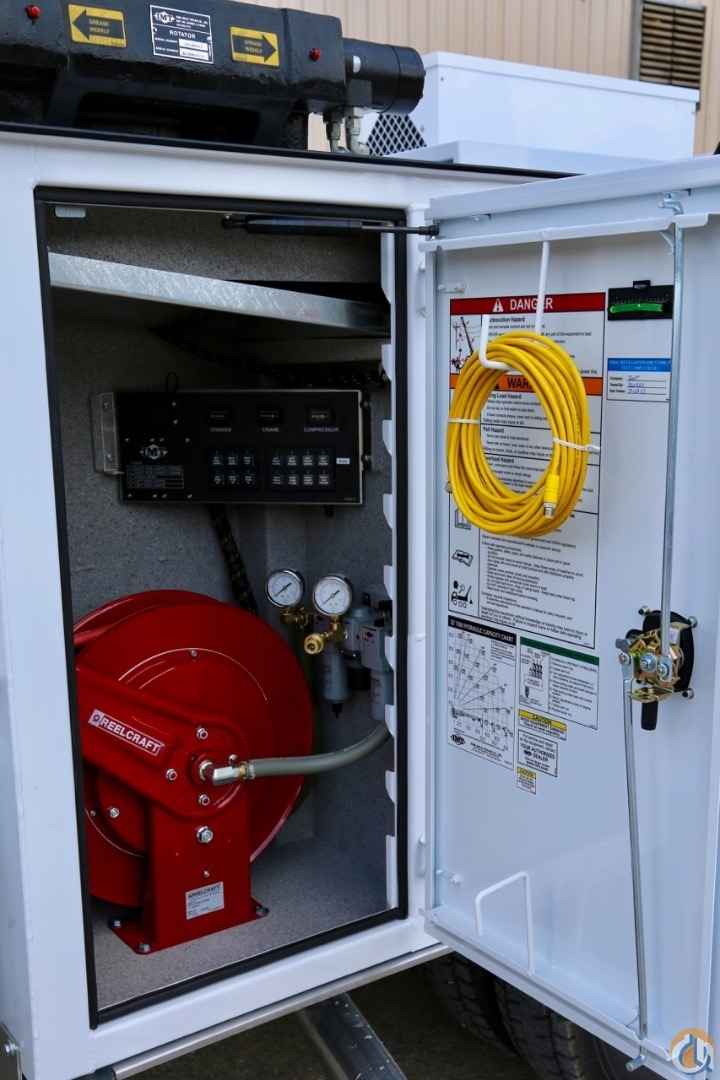

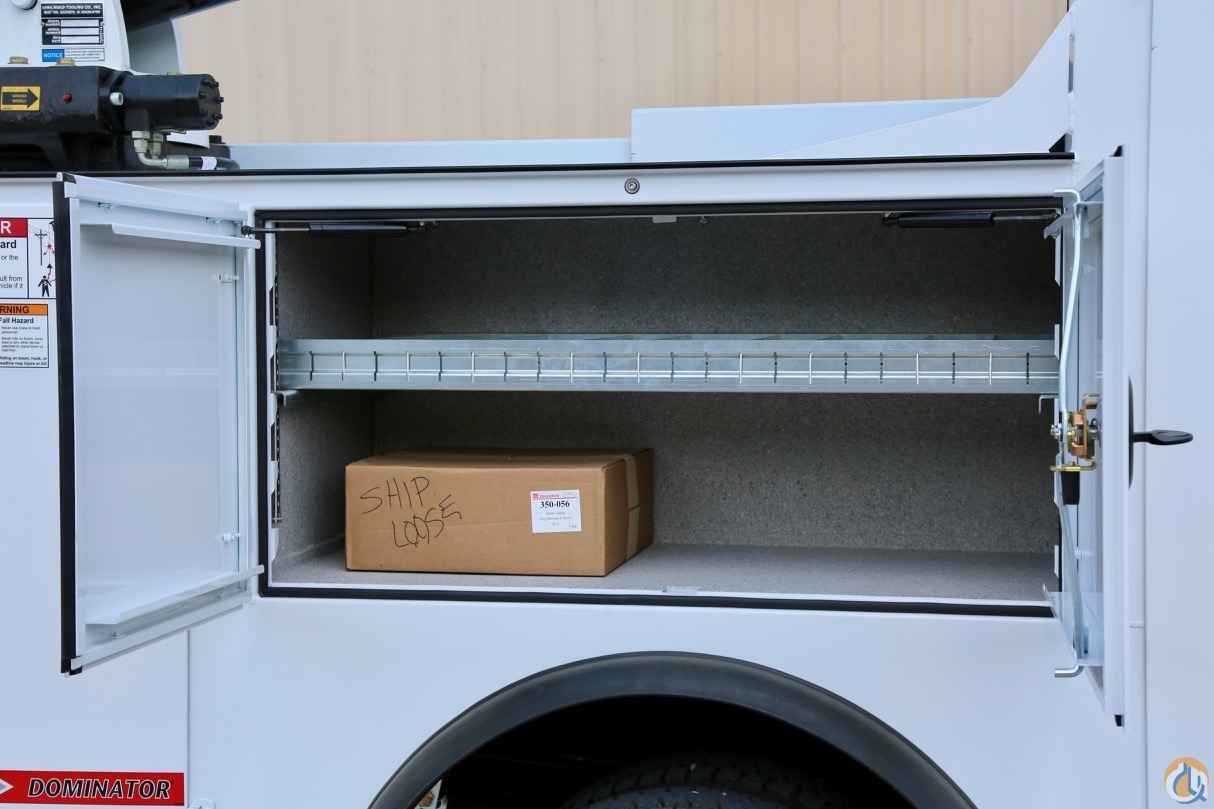

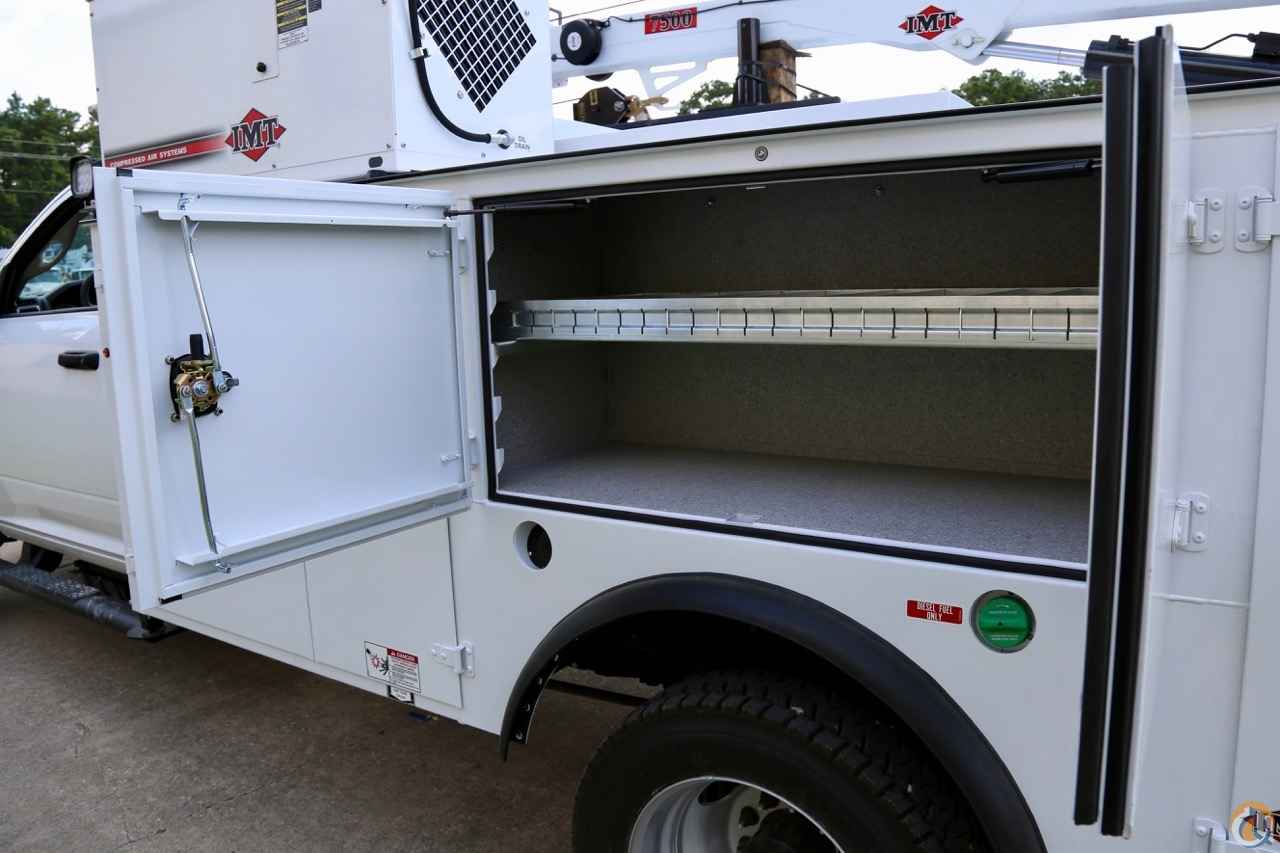

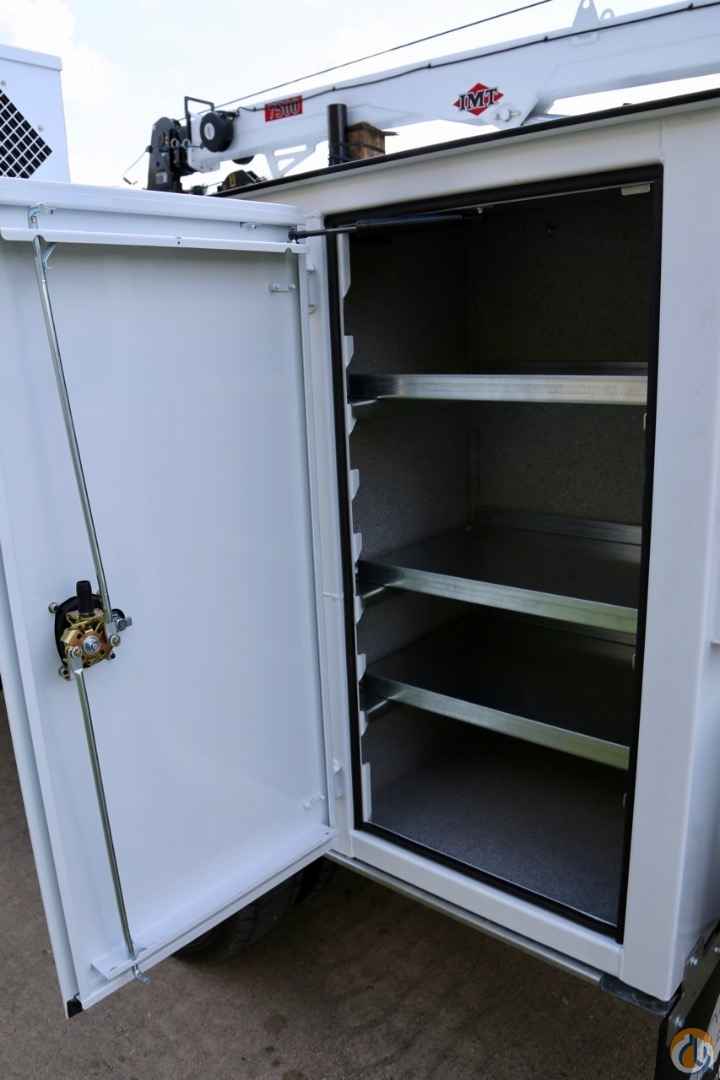

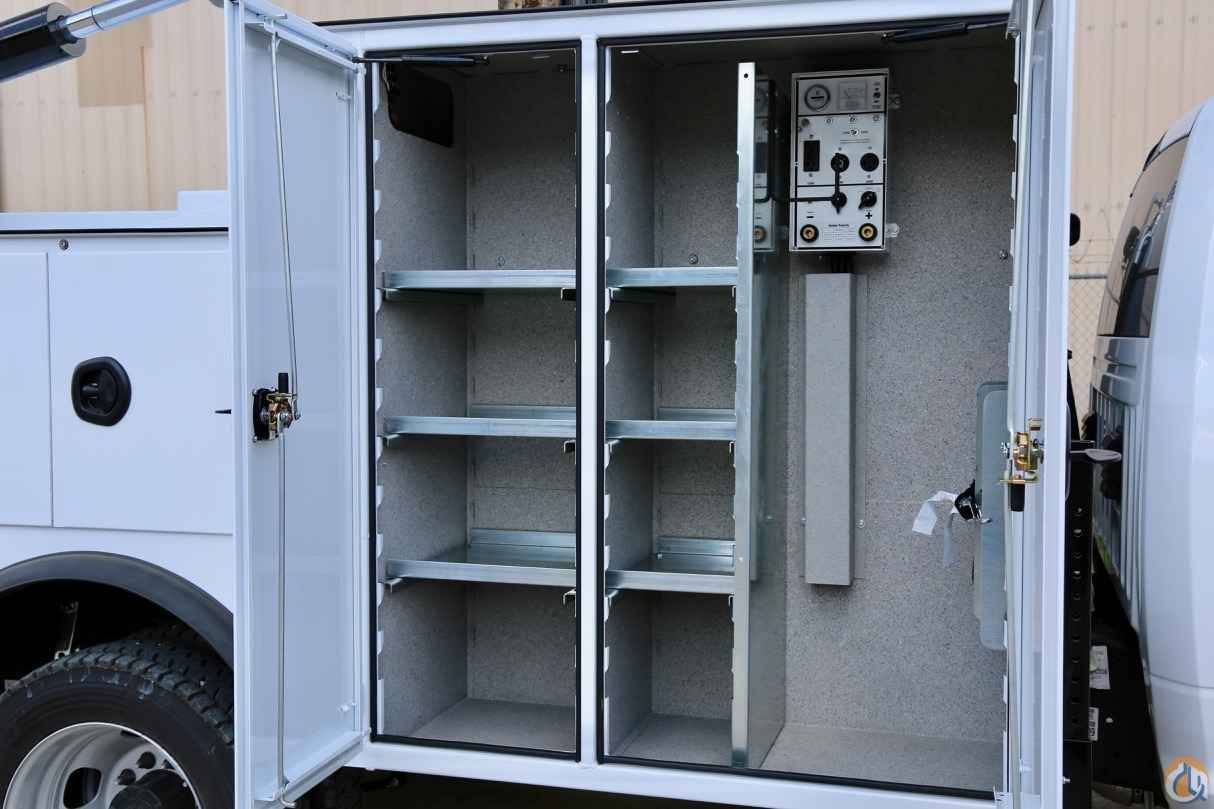

Doors
Constructed of 14-gauge galvanneal steel
Internal formed eaves and hemmed edges
3-point latches with locking rotary T-handle
Stainless steel hinges with composite washers
Tailgate
10”
Single-hand operation
90 degree positive stop

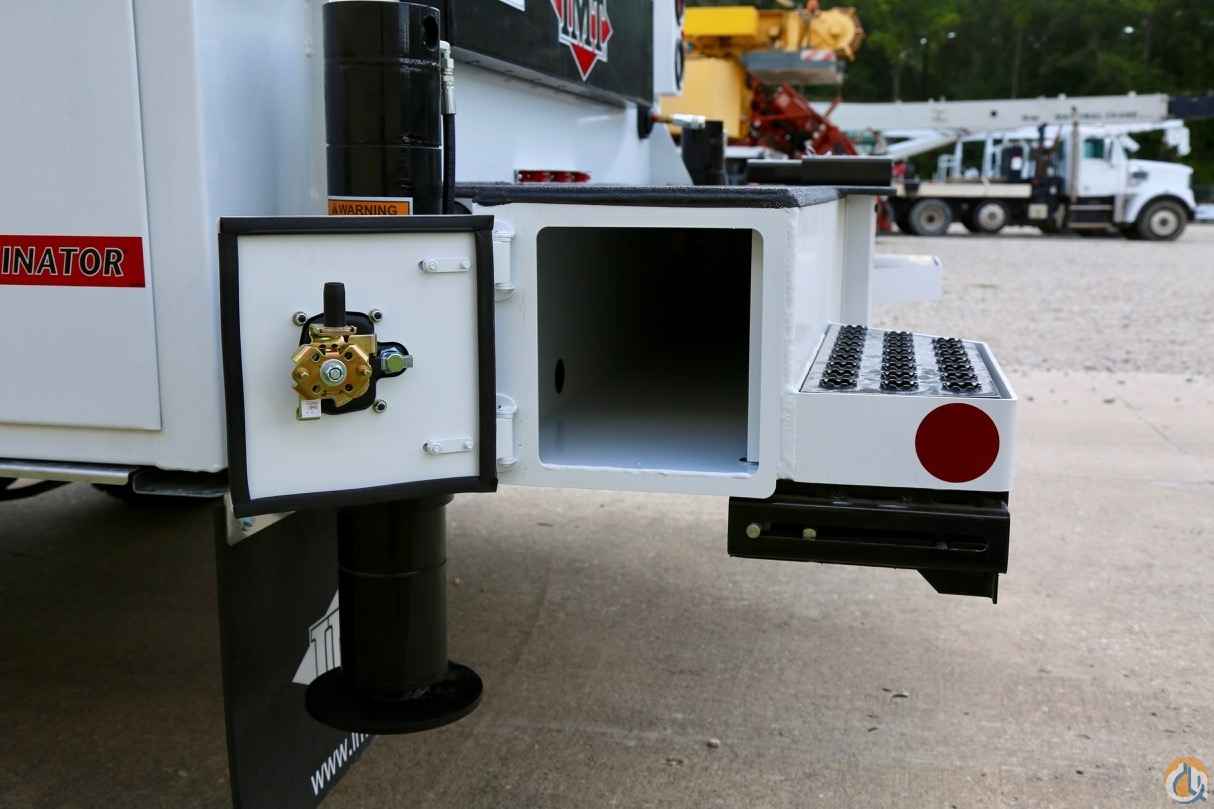

Stabilizer Weights
Left front drop down: 24 lb
Right front manual out/drop down: 82 lb
Left front manual out/drop down: 82 lb
Rear manual out/manual down: 255 lb
Rear manual out/ power down: 345 lb
Rear power out/power down: 370 lb

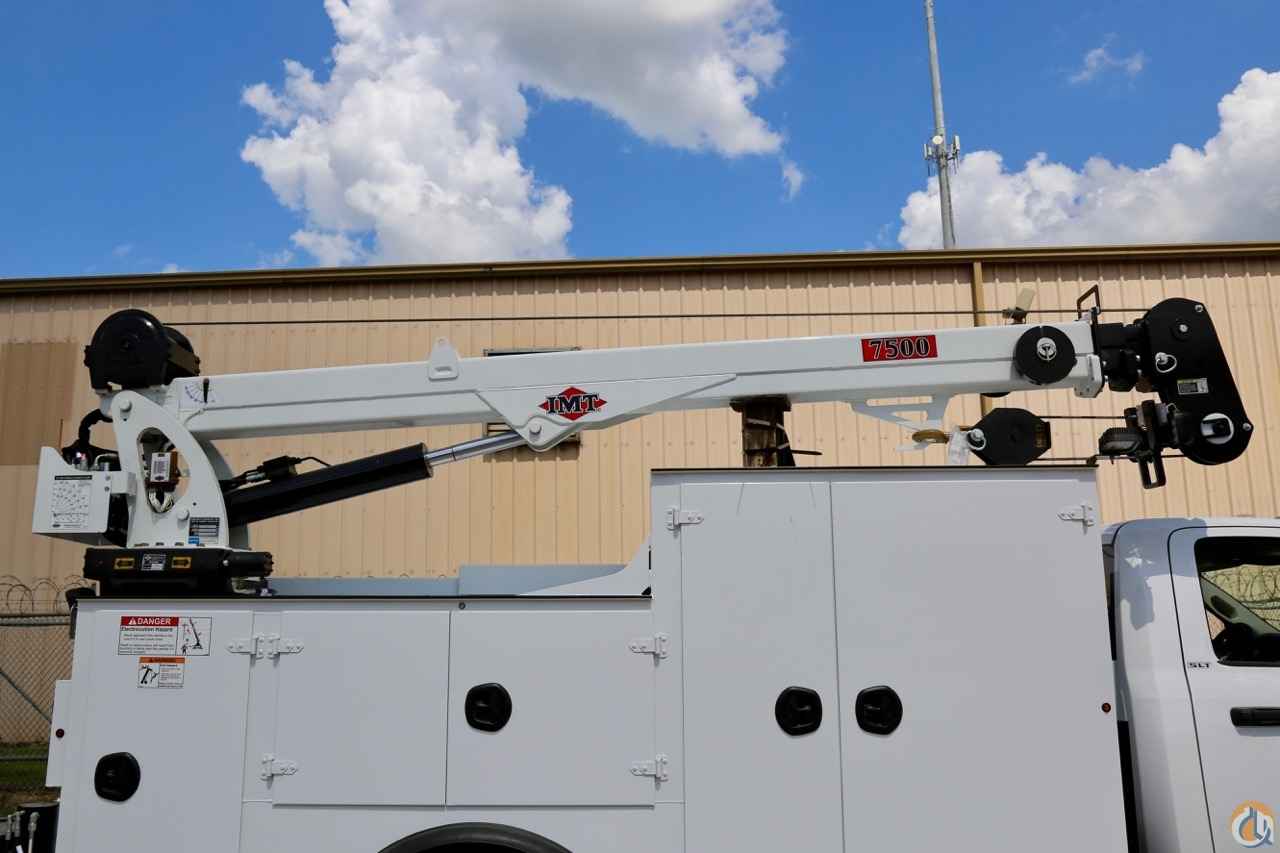

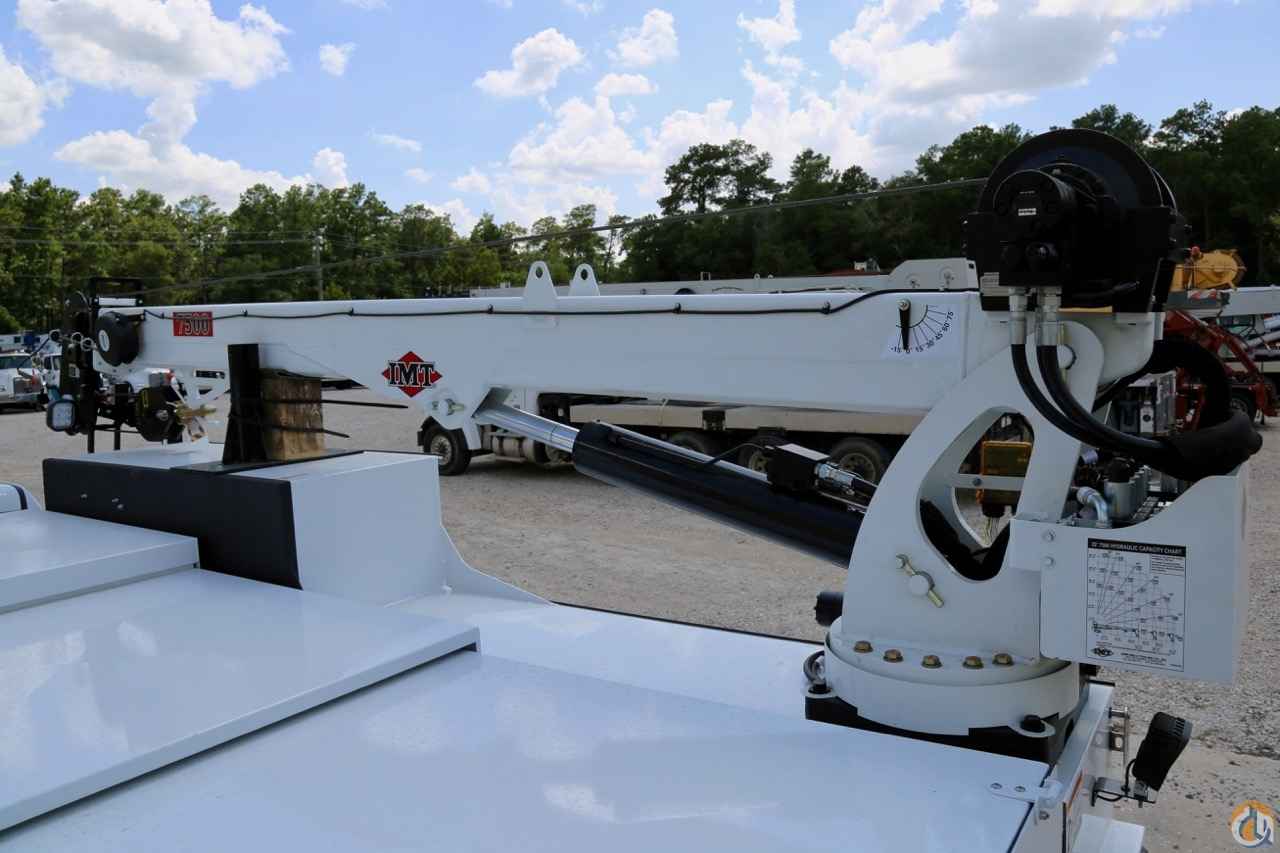

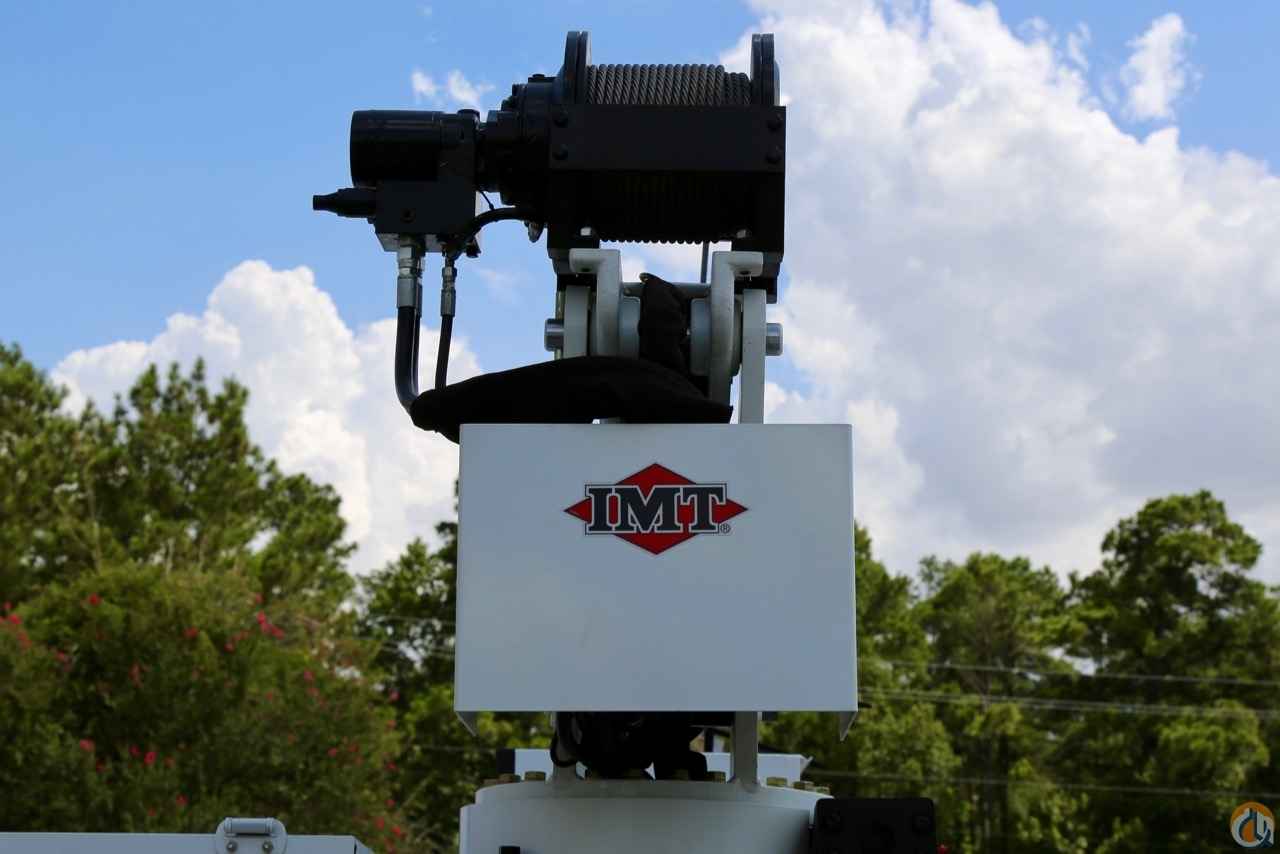

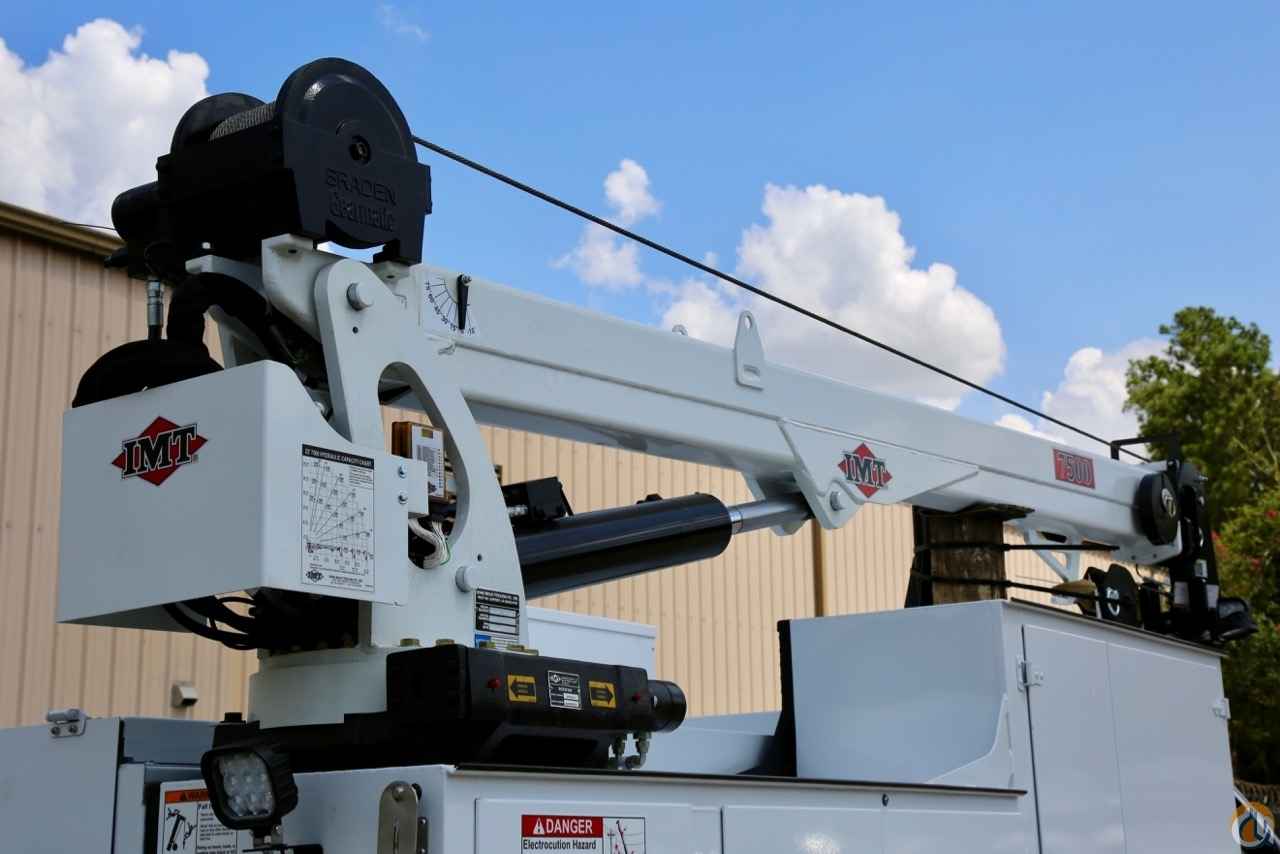

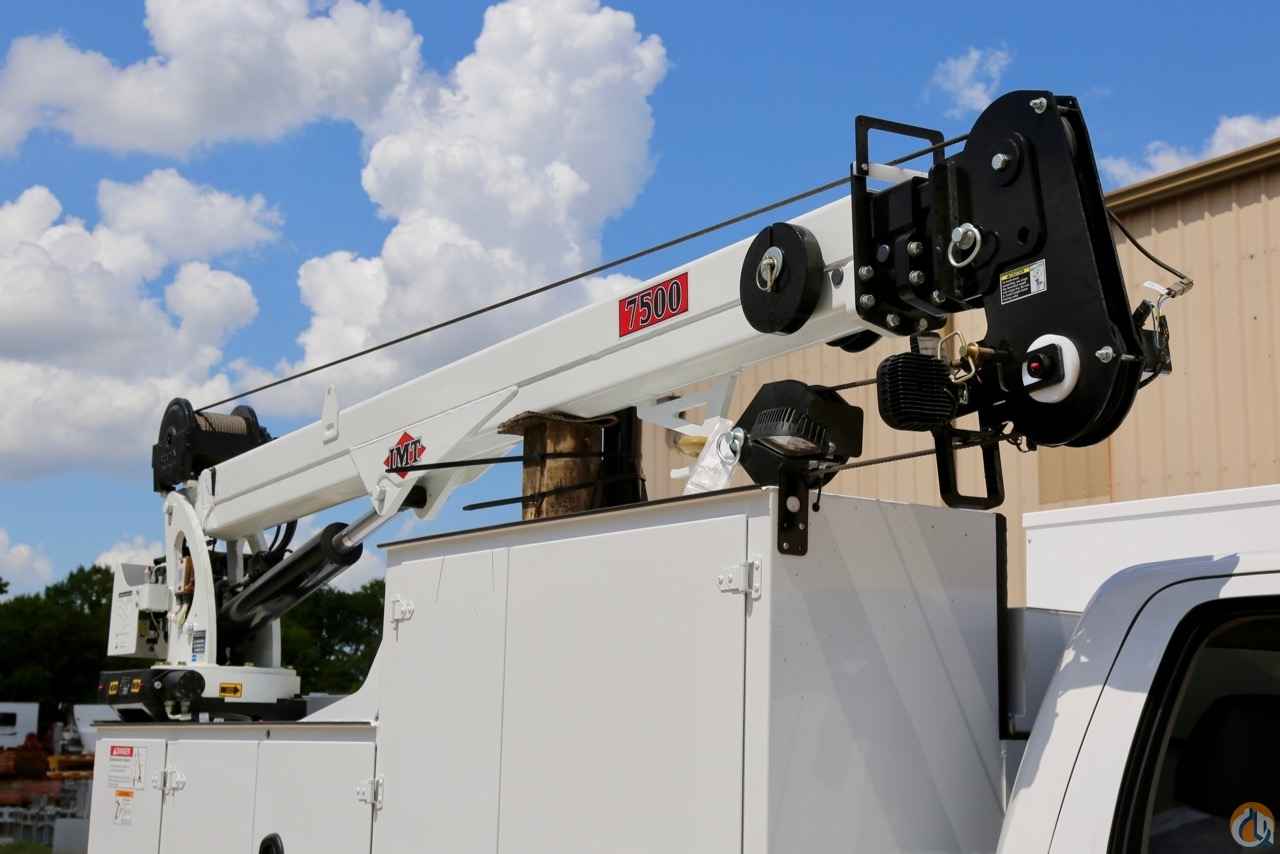

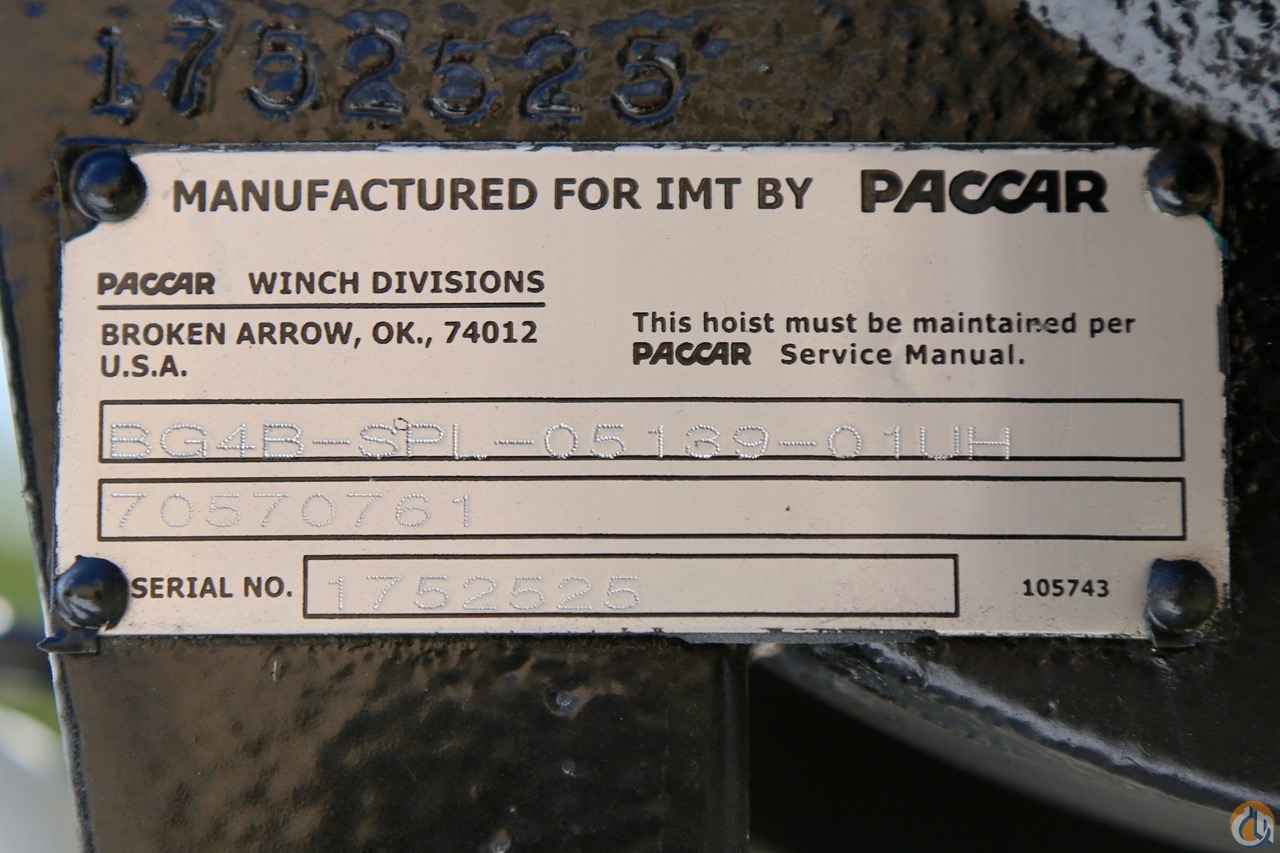

Crane
7500 lb capacity

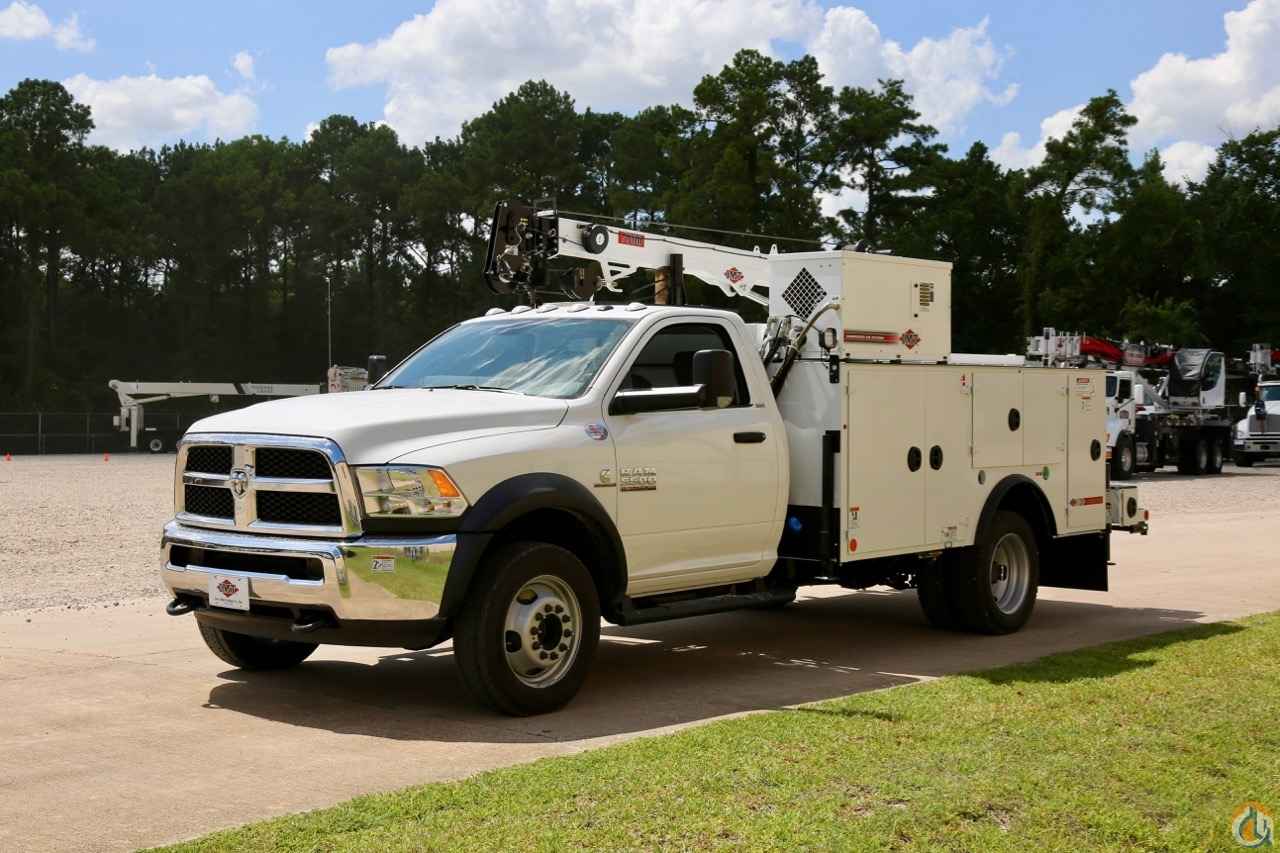

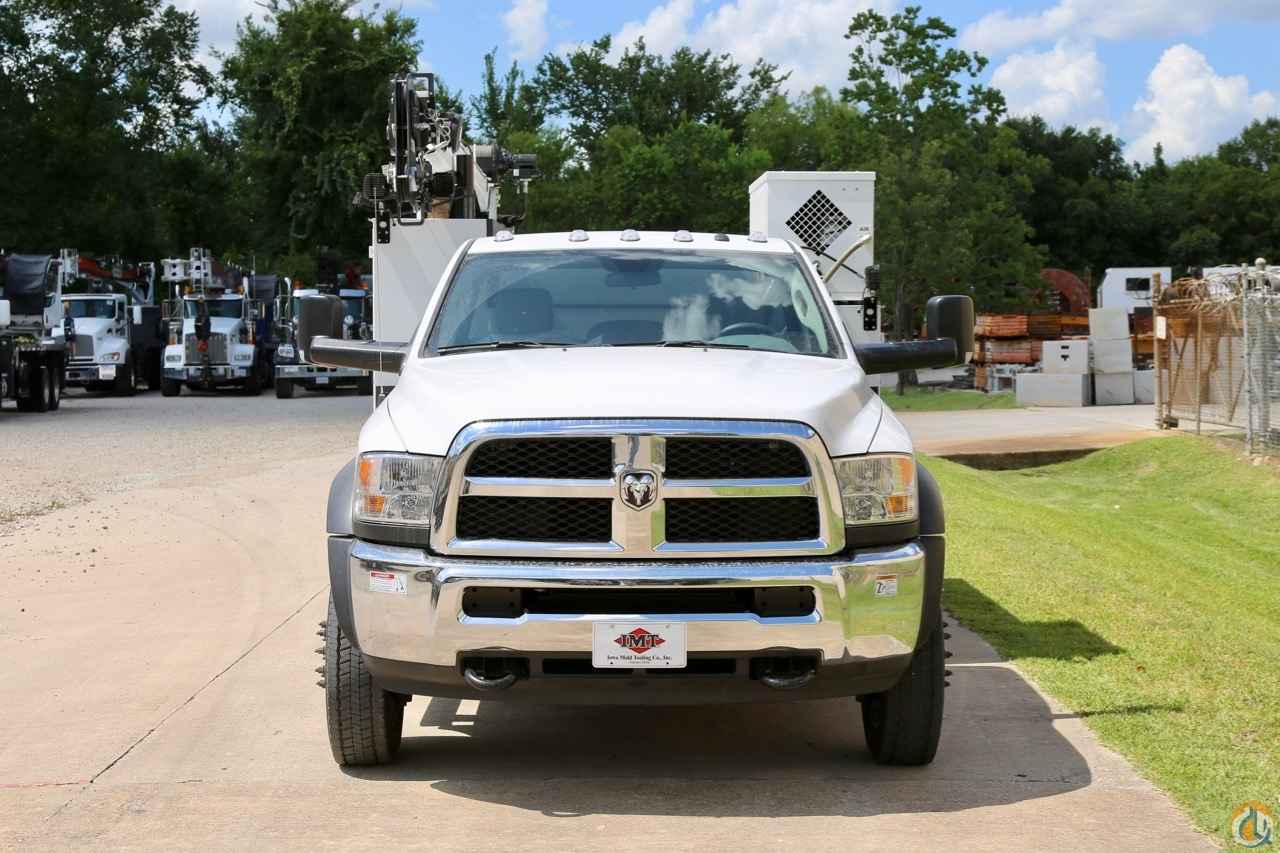

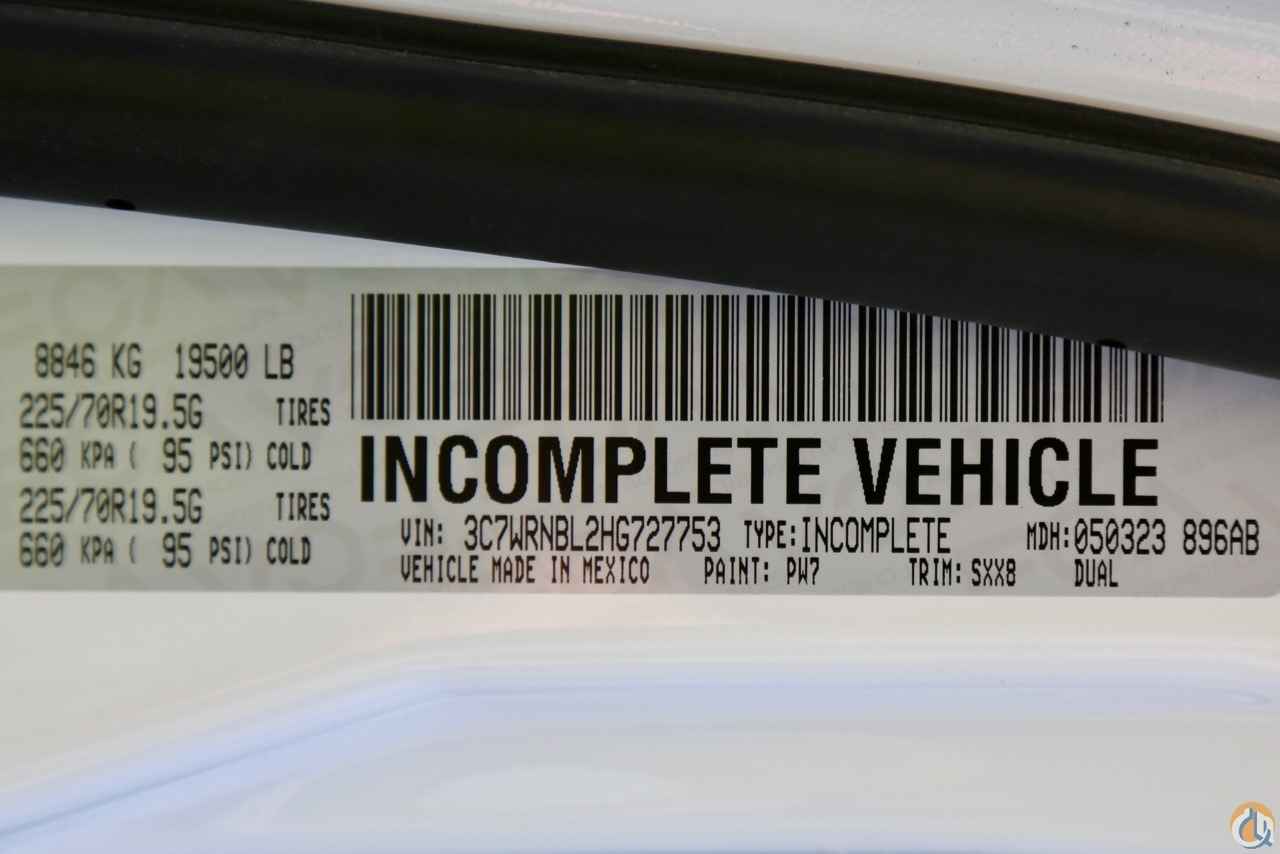

Chassis

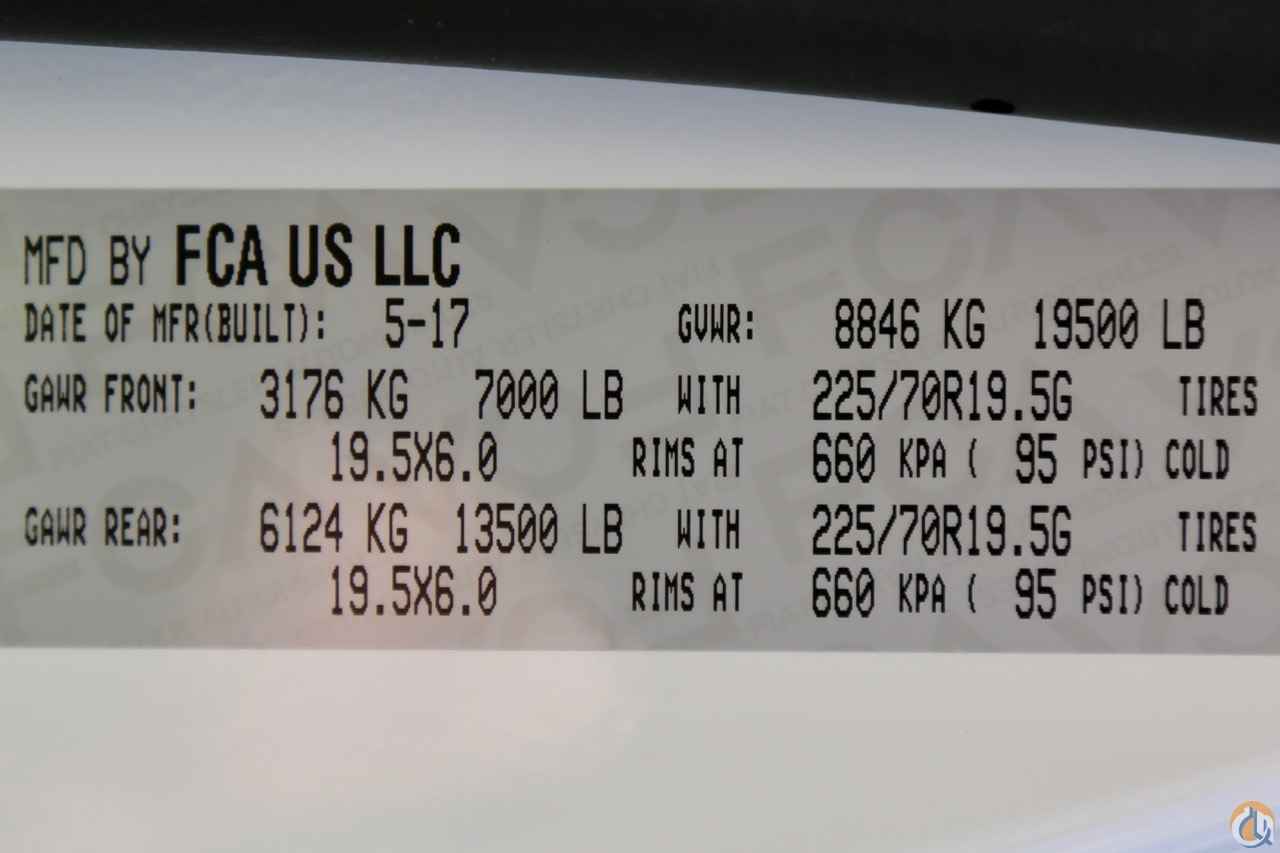

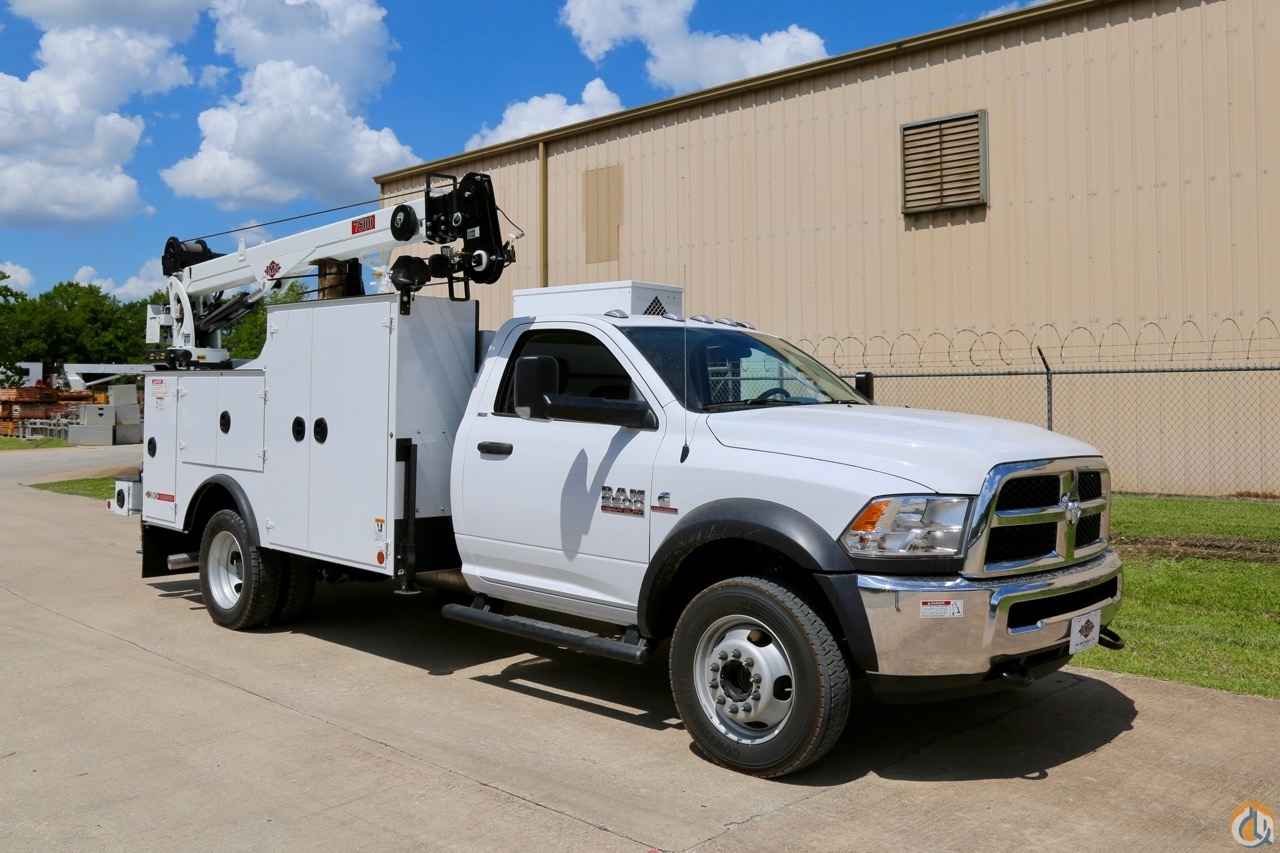

Dodge Ram 5500
Ref no: PO39461, BM-2288
