Features

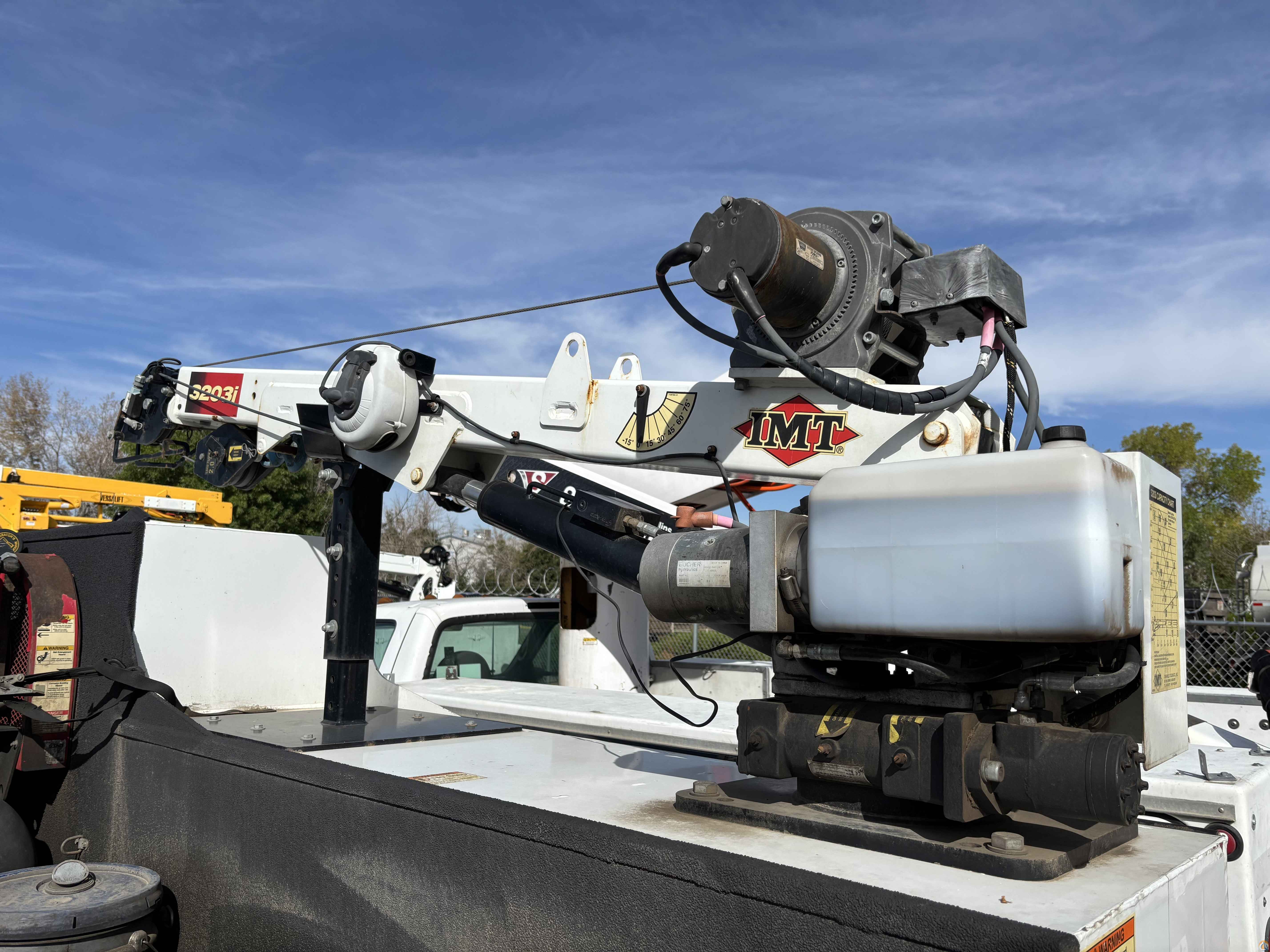

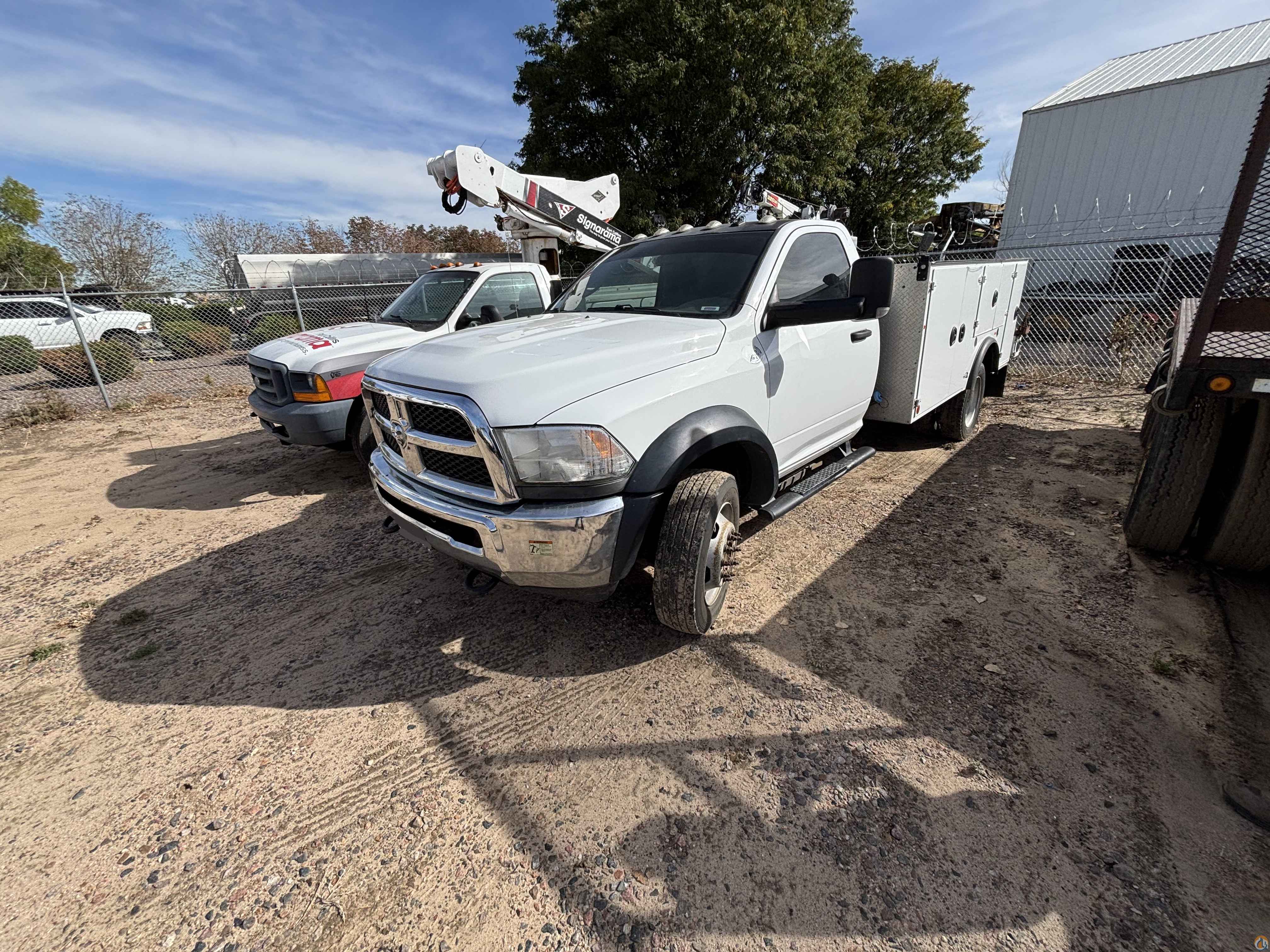

IMT 3203i Telescopic Crane
The IMT 3203i telescopic crane is rated at 12,000 ft-lb and features a vertical lift of 16' 1".
Standard features
Planetary winches
Non-proportional tethered remote control
Electrical operating systems
Anti-two-block protection
Overload shutdown protection
Boom angle -5° to +75° (-0.1 to 1.3 rad)
Specifications
Crane Rating: 12,000 ft-lb (1.6 tm)
Horizontal Reach: 15' (4.6 m)
Maximum Lift Capacity: 4000 lb (1815 kg)
Max. Vertical Lift Height: 16' 1" (4.9 m)
Operating Weight: 792 lb (359 kg)

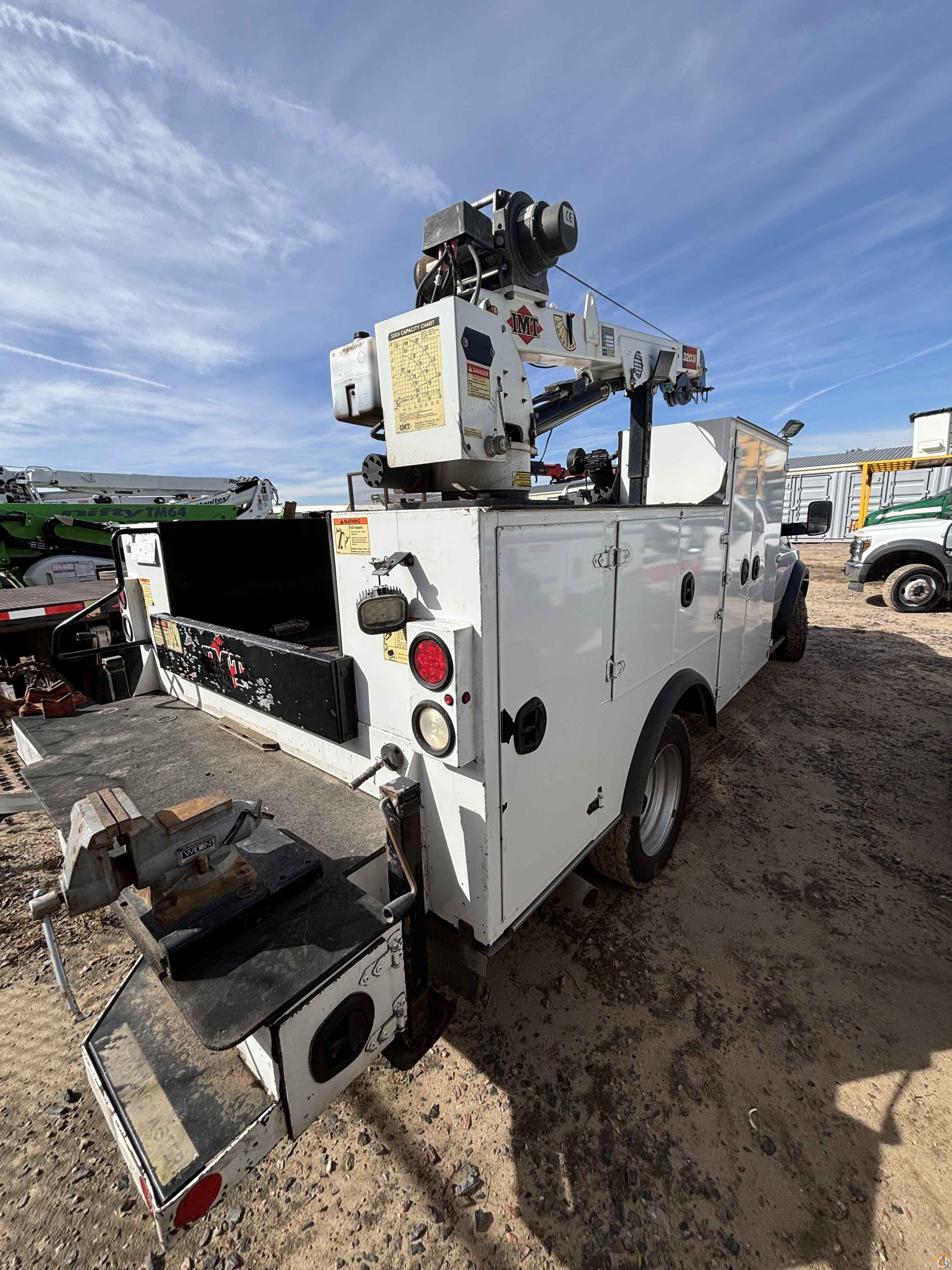

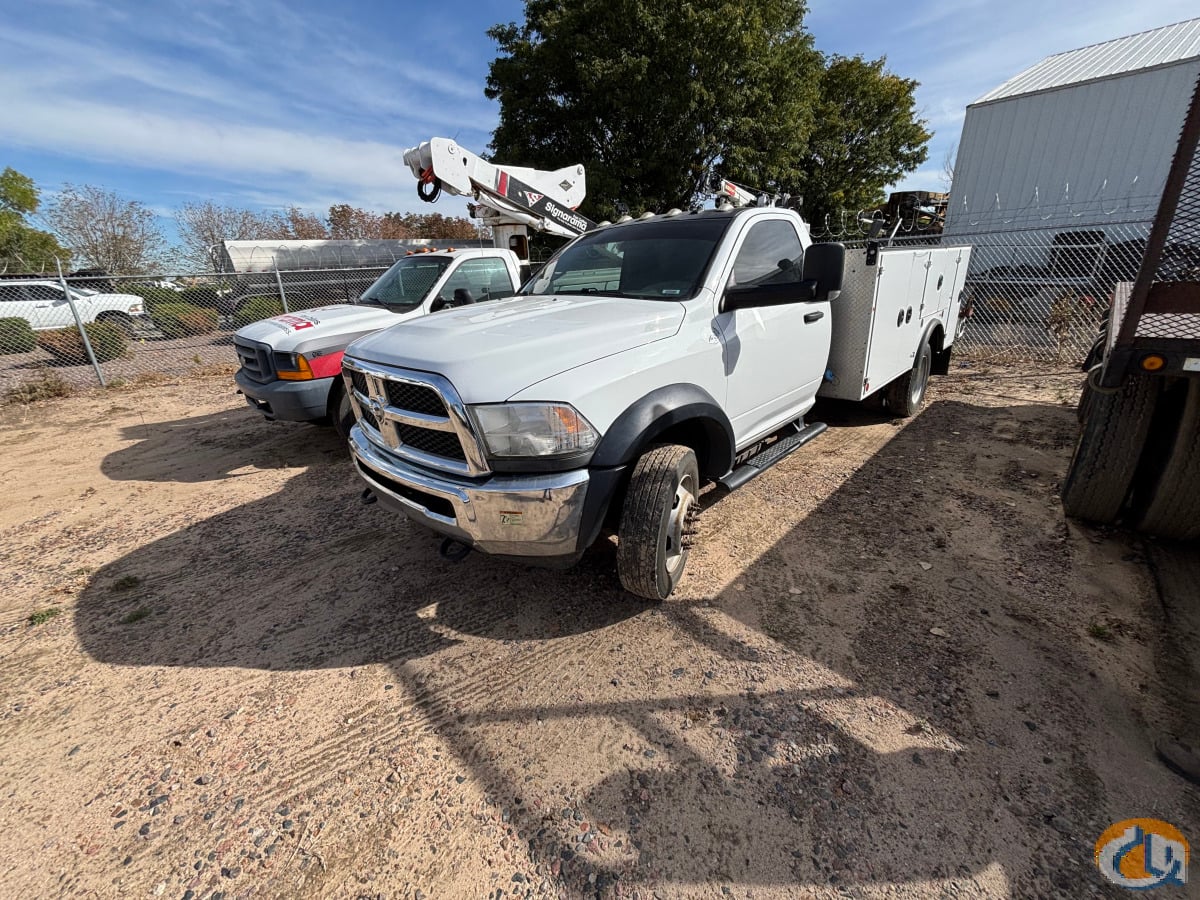

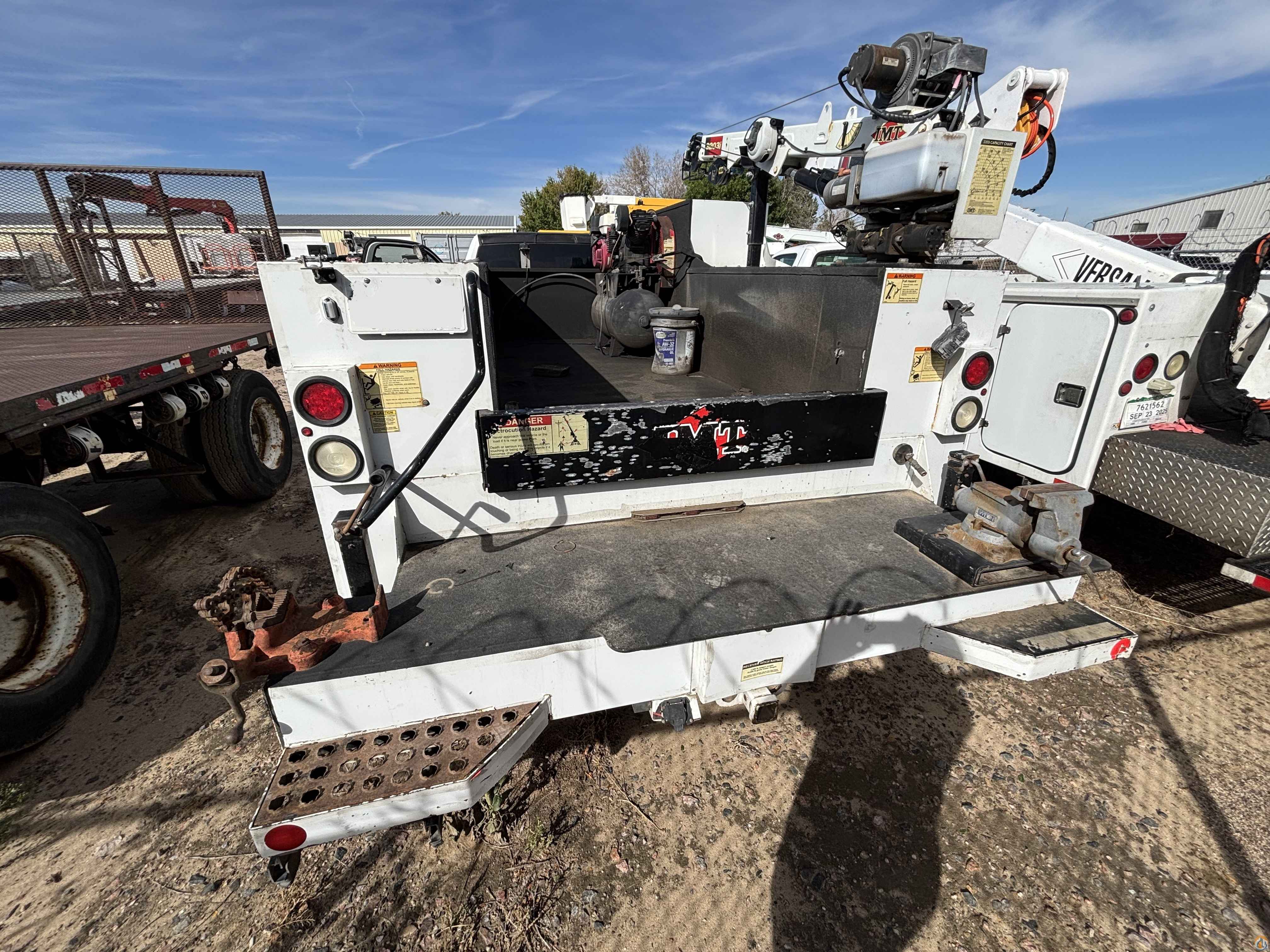

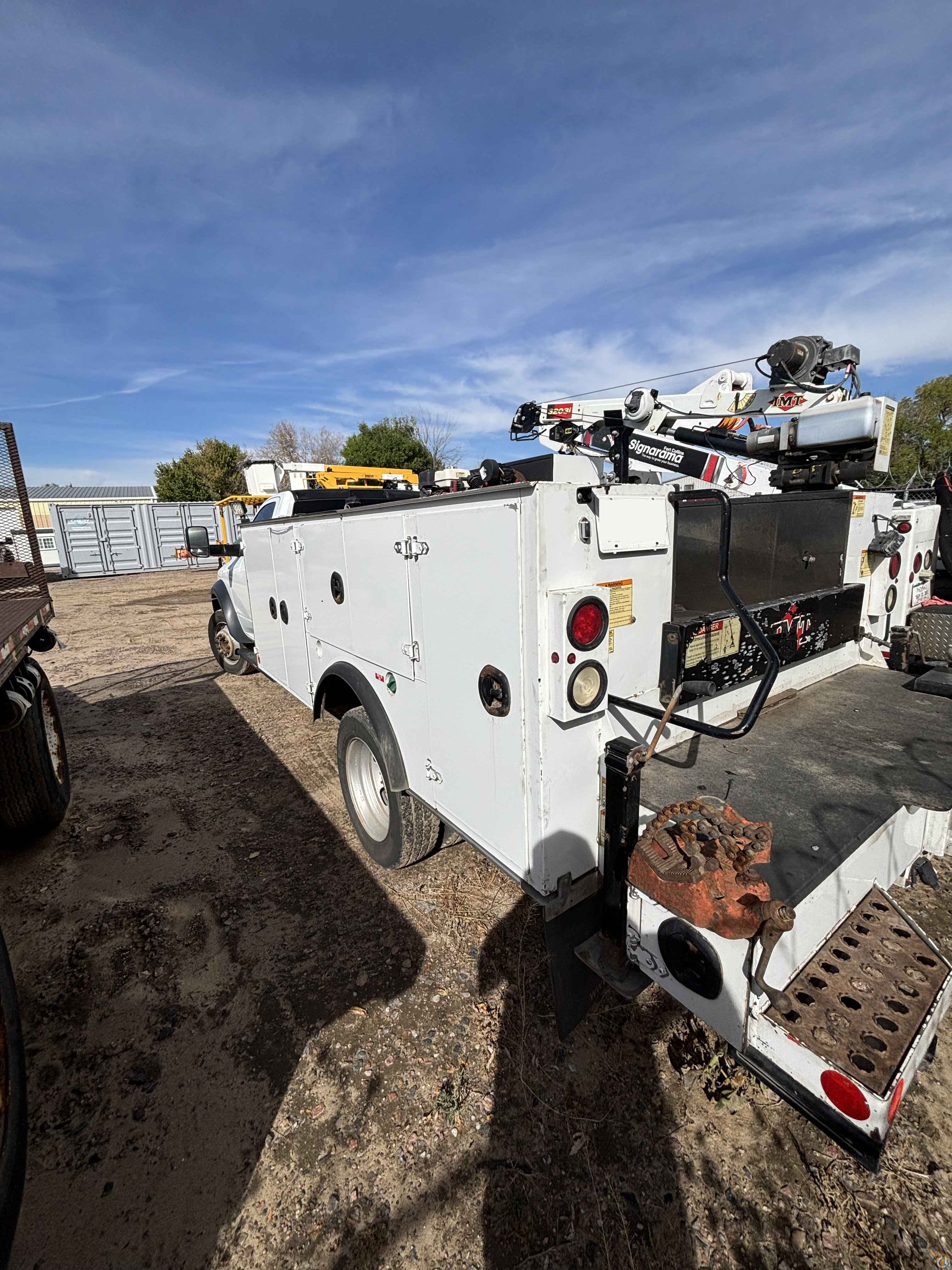

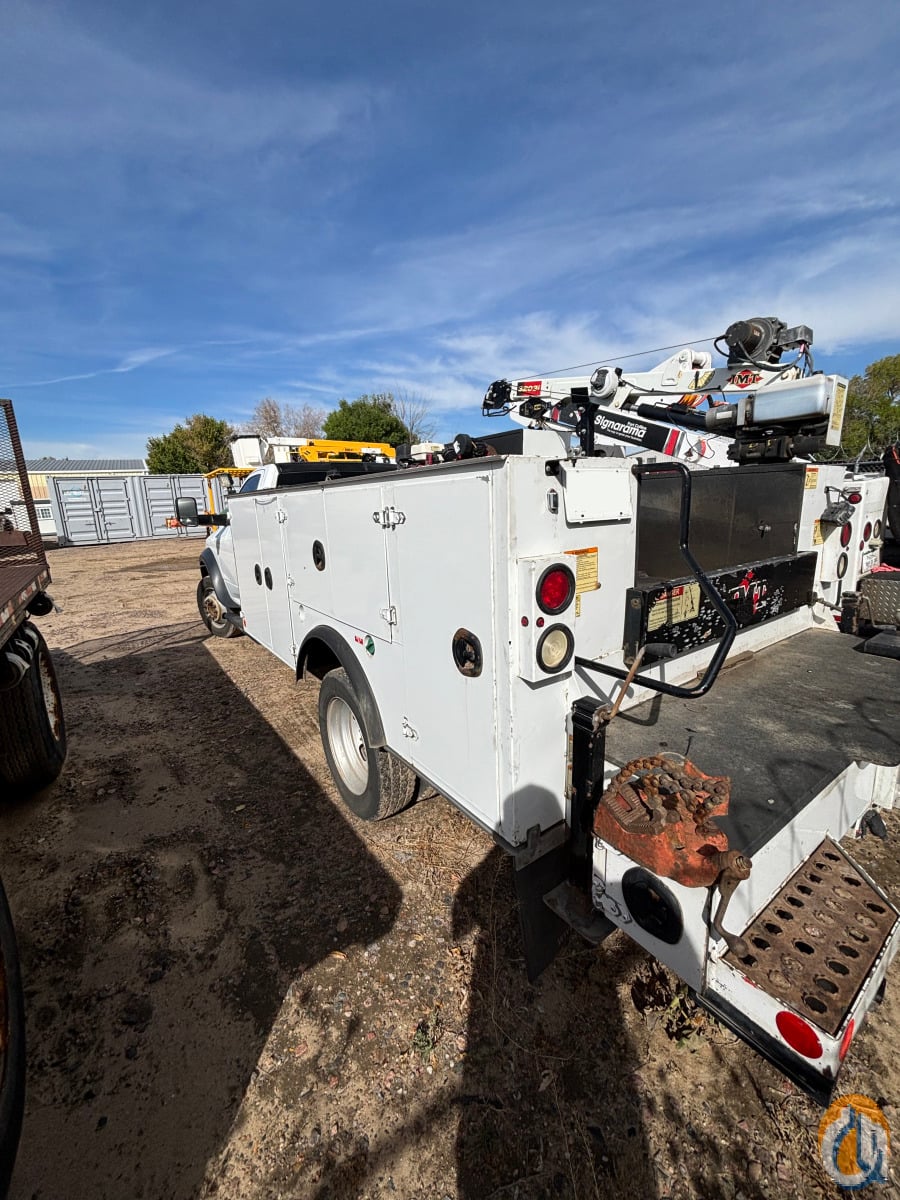

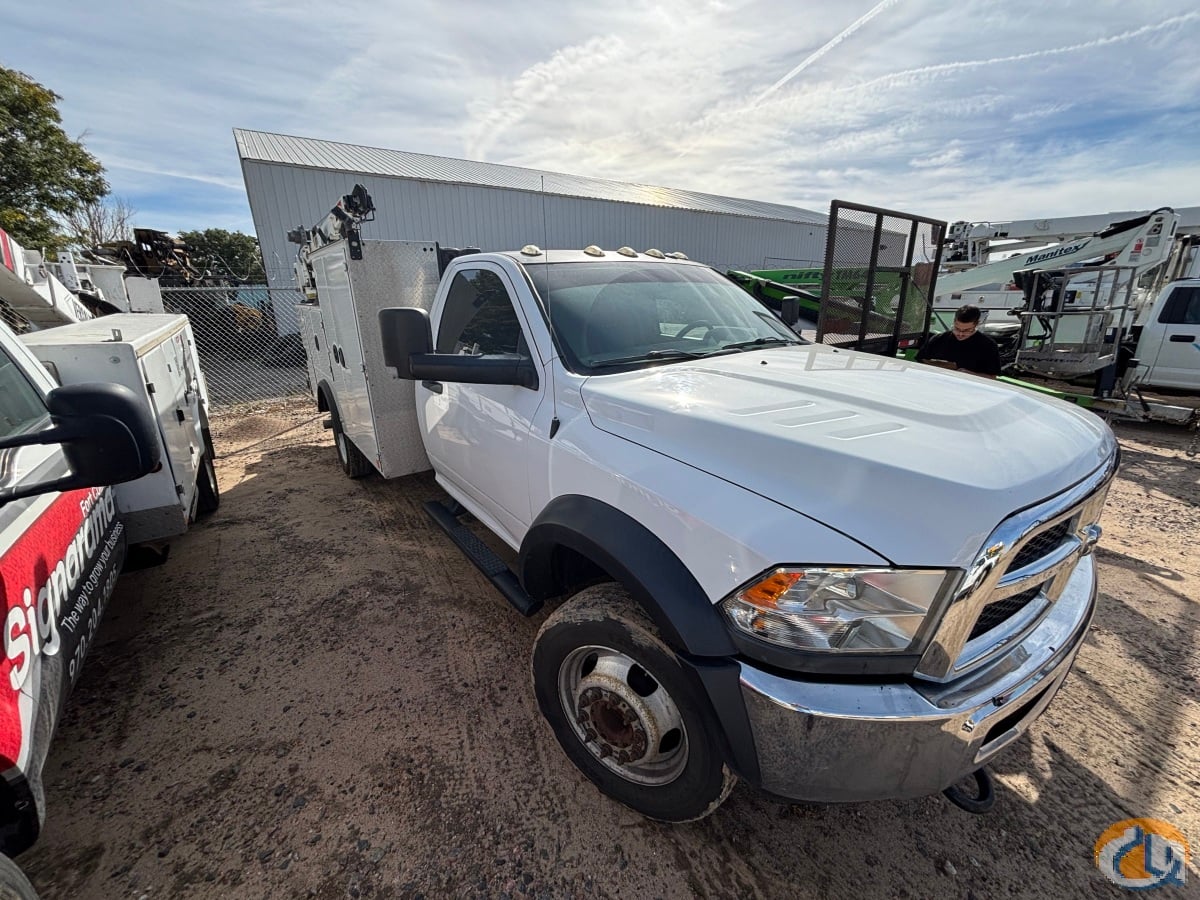

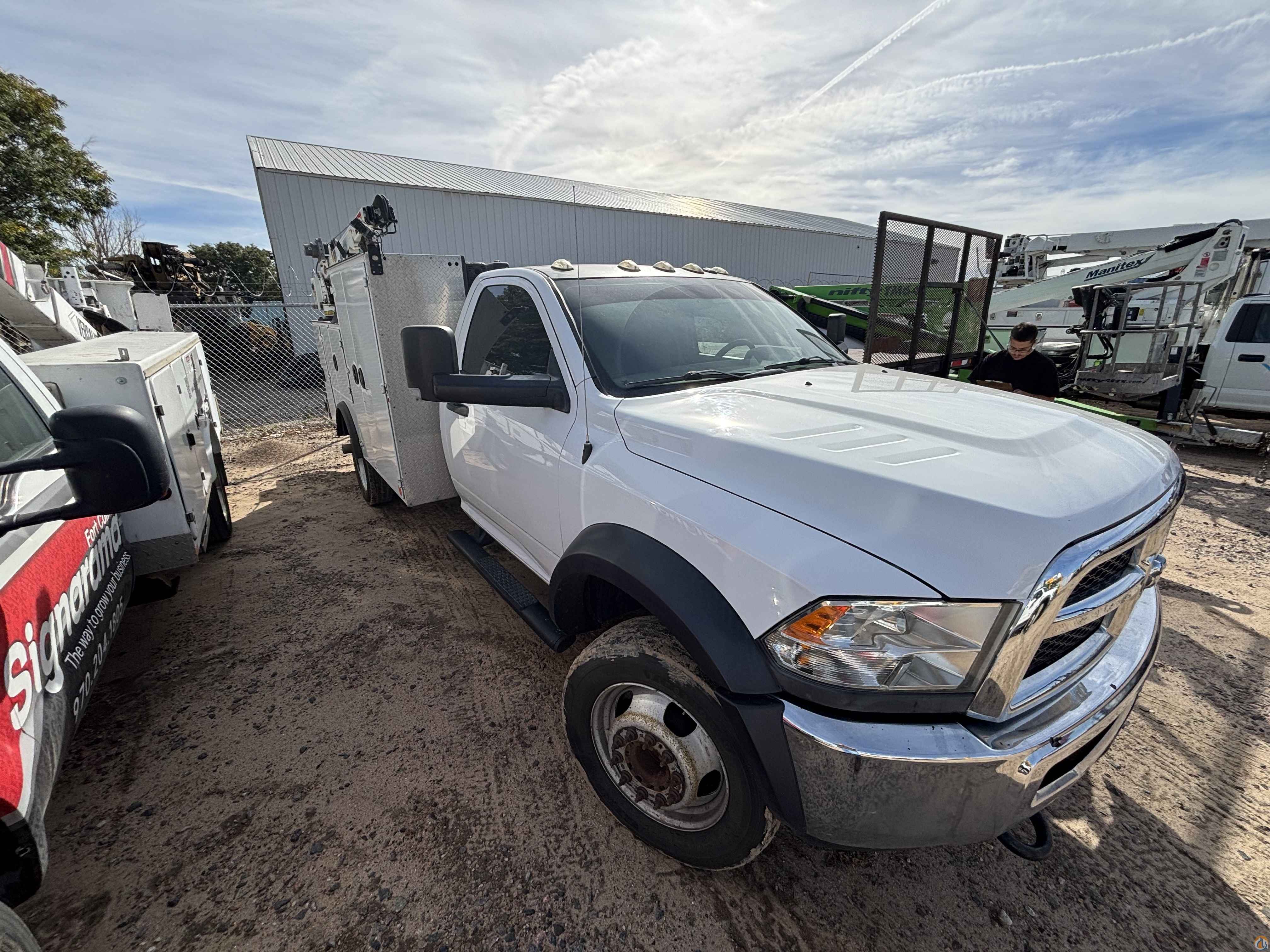

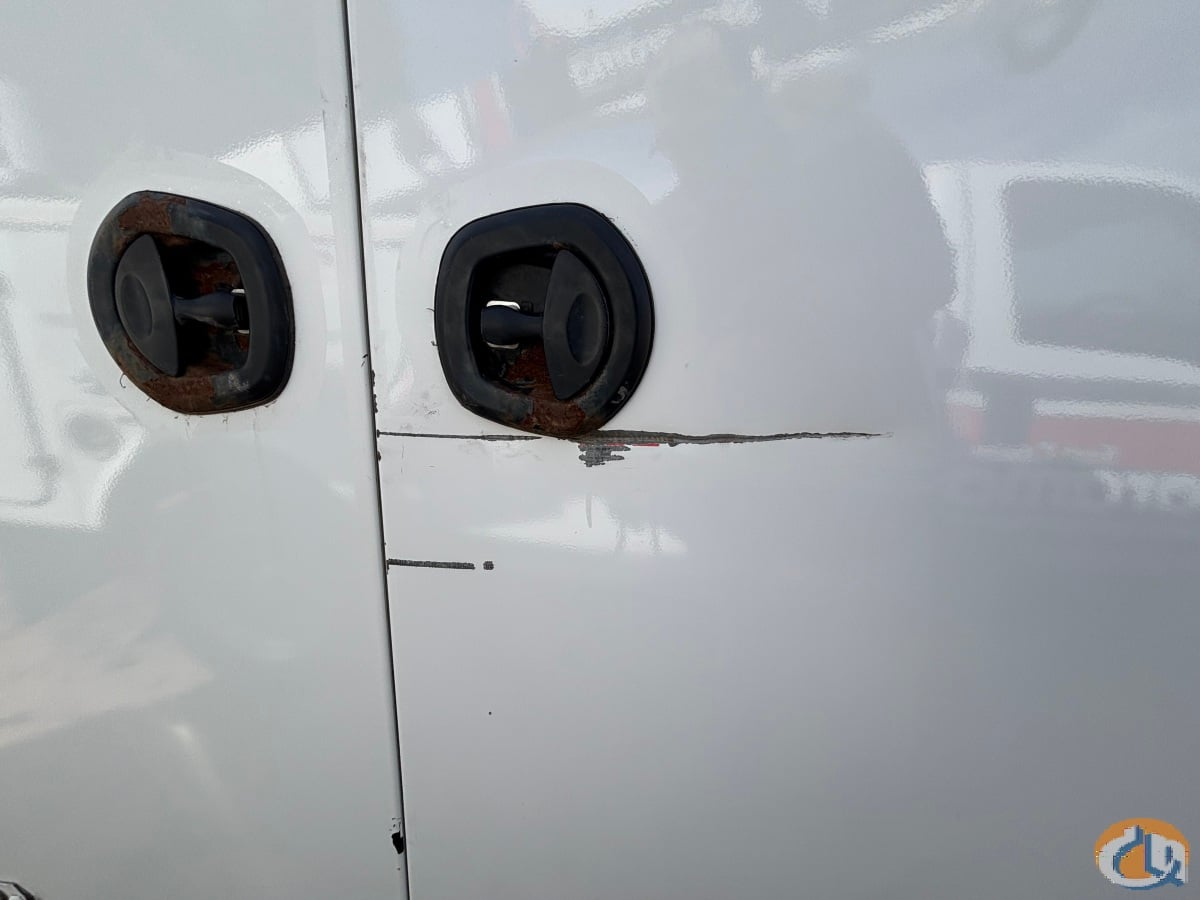

IMT Dominator DSC20 Mechanics Truck Body
The IMT Dominator DSC20 is lightweight and capable of handling a telescopic crane up to 20,000 ft-lb.
Standard features
System integration including the body, crane, and air compressor
Automotive-style electrical harnessing
Patented floor design to control unit weight and increase payload
Integrated crane structure to handle a crane up to 20,000 ft-lb
Specifications
Body Rating: 20,000 ft-lb (2.8 tm)
Sidepack Height: 44" (111.8 cm)
Body Width: 96" (243.9 cm)
