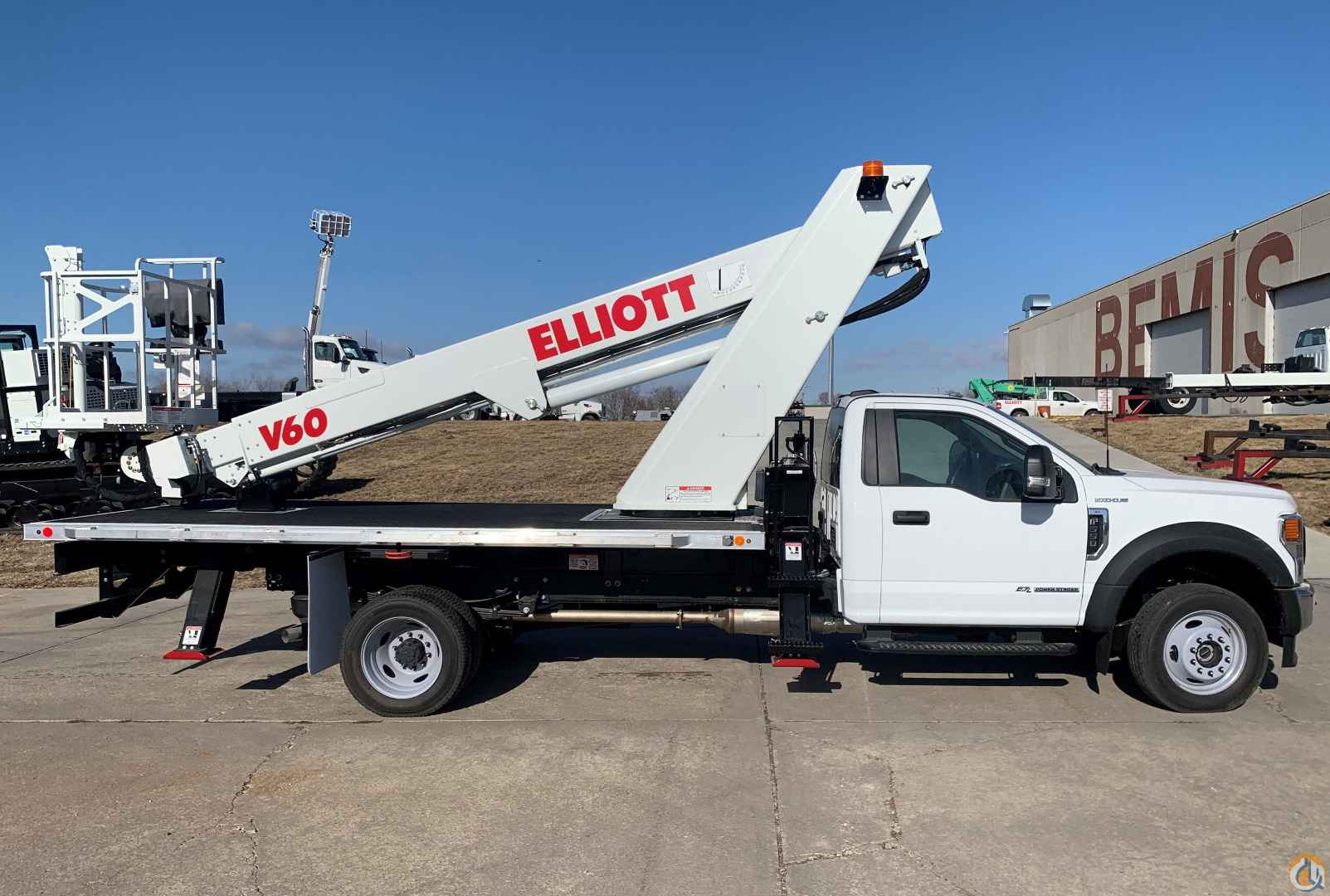

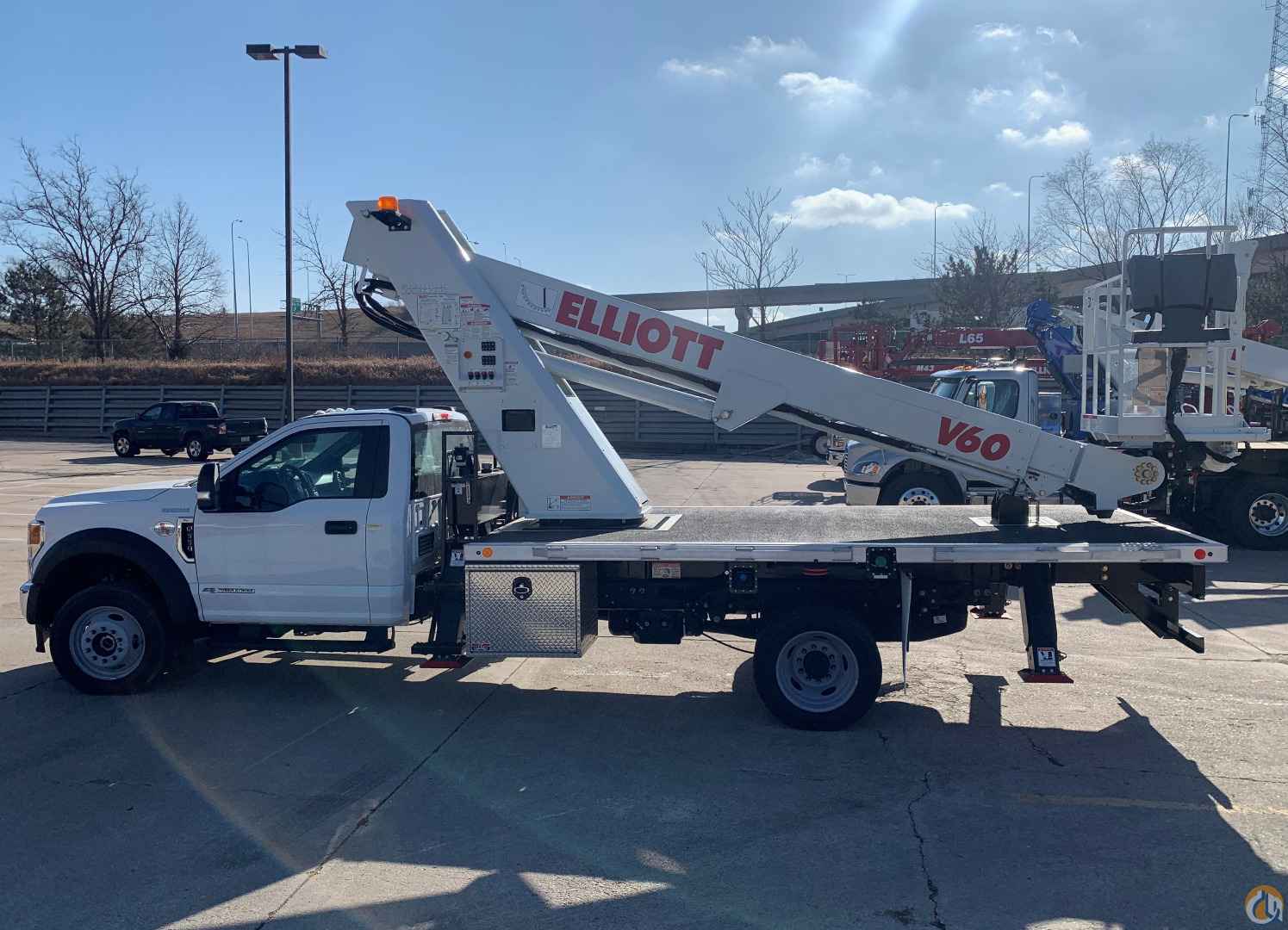

2022 Elliott V60F Bucket/Service Truck Crane (Sold)

Elliott V60F aerial lift equipped as follows:

- 63’ work height

- Continuous rotation

- Hydraulically self-leveling and rotating top mounted platform

- 30” x 40” platform with sign forks

- Platform capacity 500 lbs

- 1,000 lb main boom winch

- 500 lbs platform jib with hydraulic winch mounted under platform

- 110V line to basket

- Electronic proportional controls on platform with touch screen

- Bluetooth Connection for remote diagnostics and programming

- “A” type outrigger at front and rear with fixed outrigger shoes

- Single outrigger valve located in rear compartment with door

- Four (4) 24” square composite plastic outrigger pads with two steel holders

- Steel three-section hydraulically telescoping boom

- Proportional electric controls mounted at turret

- Turret controls include chassis engine start/stop, chassis engine high/low
all boom functions, platform leveling and rotation, and boom auto-stow

- Holding valve mounted on all cylinders

- Oil reservoir mounted to truck frame

- 12V emergency pump with switch at upper/lower controls

- Two body harnesses and lanyards

- 15’6” aluminum bed with LED lights and grip deck coating

- One (1) 30" x 24" x 24" aluminum underbody mounted toolbox

- Unit painted white with black subframe and red outriggers

- 3/16” synthetic rope, horn, and anti-two-block switch

- Hot shift PTO

- Two LED strobe lights, one mounted on each side of turret

MOUNTED ON:

2022 Ford F550 XL 4x4 equipped as follows:

- 19,500 lbs GVWR non-CDL

- 6.7L Power Stroke V8 turbo diesel engine – 330 HP

- Engine block heater

- TorqShift 10-speed automatic transmission

- 7,000 lb front axle

- 14,706 lb rear axle

- Front and rear 19.5” painted steel wheels

- Tires – P225/70R

- 40-gallon fuel tank

- Air conditioning

- Cruise control

- Platform running boards

- AM/FM stereo radio with Bluetooth

- Power windows and locks

- 40/20/40 split bench seat- vinyl

- Color white
