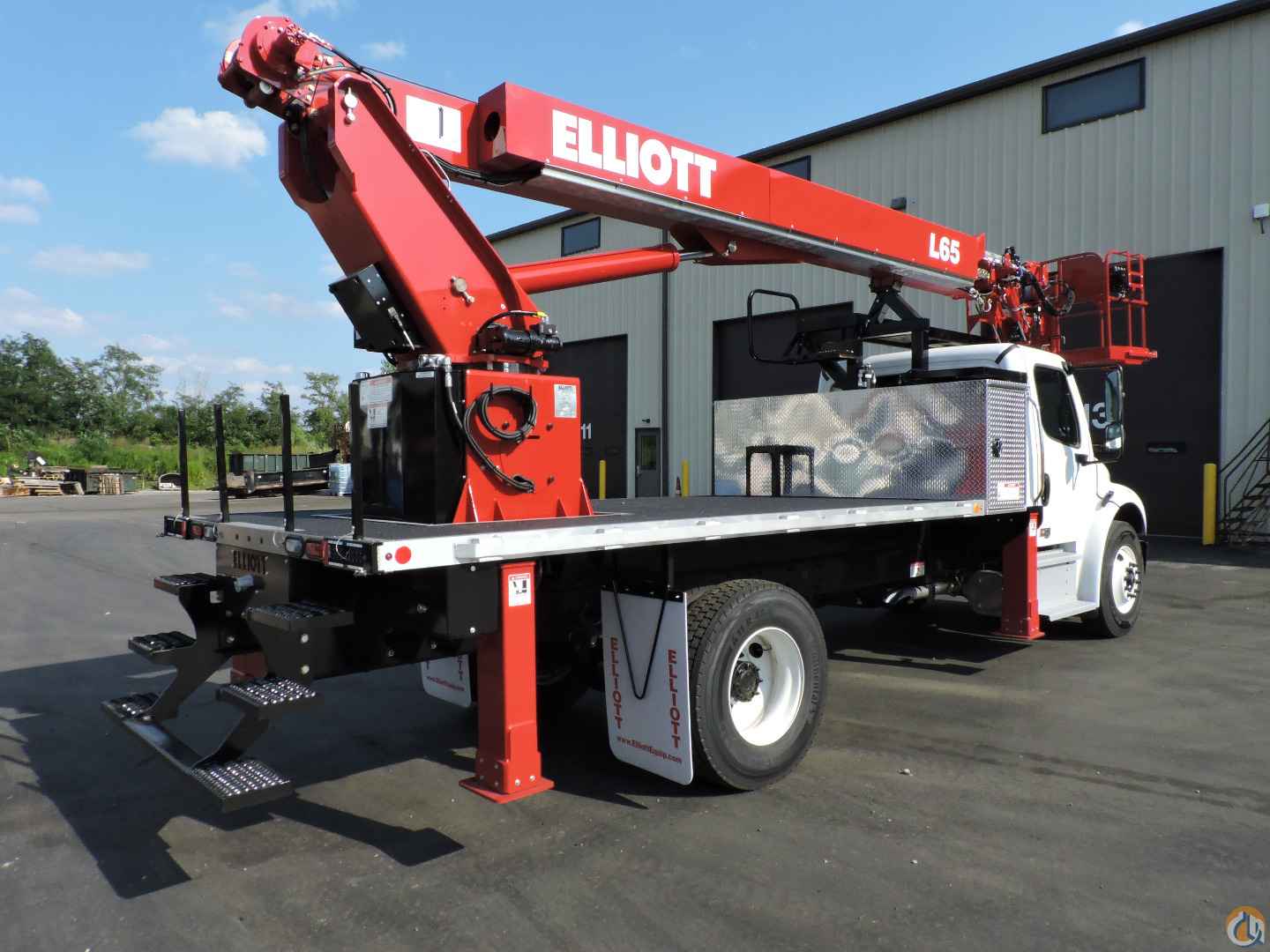

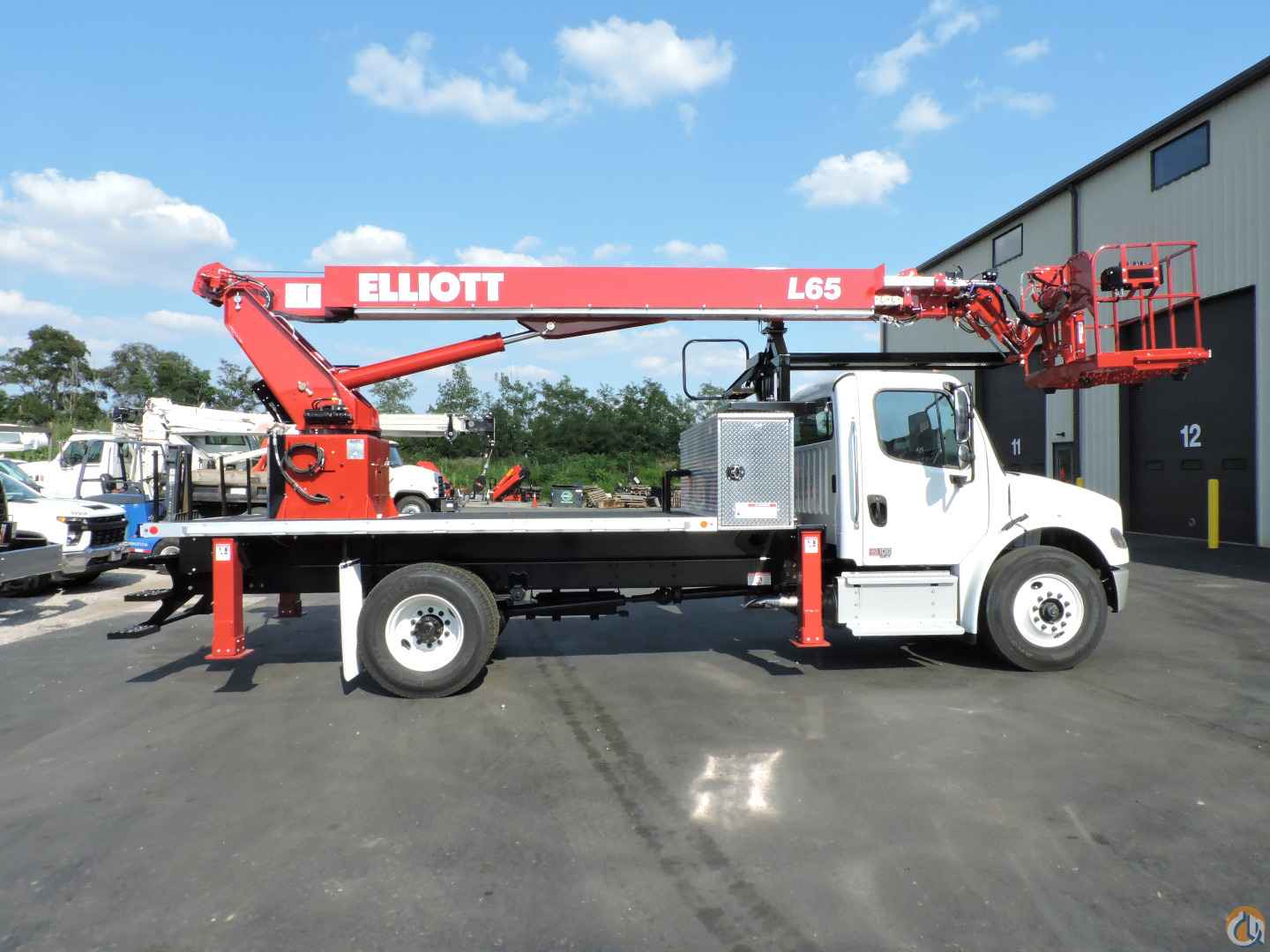

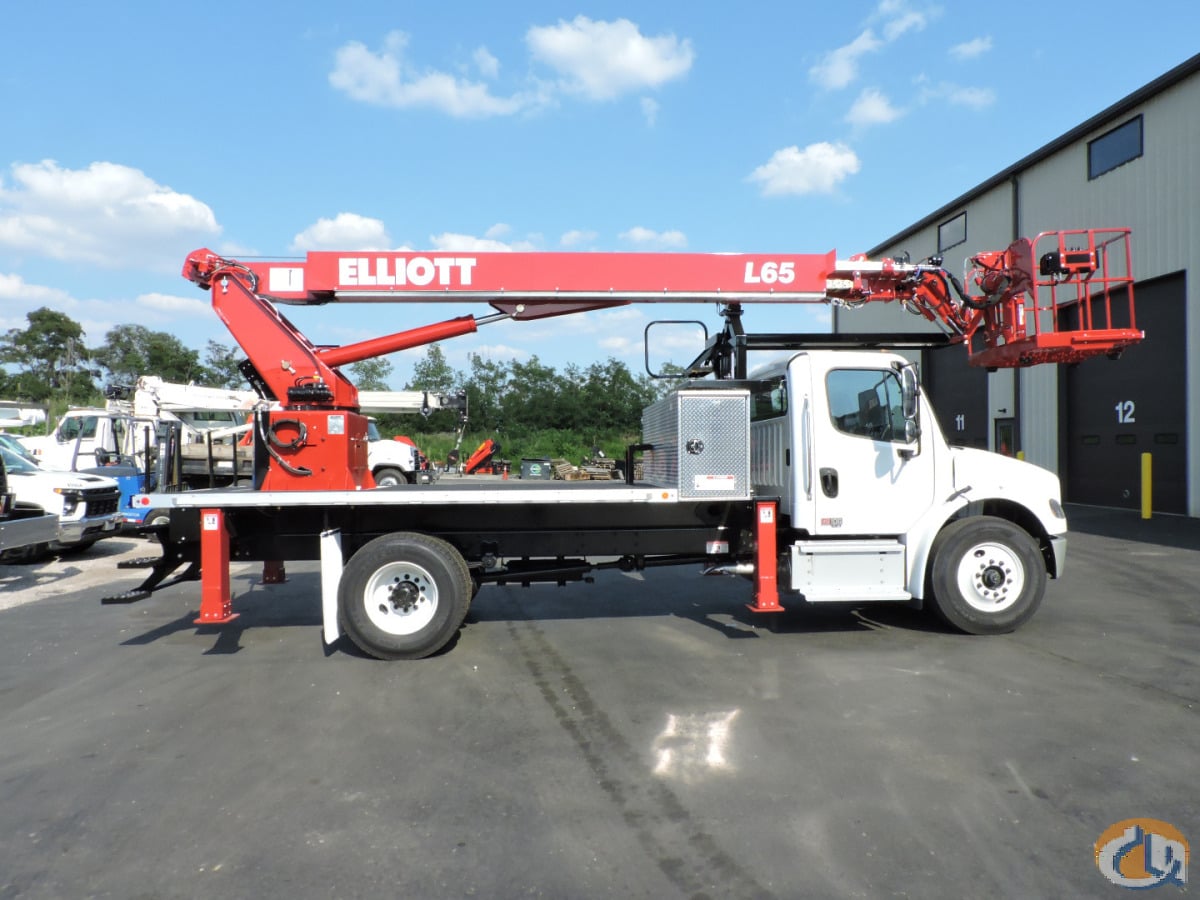

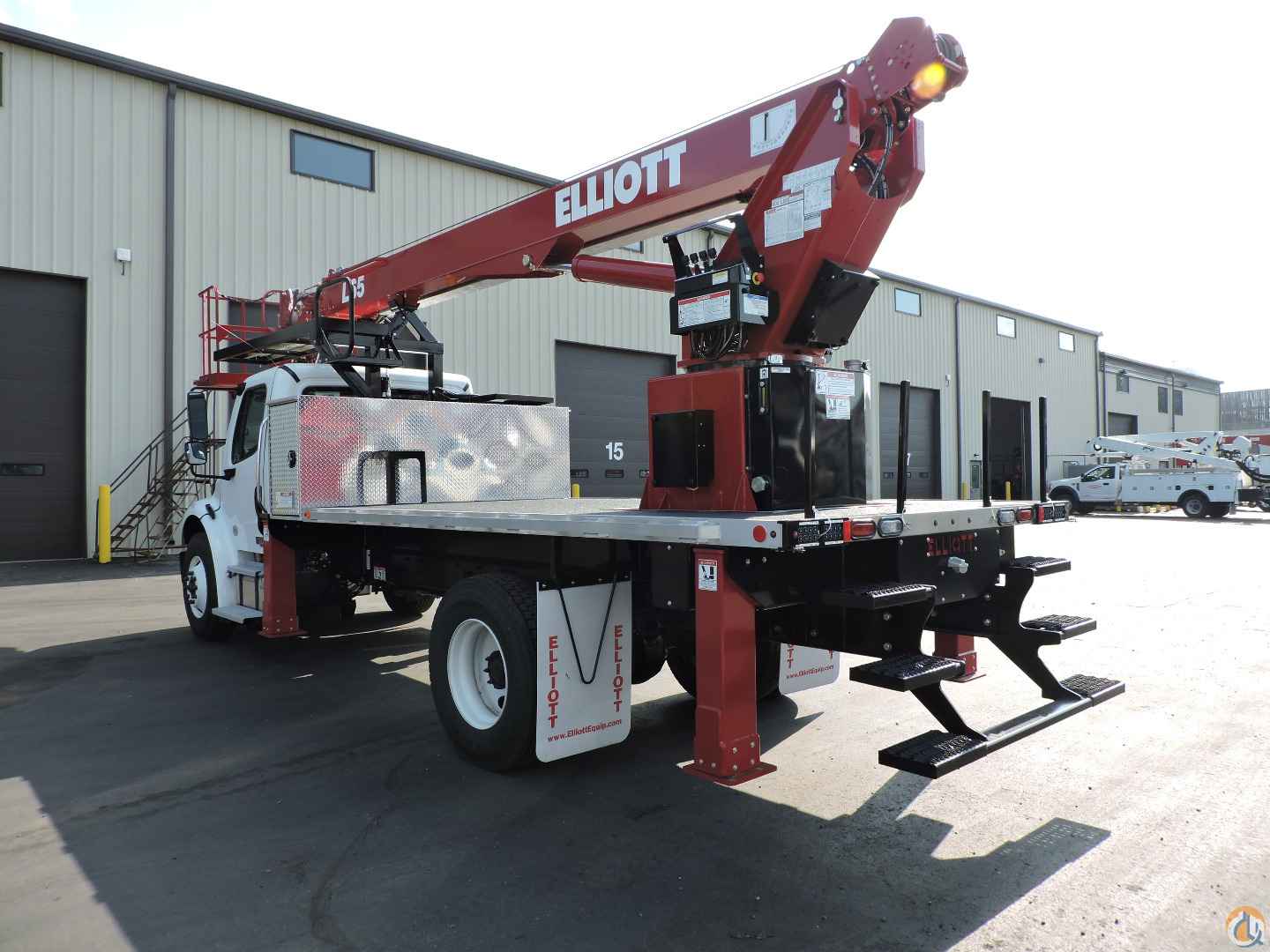

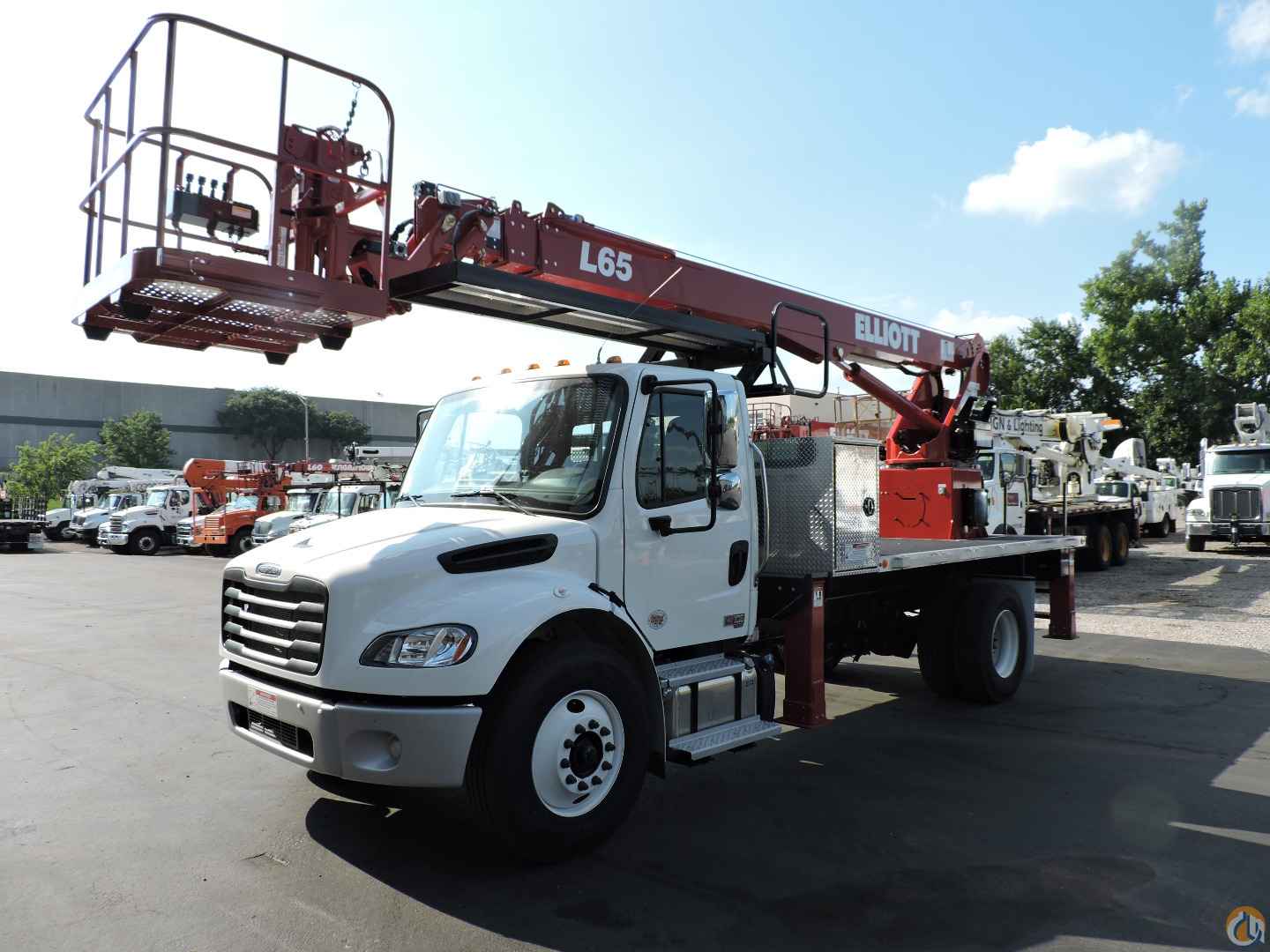

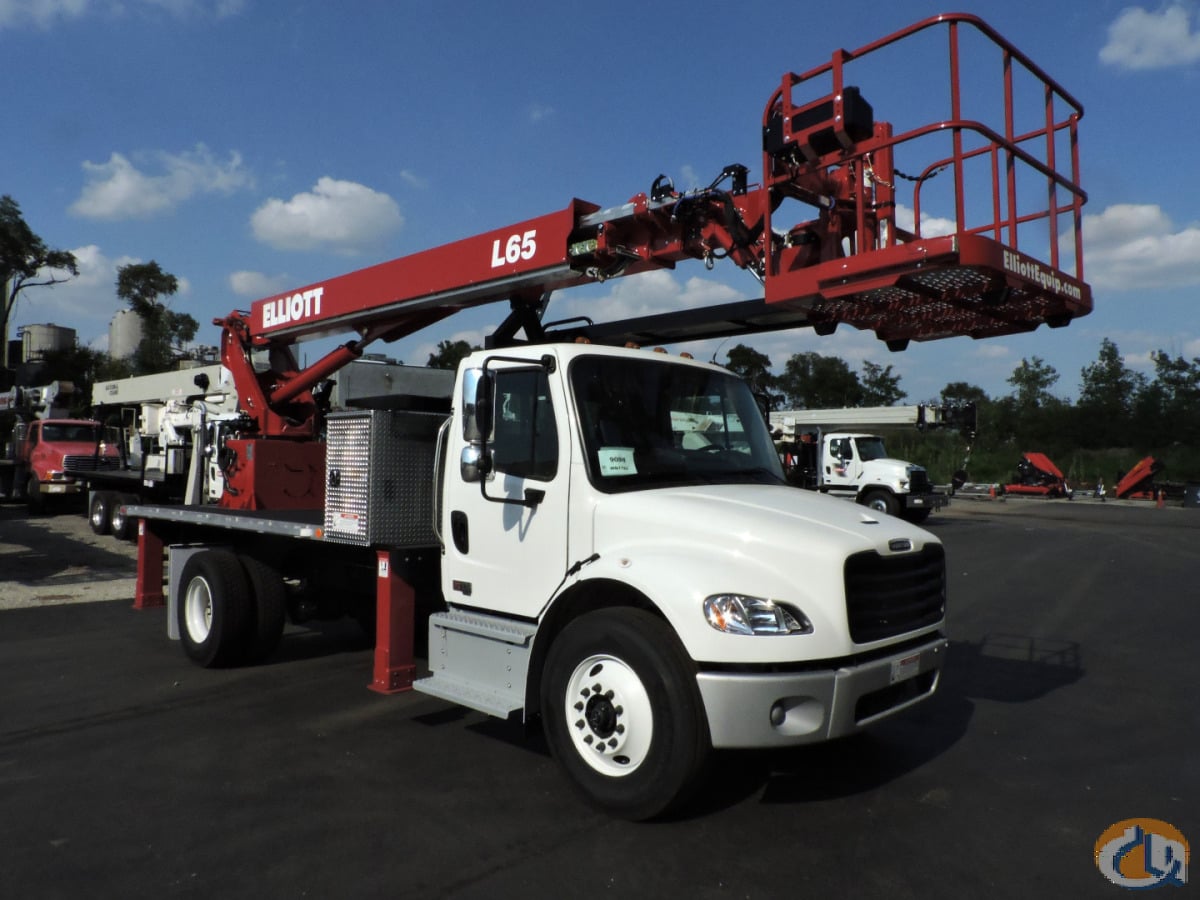

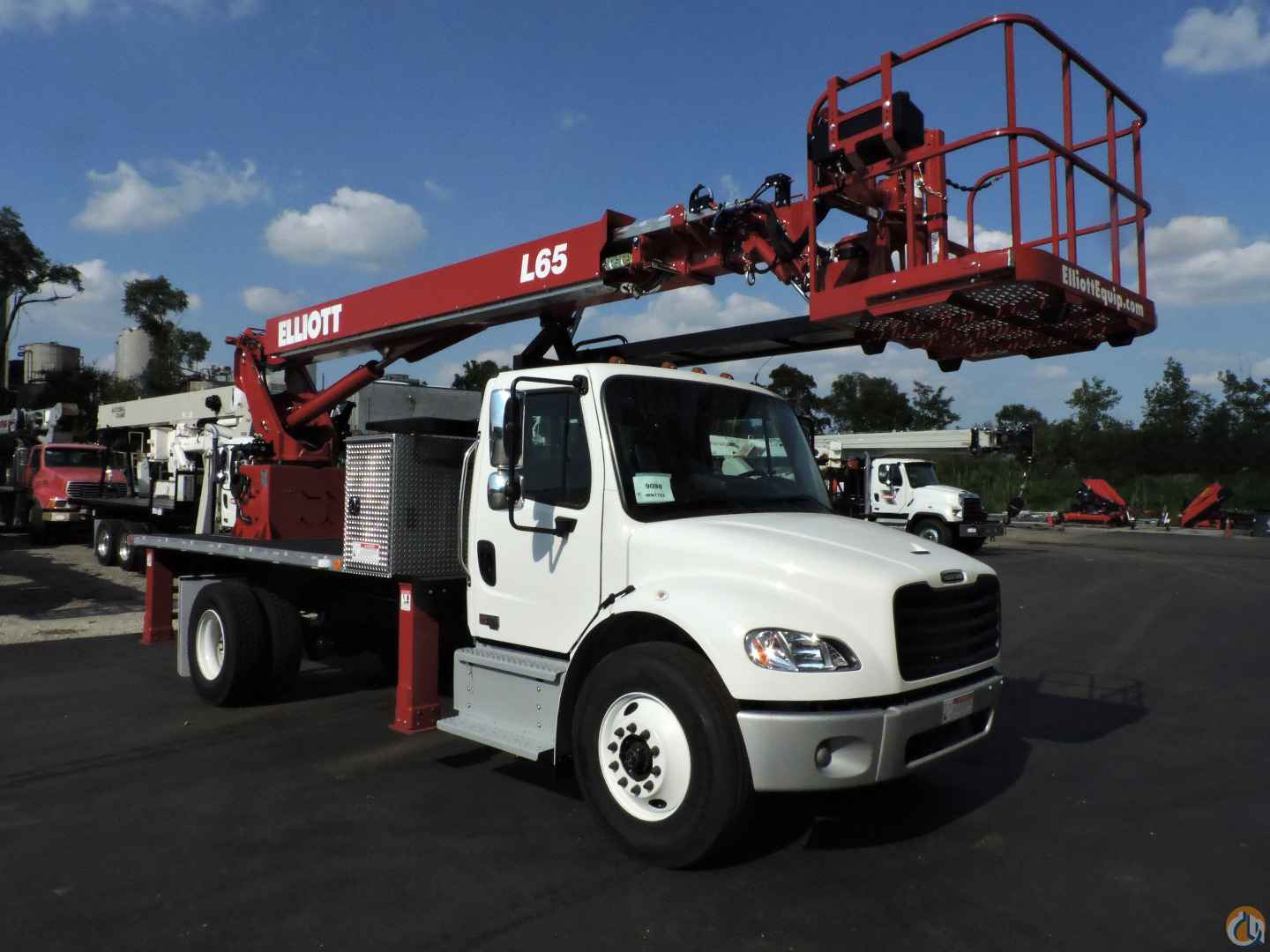

Elliott L65R Aerial Lift equipped as follows:

-          65’ working height

-          56’ 6” side reach

-          Continuous rotation

-          Oil reservoir mounted to back of turret box

-          Out and down, individually controlled rear main outriggers – 17’ 0” spread, electric-over-hydraulic controlled

-          Out and down secondary outriggers behind cab – 12’ spread

-          Automatic Rotation Lockout - Prevents boom from rotating to side where outriggers are not fully extended horizontally

-          Steel three section hydraulically telescoping boom with one double acting 6” lift cylinder

-          Hydraulic self-leveling and rotating 40”x60” EZR work platform with remote level from platform and 160° platform rotation

-          USB outlet at upper controls

-          Convenience bundle – One button operation for extended platform stow, platform unstow, chassis auto-level, and outrigger stow

-          Platform capacity 600 Lbs.

-          110-volt line to platform

-          Remote start/kill switch in platform for customer-supplied & installed welder/generator

-          Welder leads to platform – two (2) 1-gauge cables

-          Mounting bracket above 8’ crossbody box for customer-installed welder generator

-          Two (2) sign forks on platform

-          Electronic proportional joystick controls on platform

-          Platform mounted jib with hydraulic winch drum in floor with 500# capacity. Jib stows in platform

-          5,900# planetary winch w/anti-two block switch, horn, two-part hook & 3/8” cable & retainer lug

-          12-volt emergency pump with switch at upper and lower controls

-          14’ aluminum bed with grip deck coating and tie down rail

-          Platform walkway

-          LED lights to include all bed marker lights, stop, tail, and turn

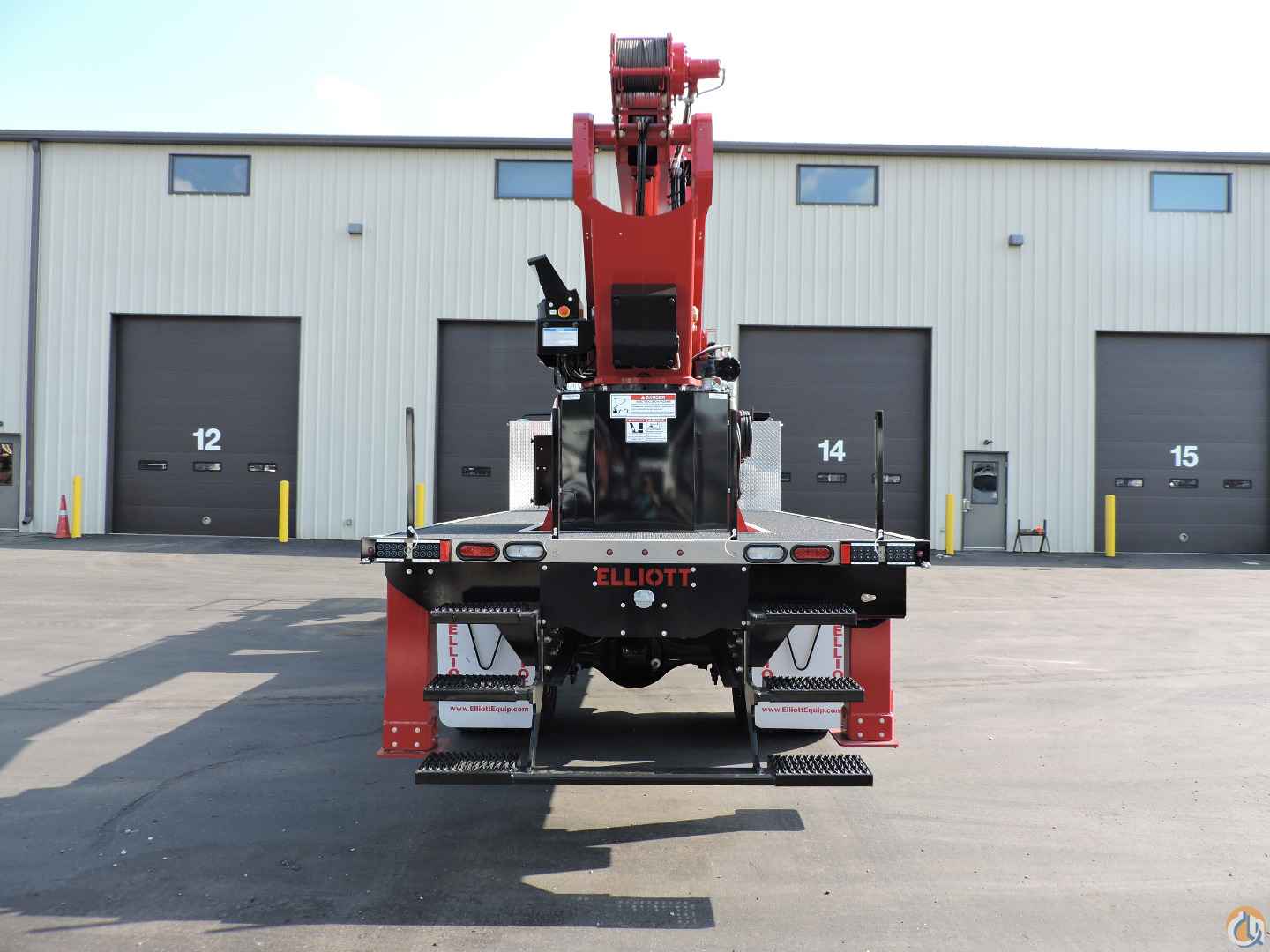

-          ICC rear bumper w/ 3 angled steps and grab handles

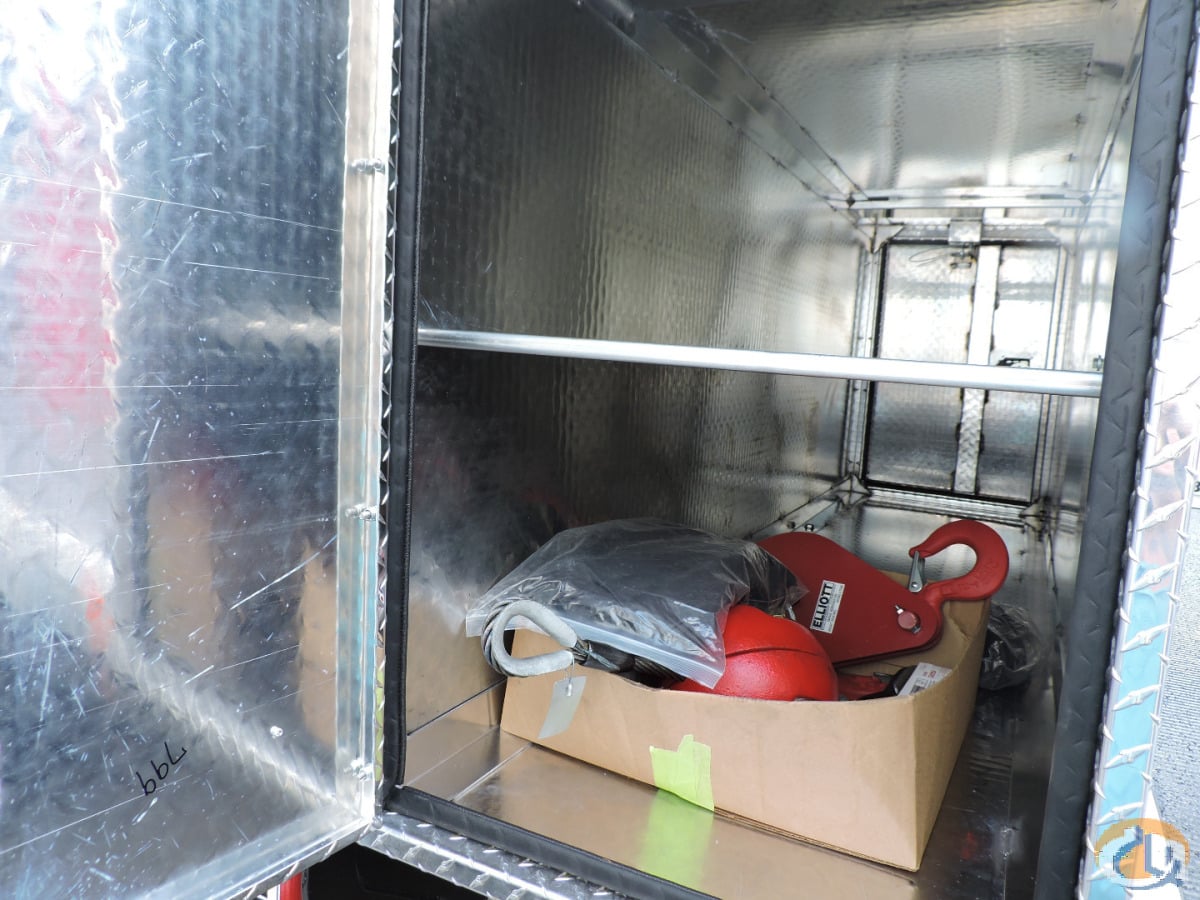

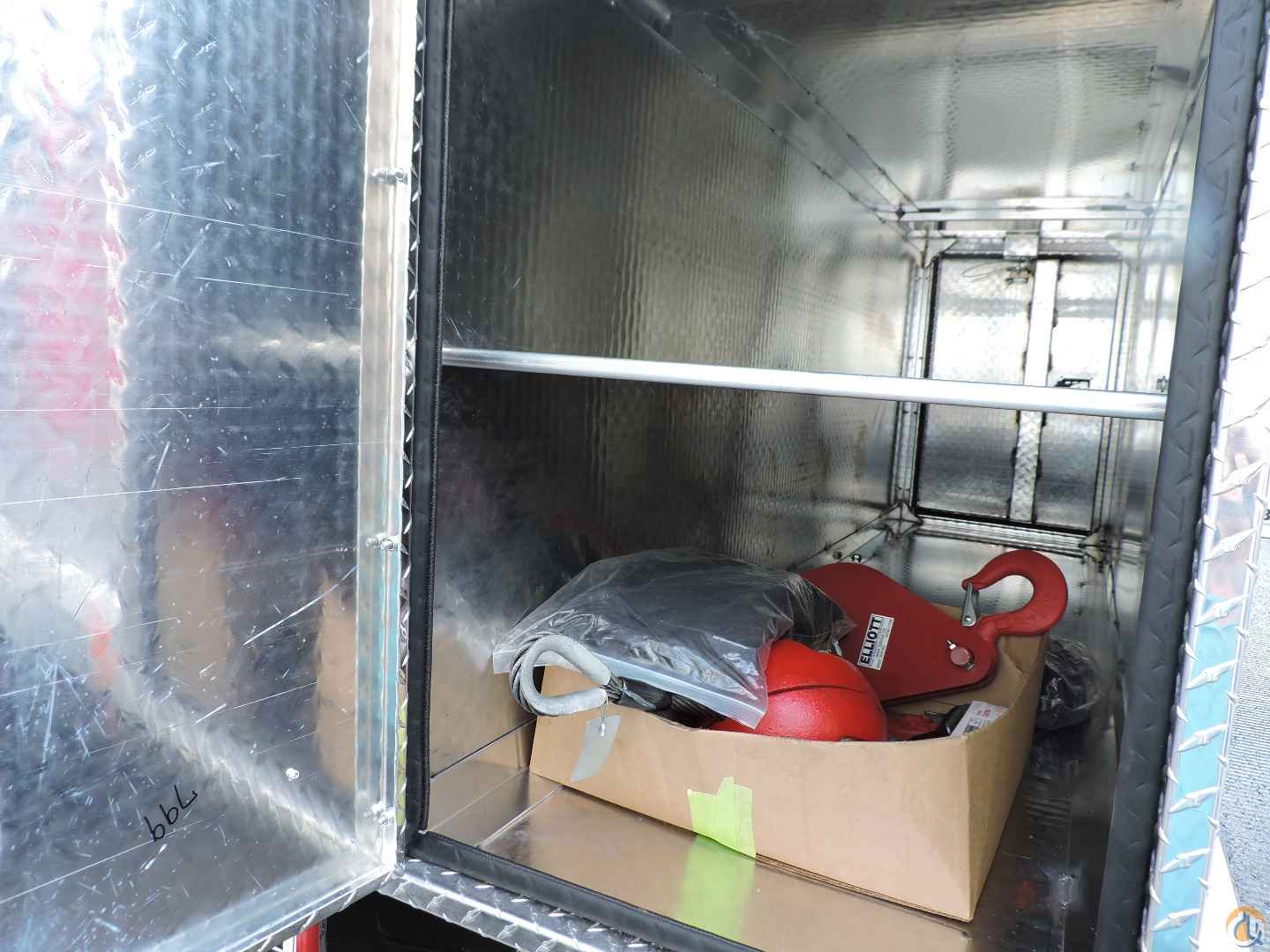

-          98” x 36” x 24” aluminum crossbody box

-          Hot shift PTO

-          PTO hour meter

-          Backup alarm

-          Two body harness and lanyard

-          Safety triangle kit

-          Painted red

-          Unit certified to ANSI A92.2

MOUNTED ON:

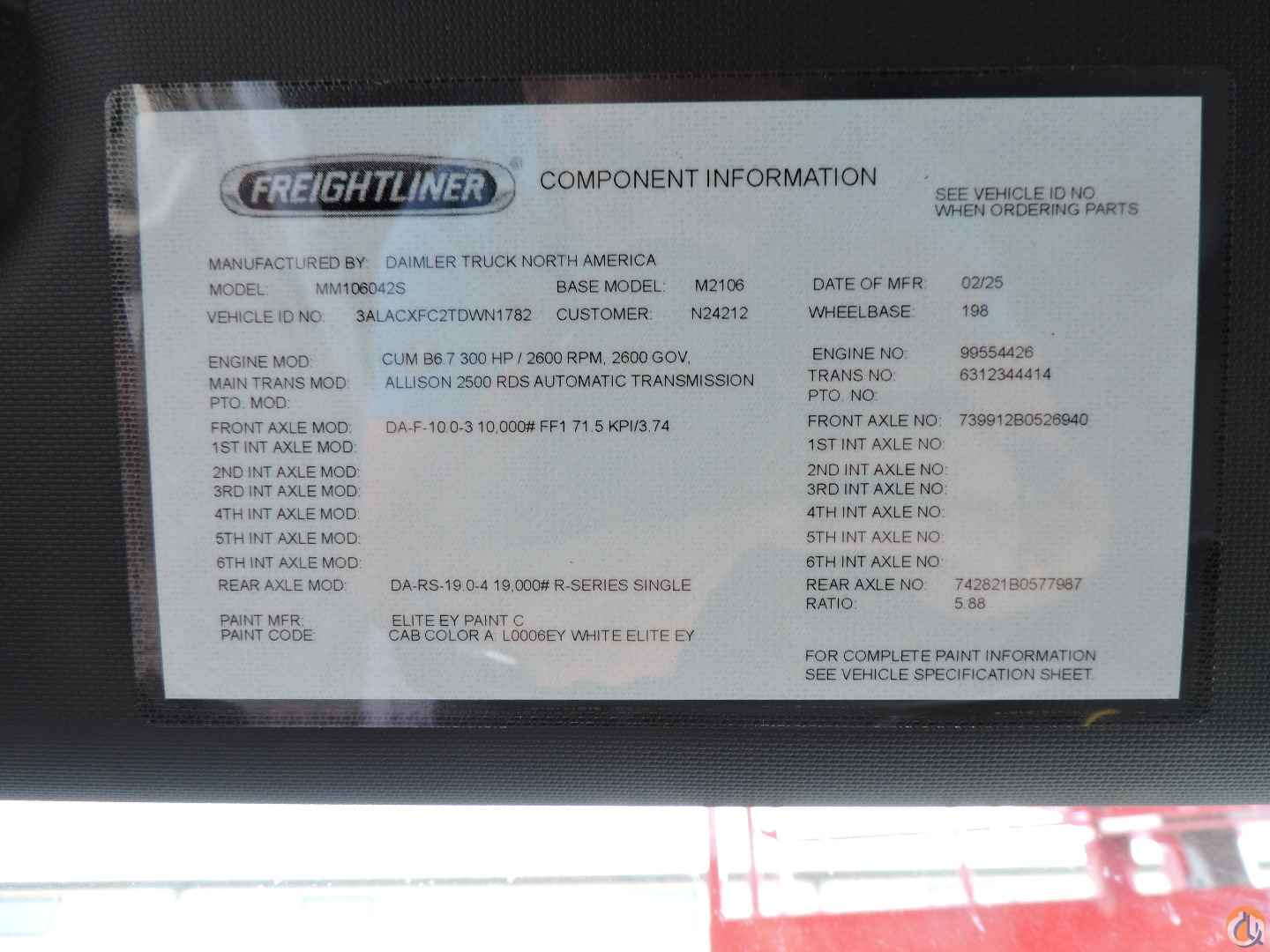

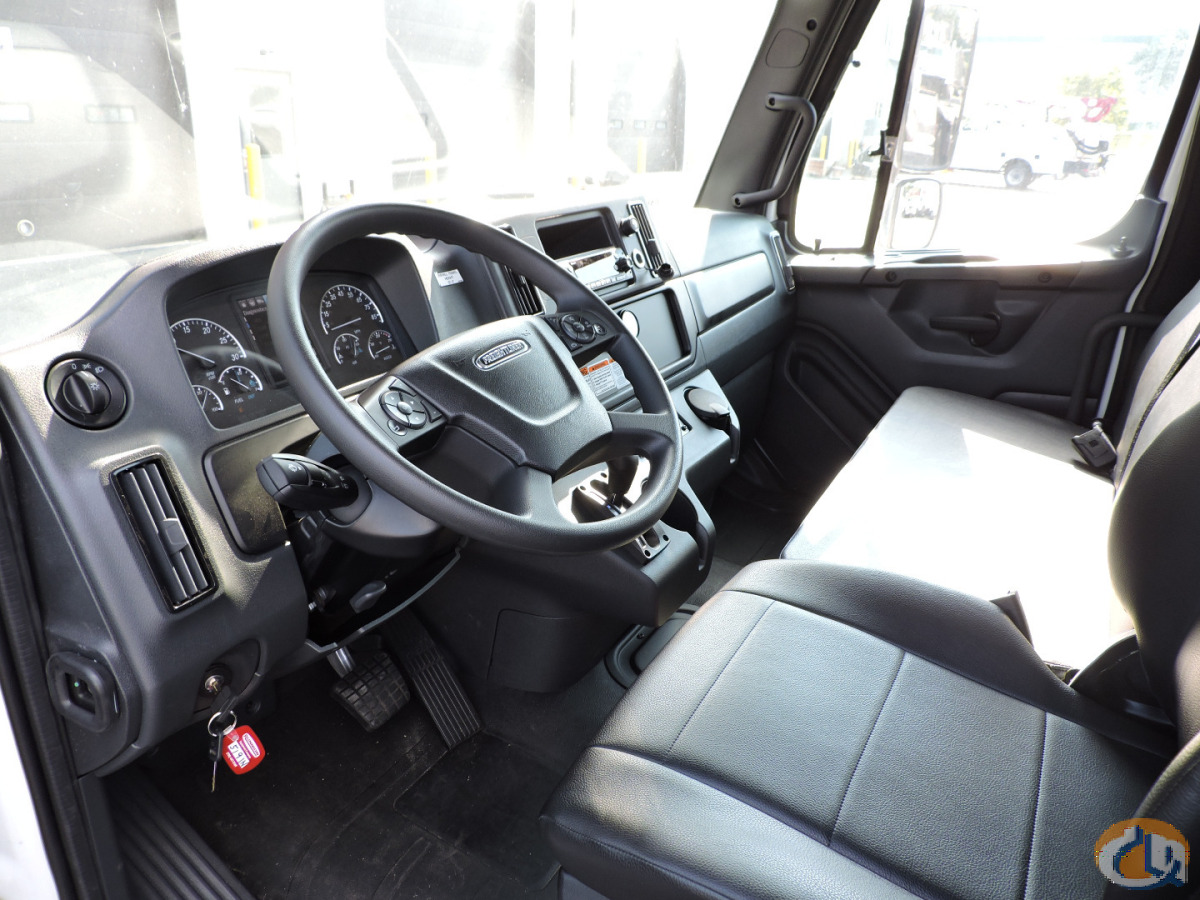

2026 Freightliner M2 106 Plus equipped as follows:

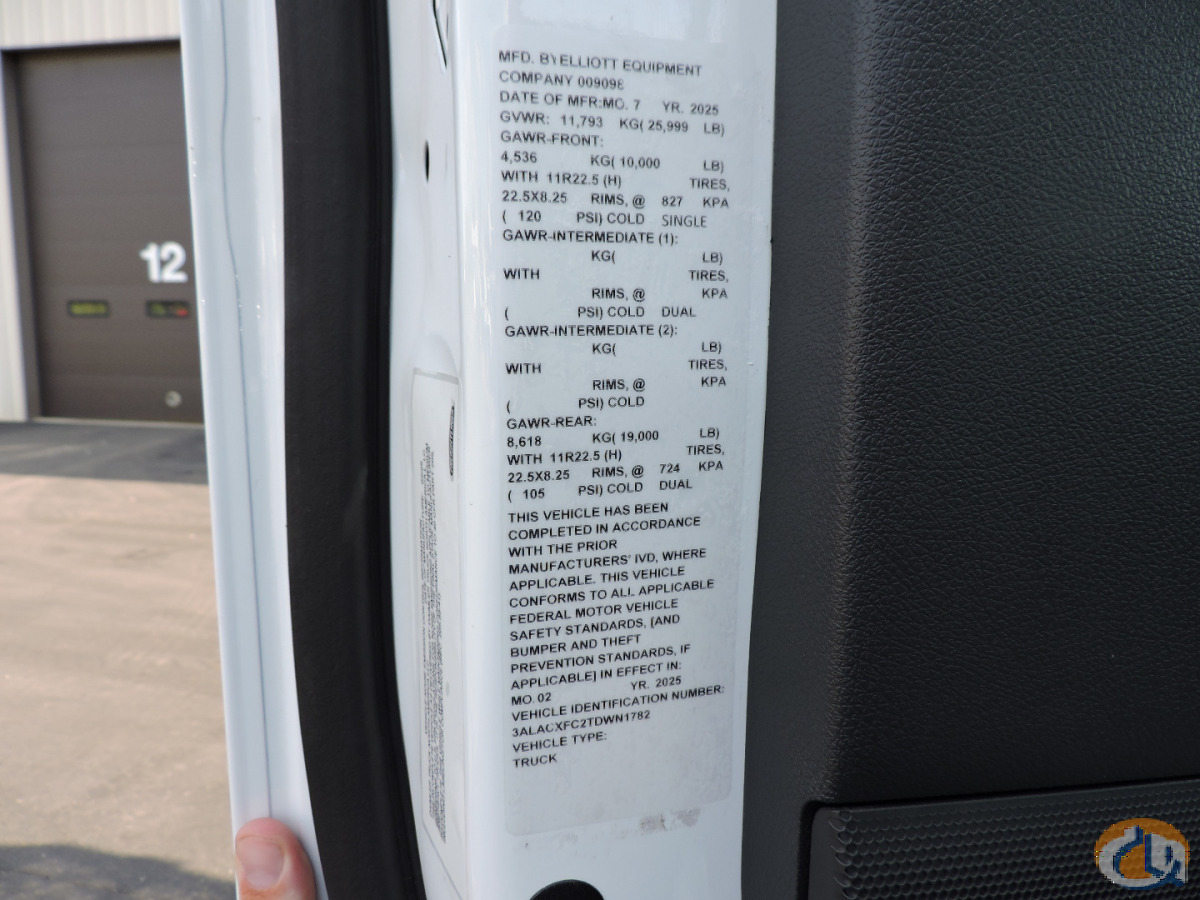

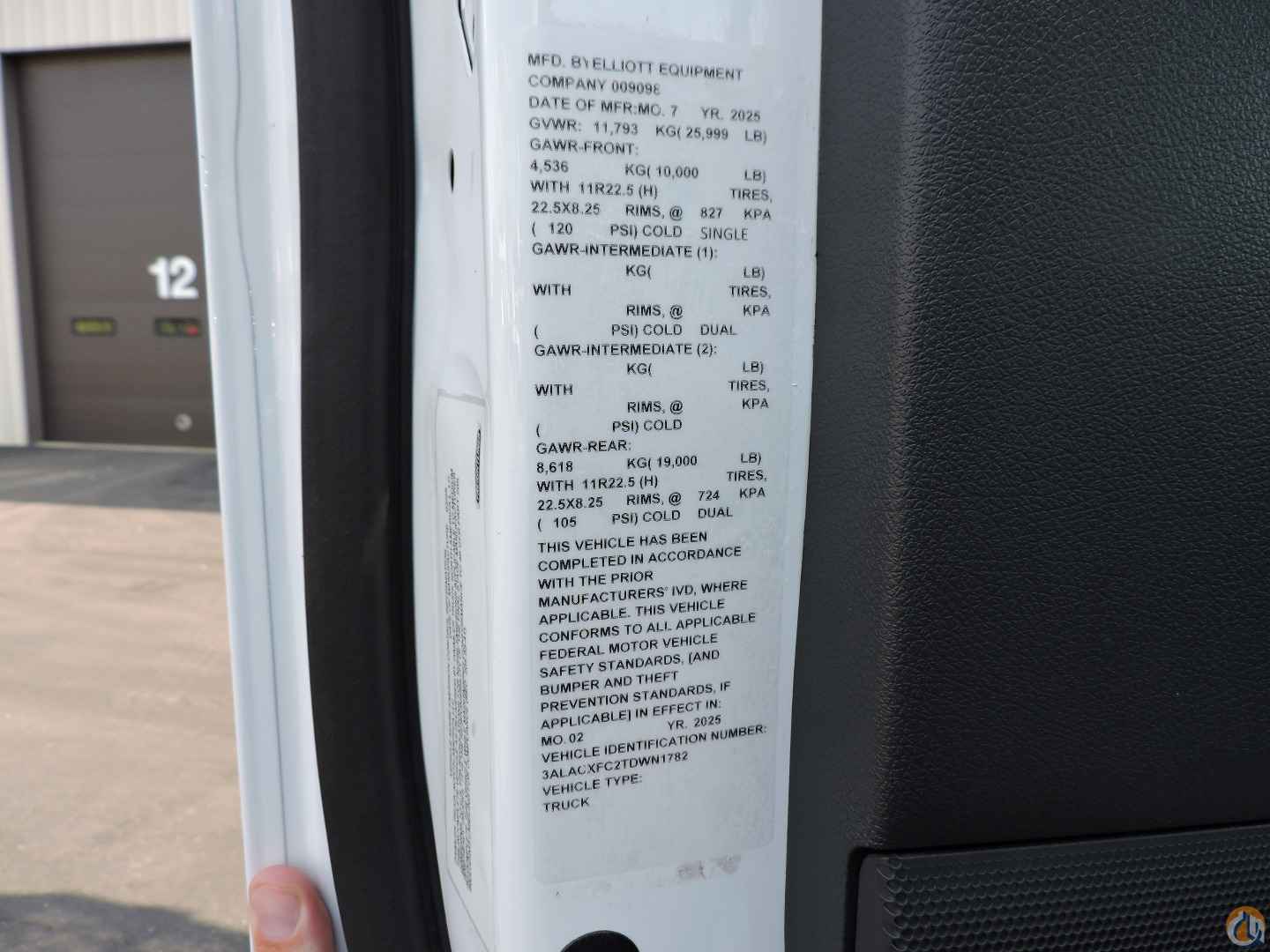

-          29,000# GVWR

-          300 hp Cummins B6.7 diesel engine (660 lb./ft.)

-          Allison 2500 RDS automatic transmission

-          198” WB, 132” CA, 90” AF

-          Front tires and rear tires 11R22.5

-          Steel wheels

-          Front axle 10,000 lb

-          Rear axles 19,000 lb

-          Air brakes

-          50-gallon fuel tank (LH)

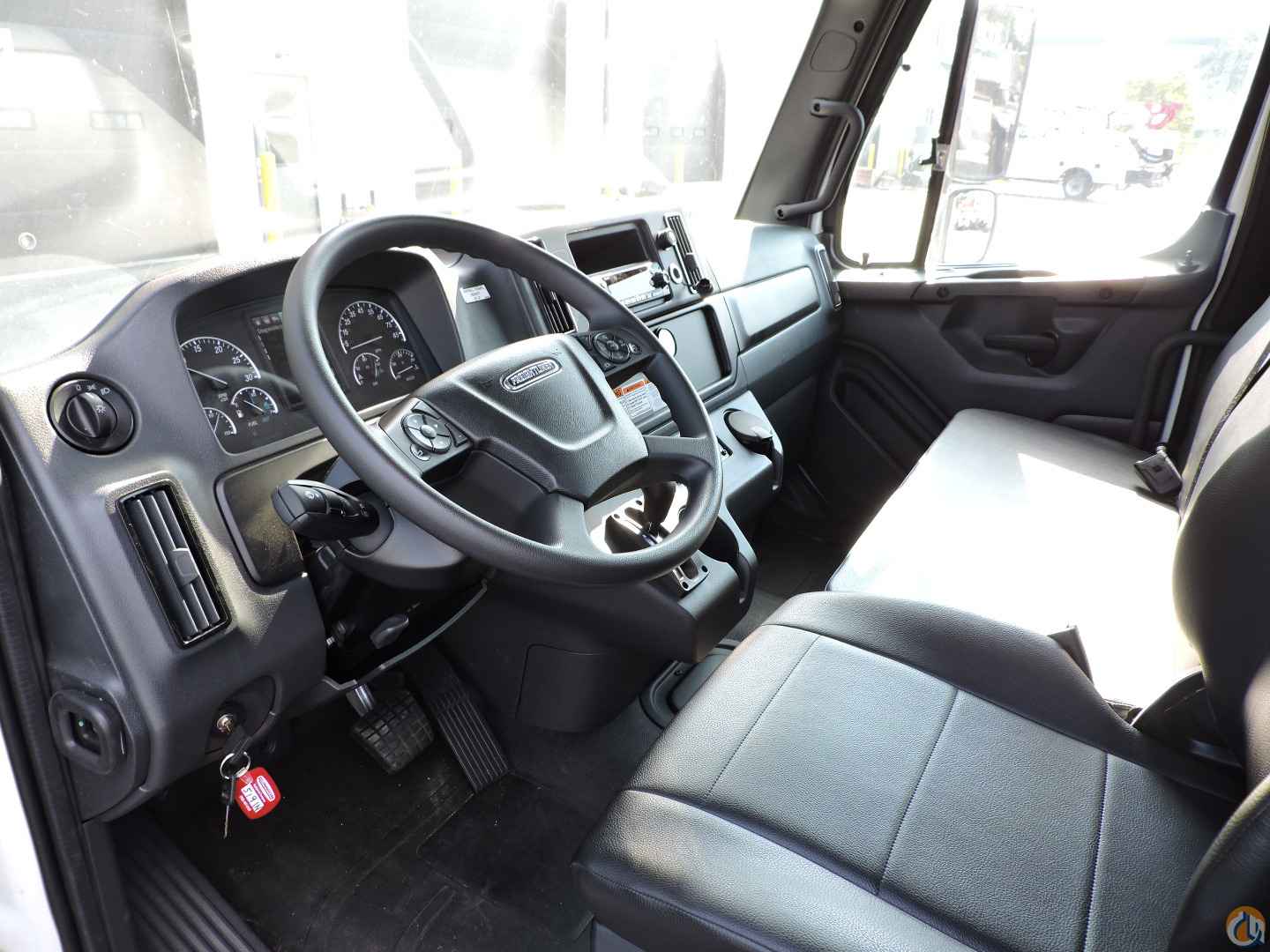

-          Air ride driver seat

-          Two (2) man passenger bench

-          AM/FM radio w/ Bluetooth

-          Air conditioning

-          Power door locks and windows

-          Cruise control

-          Tilt steering column

-          Painted white

-          1 year tow warranty included

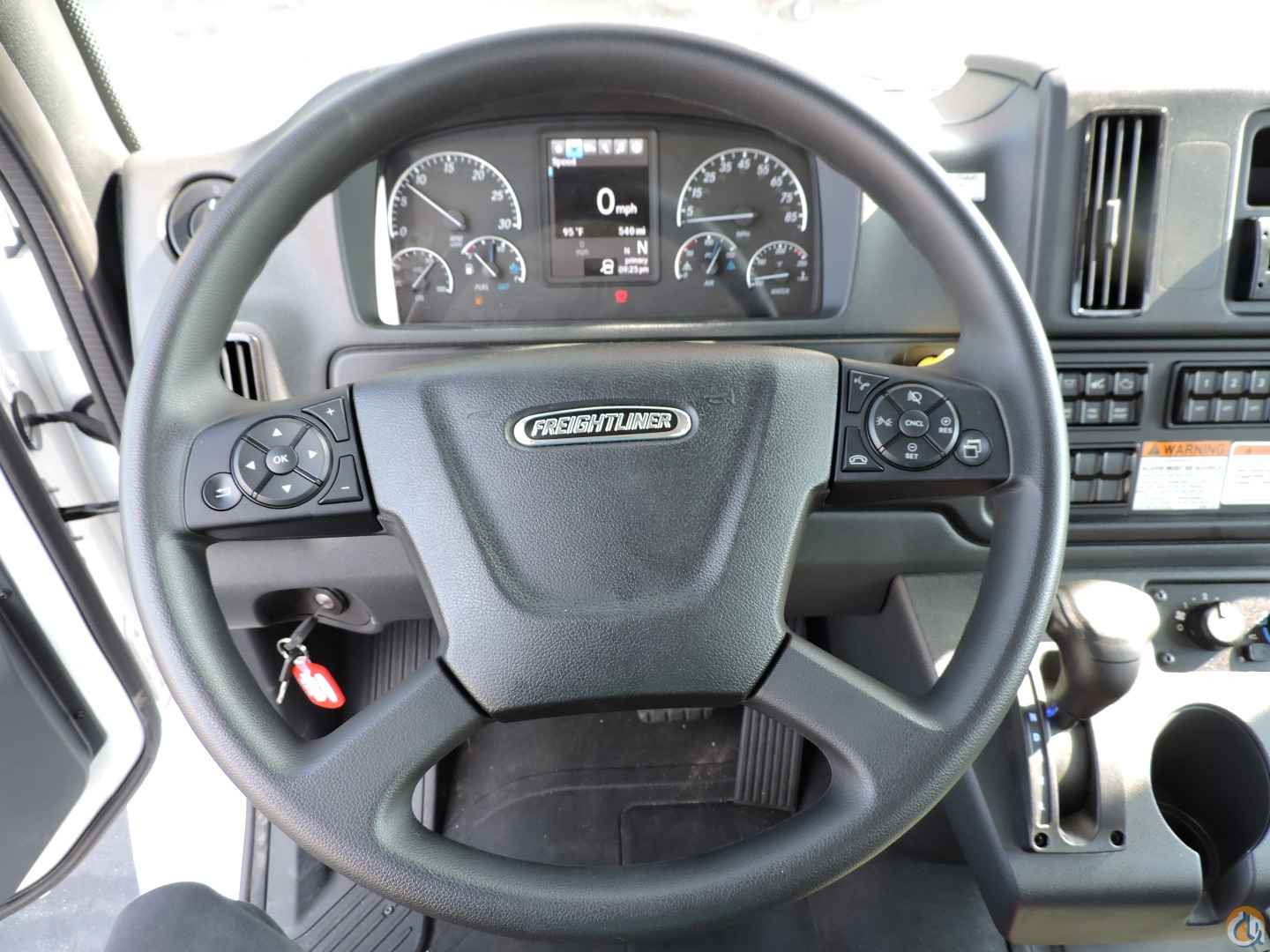

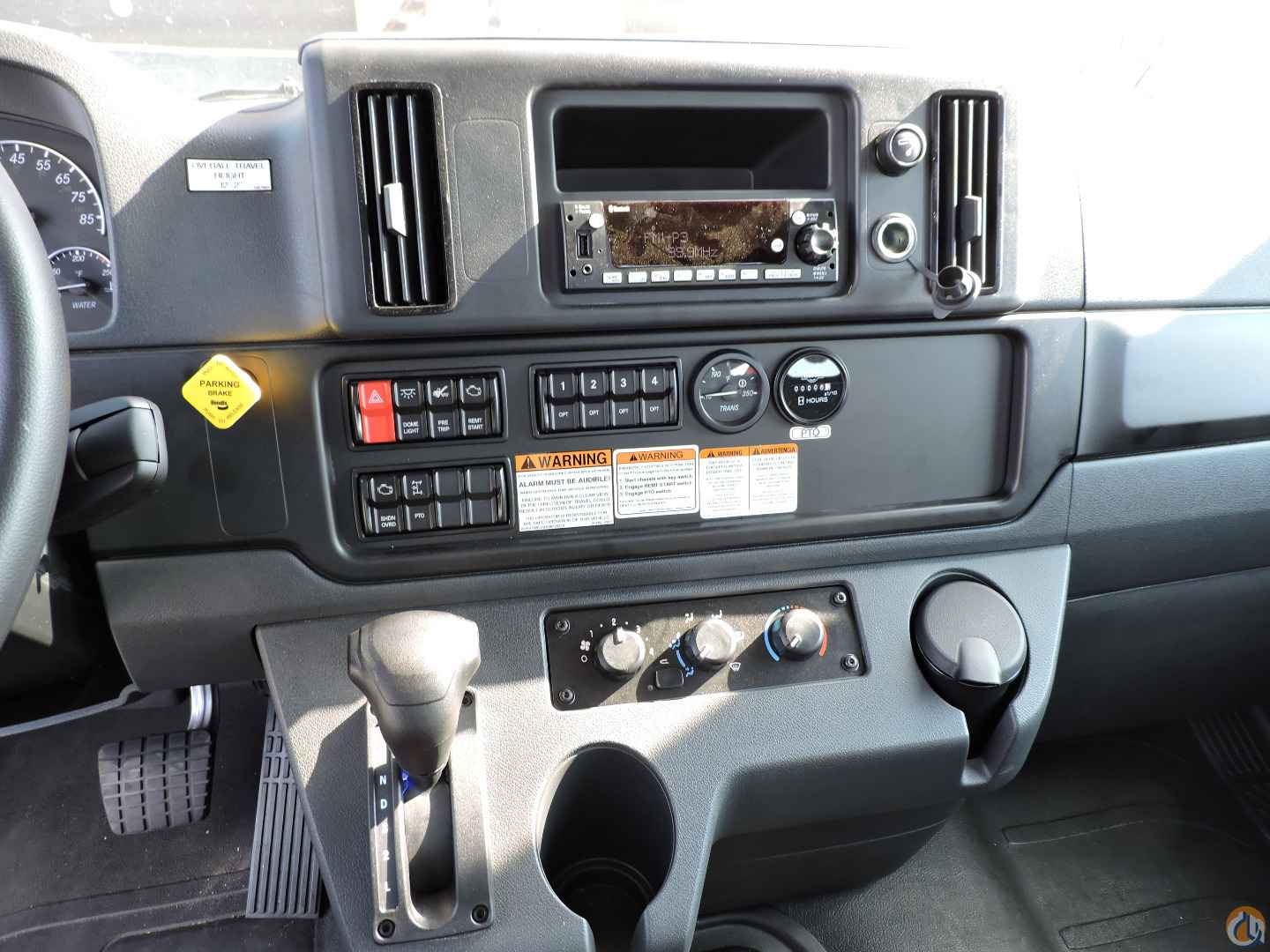

STOCK PHOTOS
