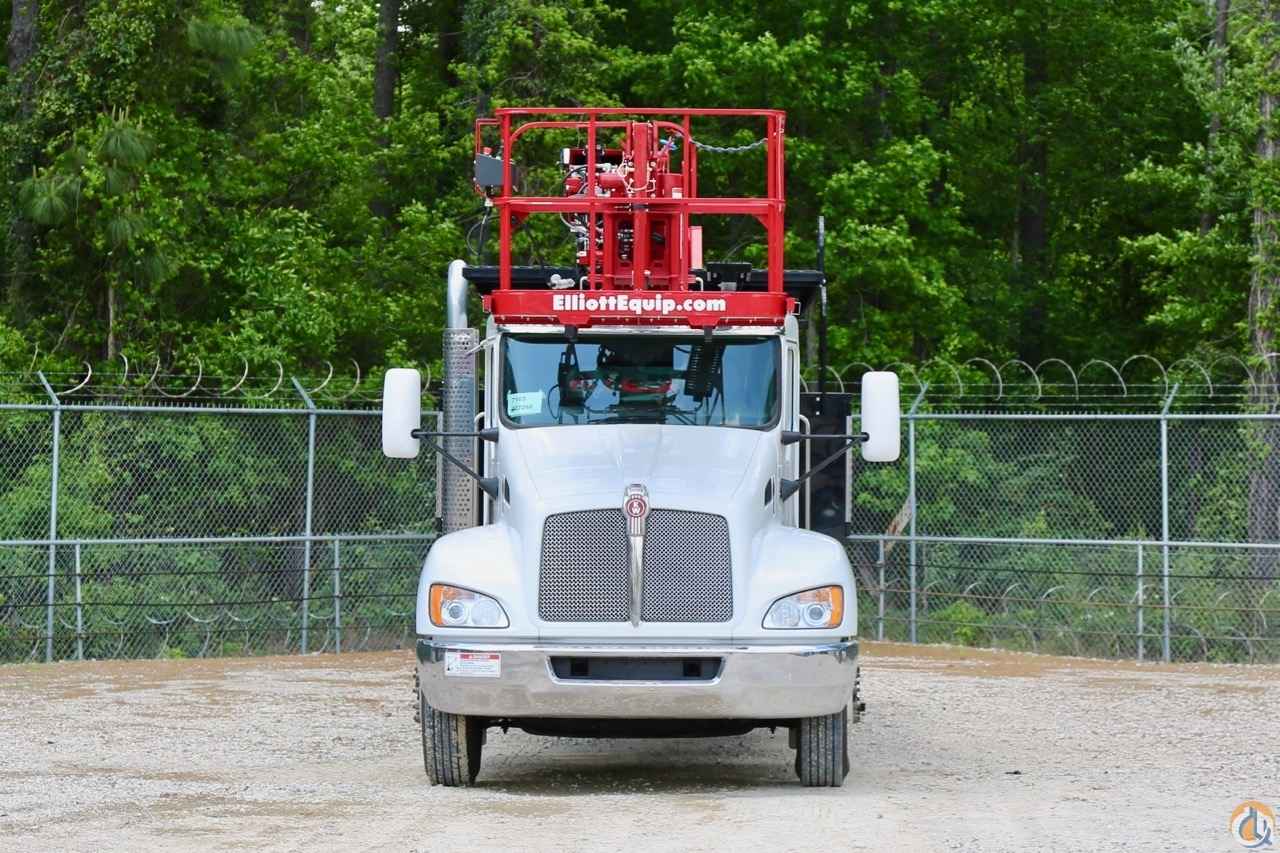

Type: Bucket/Service Truck Crane
Make: Elliott
Model: L60R
Year: 2019
Condition: New
Serial #: 00-7165
Unit #: BM-2470
Location: Houston, Texas
Boom: 56

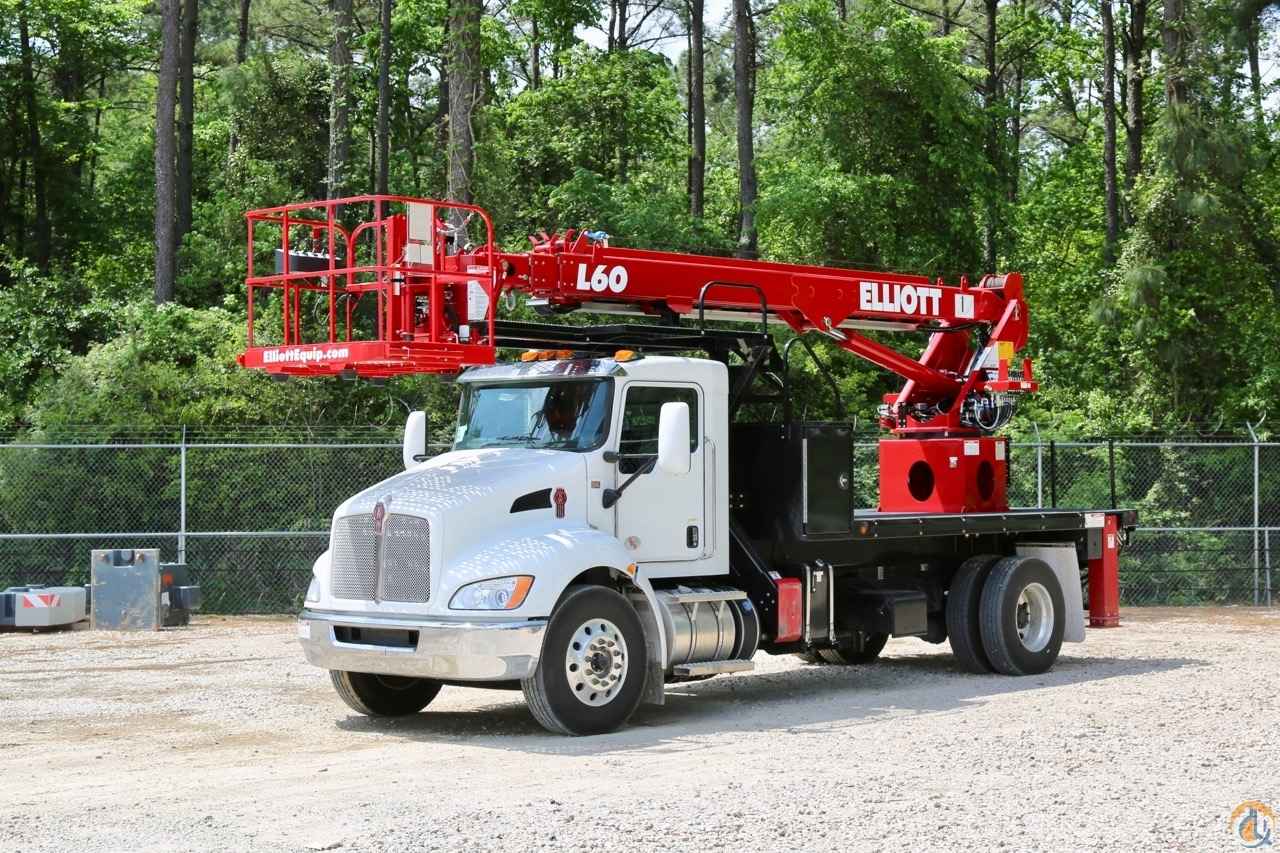

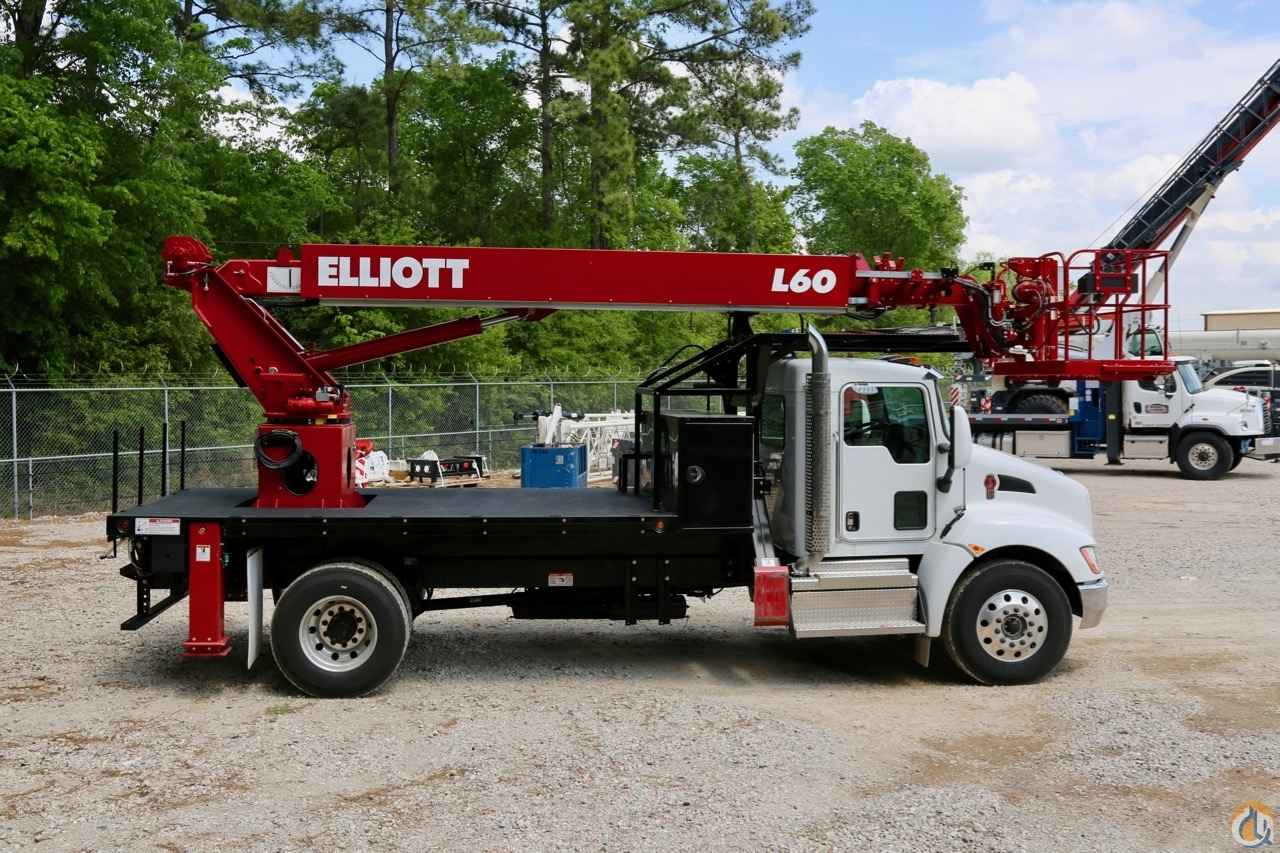

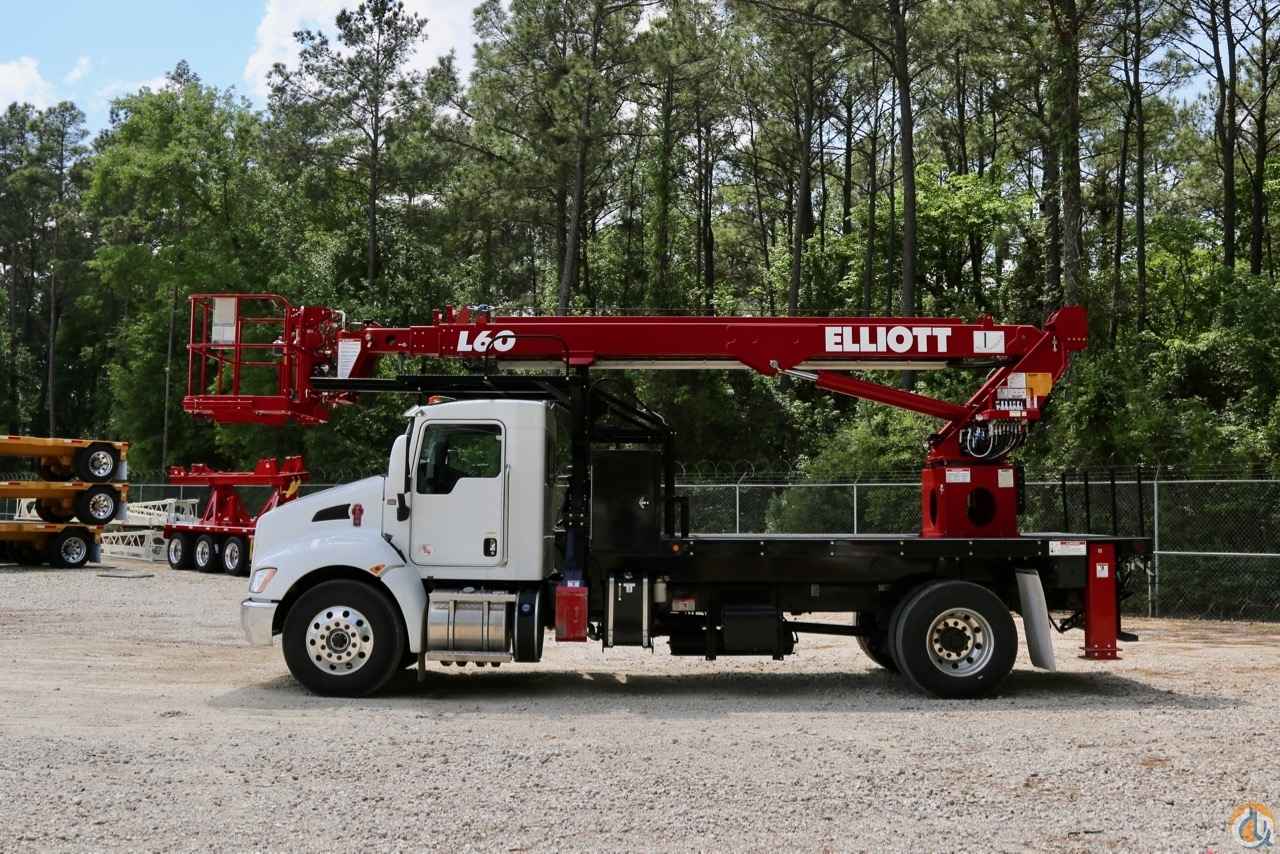

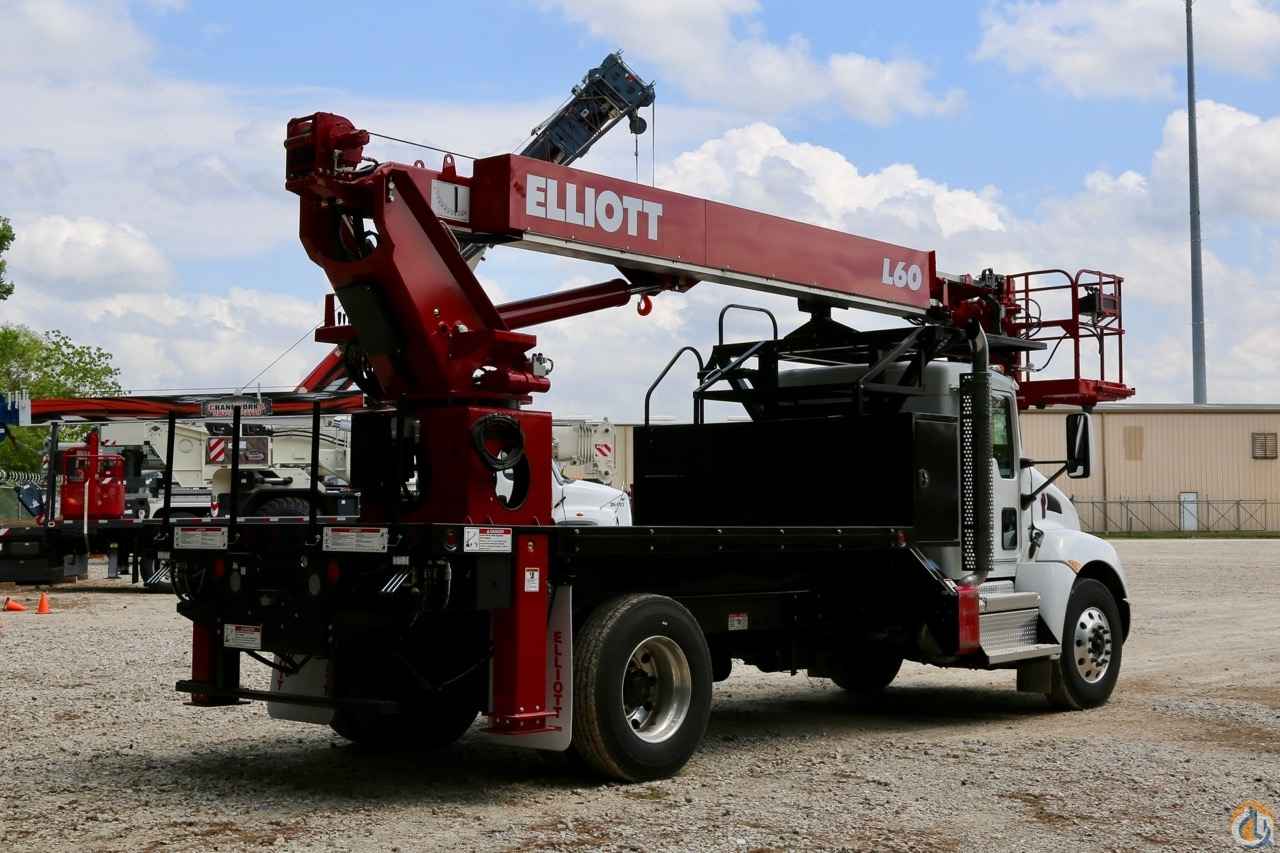

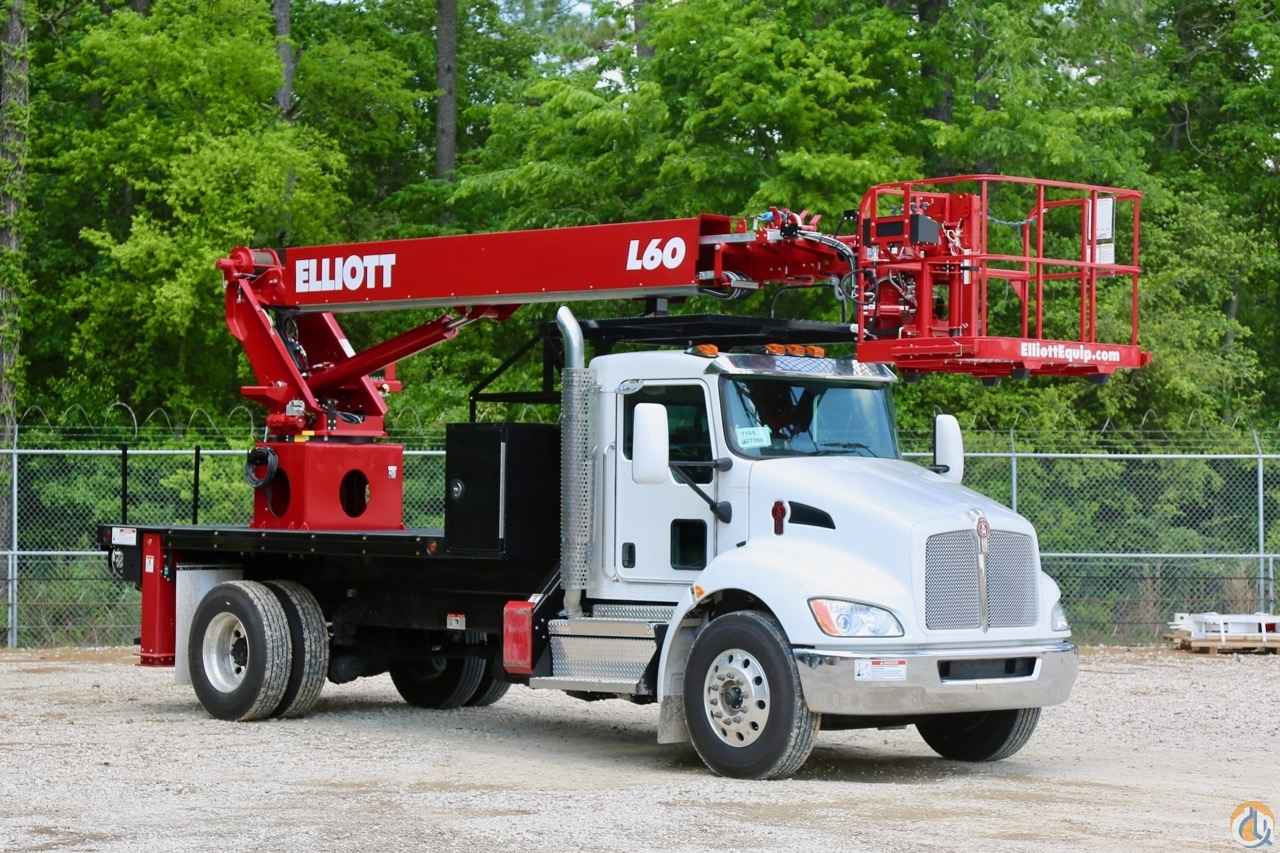

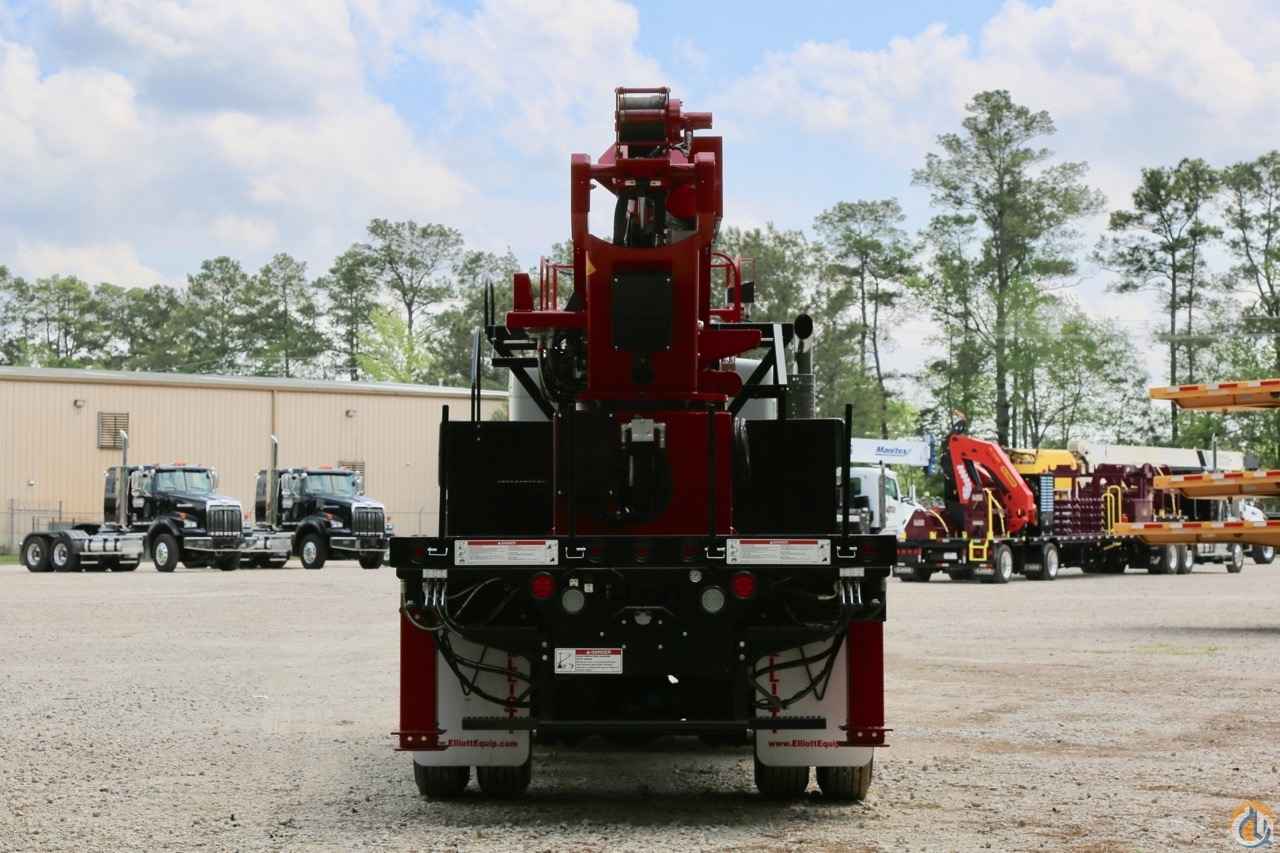

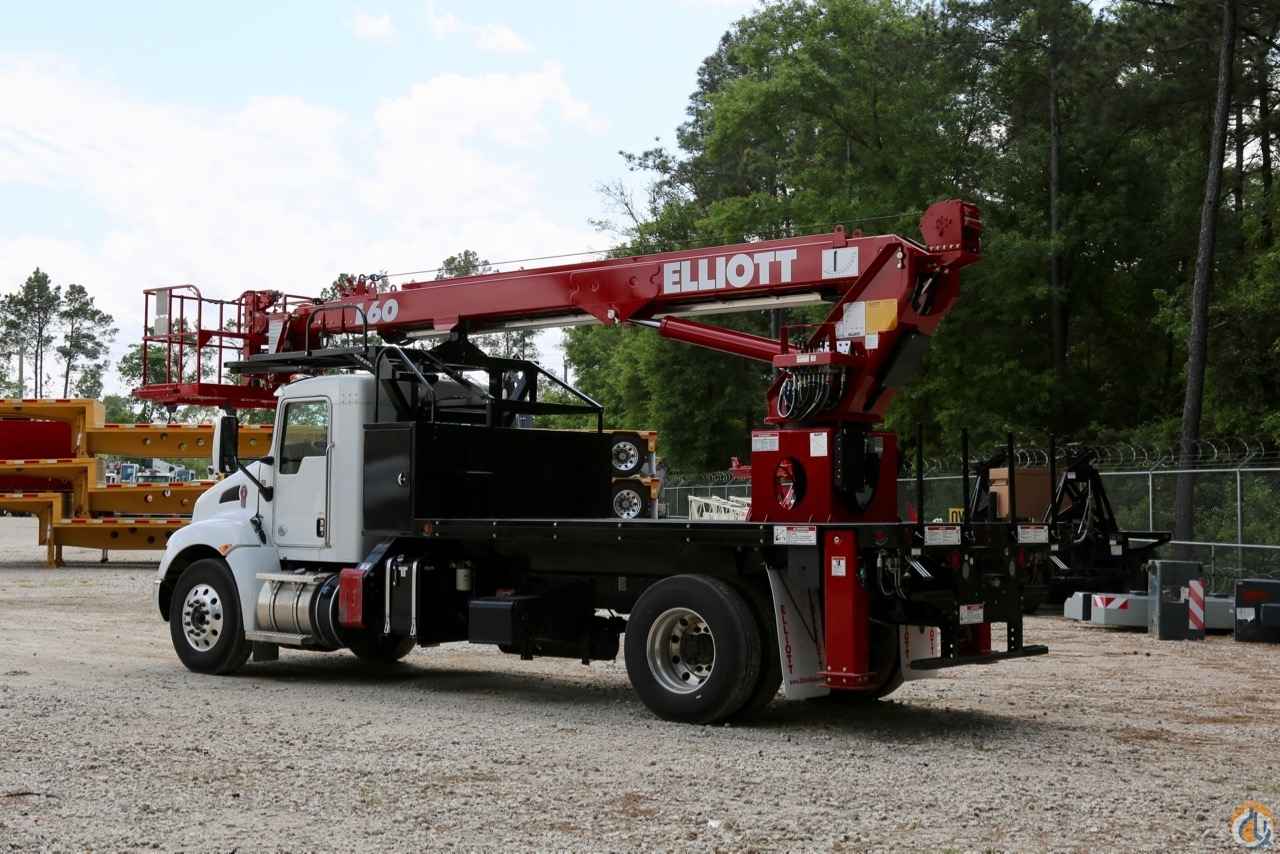

Elliott’s L60 HiReach features a 63′ working height and a 40″ x 60″ two-man work platform with a 500 lb capacity. The three-section hydraulic boom offers smooth functionality and a precise 'point and shoot' ride. The work platform is hydraulically self-leveling and hydraulically rotating to get you to the work area safely and comfortably. As with other HiReach, the L60 HiReach is available with a main winch (5,900 or 2,000 lbs), a jib winch in the work platform (500 lbs) and Elliott’s 'Office in the Sky' external cable carrier system to bring your tools into the work platform.
The steel boom extends hydraulically without cables or chains for reduced maintenance and a smoother ride

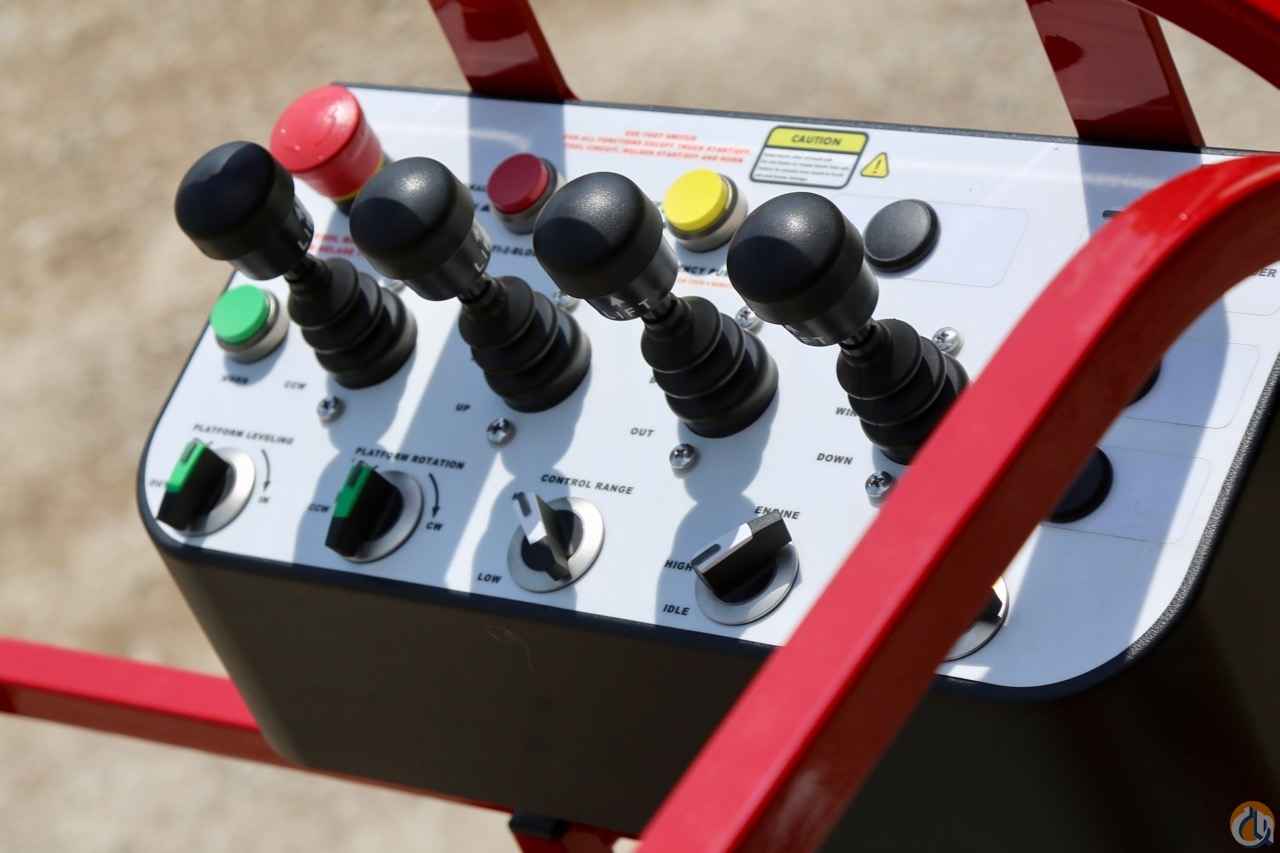

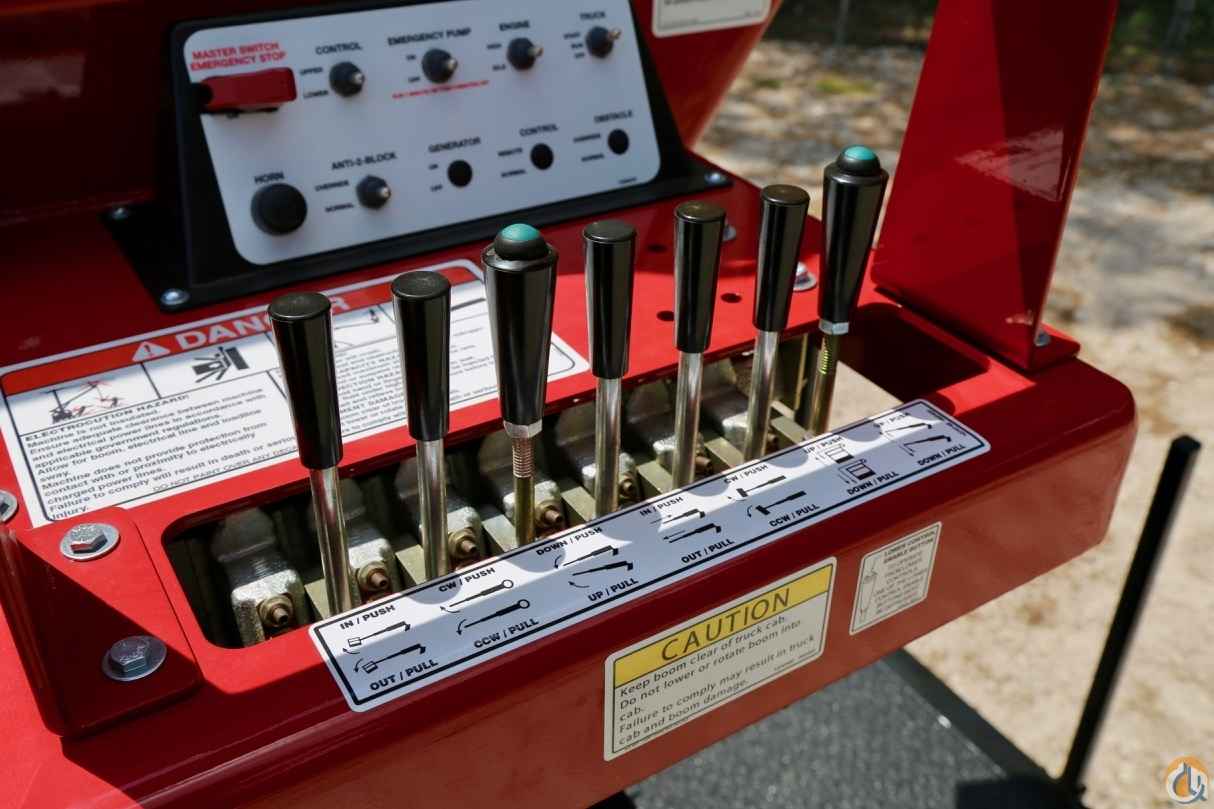

Elliott’s Dynasmooth upper work platform control system includes a foot enable switch and individual joysticks with hi/lo range for excellent sensitivity adjustment
The L60 model does not have side reach envelope limits, allowing the operator to boom up and out in any direction without restriction (within chart capacity limits)
Oversized turret and bearing provide long-term reliability and excellent stability
Optional main boom winch allows for material handling with the work platform attached, or removed
Optional 500 lb capacity jib winch conveniently stows within the work platform and permits lifting materials while in the work platform, reducing the need to make multiple trips to the ground
One year parts/labor warranty and lifetime structural warranty
Elliott Equipment Company specializes in manufacturing long-lasting and reliable personnel lifting equipment that can also lift materials, providing a versatile solution for a wide range of industries. All products are manufactured in the USA and are available with a wide range of factory customization options. Elliott – Built for You
WORKING HEIGHT: 63' / 19,2 M
WORKING SIDE REACH: 56' / 17,1 M
BOOM SECTIONS: 3
PLATFORM TYPE: EZR REMOVABLE
PLATFORM CAPACITY: 500 LBS / 227 KG
PLATFORM SIZE: 40"X60" / 102X152 CM
JIB WINCH CAPACITY: 500 LBS / 227 KG
MAIN WINCH CAPACITY: 5,900 LBS / 2676 KG
OUTRIGGER TYPE FRONT: A-TYPE
OUTRIGGER SPREAD FRONT: 12' / 3,6 M
OUTRIGGER TYPE REAR: OUT-DOWN
OUTRIGGER SPREAD REAR 18' / 5,5 M
UNIT WEIGHT (BARE): 13,500 LBS / 6123 KG
OVERALL HEIGHT: 12’0” / 3,6 M
RECOMMENDED CAB TO AXLE (CA): 120” / 305 CM
RECOMMENDED GVWR: 25,999 LBS / 11 793 KG
Ref no: PO41560, BM-2470
