L60R FOR SALE

Capacity: 3.00

Condition: Very-good

Unit #: 1692

Location: Georgia

Boom: 62

Notes

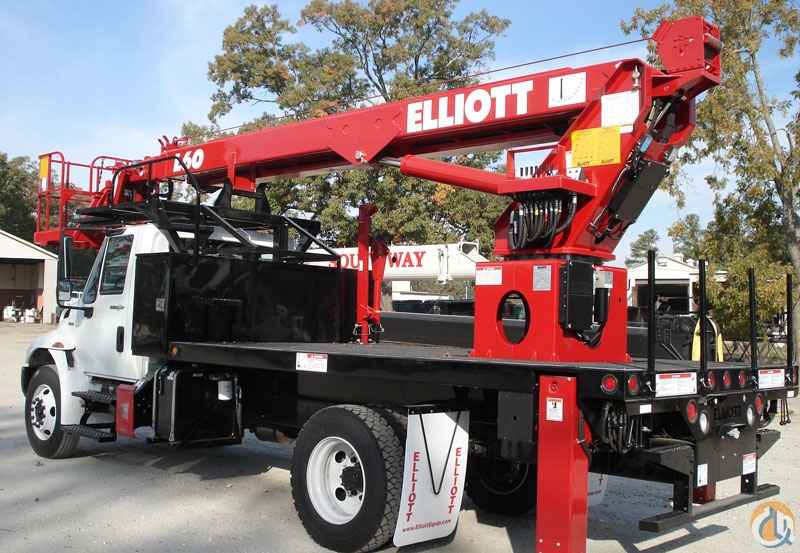

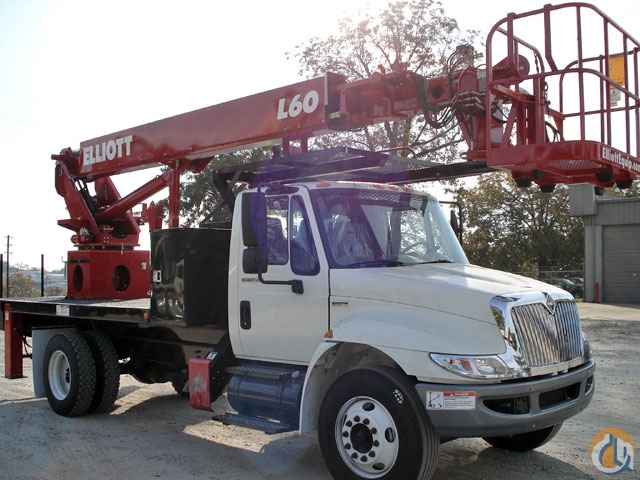

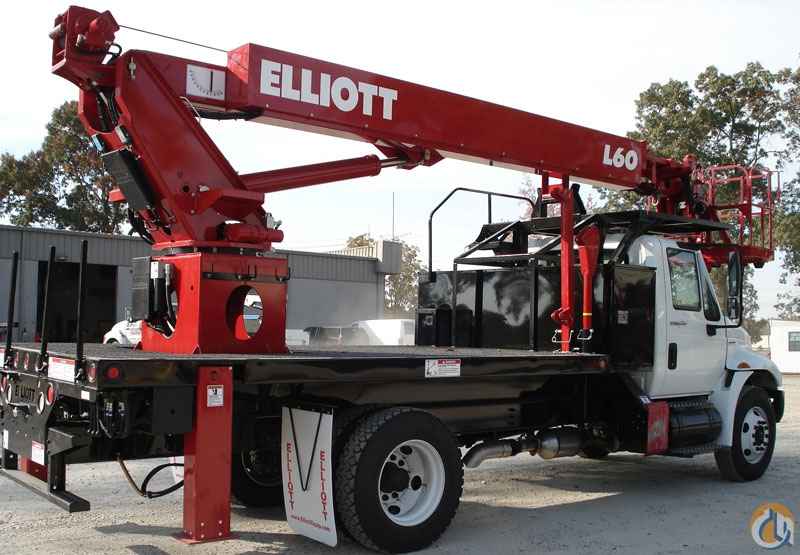

One (1) Elliott Hi-Reach L60R-MHA having a 62' working height. Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil, and manual hydraulic controls mounted to turret. Base mounted "MH" type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab. Steel three section hydraulically telescoping boom with one double acting 6" lift cylinder plus a 3" piggyback extension cylinder. One exposed cable carriers to boom tip. Hydraulically self-leveling and rotating 30" x 54" EZR work platform with remote leveling from platform. Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders. Remote start/shutdown at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, and two body harness and lanyard. Safety triangle kit. Unit painted red, white or black. Installed on chassis, tested, checked and ready to operate. Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices. Platform capacity 500 Lb. 2007 International 4300, 225 hp International MaxxForce DT diesel engine, 120" C.A., Allison 2500RDS_P 5-speed automatic transmission, 25,999 GVWR, , 10R22.5-12 ply tires, (2) front tow hooks, hydraulic disc brakes, AM/FM Cassette radio, engine block heater, cruise control, 50 gallon fuel tank, tinted glass, air conditioning, disc wheels, Color White.

%

$0

Get pre-qualified
