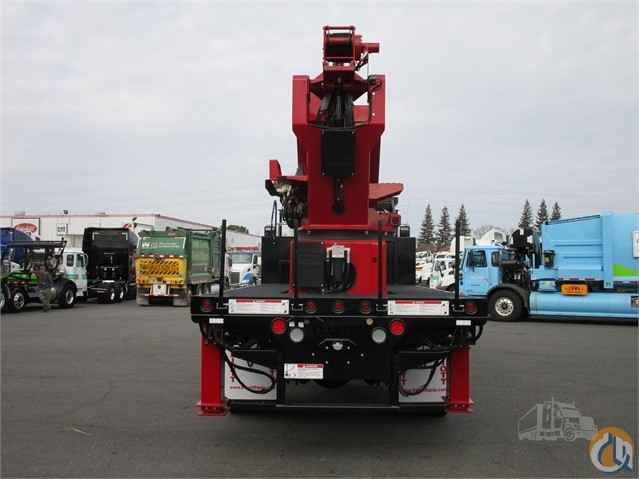

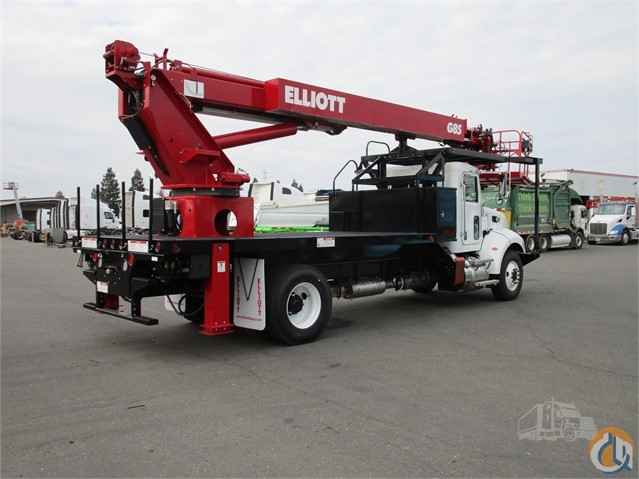

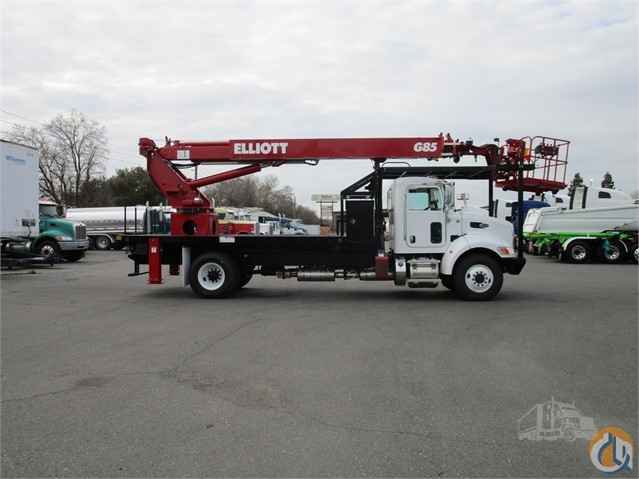

2016 Elliott G85R Bucket/Service Truck Crane (Sold)

New 2017 Peterbilt 337 - G85R Elliot Body

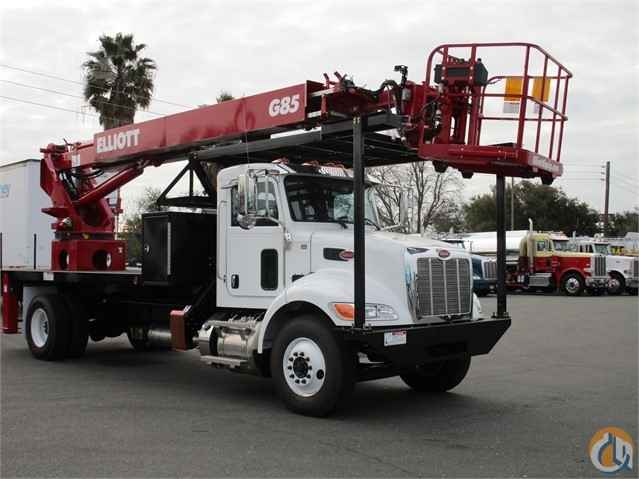

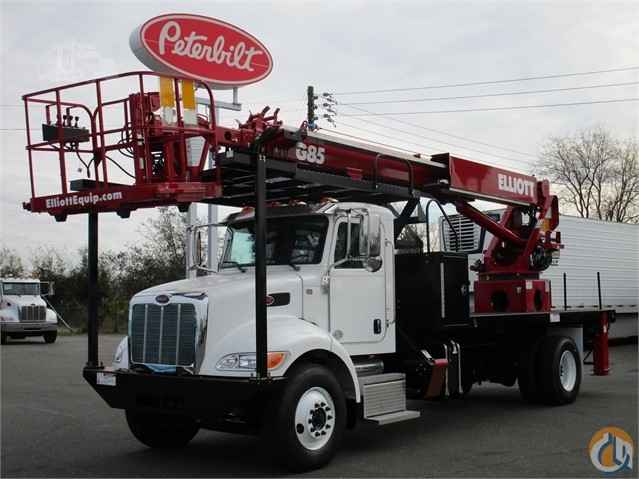

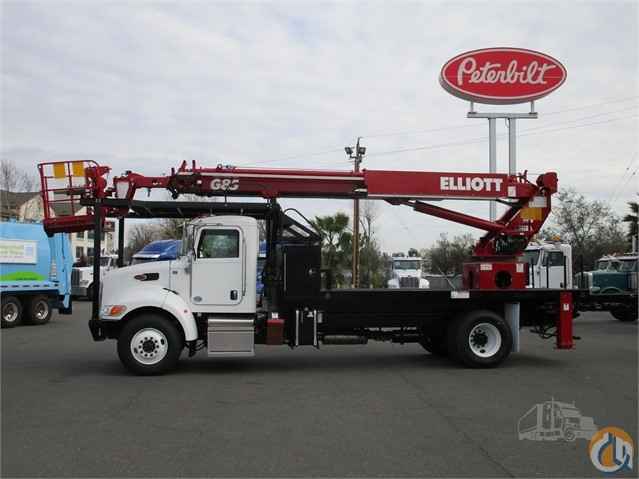

One new Elliott HiReach G85R, having a 85' working height.

Basic unit includes base assembly supporting rear mounted rotating turret, hydraulically powered continuous rotation mechanism, oil reservoir mounted to truck frame, oil, and manual hydraulic controls mounted to turret.

Electronic proportional three stick remote controls on platform with updated box.

Base mounted "MH" type hydraulically powered, individually controlled rear main outriggers and “A” secondary outriggers behind cab.

High strength steel four section hydraulically telescoping boom with one double acting 7" lift cylinder plus (1) 2 1/2" piggyback and (1) 3" extension cylinder.

Two exposed cable carriers to boom tip.

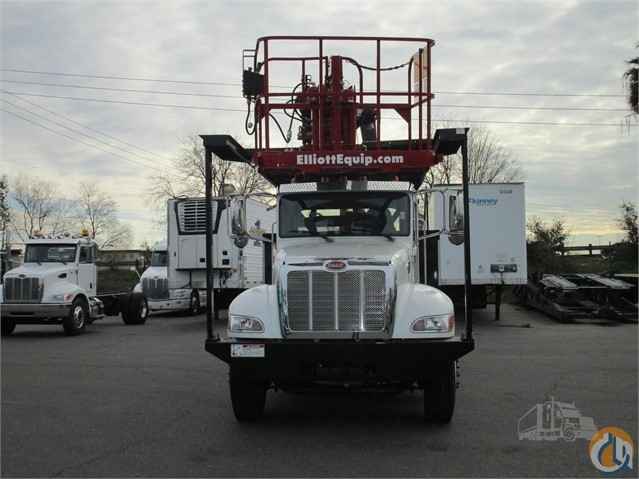

Hydraulically self-leveling and rotating 40" x 60" updated EZR work platform with remote leveling from platform.

Power take off and pump drive, pressure gauge, pump and holding valves on all cylinders.

Remote start/stop at upper and lower controls, 12-volt emergency pump with switch at upper and lower controls, PTO hour meter, backup alarm, fire extinguisher, safety triangle kit, and two body harness and lanyards.

L.E.D. lights to include all bed marker lights, stop, tail and turn. Installed on chassis, tested and ready to operate.

Unit certified to ANSI A92.2 for Vehicle-Mounted Elevating and Rotating Aerial Devices.

Platform capacity 500 lbs.

16' Steel Bed With LED Lights and Grip Deck Coating (For Use With Crossbody Box)

Standard ICC Rear Bumper With Steps and Grab Handles

Automatic Safety Rotation Lockout - Prevents Boom from Rotating to Side Where MH Outriggers Are Not Fully Extended Horizontally. ("A" Outriggers Remain Fully Extended)

5,900 lb. Planetary Winch With Anti-Two-Block Switch, Horn, Two Part Hook & 180' 3/8" Cable & Retainer Lug

500 lb. Platform Mounted Jib With Hydraulic Winch. Stows in Platform.

110 Volt Line to Platform

(2) Sign Forks On Platform

Hot Shift PTO For Automatic Transmission

98" x 36" x 24" Steel Crossbody Box (Requires 2' Shorter Bed)

Steel Cable Carrier Cover

Cab Guard From Back of Cab to Front Bumper (Reg Cab)

Mounting Backet Above 8' Crossbody Box for Customer Installed Welder/Generator (Designed for Miller Bobcat 225)

Remote Start/Kill Switch in Platform for Customer Installed Welder/Generator

HiReach Unit Painted Red, Subframe Painted Black, Outriggers Painted Red (STD)
