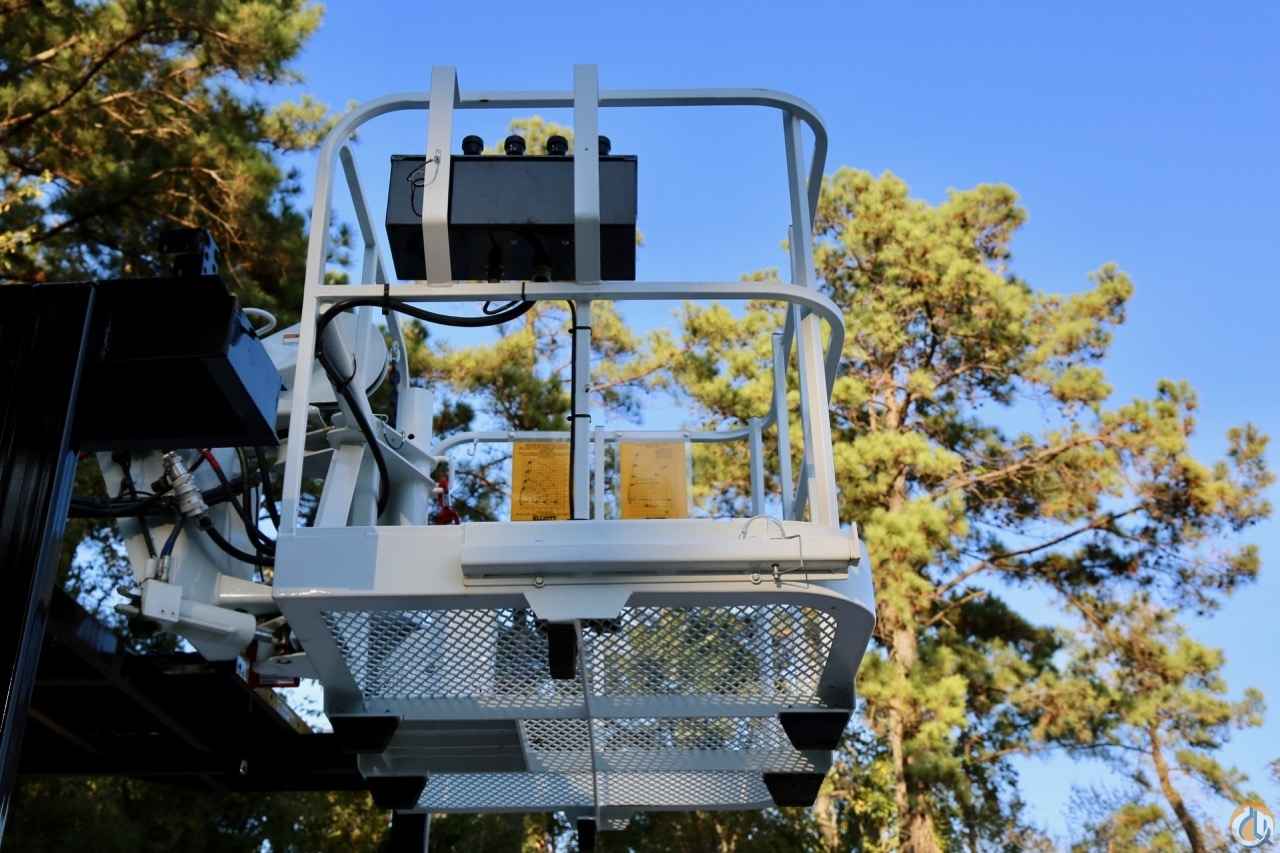

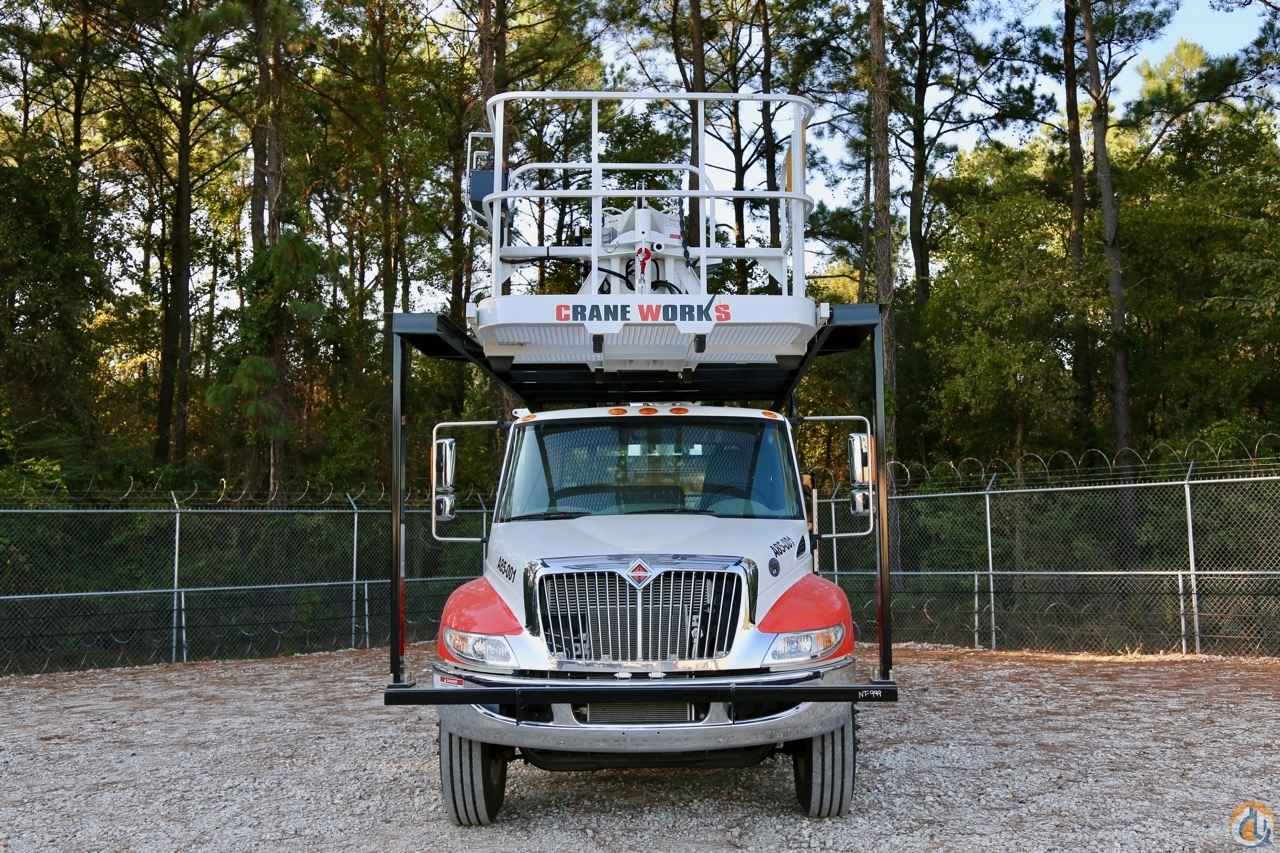

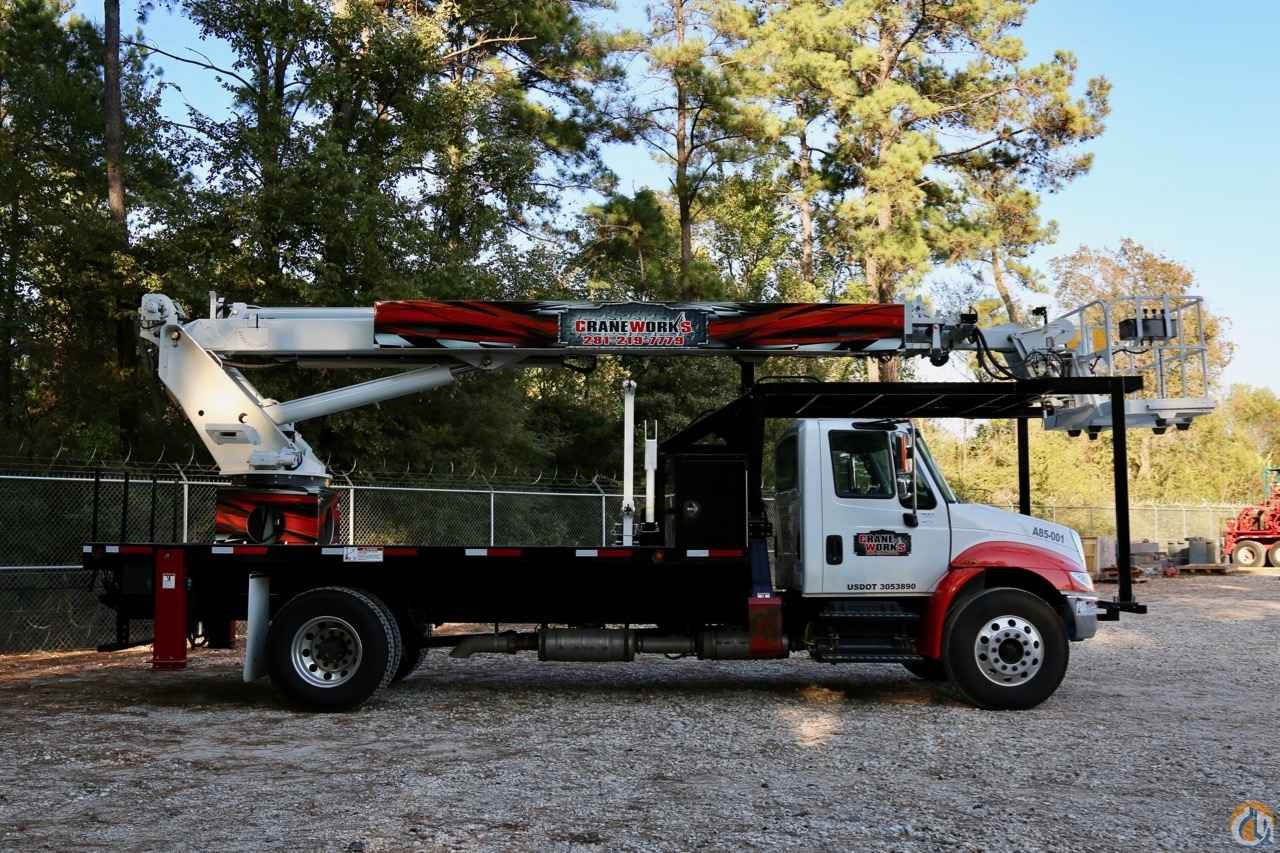

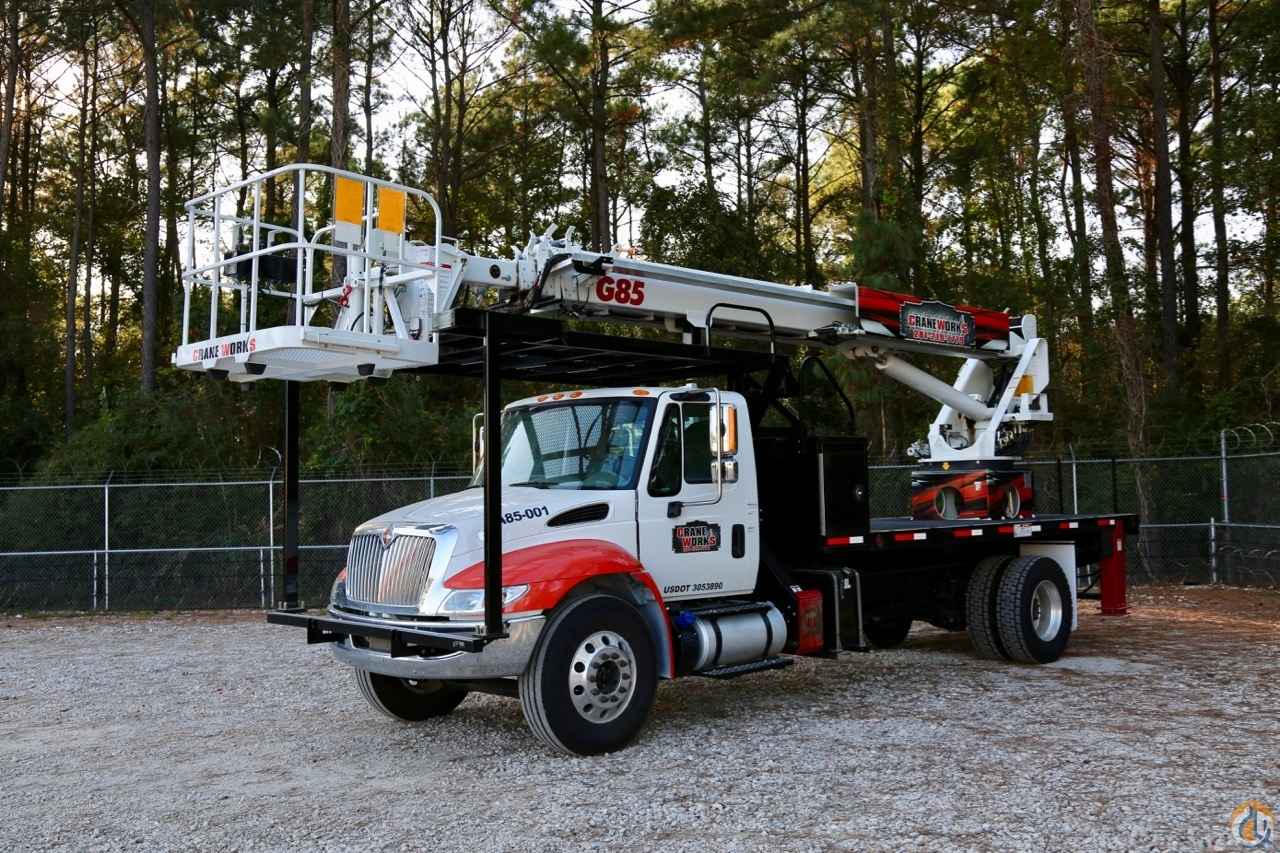

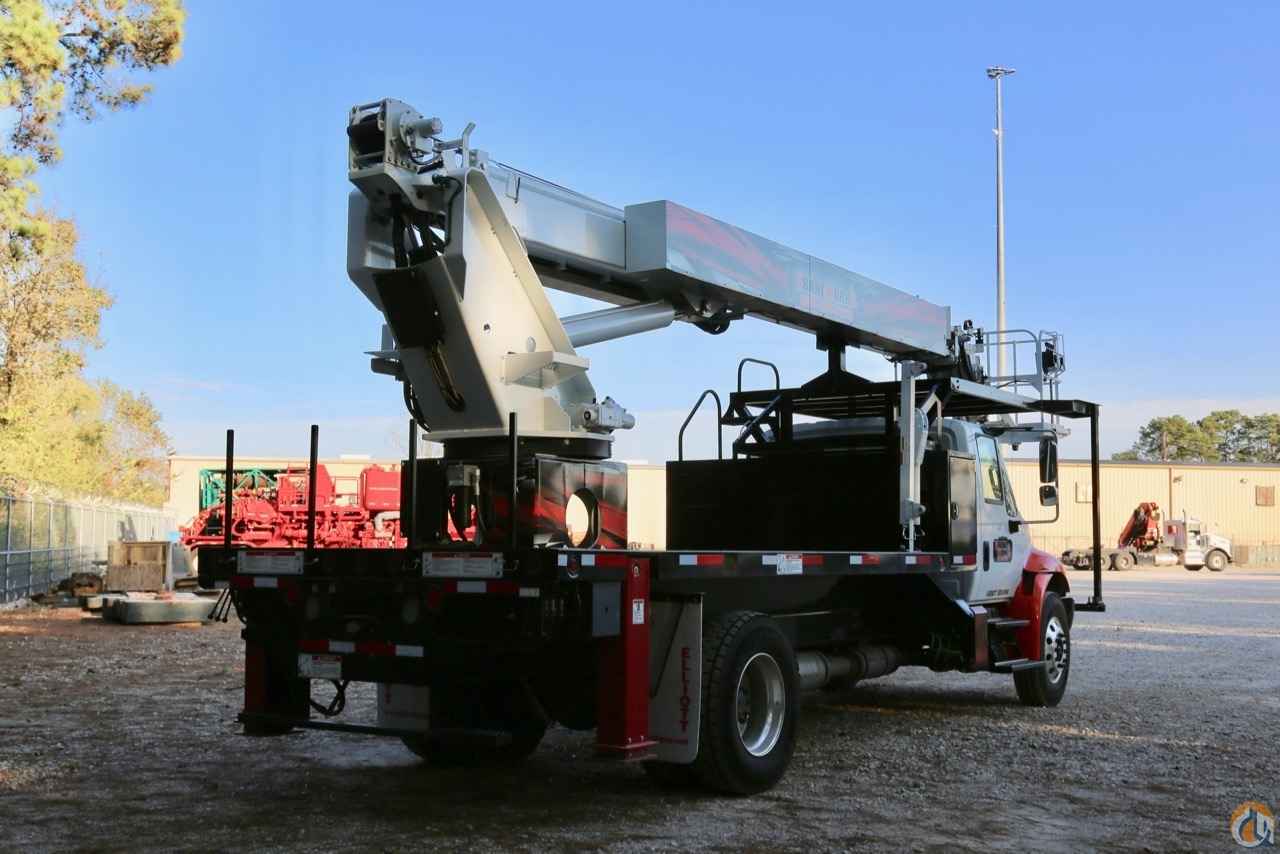

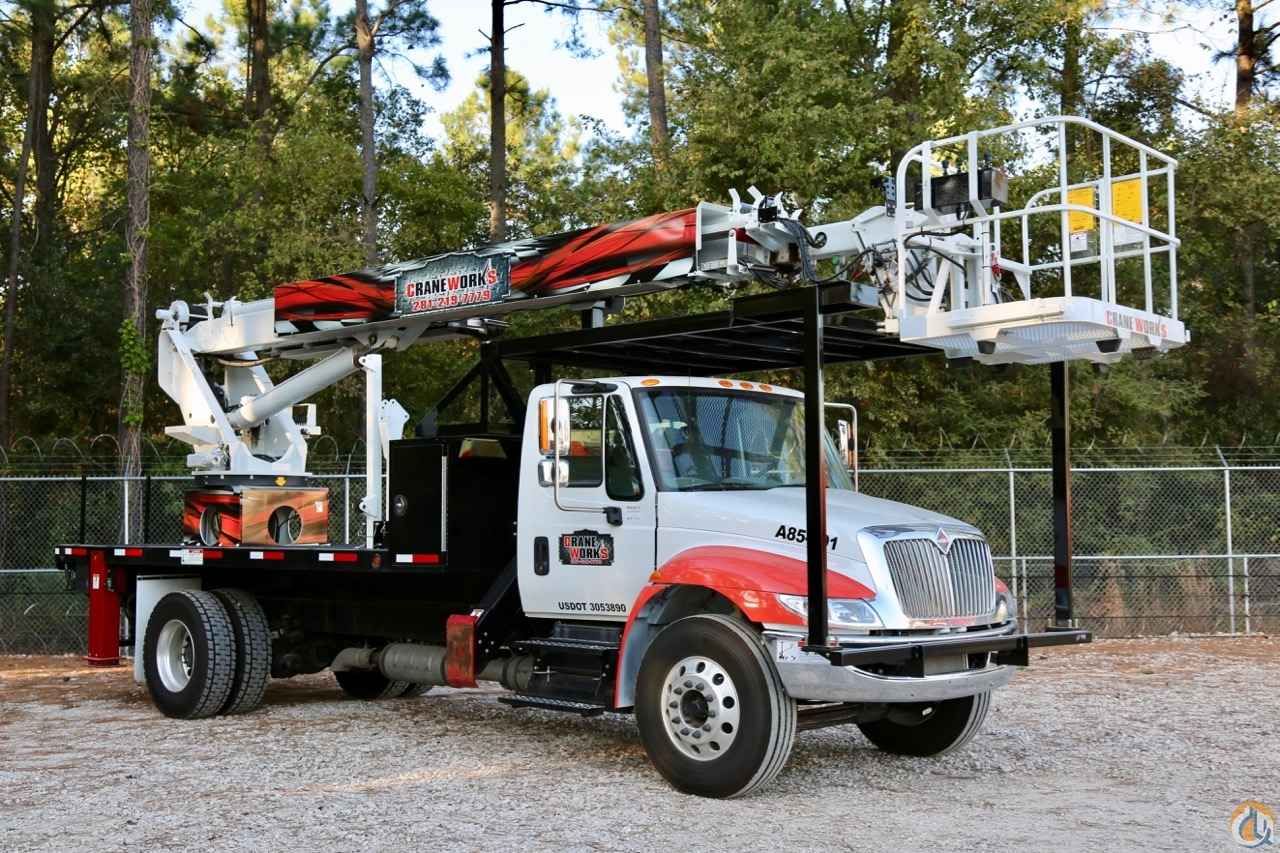

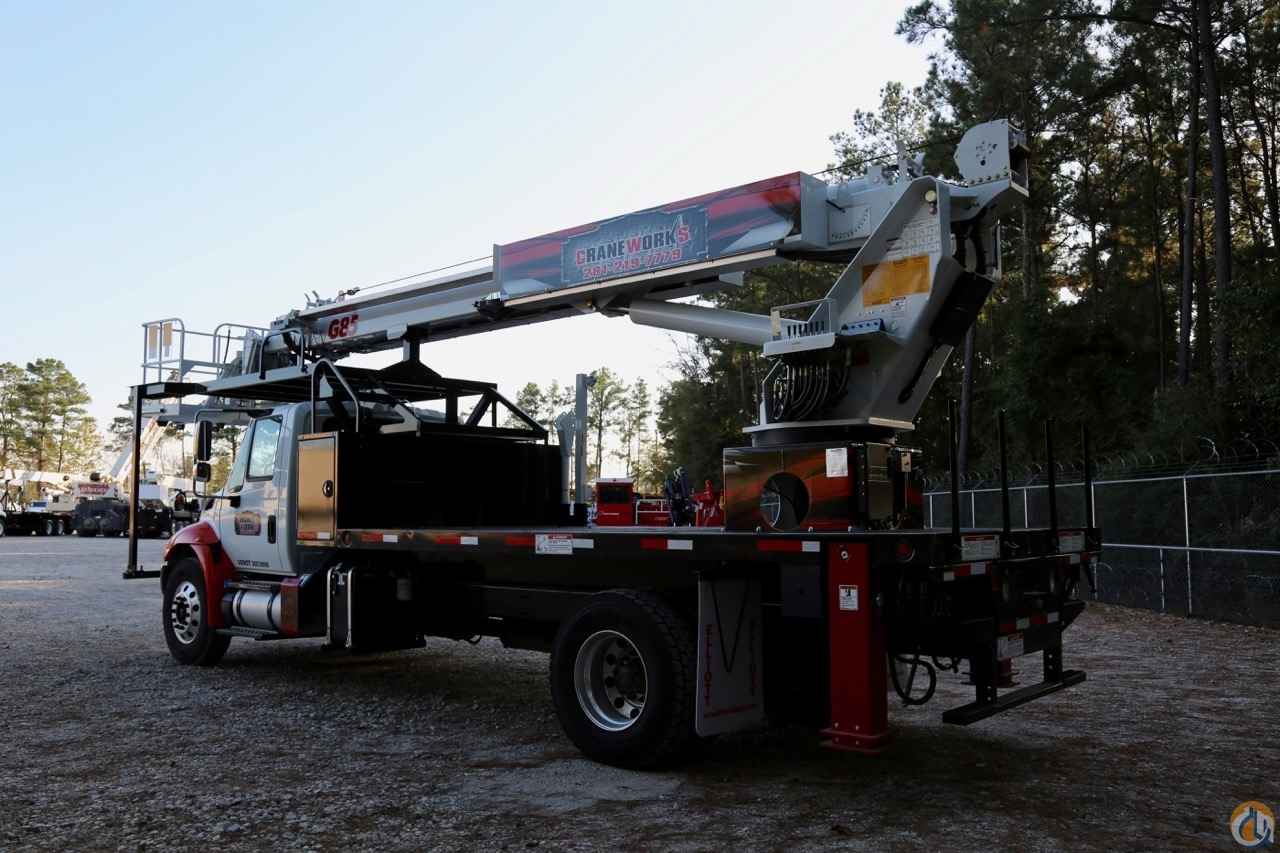

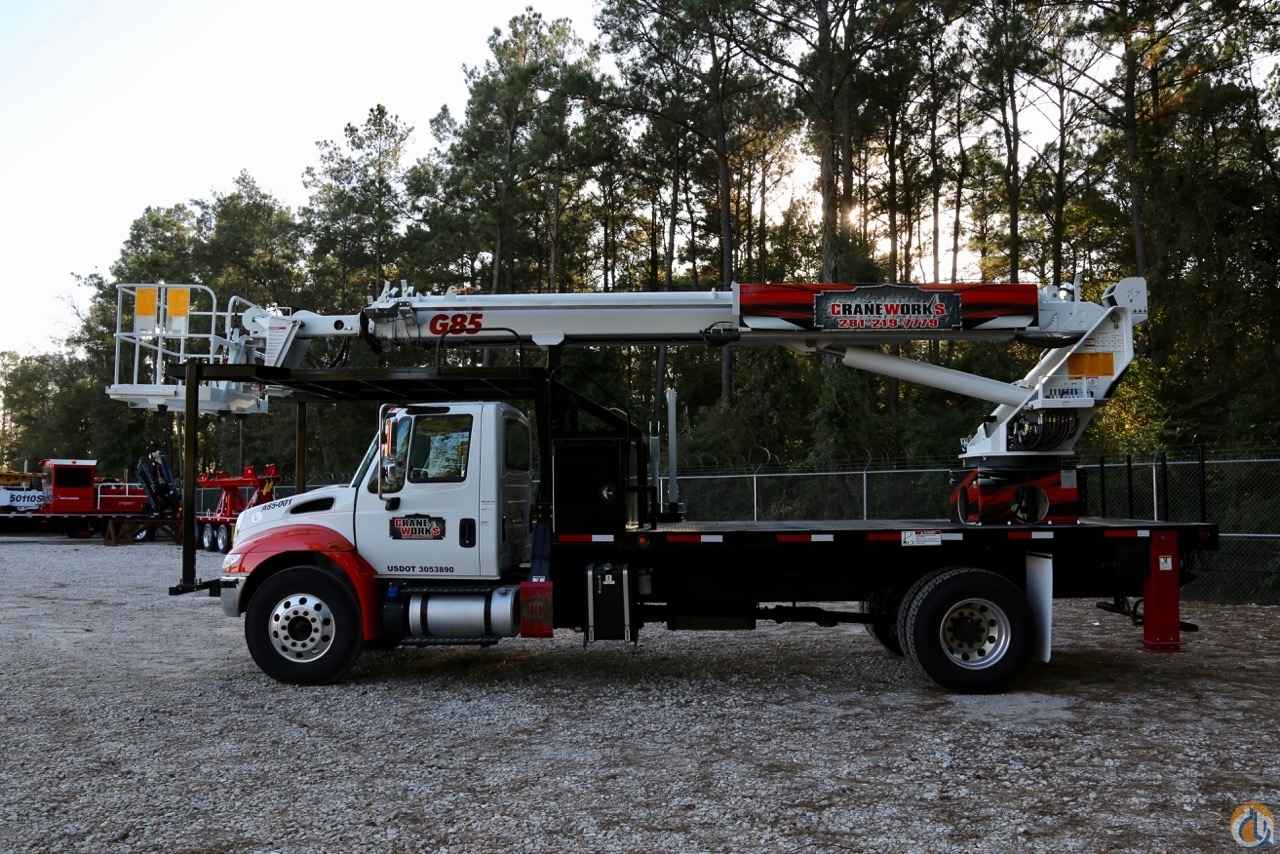

Elliott’s G85R HiReach features an 87′ working height and a 40″ x 60″ two-person work platform with a 500 lb capacity.

TECHNICAL SPECS

WORKING HEIGHT: 87' / 26,5 M

WORKING SIDE REACH: 61' / 18,6 M

BOOM SECTIONS: 4

PLATFORM TYPE: EZR REMOVABLE

PLATFORM CAPACITY: 500 LBS / 227 KG

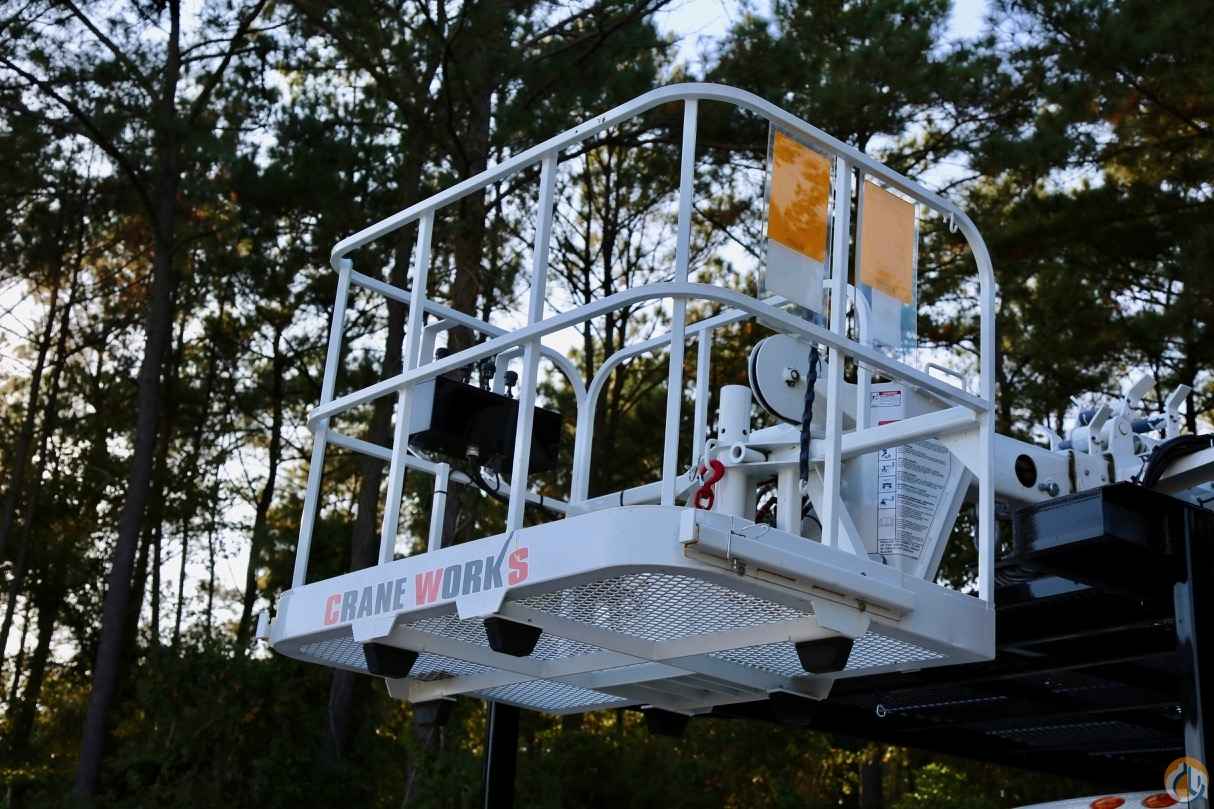

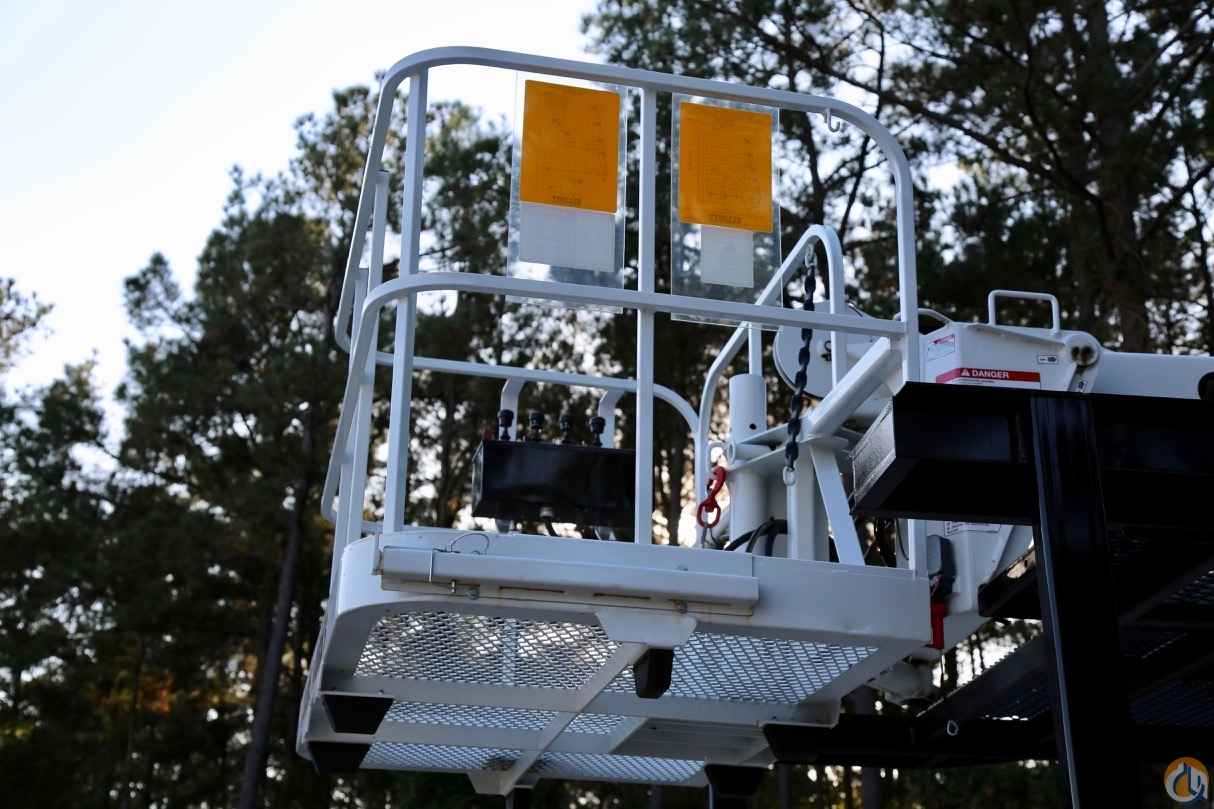

PLATFORM SIZE: 40" X 60" / 102 X 152 CM

JIB WINCH CAPACITY: 500 LBS / 227 KG

MAIN WINCH CAPACITY: 5,900 LBS / 2676 KG

OUTRIGGER TYPE FRONT: A-TYPE

OUTRIGGER SPREAD FRONT: 12'6 / 3,8 M

OUTRIGGER TYPE REAR: OUT-DOWN

OUTRIGGER SPREAD: REAR 18' / 5,5 M

OVERALL HEIGHT: 12’2” / 3,7 M

STANDARD FEATURES

Multi-Functional Capabilities Out of the Box

HiReach multi-functionality lets you do more with a single piece of equipment

Fully Hydraulic Boom Extension System

Cable and chain free boom provides a smoother and more reliable ride as well as reduced maintenance.

Full Length Heavy-Duty Subframe

Disperses stress loads, maximizing chassis life

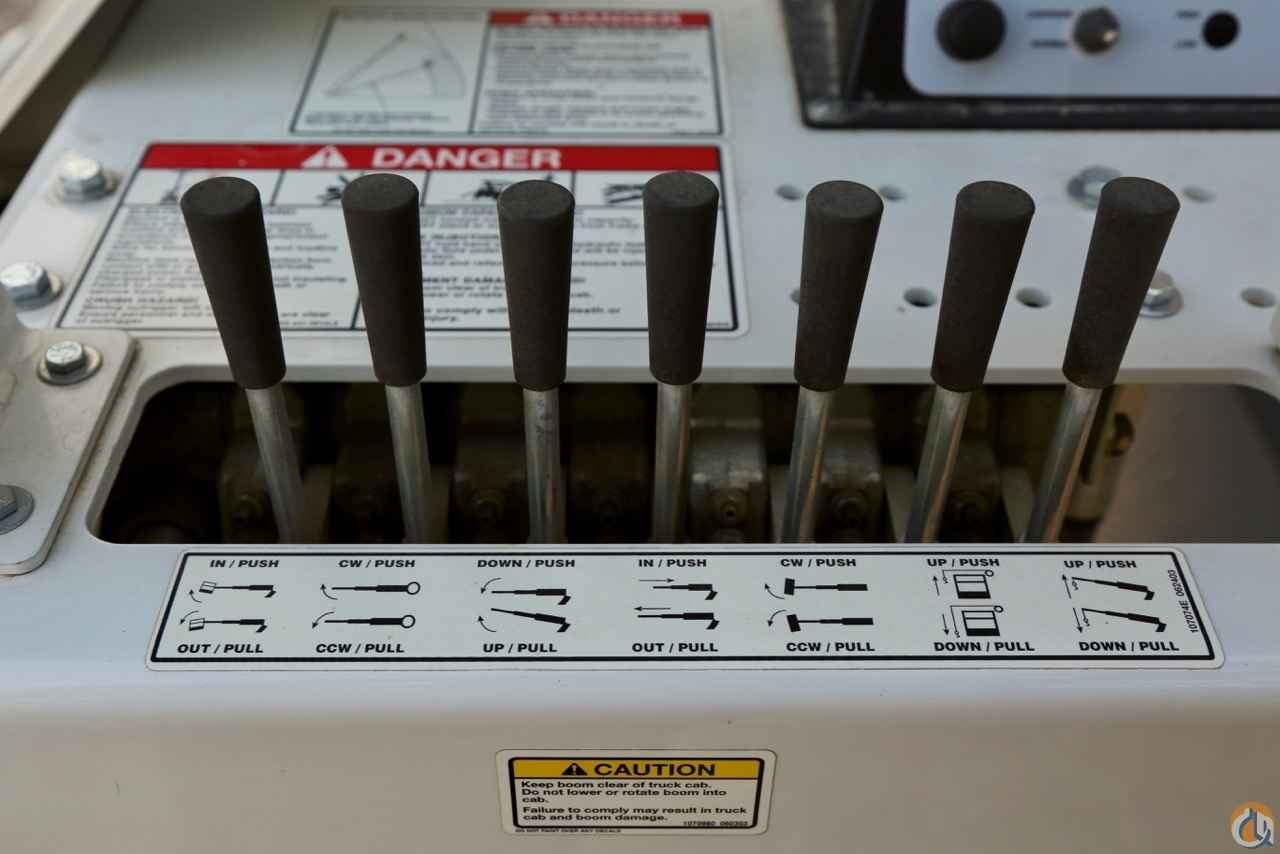

DynaSmooth Upper Controls

Sensitive proportional controls provide very precise and smooth functionality

360 Degree Continuous Rotation

Continuous swivel system prevents hoses from breaking and allows work in any postion front, back or side of truck

Oversized Rotation Bearing and Gearbox

Improves stability, smoothness of operation and increases life of the machine

Rugged Boom Design

Stands up to the most rigorous applications, ensuring a long life

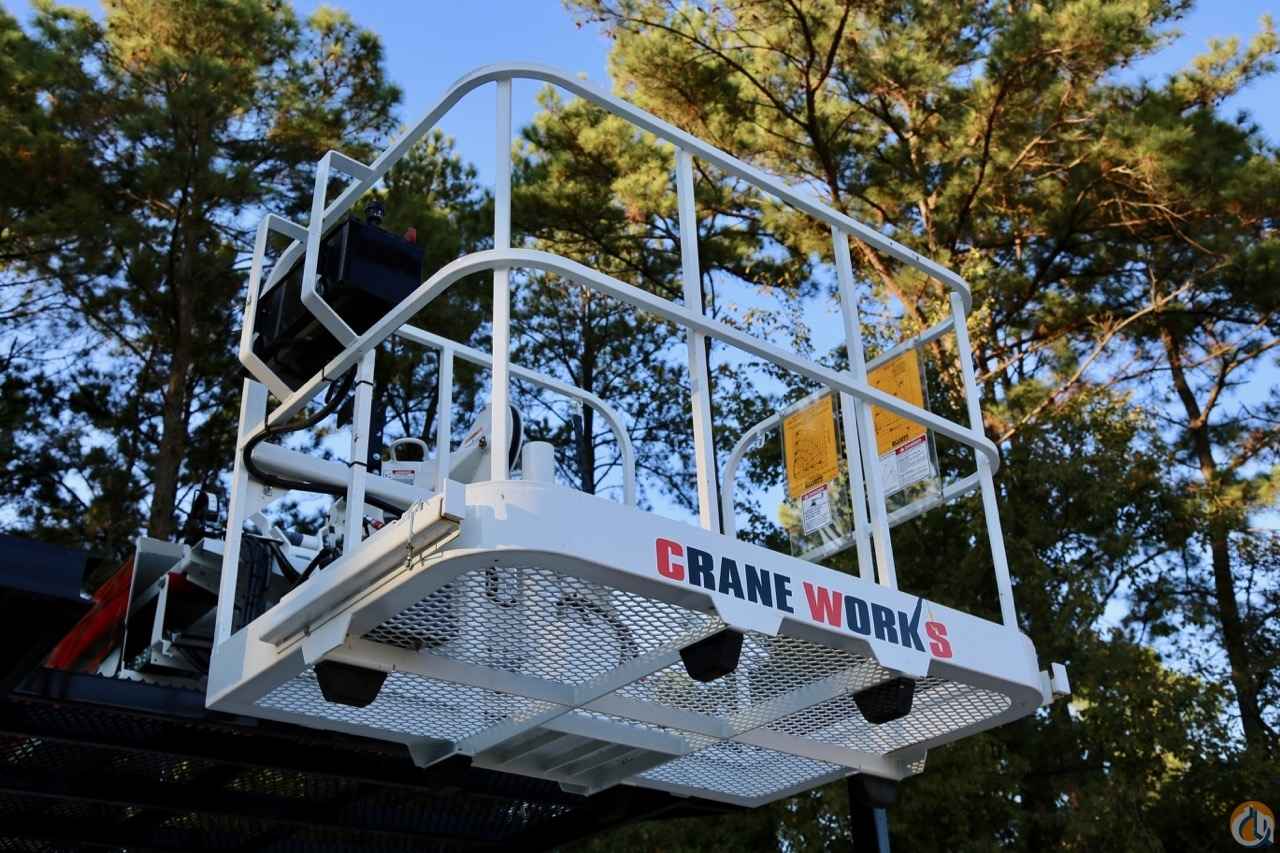

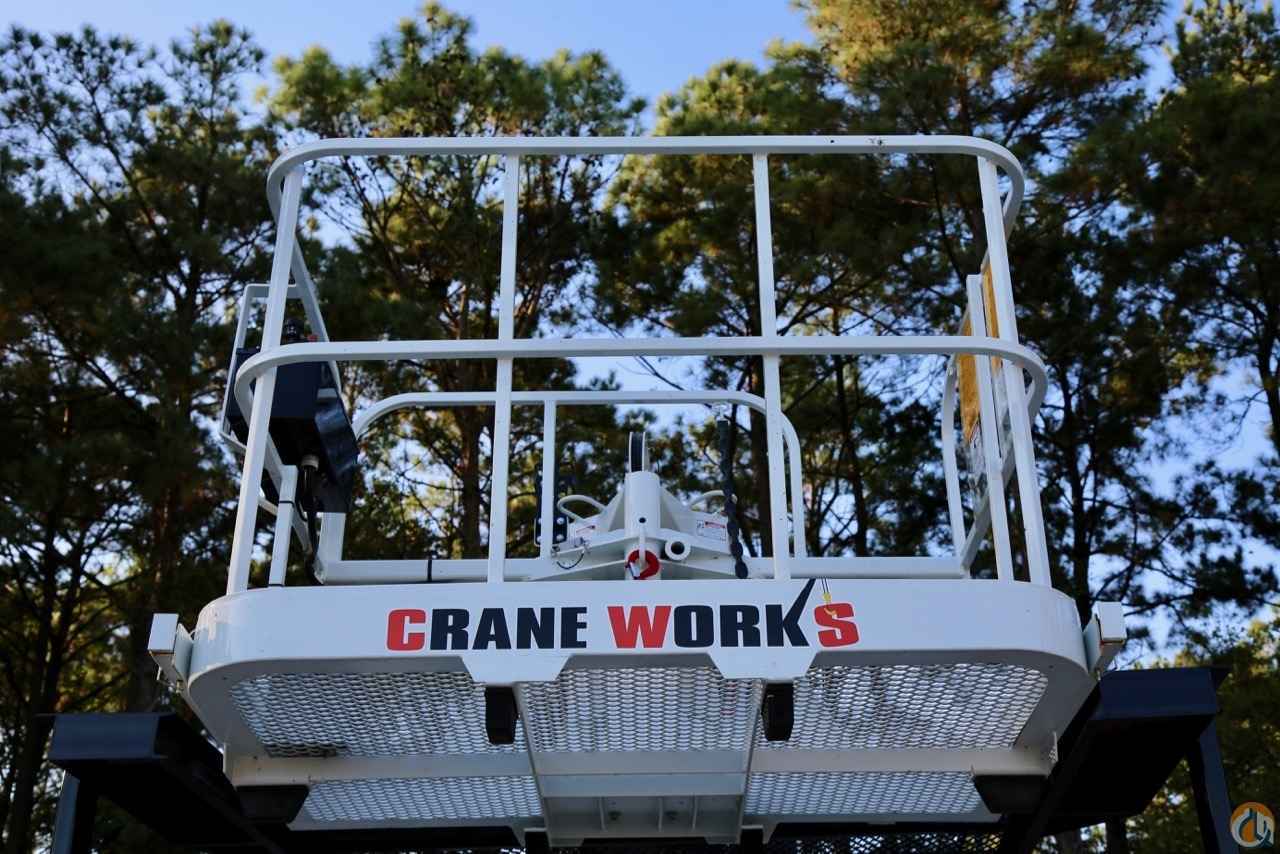

Oversized Work Platforms

With platforms up to 16 feet long, you can be sure you have the room you need to do your work

Heavy Duty Cable Carrier

Available space lets you load up the work platform with a wide range of tool accessories including welding leads, air hoses, washer lines and more.

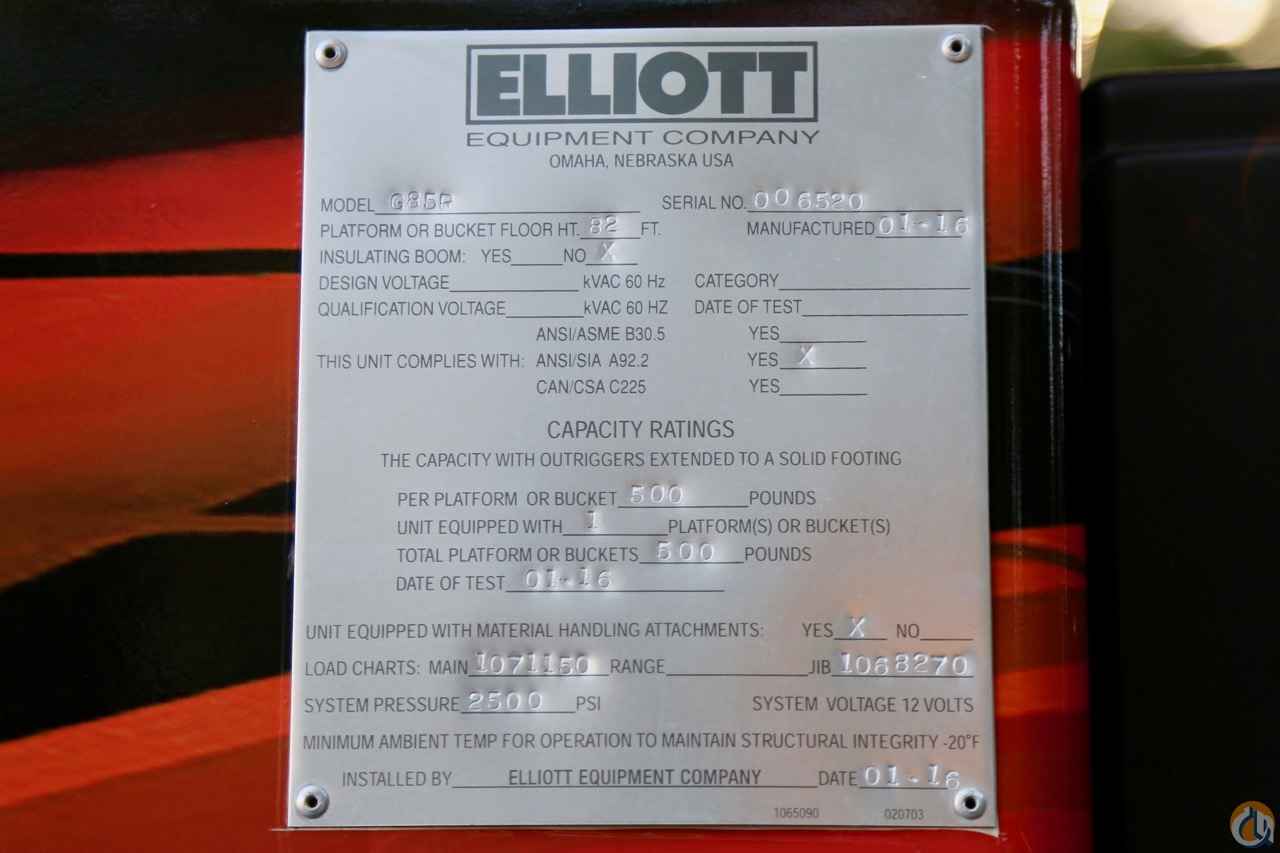

ANSI A92.2 Compliance

Every HiReach complies fully with all ANSI A92.2 design and manufacturing guidelines

Designed to Handle Multi-Functional Accessories

Choose from a wide variety of available options to maximize productivity

Superior Side Reach Capabilities

Elliott's unique product design lets you reach more places from a single set up, or postion truck further from the work area to avoid obstacles

Point and Shoot Telescopic Boom Design

Eliminates tailswing and makes operating the machine easier
