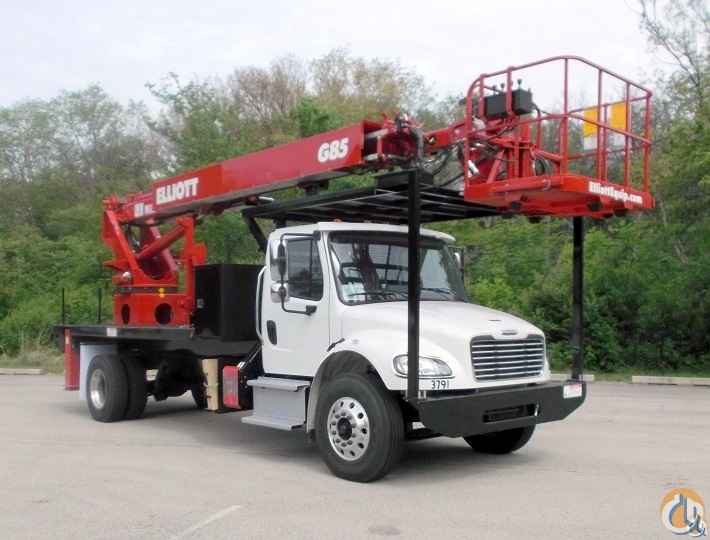

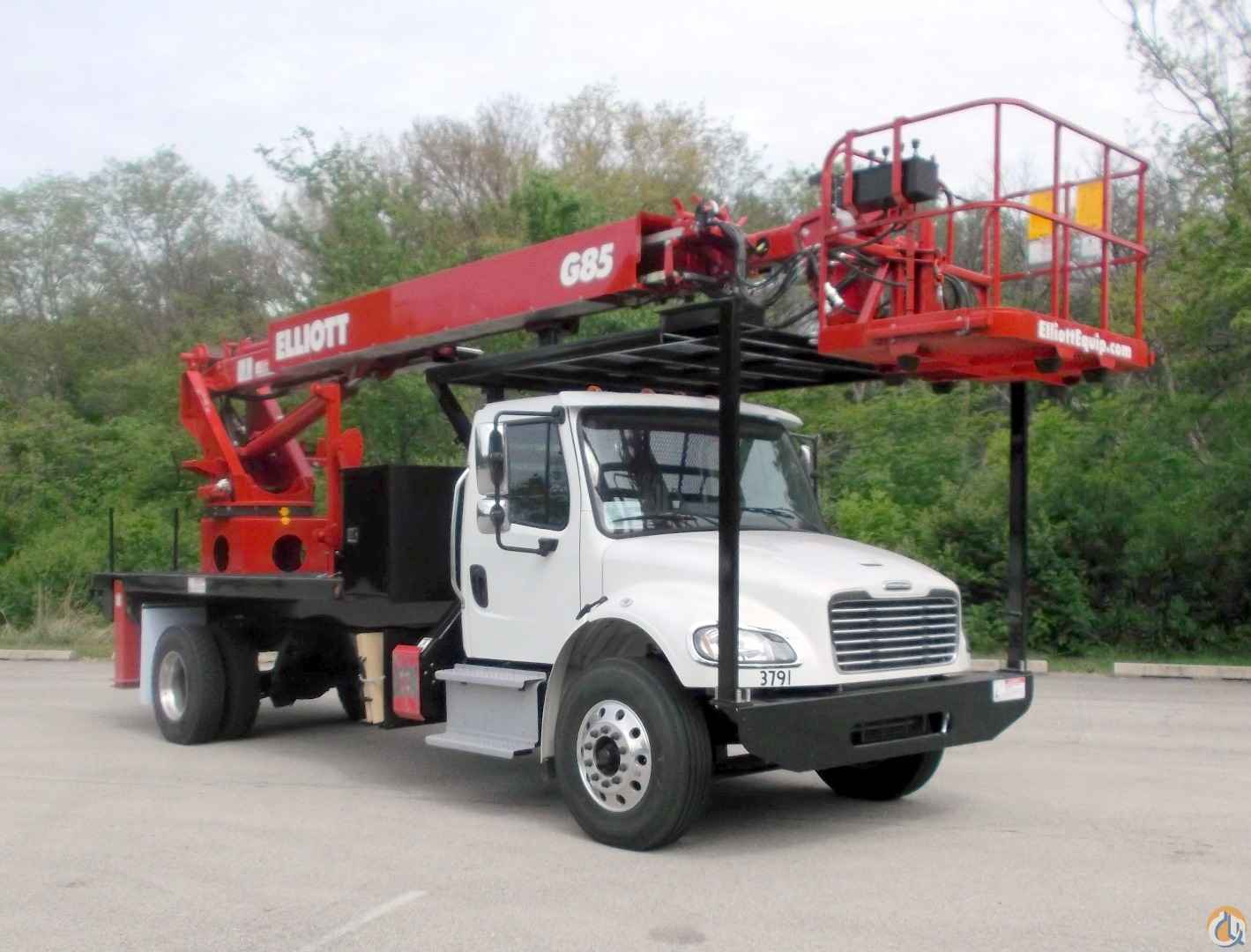

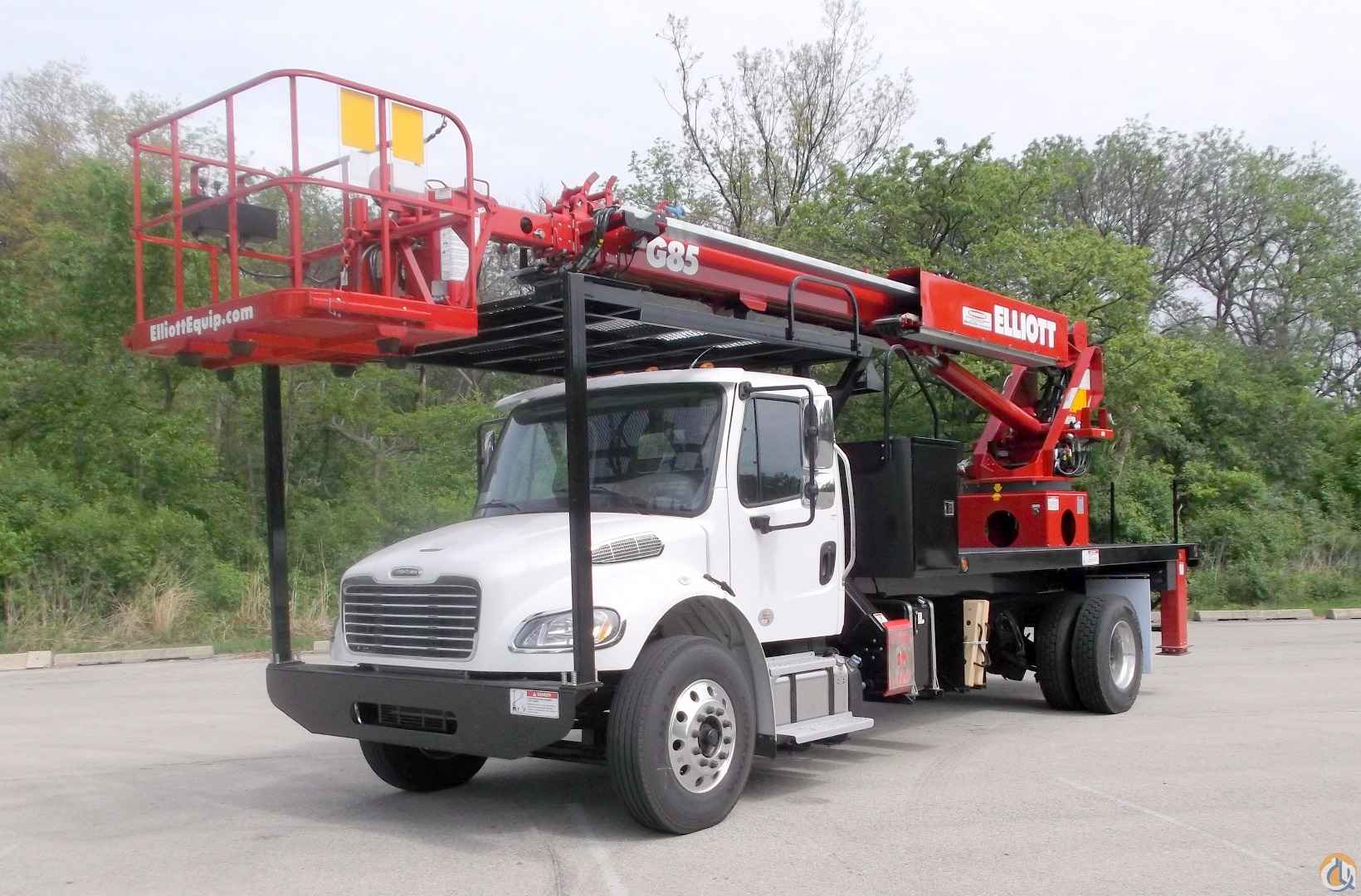

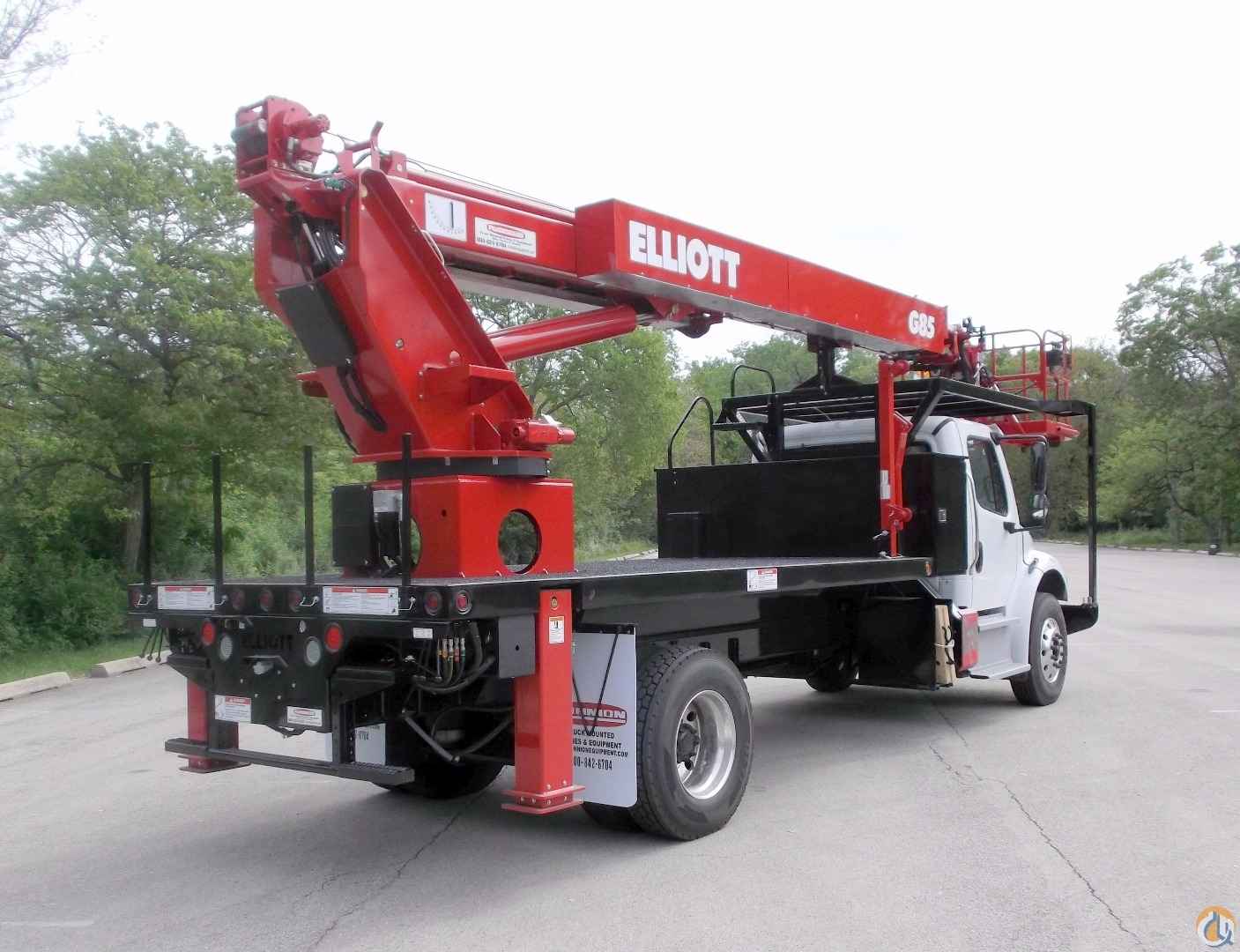

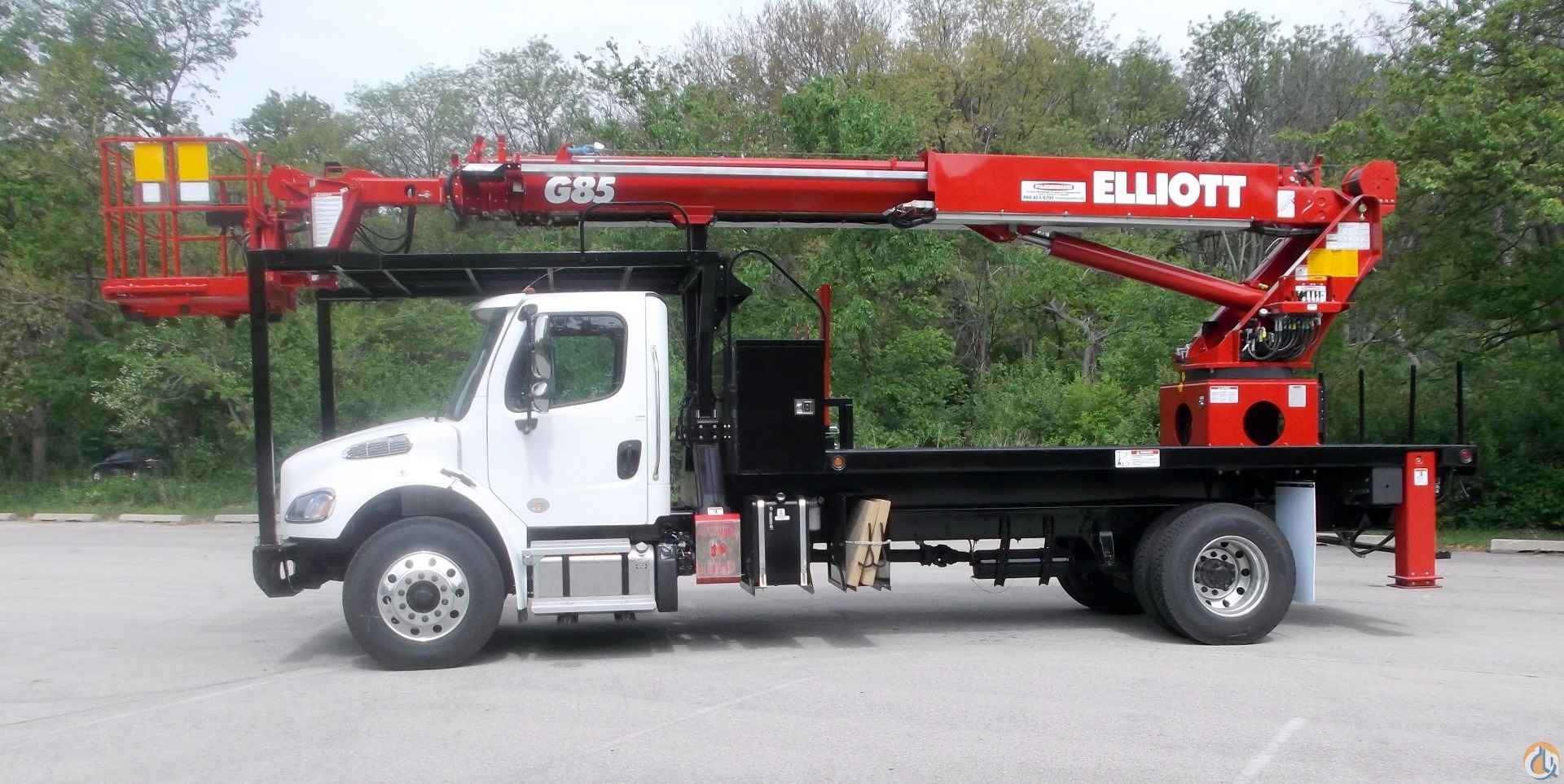

ELLIOTT G85R

• 85’ working height
• Unit includes base assembly supporting rear mounted rotating turret
• Continuous rotation

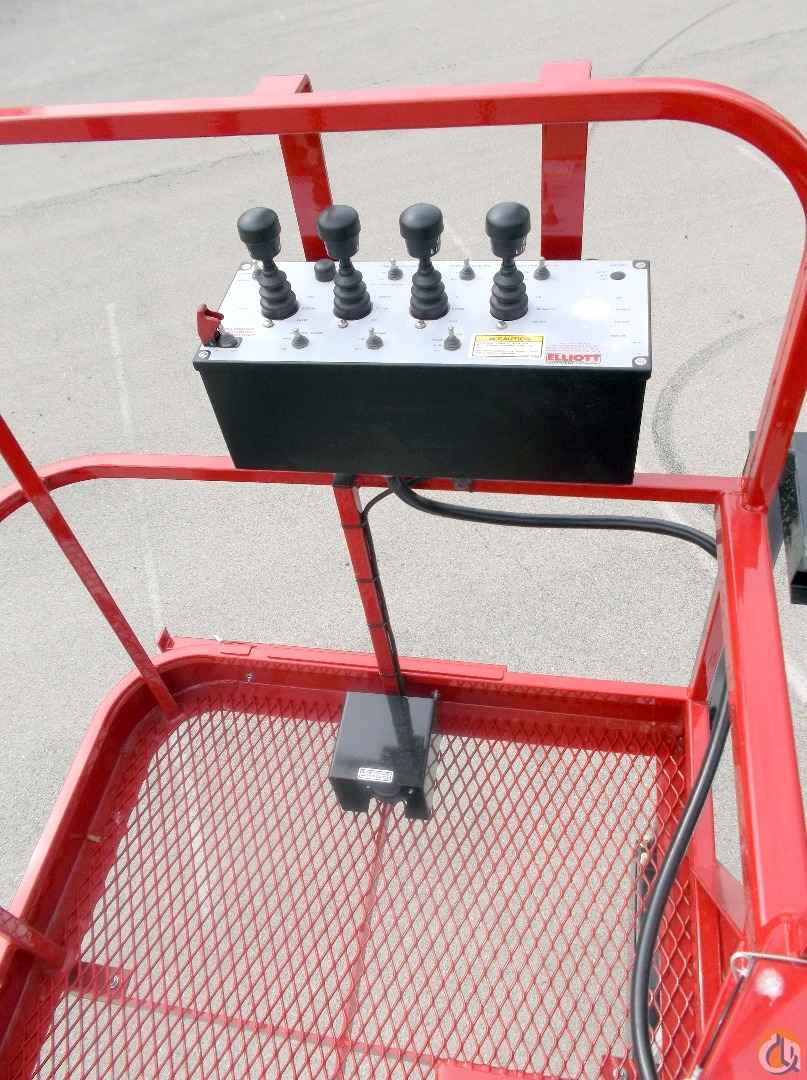

• 40" x 60" platform with a capacity of 500 lbs.
• Platform mounted jib with hydraulic winch drum in floor with 500 lb. capacity and stowage bracket on bed when not in use
• 16’ wood floor
• ICC rear bumper w/steps and grab handles
• 5,900 lbs. planetary winch w/ anti-two block switch, horn, two-part hook & 3/8” cable & retainer lug

2016 Freightliner M2 106 equipped as follows:

• Cummins ISB 6.7-300, 300 hp @ 2600 RPM, 2600 GOV,660 ft/lb @ 1600 RPM
• Allison 2500 RDS automatic transmission
• Cummins exhaust brake
• 750 watt, 115 volt block heater
• 13,000# drop single front axle
• 13,300# taperleaf front suspension
• 21,000# rear axle
• 23,000# air ride rear suspension
• Aluminum wheels
• AM/FM/WB radio with Bluetooth and microphone, front USB port
• Call 800-824-6704 for more info!
