NEW ELLIOTT 1870F ON NEW 2020 FREIGHTLINER 108SD & 20’ DECK – 380 HP – ALLISON AUTO Crane for Sale in Milford Massachusetts | Crane Network

NEW ELLIOTT 1870F ON NEW 2020 FREIGHTLINER 108SD & 20’ DECK – 380 HP – ALLISON AUTO Bucket/Service Truck Crane for Sale

Type: Bucket/Service Truck Crane

Make: Elliott

Model: 1870F

Condition: New

Location: Milford, Massachusetts

Notes

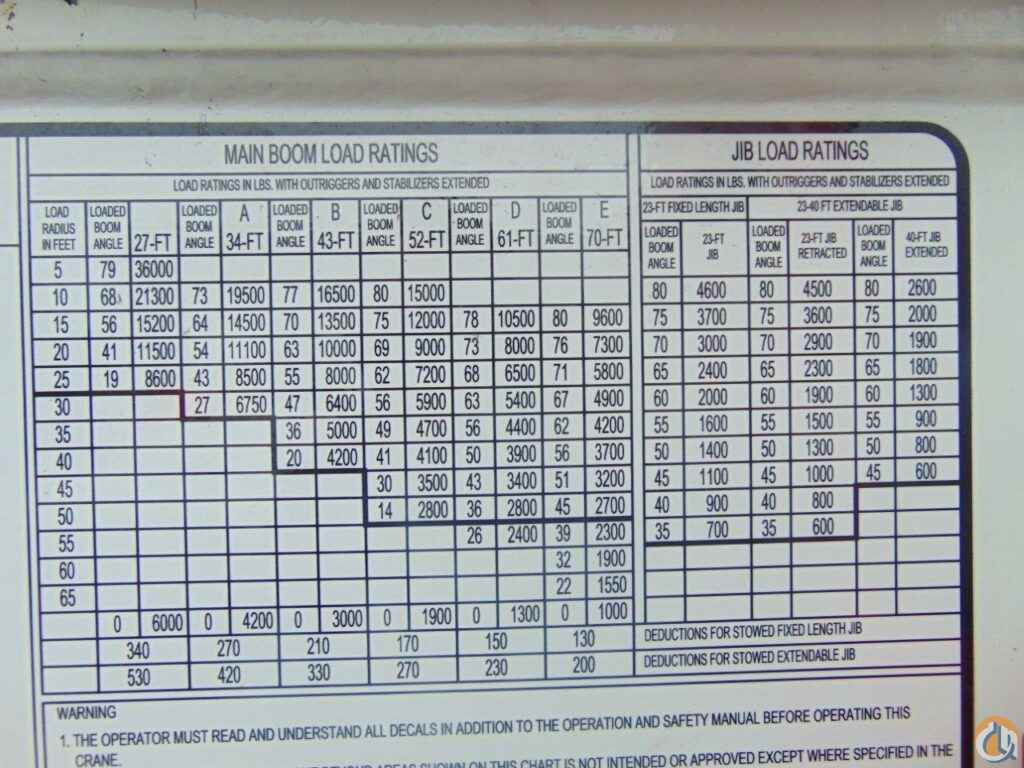

BOOM DETAILS

NEW – ELLIOTT MODEL 1870F: 18-Ton Front Mount Crane

27 – 70 Ft. 3-Section High Strength Proportional Boom
PTO, Electronic Throttle Interface, 3-Section Gear Pump, 70-Gallon Hydraulic Fluid Reservoir
20’ 10” A-Frame Main Outriggers – 10’ 4” A-Frame Auxiliary Stabilizers
Dual Operator Console Stations: w/ Engine Start/Stop, Load, Range, Electronic Foot Throttle
12,700 lb Bare Drum Pull Winch w/ 275’ 9/16” 6 X 37 IWRC EIPS Wire Rope – 9,600 lb Allowable Line Pull Rated
2-Sheave Boom Head, Std. Swivel Hook & Downhaul Ball
Anti-Two Block, Load Moment Limiter w/Display and Hydraulic Function Lockout for Main Boom & Jib – Hard-Wired Internally
372 Degree Non-Continuous Rotation with Safety Stops, 180 Degree Area of Operation, Bubble Level Indicators, Boom Length and Angle Indicators
2-Speed Hoist, Outrigger and Stabilizer Audio Motion Alarm, Flared Outrigger and Stabilizer Pads, Audible Awareness Warning Horn, Sight Level and Temperature Gauge, Single Gate Valves on Suction

DECK DETAILS

NEW – 20′ FLAT DECK

20′ in Deck Length
Hardwood Deck Surface
(6) – Sliding Tie-Down Winch Straps
Winch Bar & Holder
DOT Stickers
Side Reflector Lights Per CMVSS Standards
(1) – 36″ Aluminum Storage Box
Removable Front Headboard on Deck
Rub Rails on Side of Deck

TRUCK DETAILS

NEW – FREIGHTLINER 108SD T/A TRUCK

Cummins 380 HP Engine
Allison Automatic Transmission
20,000 lbs Front Axle
40,000 lbs Rear Axle
60,000 lbs GVWR
Steel White Rims (Front & Back)
Tuftrac Suspension
250″ WB
60″ Spread at Tandems
Included Truck Options:
Power Windows & Locks, AM/FM Stereo, Black Bumper, Black Front Grill, 2 Front Bumper Tow Hooks, Block Heater, Rear Differential Locks, Single 80-Gallon Fuel Tank
