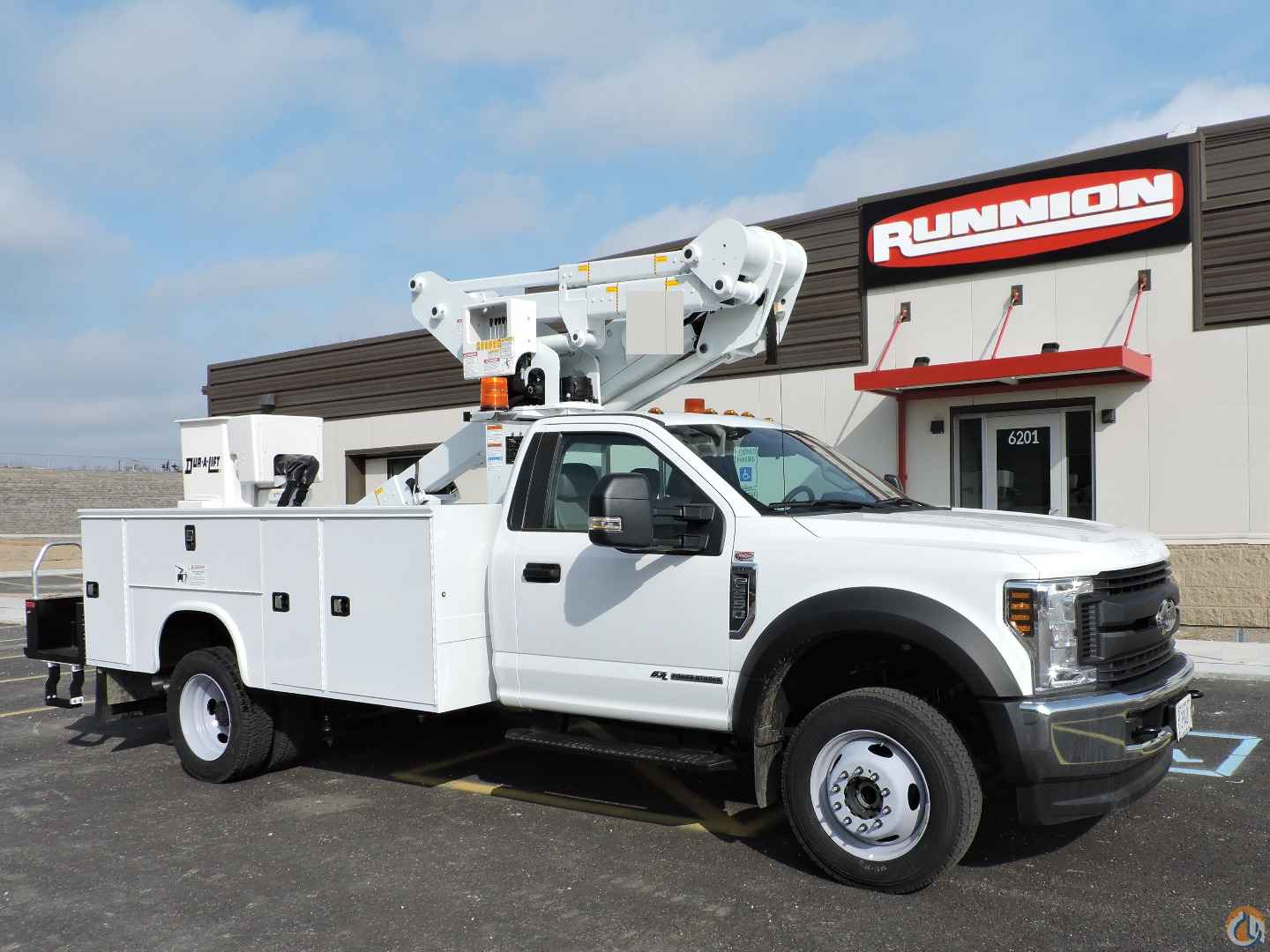

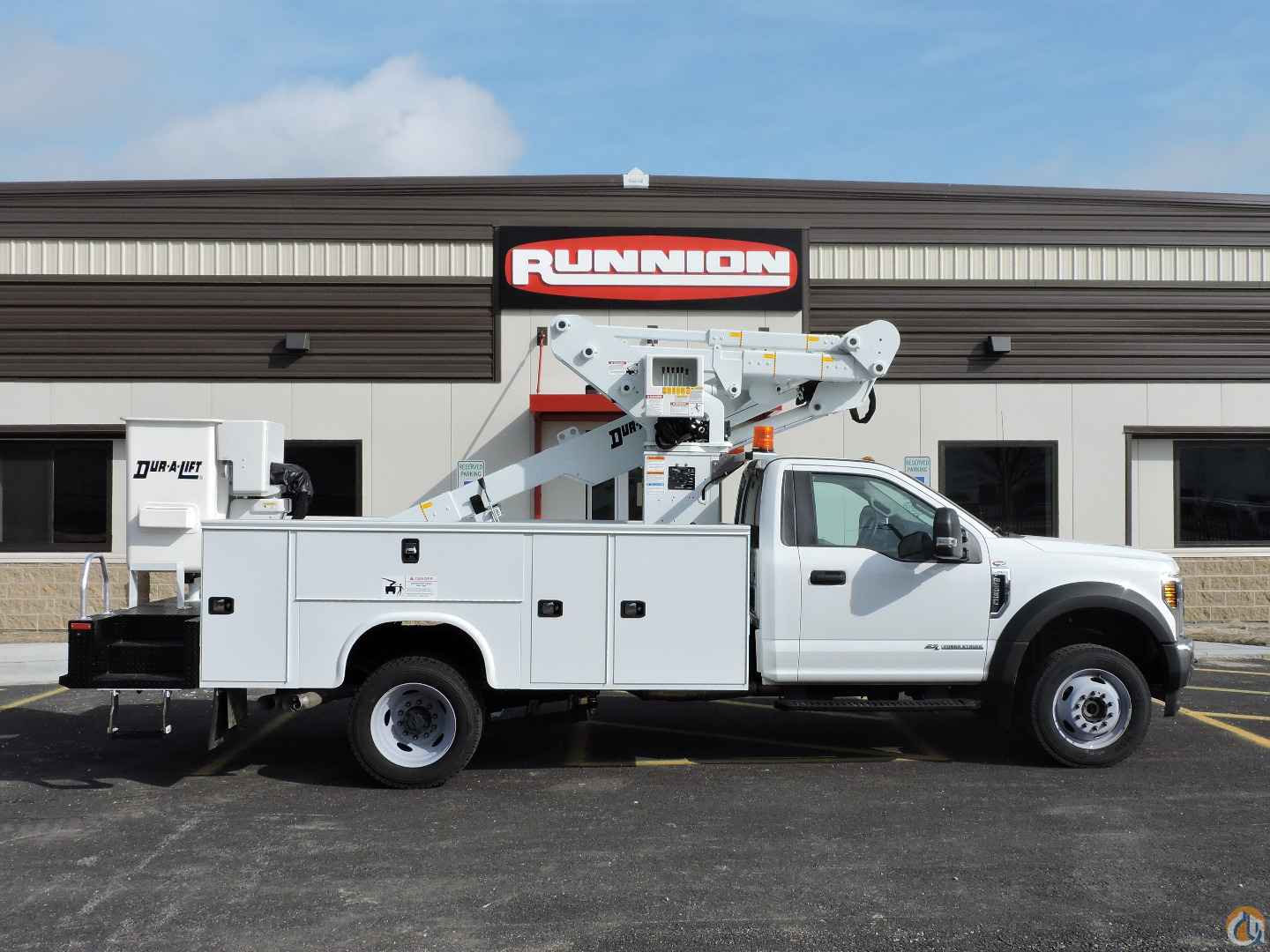

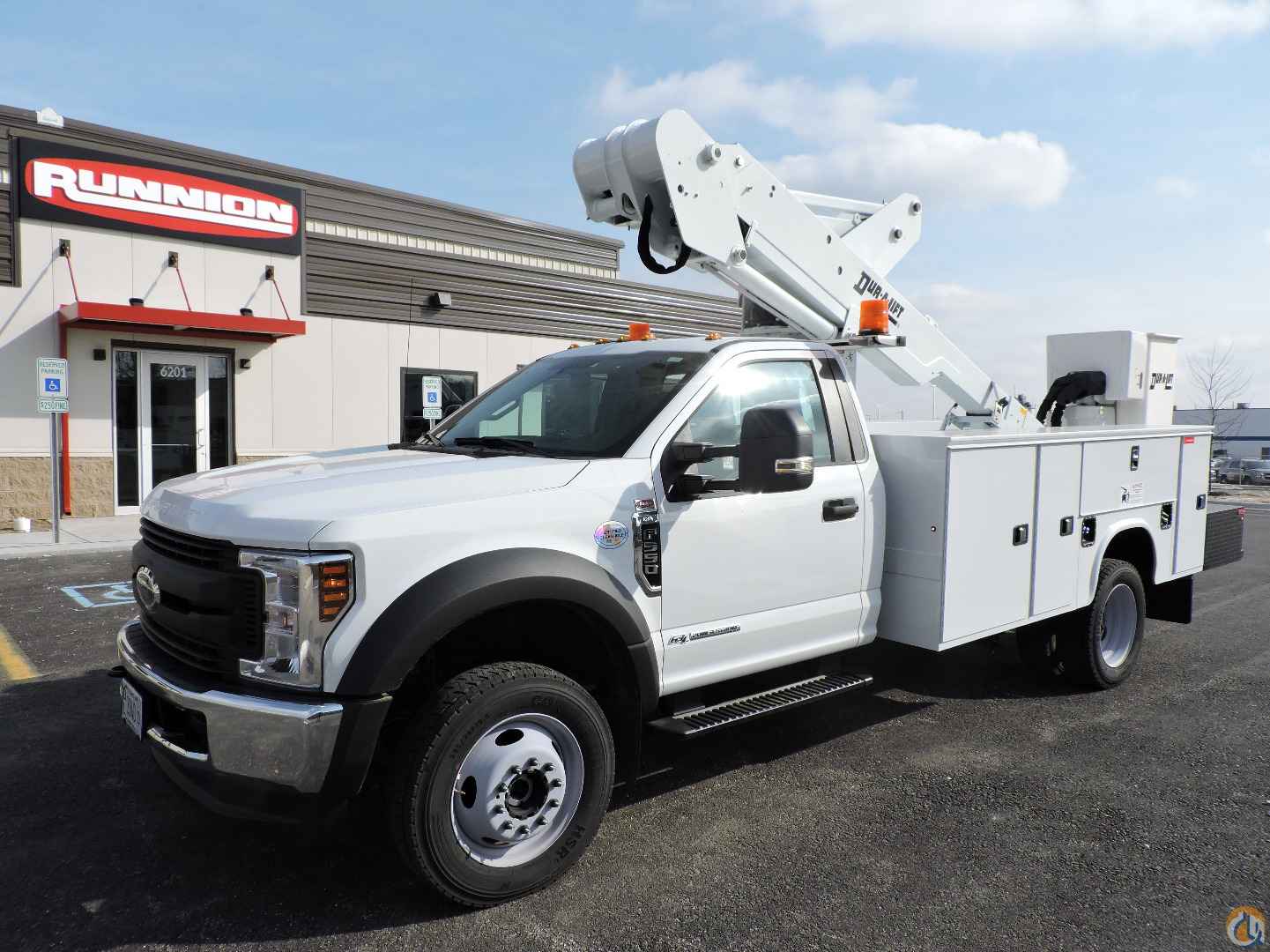

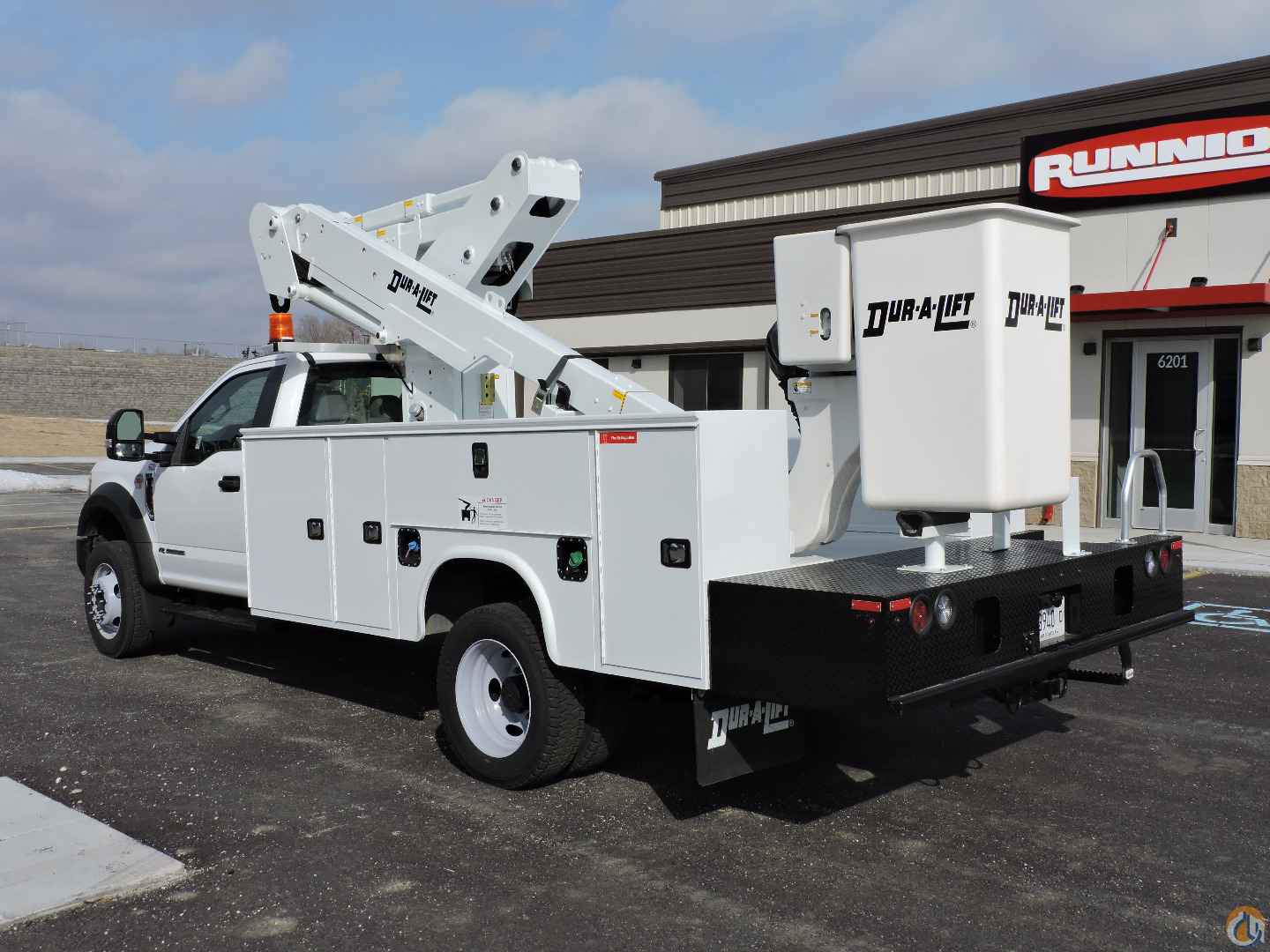

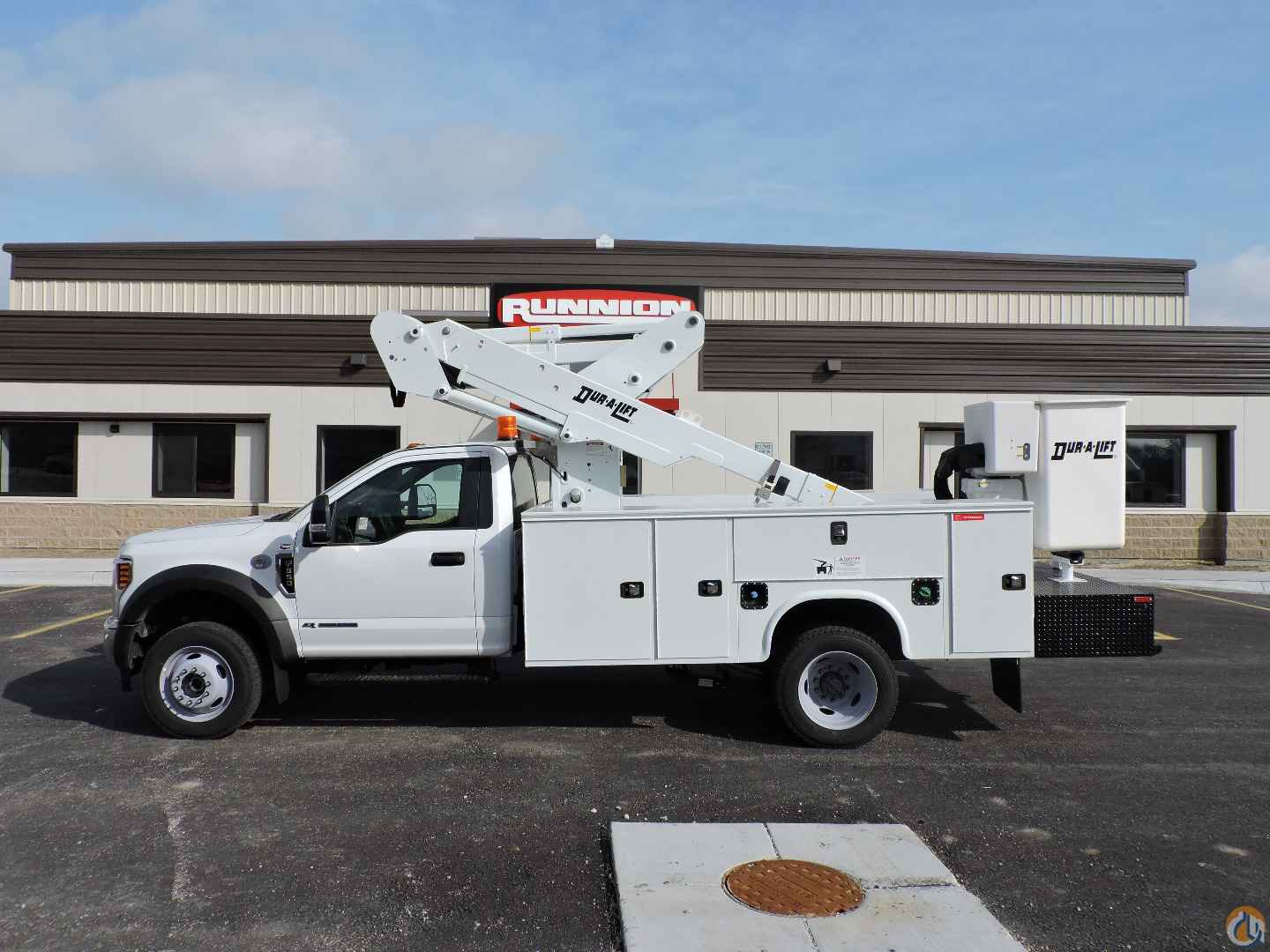

Dur-A-Lift DTAX-39

• Category C Insulated
• 44’ working height
• 28’ side reach

• Main boom fiberglass insert
• Chassis isolator insert

• Extension travel – 110”

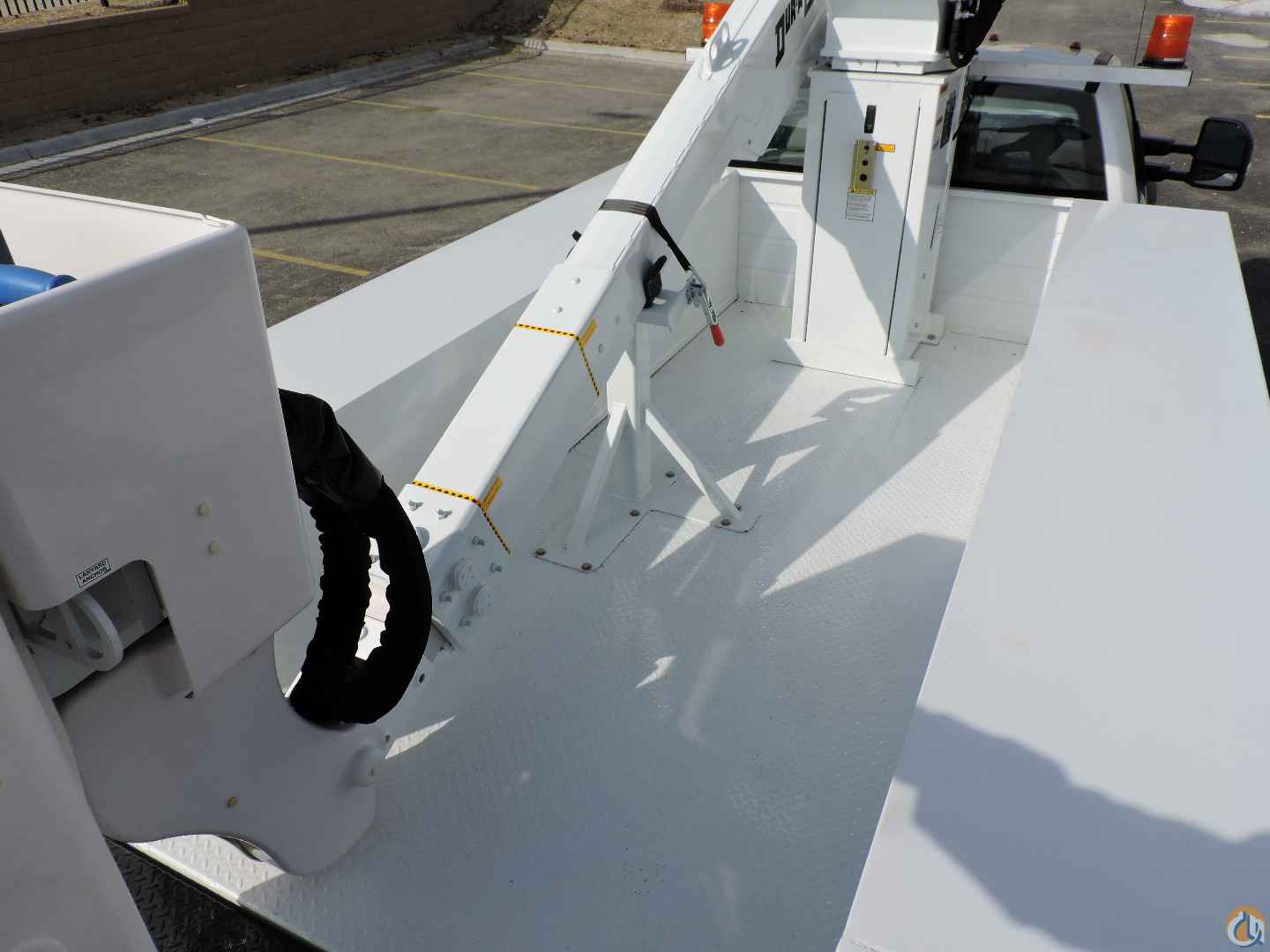

• 24” x 24” x 42” fiberglass basket with step, includes liner and cover
• 180° basket rotator
• 350# basket capacity

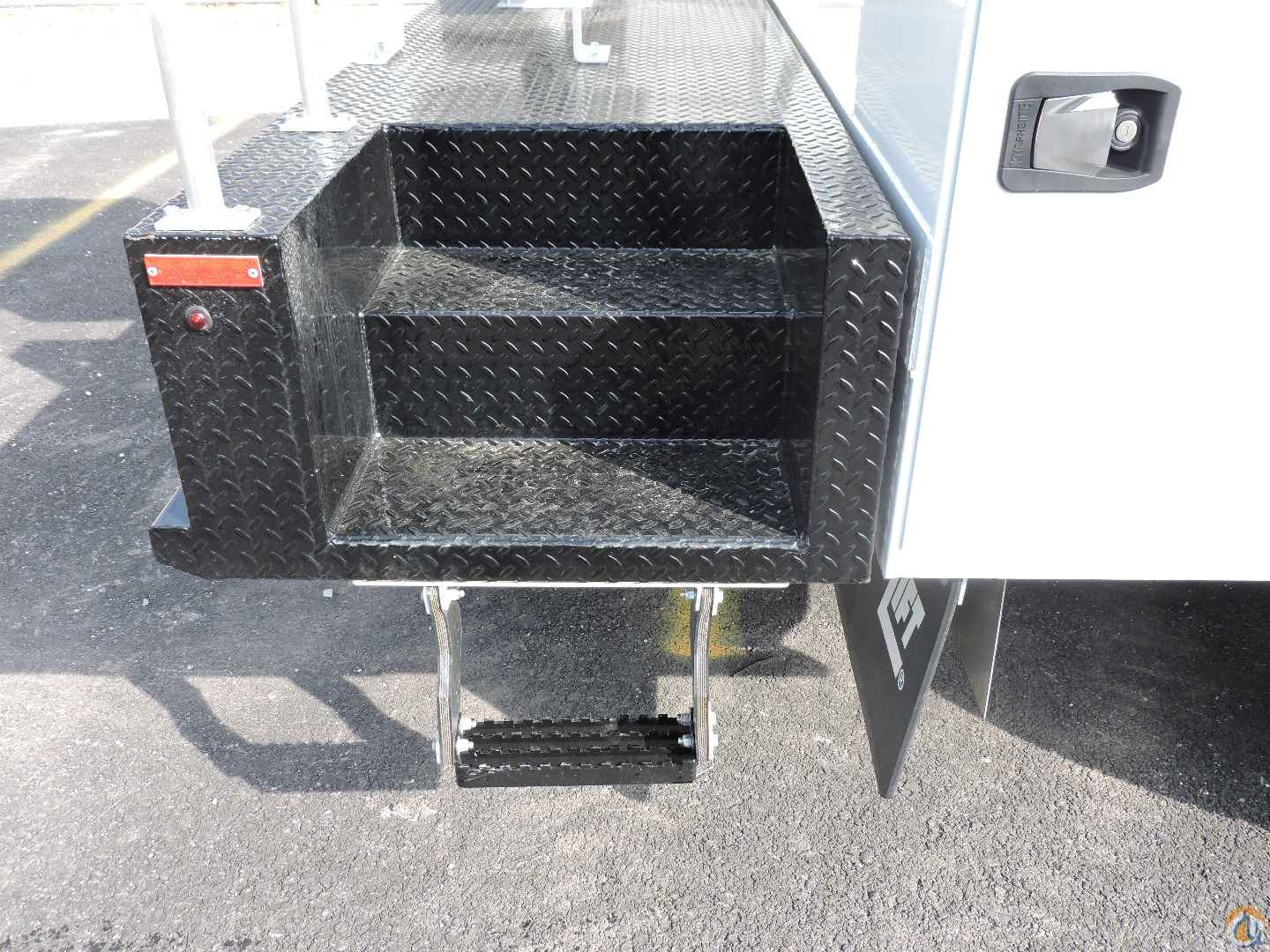

• Access step mounted on tail shelf for easy basket access
• Continuous rotation

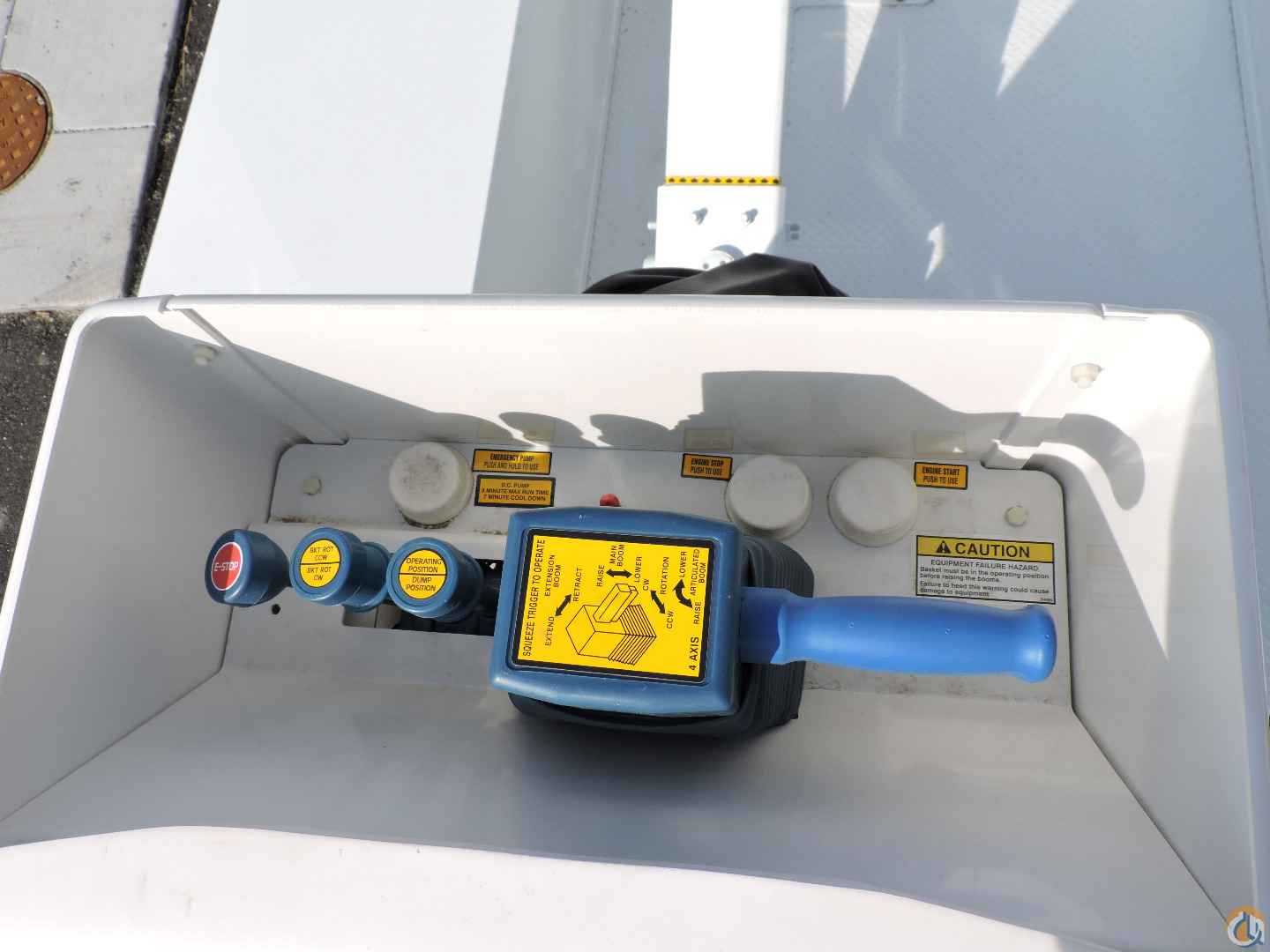

• Four-axis HERC single hand control
• Proportional controls
• Start/stop from the basket
• Lower controls with override located at the turntable
• 12V DC backup system
• Timbren load boosters on front and axles
• Inclinometer
• 5# fire extinguisher
• Triangle reflector kit

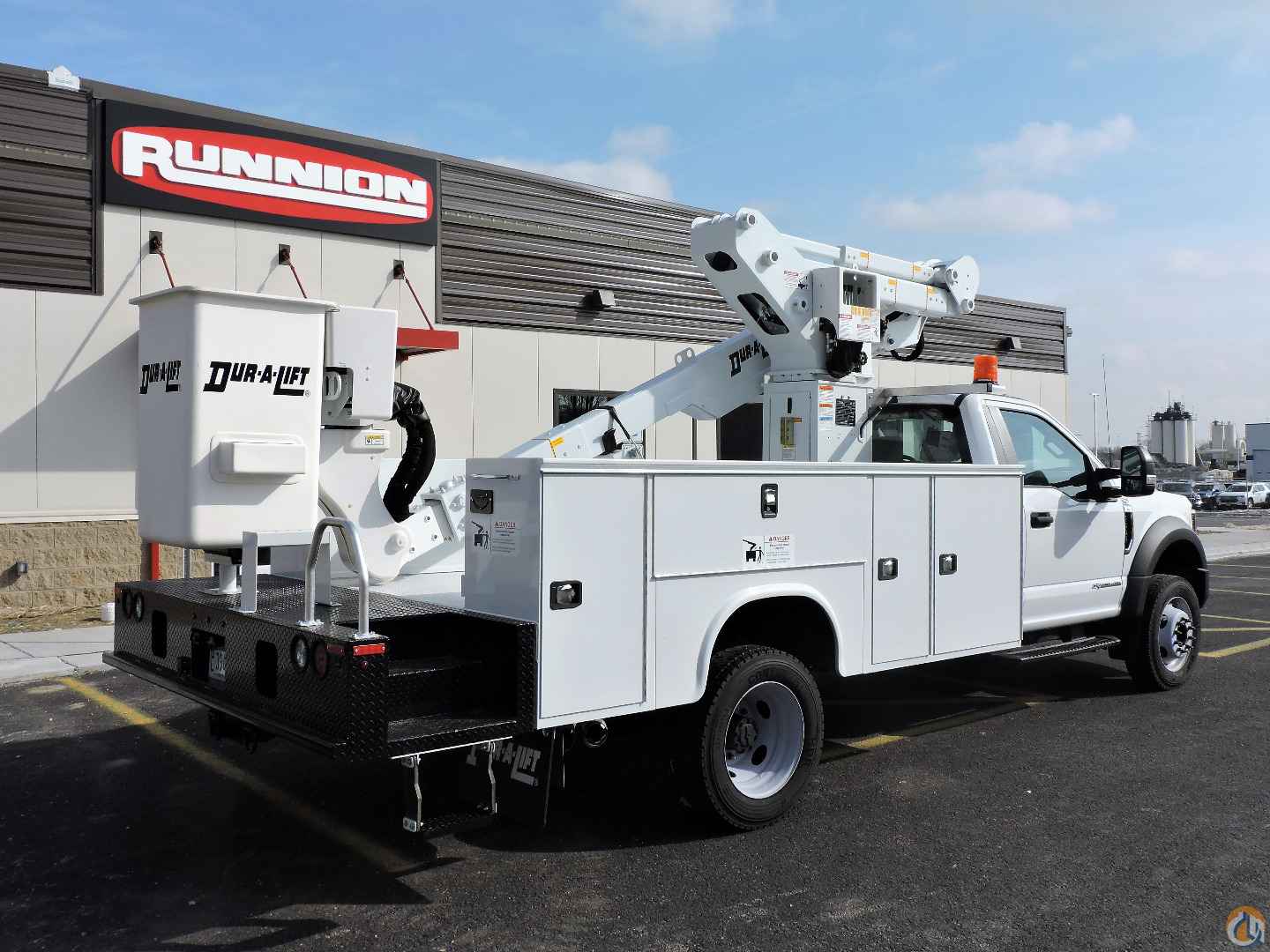

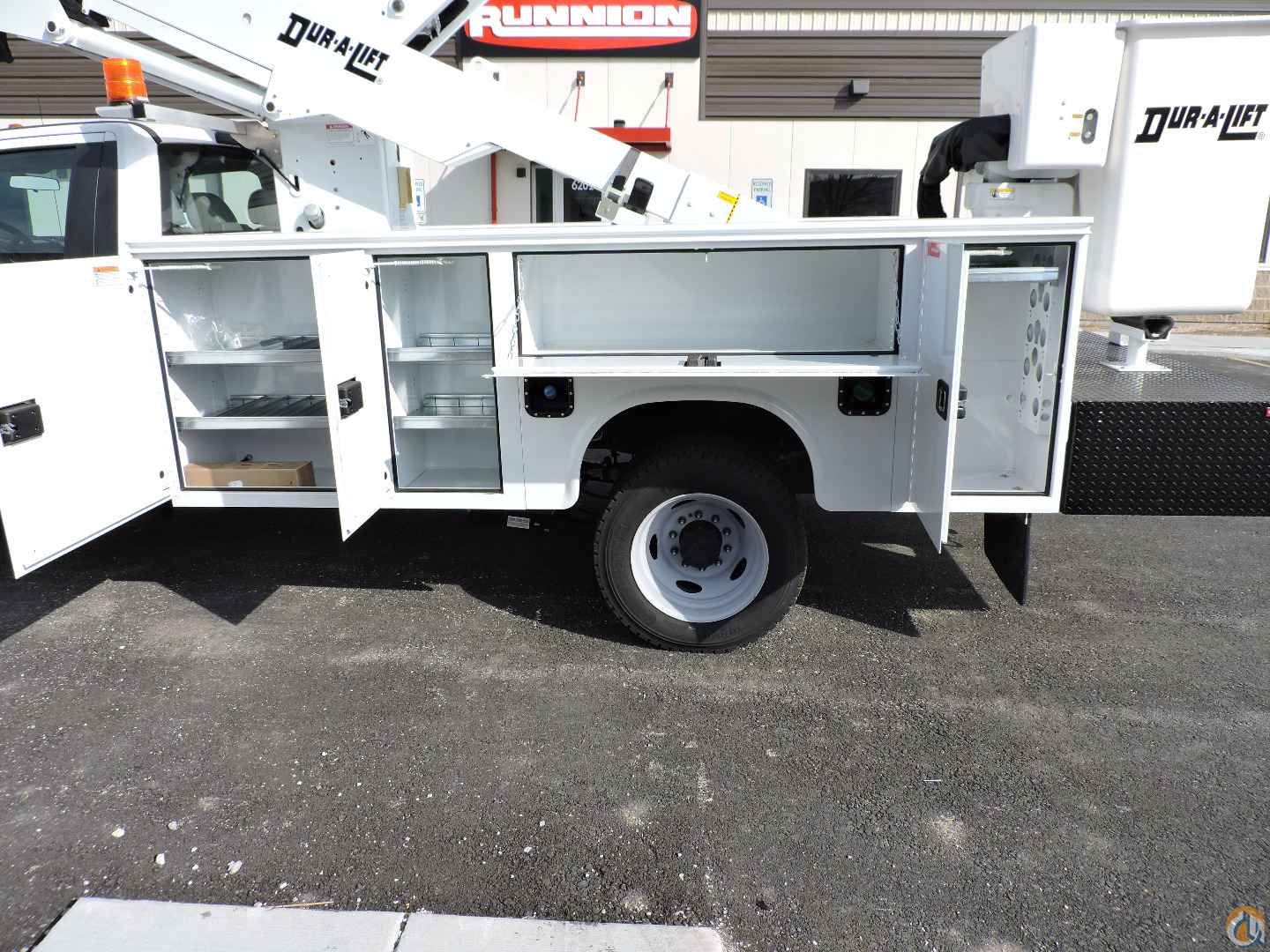

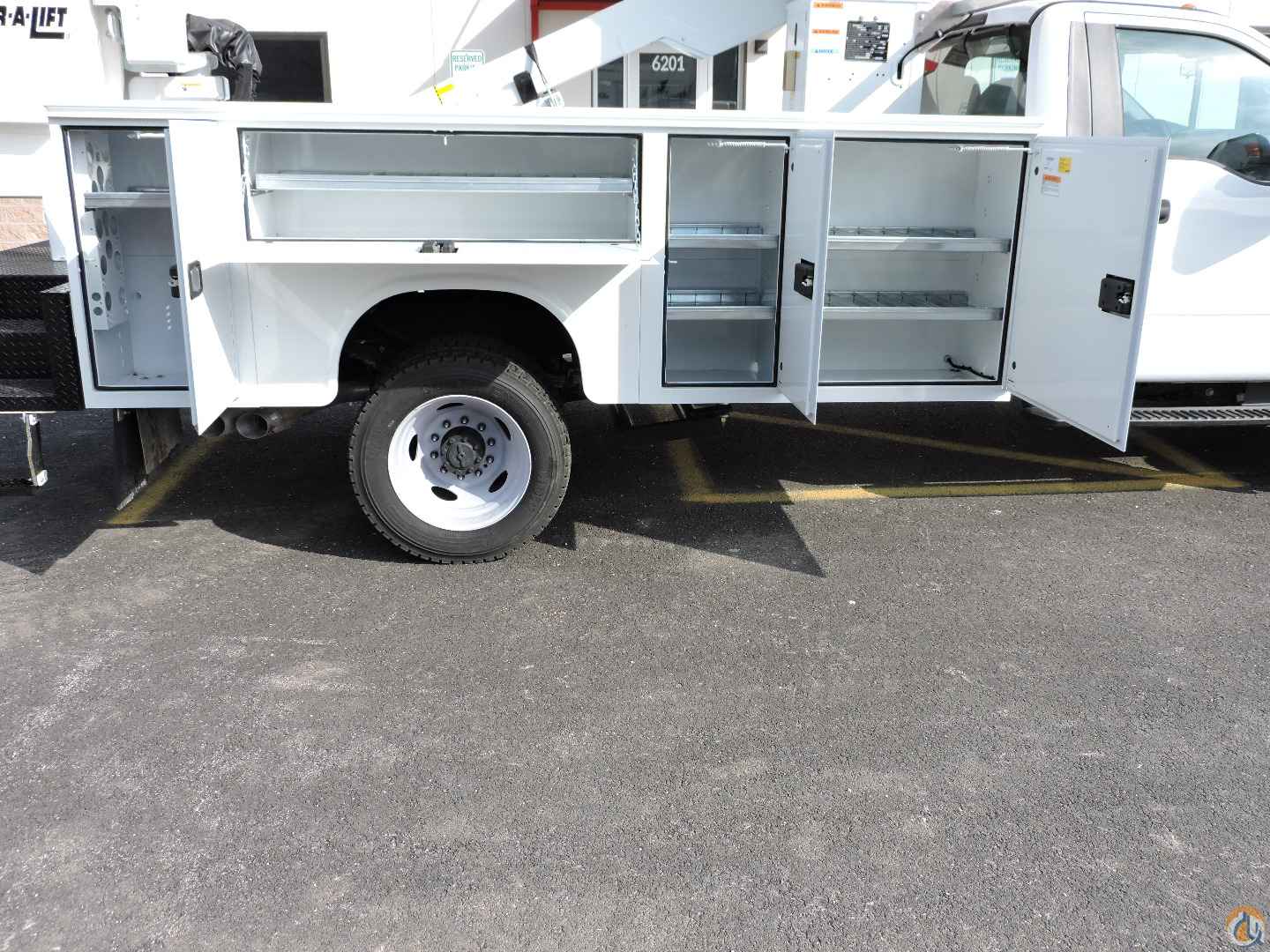

Knapheide service body

• Steel body painted white
• 94” overall width
• 132” overall length
• Street Side/Curb Side Compartments 1V = 34 ¼” W x 40”H –20” D
• Street Side/Curb Side Compartments 2V = 21” W x 40”H- 20” D
• Street Side/Curb Side Compartments H=52 ¾” L X 18 ½” H- 20” D
• Street Side/Curb Side Compartments 3V=23 ¼” L x40” H- 20” D

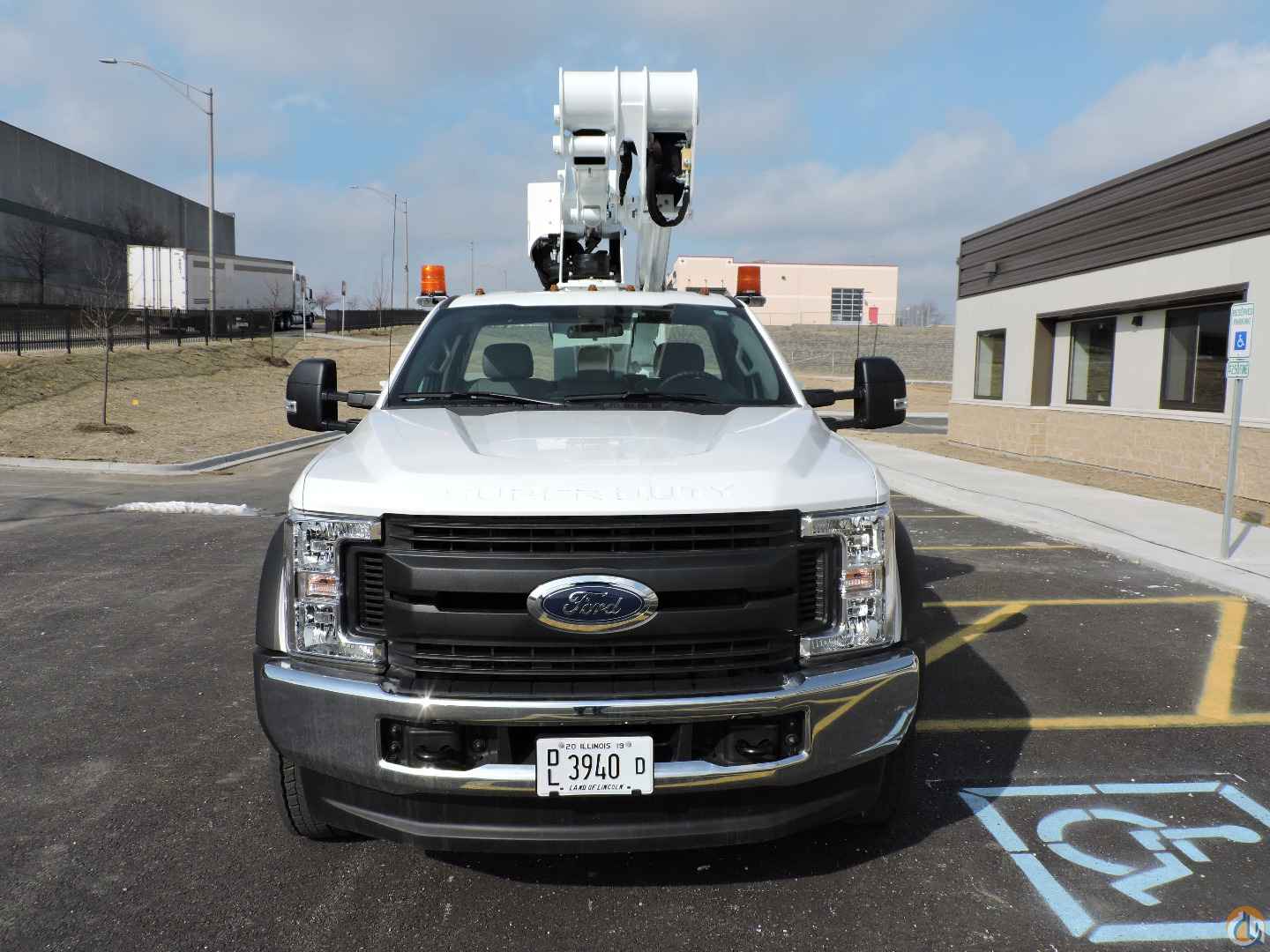

2020 Ford F550

• 19,500 GVWR

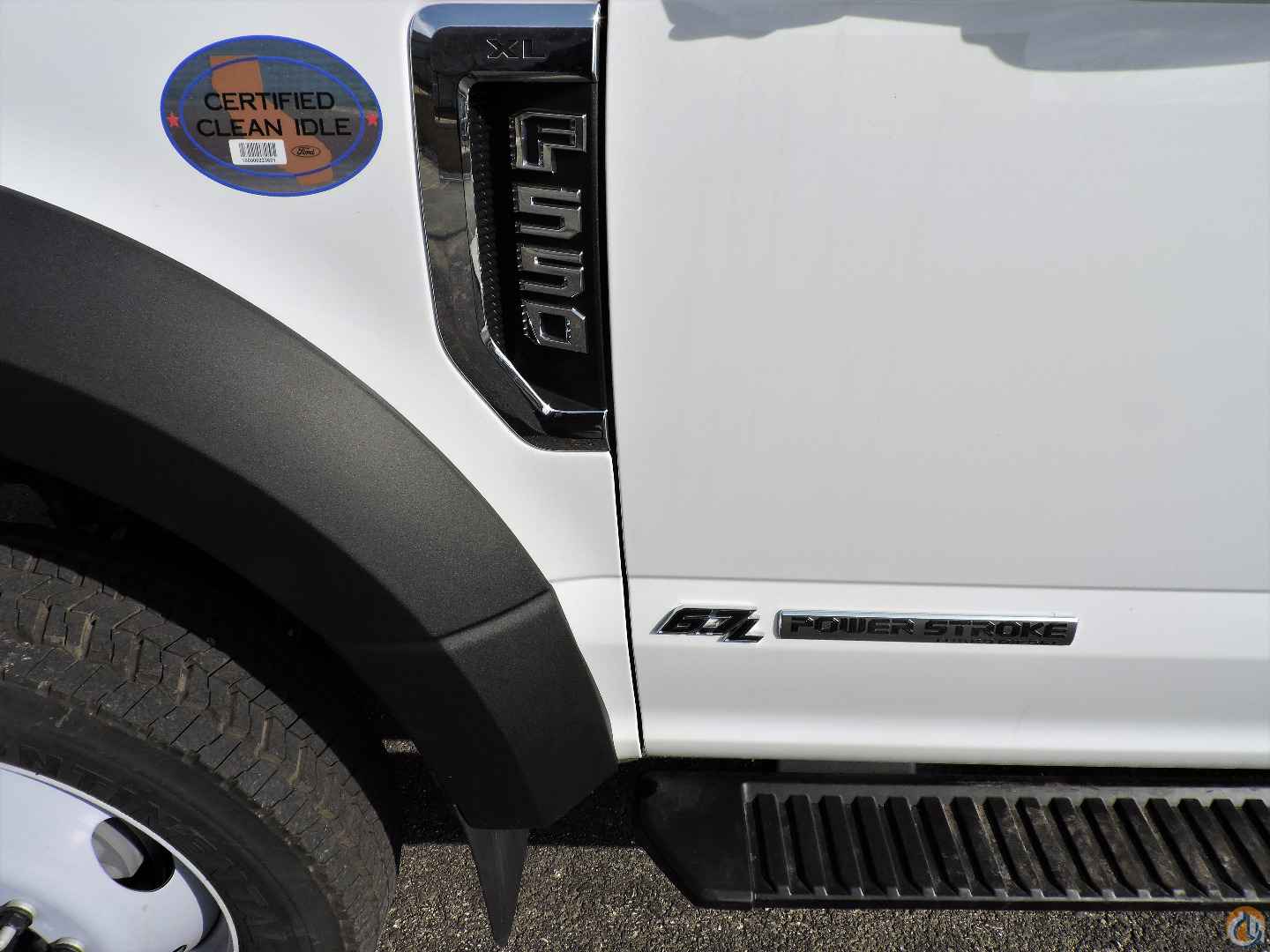

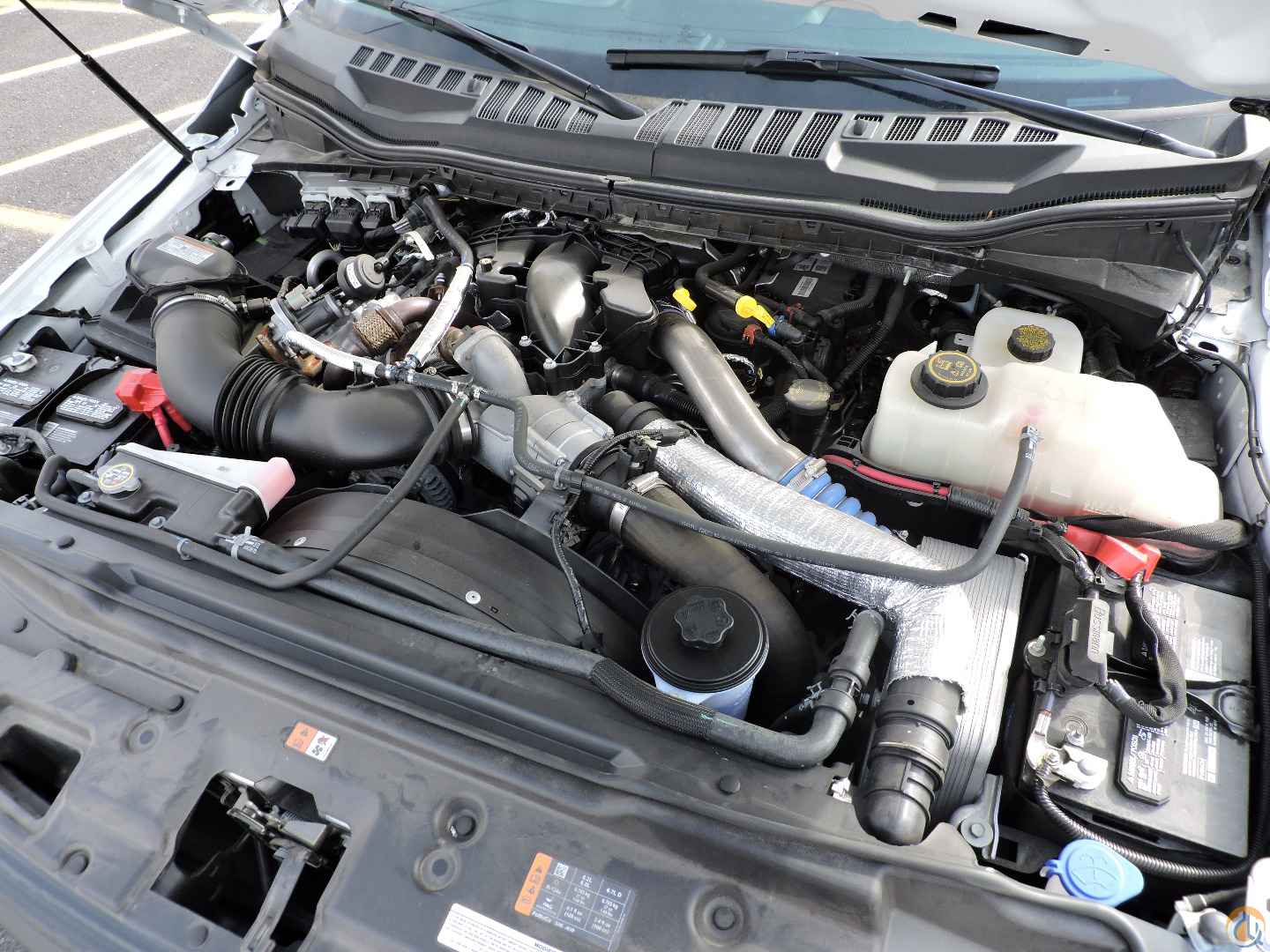

• 6.7L Power Stroke V8 turbo diesel 330 hp at 2600, (750 lb./ft.
  @ 2000 RPM)
• TorqueShift 10-speed automatic transmission
• Engine block heater
• Front and rear 19.5” steel wheels
• Tires – 225/70Rx19.5G BSW traction
• Front axle 7,500lbs
• Rear axles 14,706lbs
• 4-wheel ABS brakes
• Air conditioning
• Platform running boards
• Trailer brake controller

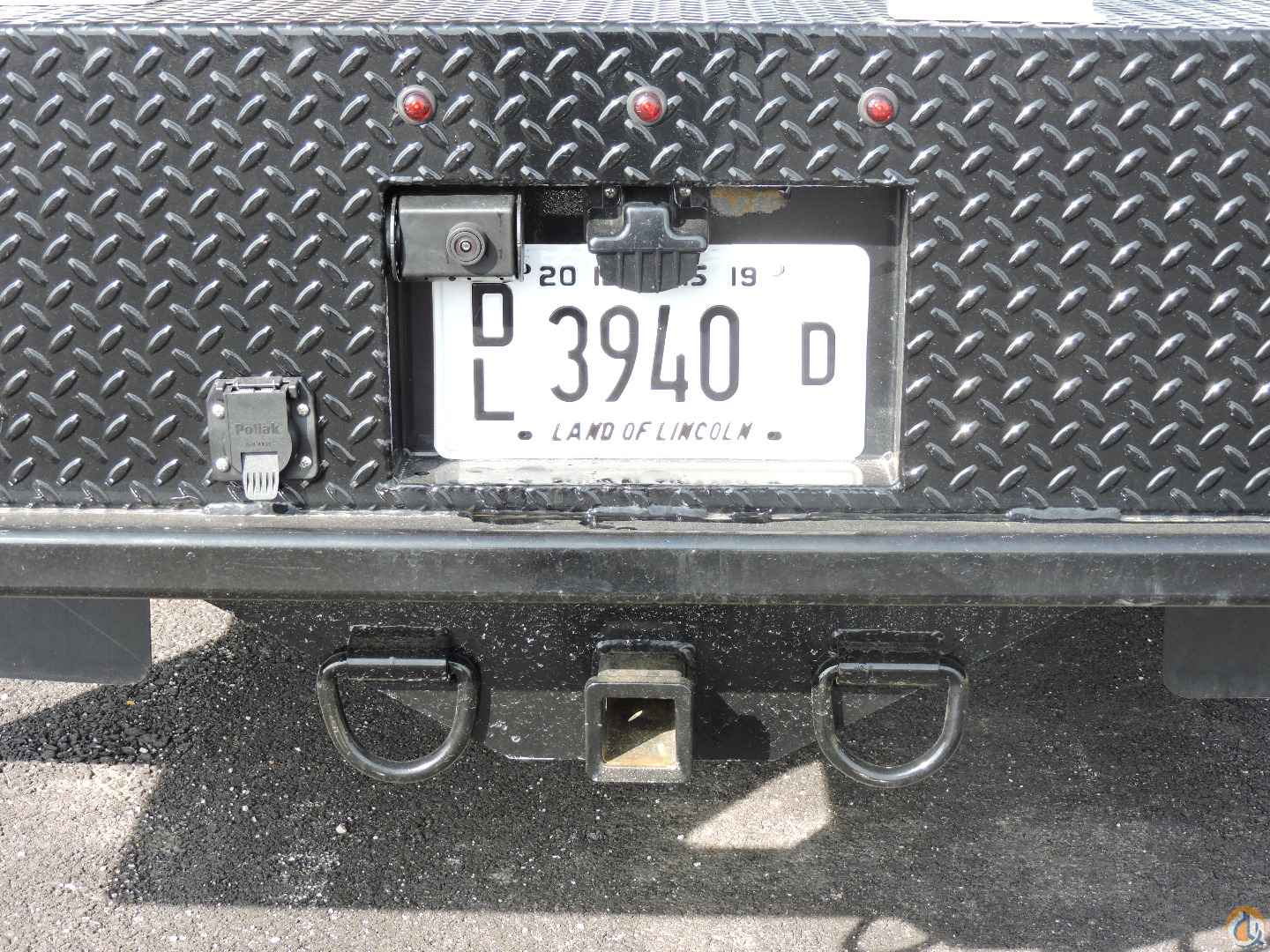

• Rearview camera
• Power steering
• Cruise control
• 40-gallon fuel tank

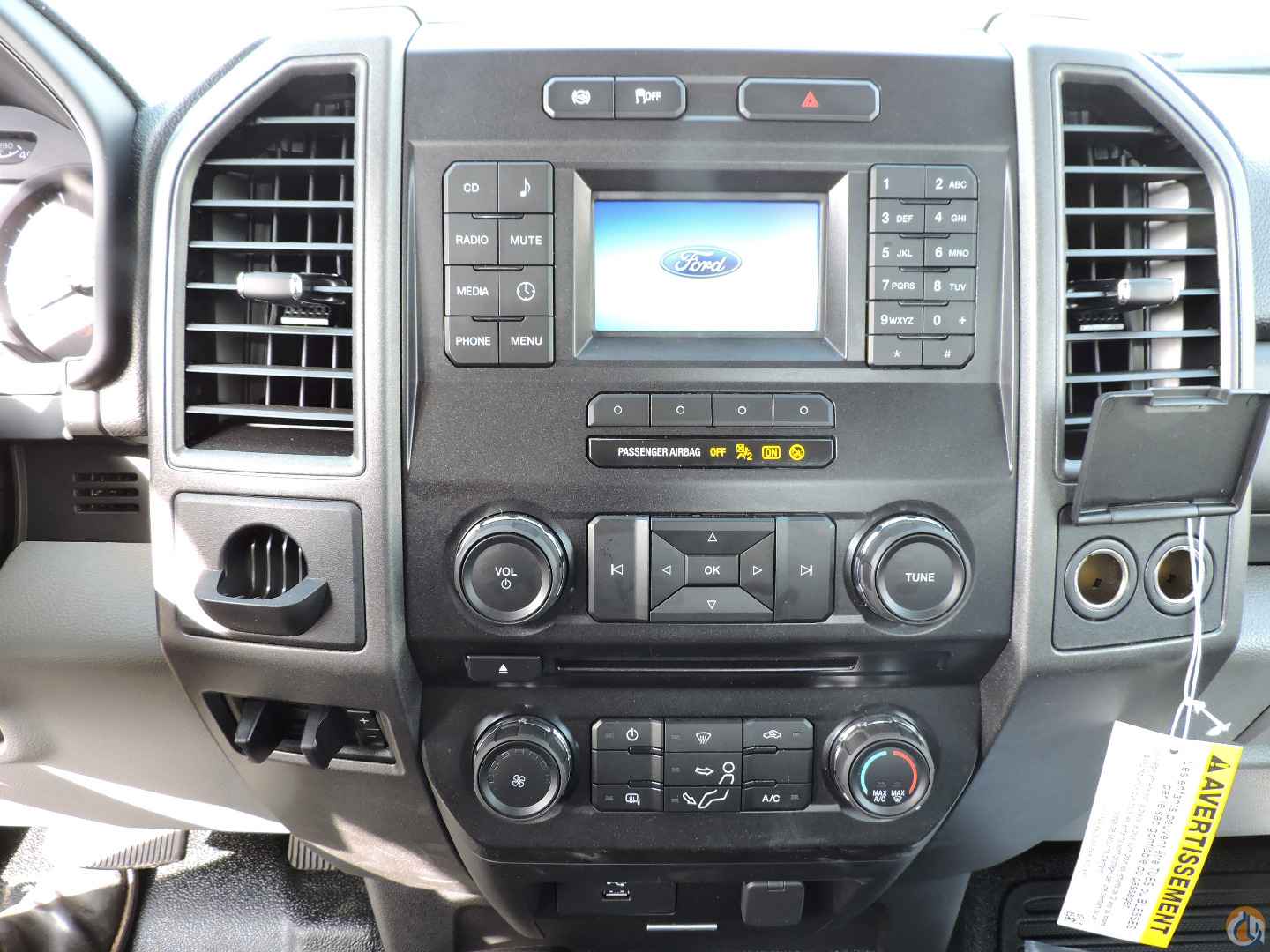

• SYNC communication with Bluetooth, AM/FM

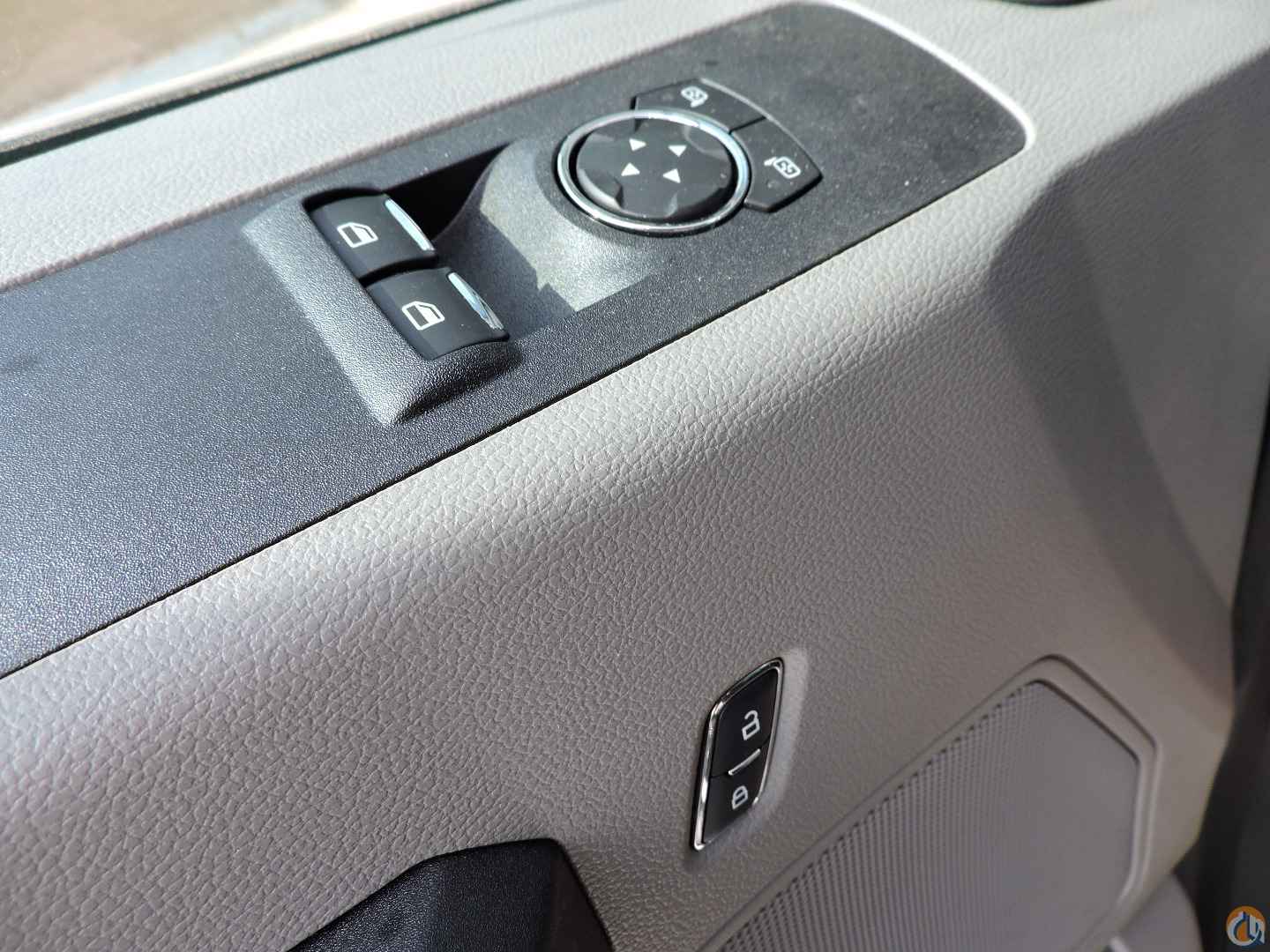

• Power windows and locks with keyless entry

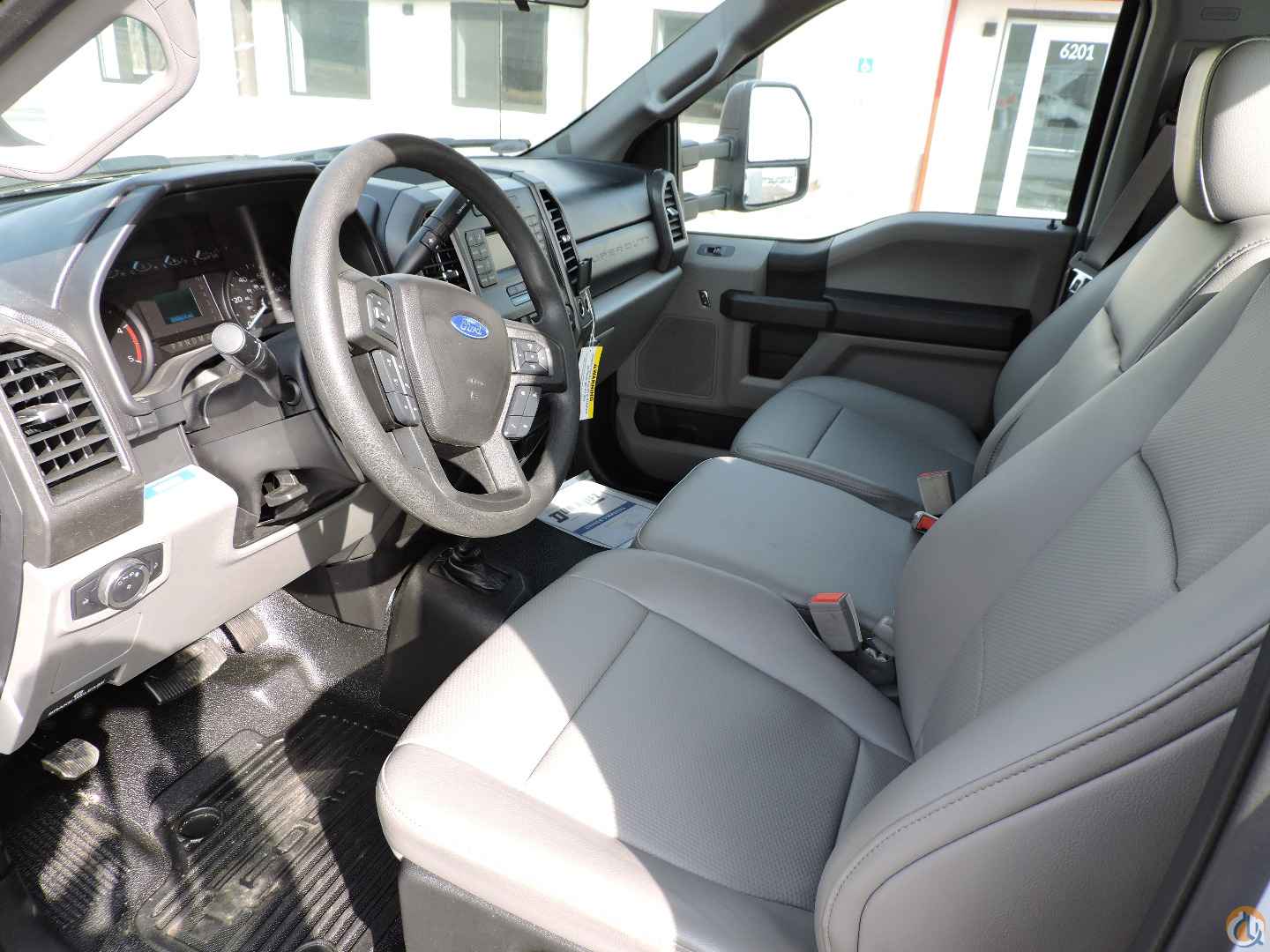

• 40/20/40 split bench seat- vinyl
• Color white
• Availability Quarter 4 2020
• Stock photo
