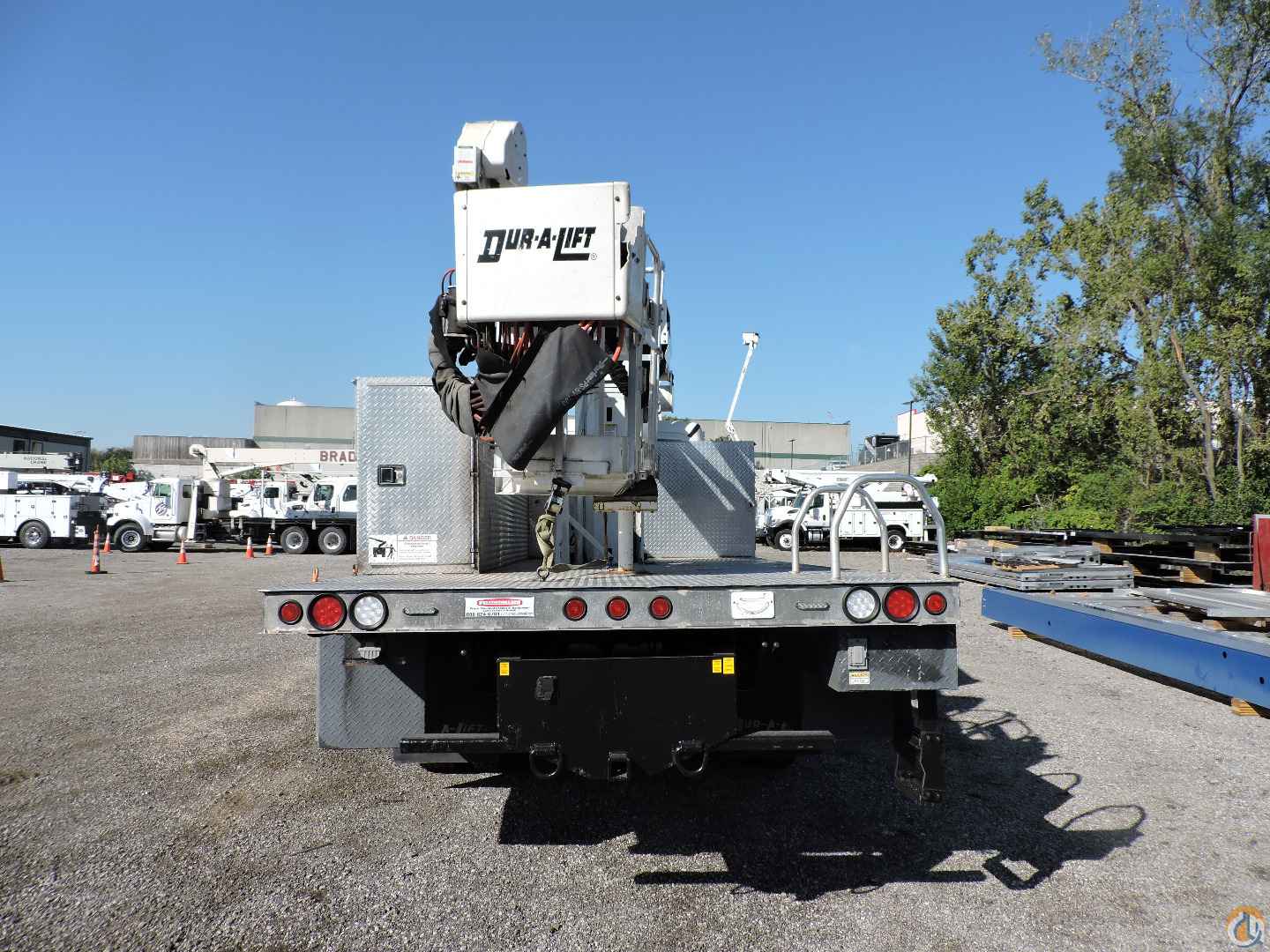

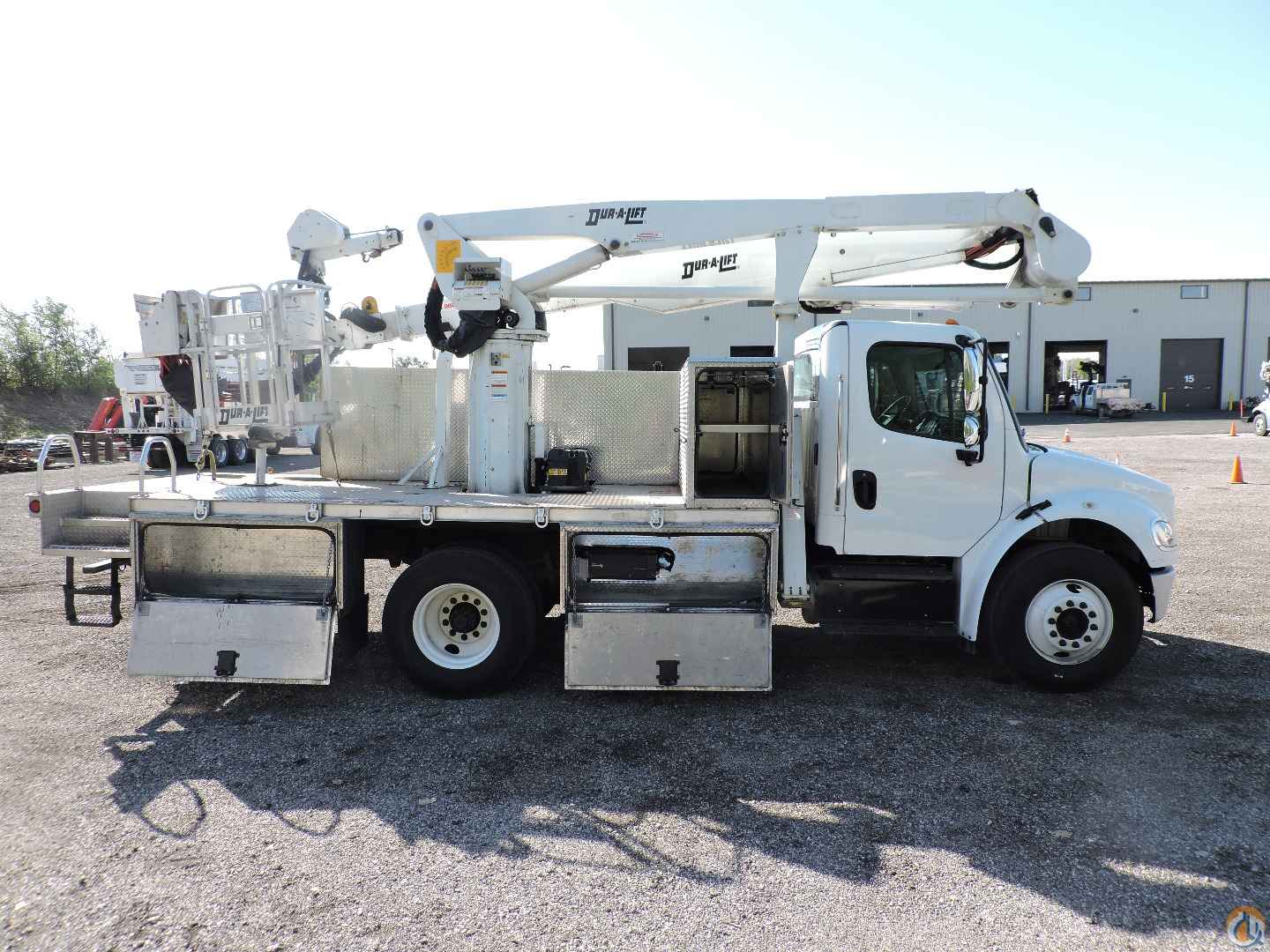

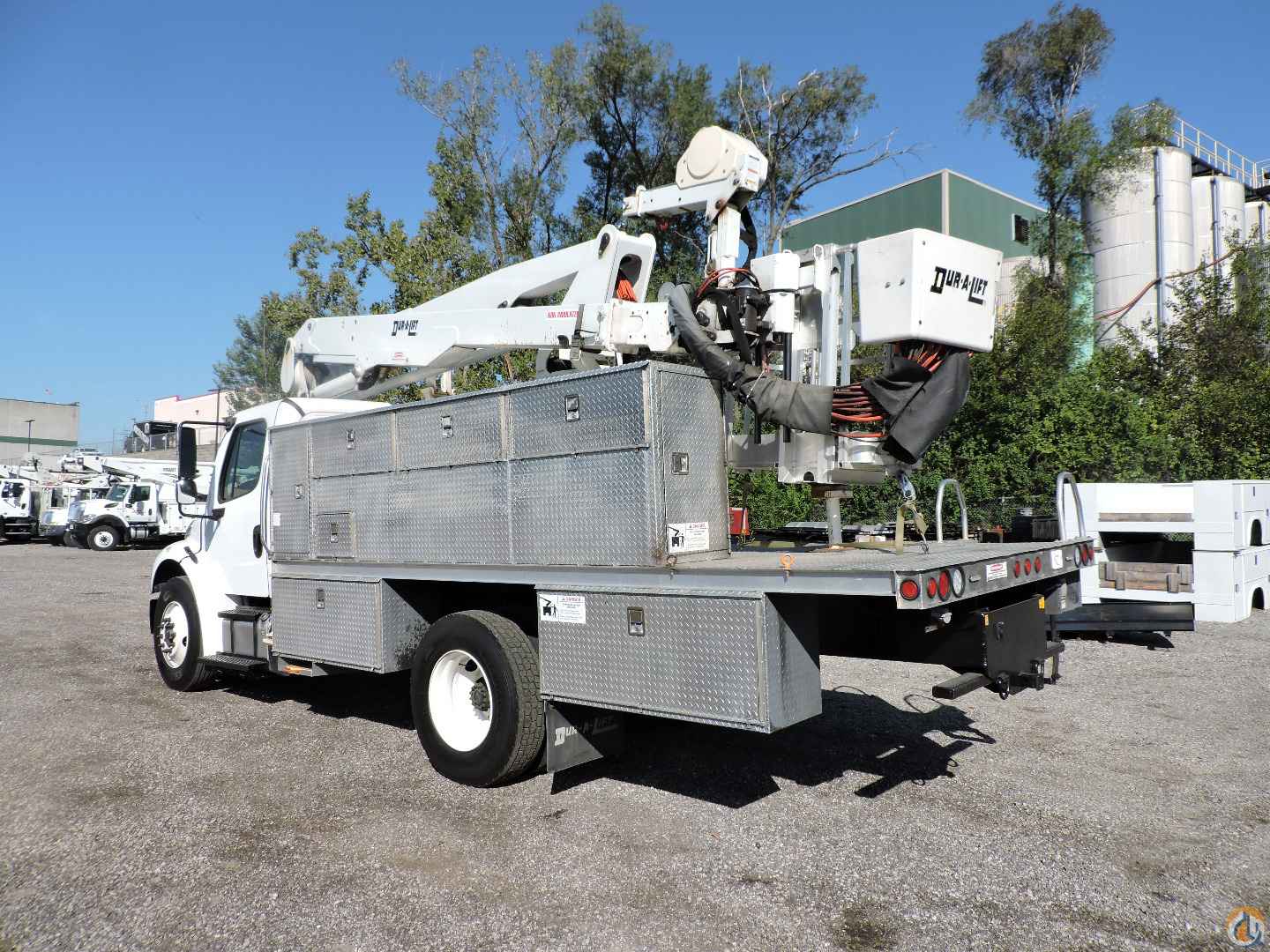

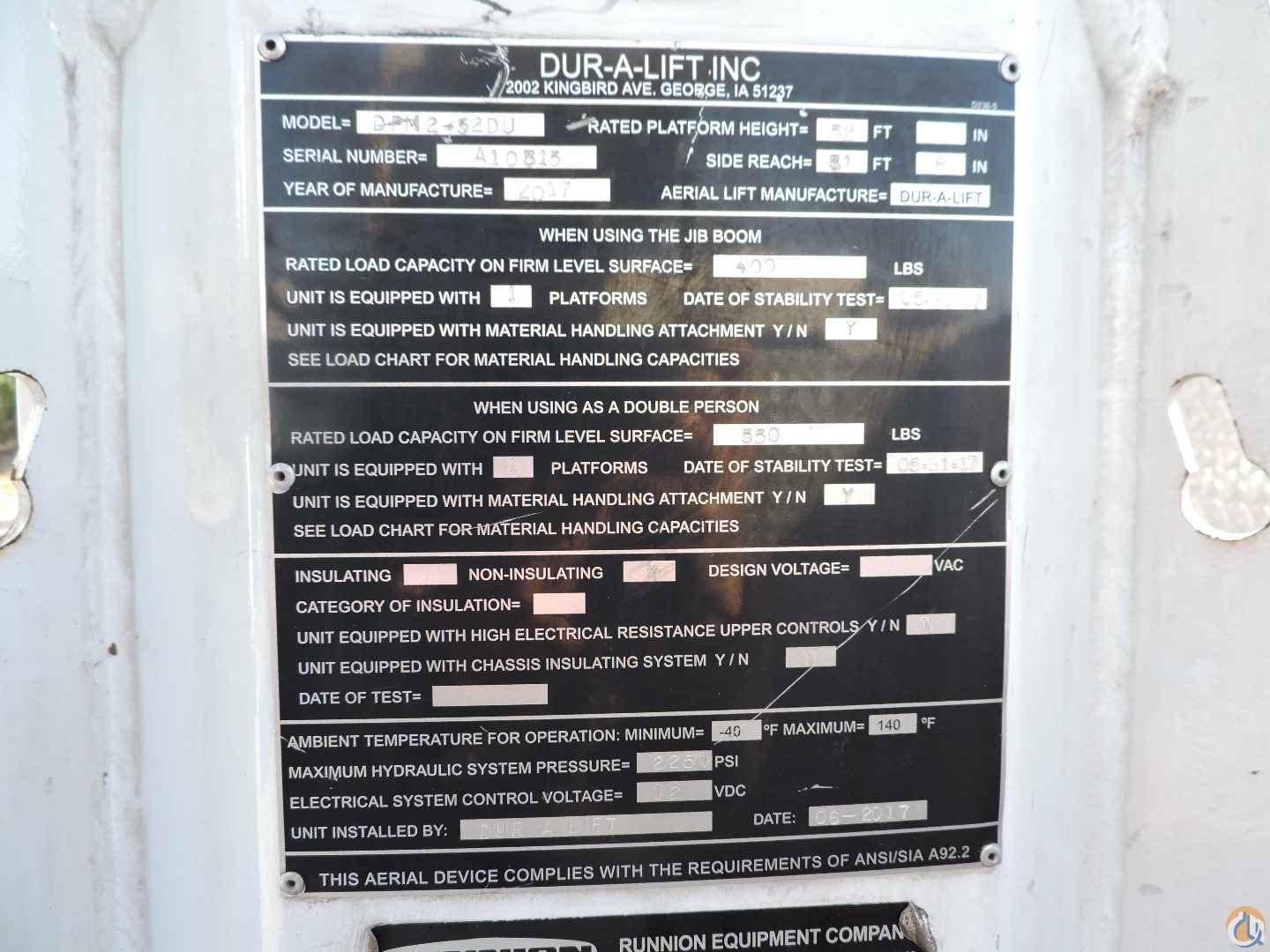

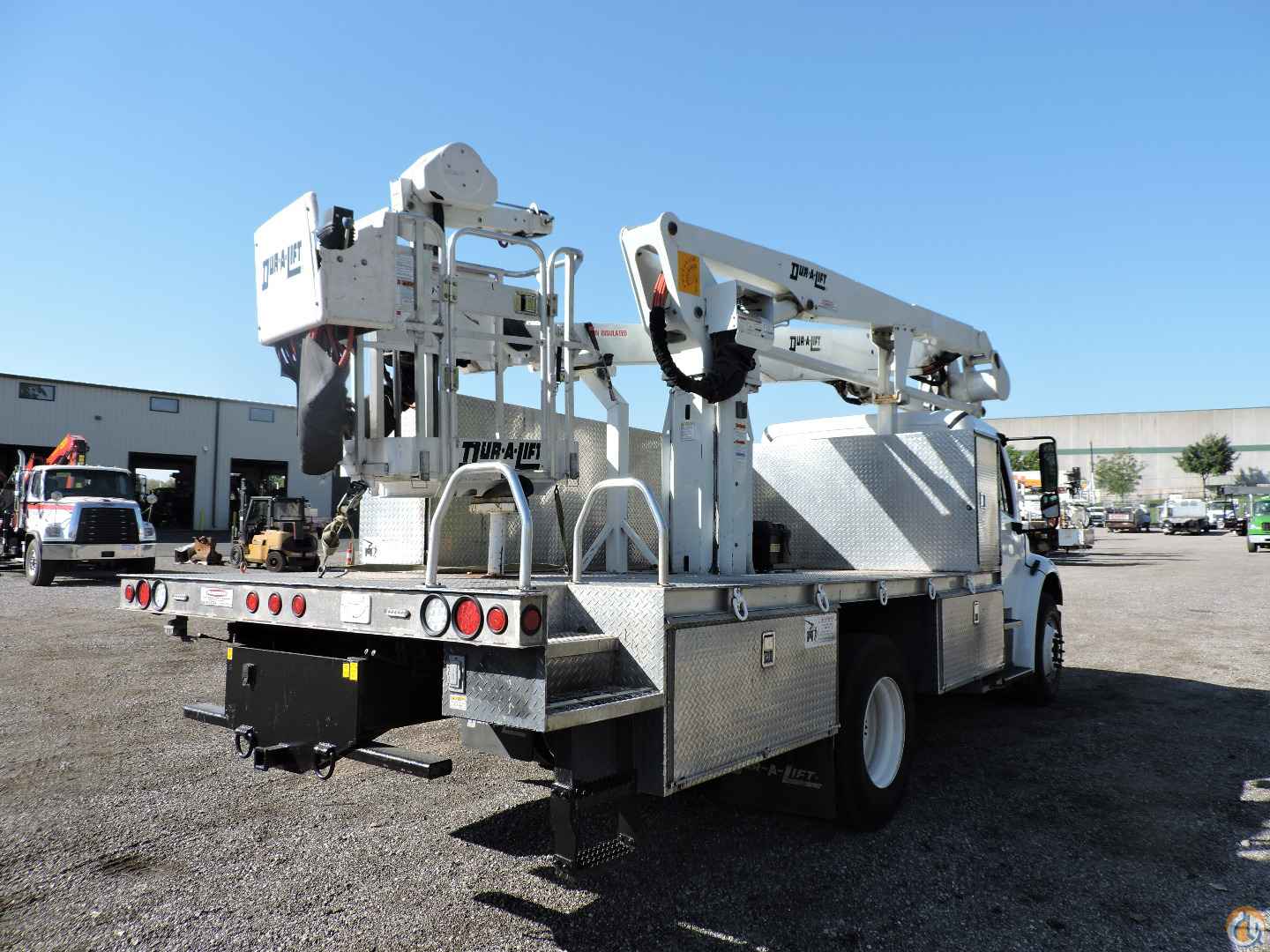

Duralift DPM2-52DU Non-Insulated Aerial Lift:

- Non-Insulated Aerial Lift

- 59’ working height with 22” basket elevator

- 31’6” side reach

- Mid outriggers with outrigger interlock and inclinometer

- 24” x 42” x 42” aluminum basket with walk in door

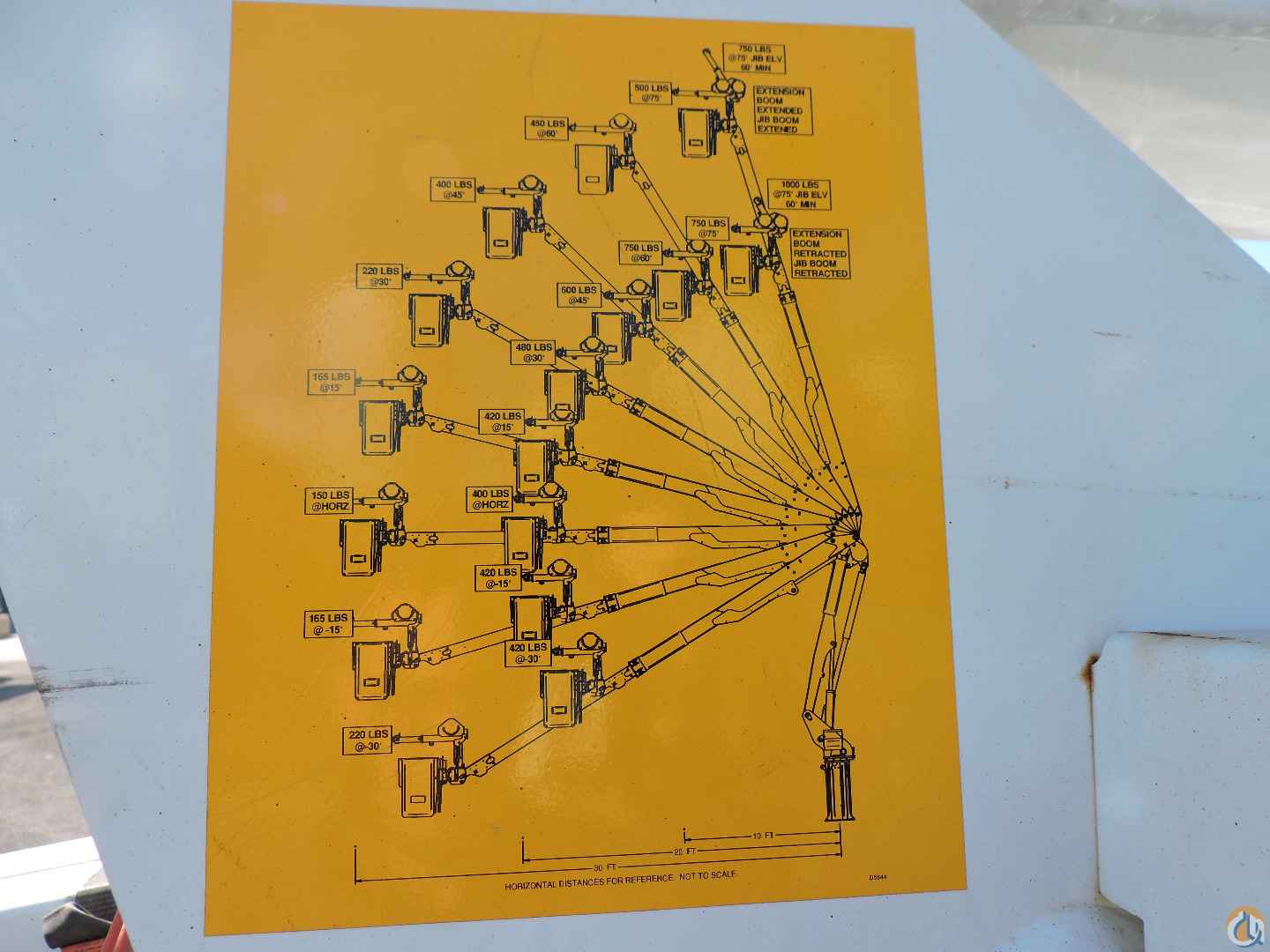

- 550# basket capacity when not using winch

- 400# capacity when using winch

- Four-axis single hand controls

- Upper control lockouts

- 180 degree basket rotator

- Hydraulically extendable jib

- Up to 1000# top mounted jib and winch

- DC backup, high speed pump

- Remote 110V outlet with cables

- 110V outlet at basket

- Continuous rotation

- Inclinometer

- Dual 6V batteries

- Backup alarm

- Combo pintle hitch receiver

- 7-spade trailer plug

- Two (2) 18” x 18” x 1” composite outrigger pads with holders

- Four corner strobes

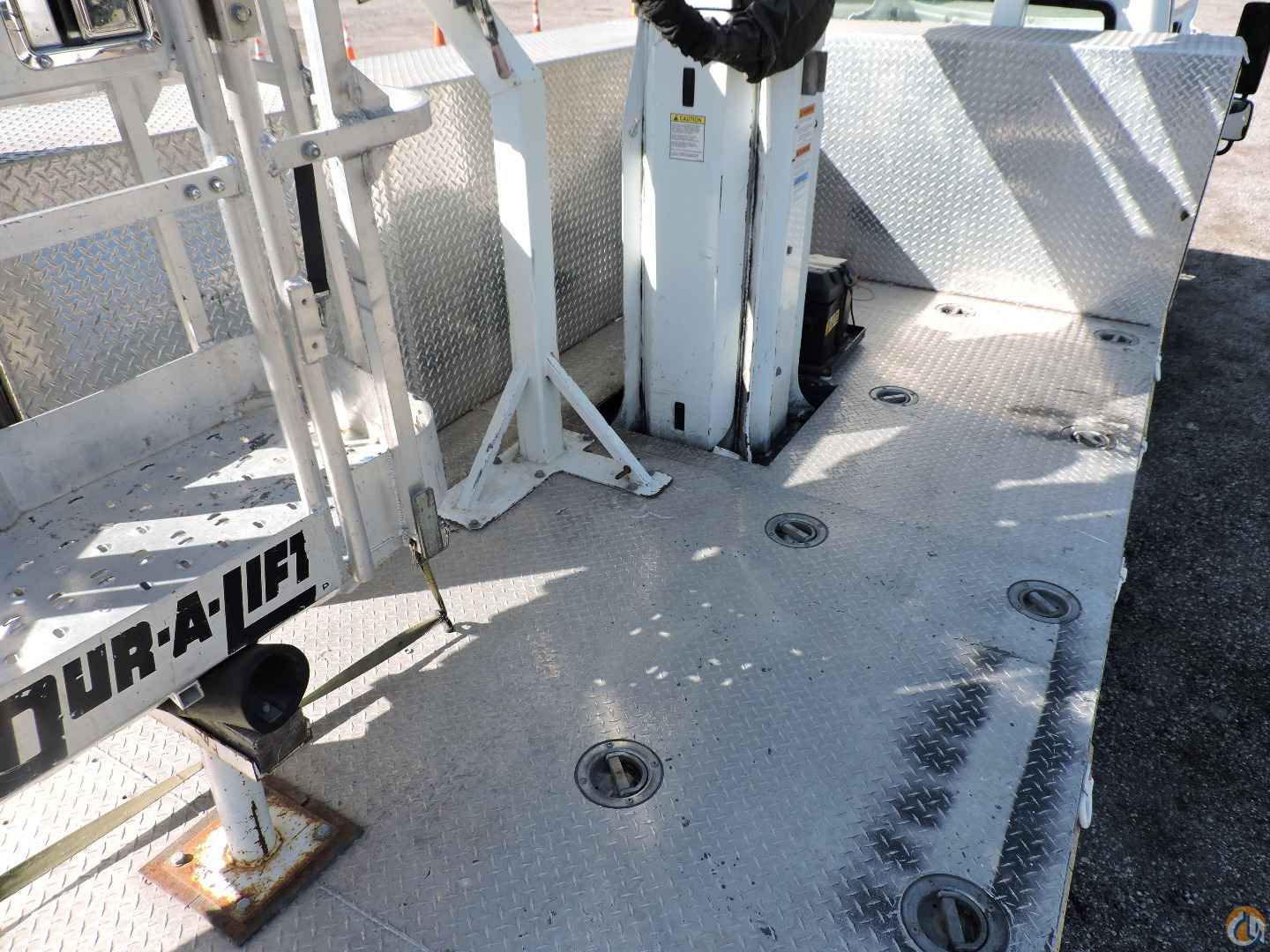

- 16’ aluminum treadplate flatbed

- Nine (9) D-Rings tie downs mounted in floor

- Five (5) D-Rings mounted on curbside rail

- 24” L x 39” H x 100” W transverse compartment with one shelf

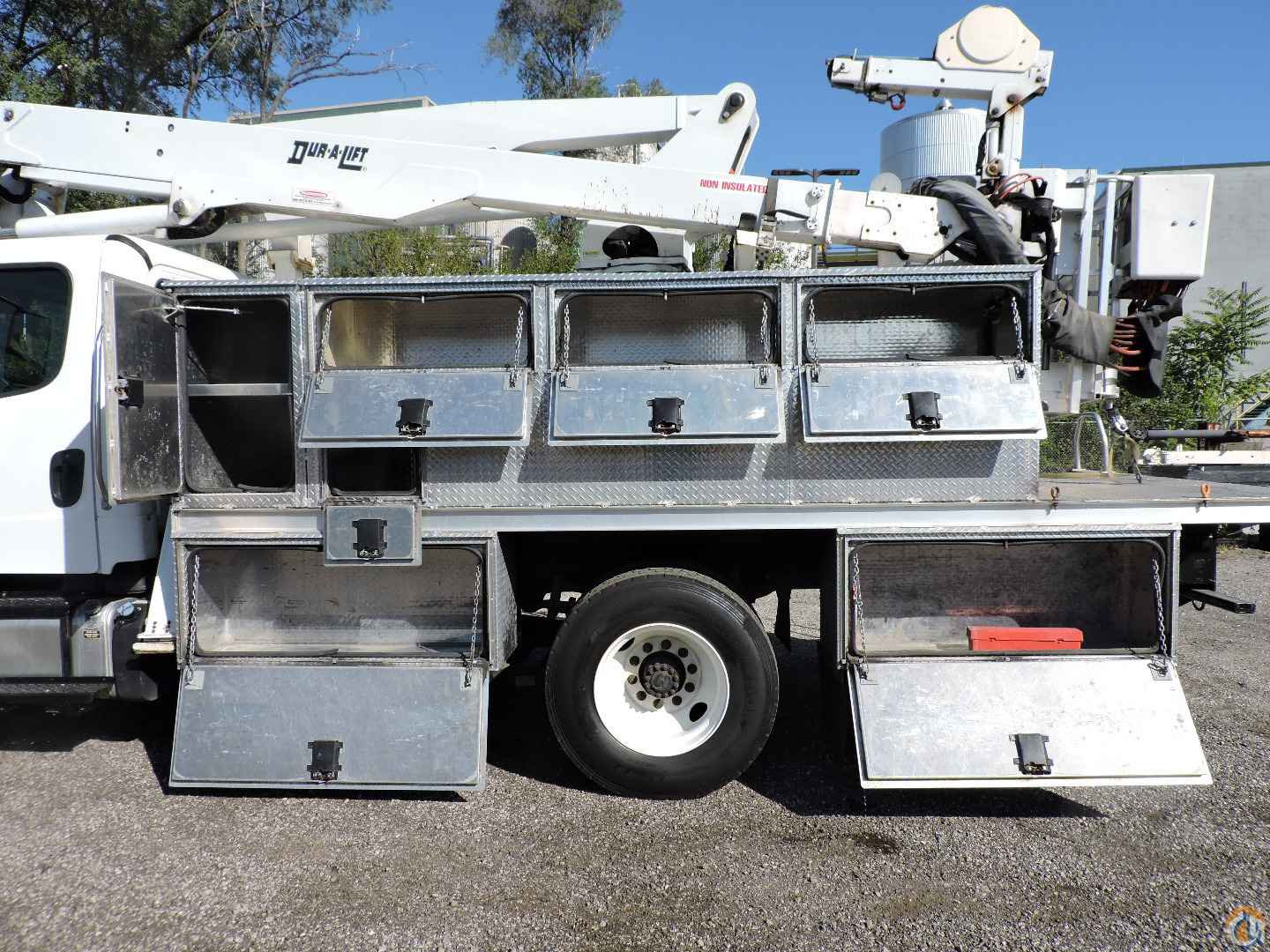

- 124” L x 39”H x 24” W top-mounted tool box. Three (3) drop down doors installed streetside

- Four (4) underbody aluminum tool boxes – 57” L x 24” H x 18” W

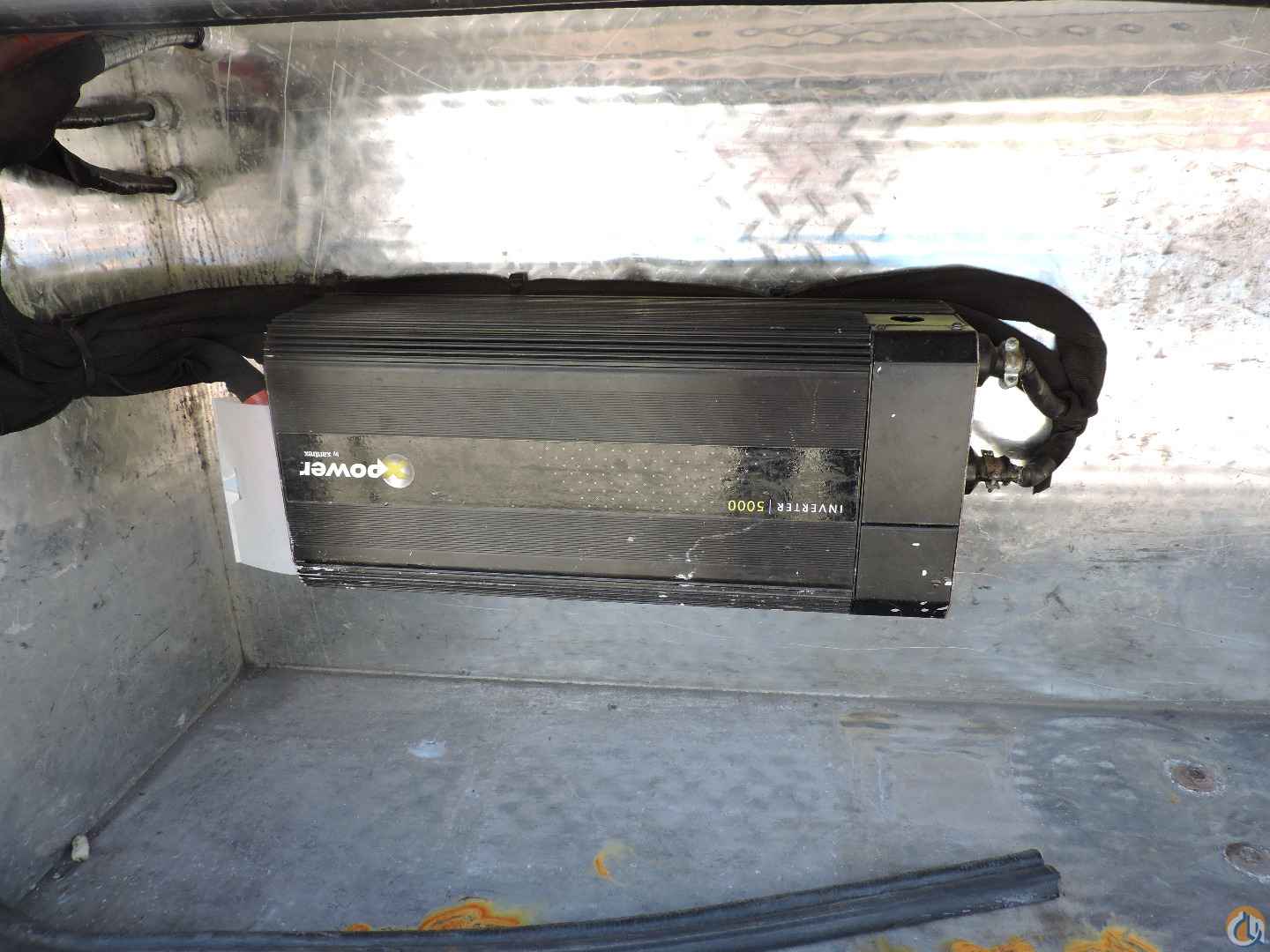

- 5000 watt inverter

MOUNTED ON:

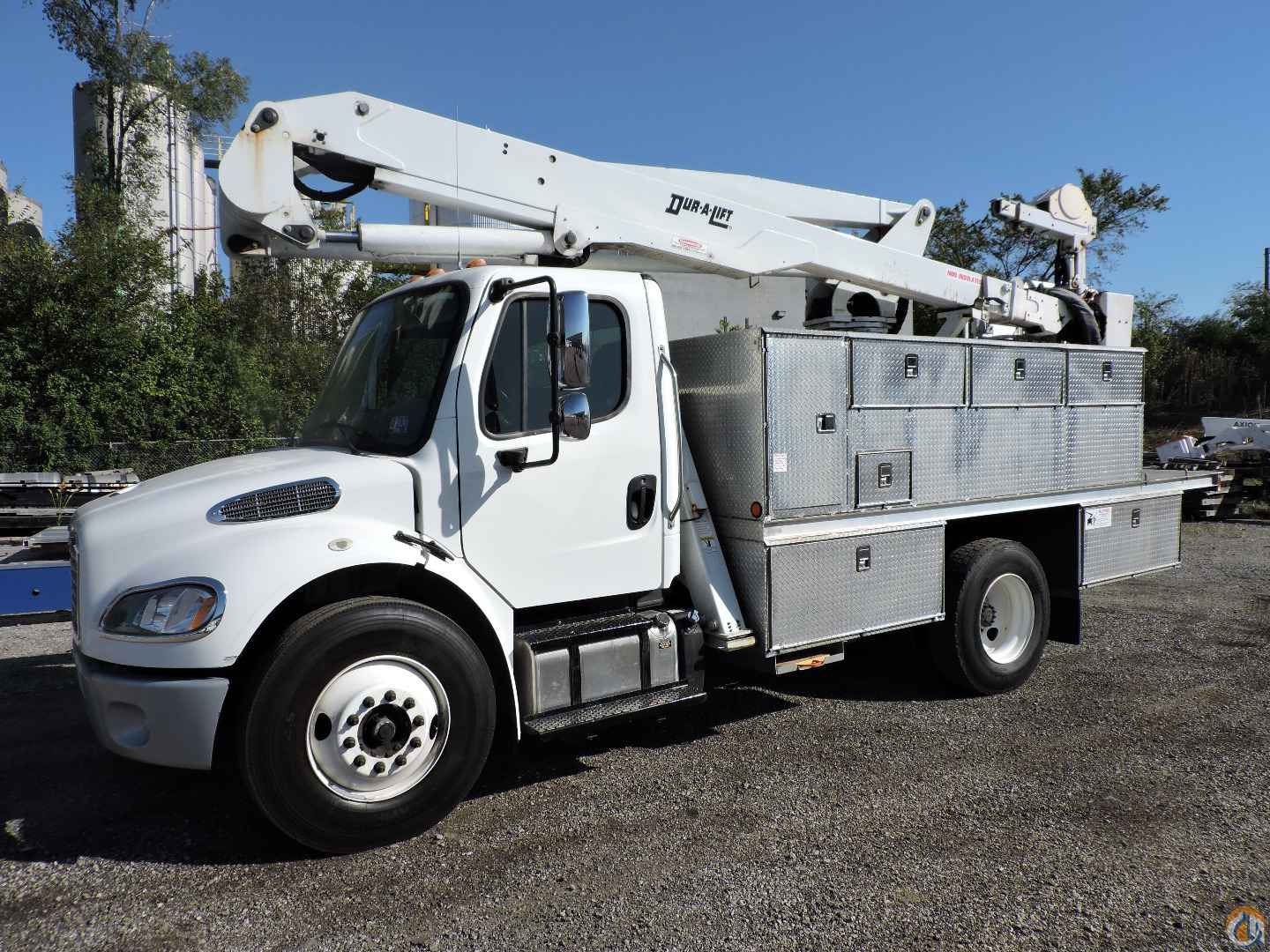

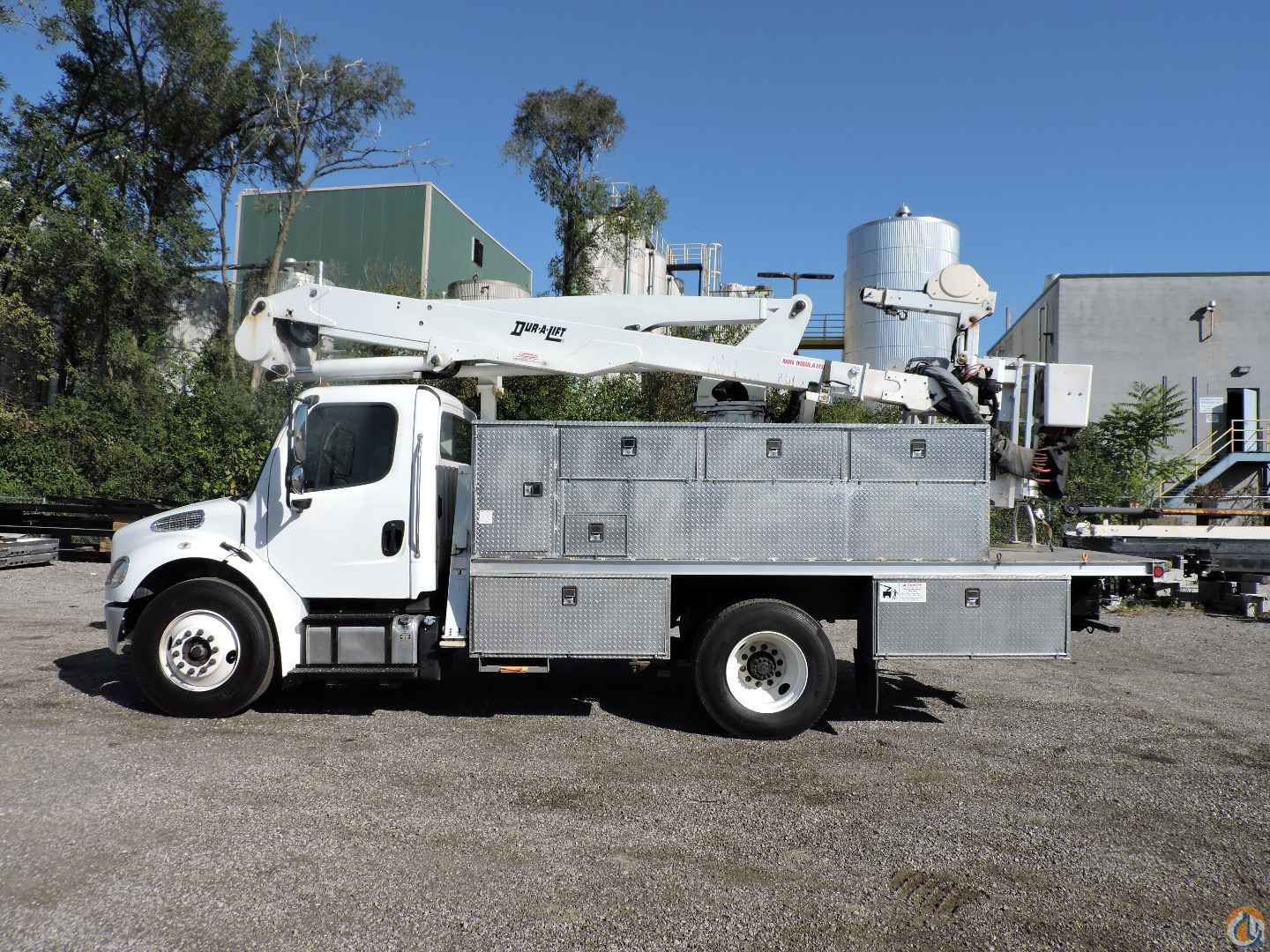

2018 Freightliner M2 106 equipped as follows:

- VIN 3ALACWFD5JDJM2026

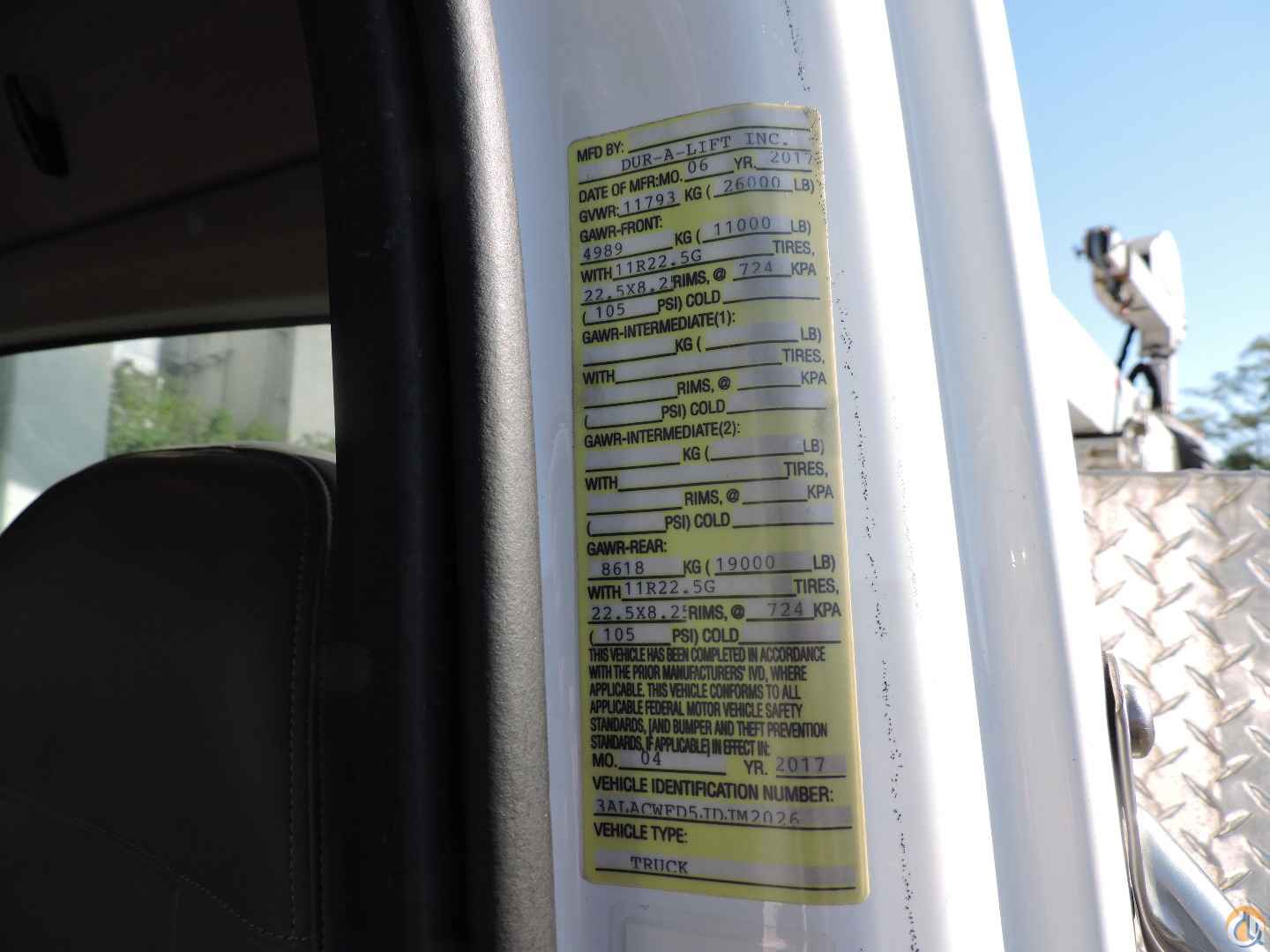

- 26,000 GVWR – non-CDL

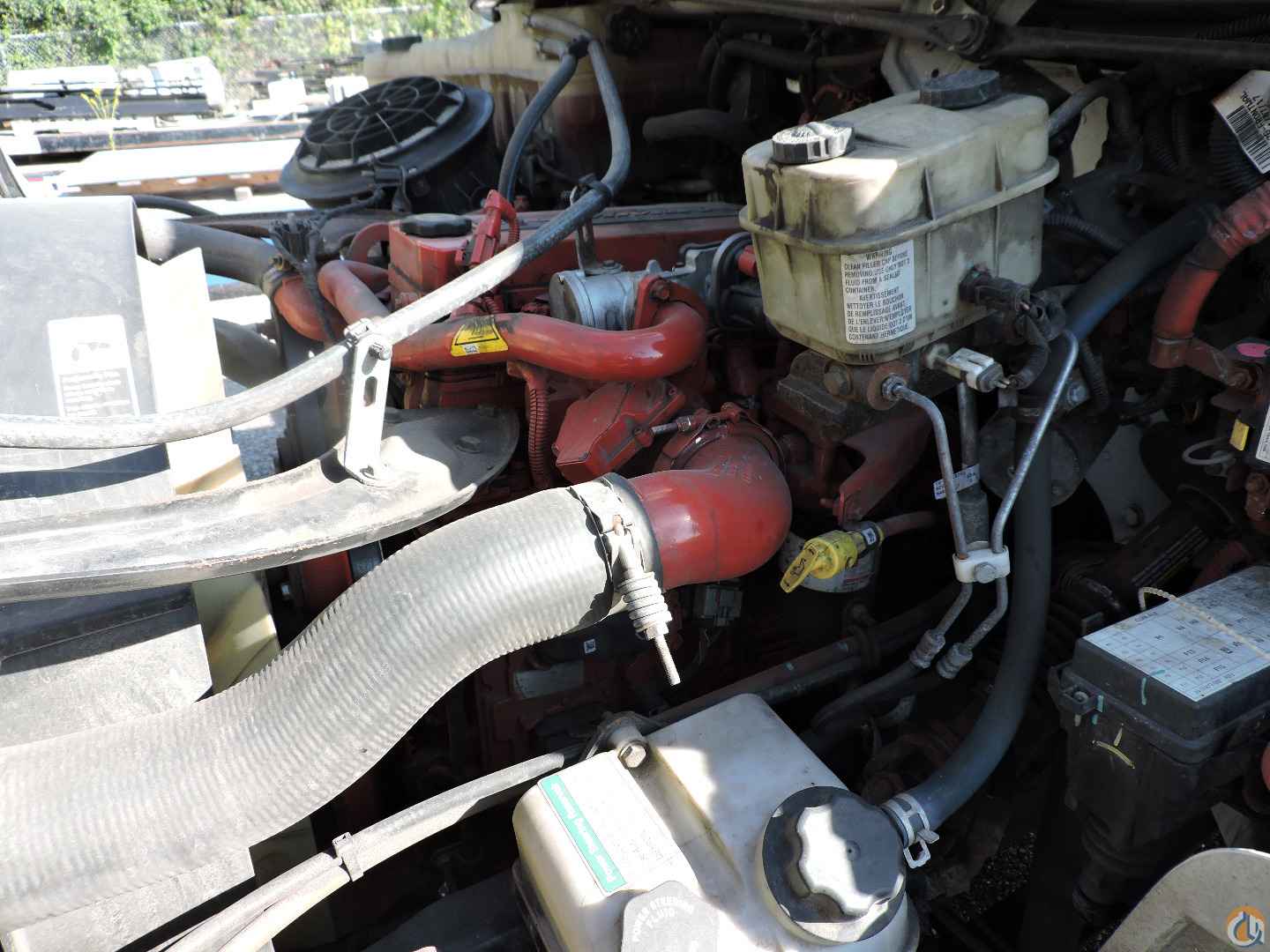

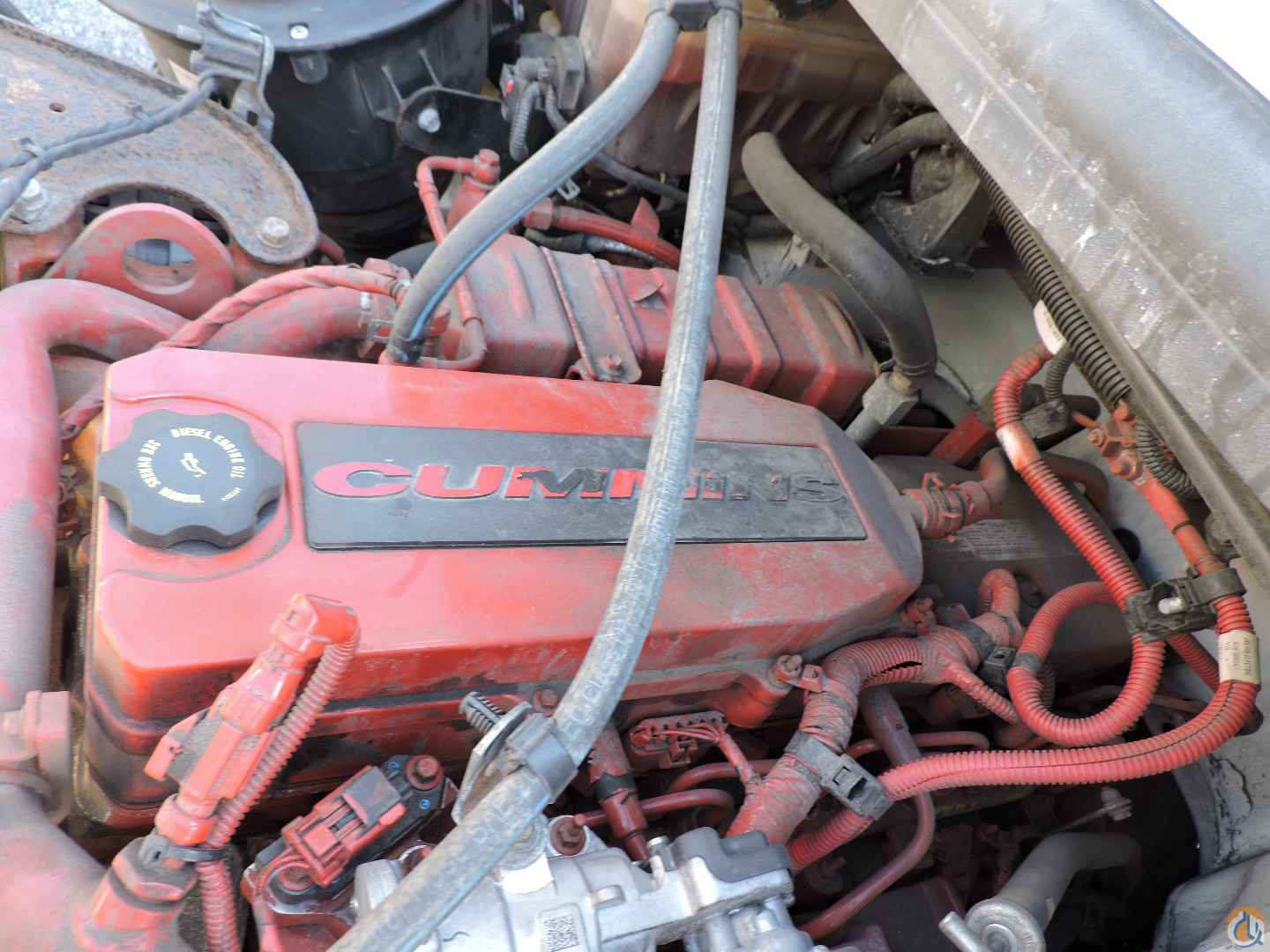

- Cummins B6.7 engine, 280 hp @ 2400, 600lb/ft @ 1600

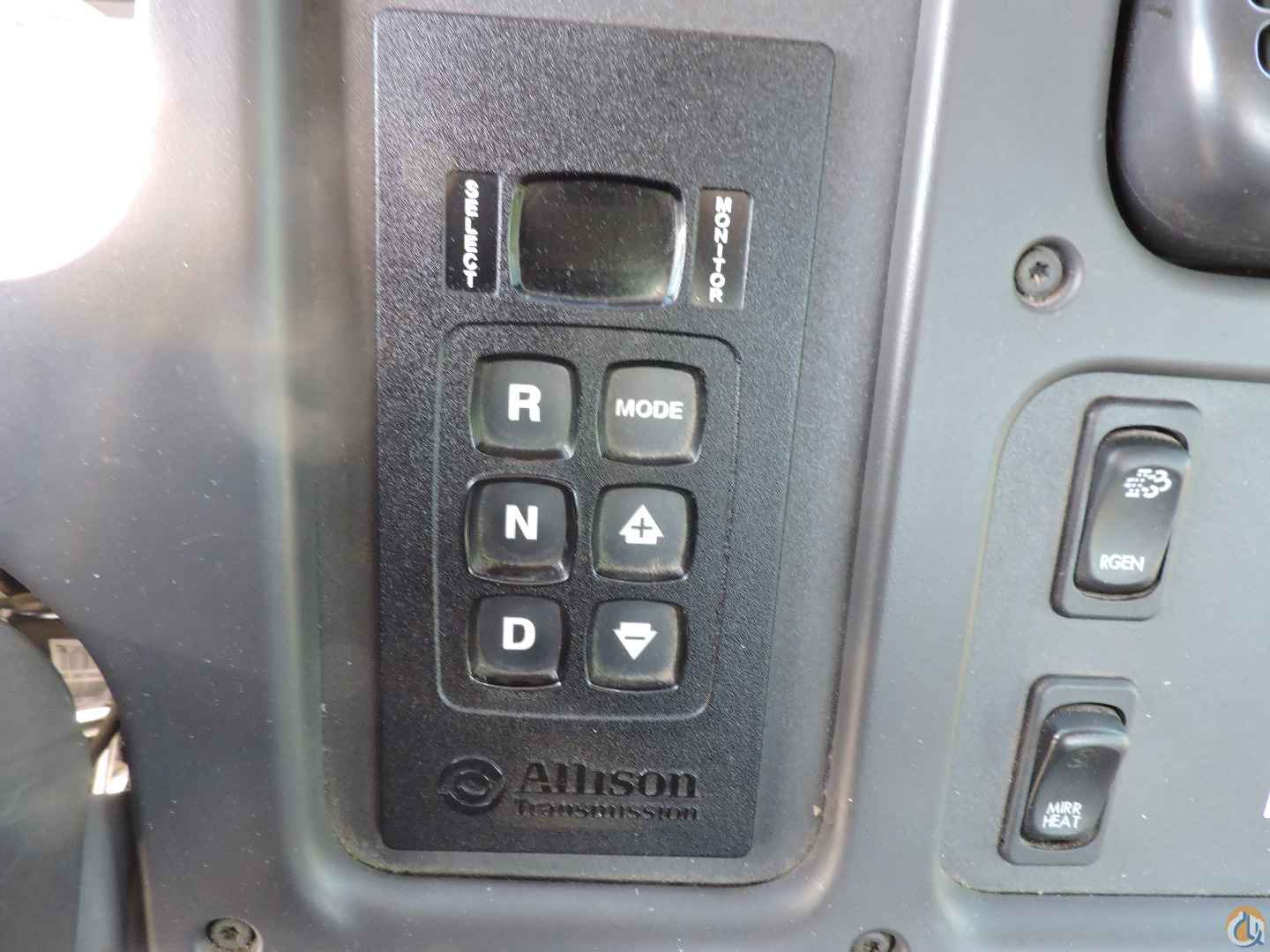

- Allison 3000 RDS automatic transmission

- Front Axle – 12,000# Taperleaf suspension

- Rear Axle – 19,000# with 21,000# multi-leaf suspension

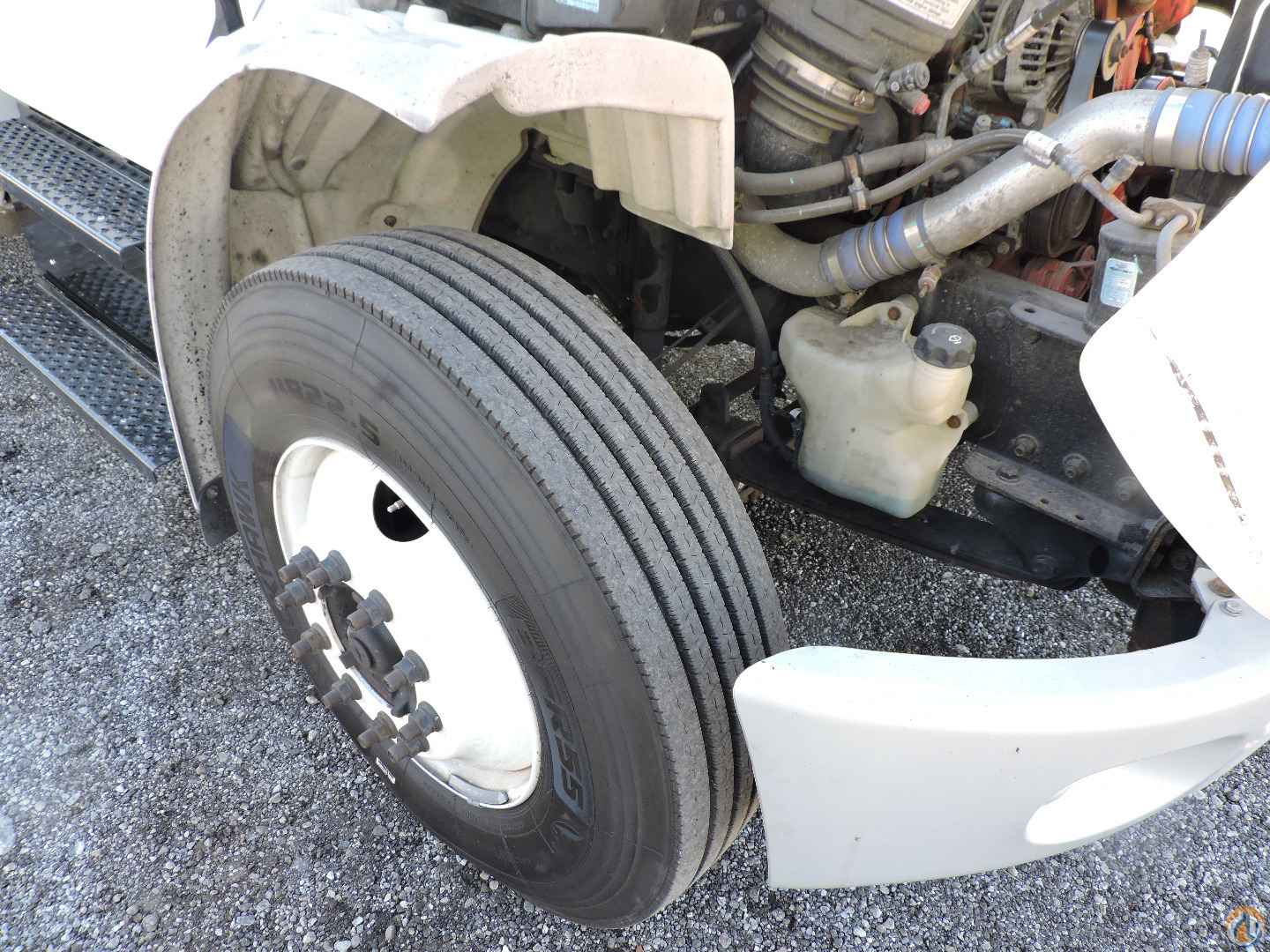

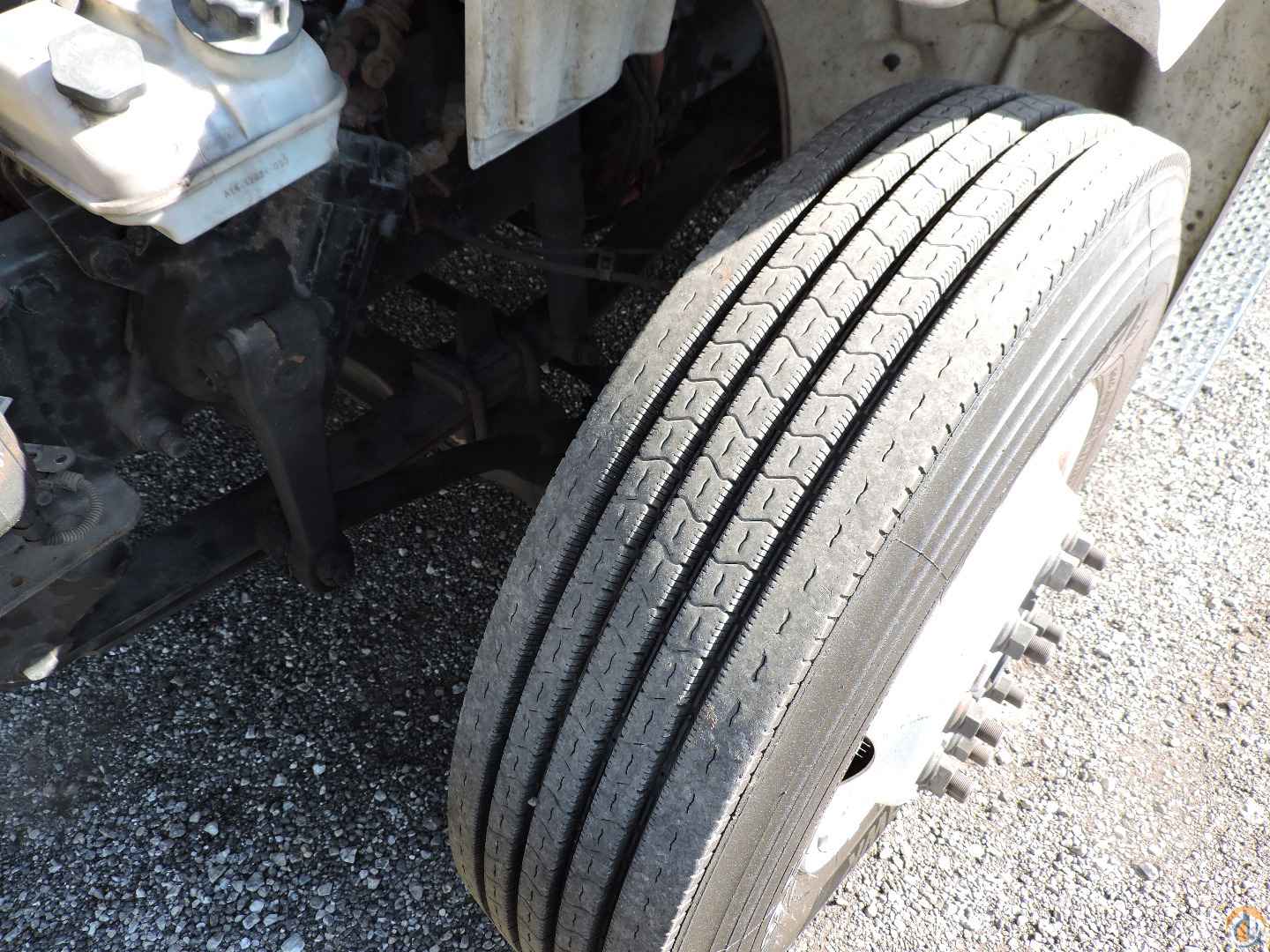

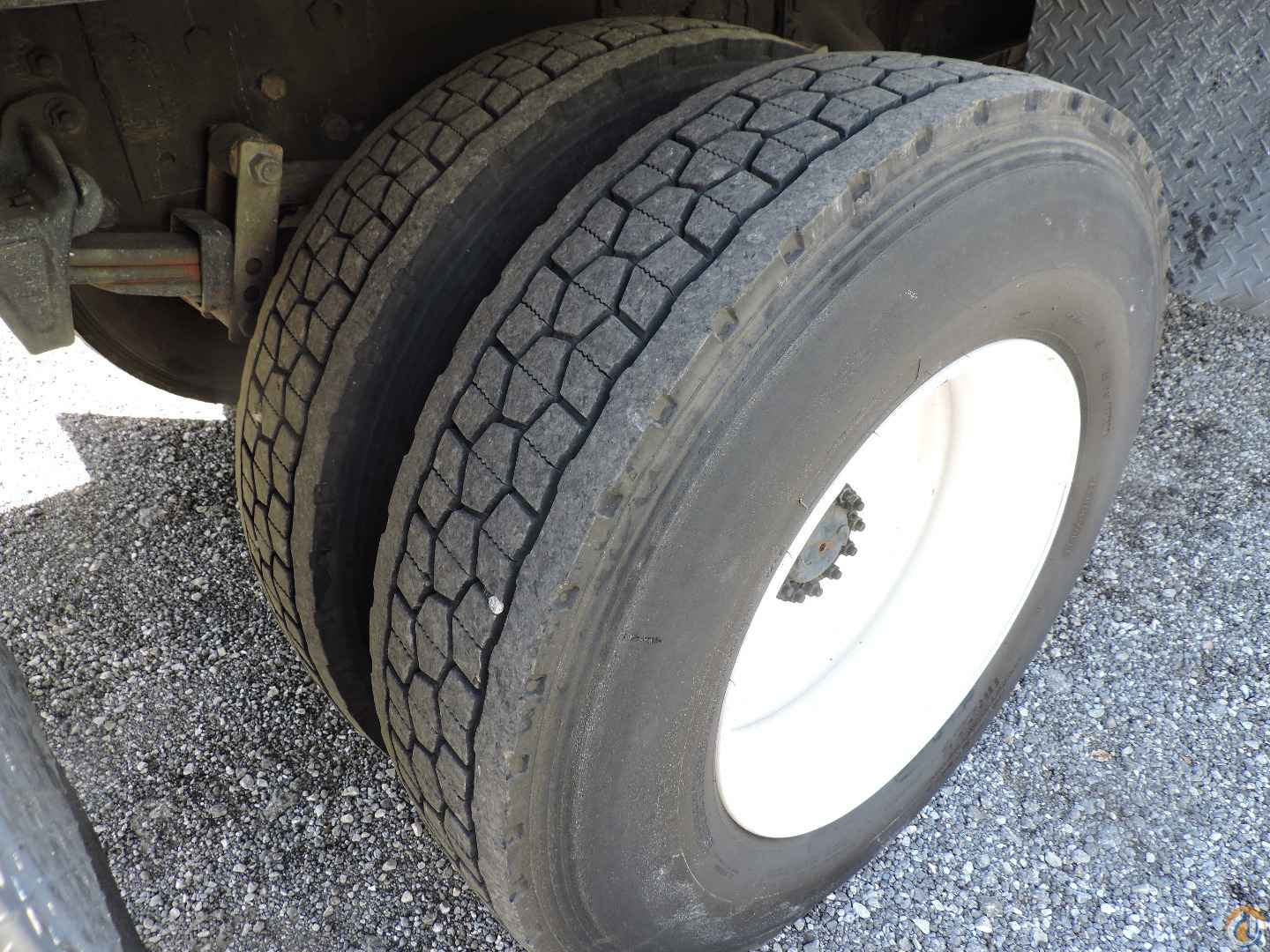

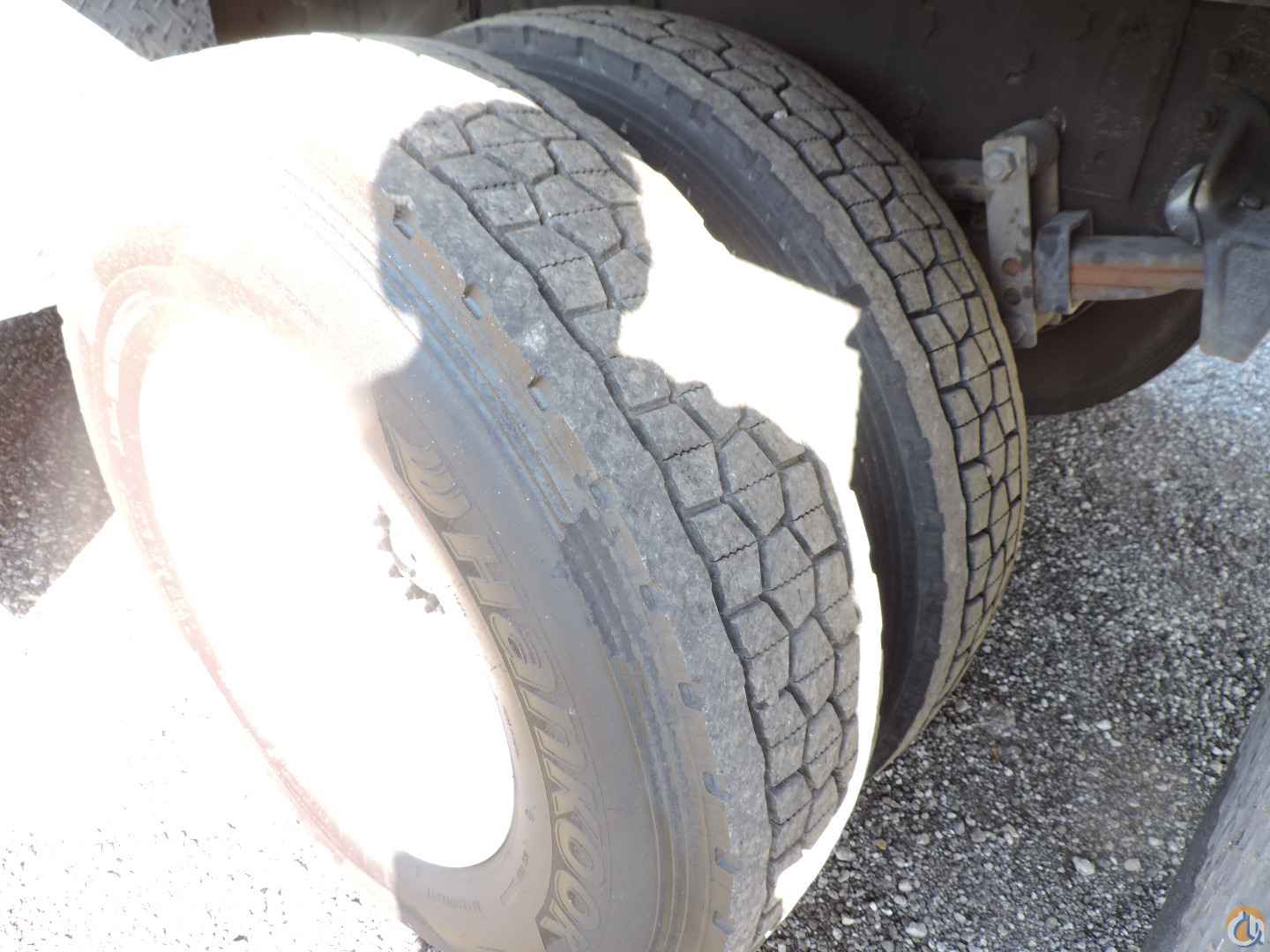

- 22.5x8.25 steel wheels

- Hydraulic brakes

- 50-gallon fuel tank

- Dual West Coast heated mirrors with 8” convex spot mirrors

- Manual locks and windows

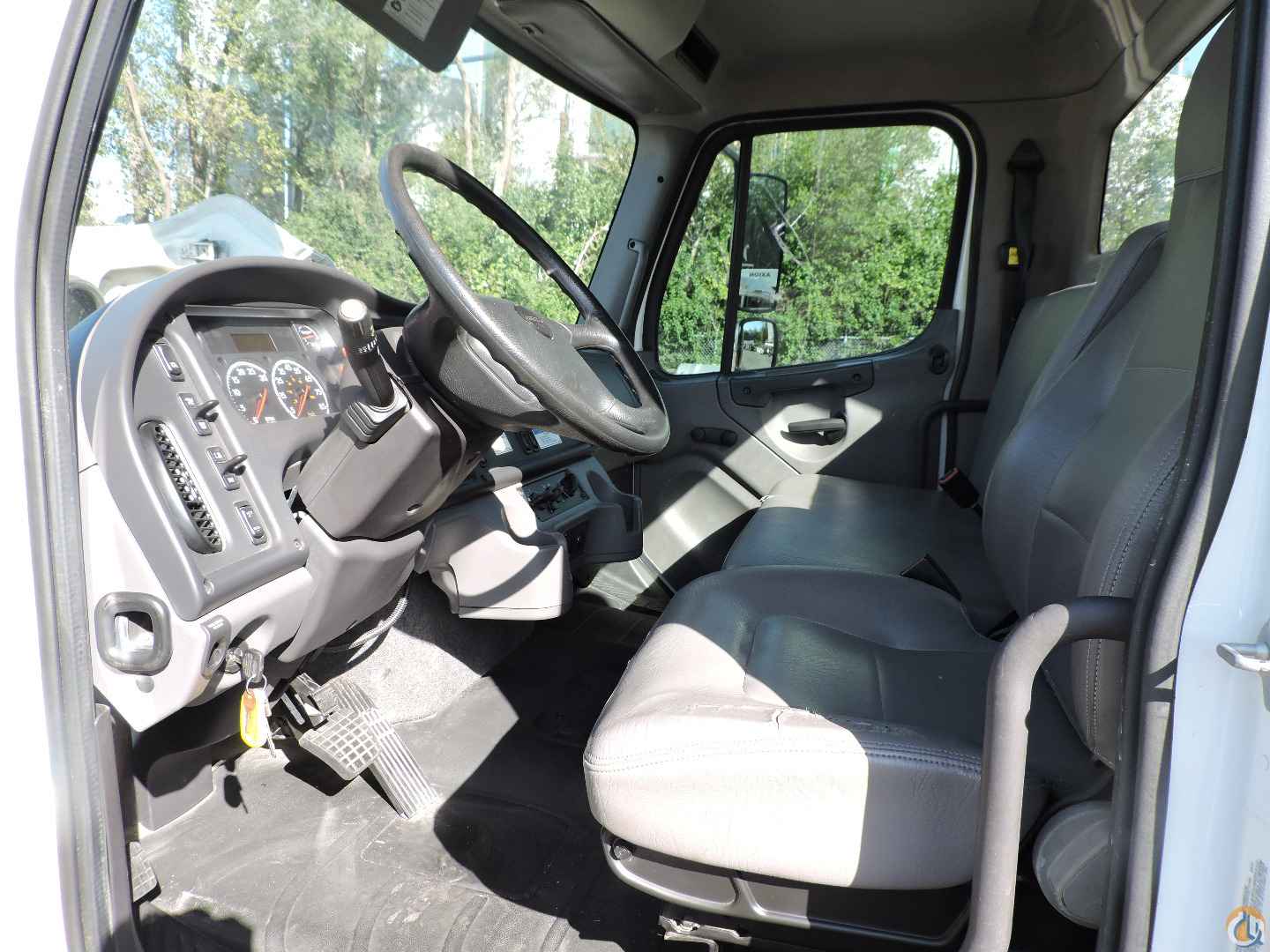

- Driver’s seat – high back, air suspension, vinyl

- Passenger’s – 2 person, mid-back, non-suspension, vinyl

- Tilt and telescoping steering column

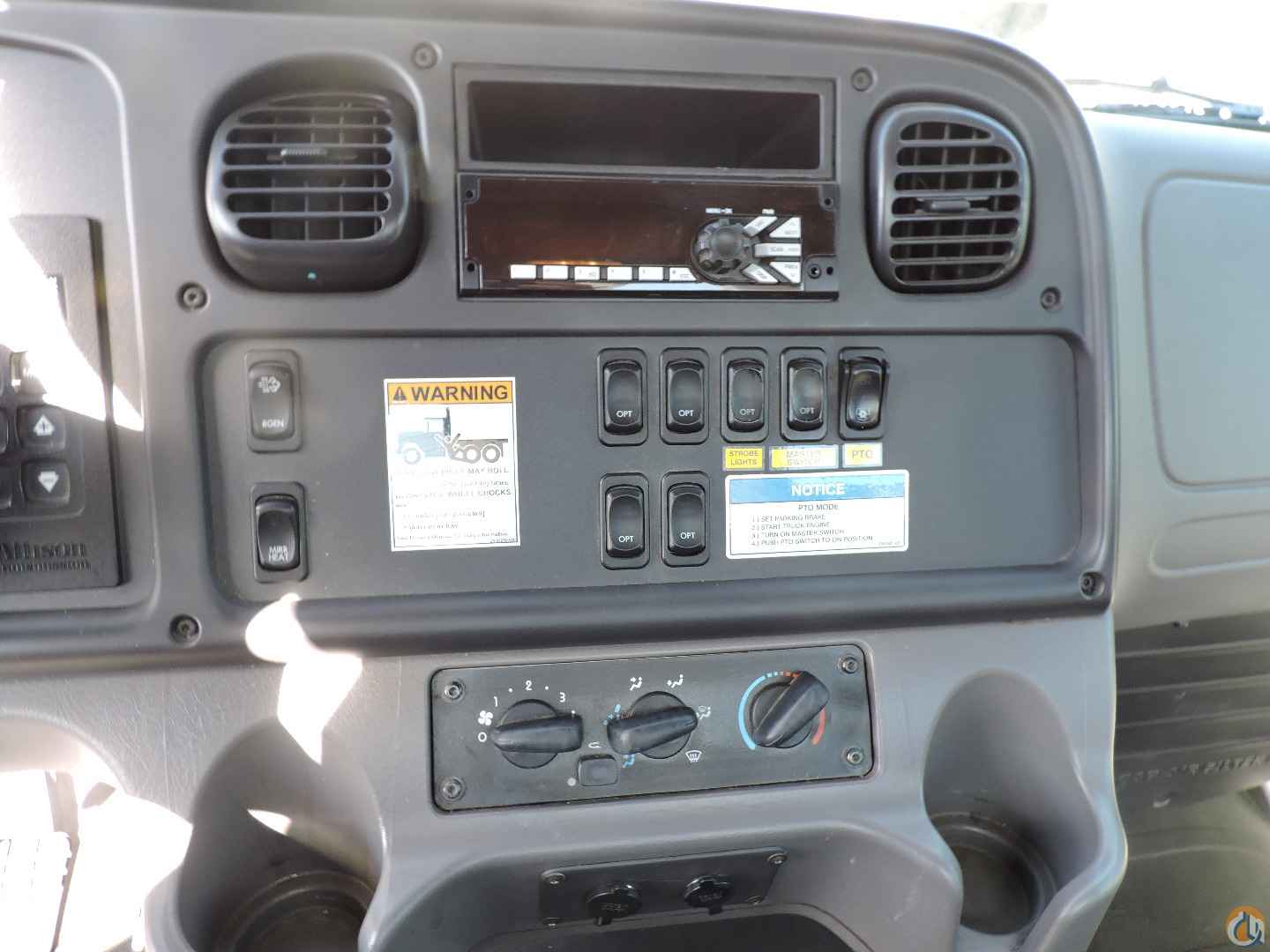

- AM/FM radio with aux input jacks

- Painted white
