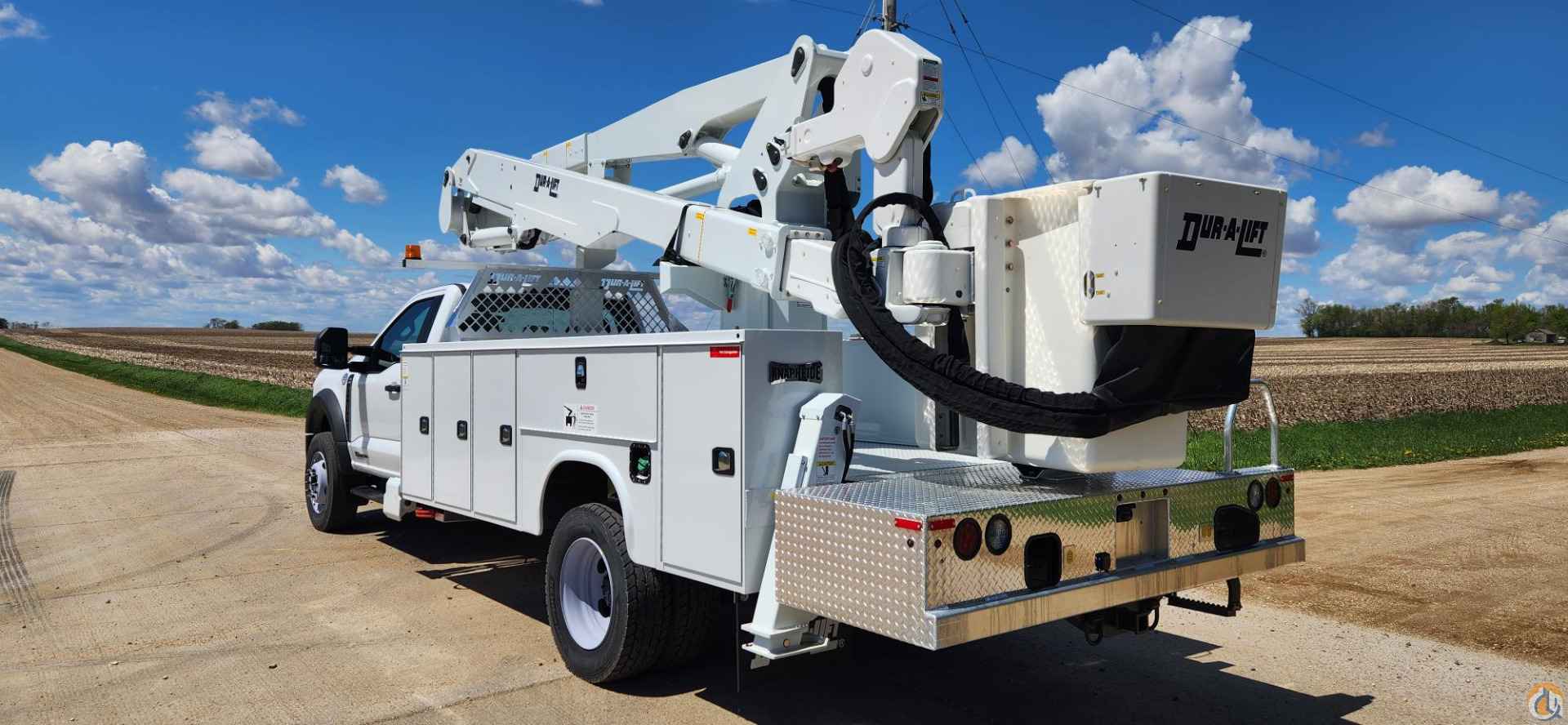

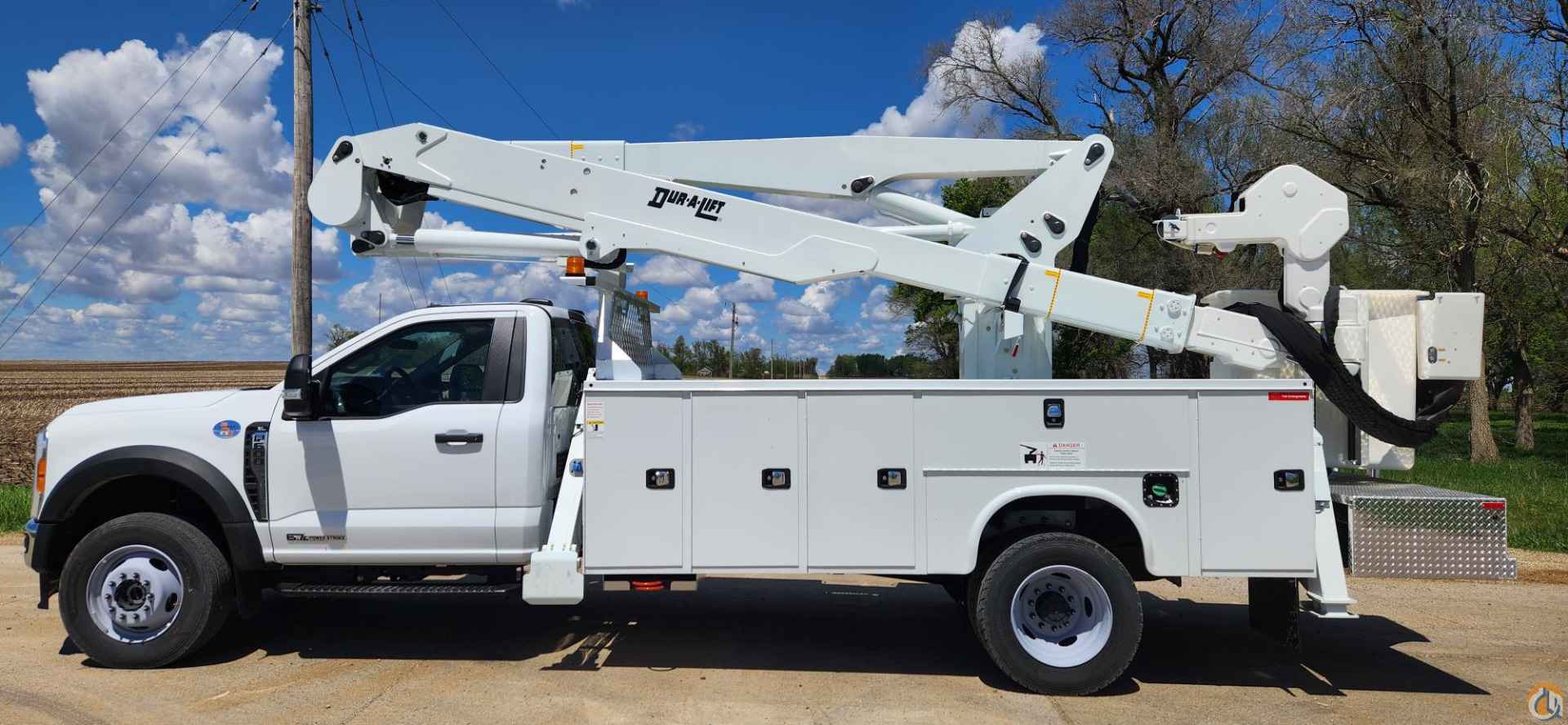

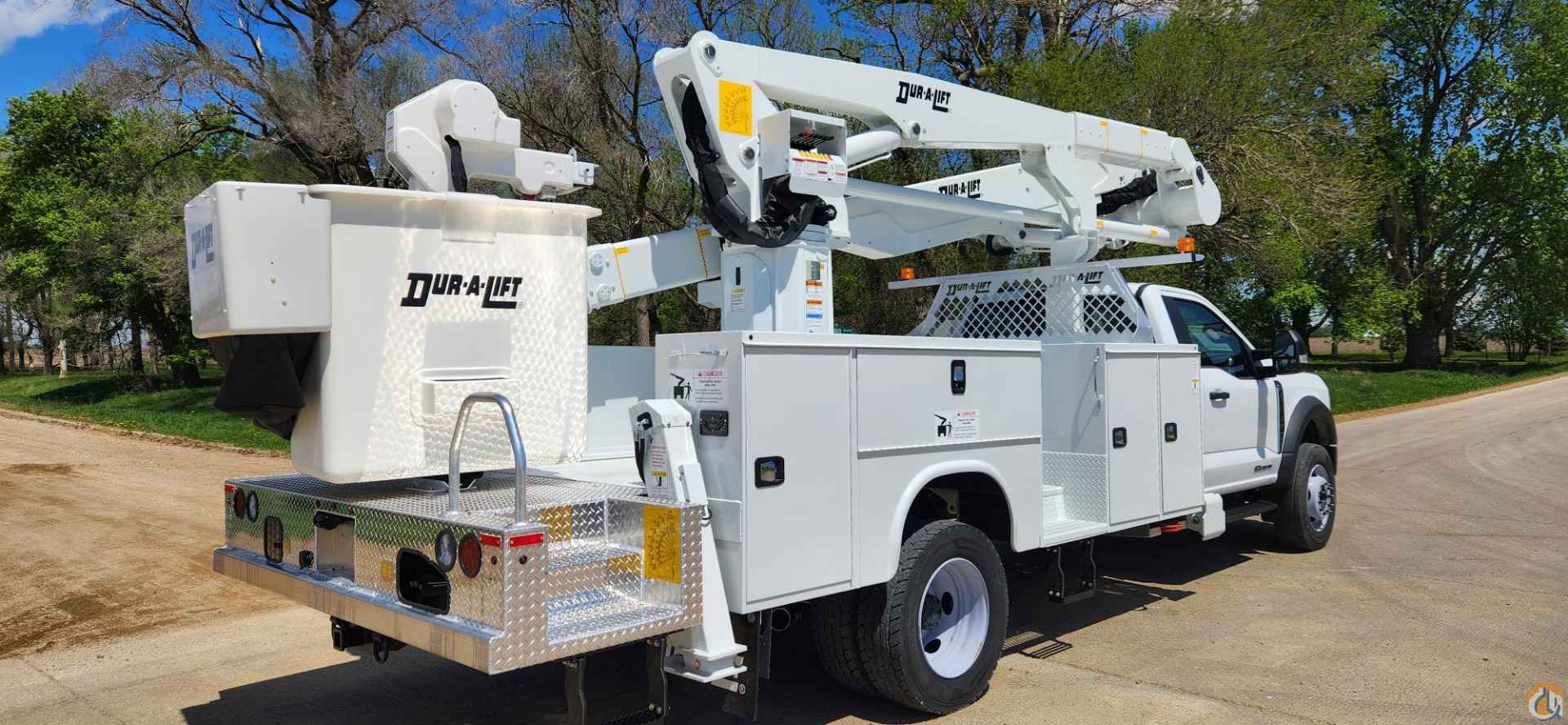

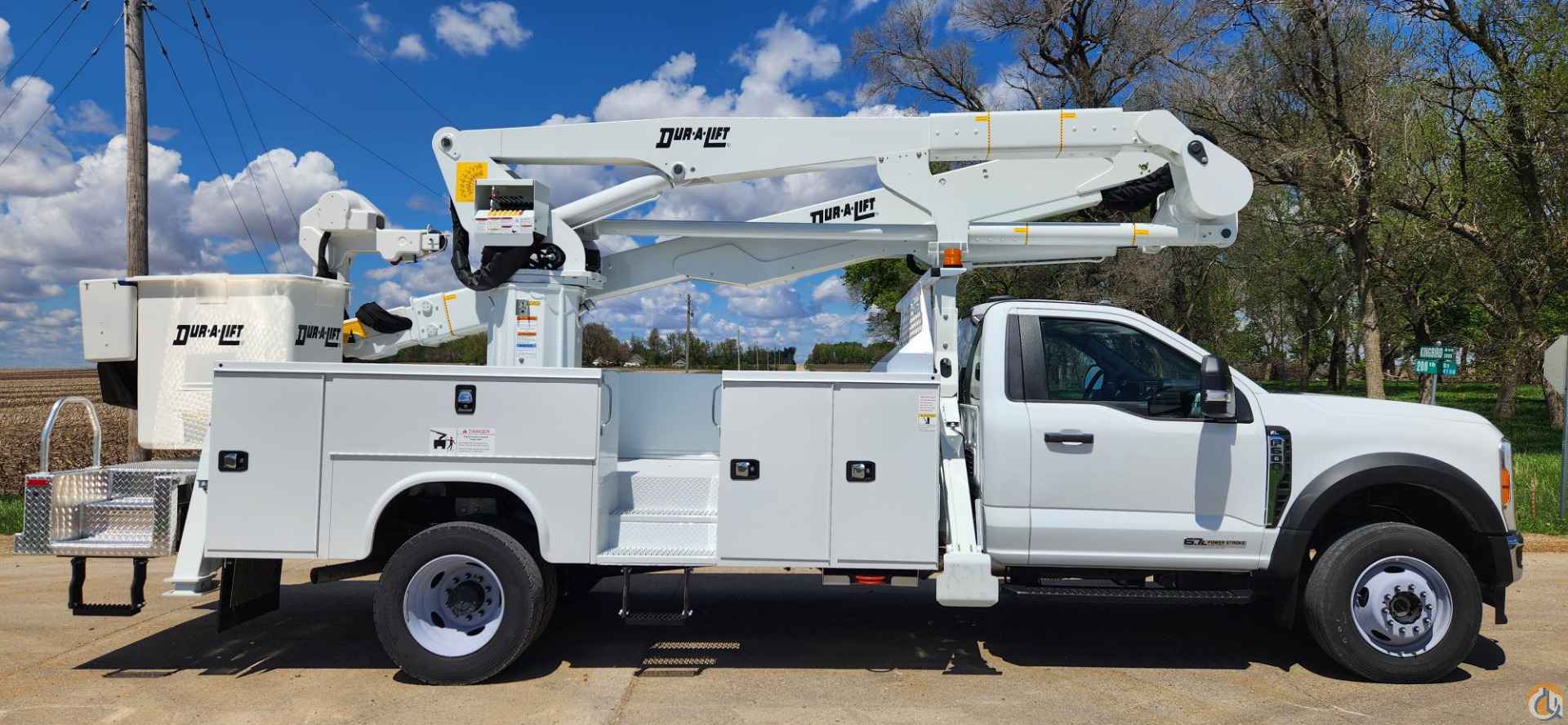

Dur-A-Lift Model DPM2-52DU equipped as follows:

- CAT C Insulated aerial device

- 57’ working height, 59’ working height with basket elevator

- 54’ height to bottom of basket

- Main boom fiberglass insert

- Chassis isolator insert

- 31’-6” side reach

- 24” x 42” x 42” fiberglass basket with step, including basket liner, clips, and cover

- 550# basket capacity when not using winch

- 400# basket capacity when using jib

- Hydraulically extendable jib. Jib is top-mounted with a maximum capacity of 1000#

- Hydraulic leveling, stow, and dump

- 180° basket rotator

- Body harness & lanyard

- Continuous rotation

- Transmission mounted P.T.O, pump and hydraulic reservoir

- 12 volt emergency hydraulic backup system

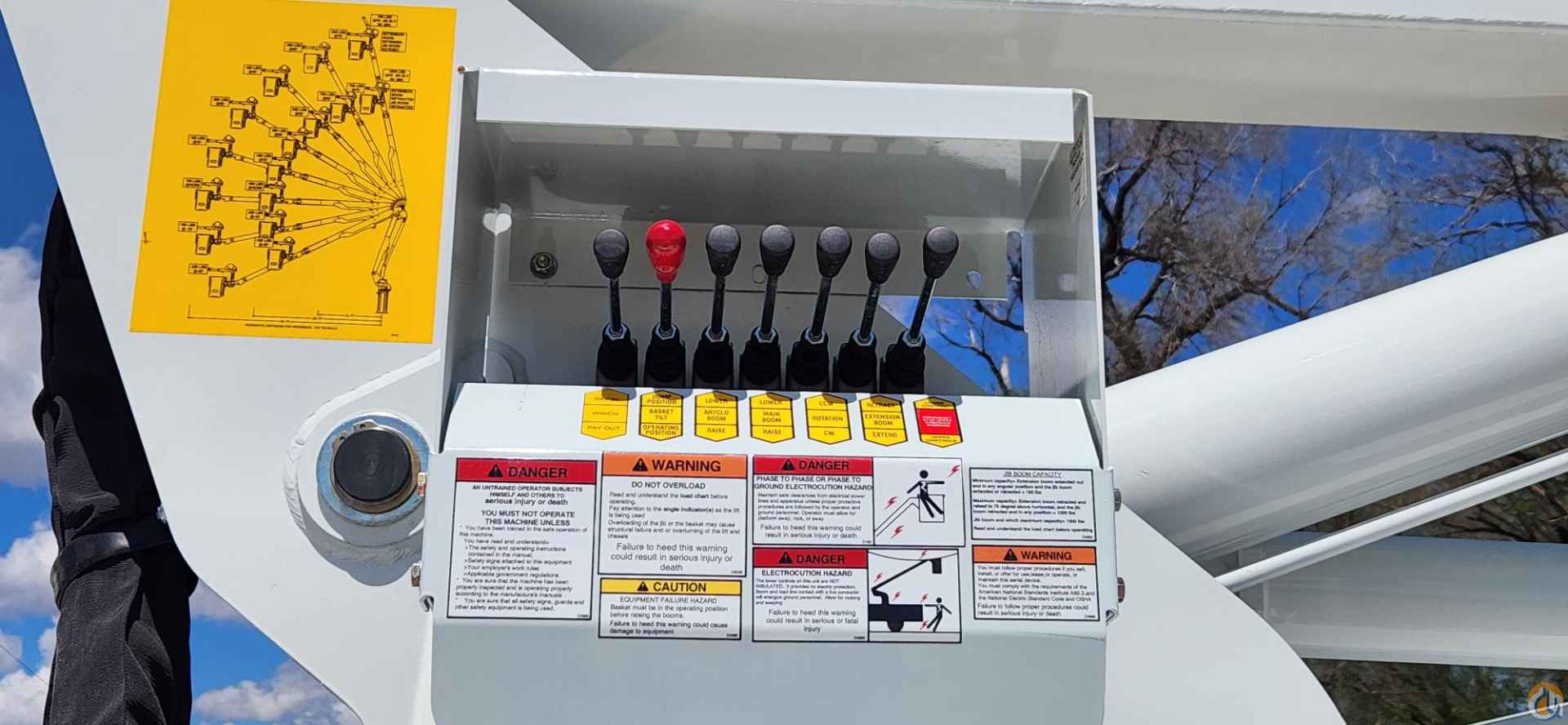

- Upper & lower operation controls with emergency shut down and start/stop controls

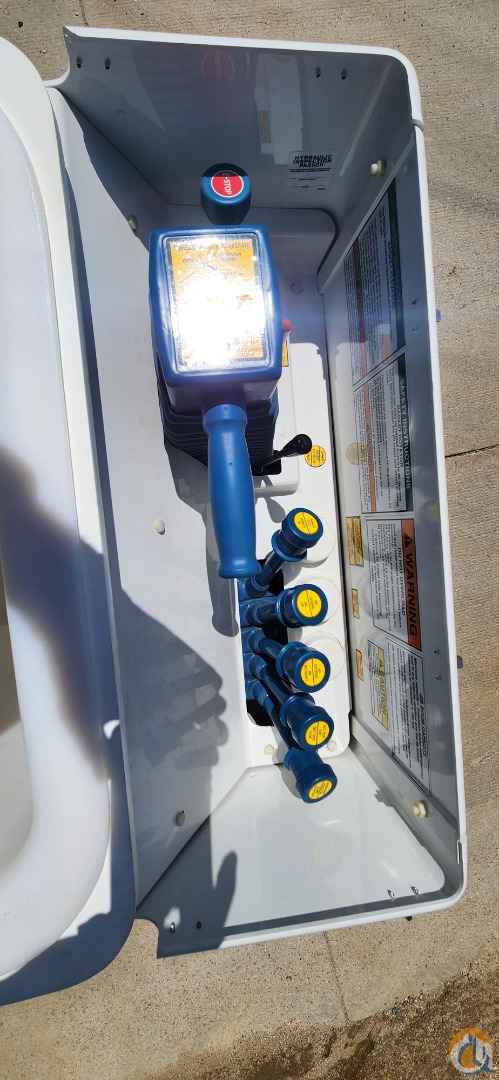

- 4-axis HERC joystick control

- Hydraulic tool circuit at bucket

- A frame outriggers with outrigger interlock, mid mount and rear mount

- Outrigger motion alarm

- Four 18” x 18” composite outrigger pads with two (2) outrigger pad holders

- Two (2) LED dome strobe lights

- Timbren load boosters on front and rear axle

Knapheide 6150D54 steel service body equipped as follows:

- 94” wide

- 149” long

- Compartments (both sides)

- Compartments depth 20”

- 1V – 18.75” W x 40” H

- 2V – 21” W x 40” H

- 3V – 20.75” W x 40” H

- 3V – Curbside walkup

- H – 52.75” W x 18 ½” H

- 4V – 20.75” W x 40” H

- 30” x 94” walkup tail shelf with belt step assembly and pool handle

- Backup alarm

- Fire extinguisher

- Reflector kit

- 2” Pintle/Ball and 7 pin trailer receptacle

- C shape grounding lug

MOUNTED ON:

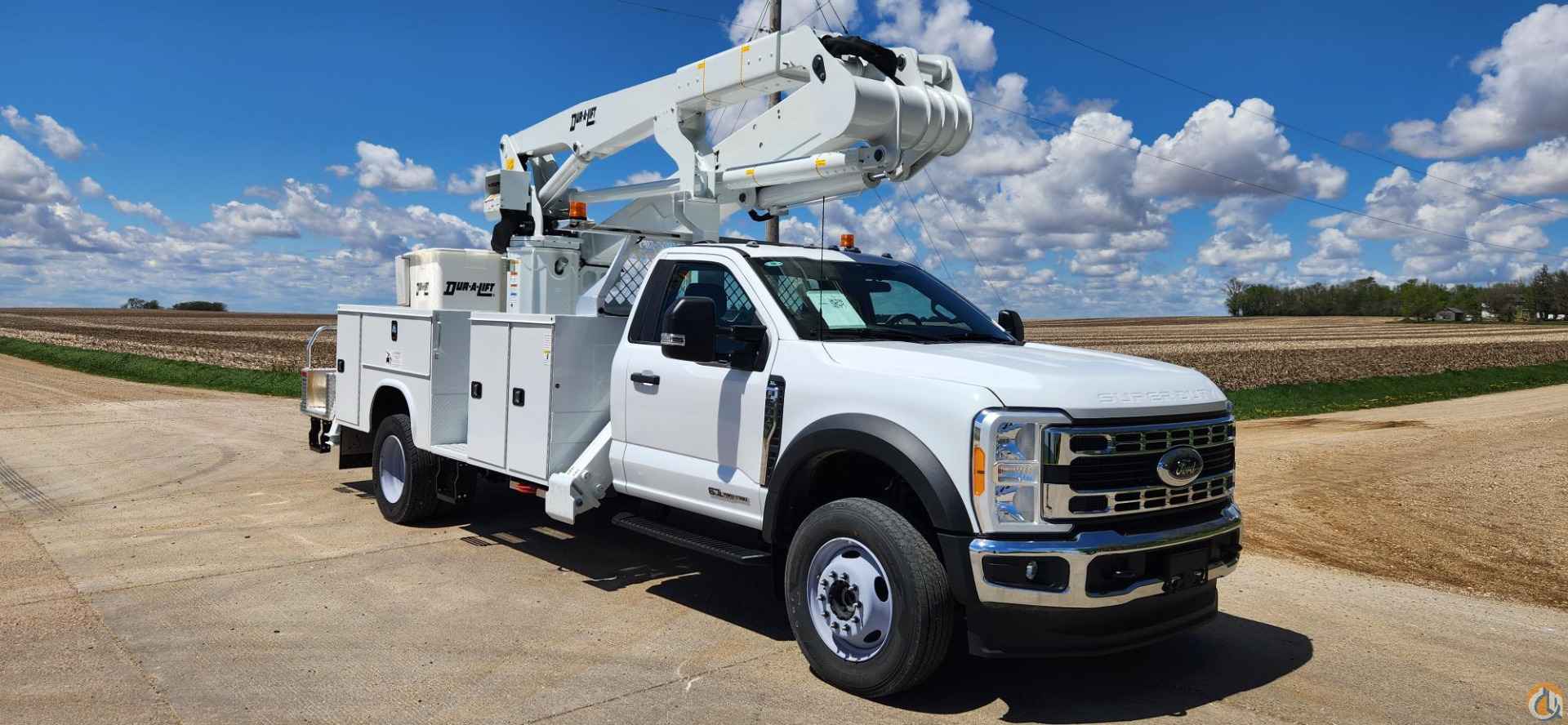

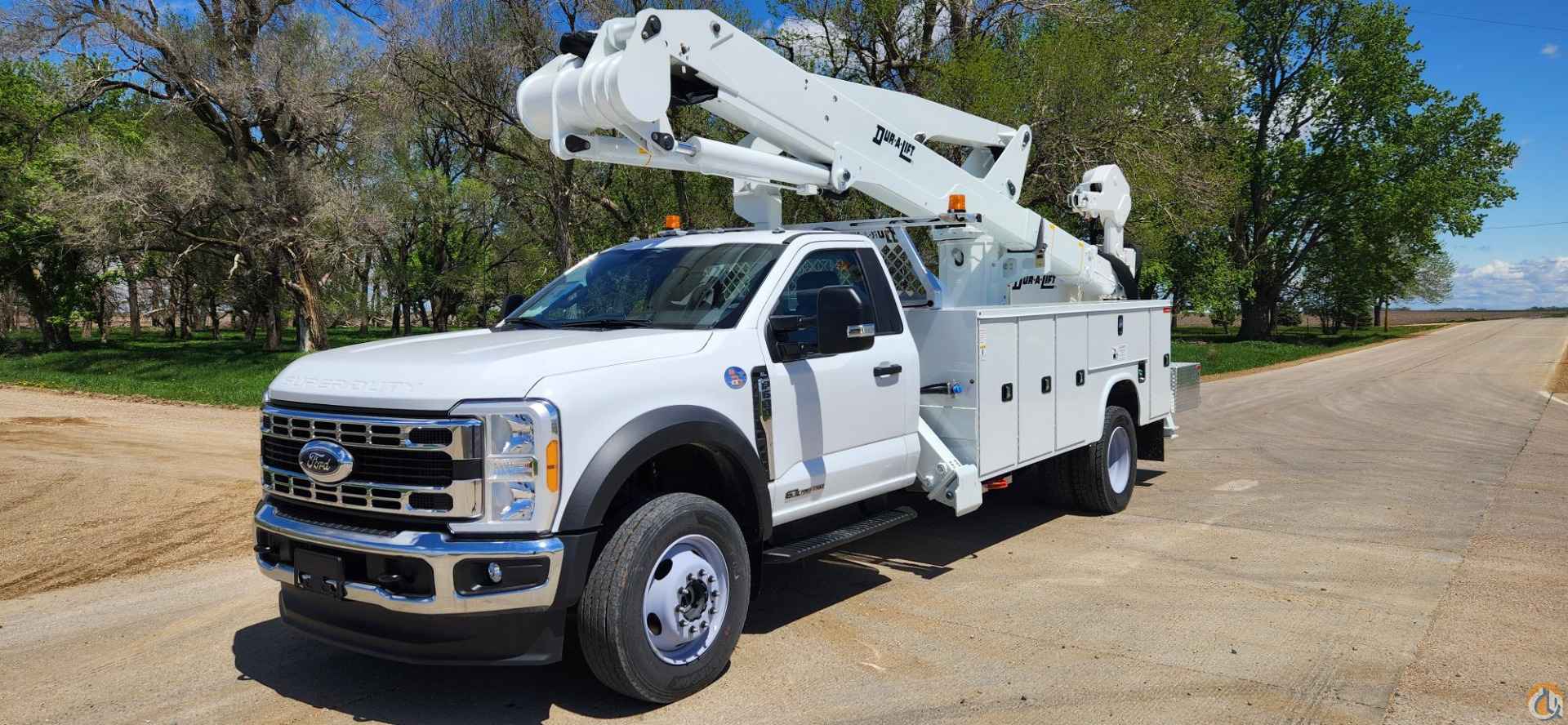

2022 Ford F600 4x4 equipped as follows:

- 22,000 GVWR

- 6.7L Power Stroke V8 turbo diesel engine – 330hp at 2,600, (825 lb. /ft. @ 2000 RPM)

- TorqueShift 10-speed automatic transmission

- Engine block heater

- Front and rear 19.5” steel wheels

- Tires – 245/70Rx19.5G BSW traction

- Front axle 7,500lbs

- Rear axles 15,500lbs

- 169” wheelbase

- 4-wheel ABS brakes

- Air conditioning

- Chrome bumper

- Platform running boards

- Rearview camera

- Cruise control

- 40-gallon fuel tank

- SYNC communication with Bluetooth, AM/FM

- Power windows and locks with keyless entry

- 40/20/40 split bench seat- vinyl

- Color white
