Dur-A-Lift Model DPM2-52DU equipped as follows:

- CAT C Insulated aerial device

- 57’ working height, 59’ working height with basket elevator

- 54’ height to bottom of basket

- Main boom fiberglass insert

- Chassis isolator insert

- 31’-6” side reach

- 24” x 42” x 42” fiberglass basket with step, liner, and cover

- 550# basket capacity when not using winch

- 400# basket capacity when using jib

- Hydraulically extendable jib. Jib is top-mounted with a maximum
capacity of 1000#

- Hydraulic leveling, stow, and dump

- 180° basket rotator

- Body harness & lanyard

- Continuous rotation

- Transmission mounted P.T.O, pump and hydraulic reservoir

- 12 volt emergency hydraulic backup system

- Upper & lower operation controls with emergency shut down and
start/stop controls

- 4-axis HERC joystick control

- Hydraulic tool circuit at bucket

- A-frame outriggers with outrigger interlock, mid mount and rear mount

- Four 18” x 18” composite outrigger pads with two (2) outrigger pad
holders

- Four corner LED strobe lights

- Timbren load boosters on front and rear axle

Dakota Aluminum service body equipped as follows:

- 94” wide

- 150” long

- Compartments (both sides)

- Compartments depth 20”

- 1V – 26” W x 48”

- 2V – 24”

- 2V – Curbside walk up

- 3V – 24” W

- H – 54” x 17”

- RV – 22” W x 48”

- 30” x 94” walkup tail shelf with belt step assembly and pool handle

- Fire extinguisher

- Reflector kit

- 2” Pintle/Ball and 7 pin trailer receptacle

MOUNTED ON:

2021 Ford F600 XL 4x4 equipped as follows:

- 22,000 GVWR

- 6.7L Power Stroke V8 turbo diesel engine – 330hp at 2,600,
(750 lb. /ft. @ 2000 RPM)

- TorqueShift 10-speed automatic transmission

- Engine block heater

- Front and rear 19.5” steel wheels

- Tires – 245/70Rx19.5 traction

- Front axle 7,500lbs

- Rear axles 15,500lbs

- 4-wheel ABS brakes

- Air conditioning

- Platform running boards

- Bright grille and chromed grille

- Rearview camera

- Power steering

- Cruise control

- 40-gallon fuel tank

- SYNC communication with Bluetooth, AM/FM

- Power windows and locks with keyless entry

- 40/20/40 split bench seat- vinyl

- Color white

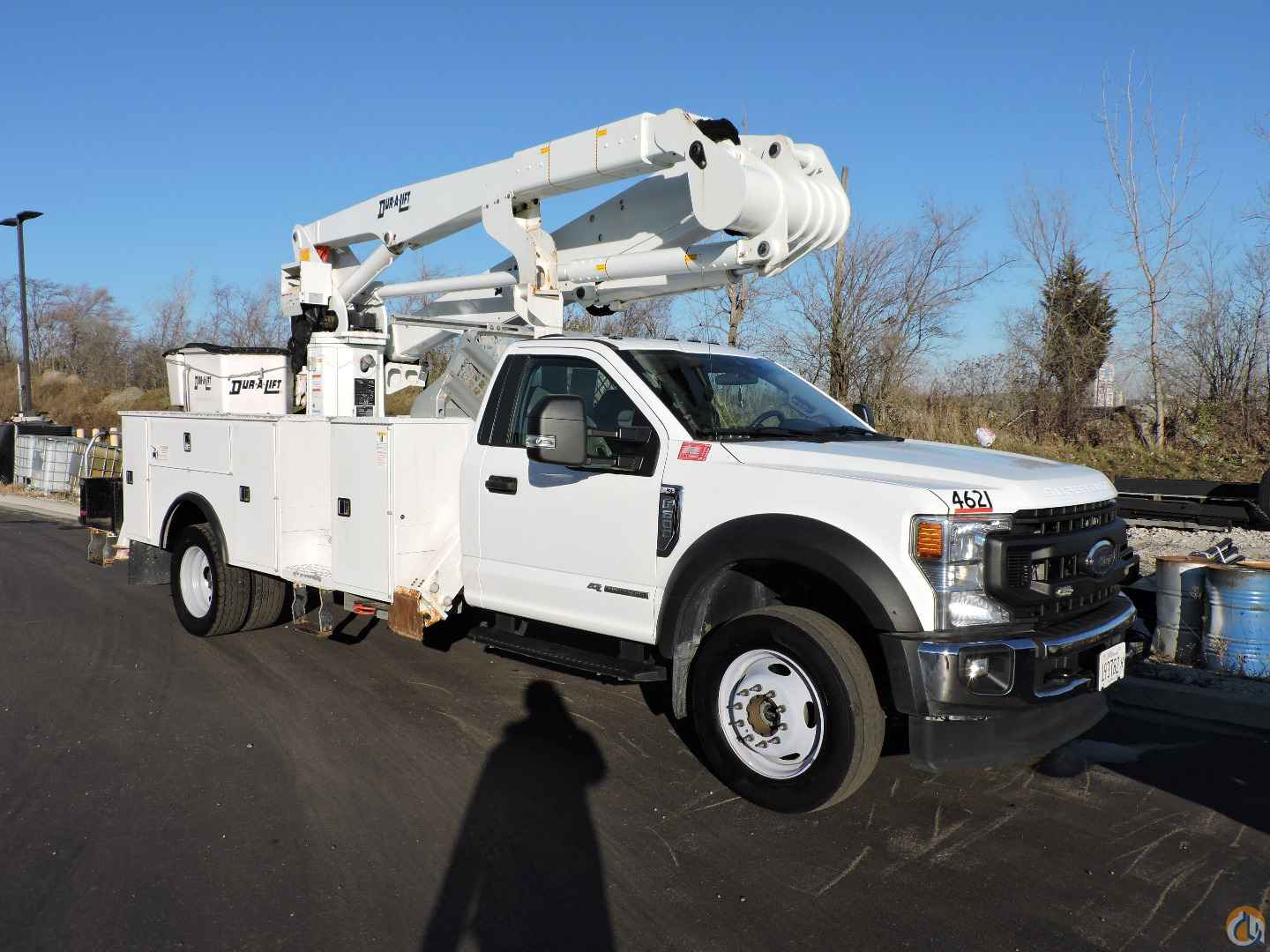

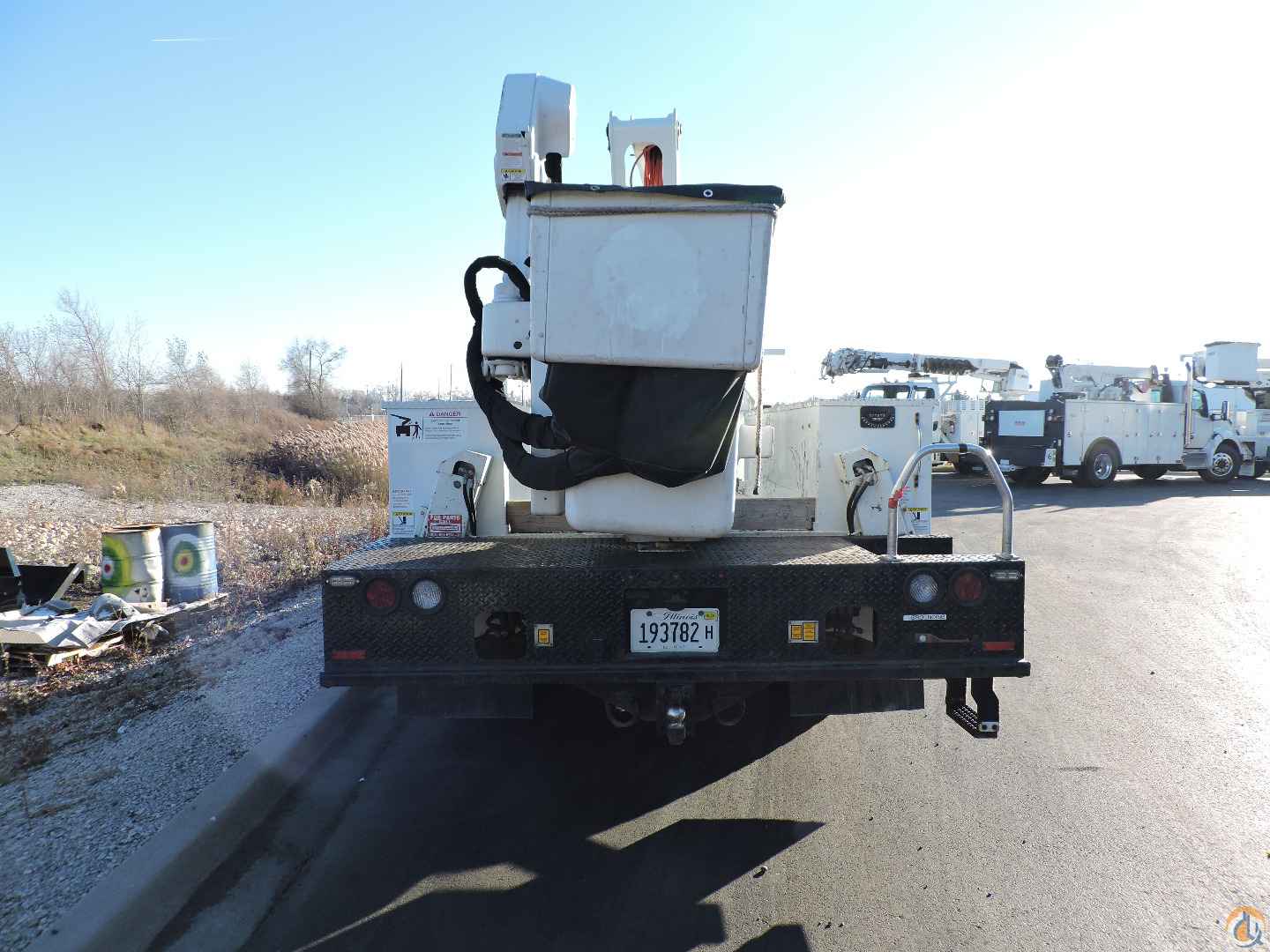

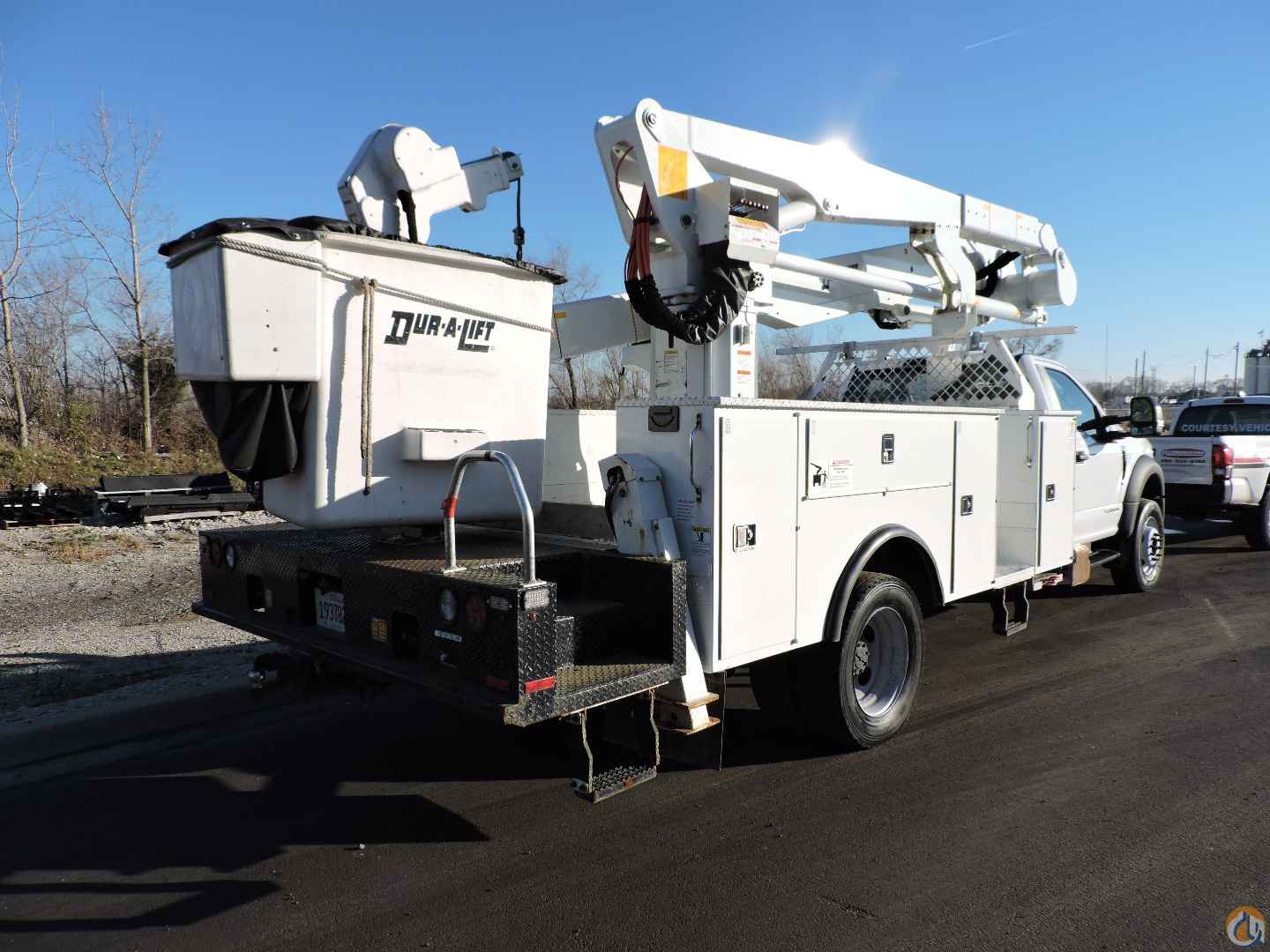

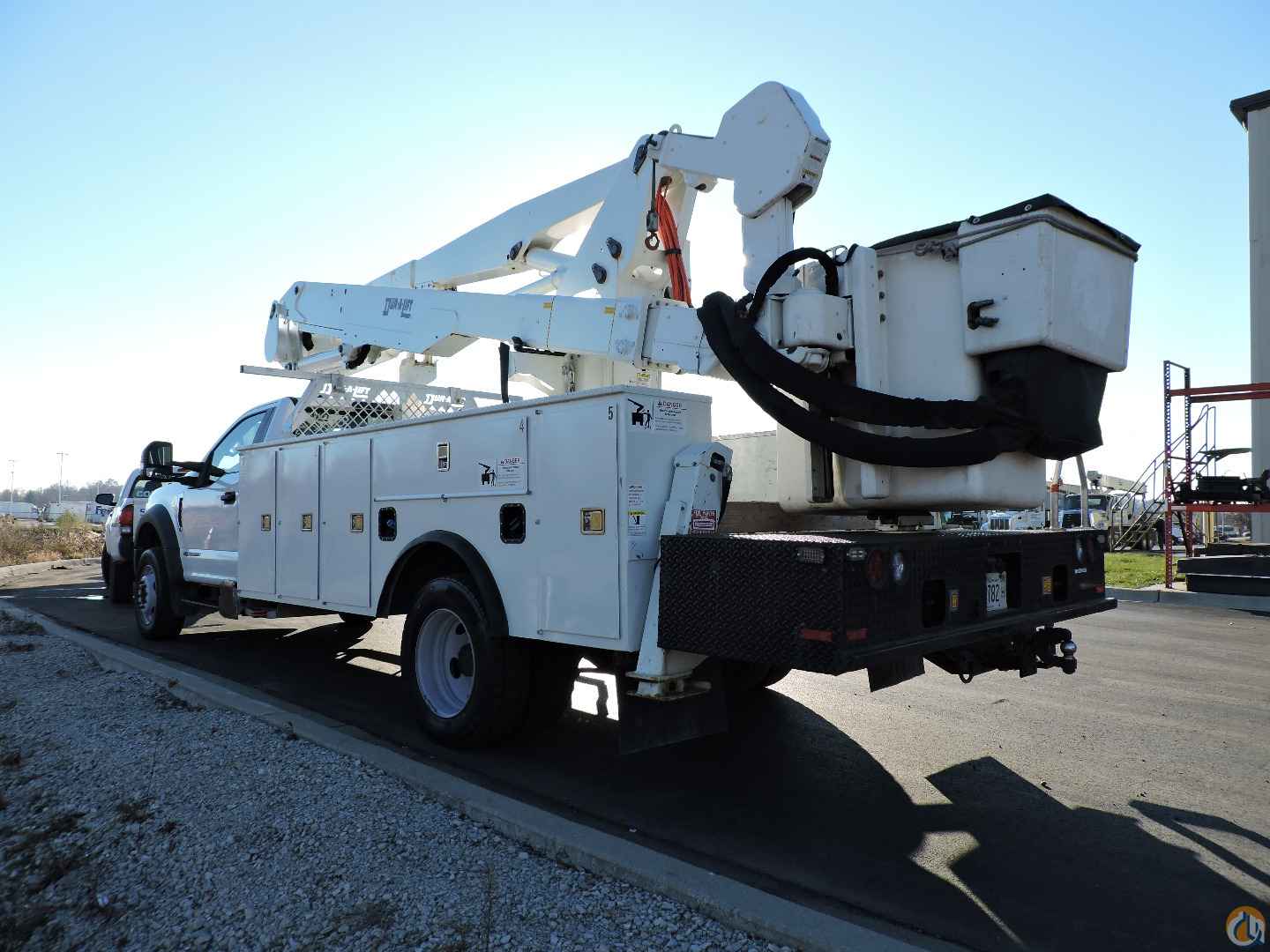

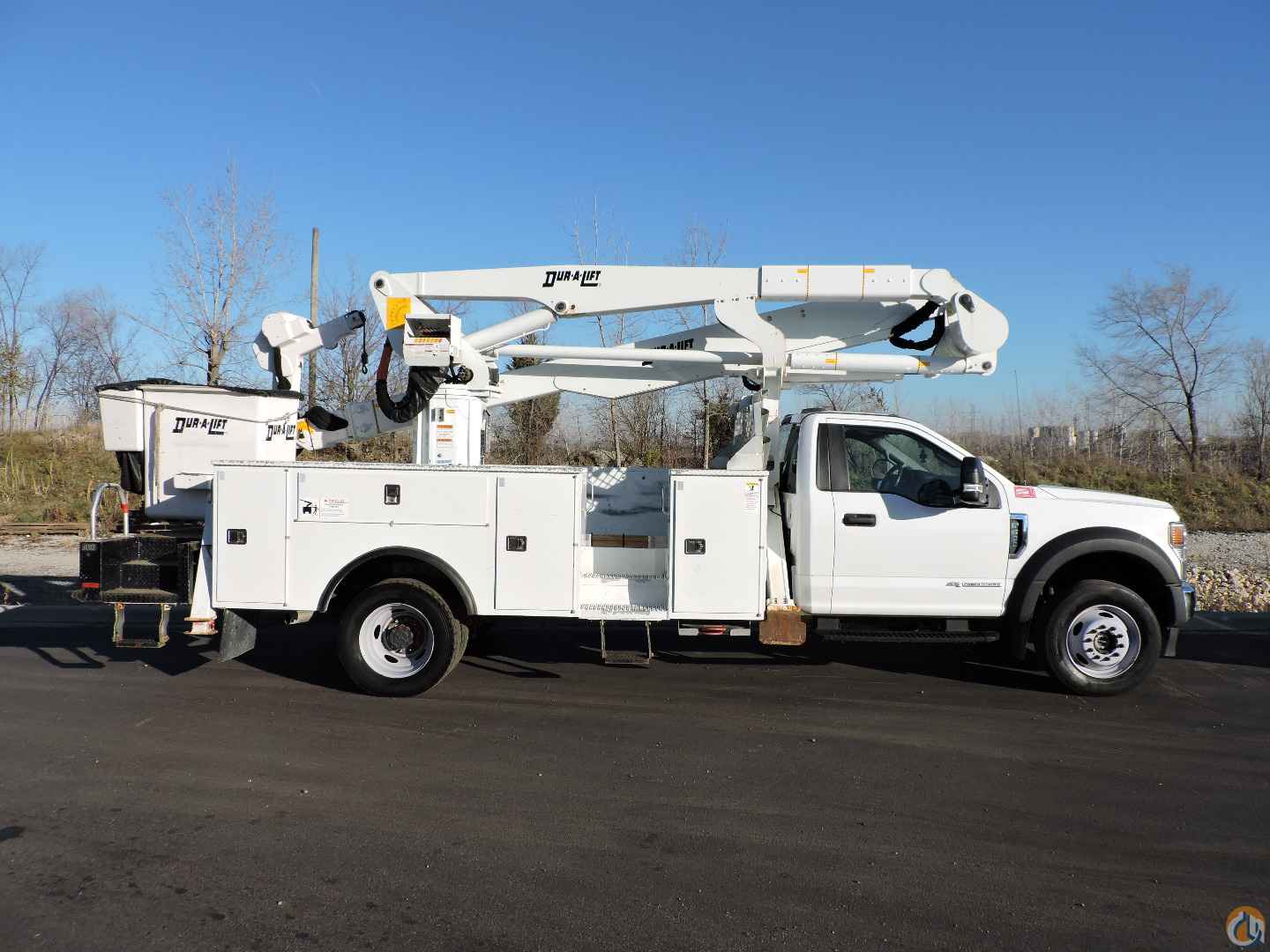

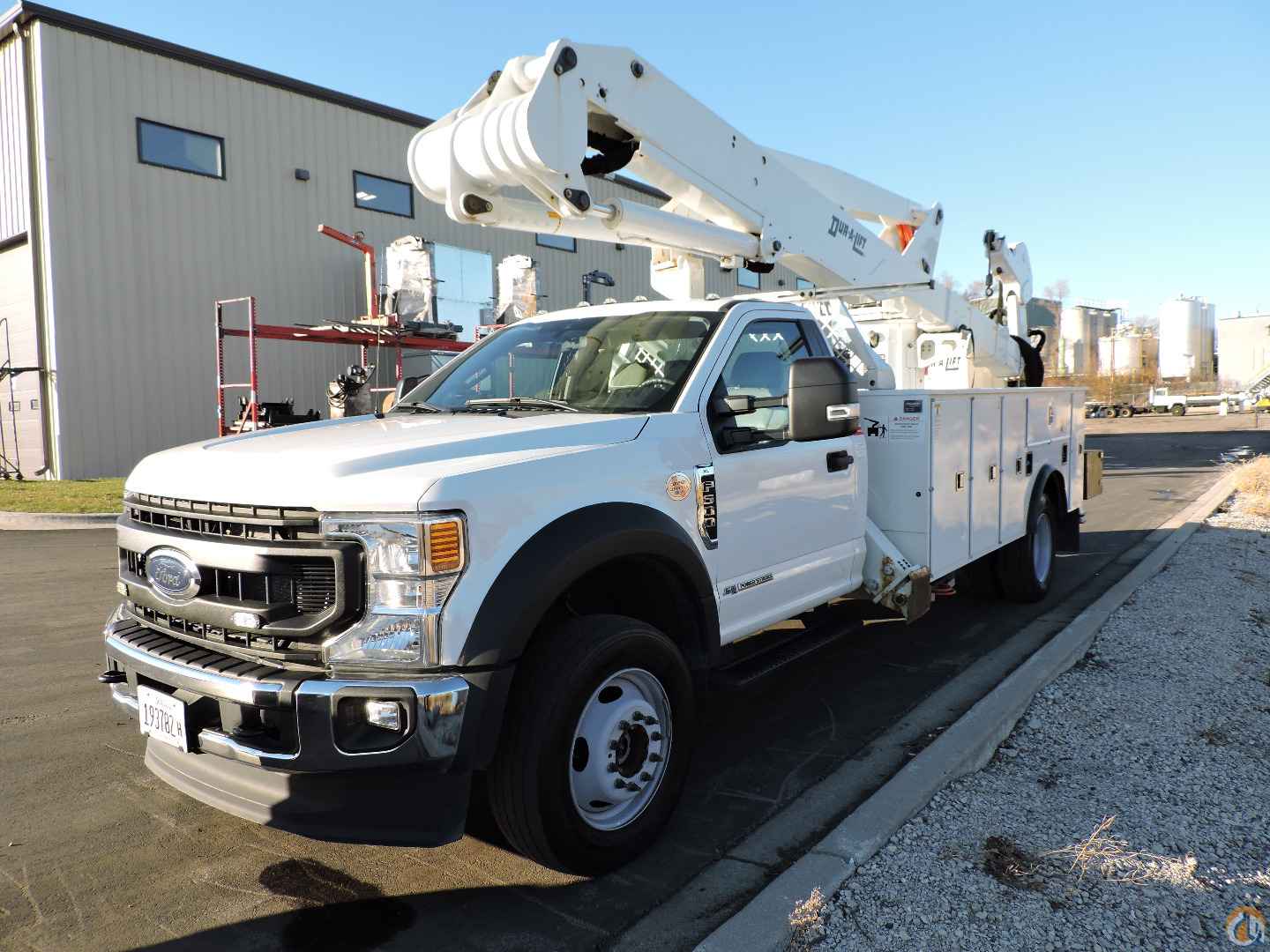

STOCK PHOTOS
