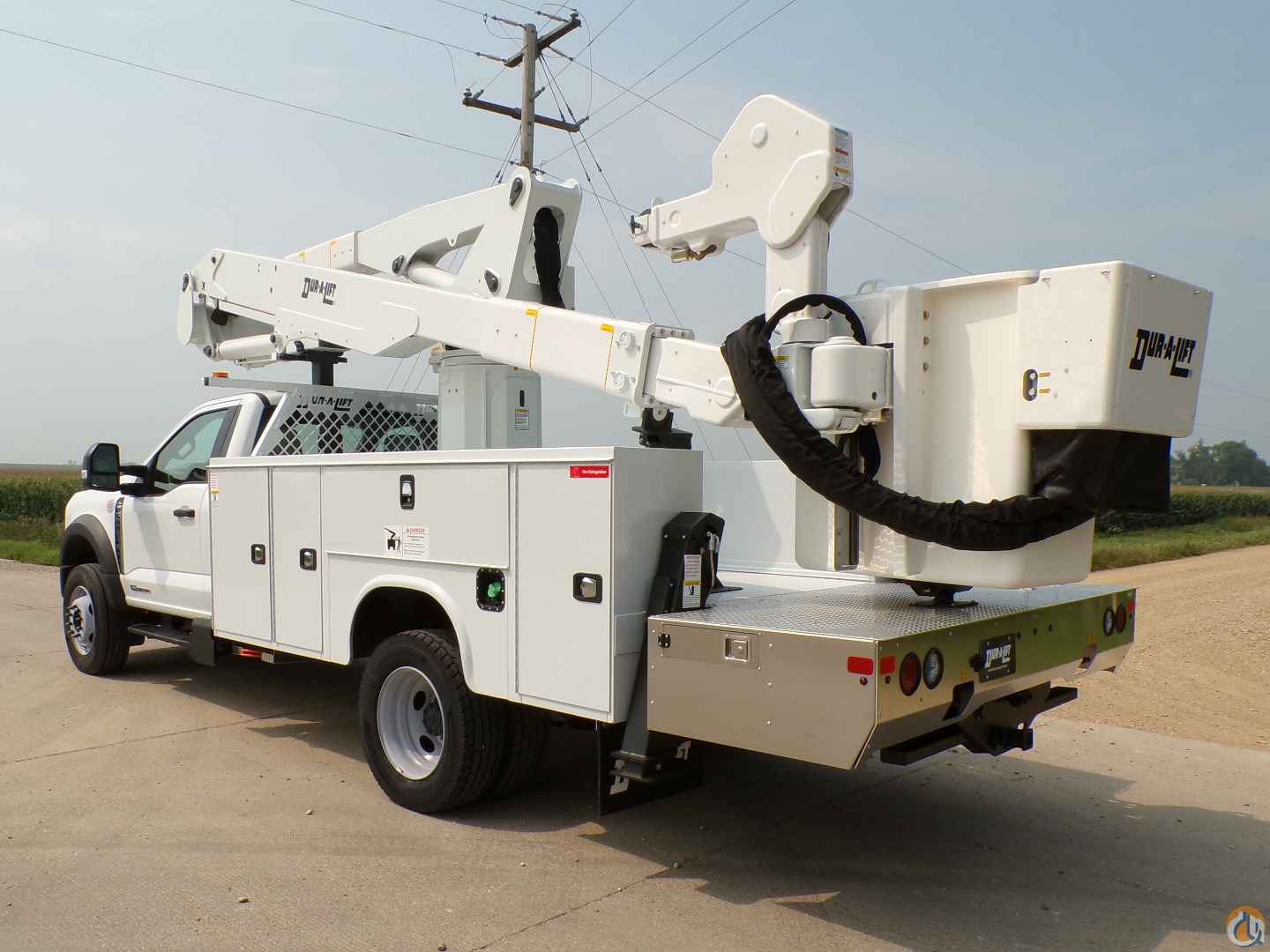

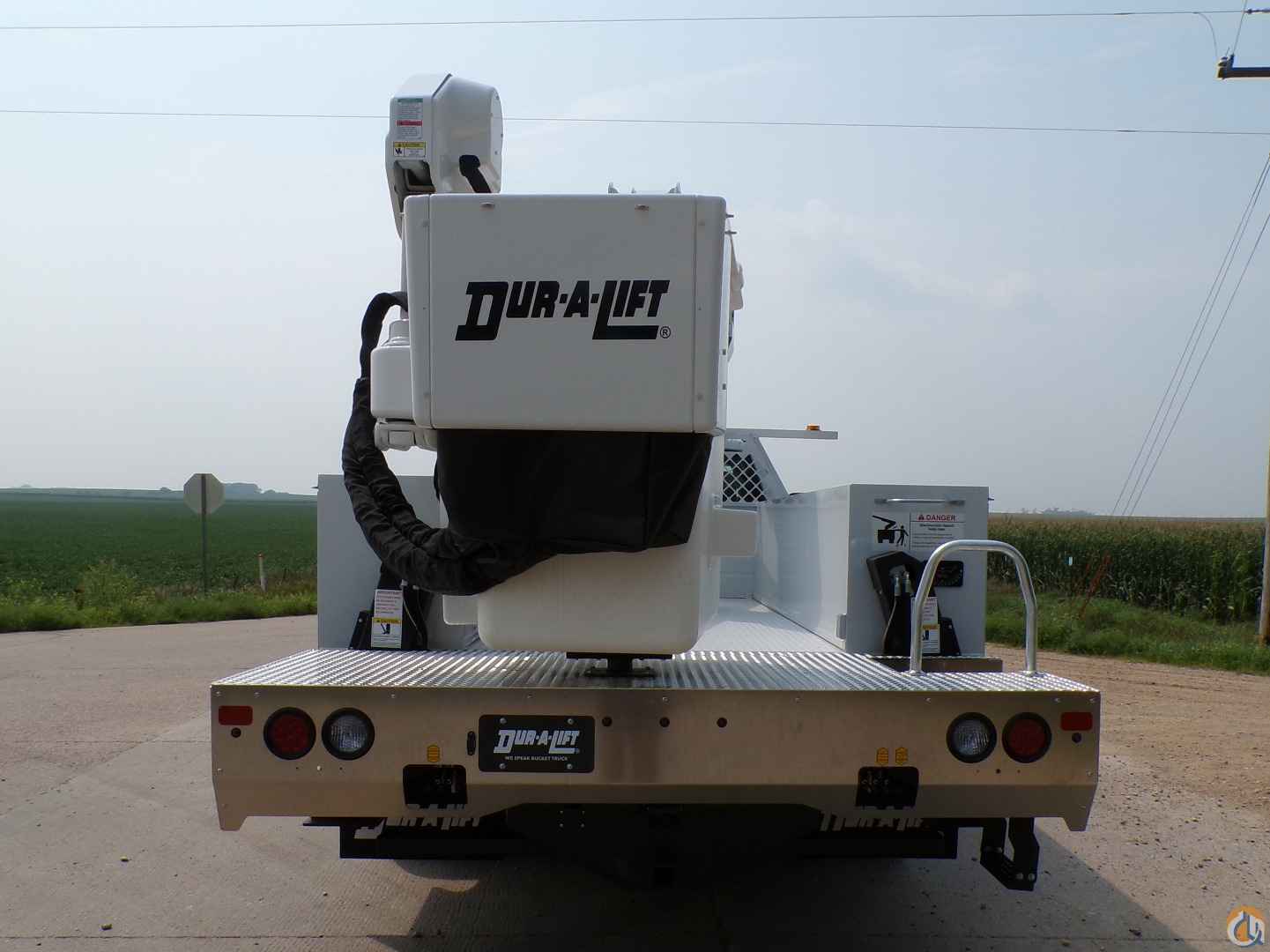

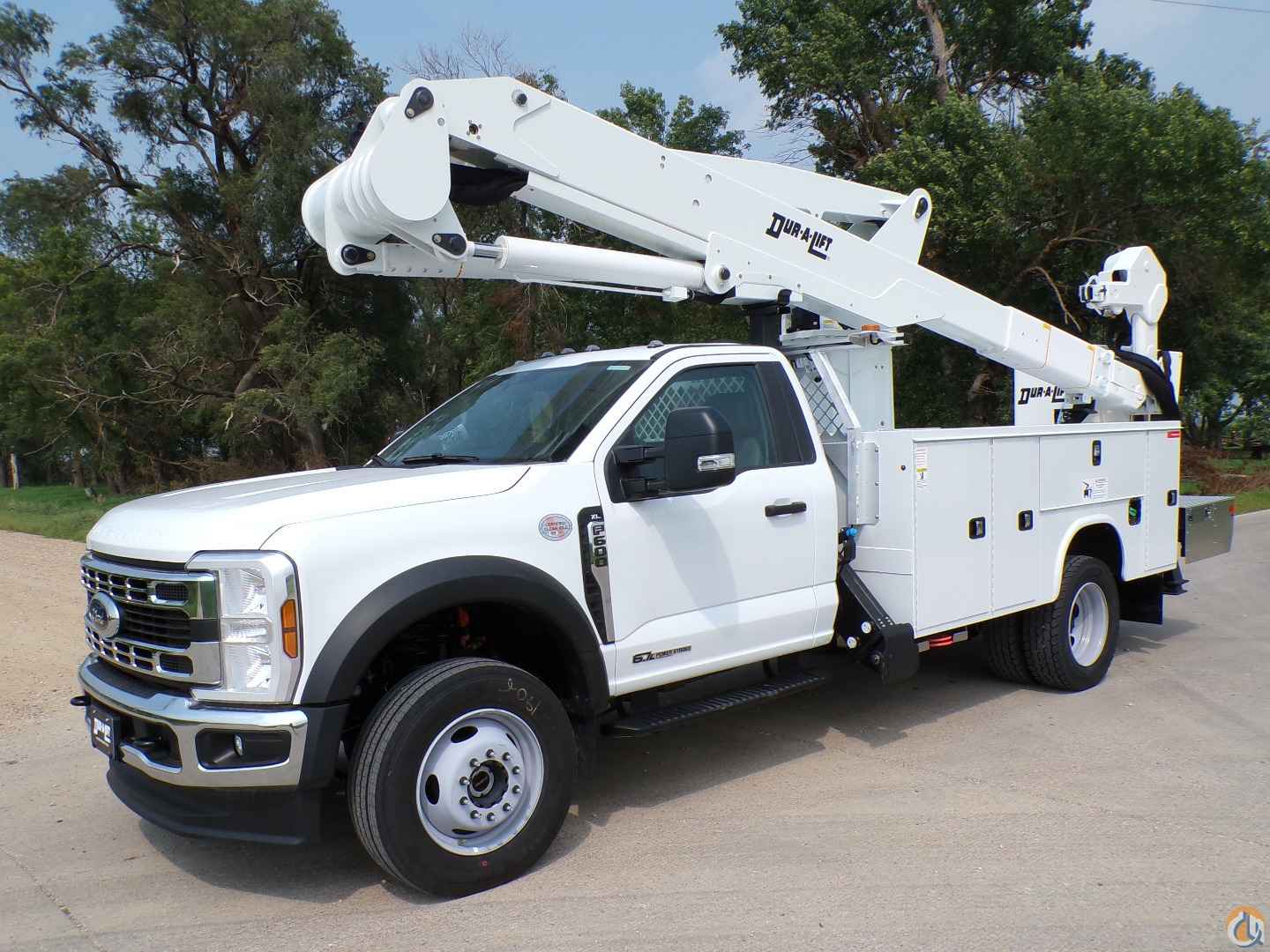

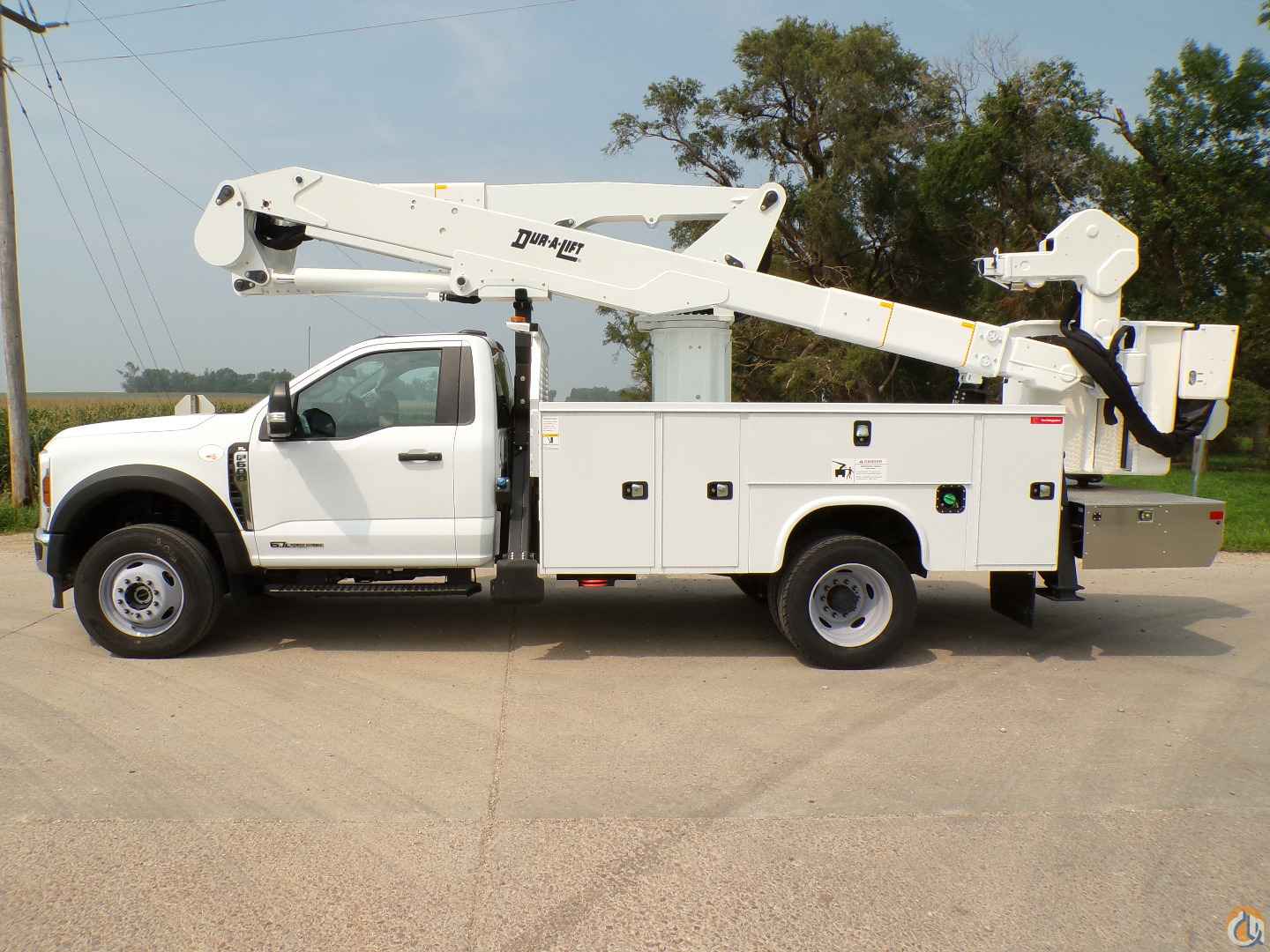

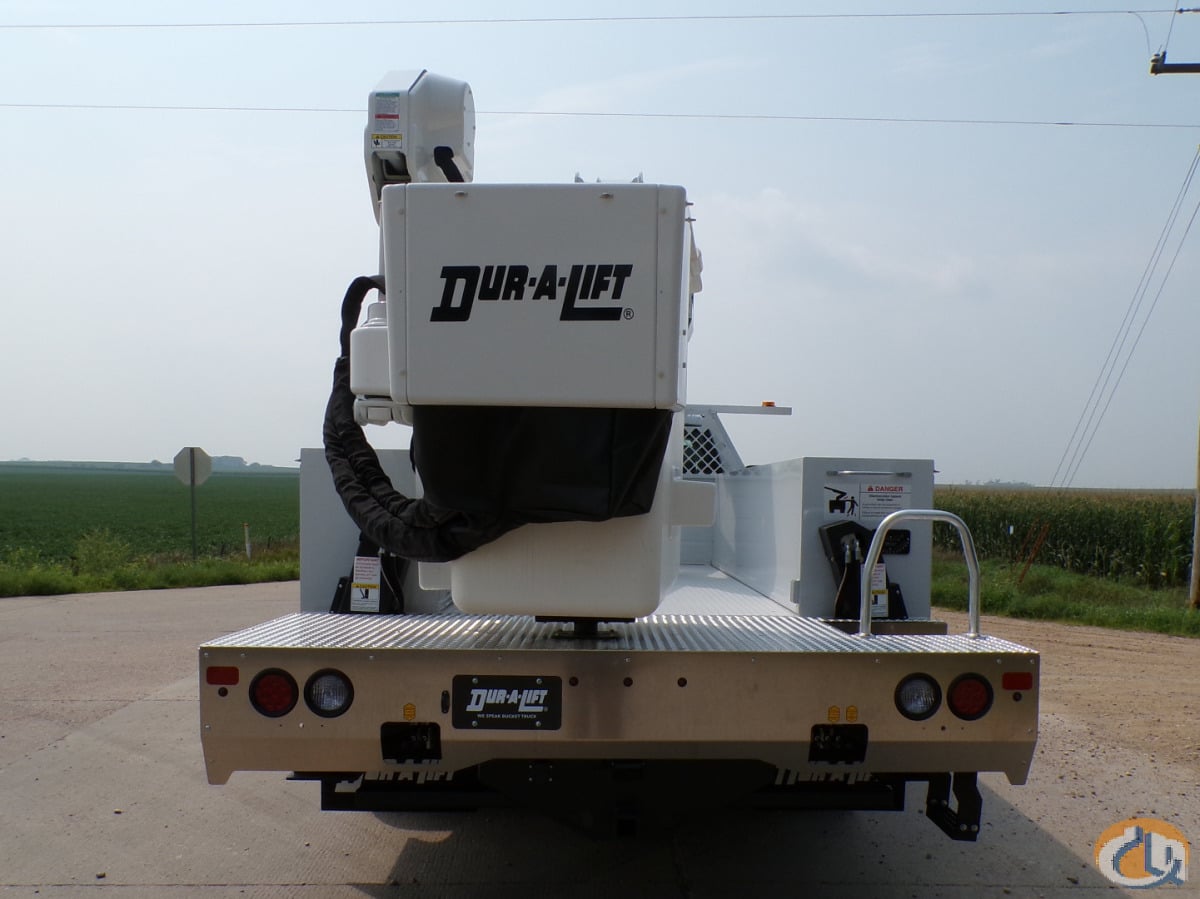

Dur-A-Lift Model DPM2-47DU equipped as follows:

-          CAT C Insulated aerial device

-          52’ working height, 54’ working height with basket elevator

-          49’ height to bottom of basket

-          Main boom fiberglass insert

-          Chassis isolator insert

-          31.5’ side reach

-          24” x 42” x 42” fiberglass basket with step and cover, and liner

-          550# basket capacity when not using winch

-          400# basket capacity when using jib

-          Hydraulically extendable jib. Jib is top-mounted with a maximum capacity of 1000#

-          Hydraulic leveling, stow, and dump

-          180-degree basket rotator

-          Body harness & lanyard

-          Continuous rotation

-          Transmission mounted P.T.O and pump

-          12 volt emergency backup system

-          Upper & lower operation controls with emergency shut down and start/stop controls

-          4-axis HERC joystick control

-          Tool circuit at bucket

-          A-frame outriggers with outrigger interlock, mid mount and rear mount

-          Four 18” x 18” composite outrigger pads with two outrigger pad holders

-          Two (2) LED dome strobe lights

-          Timbren load boosters on front and rear axle

-          36” x 94” aluminum tailshelf and through box

-          Chrome grab handle

-          2” Pintle/Ball and 7 pin trailer receptacle

-          Backup alarm

-          Fire extinguisher

-          Reflector kit

Knapheide steel service body equipped as follows:

-          94” wide

-          Compartments (both sides)

-          Compartments depth 20”

-          1V - 34 ¼” L x 40” H

-          2V – 21” L x 40” H

-          H – 52 ¾” L x 18 ½” H

-          3V – 23 ¼” L x 40” H

MOUNTED ON:

2026 Ford F600 4x4 equipped as follows:

-          22,000 GVWR

-          6.7L 4V OHV Power Stroke V8 Turbo-Diesel B20 – 330 HP @ 2200 RPM, 950 lb/ft torque @ 1800 RPM

-          TorqShift 10-speed automatic transmission

-          Engine block heater

-          Front and rear 19.5” painted steel wheels

-          Tires – 245/70Rx19.5

-          Front axle 7,500 lb

-          Rear axles 15,500 lb

-          169” wheelbase

-          4-wheel ABS brakes

-          Air conditioning

-          Chrome bumper and black grille with chrome accents

-          40-gallon fuel tank

-          AM/FM stereo with LCD display and USB port

-          40/20/40 split bench seat- vinyl

-          Color white

STOCK PHOTOS - Available Q1 2026
