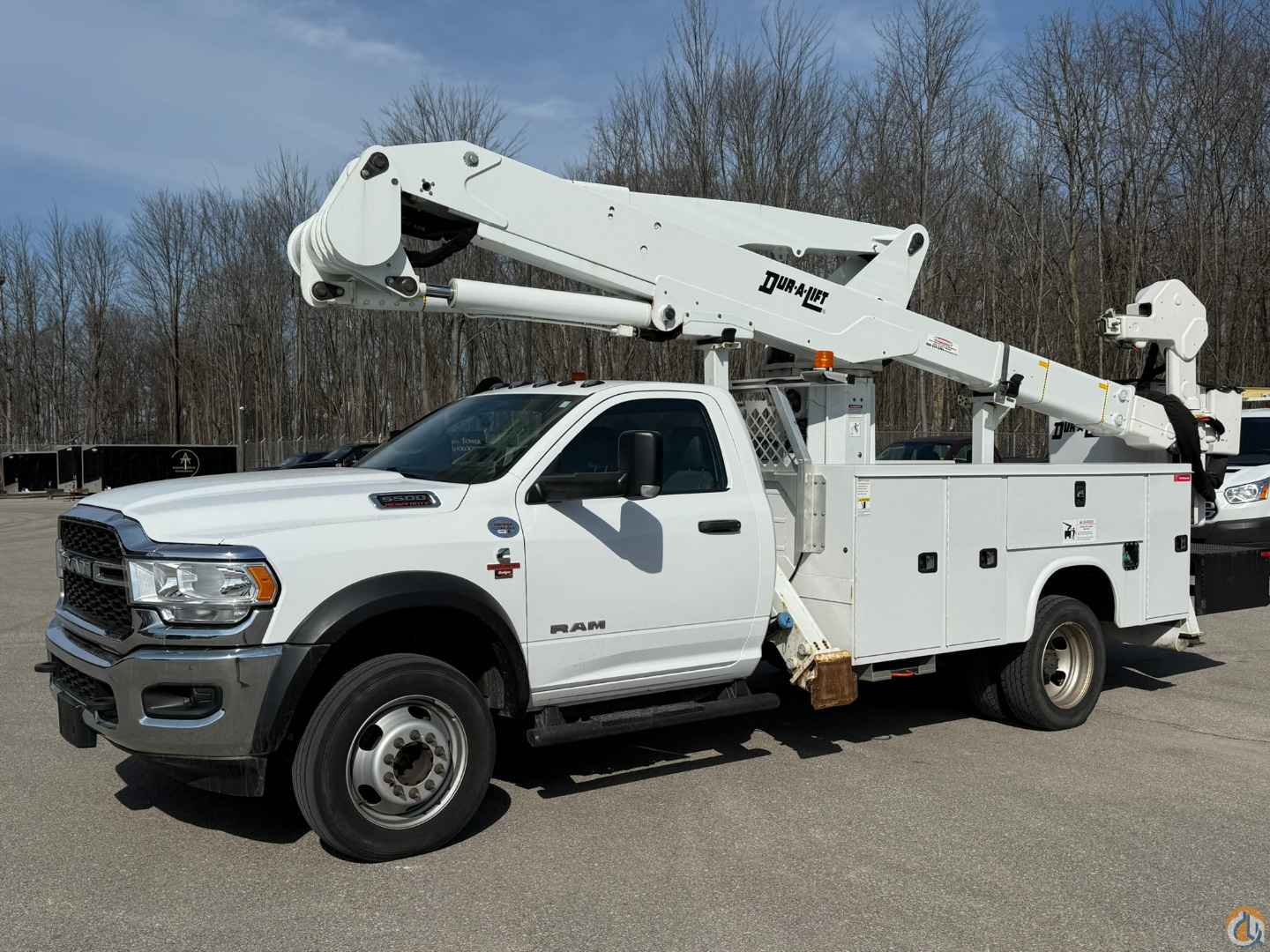

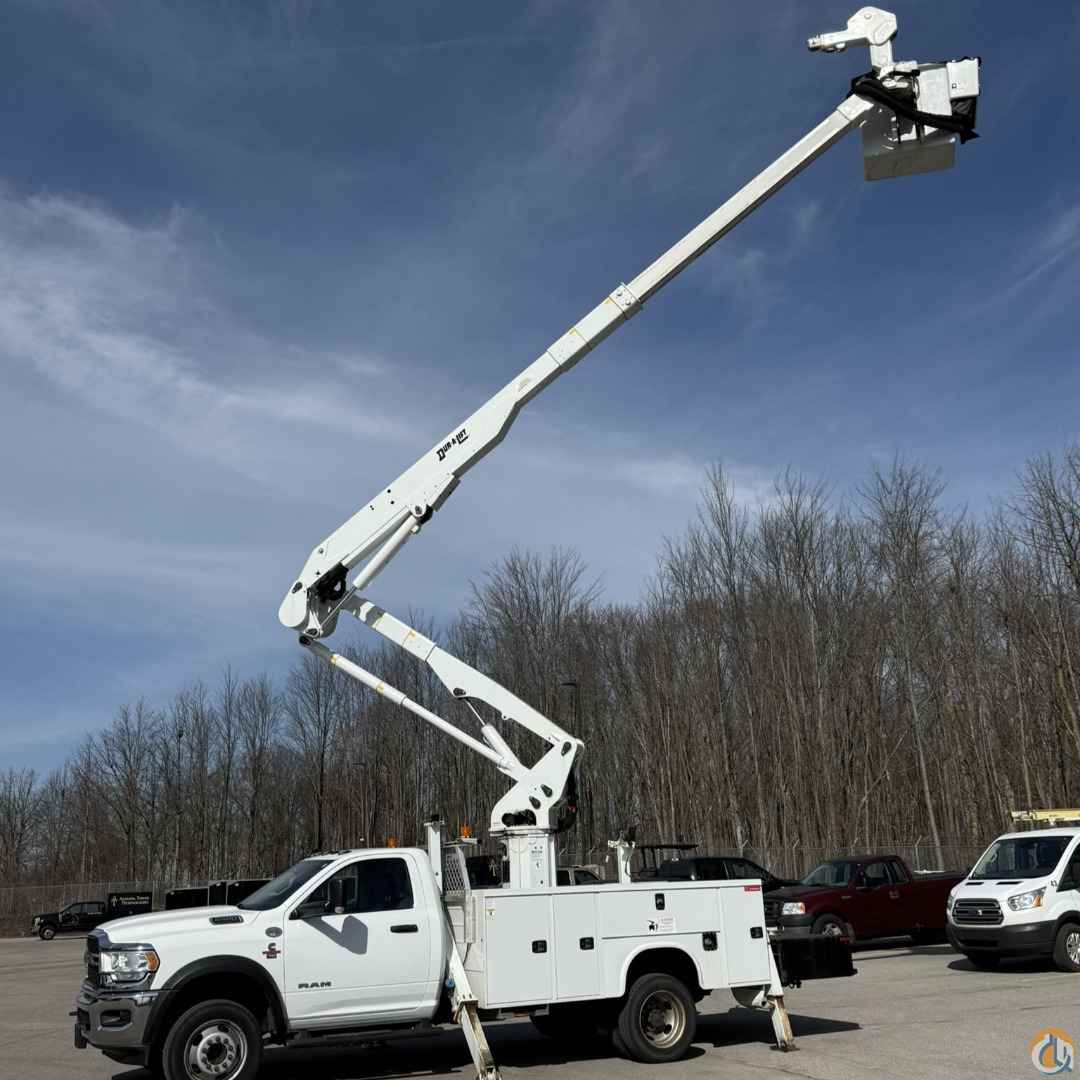

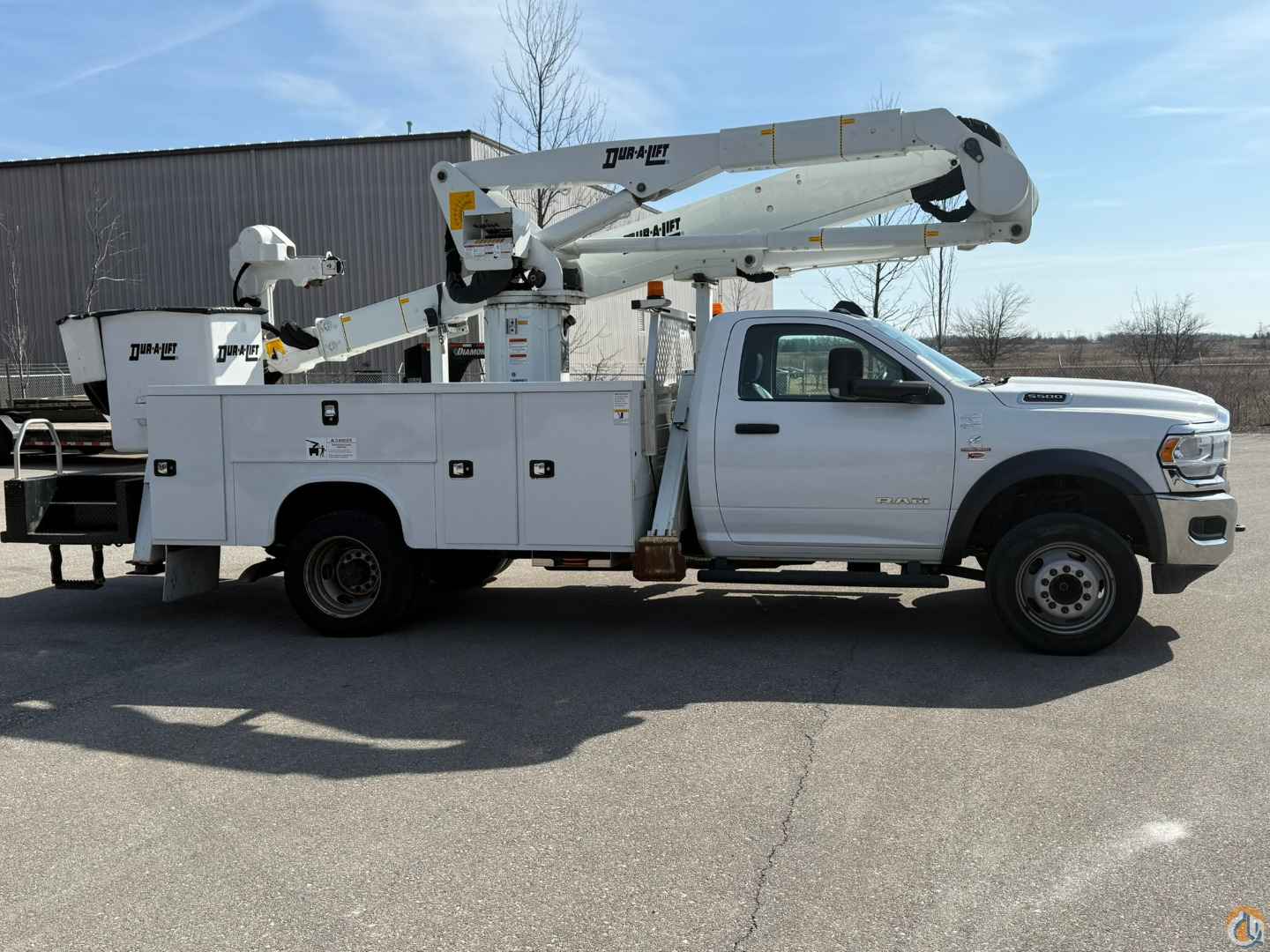

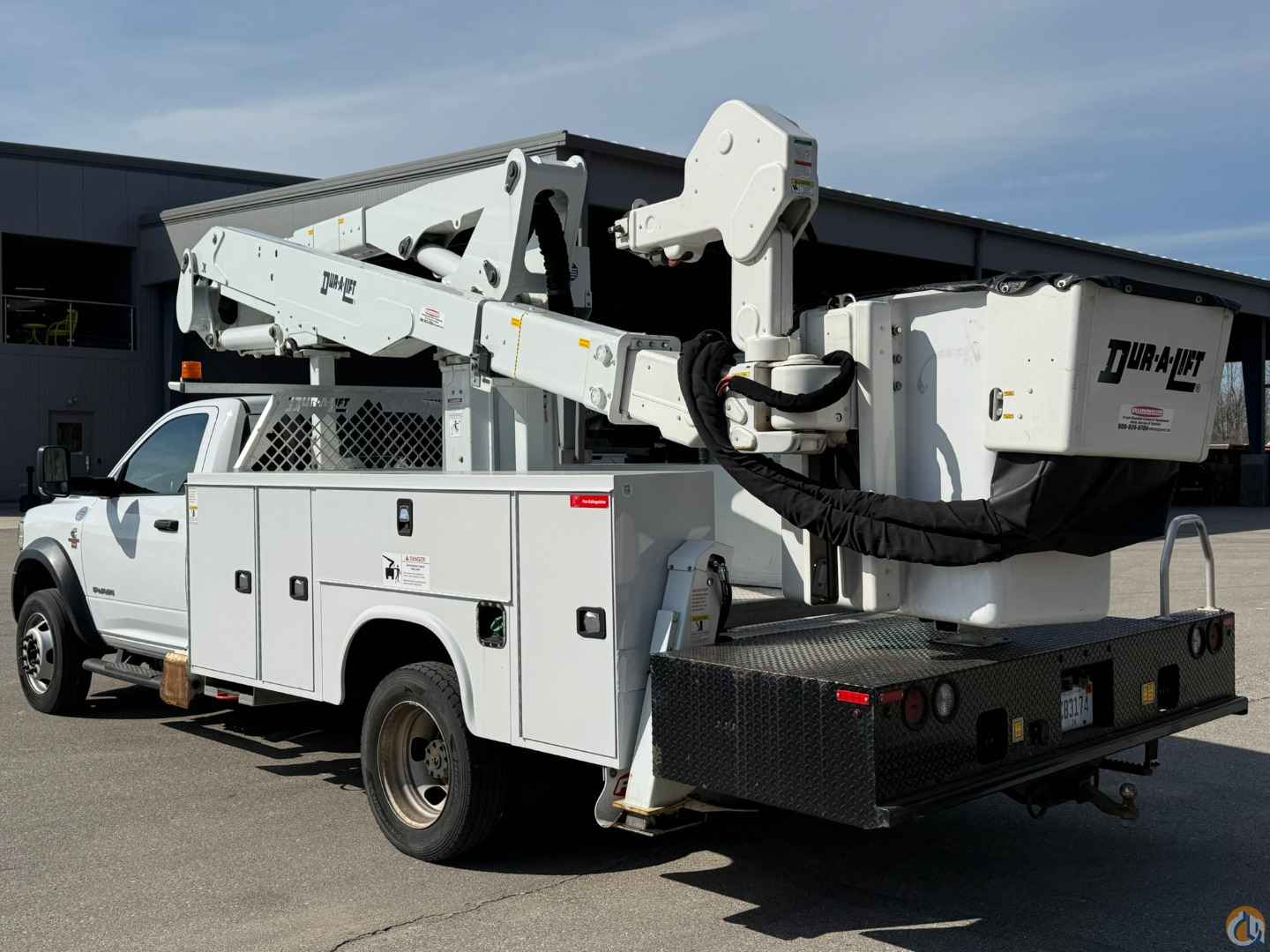

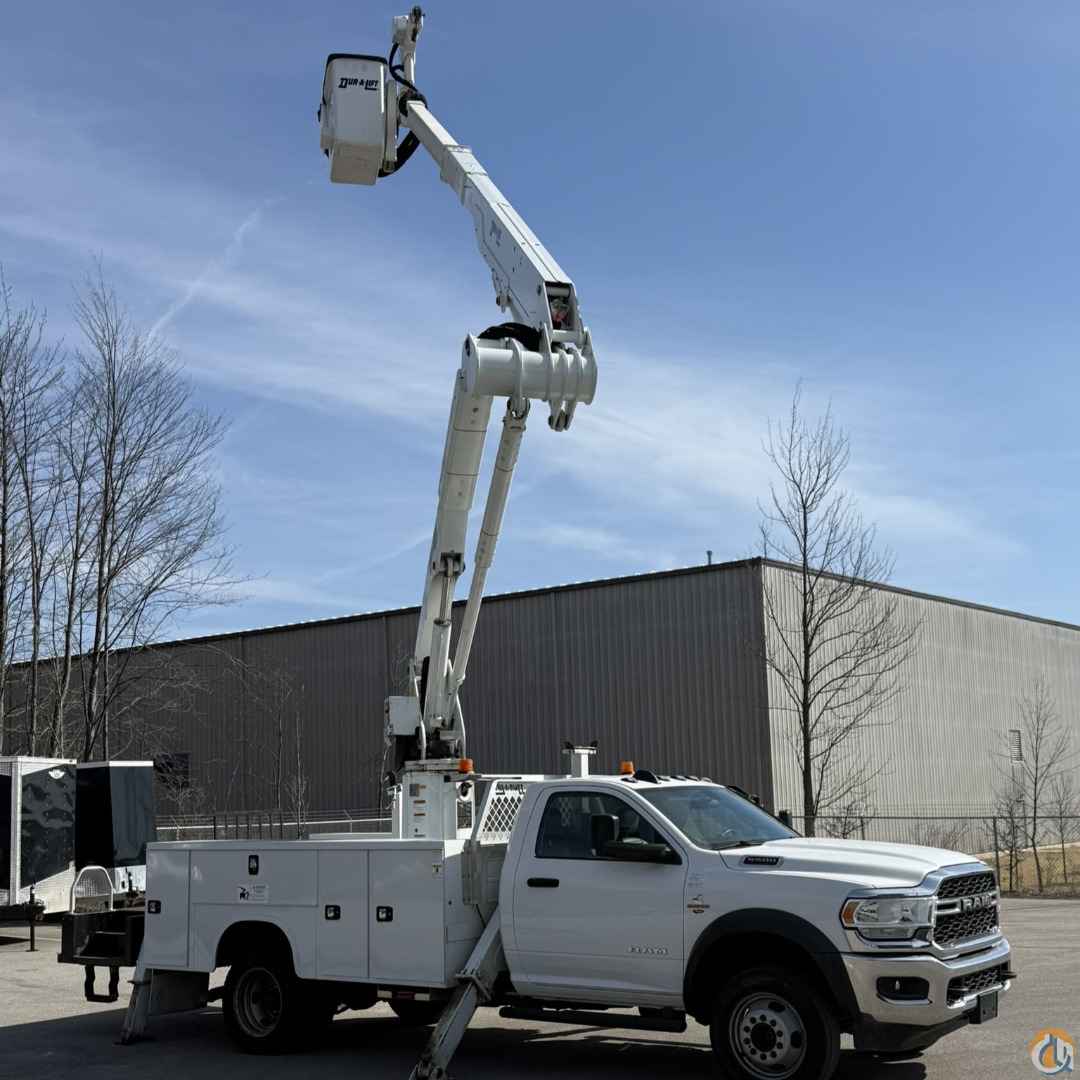

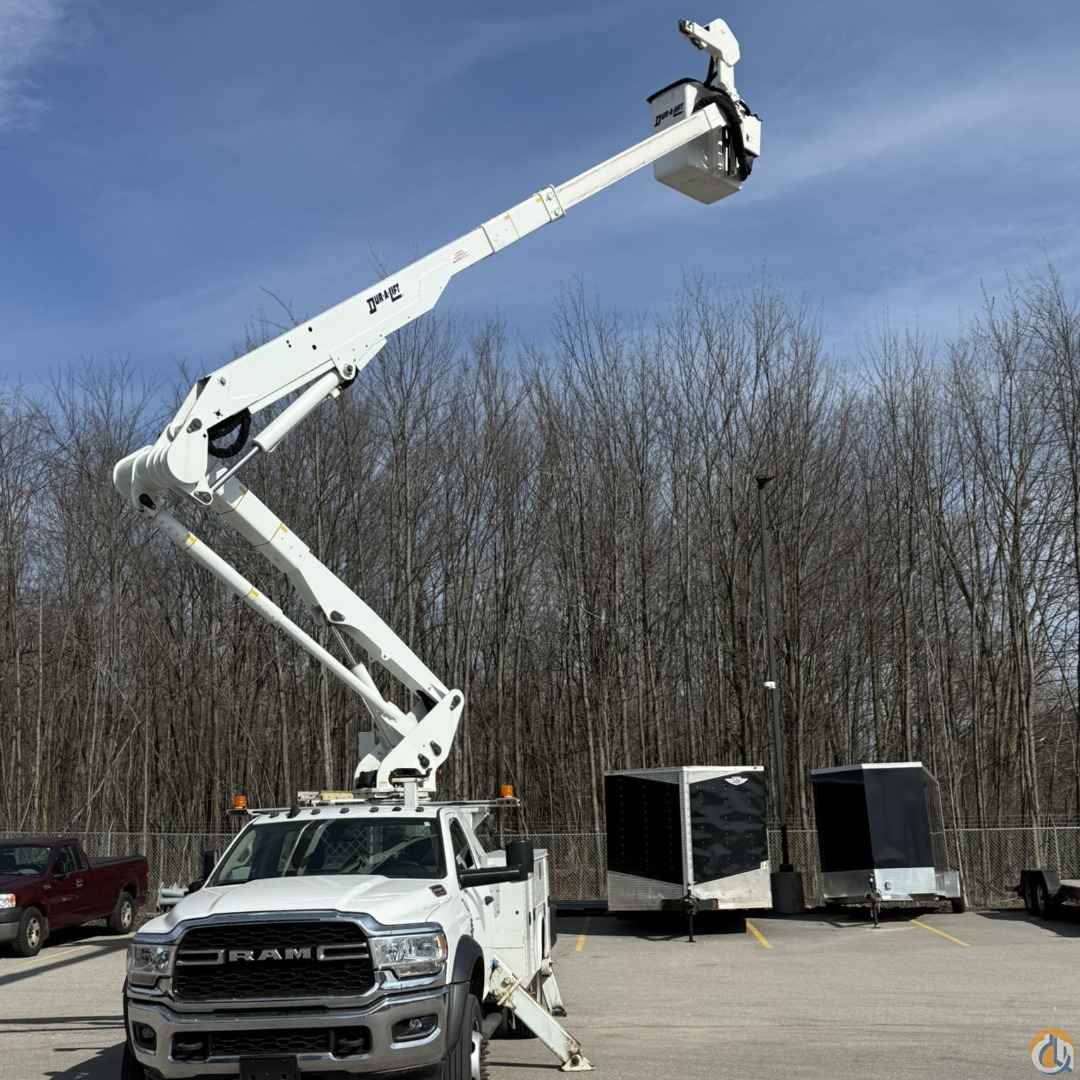

Dur-A-Lift Model DPM2-47DU mounted equipped as follows:

- CAT C Insulated aerial device – Not currently certified

- 52’ working height, 54’ working height with basket elevator

- 47’ height to bottom of basket

- Main boom fiberglass insert

- Chassis isolator insert

- 31’-6” side reach

- 24” x 42” x 42” fiberglass basket with step, includes cover, does not include liner

- 550# basket capacity when not using winch

- 400# basket capacity when using jib

- Hydraulically extendable jib. Jib is top-mounted with a maximum capacity of 1000#

- Hydraulic leveling, stow, and dump

- 180 degree basket rotator

- Body harness & lanyard

- Continuous rotation

- 12 volt emergency hydraulic backup system

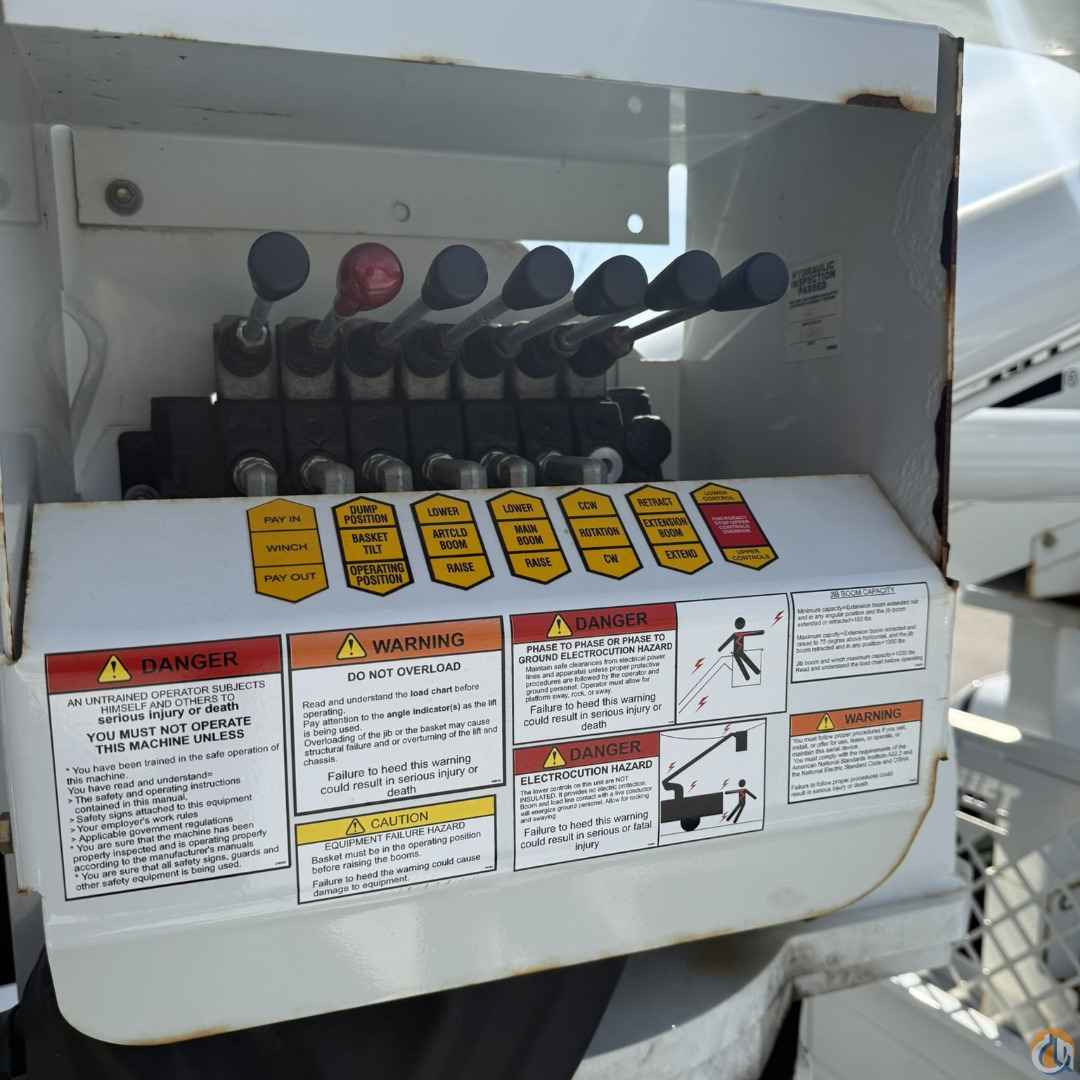

- Upper & lower operation controls with emergency shut down and start/stop controls

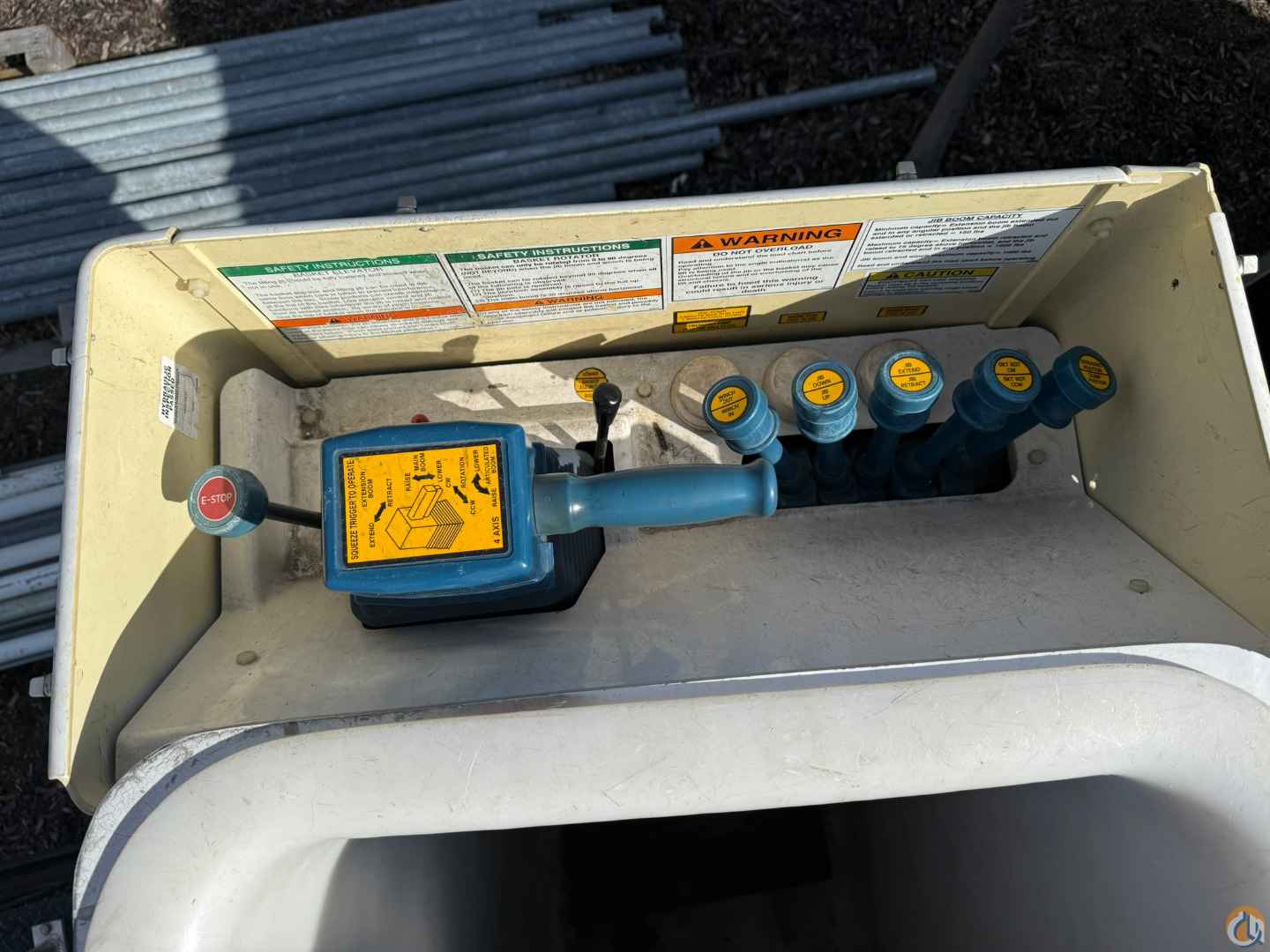

- 4-axis HERC joystick control

- Hydraulic tool circuit at bucket

- A-frame outriggers with outrigger interlock, mid mount and rear mount

- Outrigger motion alarm

- Four 18” x 18” composite outrigger pads with two (2) outrigger pad holders

- Two (2) LED dome strobe lights

- Timbren load boosters on front and rear axle

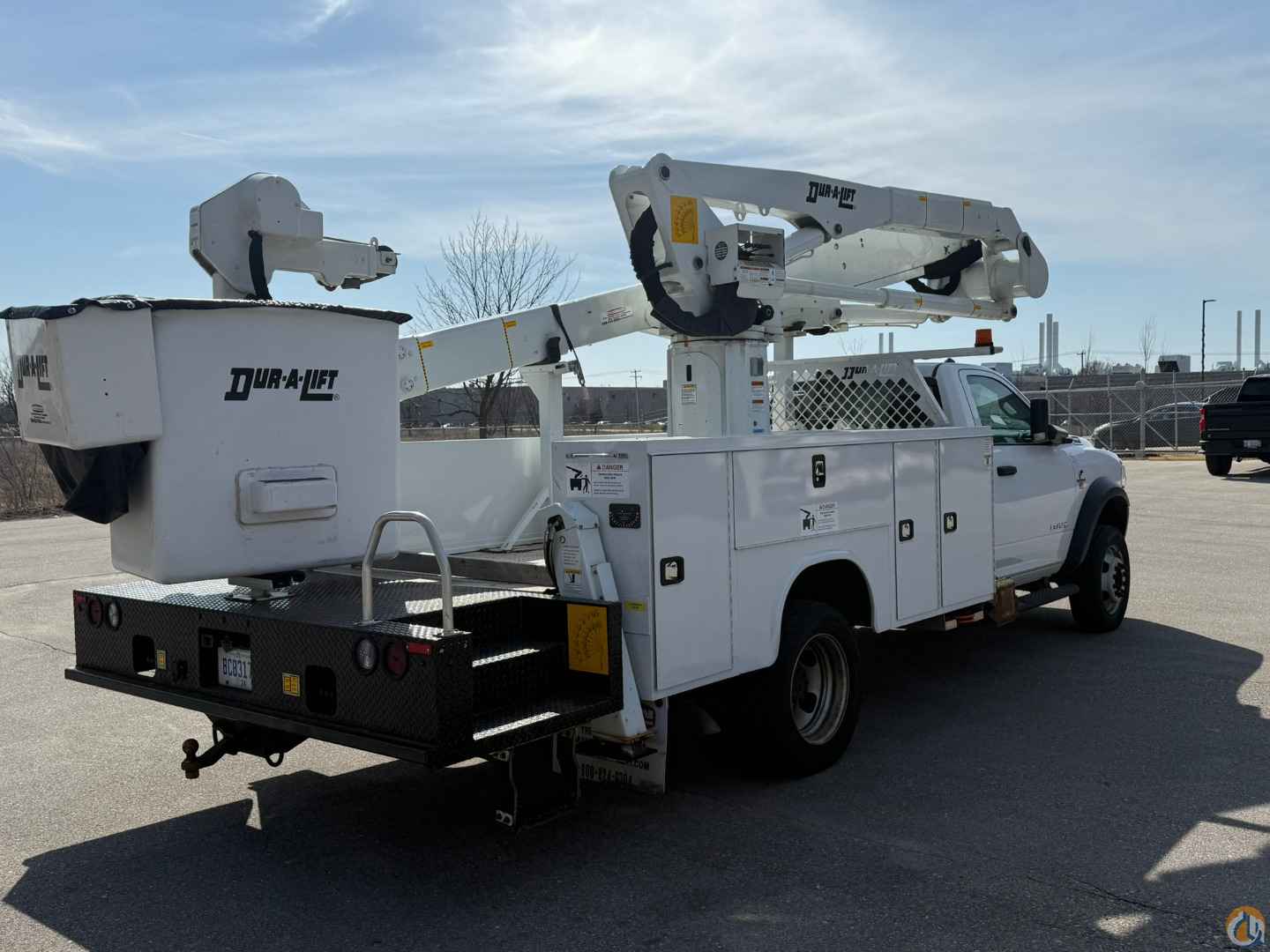

Knapheide steel service body equipped as follows:

- 94” wide

- 125” long

- Compartments (both sides)

· Compartments depth 20”

· 1V - 28 ¼” L x 40” H

· 2V – 21” x 40”

· H – 52 ¾” x 18 ½”

· 3V – 23 ¼” x 40”

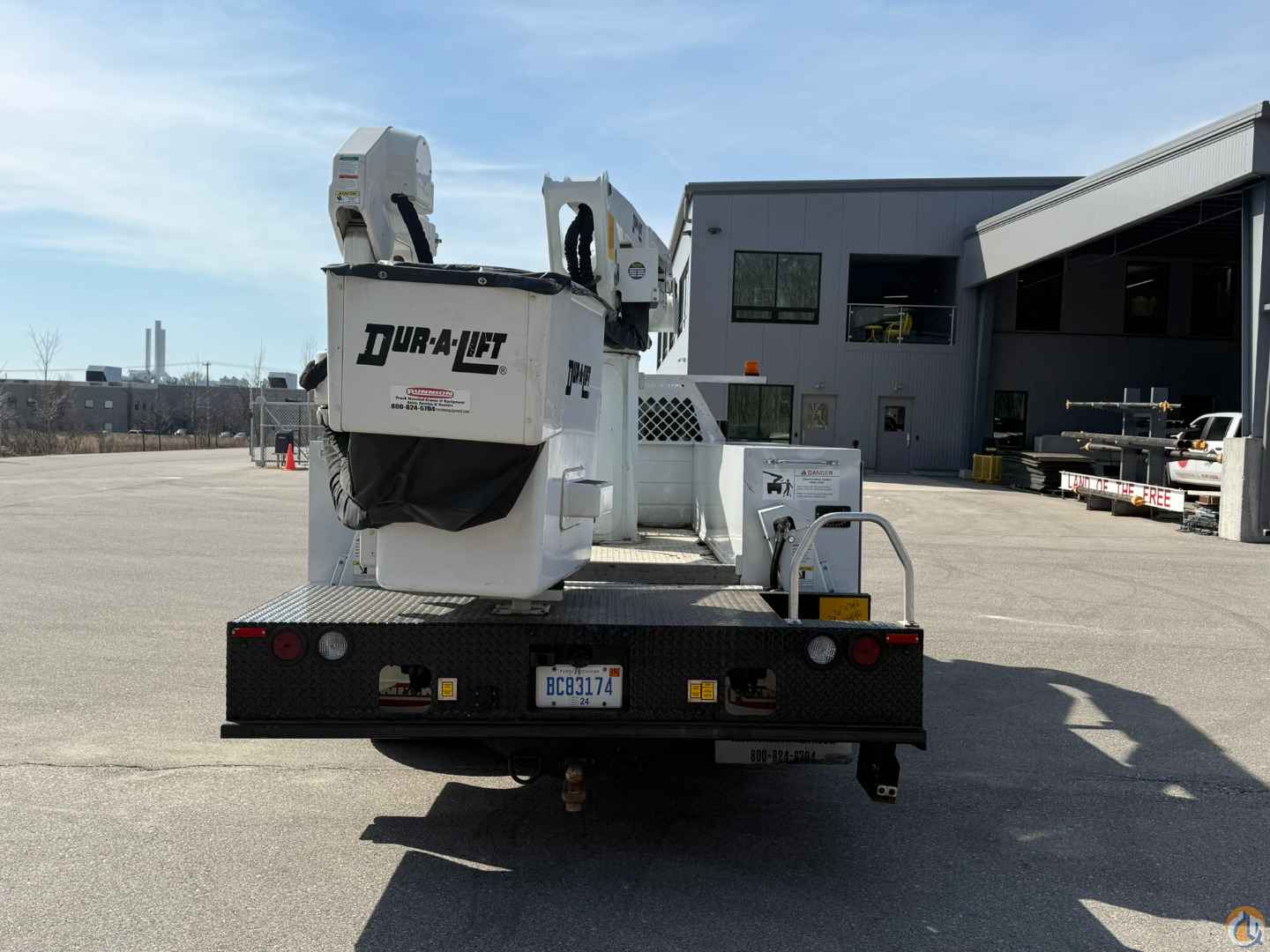

- 36” x 94” walkup tail shelf with belt step assembly and pool handle

- Backup alarm

- Fire extinguisher

- Reflector kit

- 2” Pintle/Ball and 7 pin trailer receptacle

- C shape grounding lug

MOUNTED ON

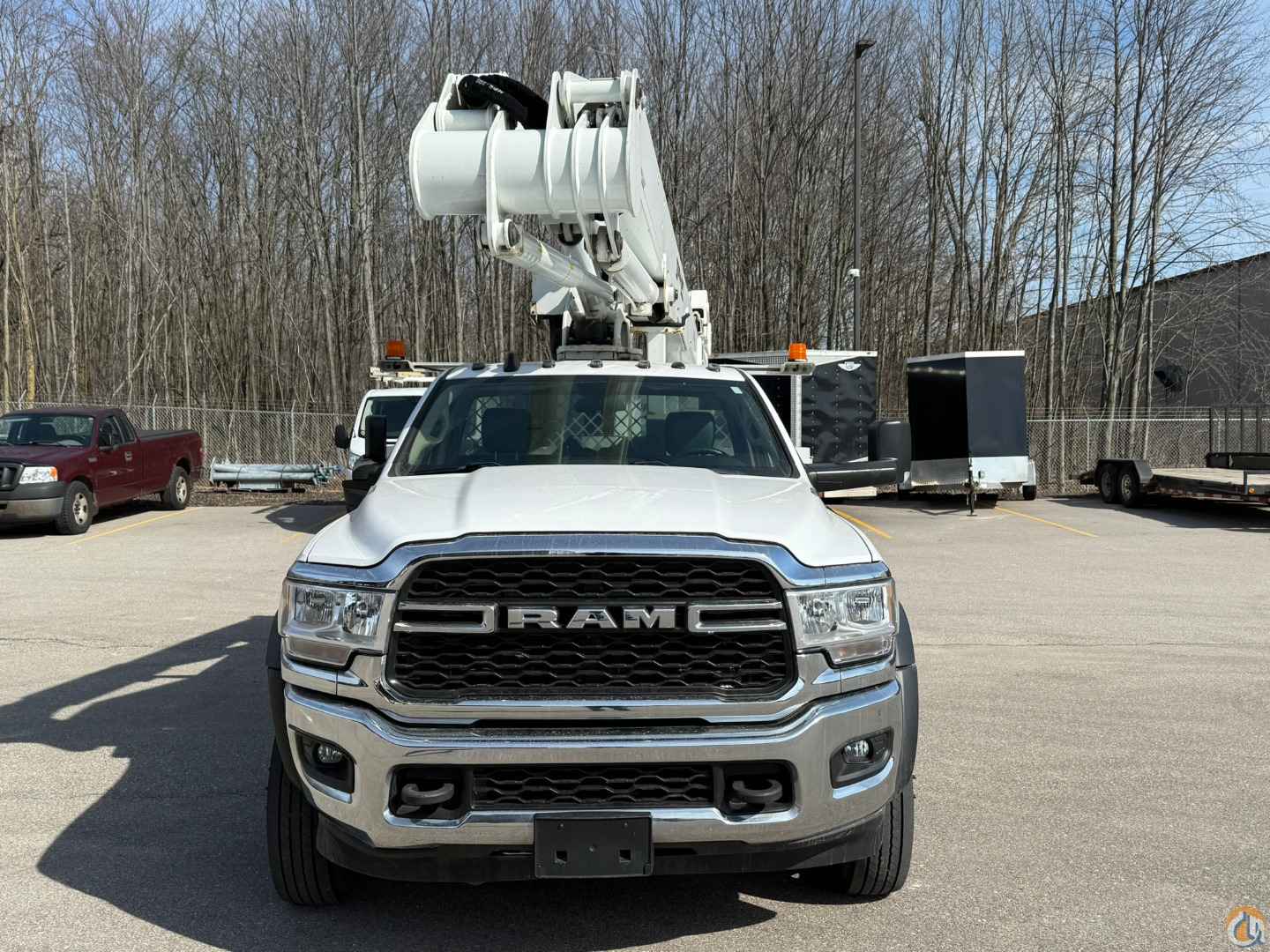

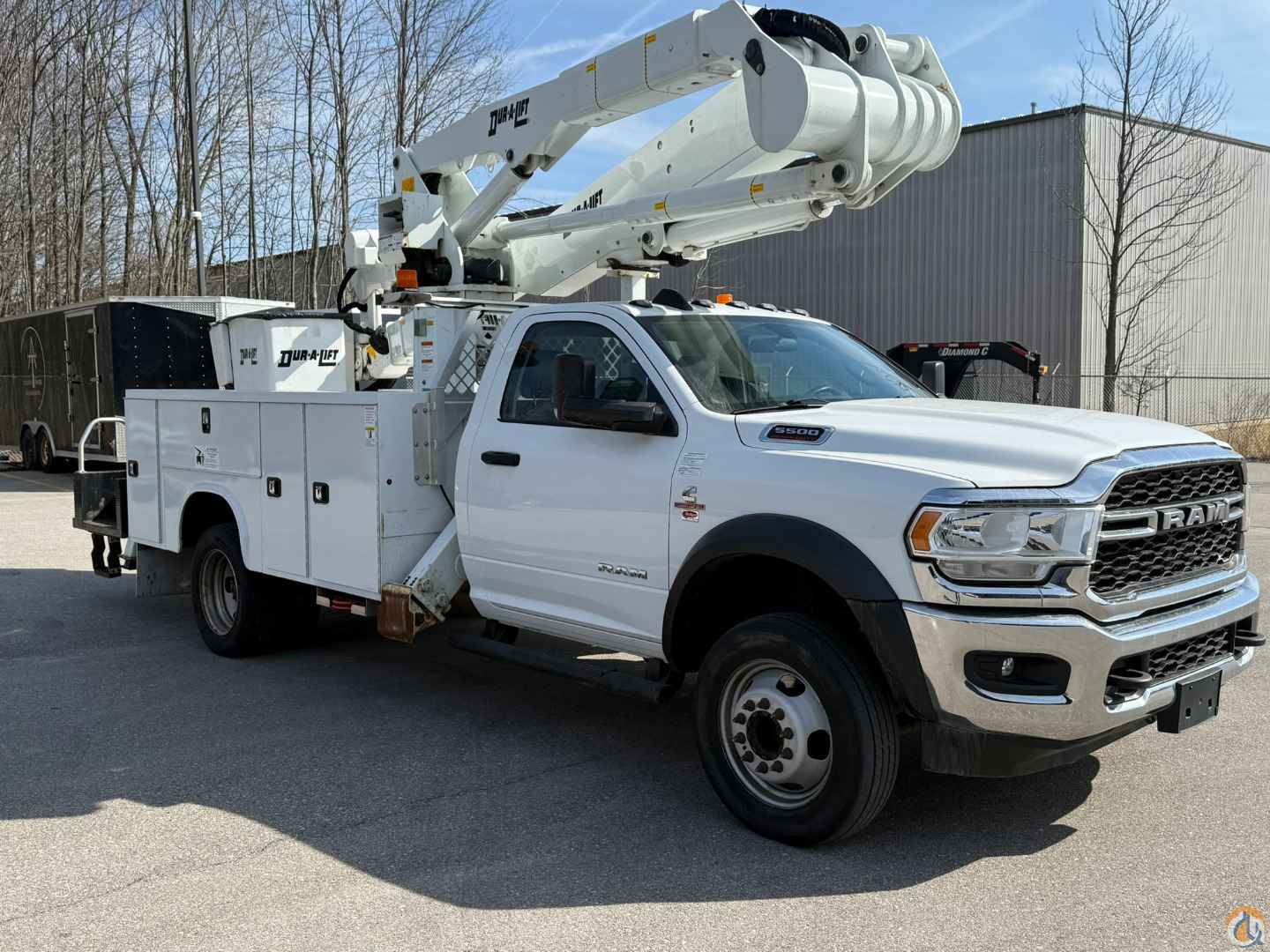

2020 Ram 5500 4x4 chassis equipped as follows:

- 19,500# GVW

- 7,000# front axle

- 13,500# rear axle

- Cummins 6.7L I-6 Turbo diesel engine – 360 hp @ 2800 rpm

- 6-speed automatic transmission

- 225/70R19.5 front and rear tires

- 4.44 axle ratio

- 52 gallon fuel tank

- Engine block heater

- Running boards

- Cruise control

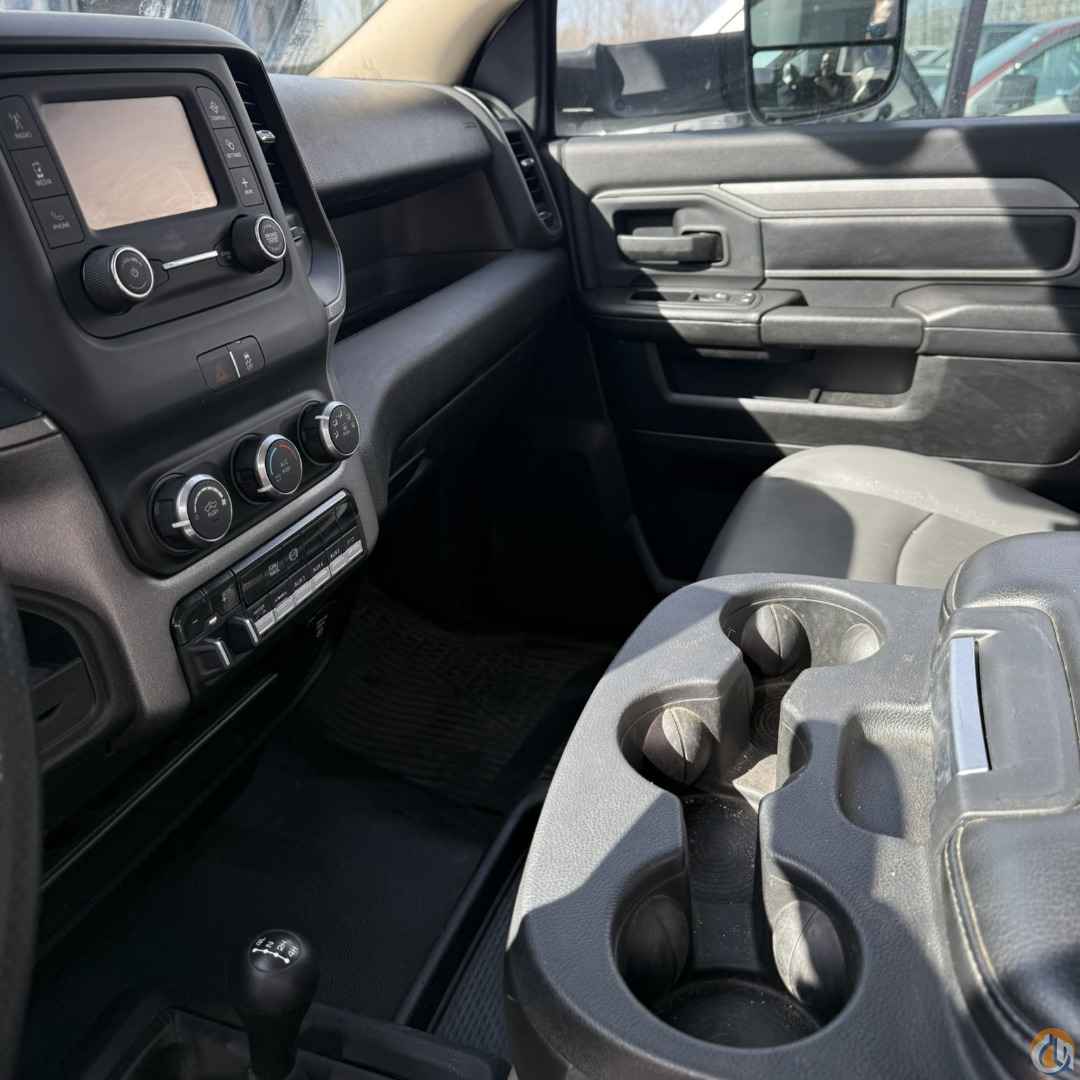

- Air conditioning

- AM/FM stereo with Bluetooth

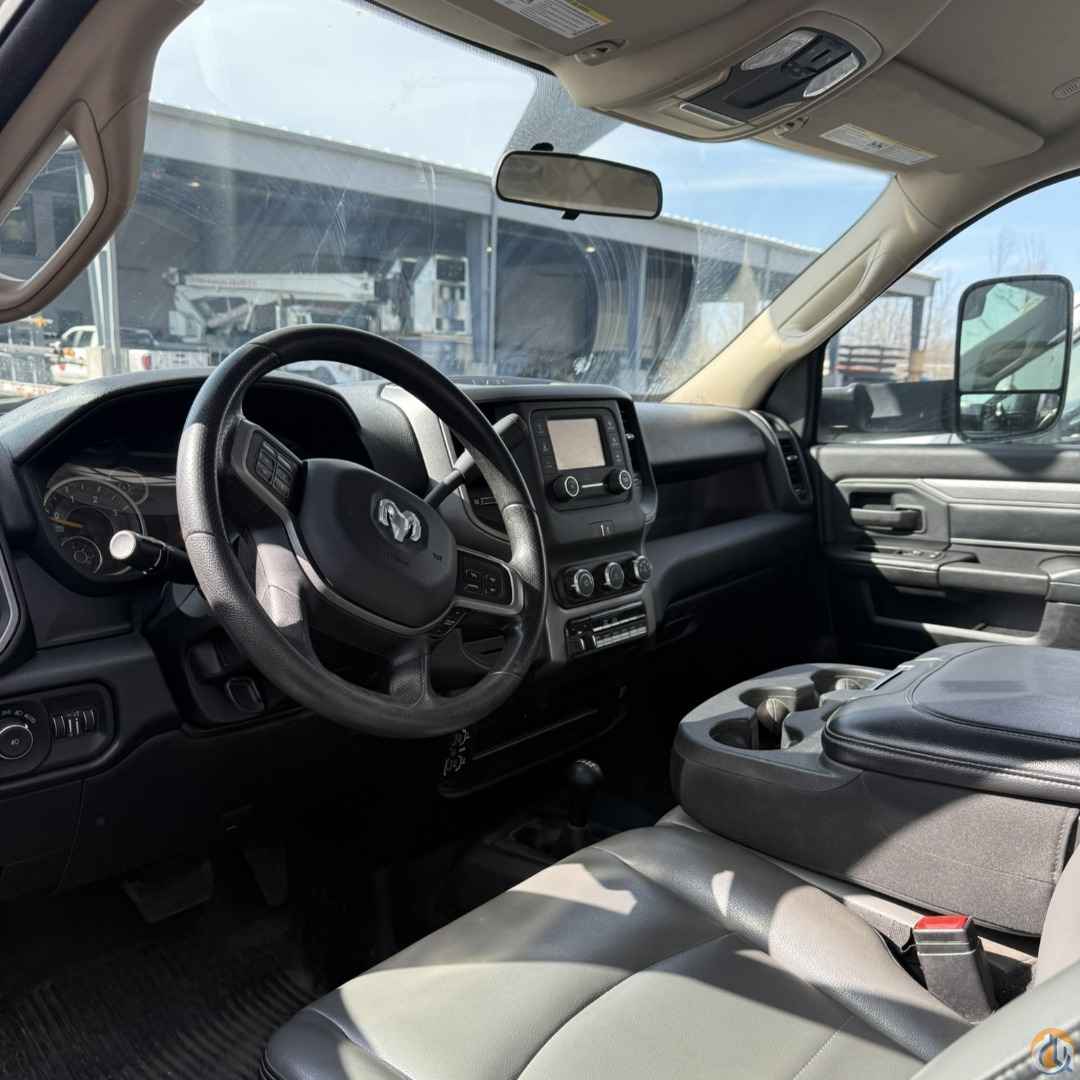

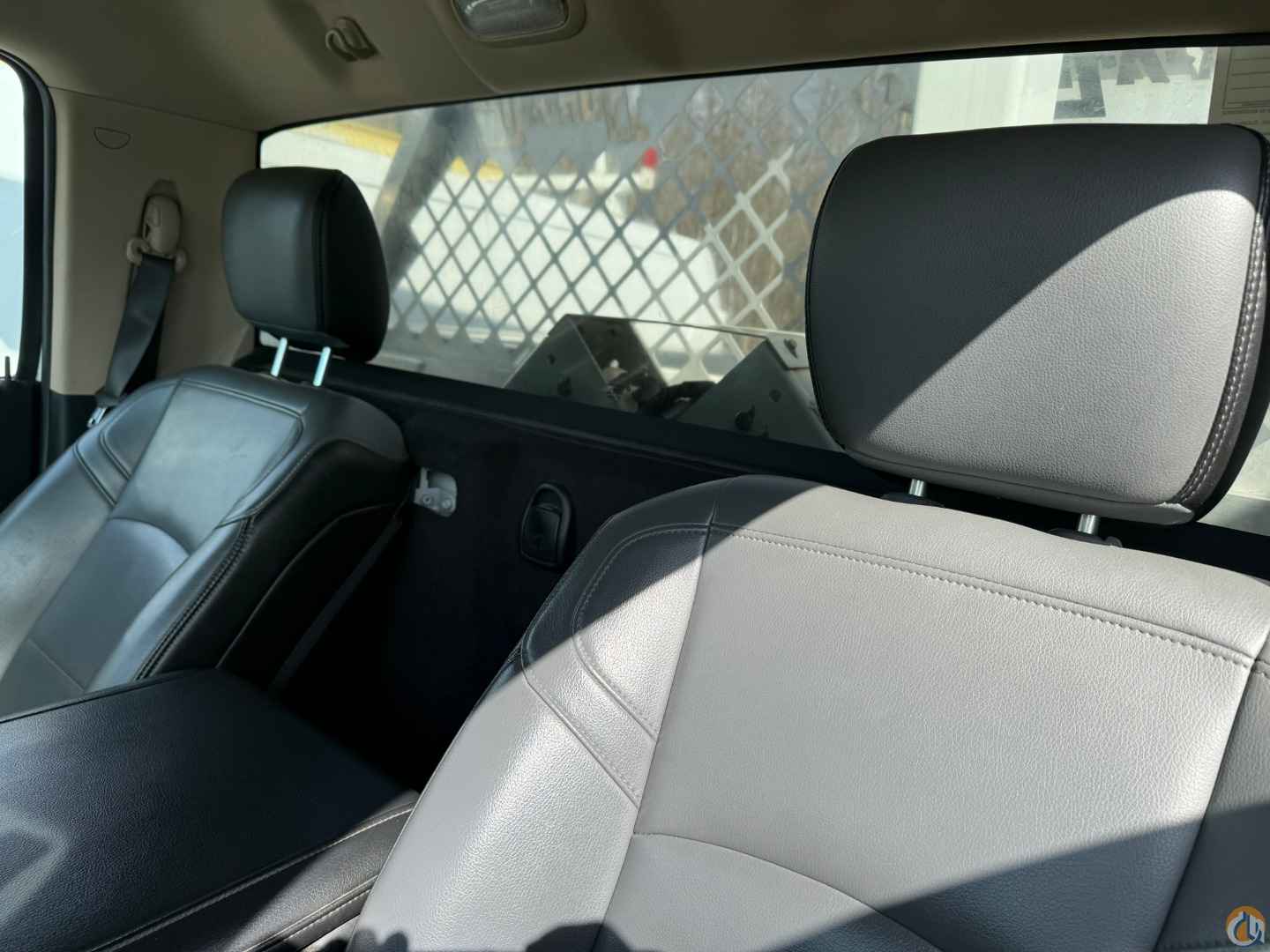

- 40/20/40 vinyl split bench seat

- Power windows and locks

- Heated mirrors

- Painted White
