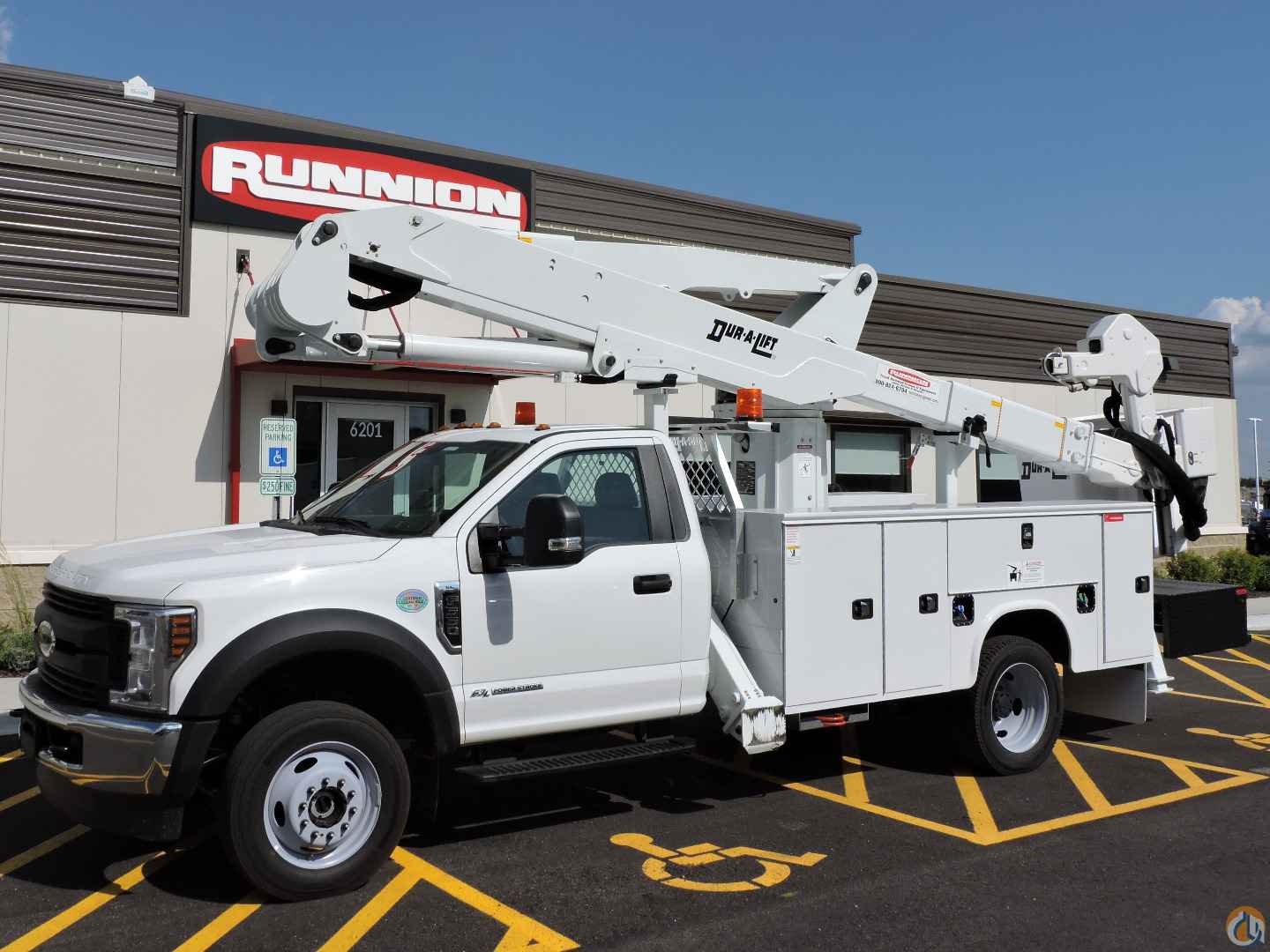

Dur-A-Lift Model DPM2-47DU
- CAT C Insulated aerial device
- 52’ working height, 54’ working height with basket elevator
- 47’ height to bottom of basket
- Main boom fiberglass insert
- Chassis isolator insert
- 31’-6” side reach
- 24” x 42” x 42” fiberglass basket with step, liner, and cover
- 550# basket capacity when not using winch
- 400# basket capacity when using jib
- Hydraulically extendable jib. Jib is top-mounted with a maximum
capacity of 1000# - Hydraulic leveling, stow, and dump
- 180° basket rotator
- Body harness & lanyard
- Continuous rotation
- Transmission mounted P.T.O, pump and hydraulic reservoir
- 12 volt emergency hydraulic backup system
- Upper & lower operation controls with emergency shut down and
start/stop controls - 4-axis HERC joystick control
- Hydraulic tool circuit at bucket
- A-frame outriggers with outrigger interlock, mid mount and rear mount
- Double outrigger interlock
- Outrigger motion alarm
- Four 18” x 18” composite outrigger pads with two (2) outrigger pad
holders - Two (2) LED dome strobe lights
- Timbren load boosters on front and rear axle
Knapheide steel service body
- Compartments (both sides)
- Compartments depth 20”
- 1V - 28 ¼” L x 40” H
- 2V – 21” x 40”
- H – 52 ¾” x 18 ½”
- 3V – 23 ¼” x 40”
- 36” x 94” walkup tail shelf with belt step assembly and pool handle
- Aluminum headache rack
- Backup alarm
- Fire extinguisher
- Reflector kit
- 2” Pintle/Ball and 7-pin trailer receptacle
- C shape grounding lug
2021 Ford F550 XL 4x4
- 19,500 GVWR
- 6.7L Power Stroke V8 turbo diesel engine – 330hp at 2,600,
(825 lb. /ft. @ 2000 RPM) - TorqueShift 10-speed automatic transmission
- Engine block heater
- Front and rear 19.5”steel wheels
- Tires – 225/70Rx19.5G BSW traction
- Front axle 7,500lbs
- Rear axles 14,706lbs
- 169” wheelbase
- 4-wheel ABS brakes
- Air conditioning
- Platform running boards
- Rearview camera
- Dual remote heated mirrors
- Chrome front bumper
- Power steering
- Cruise control
- 40-gallon fuel tank
- SYNC communication with Bluetooth, AM/FM/Bluetooth
- Power windows and locks with keyless entry
- 40/20/40 split bench seat- vinyl
- Color white
- Availability December 2021
- Stock photos
- FOB Factory
