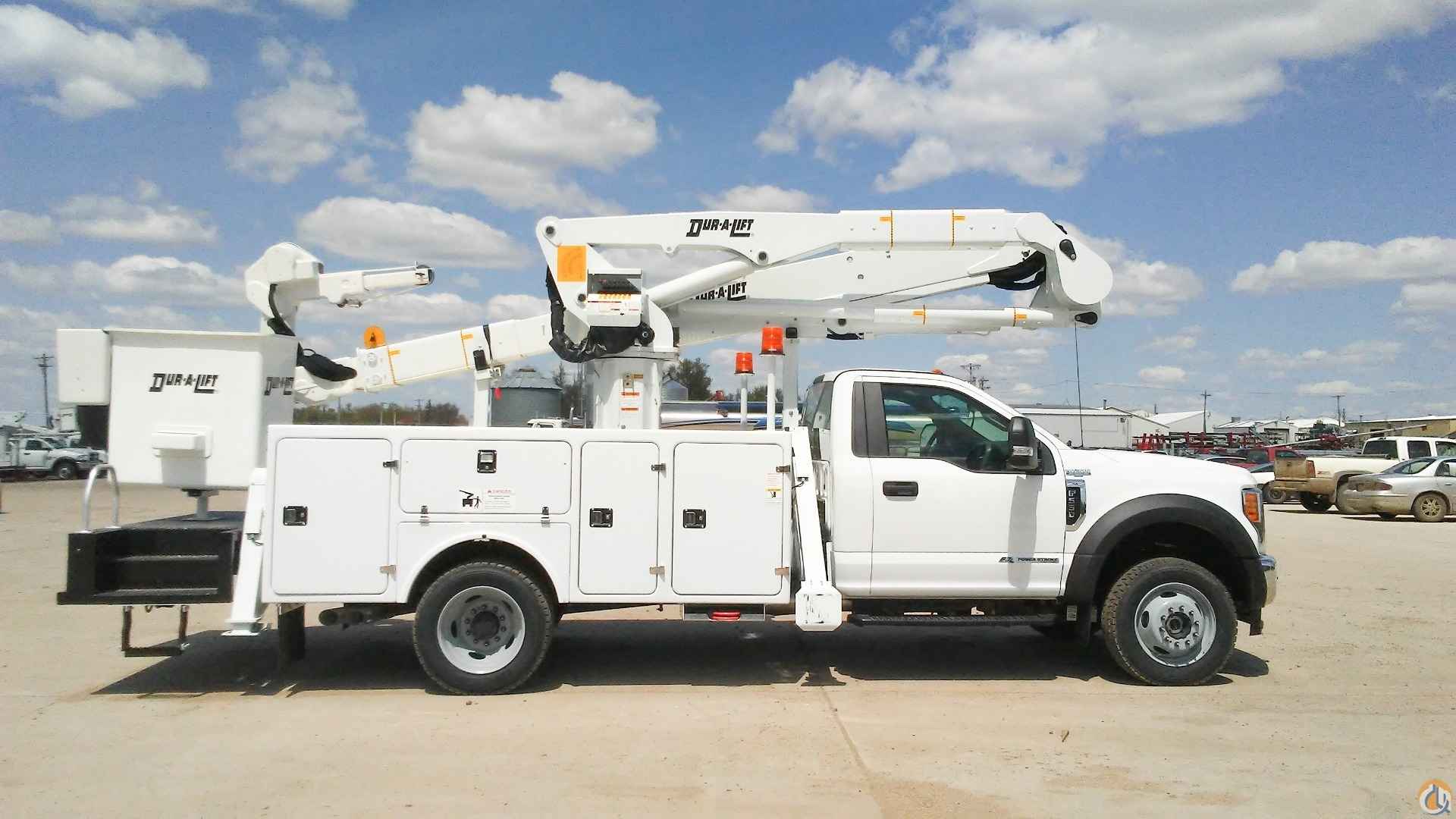

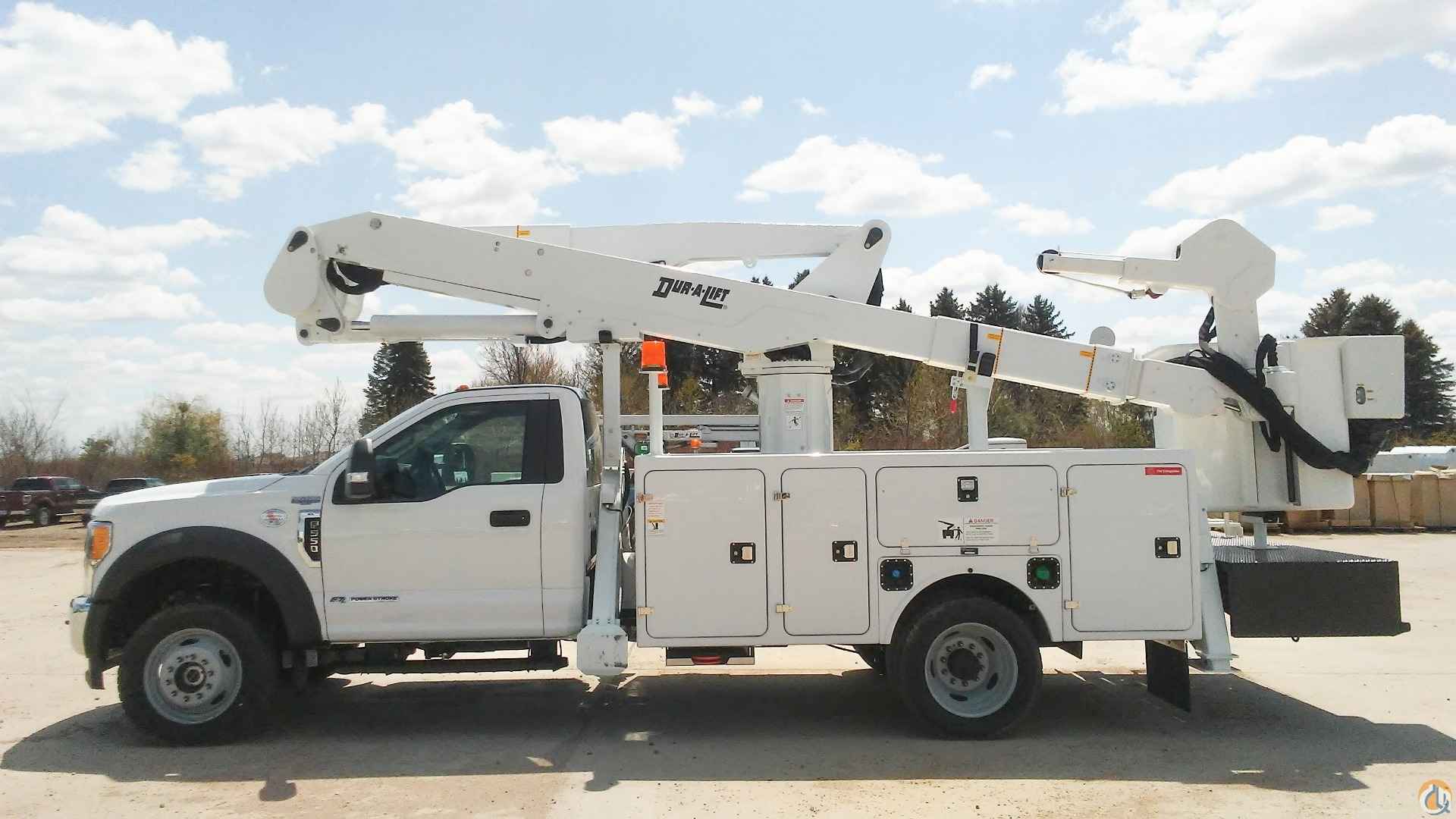

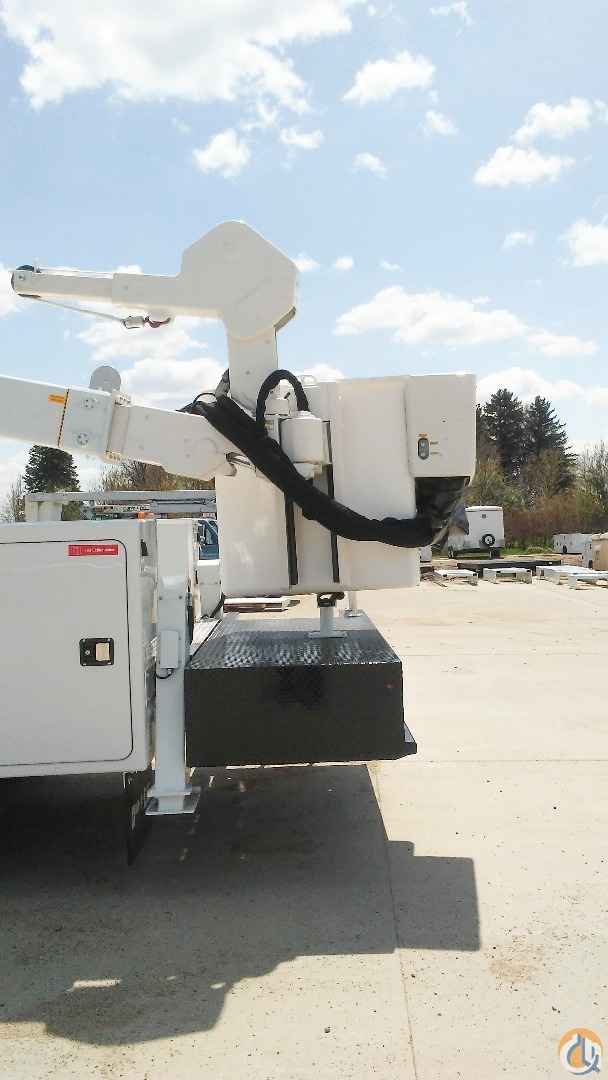

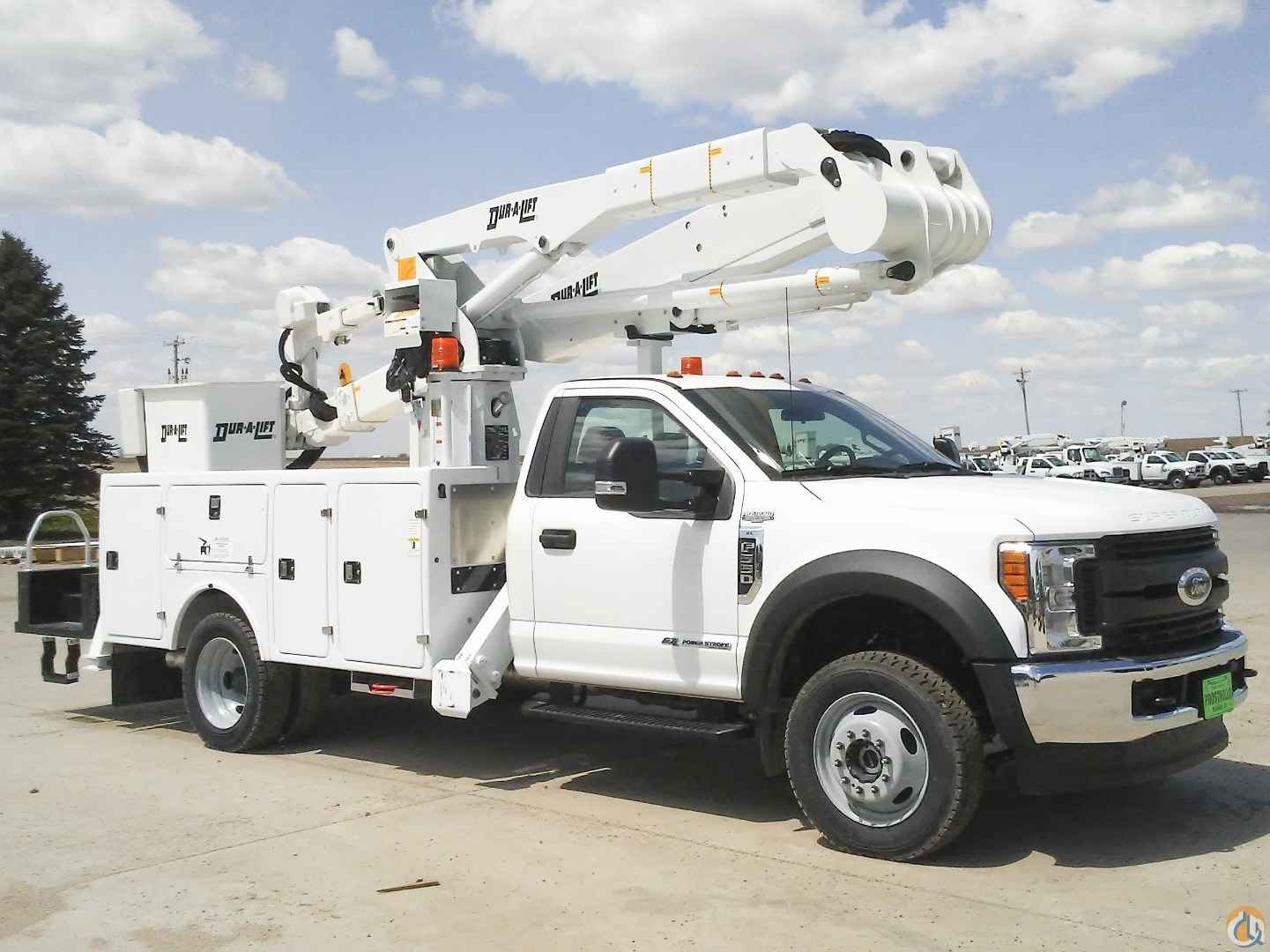

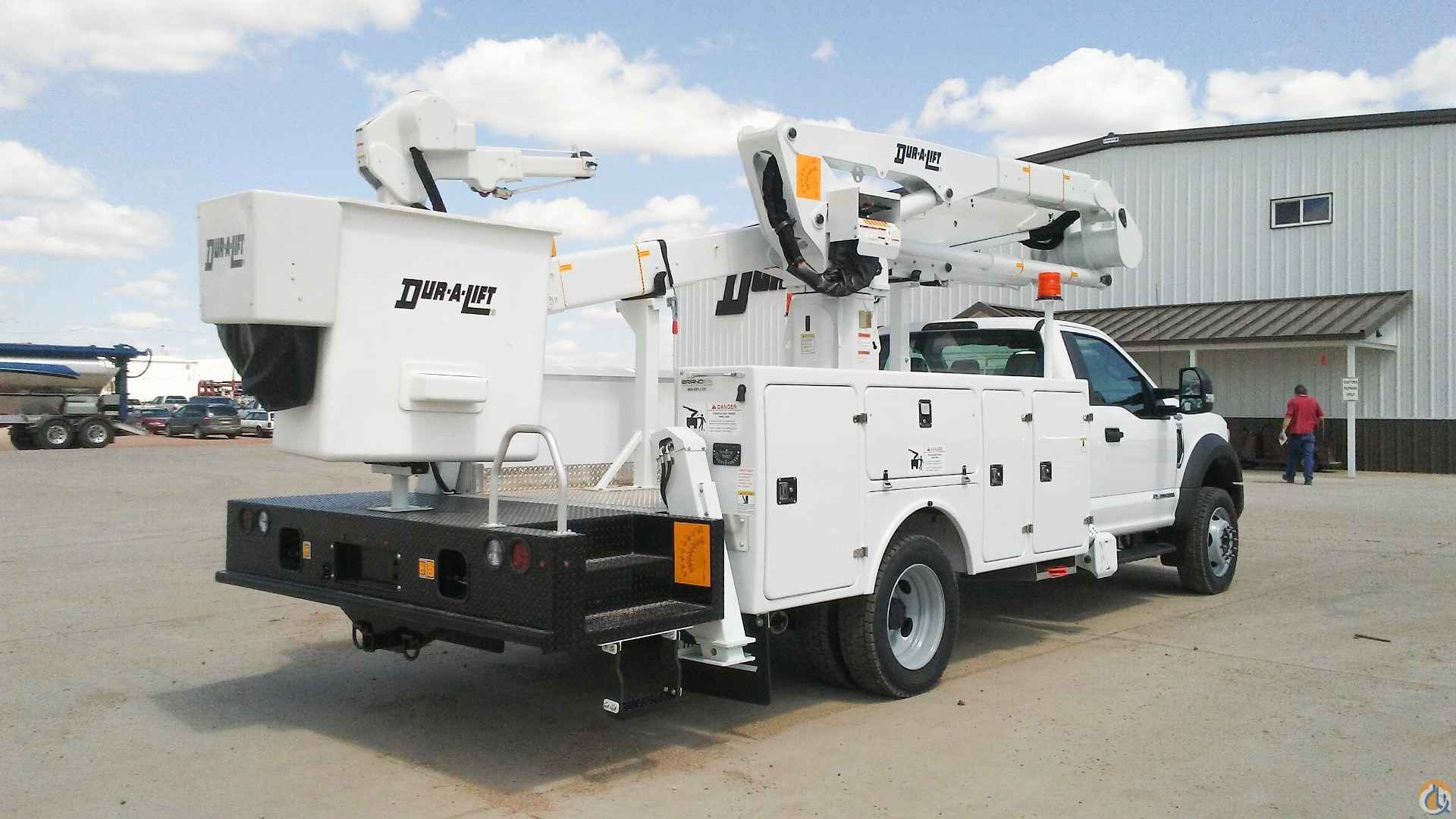

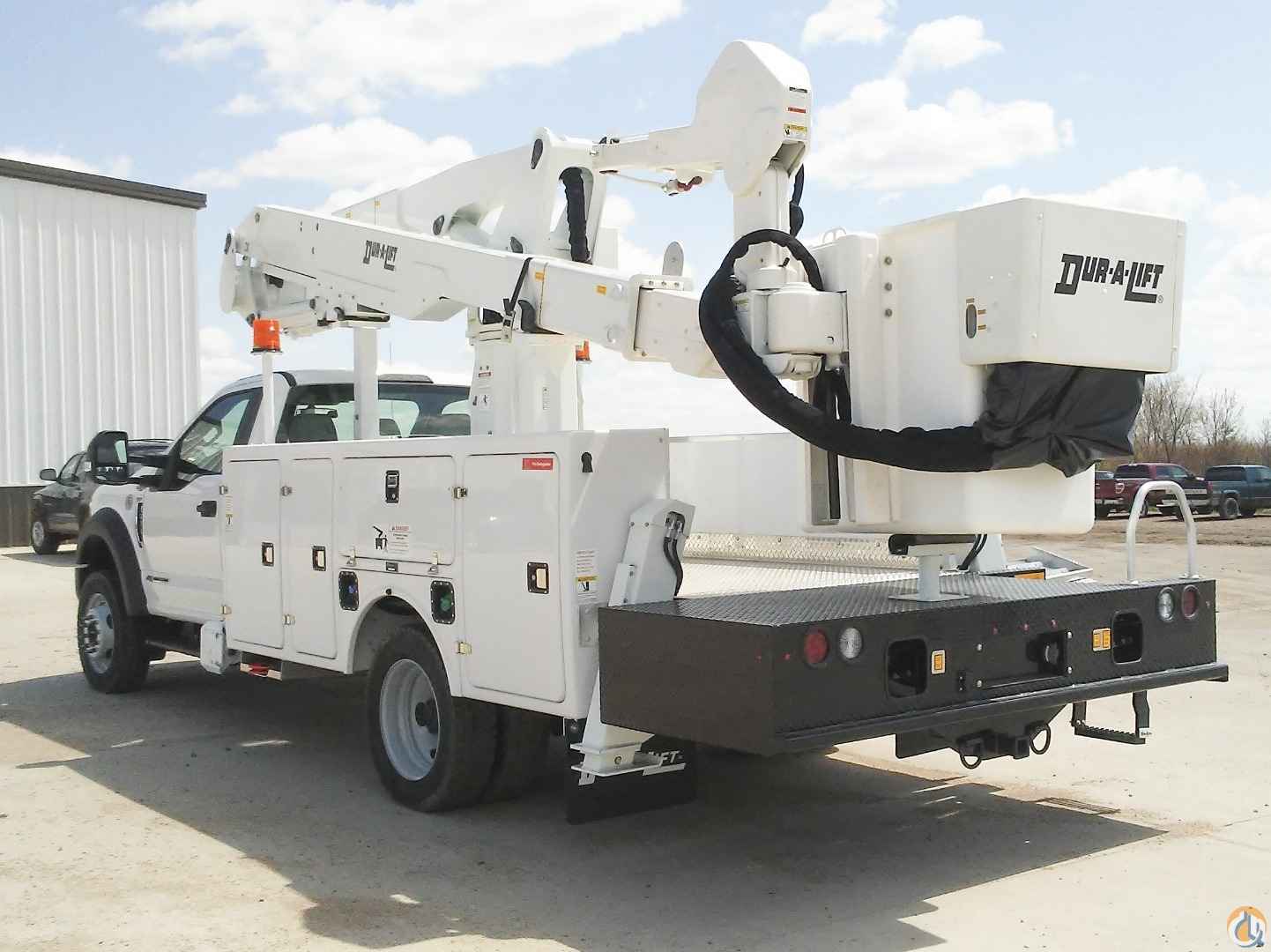

Dur-A-Lift Model DPM2-47DU mounted equipped as follows:
- CAT C Insulated aerial device
- 52’ working height, 54’ working height with basket elevator
- Main boom fiberglass insert
- Chassis isolator insert
- 24” X 42” x 42” walk in fiberglass basket with step, does not include liner
- 550# basket capacity when not using winch
- 400# basket capacity when using winch
- Hydraulically extendable jib
- 180 degree basket rotator
- Continuous rotation
- 4-axis HERC joystick control
- Hydraulic tool circuit at bucket
- A frame outriggers with outrigger interlock, mid mount and rear mount
- Four 18” x 18” composite outrigger pads with two (2) outrigger pad holders
- Two (2) LED dome strobe lights
- BrandFX fiberglass service body
- 124” long
- 36” x 94” steel walk up tail shelf with belt step assembly and pool handle
- 2” Pintle/Ball and 7 pin trailer receptacle
Mounted on:
2018 Ford F550 4x4 chassis equipped as follows:
- 6.7L Power Stroke V8 turbo diesel
- TorqueShift 6-speed automatic transmission
- Engine block heater
- Front and rear 19.5”steel wheels
- Platform running boards
- SYNC communication, 4.2” screen, AM/FM, CD
- Power windows and doors with keyless entry
- 40/20/40 split bench seat- vinyl
Stock photos, FOB factory
