Dur-A-Lift DCP-36TS Cable Placer equipped as follows:

- Operable in stationary and mobile mode

- 41’ working height

- 26’6” side reach

- Extension travel – 110.5”

- Main boom travel – -25° to 75°

- Articulating arm travel – -6° to 83°

- 400 lb side pull

- 50 lb down pull

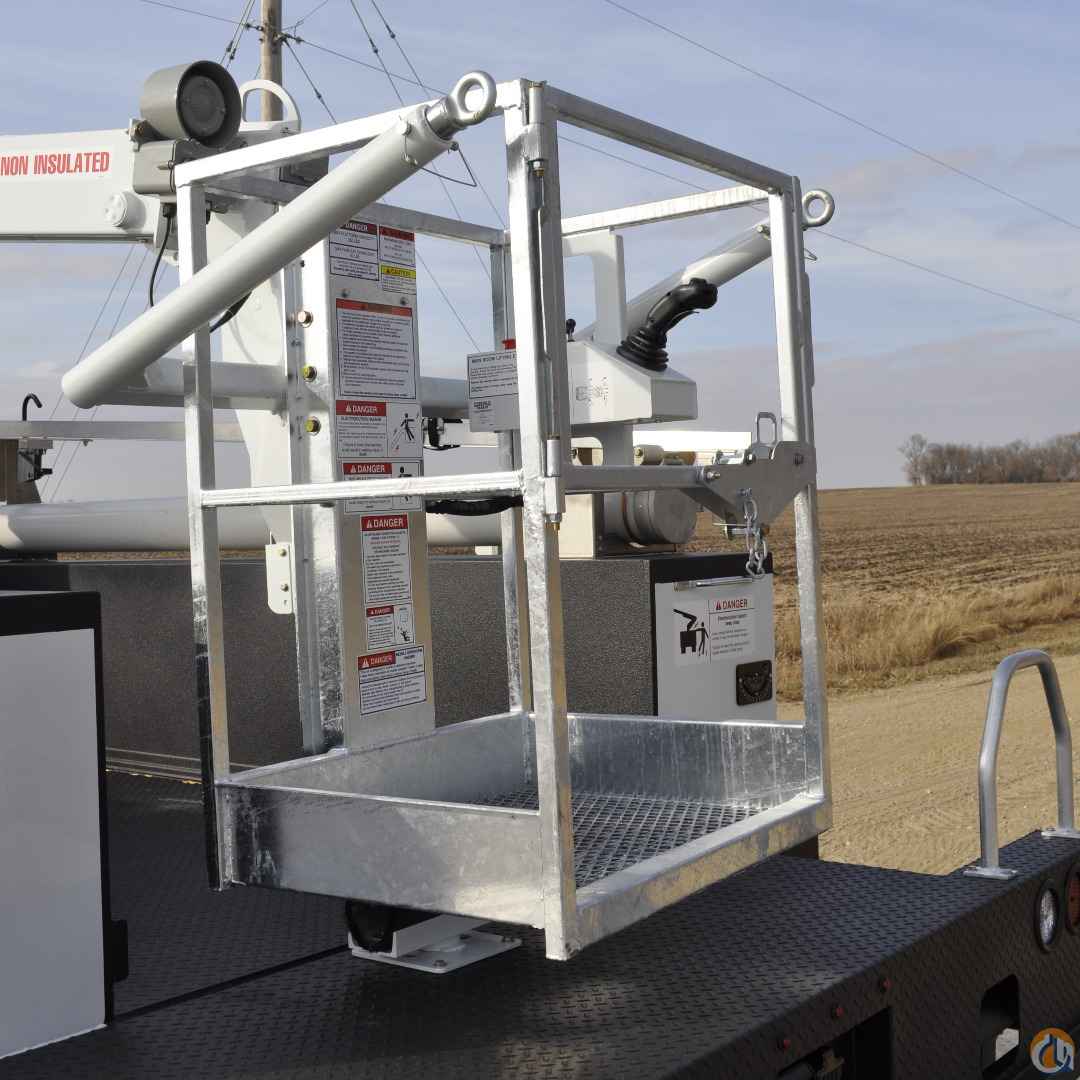

- 24” x 30” x 42” galvanized steel basket with Fairleads, end mounted

- 45” pedestal

- 350 lb basket capacity

- 370° non-continuous rotation

- Power stow at basket and lower controls

- 4-function joystick controls at basket

- Pistol grip lower remote control, two-speed

- Start/stop at lower controls

- Standard GCFI outlet without slip ring

- 12V DC backup system

- Manual lowering valve from basket

- Severe duty level torsion bar on rear axle

- Timbren load boosters torsion bar on front axle

- 30” x 94” aluminum tailshelf and throughbox

- 10” belt step and aluminum pool handle for easy access to tail shelf

- Inclinometer

- Three (3) in-cab Lev-O-Gages

- Upper and lower basket-to-cab intercom communication system

- 2” pintle/ball hitch with 7-pin trailer plug

- Backup alarm

- Boom out of stow warning light

- 110V outlet at basket

- Two (2) amber LED dome strobe lights mounted on headache rack

- 5 lb fire extinguisher

- Triangle reflector kit

Knapheide service body equipped as follows:

- 94” overall width x 131.25” overall length

- Compartment depth – 20”

- SS/CS compartments 1V = 34 ¼” L x 40” H

- SS/CS compartments 2V = 21” L x 40” H

- SS/CS compartments H=52 ¾” L X 18 ½” H

- SS/CS compartments 3V=23 ¼” L x 40” H

- Two (2) adjustable shelves 1V & 2V

- One (1) bolt-in divider shelf CS compartment H

- One (1) adjustable divider shelf 3V

- (28) shelf dividers

MOUNTED ON:

2024 Ford F550 4x4 equipped as follows:

- 19,500 GVWR

- 6.7L Power Stroke V8 Turbo – 330 HP@2200 RPM, 950 lb/ft@1800 RPM

- TorqueShift 10-speed automatic transmission

- Engine block heater

- Front and rear 19.5” x 6” argent painted steel wheels

- Tires – 225/70Rx19.5G BSW traction

- Front axle 7,500lbs

- Rear axles 14,706lbs

- 169” wheelbase

- 4-wheel ABS brakes

- Air conditioning

- Chrome bumper

- Platform running boards

- Rearview camera

- Cruise control

- 40-gallon fuel tank

- SYNC communication with Bluetooth, AM/FM

- Power windows and locks with keyless entry

- 40/20/40 split bench seat- vinyl

- Color white

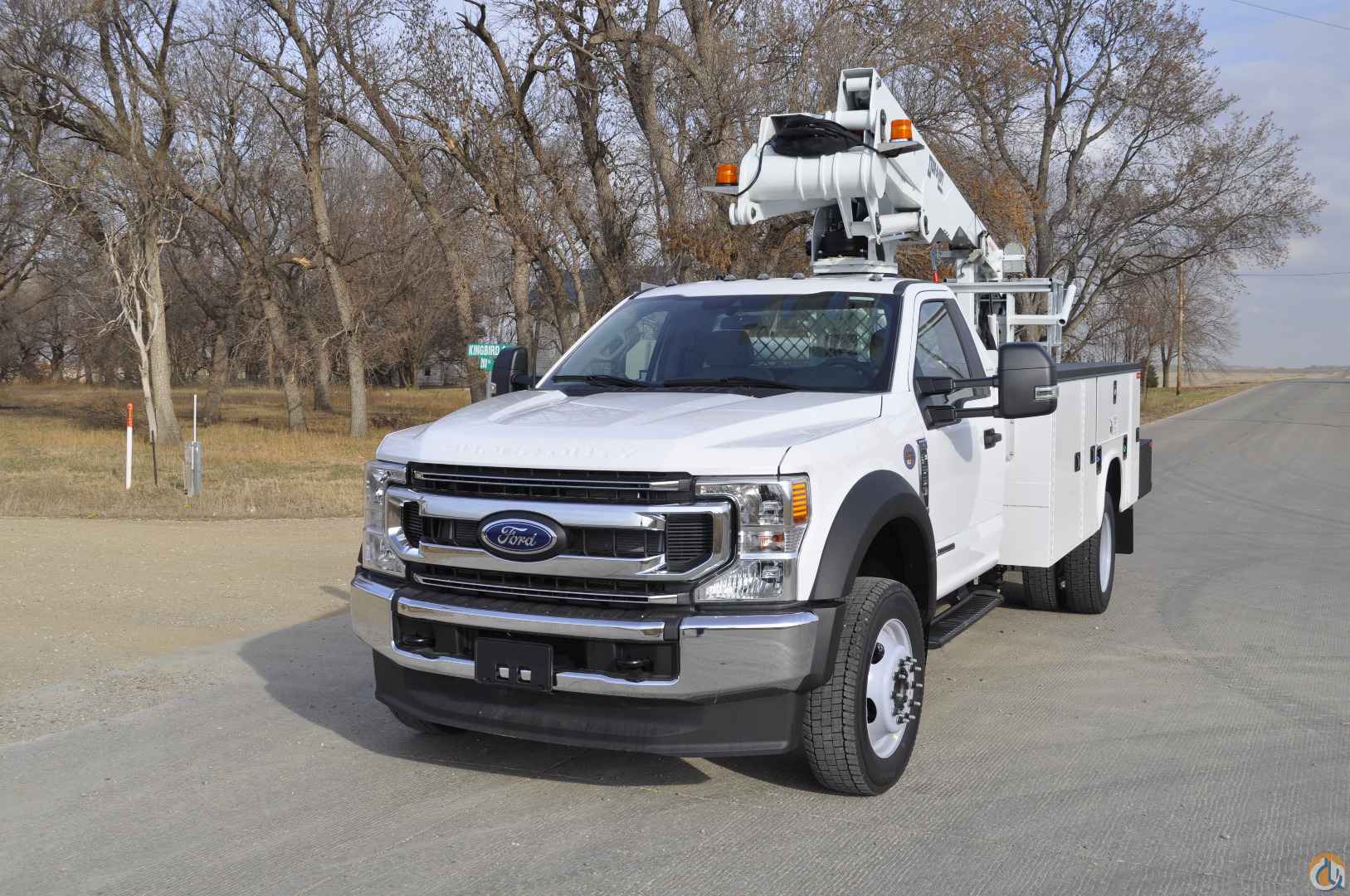

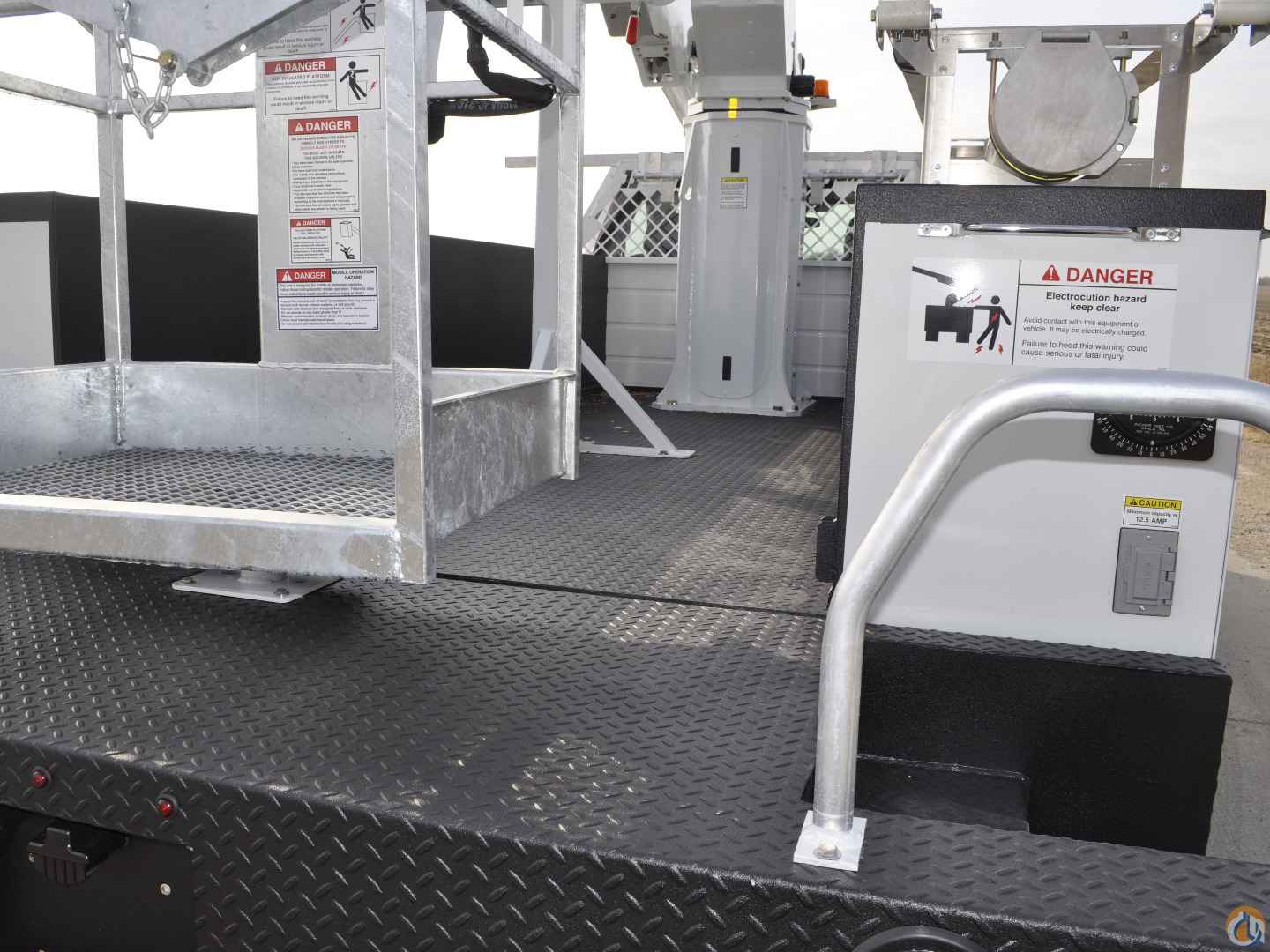

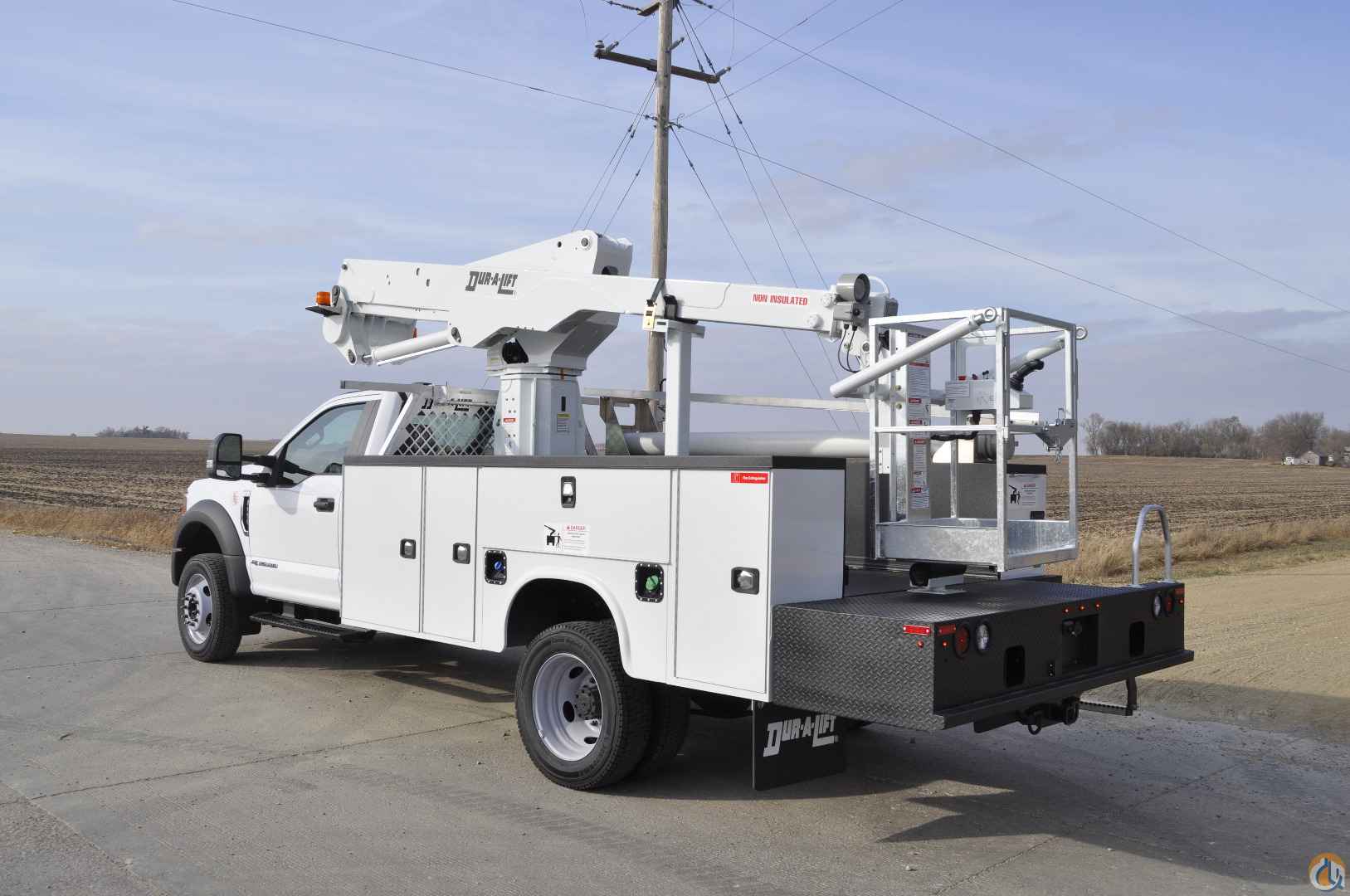

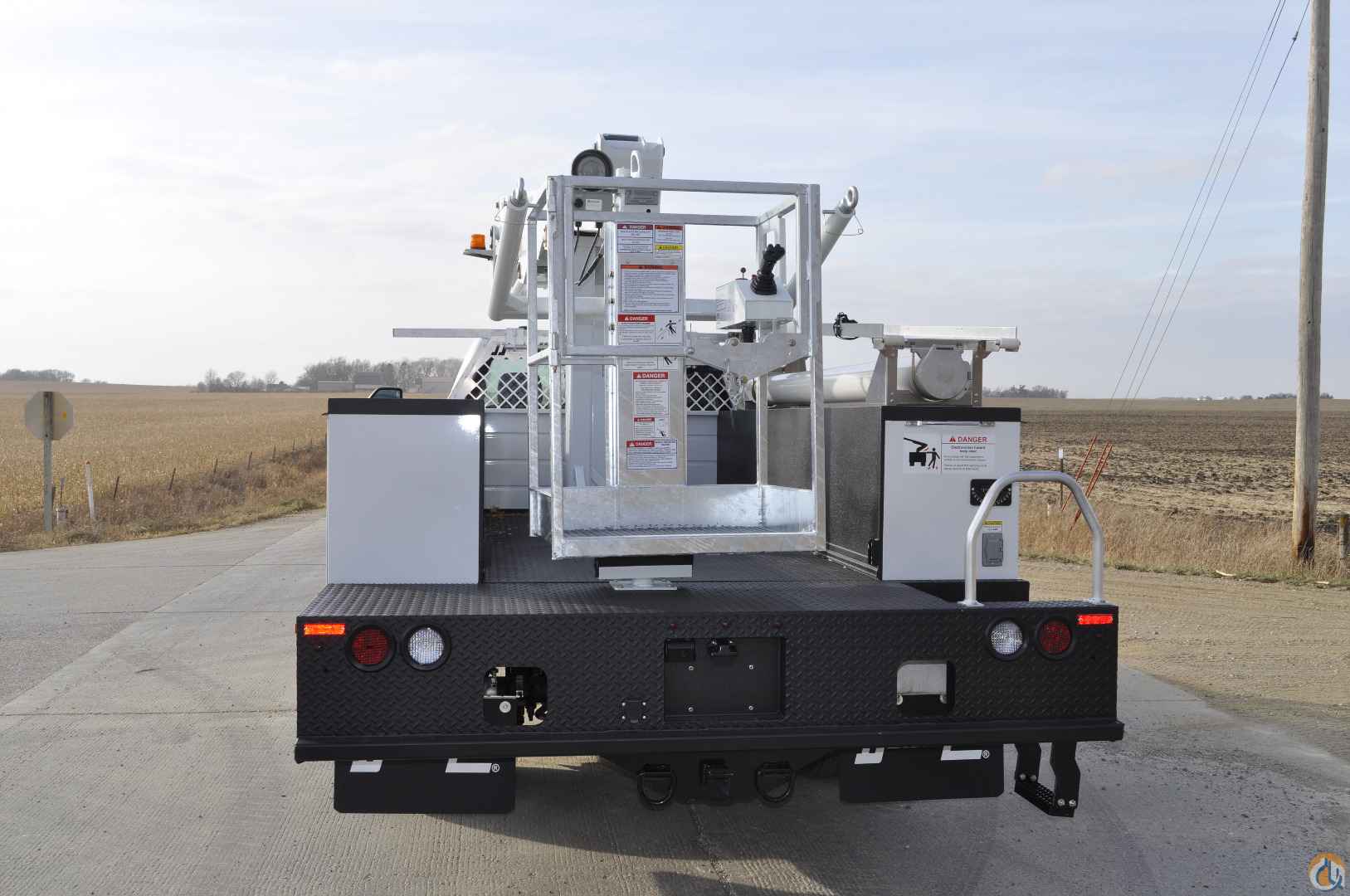

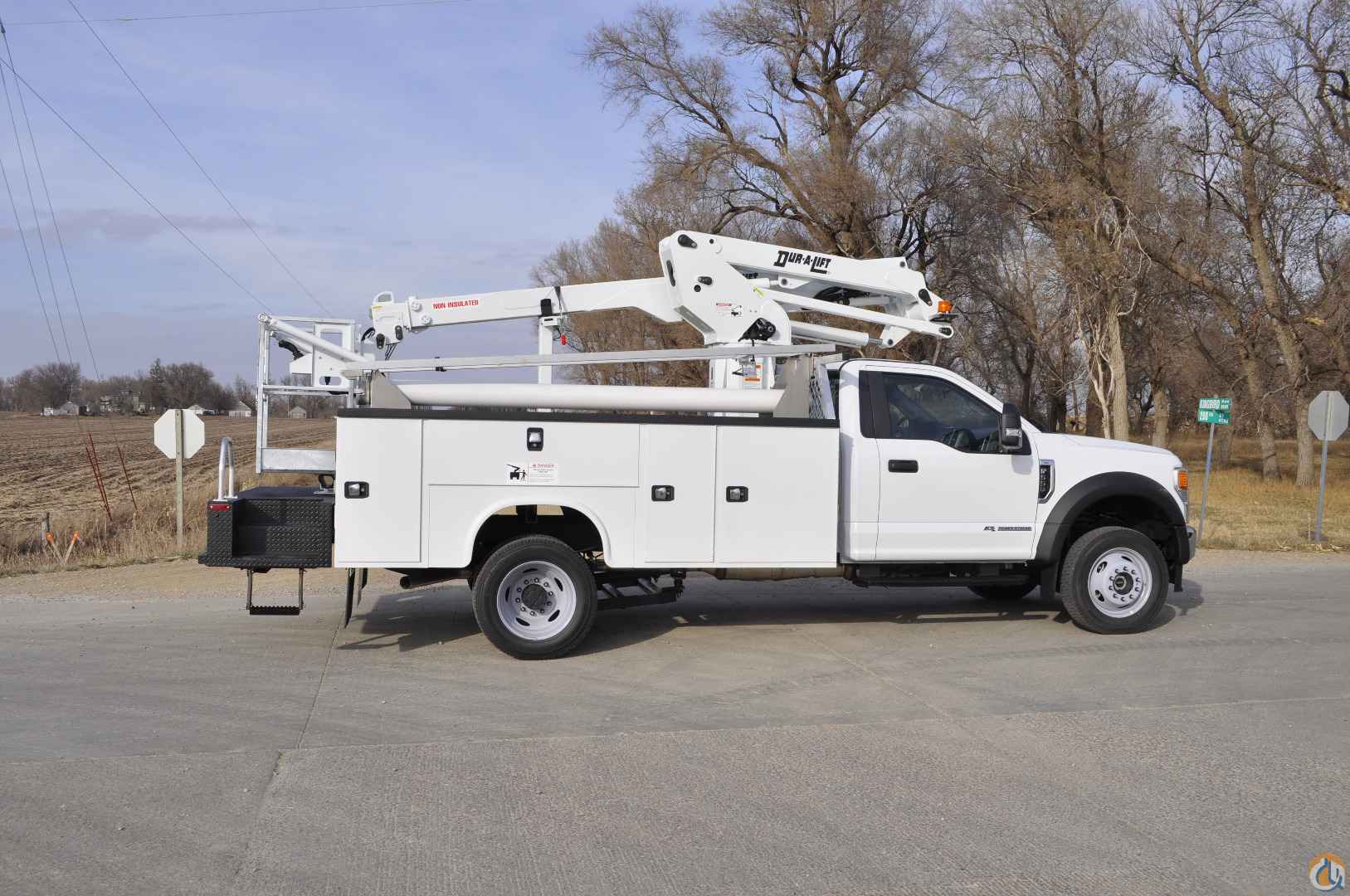

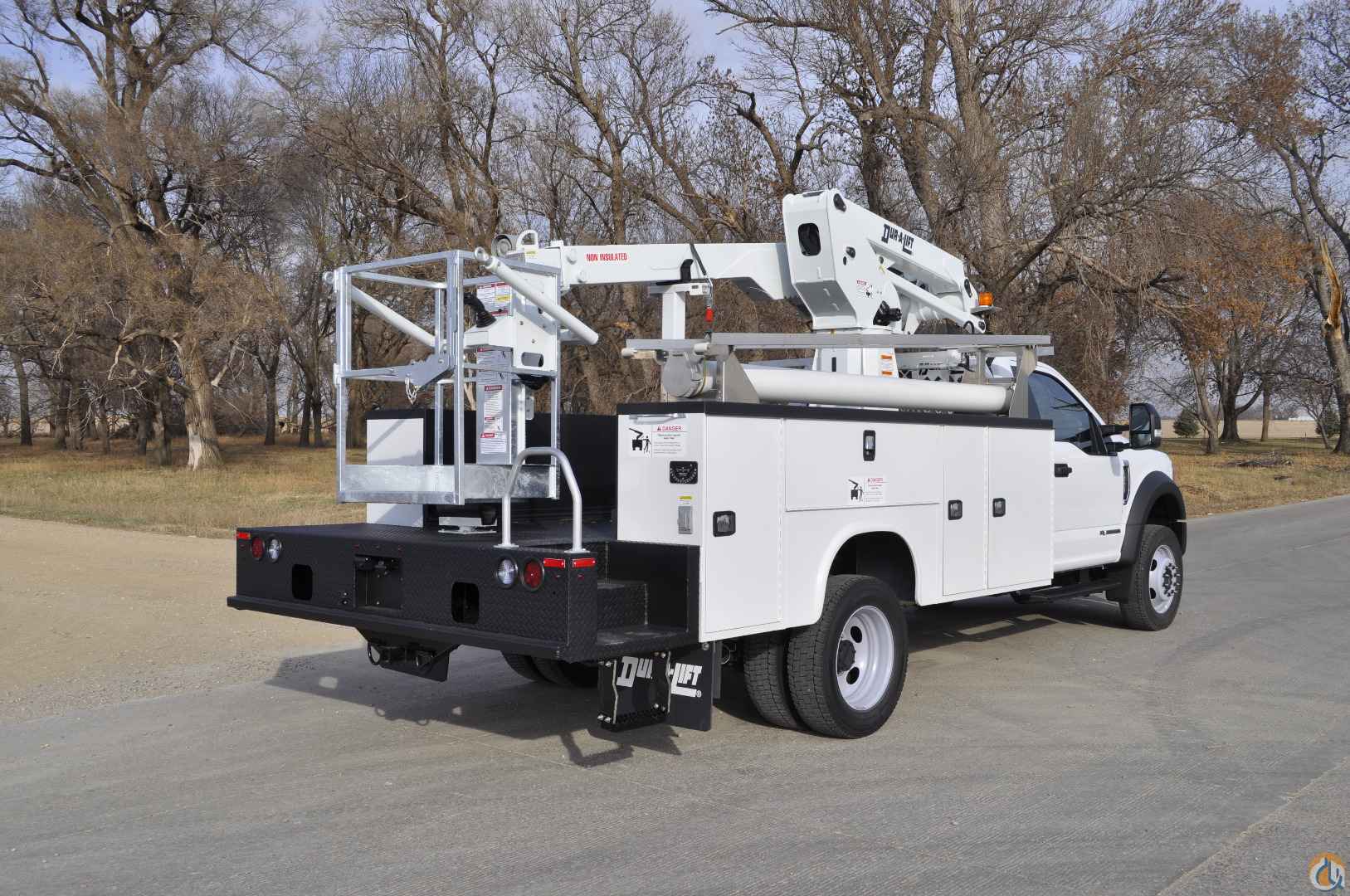

STOCK PHOTOS
