New 40.142 single tridem Kenworth T880

2022 40 Ton with 142ft Boom

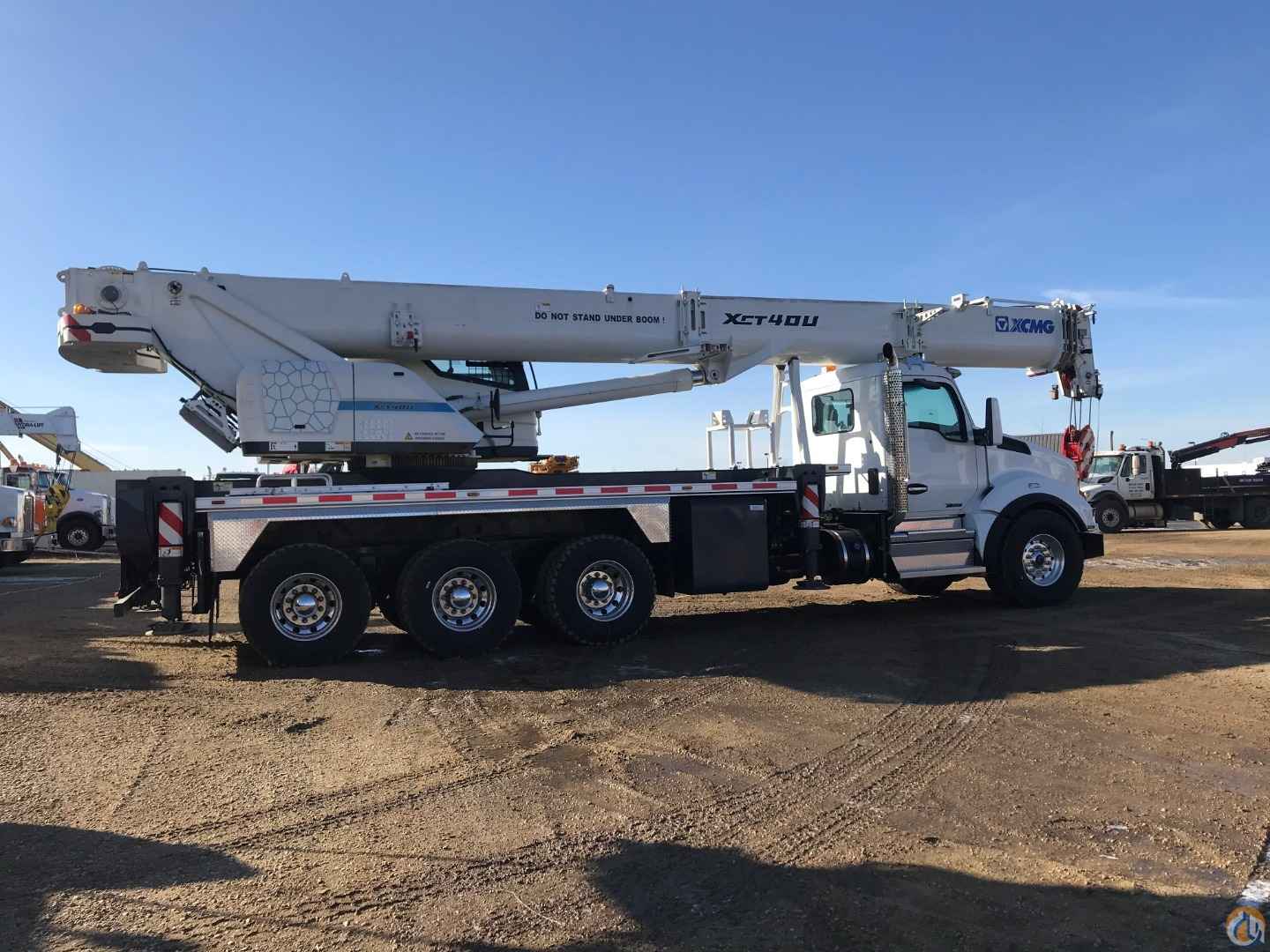

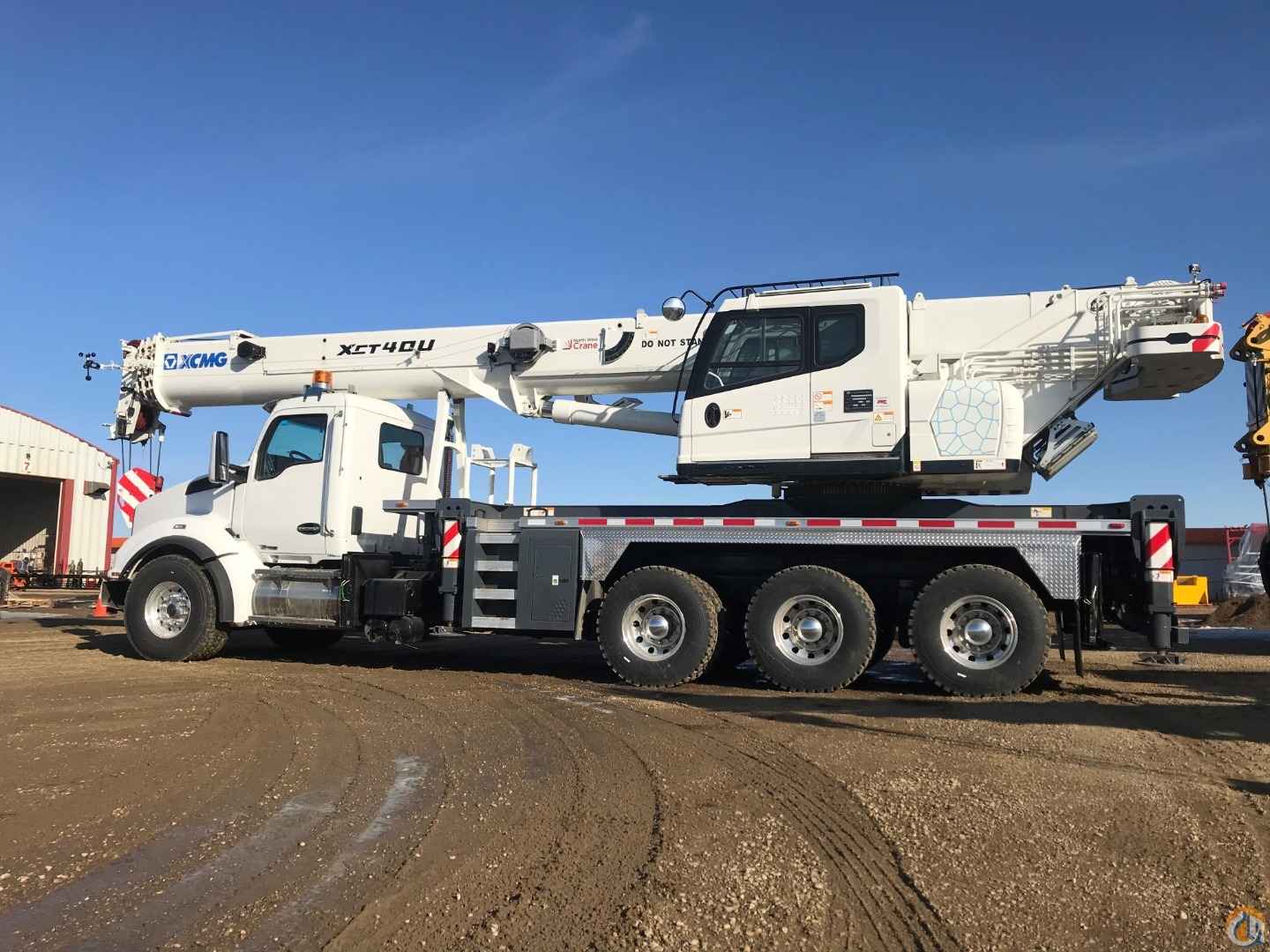

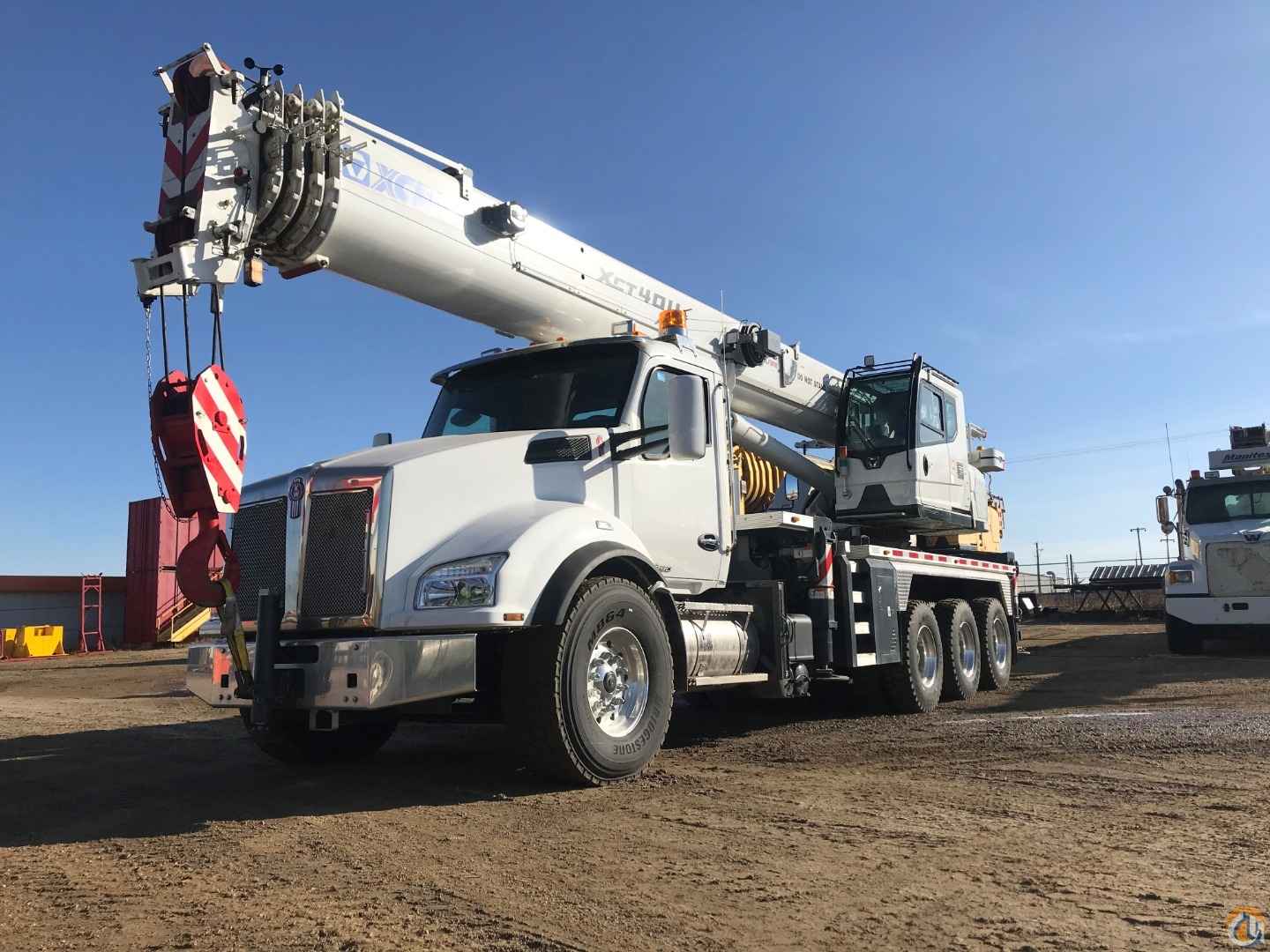

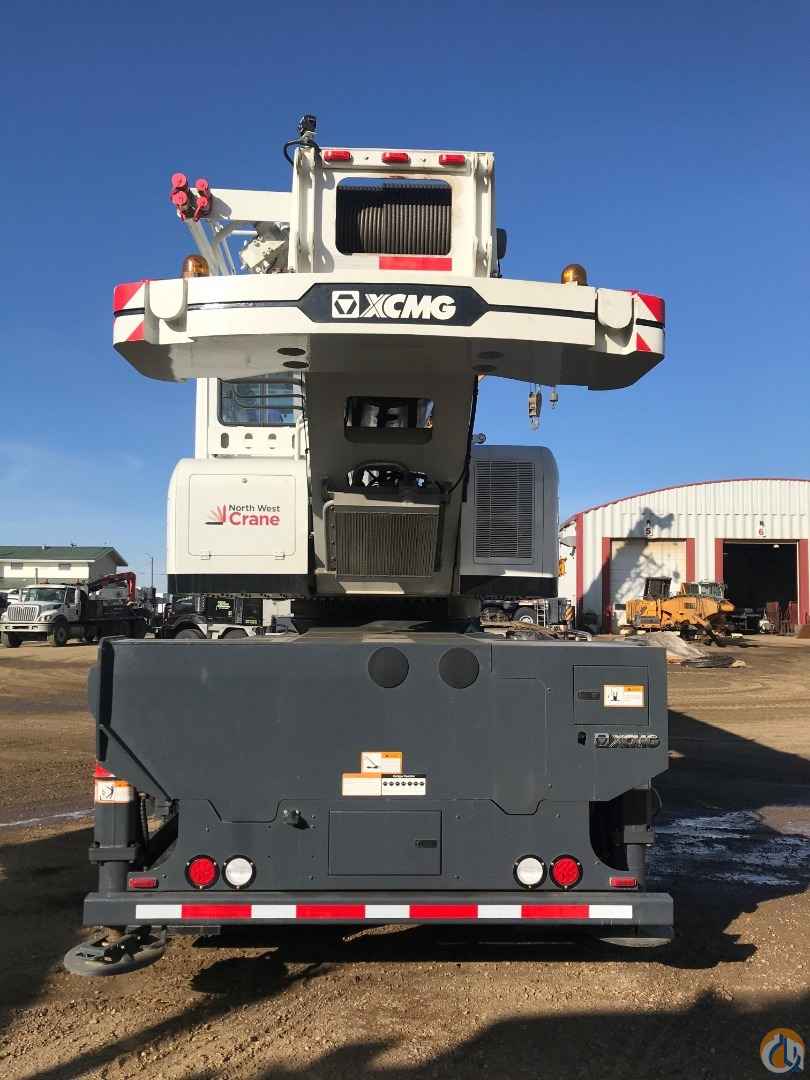

Unit L000049, NEW XCMG XCT40U swing cab crane dedicated carrier, 2022 Kenworth T880 tridem chassis, complete with custom rig-up.

New XCMG XCT40U stiff boom crane complete w/ the following:

· Maximum lifting capacity of 80,200 pounds @ 5’ radius, 40 US Ton Capacity

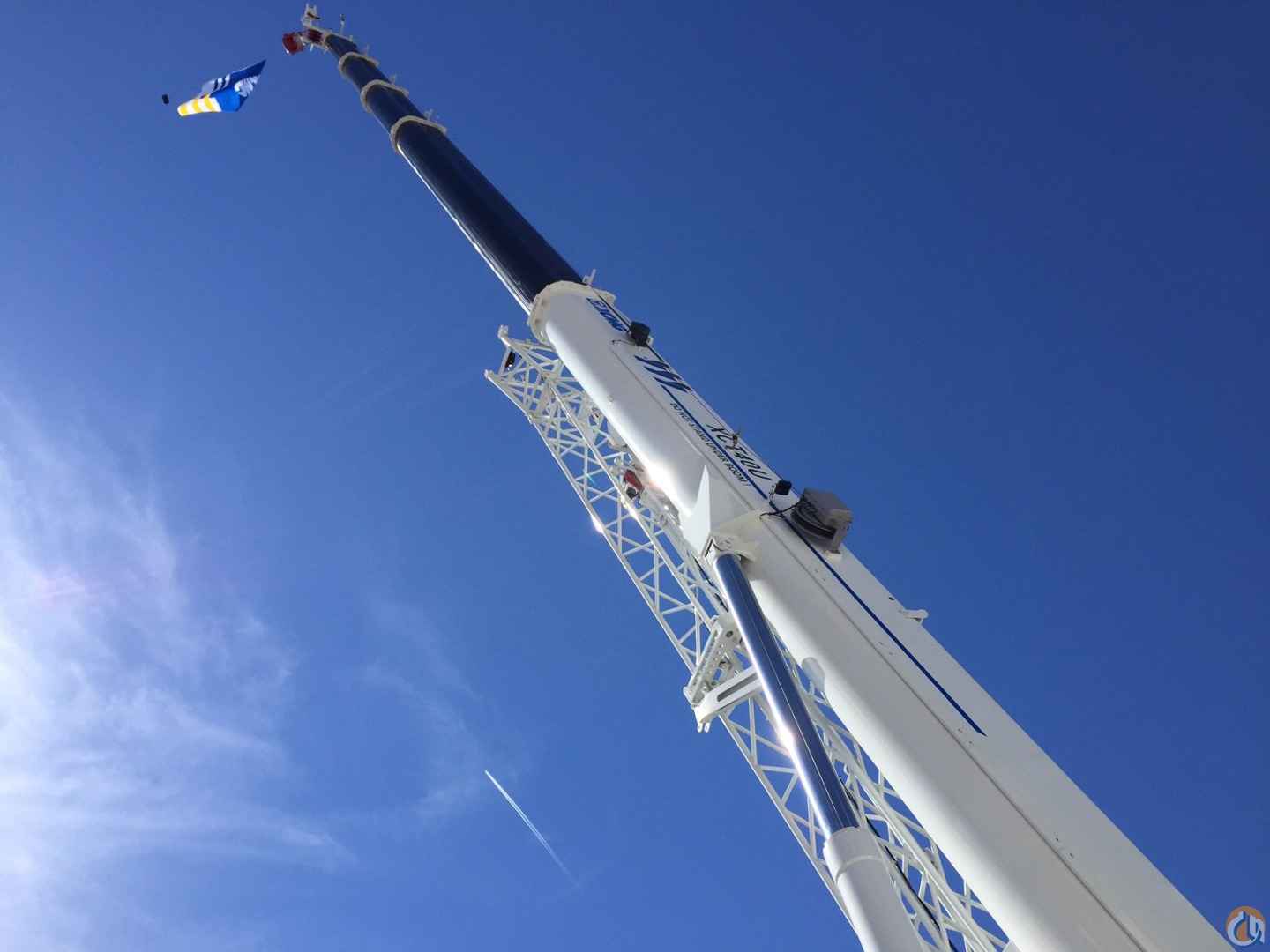

· Five-section U-shape telescopic boom 35.8’ to 142’ (approx. 152’ tip height)

· powered by two-double acting cylinders plus extend/retract cables

· Polymer sheaves for extend/retract hoist cables

· Fixed bi-fold 30.5-53.5’ lattice jib (increases tip height to approx. 205.5’)

· Off-setable to 0, 15 & 30 degrees

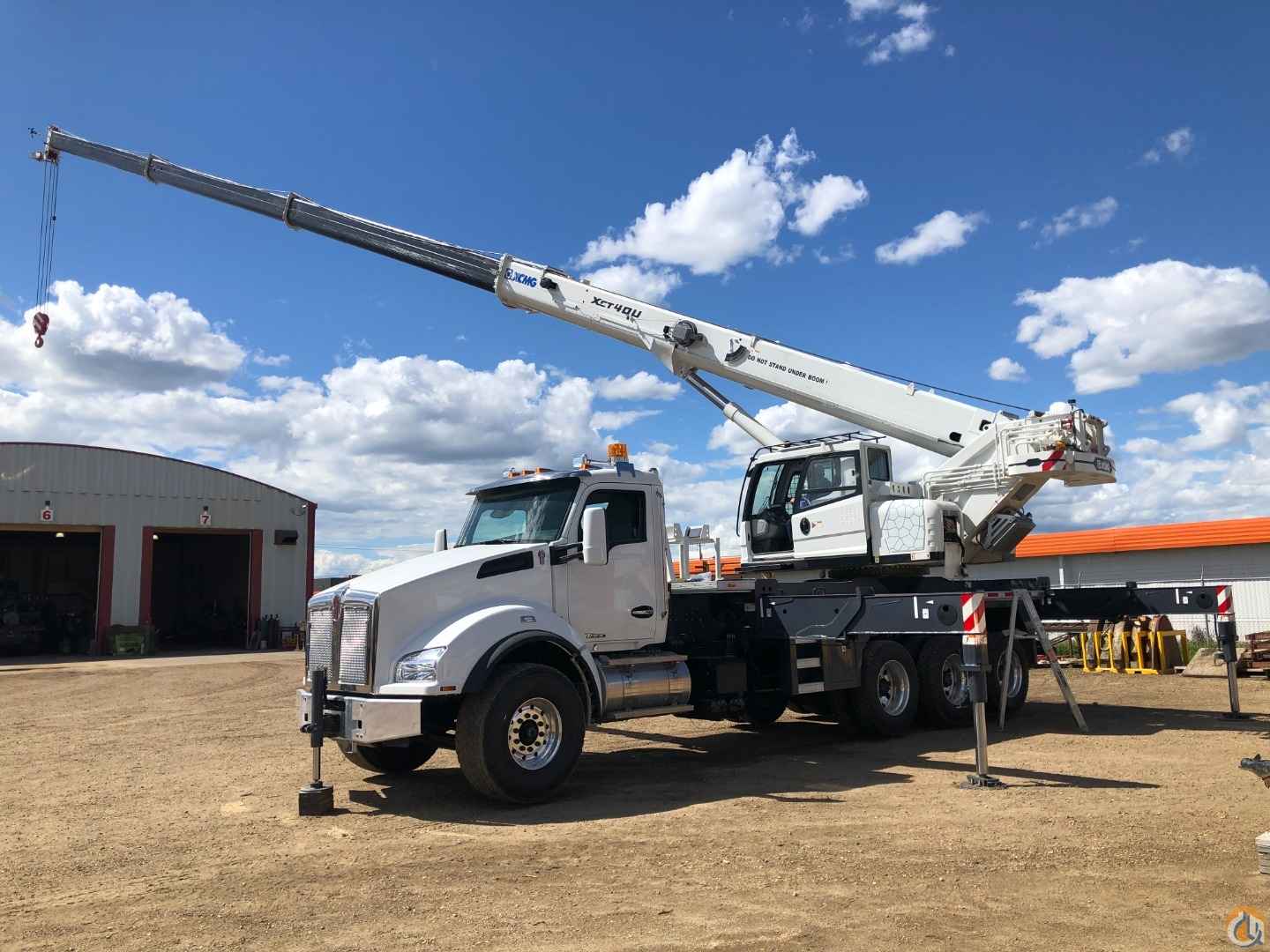

· (4) Out & Down Outriggers – w/ Spreads 7.4’(retracted), 16.00’(half) or 23.6’(full)

· Plus, front bumper stabilizer (for 360-degree load chart)

· Wireless Remote Controls for Outriggers

· Planetary winch w/ grooved drum c/w 410’of 5/8” non-rotational wire rope

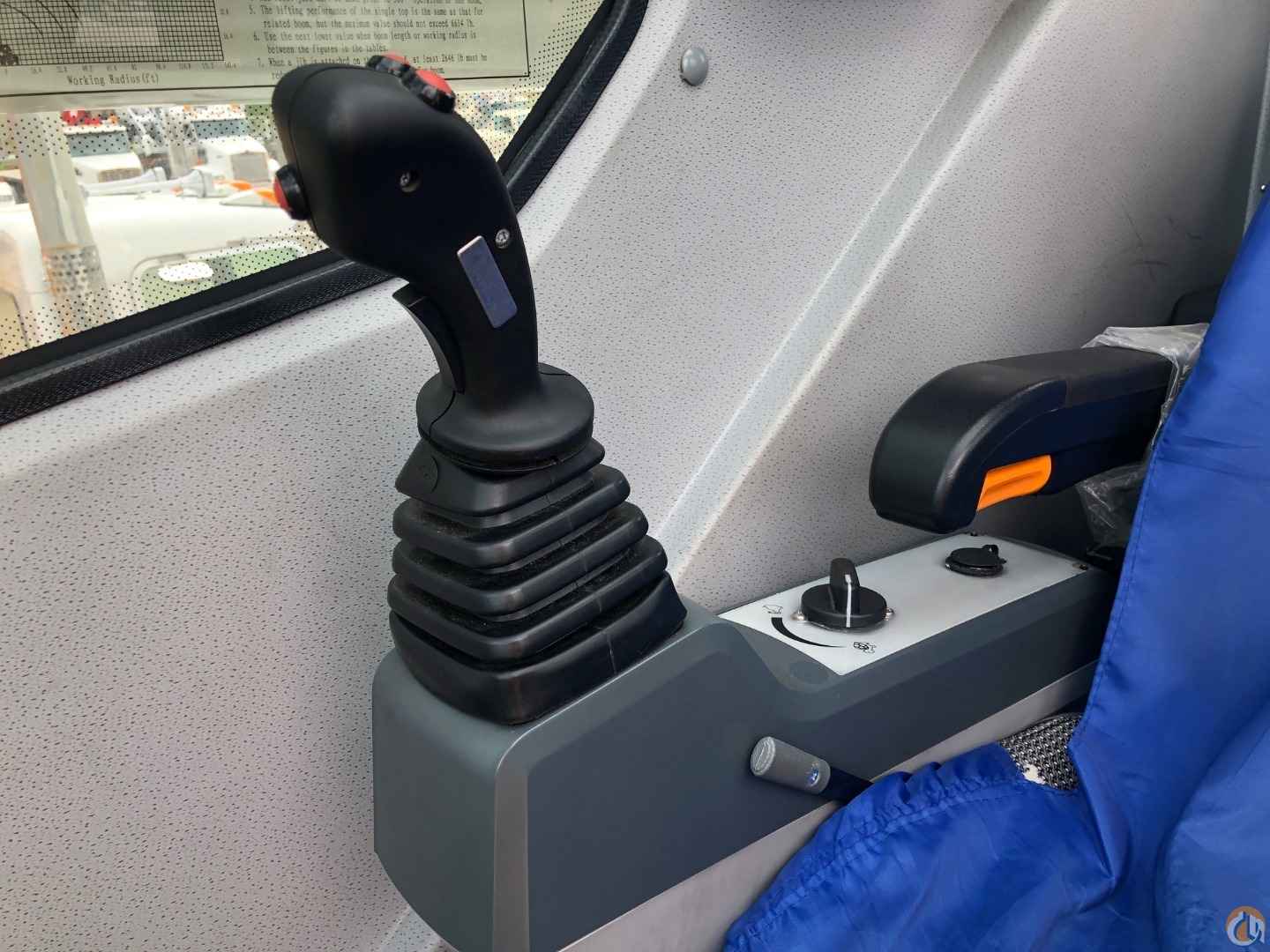

· Vibration joystick control in cab for winch

· Wireless remote controls for winch (for ease of stowing/unstowing the hook on the bumper)

· 4,409lbs fixed counterweight

· 360-degree area of operation

· Continuous slewing and step-less regulation

· Boom length & angle indicators

· Anti-two block

· Anemometer (wind speed indicator)

· Factory sub-frame

· 5.5 Ton hook ball

· 27.5 Ton 3-sheave hook block

· Cameras at the turntable (winch viewing) & boom head (birds eye viewing of lift)

· Energy Saving Hydraulic System (up to 15% saving in fuel)

· 149-gallon hydraulic reservoir w/ magnetic filter, filter and ball valve

· Hydraulic oil cooler

· 2 main pressure compensated pumps allowing for seamless multi-function operation of boom, winch, telescopic functions

· 2 constant fixed displacement pumps for swing, outrigger and crane cab AC.

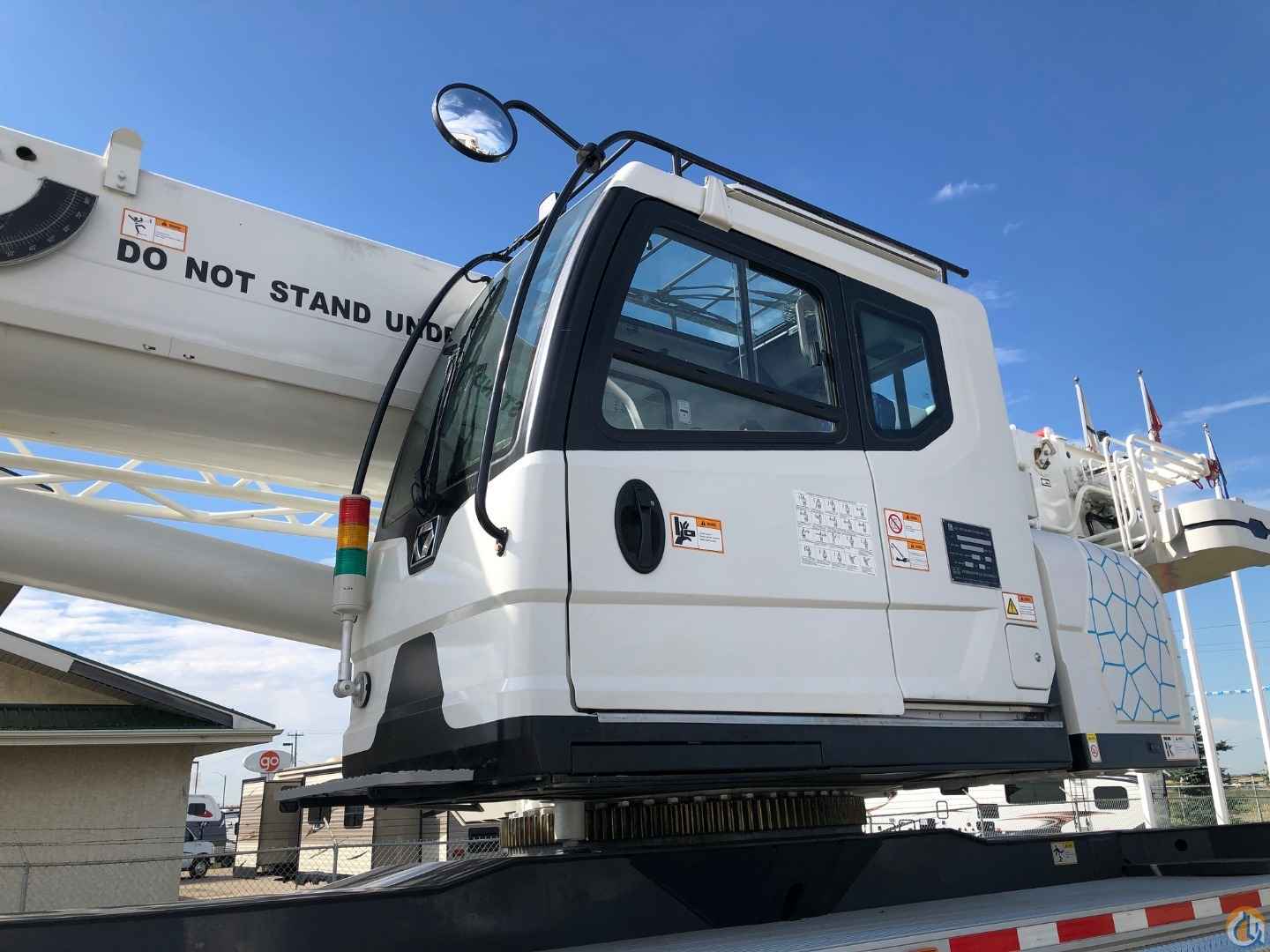

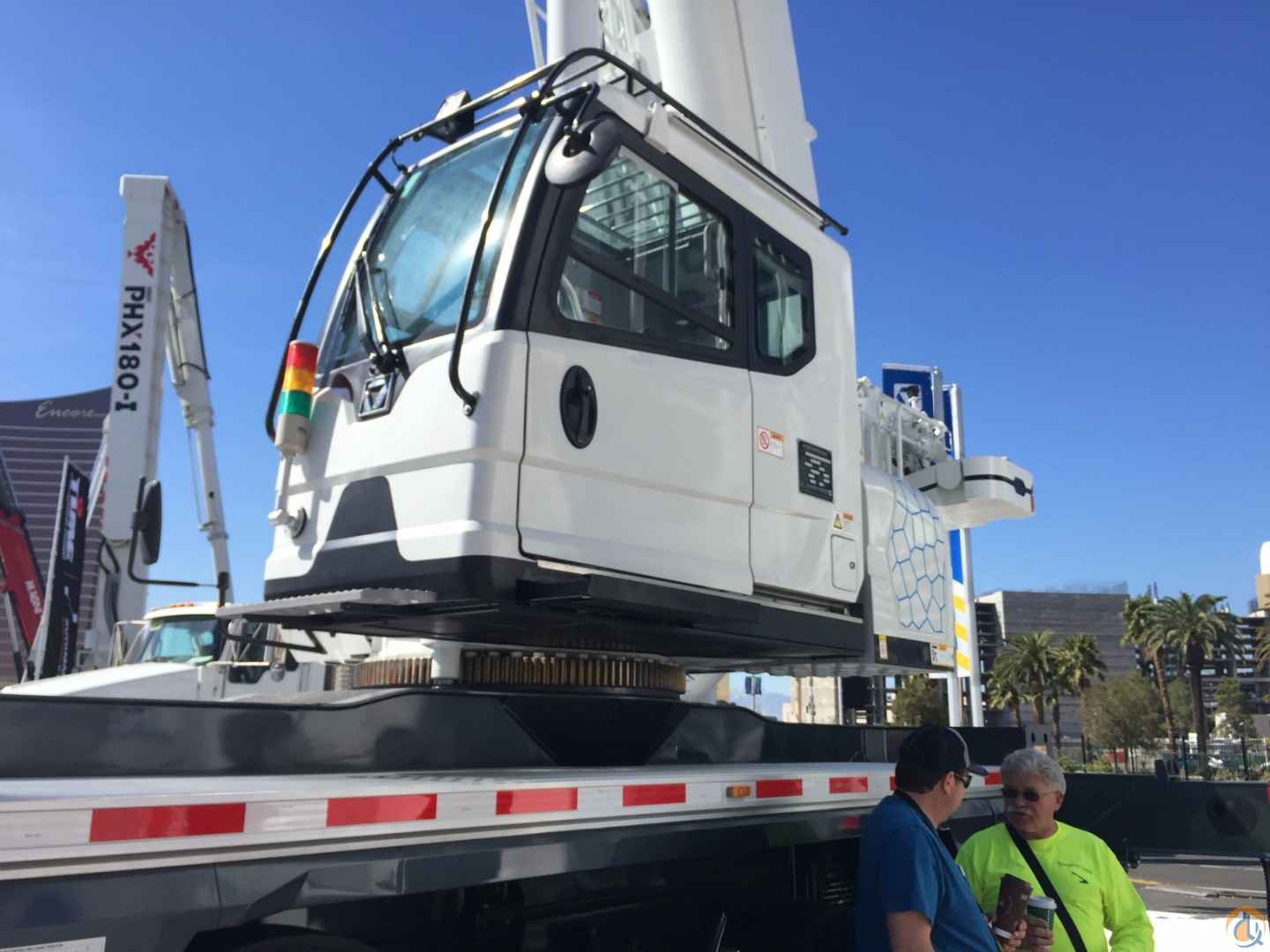

· Operator swing cab c/w:

· 0-20 degree tilt cab

· Cab heater, air conditioning & cooling fan

· Heated operator seat

· Fixed front windshield w/ wiper, washer & cover

· Fixed step on front & pull-out step on side of cab

· Engine Stop/Start

· Foot & hand throttle

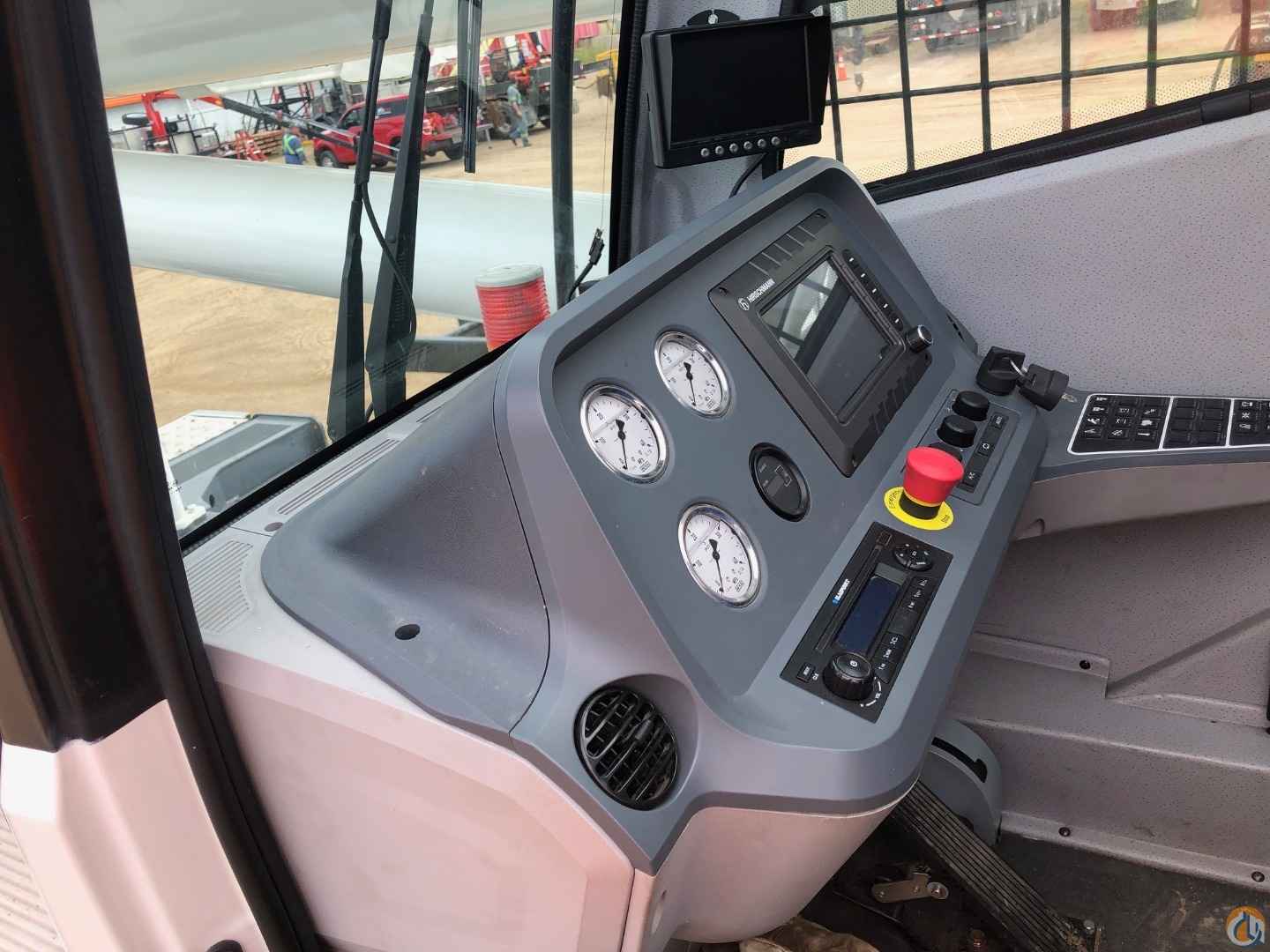

· Load Moment Indicator w/ 7-inch operator display, load planner and audible/visual alarms w/ Basket Mode

· External visual LMI light bar indicator (Green, Yellow, Red) mounted outside on crane cab

· Electronic leveling gauge

· Aluminum deck package c/w:

· Block holder & drop-down ball storage

· Aluminum swing around ladder @ rear of deck on passenger side

· Staircase style ladder @ front of deck on driver side

· Under-deck toolbox on driver side

· Outrigger pad storage c/w 5 composite pads

· Installed on KW Chassis w/ air shift PTO, all hydraulic plumbing, oil & testing

· Stability & NDT Certification

· Operators Service / Maintenance / Parts Manuals

2022 Kenworth T880 Tridem day cab truck

Wheel base 263 inches

MX 510 1850lbsft@1000rpm

Allison 4000RDS 6spd

Paccar 20K lbs front axle

Dana 60-172HP Neway ADZ369 54" spacing

4:78 Ratio

Air Brakes

Full Locking Differentials

445/65R22.4 front tires

12R22.5 rear tires

Aluminum rims

Double Rails

90g Fuel Tank

Grey Vinyl Interior

White Exterior

Rigging includes

. Front Stabilizer

. Custom Fit Fenders

. Outrigger Pad Holders

. Deck access ladders

. Block & Ball

This crane has maximum 40-ton capacity. The main boom length is 142 feet, and it comes with a bi-fold jib that adds an extra 30.5 to 53.5 feet. The crane is ordered with a single winch but is plumbed for dual winches if desired. The unit has a front stabilizer which enables the 360-degree load chart.

The Kenworth T880 tridem truck has a 510 HP PACCAR engine with Allison automatic transmission and well suited for this application.

Our North West Crane rigging is functional and light weight and easy to use.

All major components can be sourced and serviced locally in North America to optimize your uptime. The XCT40U is built with the highest standards of quality control with a full day of factory testing to ensure trouble free operation. We are pleased to offer our North American crane industry a full 2 years/3000 hours warranty on the crane.

We look forward to the opportunity to delivery this unit to you.
